Essential Kit 100W 12V Solar RV Kit
Essential Kit 100W 12V Solar RV Kit - 1*100W 12V Flexible Solar Panel / 12V 30A DC-DC Battery Charger with MPPT / Basic is backordered and will ship as soon as it is back in stock.
Essential Kit 100W 12V Solar RV Kit
Renogy Custom Kit is designed with your convenience in mind, specifically tailored for RV enthusiasts. Our comprehensive range of options ensures that you can create a solar power system that fits seamlessly into your RV lifestyle.
With our custom kits, you can easily power your RV and enjoy the benefits of solar energy on the go. Our kits include a variety of options, including UV-resistant housing, ensuring durability and longevity even in challenging outdoor conditions. Additionally, our kits are equipped with DC-DC assembly, allowing the solar panels not only to charge your RV's battery but also to charge the vehicle's starter battery.
No more hunting for compatible components from multiple sources – everything you need is conveniently packaged and ready to go.

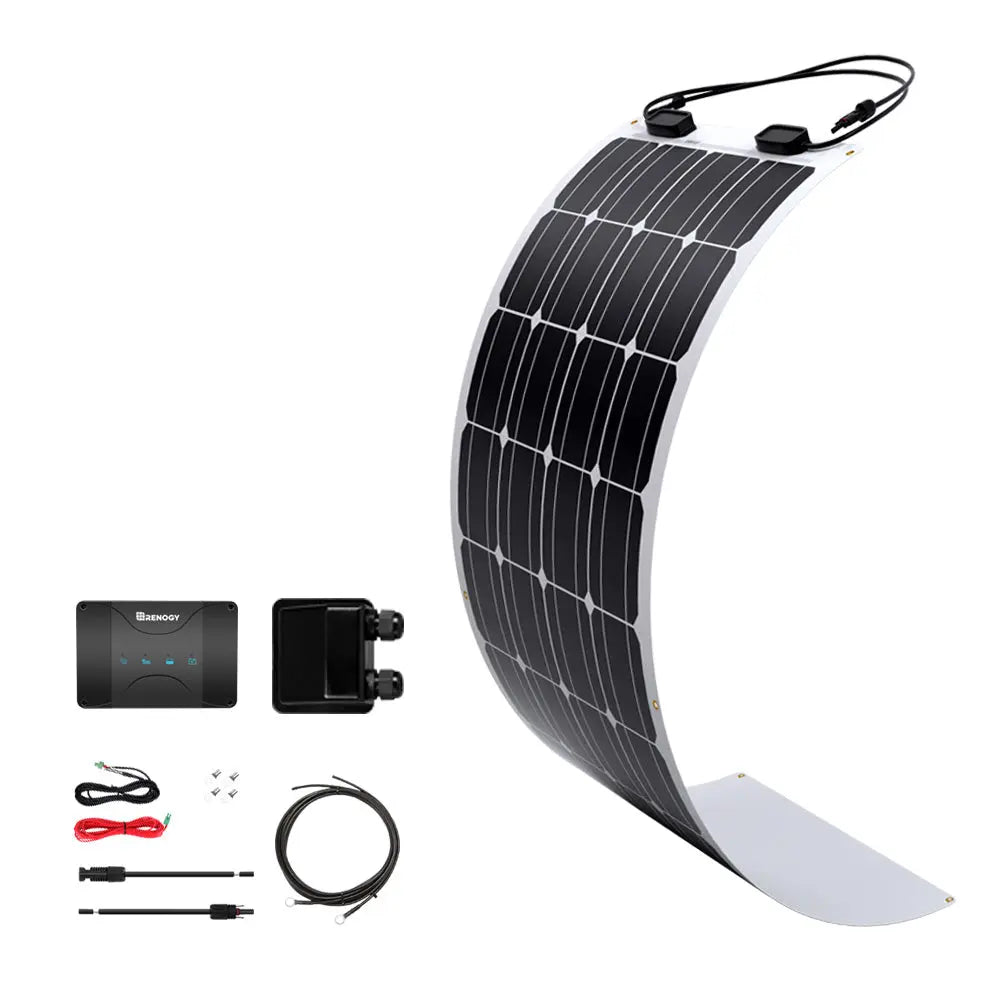

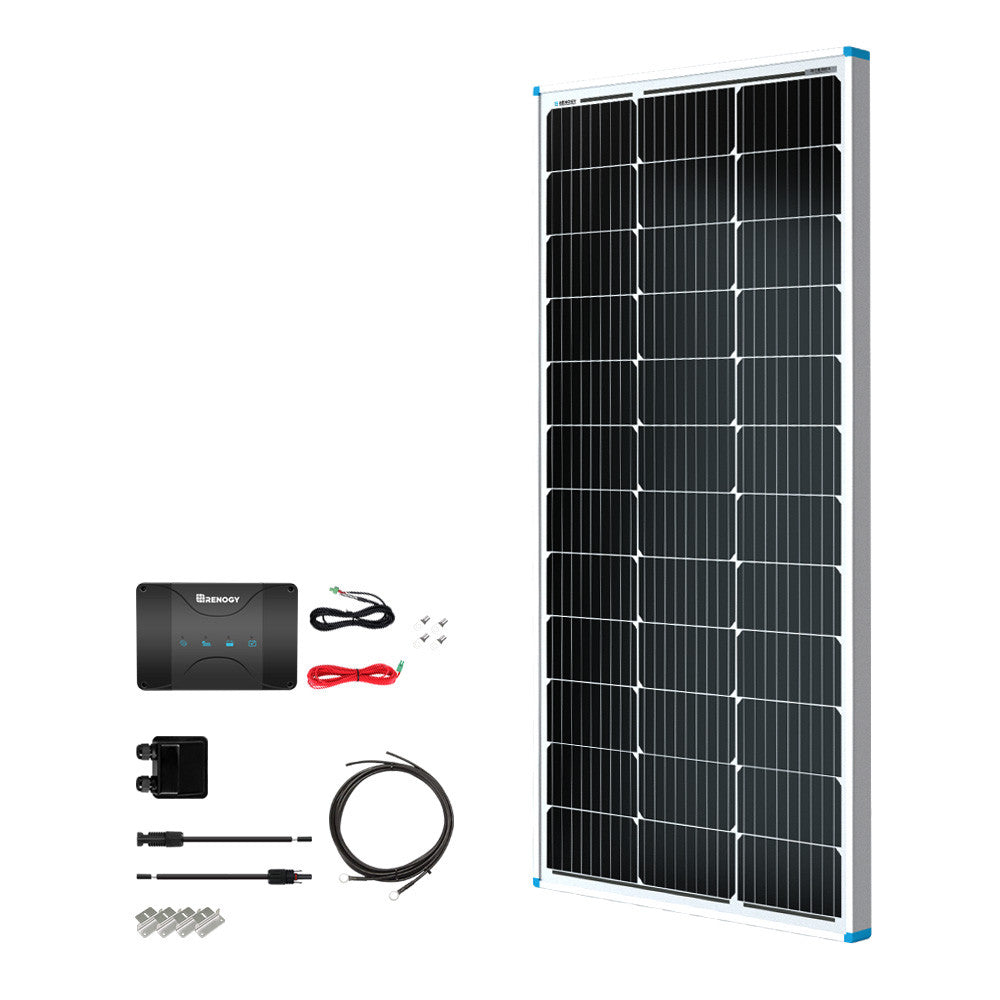

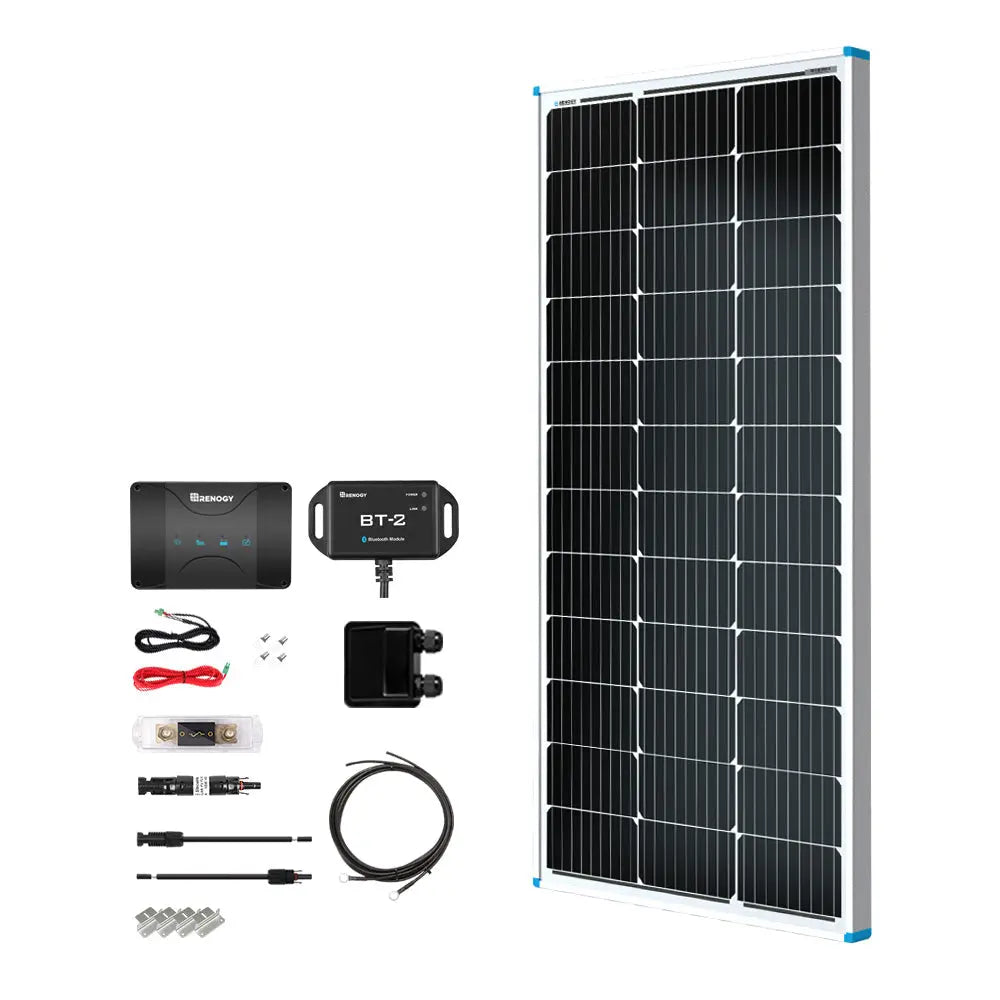

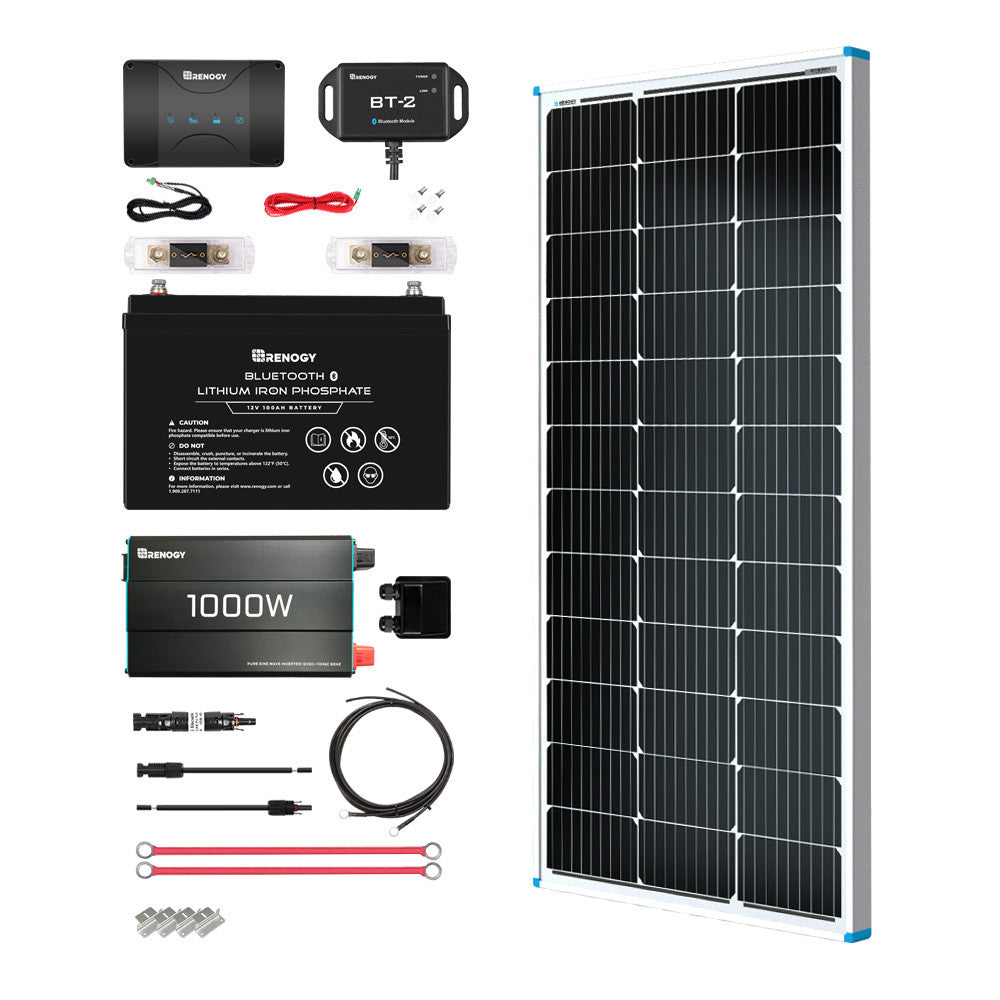

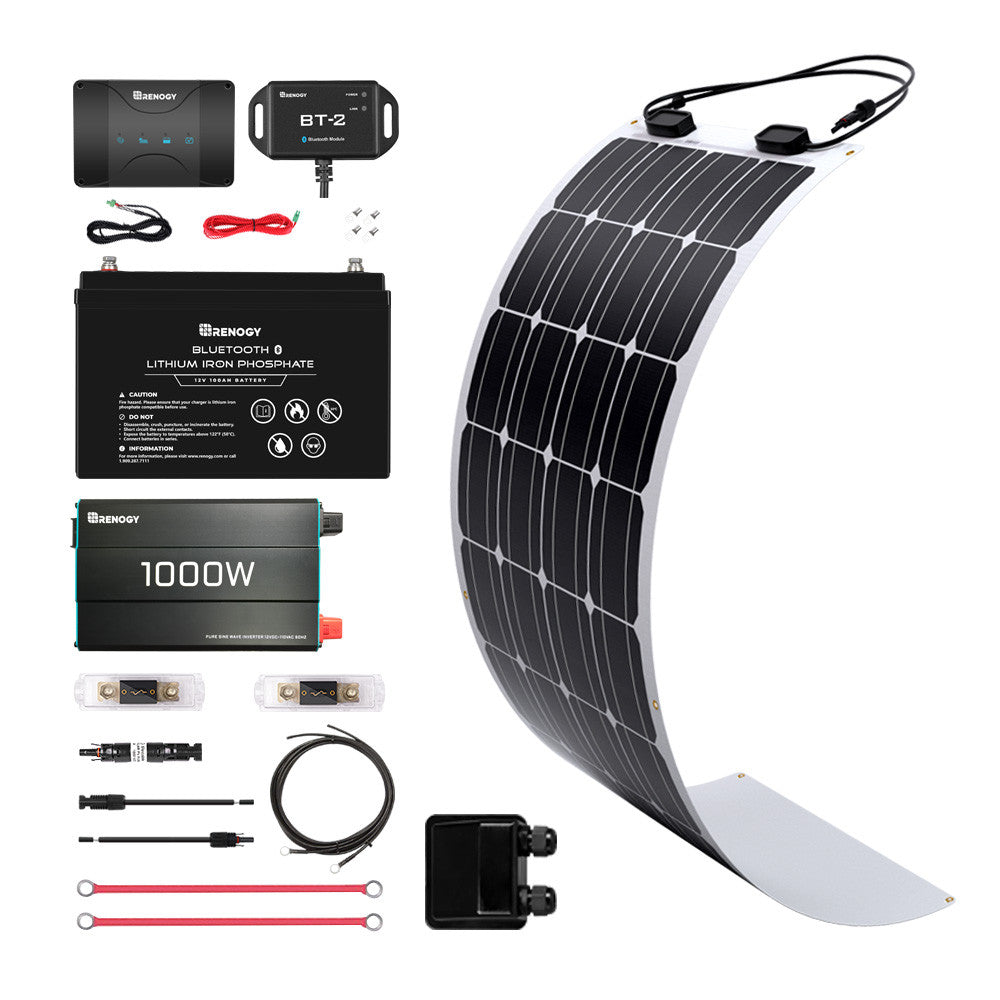

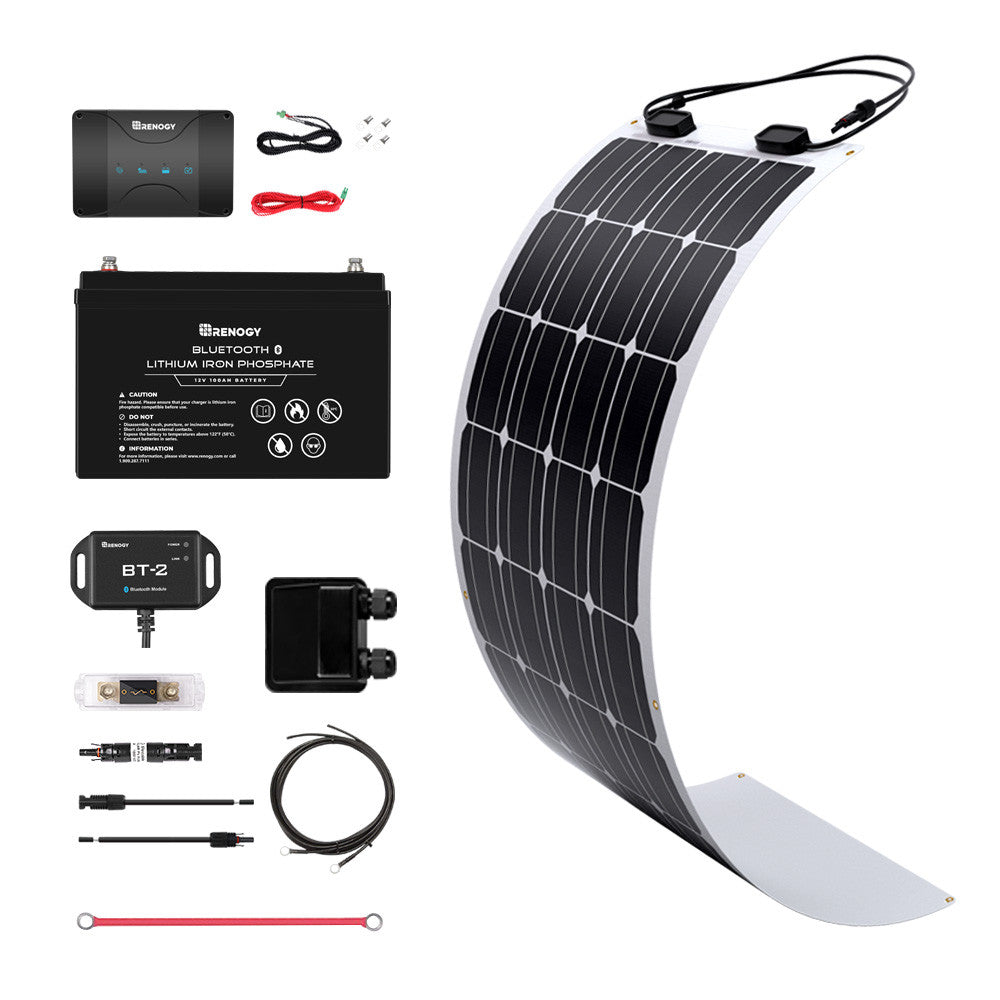

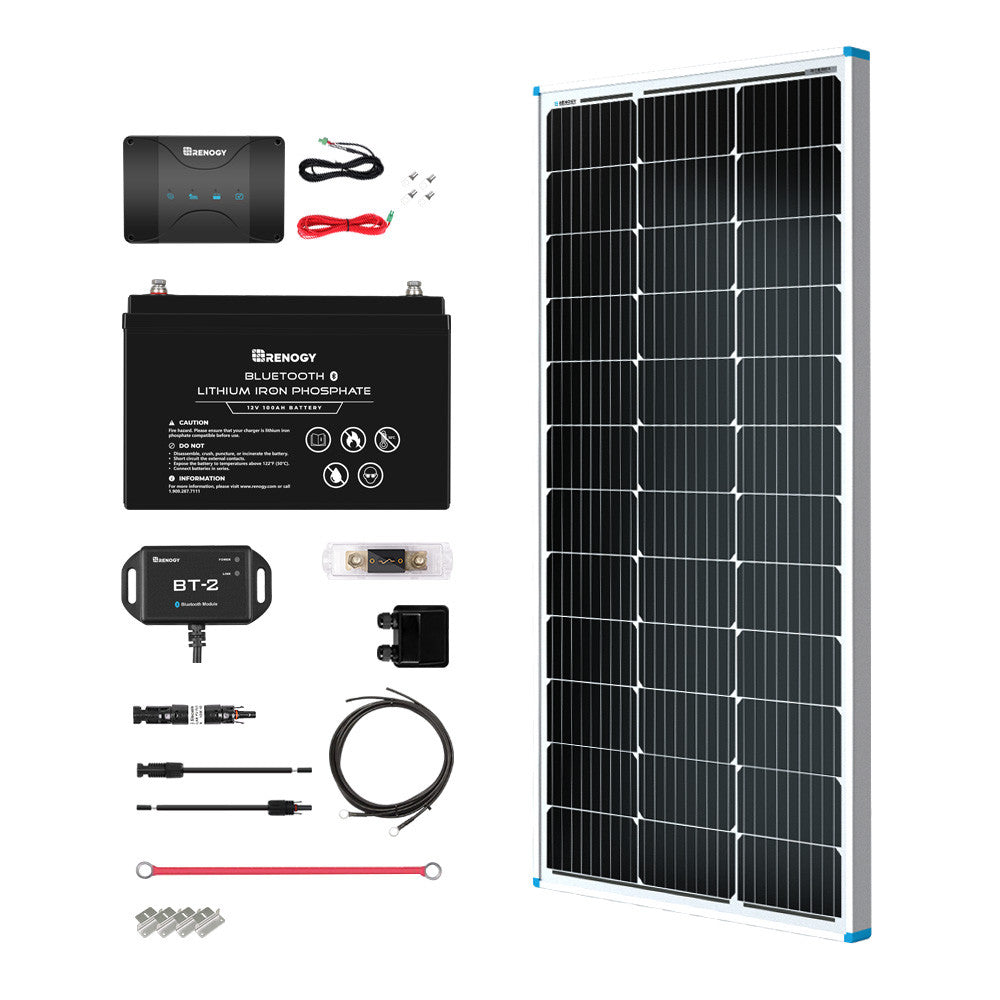

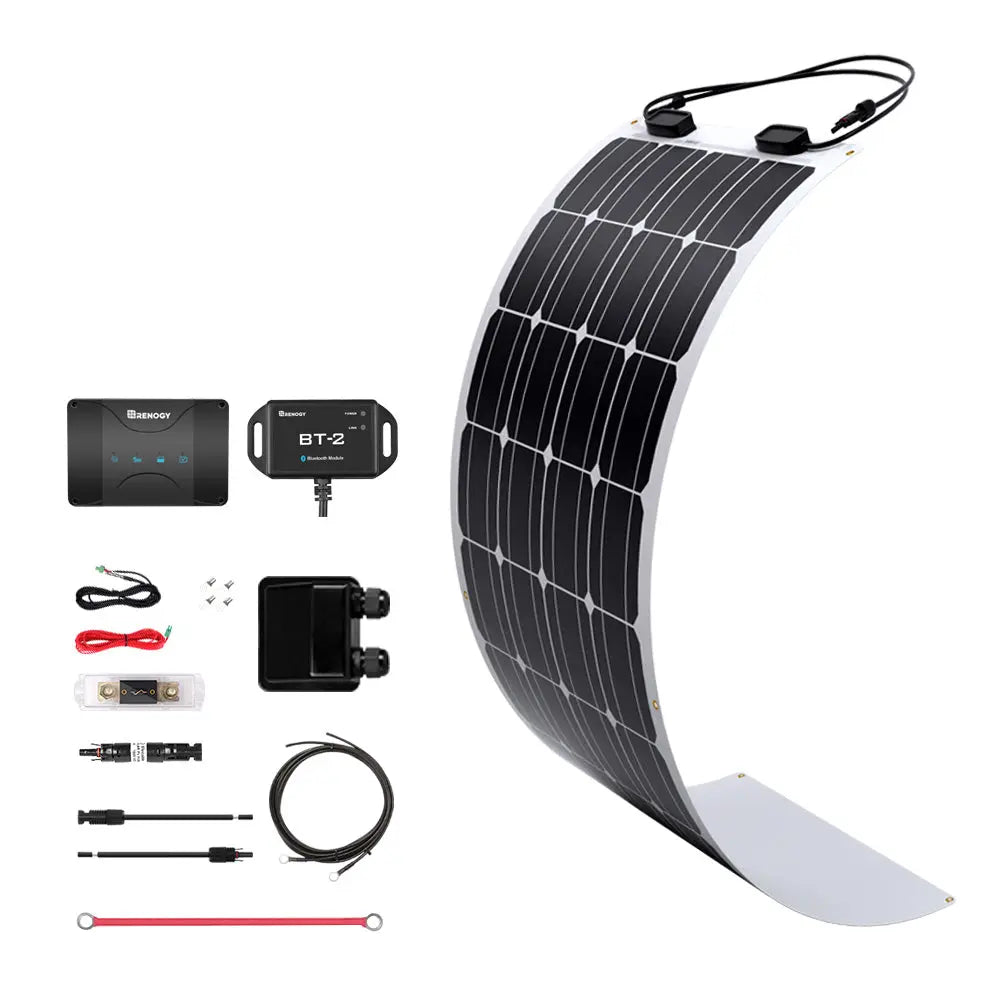

The Kits come with 1pcs of 100W classic rigid (or ultra flexible) solar panels, 1pcs of 30A DC-DC On-Board Battery Charger with MPPT, no battery or 1pcs of 100Ah smart lithium battery with self heating feature (or the economical lithium battery with built-in Bluetooth), no inverter or 1pcs of 1000W pure sine wave inverter (or inverter charger), and all necessary accessories including cables, connectors, mounts and monitoring to connect the main components you have chosen.
*Based on an average of peak sun hours around 5-6.
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or submit a ticket for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center!
Package Includes
| Solar Panel | Quantity*Title |
|---|---|
| 1*100W 12V Rigid Solar Panel | |
| 1*100W 12V Flexible Solar Panel | |
| Charge Controller
|
Quantity*Title |
| 1*12V 30A DC-DC On-Board Battery Charger with MPPT | |
| Battery
|
Quantity*Title |
| 1*12V 100Ah LiFePO4 Battery W/ Bulit-in Bluetooth | |
| 1*12V 100Ah Self-Heating LiFePO4 Battery W/ BT2 Module | |
| Inverter | Quantity*Title |
| 1*1000W 12V Pure Sine Wave Inverter | |
| 1* ANL Fuse Set w/ Fuse | |
| 1*FUSE CABLE | |
| Accessory Set/Basic | Quantity*Title |
| 1*Solar Panel Mounting Z Bracket -- Set of 4(rigid solar panel) | |
| 1*Solar Panel to Charge Controller Adaptor Kit | |
| 1*Battery to Charge Controller Tray Cables | |
| 1*Solar Double Cable Entry Gland | |
| Accessory Set/Premium | Quantity*Title |
| 1*Solar Panel Mounting Z Bracket -- Set of 4(rigid solar panel) | |
| 1*Solar Panel to Charge Controller Adaptor Kit | |
| 1*Battery to Charge Controller Tray Cables | |
| 1*Solar Double Cable Entry Gland | |
|
1*BT-2 Bluetooth Module |
|
| 1*Holder w/ Fuse | |
| 1*ANL Fuse Set w/ Fuse | |
| 1*Terminals for 3/8 in Lugs |
Max Power at STC: 100W
Open Circuit Voltage: 24.3V
Short Circuit Current: 5.21A
Optimum Operating Voltage: 20.4V
Optimum Operating Current: 4.91A
Operating Temperature: -40°F to 176°F
Maximum System Voltage: 600V DC (UL)
Maximum Series Fuse Rating: 15A
Dimensions: 41.8 x 20.9 x1.38 in
Weight: 14.1lbs/6.4kg
Maximum Power at STC: 100W
Optimum Operating Voltage (Vmp): 18.9V
Open-Circuit Voltage (Voc): 22.5V
Short Circuit Current: 5.75 A
Optimum Operating Current (Imp): 5.29 A
Maximum System Voltage: 600V DC
Maximum Series Fuse Rating: 15A
Certifications: CE, ISO
Operating Temperature: -40°F to 176°F (-40ºC to +80ºC)
Dimensions: 48.0 x 21.6 x 0.08 in (1219 x 546 x 2 mm)
Weight: 4.2 lbs (1.9 kg)
opc:
System Voltage: 9-16VDC
Maximum Charging Current: 30A
Battery Types: SLD/AGM, GEL, FLD, LISER
Service Battery Charging Mode: MPPT
Charging Efficiency: Up to 97%
Max. Solar Input Voltage: 25V
Max. Solar Input Power: 400W
Terminal Size: M8*1.25 - 10mm
Ground Type: Negative
Operating Temperature Range: -31°F - 149°F
Storage Temperature Range: -40°F - 176°F
Dimensions: 9.6*5.7*3.0in
Weight: 3.13Ibs
Communication Protocol: RS485
Battery Type: Lithium Iron Phosphate
Rated Capacity: 100 Ah
Nominal Voltage: 12.8 V
Voltage Range: 10~14.8 V
Cycle Life(0.5C,25℃): 80%DOD 2000 Cycles
Connection Method: Parallel(Up to 8)
Protection Rate: IP65
Charge Voltage: 14.4V
Maximum Continuous Charging Current: 50 A
Maximum Continuous Discharging Current: 100 A
Standard Operation Temperature: 25℃±5℃
Charge Temperature: 32~131°F/ 0~55°C
Discharge Temperature: -4~140°F/ -20~60°C
Communication Port: Modbus
Built-in Bluetooth: Yes
Dimensions: 12.99 x6.77 x 8.43 inch / 330 x 172 x 214mm
Weight: 28.7 lbs. / 13.0 kg
opc:
Battery Type: Lithium Iron Phosphate
Rated Capacity: 100AH
Nominal Voltage: 12.8 V
Cycle Life(0.2C,25℃): 80%DOD 4000 Cycles
Connection Method: Parallel
Protection Rate: IP54
Charge Voltage: 14.4V
Maximum Continuous Charging Current: 50 A
Maximum Continuous Discharging Current: 100 A
Automatically Self-heating Function: Temperature < 41℉（5℃）
Standard Operation Temperature: 25℃±5℃
Storage Temperature: -13~149℉ / -25~65℃
Communication Port: RJ45 (RS485 Protocol)
Built-in Bluetooth: No
Dimensions: 11.4 x 6.8 x 7.4 inch / 289 x 172 x 187.5 mm
Weight: 26 lbs. / 11.8 kg
Continuous Output Power: 1000W
Peak Power Rating: 2000W
Output Voltage: 115V
Output Frequency: 60 Hz ± 0.1%
AC Output Sockets: 2
AC Terminal Block: 1
USB Power Port: 5V/2.1A
Power Output Control: AC On/Off Switch, and Remote Control
Output Waveform: Pure Sine Wave
Nominal Efficiency: > 90%
Operating Temperature Range: -4°F - 104°F
Cooling Fan: Thermally controlled
Dimensions: 12.9 x 6.8 x 3.3 in
Weight: 6.0 lb
Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty
Accessories: 1-year material and workmanship warranty
1. What do I need to complete my off-grid solar power system ?
A solar panel has to be connected to a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.
2. What does off-grid and on-grid mean ?
3. Can I add more solar panels to the Rover 60A and expand my system power output?
4. Will this solar kit power my AC unit ?
5. When do I need an inverter ?
 |
