150A/250A/350A Class T Fuse with Set

SKU: RPD150CTF-SET-US
$26.99
+   Renogy Rays after purchase.
Log In About Rays

  • Provide reliable performance for your battery system up to 250V.

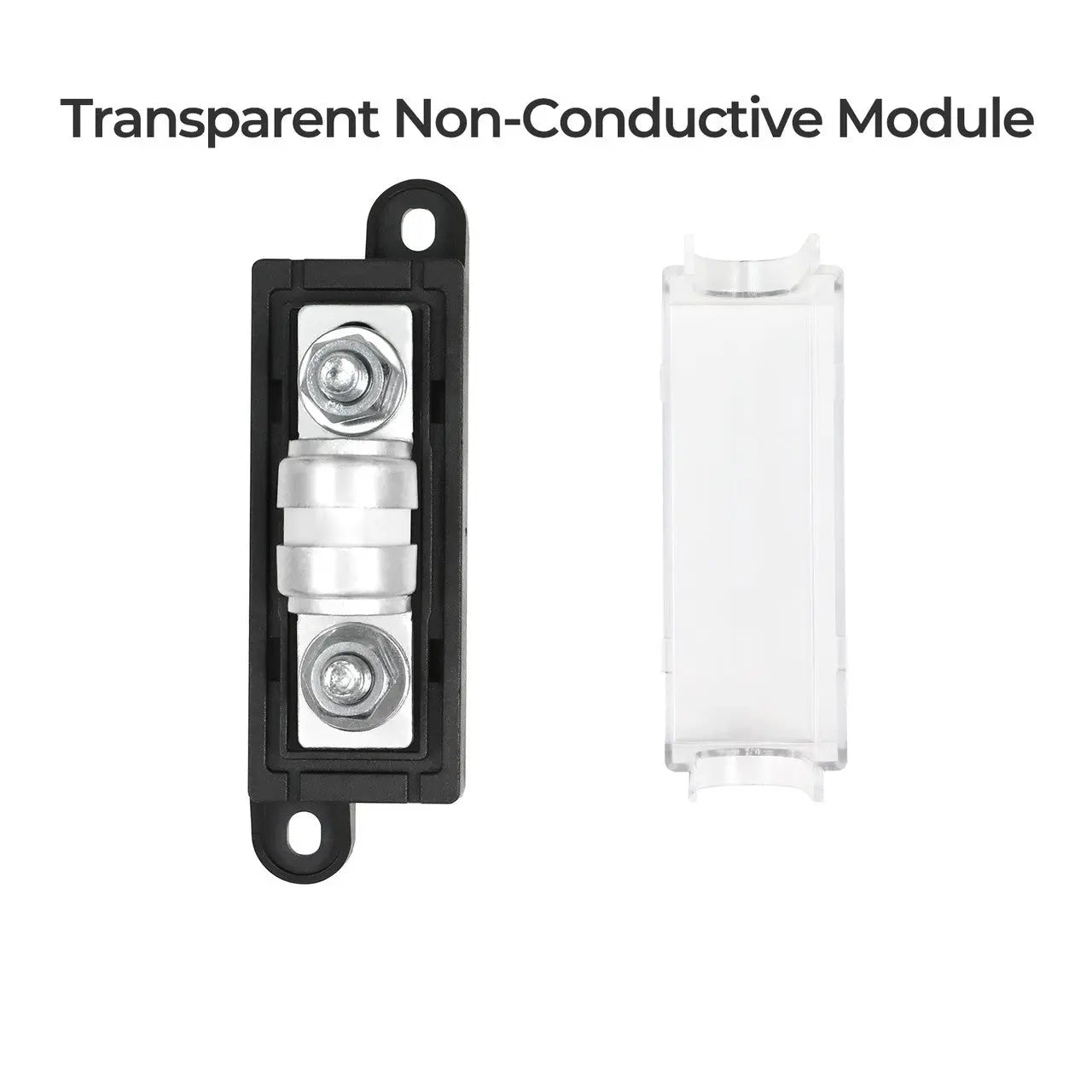

  • V0 fireproof ABS polymer housing for enhanced safety.
  • Stable fuse with arc extinguishing for improved circuit protection.
  • Ample space for larger cable packs and bolts
  • Ideal for diverse high-current applications.
Size
Quantity：
Payment Methods
Delivery Methods
Delivery time: 1-3 business days.Shipping Policy
Secure Payment with 0% APR Intallments
Lifetime Customer Support
30-Day Return and Refund Service
Show More Benefits Show Less
Description
Includes
Specs
FAQ
Reviews

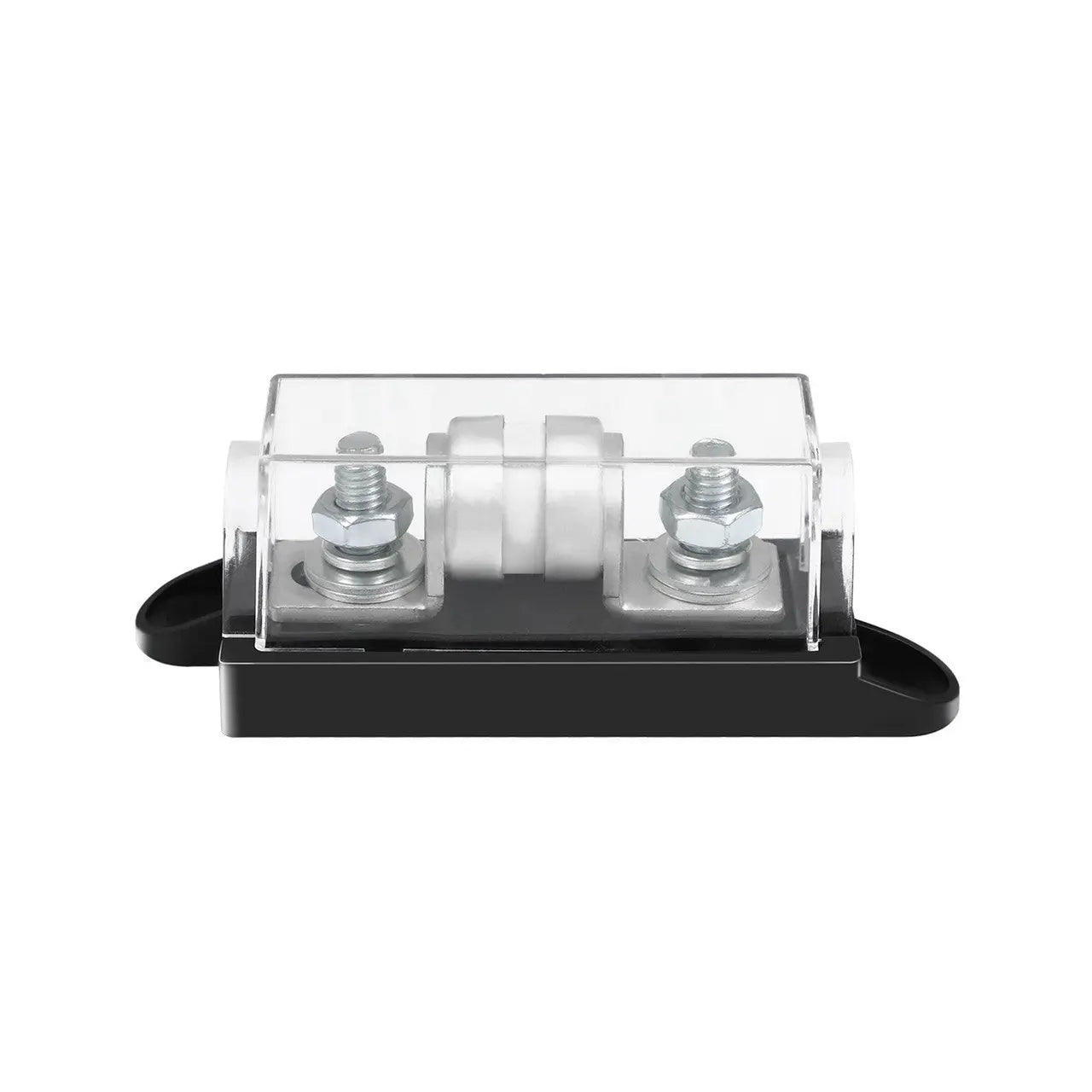

Renogy Class T Fuse

Class T Fuses safeguard your system from overcurrent, ensuring longevity and reliable performance.

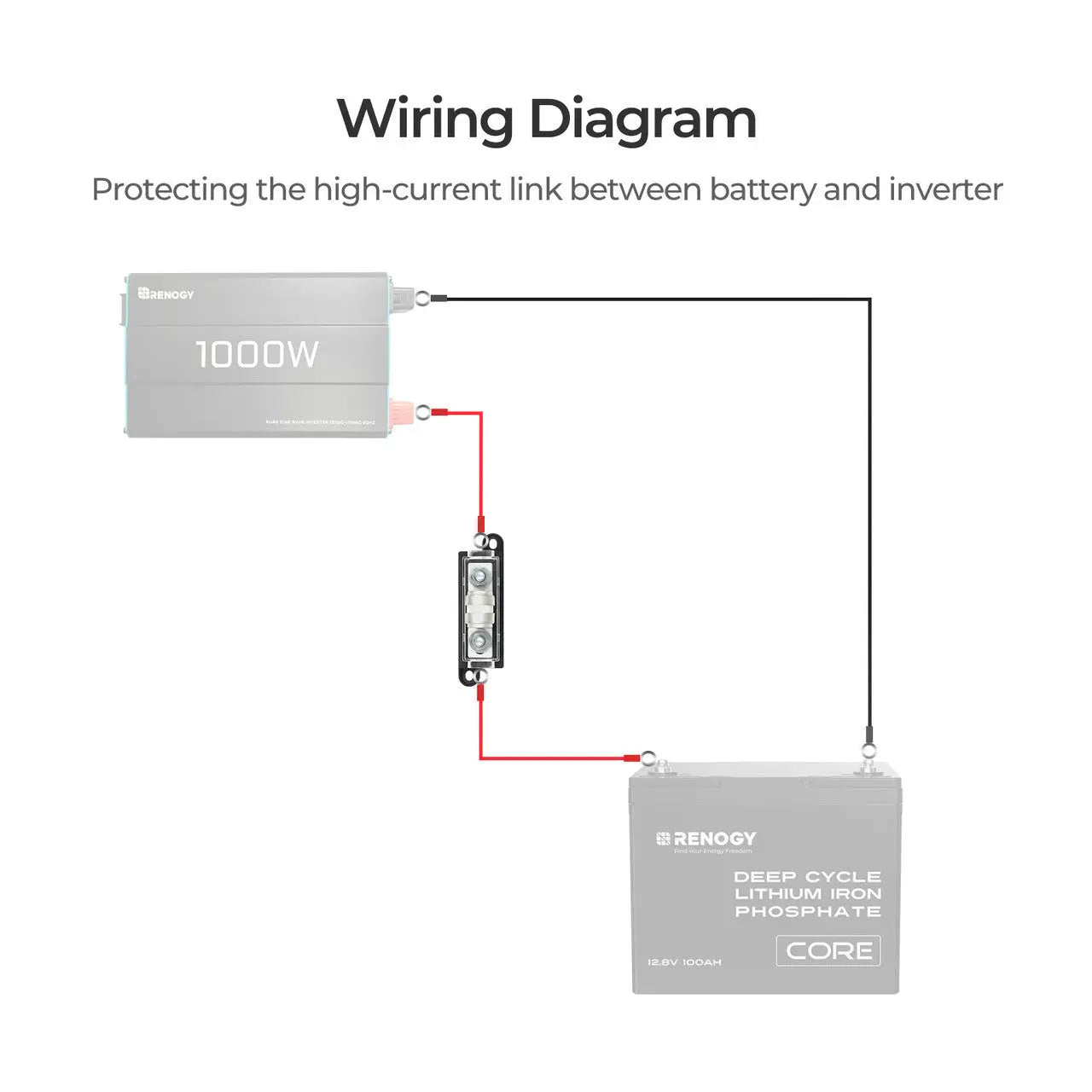

Wiring Diagram

Protecting the high-current connection between the battery and inverter, safeguarding flows up to 150A/250A/300A.

Versatile High-Current Protection

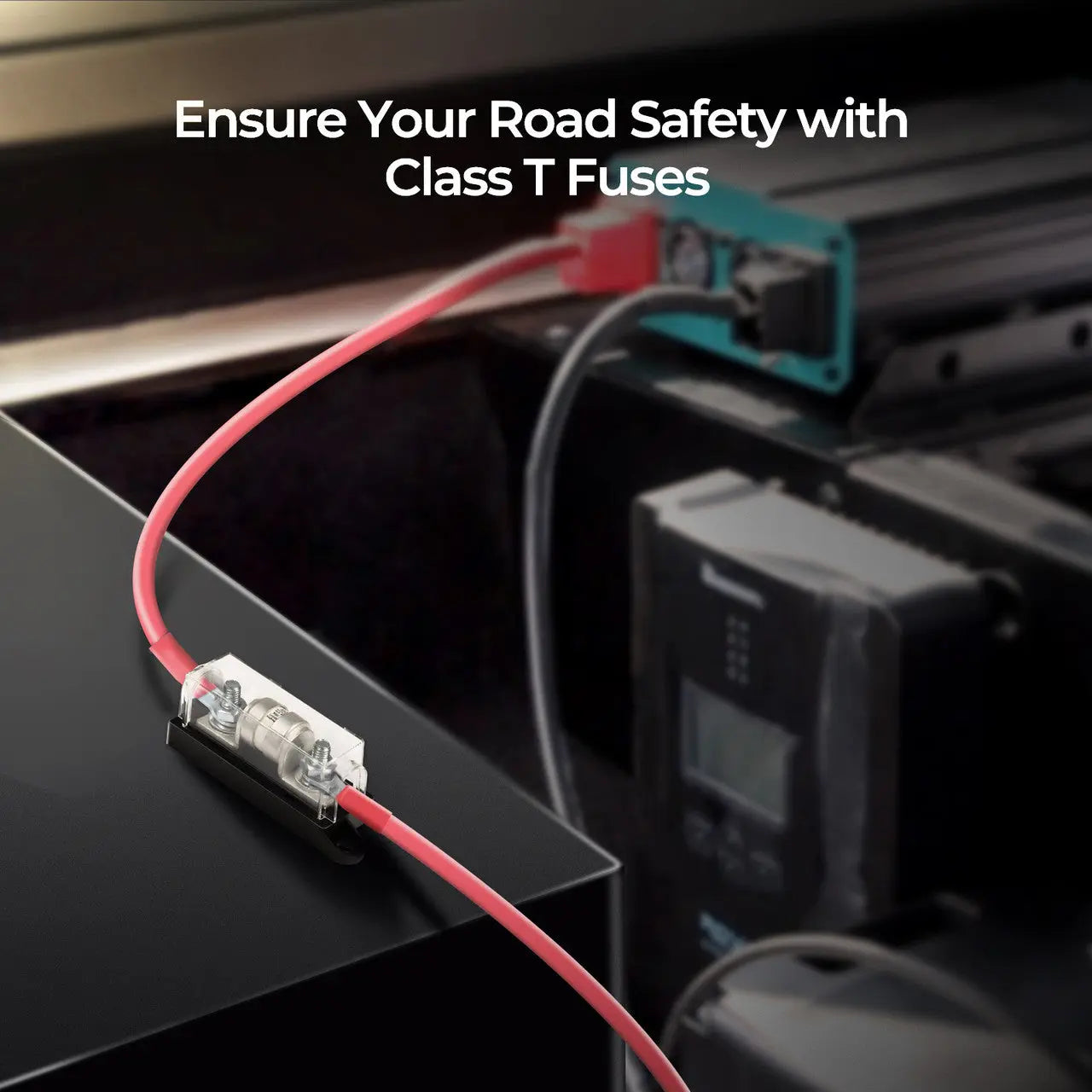

Ideal for diverse high-current applications including RVs, boats, cars, and trucks, offering reliable performance and peace of mind.

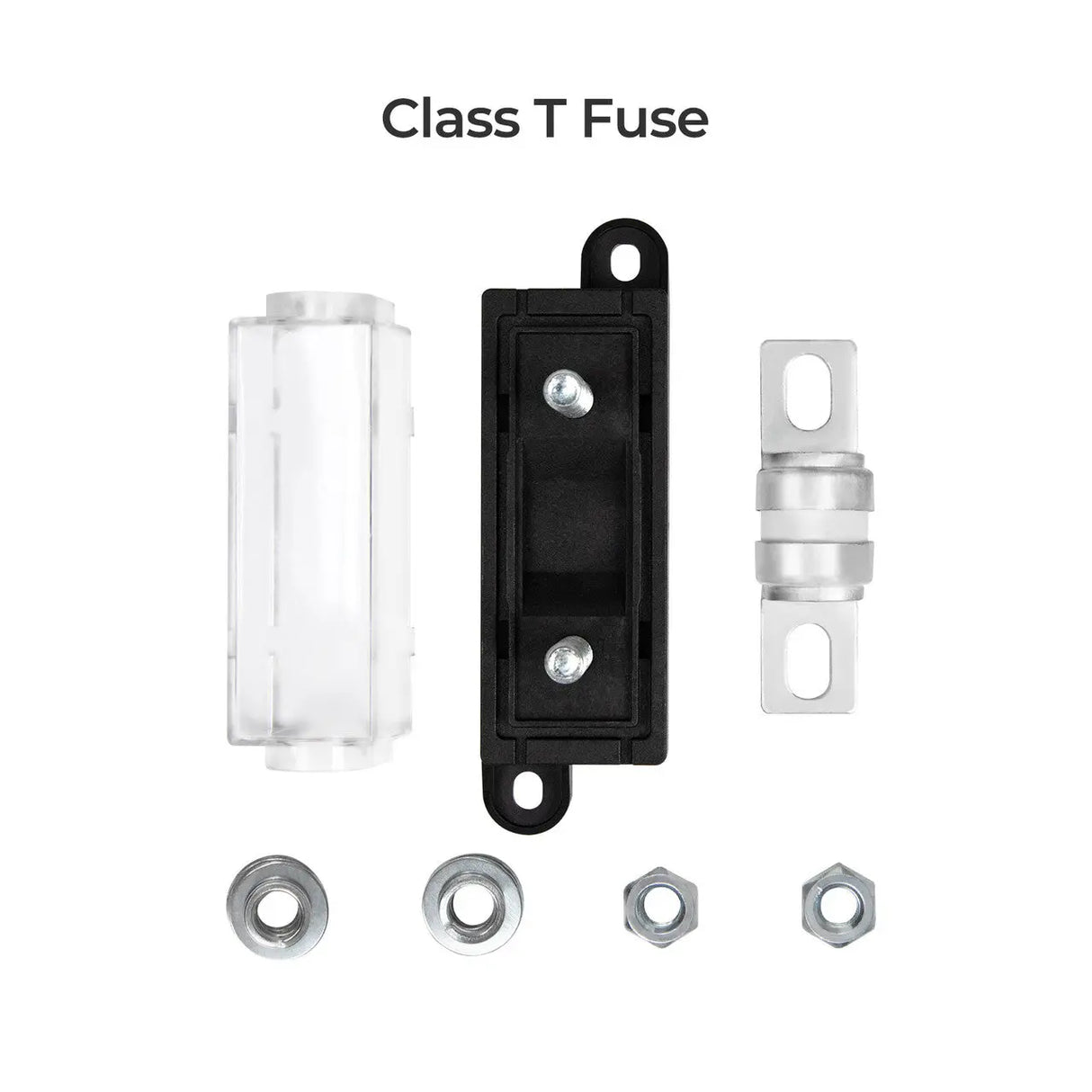

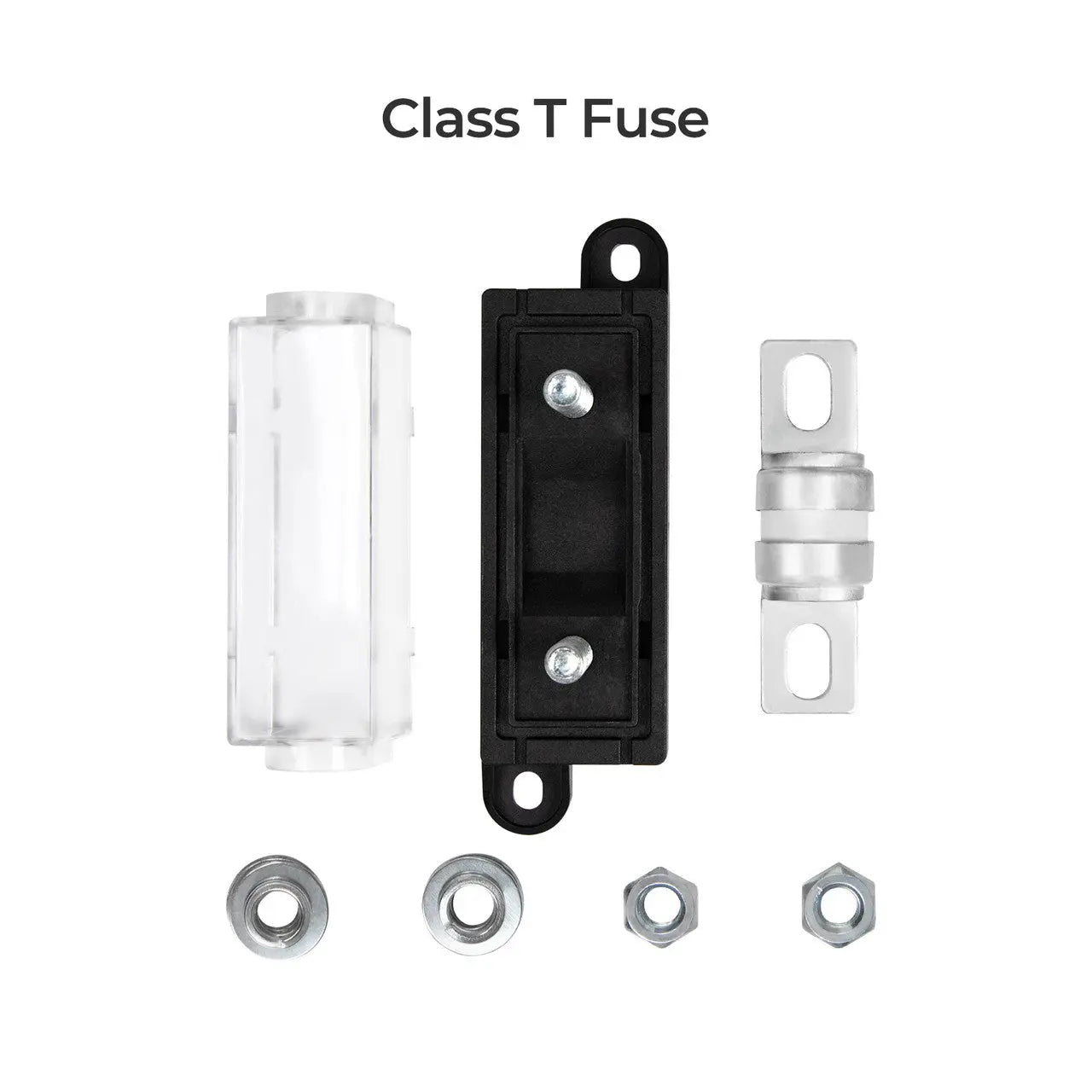

Package Includes

Class T Fuse with Set

x 1

Class T Fuse with Set

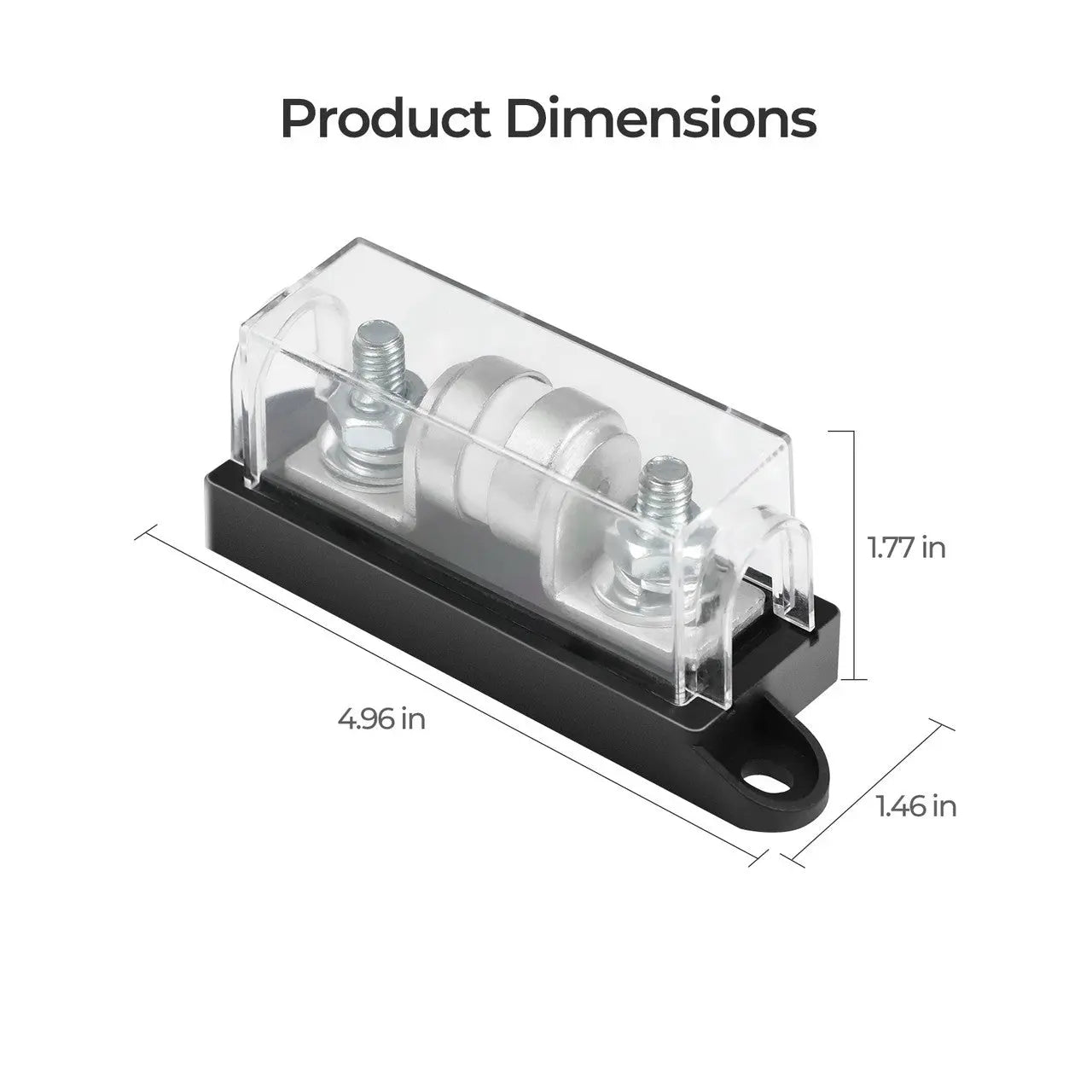

Estimated Dimensions And Weights

Package Dimensions (mm/in)
4.96 x 1.46 x 1.77 in
Package Weight (kg/lb)
0.42Ib
Master Carton Dimensions (mm/in)
13.39 x 7.87 x 10.63in
Master Carton Weight (kg/lb)
23.15Ib
Units/Carton
50
Carton/Pallet
36
Unit/Pallet
1800
Voltage Rating
250V AC/DC
Max Interrupt Current
10kA
Connector type
Screw

Warranty

Material and workmanship warranty
1 Year

Frequently Asked Questions

1. Can the fuse be replaced or does the entire device have to be replaced?

Yes, the fuse is replaceable.The fuse can be removed from the housing by loosening 2 bolts.The fuse is easy to replace, and it is best to have something extra on hand and easy to disassemble and replace. Order on Amazon.

2. What size posts on this holder? Or what size lug works?

The post are 5/16 stud (M8).

3. How do I choose a fuse size? Choose an inverter rating or go up one from there?

Class T fuse can be used to protect 12V inverters up to 3000W ， 150A for 1000W inverters, 250A for 2000W inverters, and 350A for 3000W inverters .

4. Does this include a short fuse cable?

NO, cable is provided you must purchase your own cable separately, which can be found at any Auto parts store.
