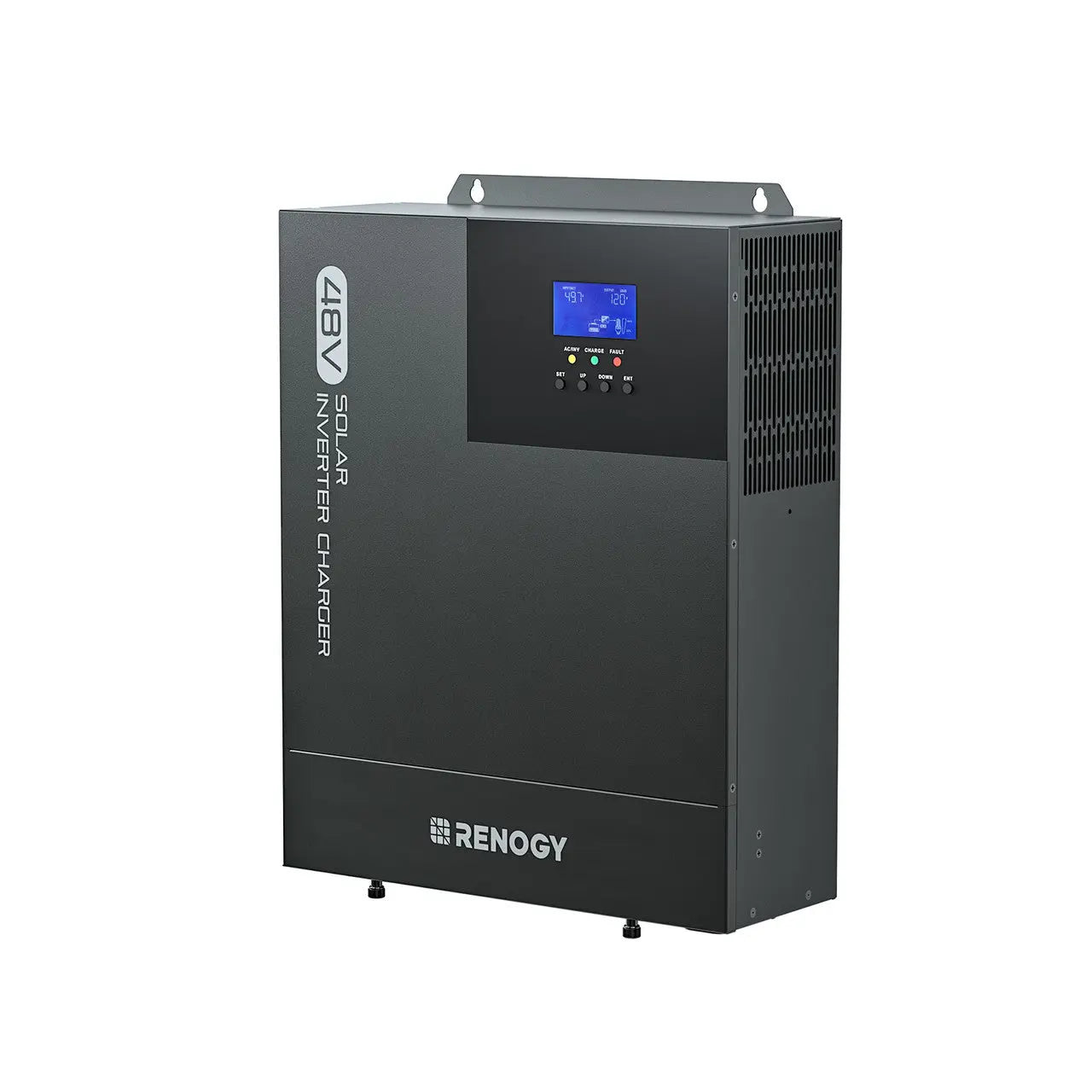

3500W 48V Pure Sine Wave Solar Inverter Charger
SKU:
RIV4835PCS-1SS-US
$599.99
$1,215.99
Unit price
/
Unavailable
51% Off
29% Off
17% Off
+
+
Rays
after purchase.
Log In
About Renogy Membership
Key Features

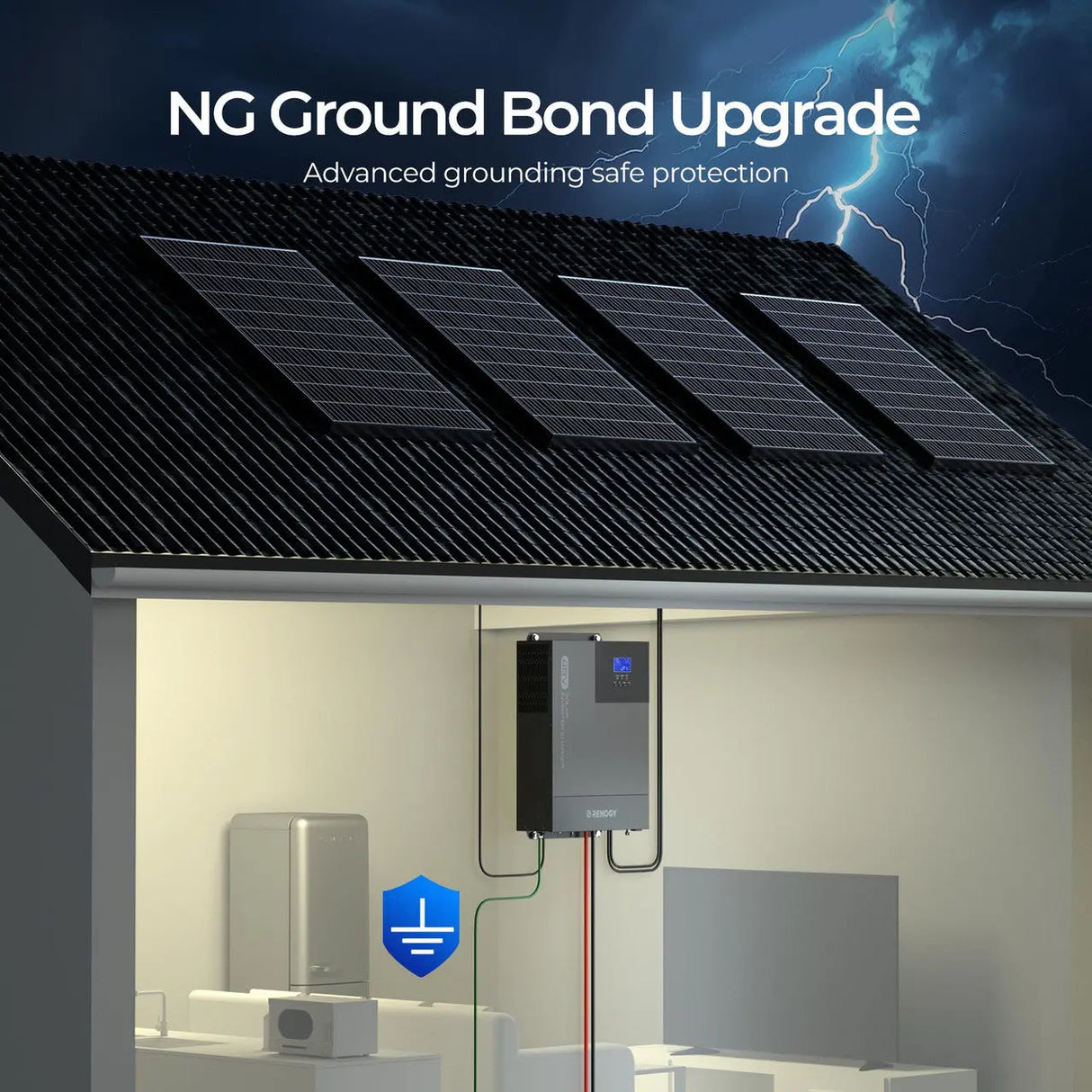

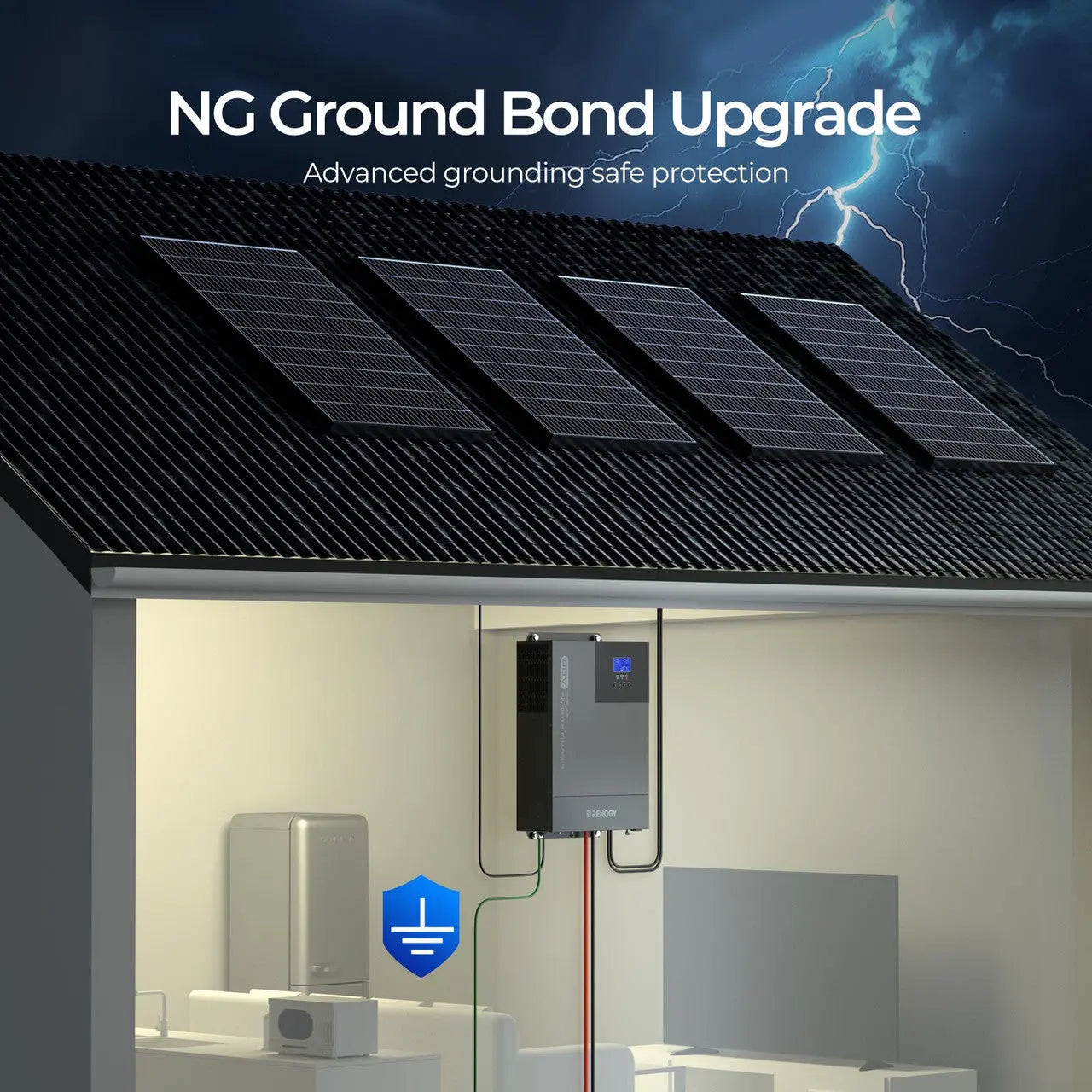

- -Seamless 3.5kW power supply with 7kW peak surge for reliable energy conversion with NG compliance.

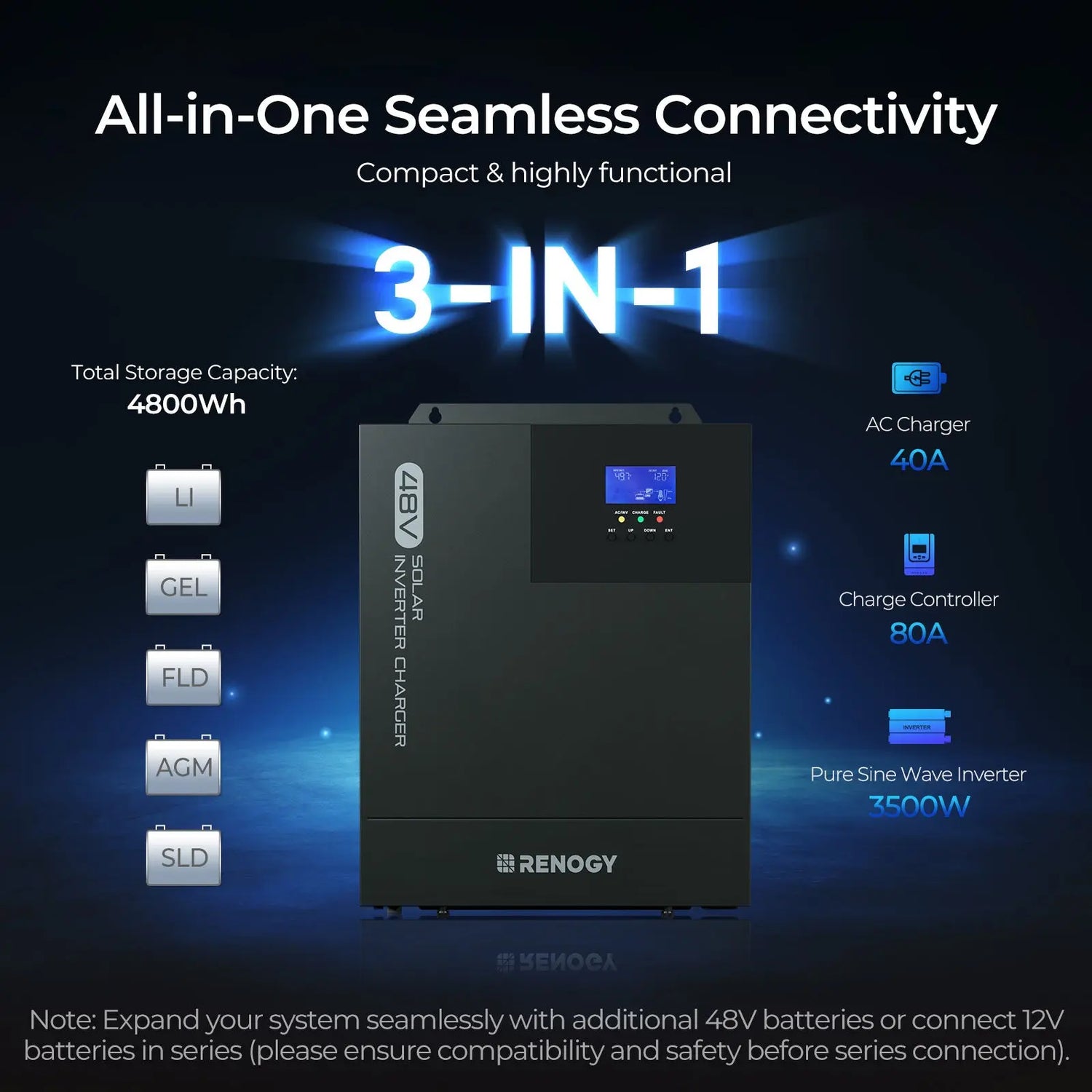

- -All-in-one solar inverter, combined with an 80A/150V MPPT solar controller, a 3500W inverter, and a 40A charger.
- -With 48W low idle power and only 25W in Power Saving Mode, your energy is conserved without compromise.
- -UPS seamlessly switches over in just 10ms when encountering AC or solar charging failure.
- -Compatible with all 48V battery types, including AGM/Sealed, Gel, Flooded, and Lithium batteries.
- * Please double-check the inverter size (17.51 x 12.99 x 4.88in / 444.8 x 330 x 124 mm) before purchasing to ensure a proper fit.
3500W 48V Pure Sine Wave Solar Inverter Charger - Only Inverter is backordered and will ship as soon as it is back in stock.
❓Need help before buying? Call Us: 1 (909) 287 7111
5% OFF Coupon for New Subscriber
30-Day Return and Refund Service
Lifetime Customer Support
Show More Benefits
Show Less
Payment Methods
3500W 48V Pure Sine Wave Solar Inverter Charger
$599.99
$1,215.99
Unit price
/
Unavailable
Only Inverter
Description
Includes
Specs
Downloads
Reviews
Transforming power with safety and adaptability

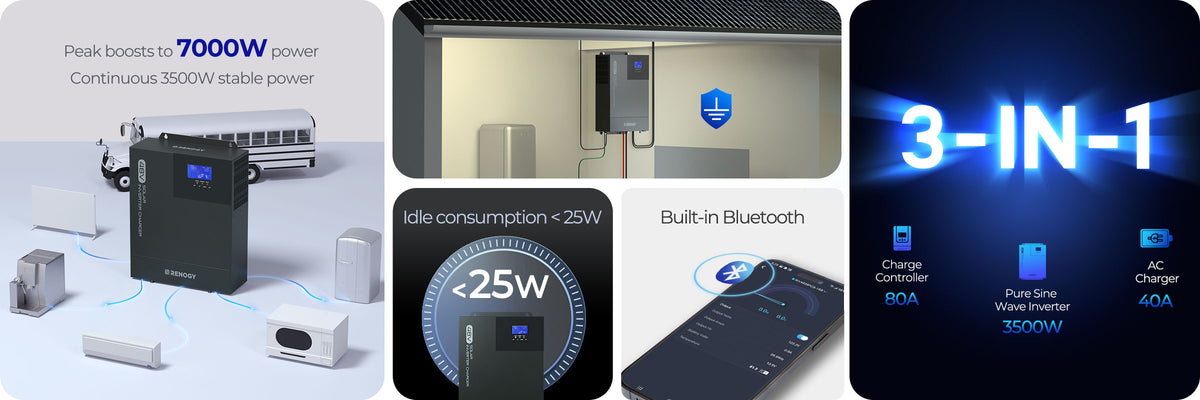

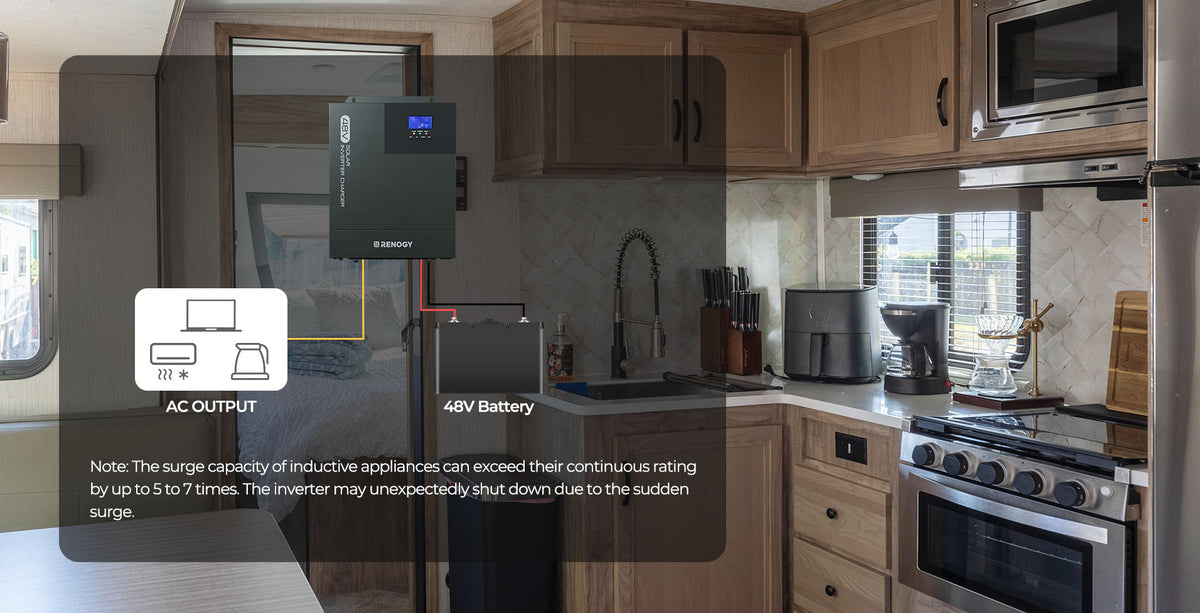

7000W Peak Boost for Inductive Loads

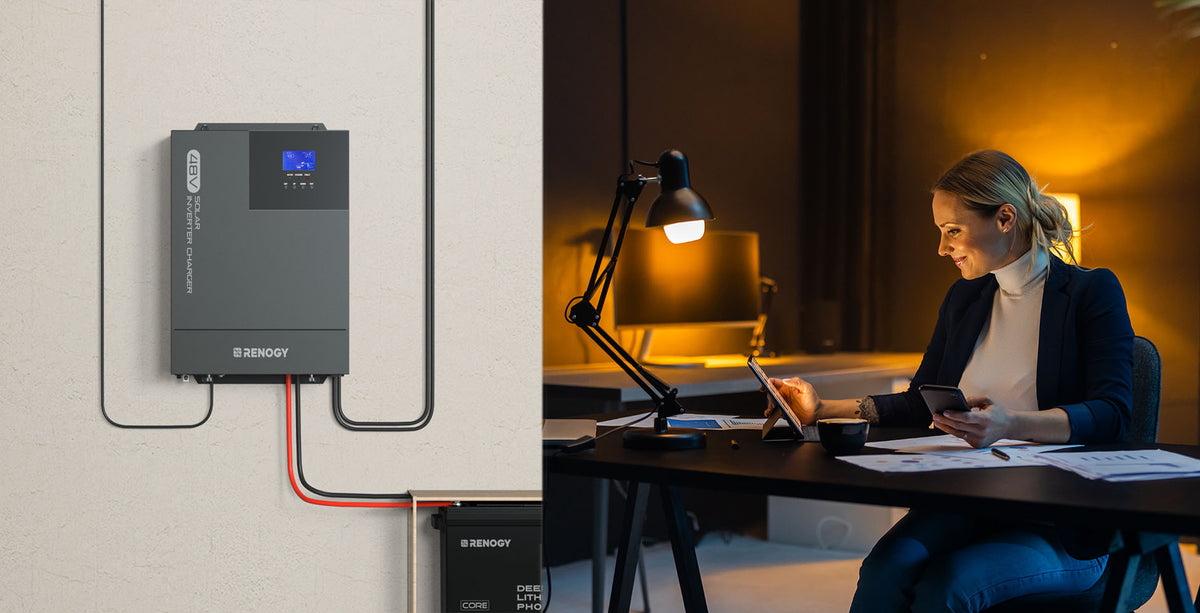

Achieve Energy Independence for Your Home

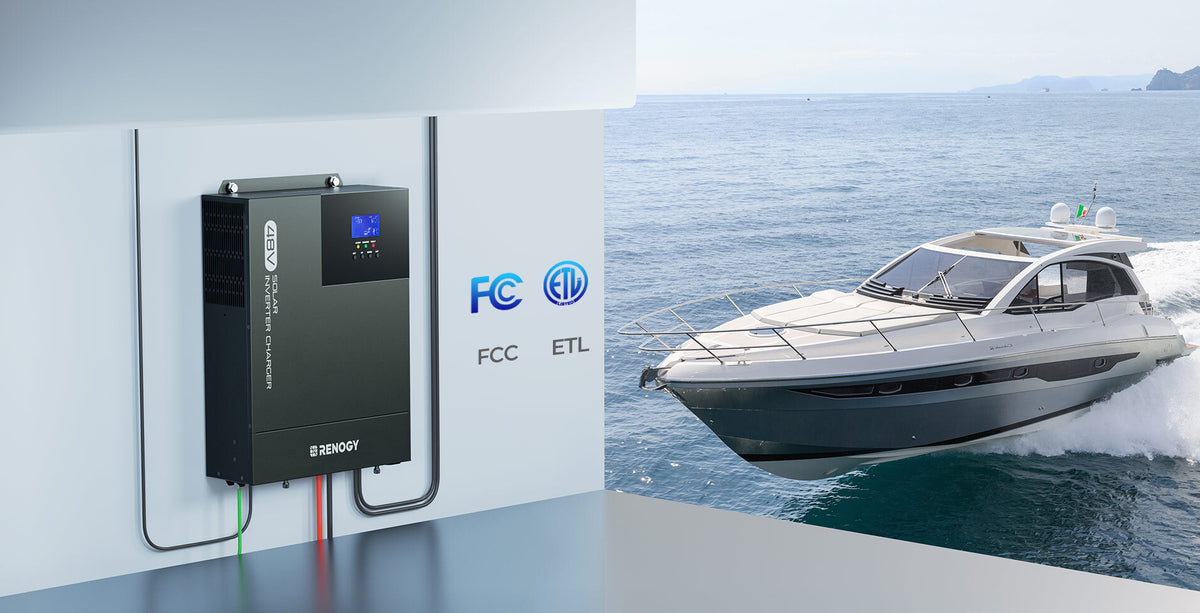

Embark on your boat trip with peace of mind

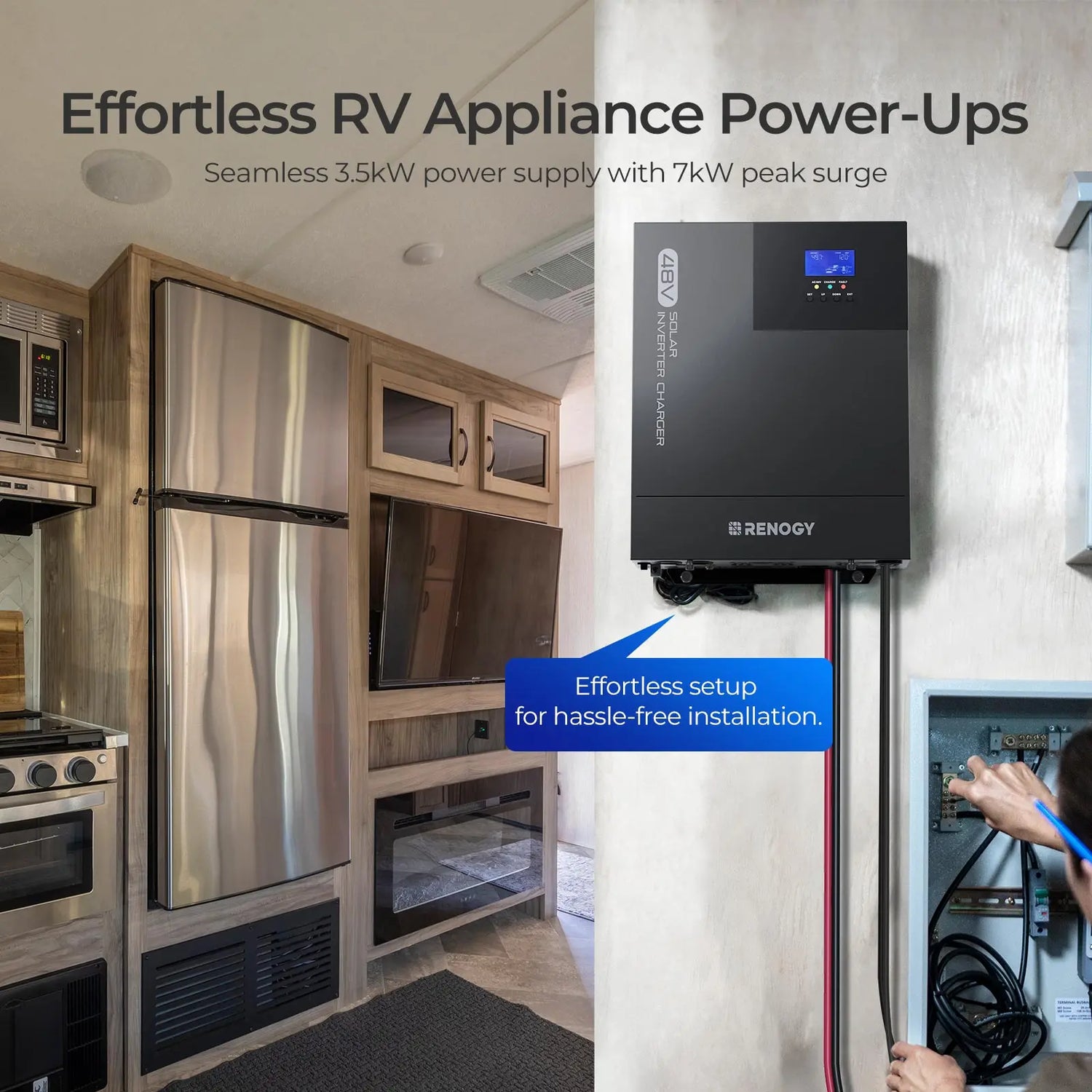

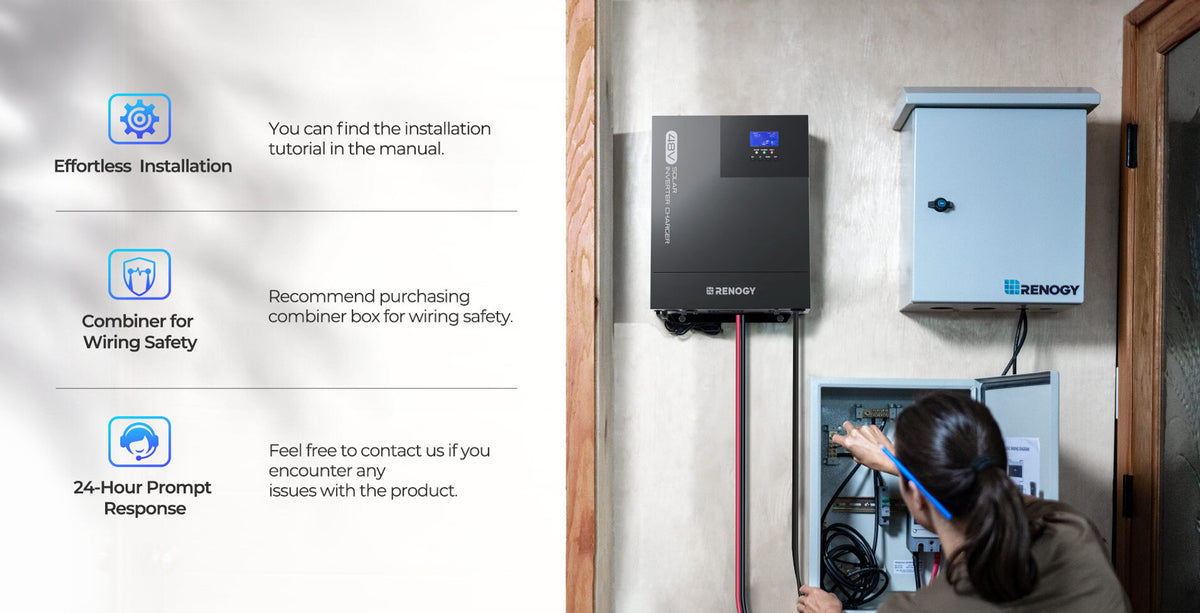

Seamless setup for hassle-free installation
Monitor your system data with ease on screen or via Bluetooth

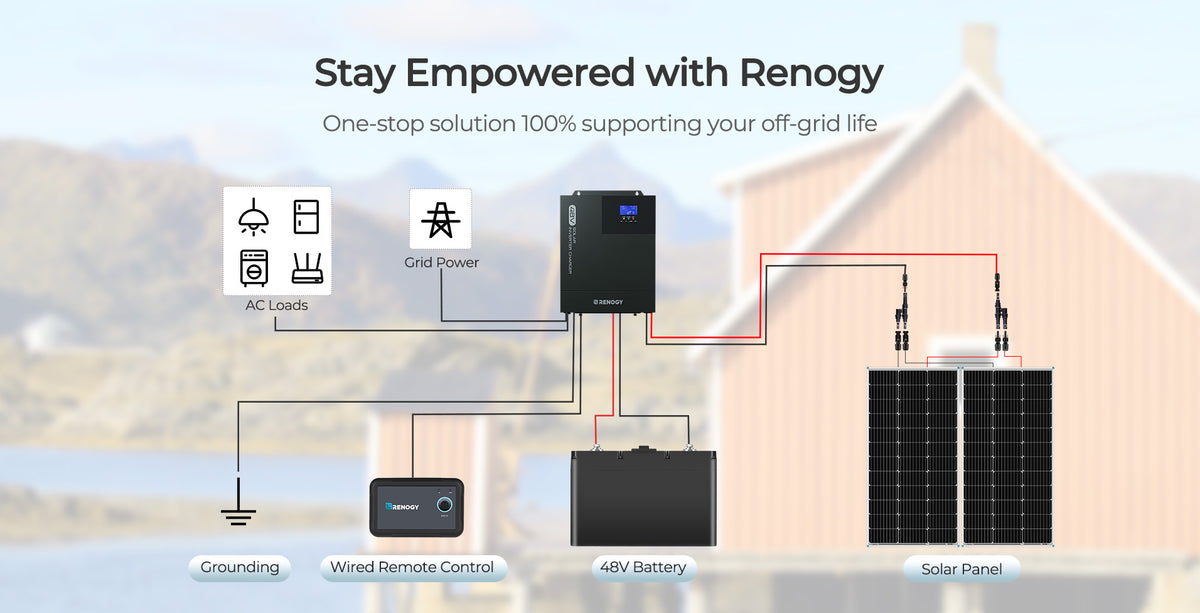

Effortless Setup & Compatibility for Renogy Solutions

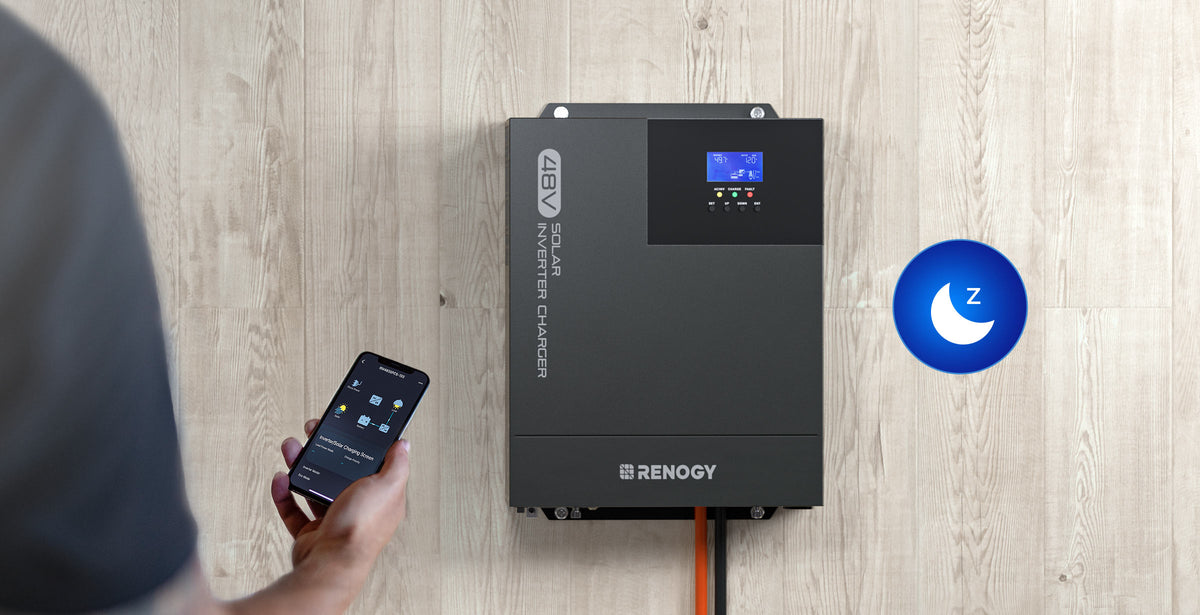

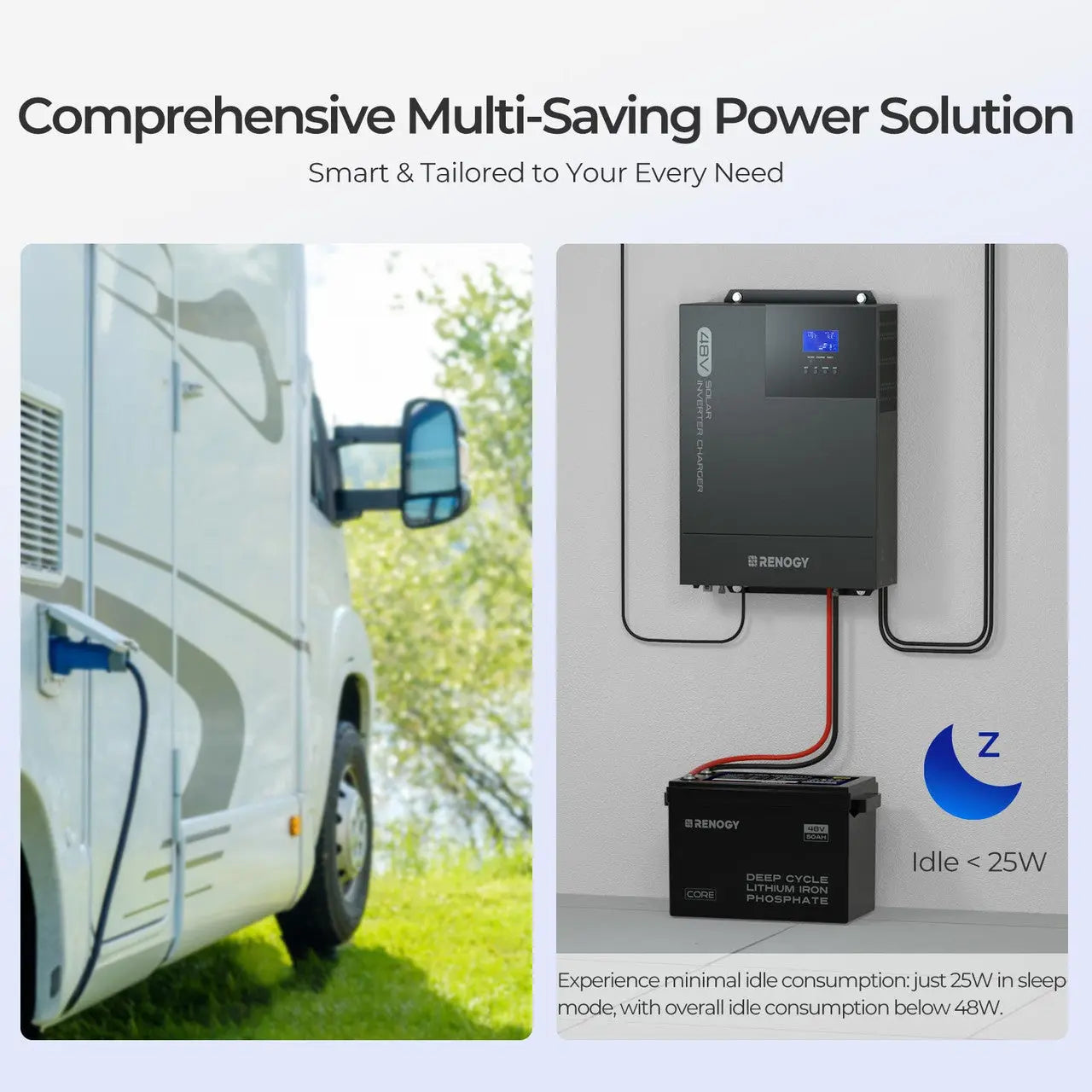

EcoSleep Mode for Effortless Energy Savings
Embarking on a 2-3 day off-grid adventure could save you nearly 1200Wh to 1800Wh of electricity. The longer your journey, the more significant the savings.

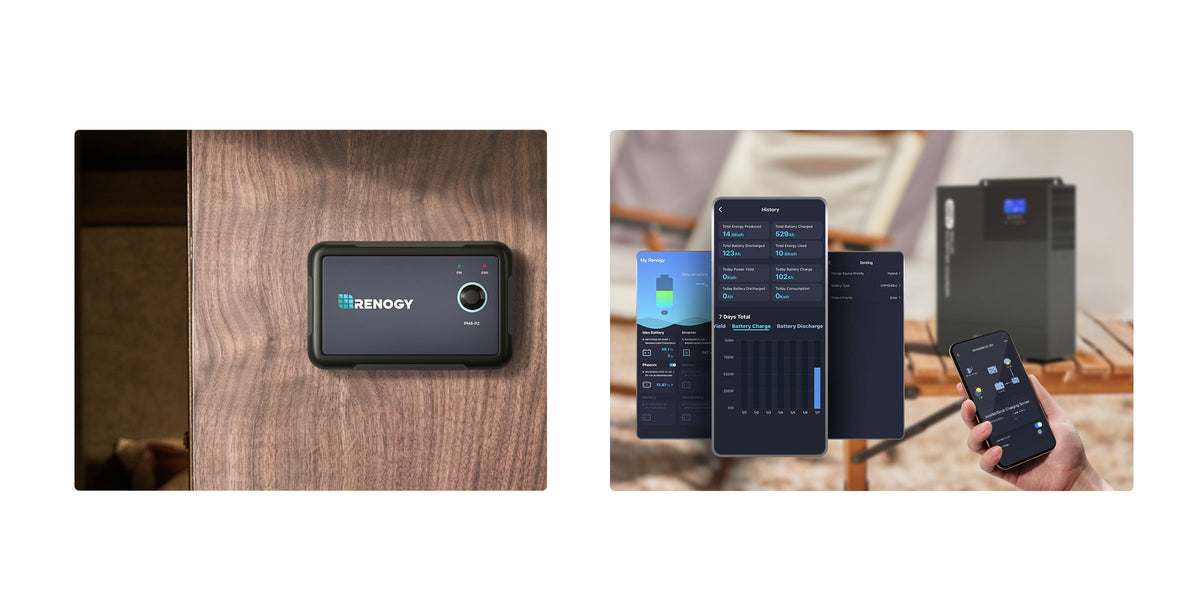

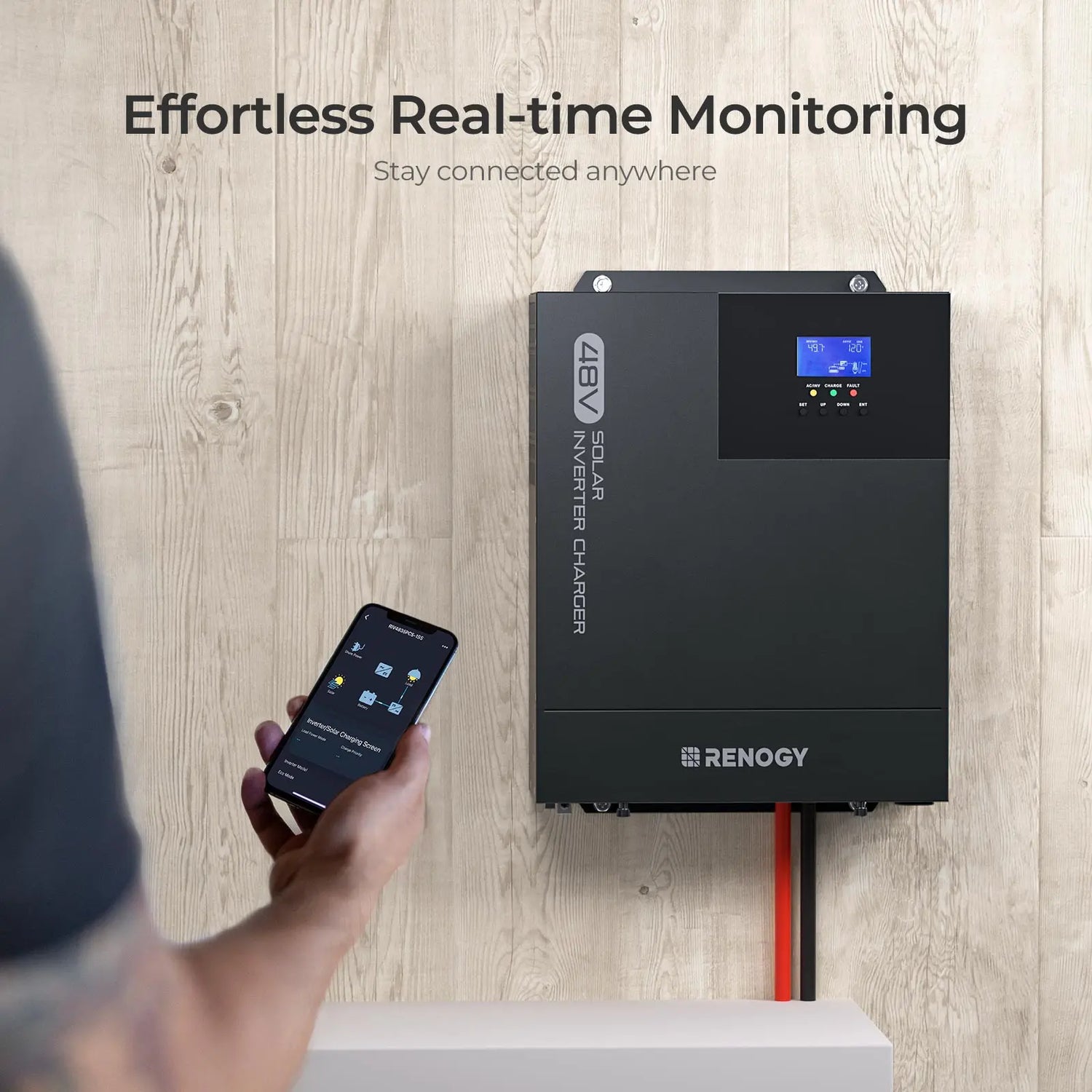

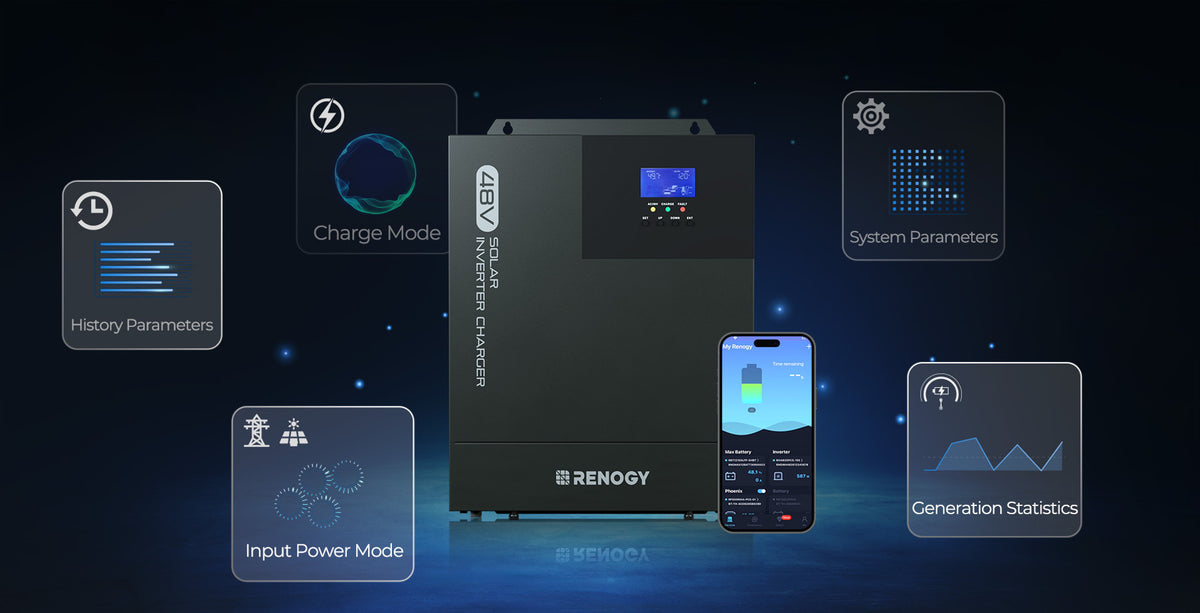

Seamless Management with Real-Time Monitoring & Remote Control
Experience the peace of mind that comes with real-time monitoring of your appliances. Ensuring safe and efficient operation has never been easier.
Dimensional Reference Guide
Before installing the inverter, leave 1.97 inches of space for the top of the inverter and at least 4 inches on the side with busbars.

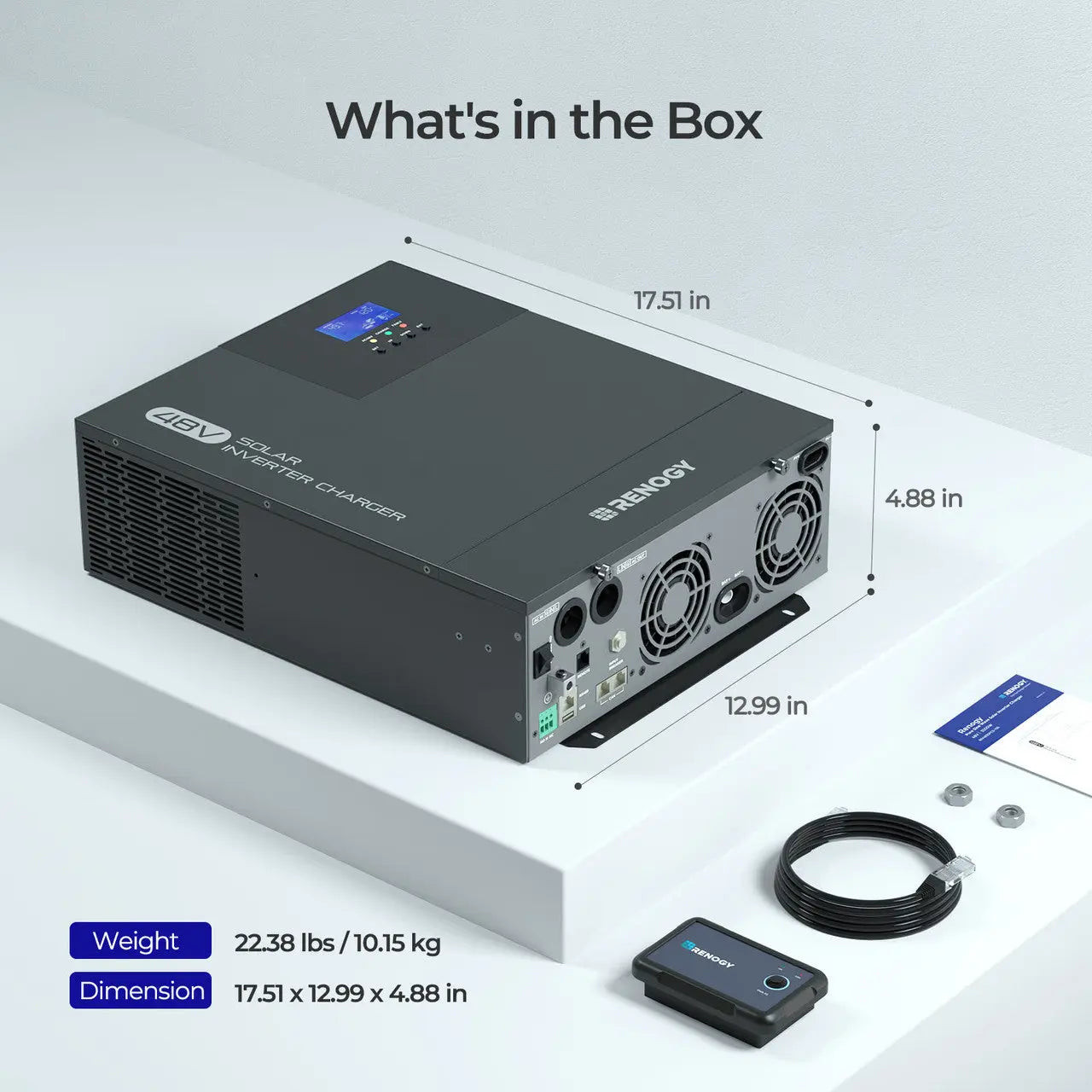

Package Includes
48V 3500W Solar Inverter Charger
x 1
Remote
x 1
Renogy 48V 3500W Solar Inverter Charger
AC
Max Rated Power
3500W
Power Factor
1
Input Voltage
120VAC
Input Voltage Range
85VAC ~ 140VAC
Input/Output Frequency
50/60Hz Adjustable
Output Voltage
120VAC(100VAC~120VAC, 5VAC Increments)
Output Waveform
Pure Sine Wave
Peak Efficiency
>95%
Max AC Charging Current
40A
Conversion (Bypass and Invert)
10ms typical
Solar Charger
Max PV Input/Output Power
4400W
Max PV Charging Current
80A
Max PV Input Voltage
150V
Max PV Input Current
50A
Algorithm
MPPT
MPPT Voltage Range
60 ~ 120V
Battery Charger
Battery Type
Lead Acid or Lithium
Max Battery Charging Current
120A (Adjustable)
Battery Voltage Range
40 ~ 60V DC
Nominal Battery Voltage
48V
Environmental/ Mechanical
Operating temperature
5°F ~ 131°F / -15°C ~ 55°C
Storage Temperature
-4°F-140°F/-20°C-60℃
Humidity
5% ~ 95% (3 Layer Paint Protection)
Cooling
Fans
Dimensions
17.51 x 12.99 x 4.88in / 444.8 x 330 x 124 mm
Weight
22.38 lbs /10.15kg
Warranty
Material and workmanship warranty
2 Year
Certifications
UL STD. 458 ,1741
Yes
FCC Part 15 class B
Yes
CSA STD.C22.2NO.107.1
Yes
Resources Download
