REGO 12V 60A DC-DC Battery Charger
- Add Renogy ONE Core for smart, real-time energy monitoring.
- Charges house and starter batteries while driving.
- Anderson terminals reduce installation time by 60%!

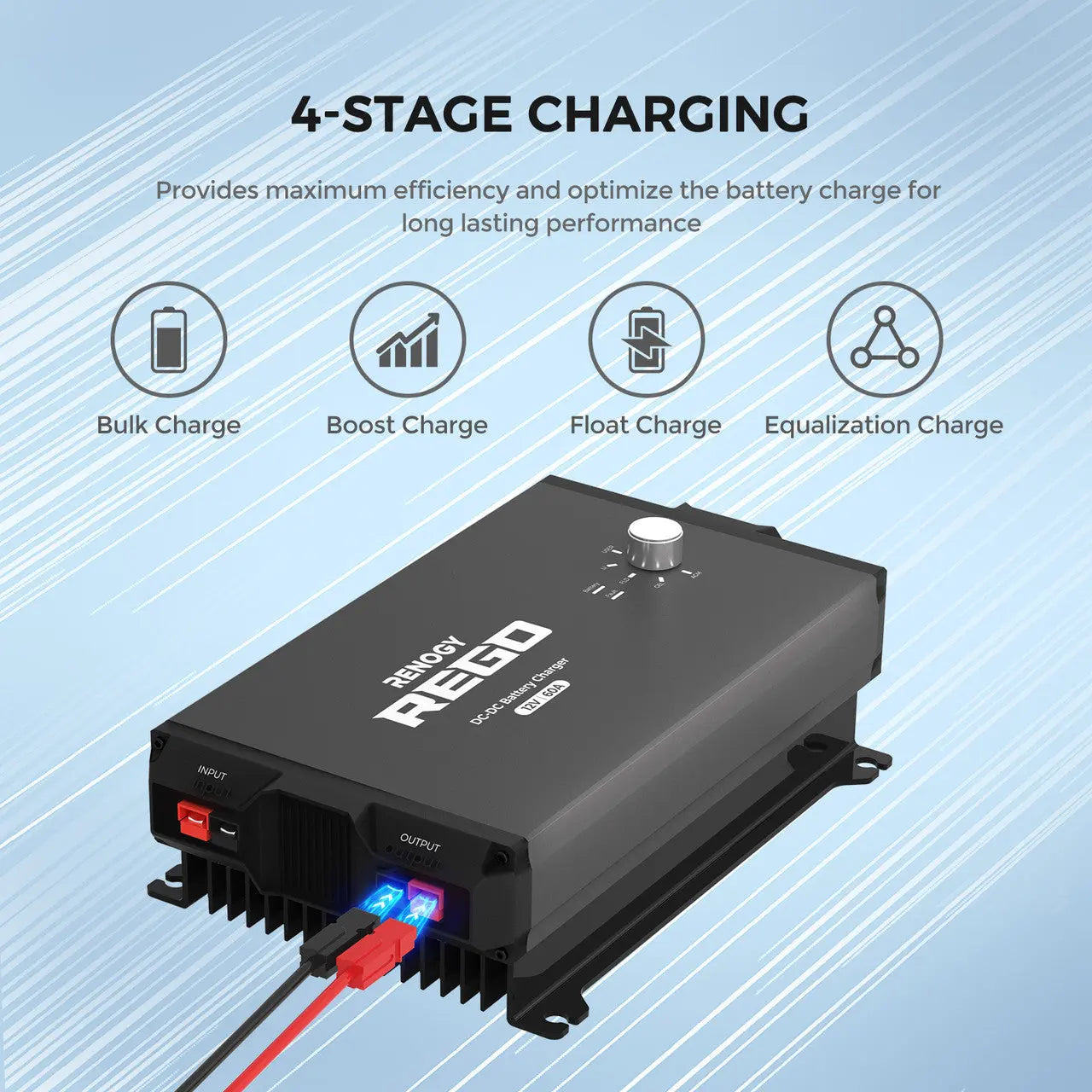

- 4-stage charging boosts efficiency and extends battery life.
- Works with AGM, SLD, Flooded, Gel, & Lithium batteries.
- Overvoltage, overtemperature, & reverse polarity protection.
REGO 12V 60A DC-DC Battery Charger - 10FT 6AWG Cable is backordered and will ship as soon as it is back in stock.
REGO 12V 60A DC-DC Battery Charger
The REGO DC-DC Battery Charger is equipped with special bidirectional charging technology, providing the most efficient mode of house battery charging from the starter battery while in transit. It also recharges and maintains the starter battery once the house batteries are at maximum capacity. This will work with most common 12V alternators and batteries and has a 4-stage charging system for safe and proper battery maintenance. The REGO DC-DC Battery Charger is ideal for recreational vehicles, commercial vehicles, boats, and yachts, and vans that provide consistent energy whenever you want!

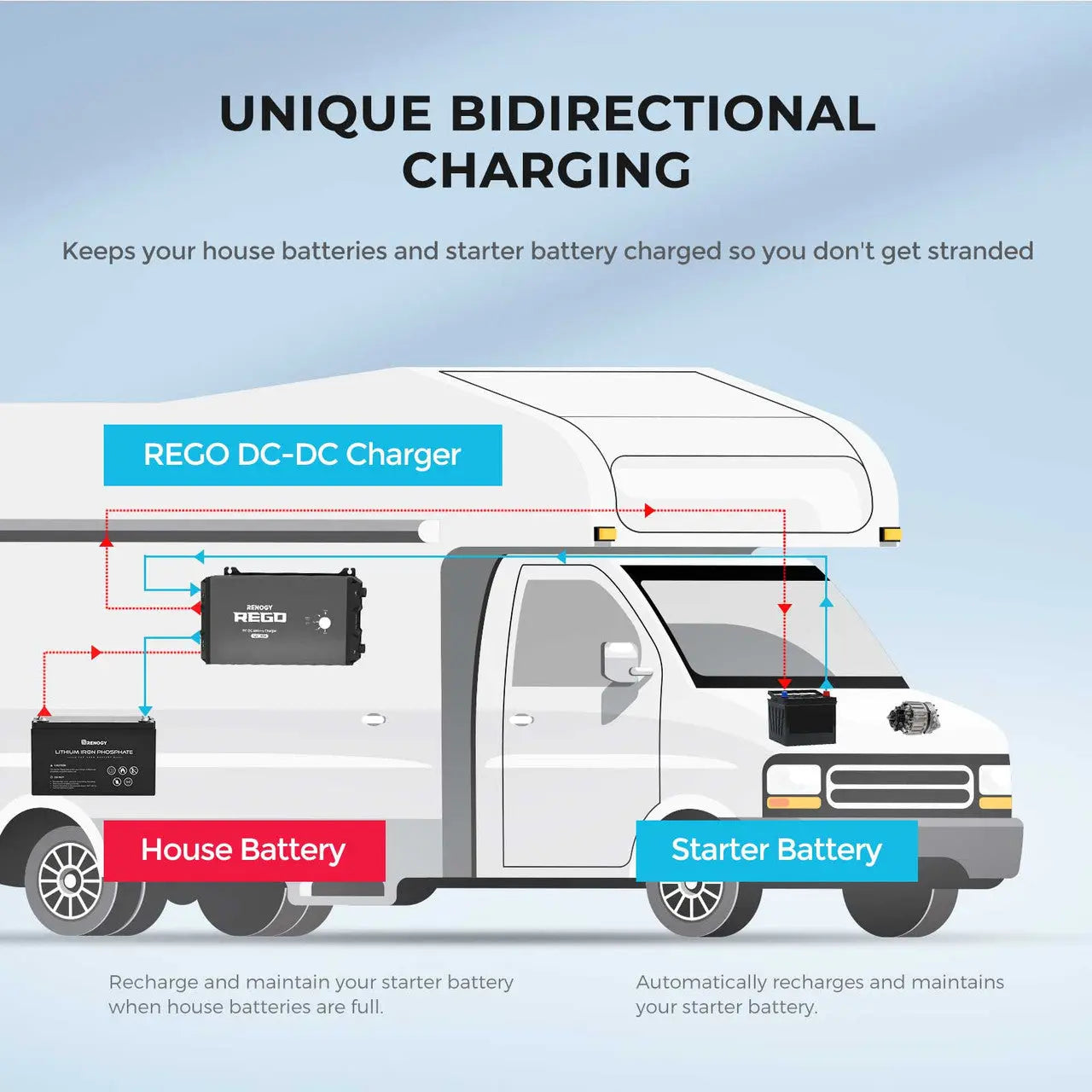

Renogy’s bidirectional charging system utilizes cutting-edge technology to efficiently charge both your house and starter batteries while driving. Once your house batteries are fully charged, the REGO smart charger automatically switches to charging the starter battery, ensuring you have a full charge for your journey and arrival at your destination.

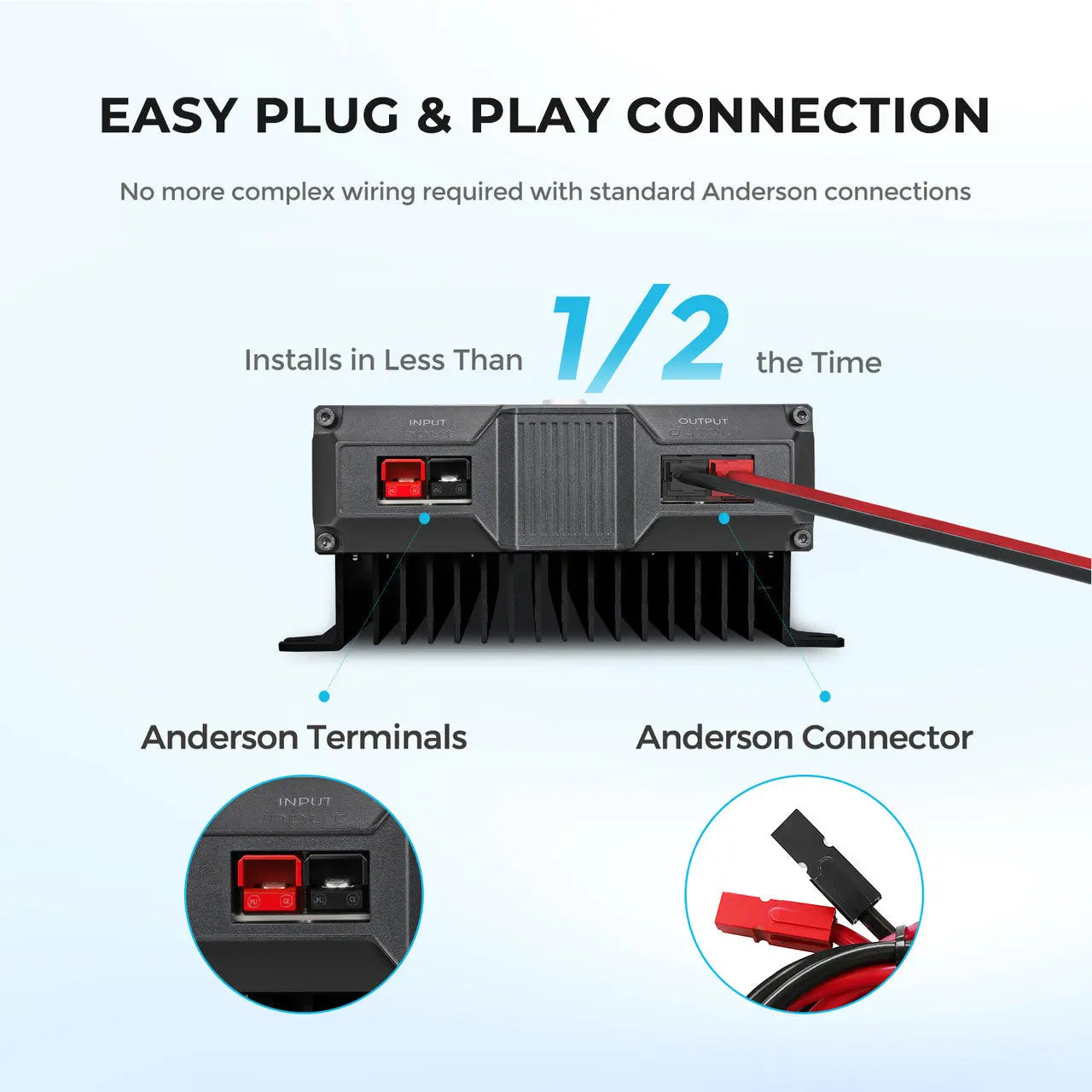

The RENOGY REGO DC-DC battery charger comes with 75A Anderson terminals and custom Anderson-Ring Lug connectors, cutting installation time by 60% for a quick, hassle-free setup!

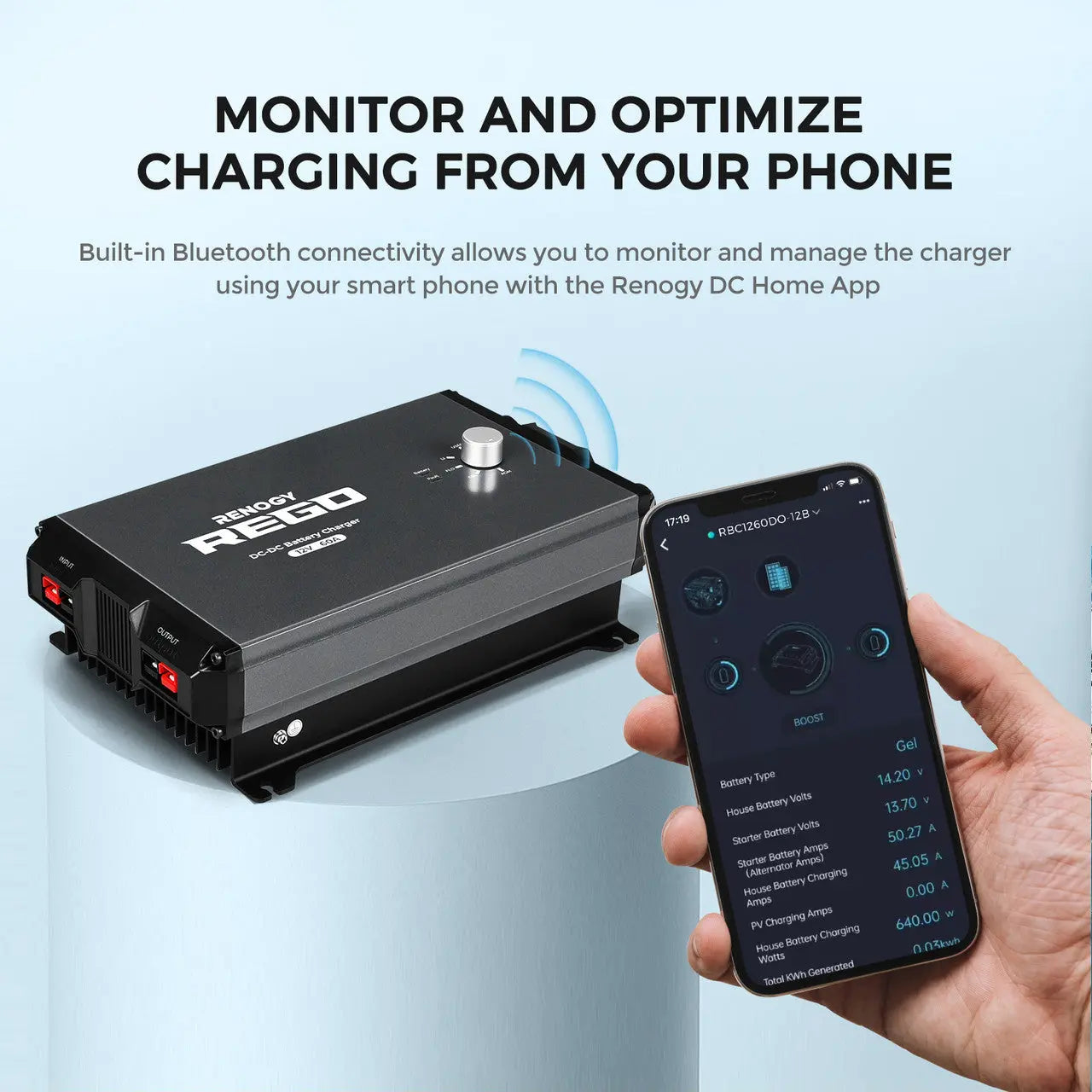

The REGO DC-DC Battery Charger features a built-in Bluetooth module, allowing you to monitor charging status via the Renogy DC Home App on your smartphone. With the battery type selector set to USER MODE, you can customize the Boost Voltage, Float Voltage, and Boost Duration. If your system’s maximum charge voltage is below 60A, simply adjust the charging current in USER MODE for optimal performance.
The REGO DC-DC Battery Charger is built to perform in extreme temperatures. Equipped with a temperature sensor, it provides -3mV/°C/2V compensation to protect your battery from both high and low temperatures, ensuring stable and consistent charging. This helps prolong battery lifespan. PLEASE NOTE: The temperature sensor is not compatible with Lithium batteries.

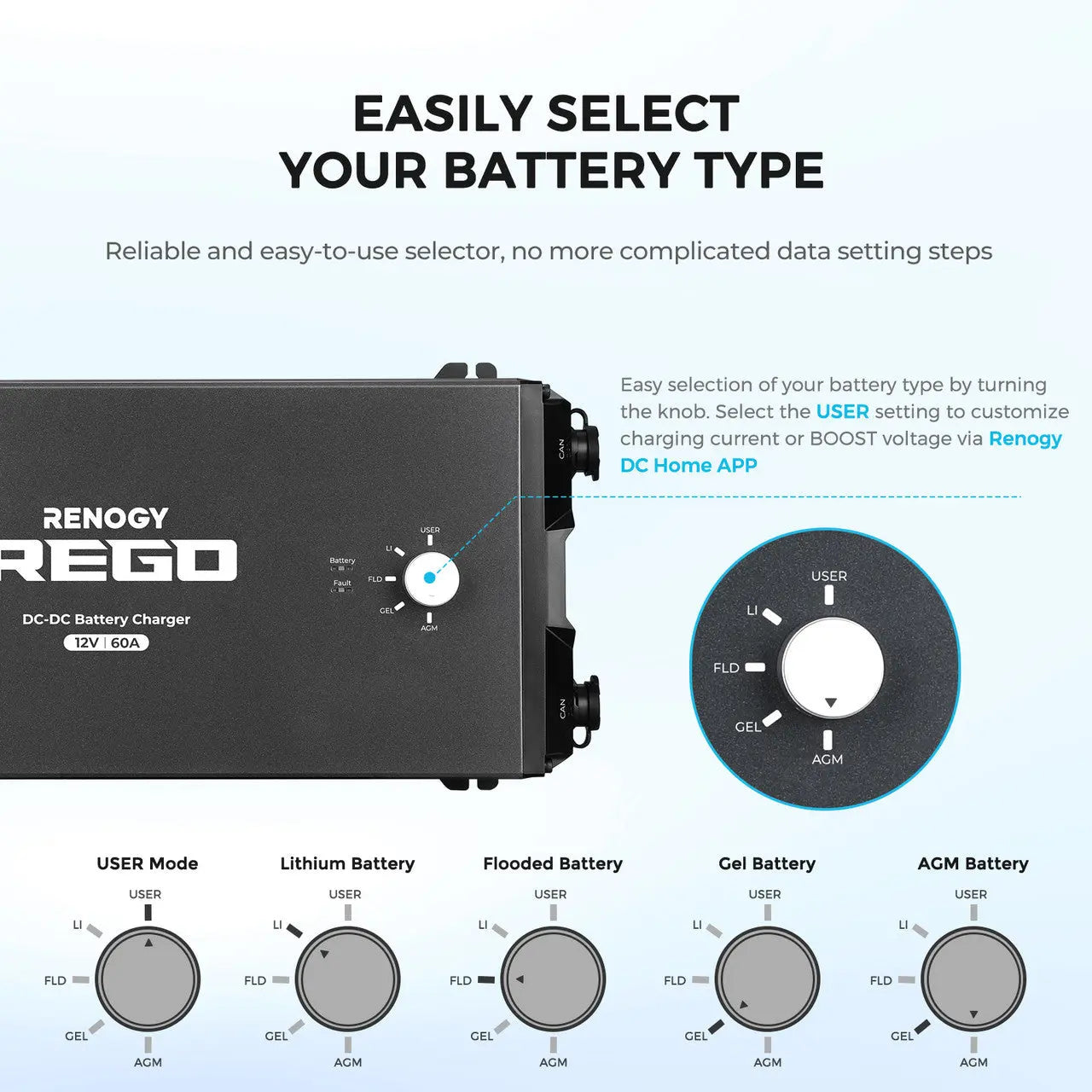

The REGO DC-DC Battery Charger is compatible with Gel, AGM, SLD, Flooded, and Lithium batteries. Its intuitive selector makes setting the battery type quick and easy—no complicated configurations required.

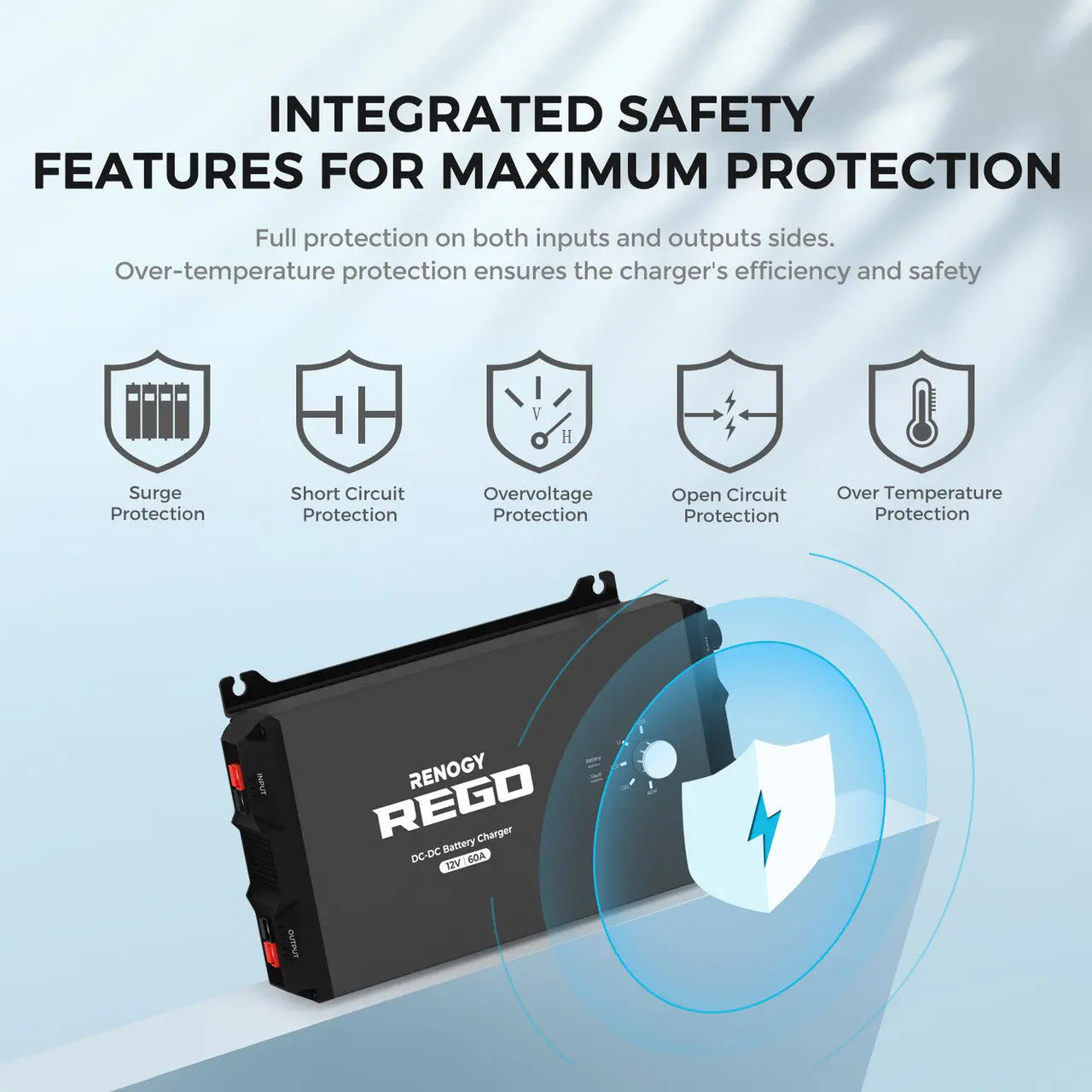

The REGO Battery Charger features built-in Overvoltage Protection, Overtemperature Protection, and Reverse Polarity Protection on both inputs and outputs, ensuring optimal safety during operation. Backed by a 5-year warranty and certified with FCC-ID, CE-RED, MIC, and more.
This diagram illustrates the whole connection of the DC-DC On-Board Battery Charger.
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or contact us with livechat for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center!

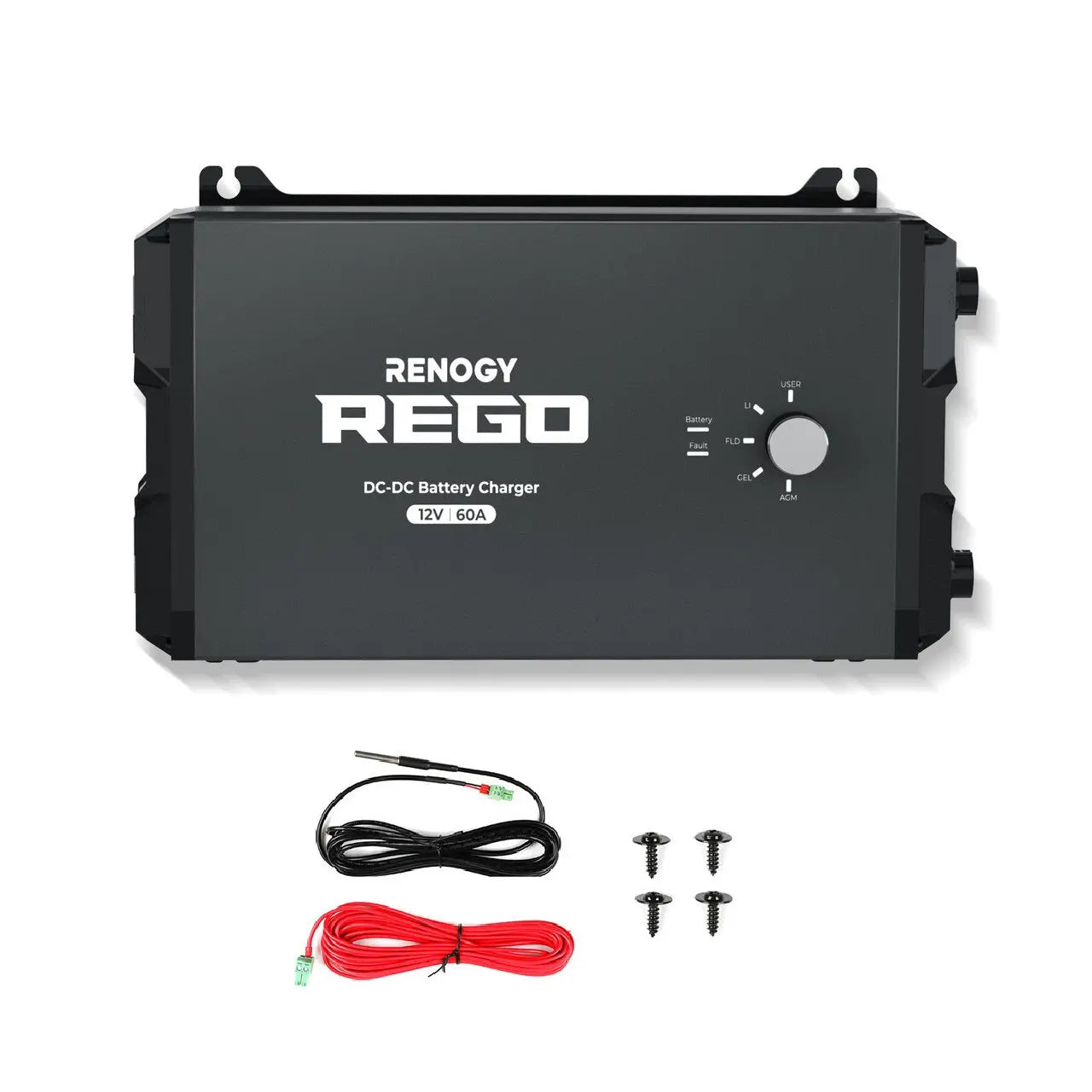

Package Includes
|
REGO 12V 60A DC-DC Battery Charger
1 x |
Accessories with the DCDC
4 X Mounting Screws 1 X IGN Signal Wire (Red) 1 X Renogy Temperature Sensor (Black)
|
|
5FT 6AWG Anderson Adapter Cable(Anderson PP75-3/8 in Lugs)(Recommended)
1 X
|
10FT 6AWG Anderson Adapter Cable(Anderson PP75 - 3/8 in Lugs)(Recommended)
1 X
|
Note: The above recommended cables are not included in the package.
| REGO 12V 60A DC-DC Battery Charger | |
|---|---|
| System Voltage: 12V | Rated Max Charge Current: 60A |
| Rated Max Charge Power: 800 W | Battery Types: SLD/AGM;FLD;GEL;USER;LI |
|
Self-Consumption: ≤50 mA
|
Max.Alternator Input Current: 70A |
| Charge Efficiency: Up to 94% | Max.Alternator Input Power: 800W |
| Max.Alternator Input Voltage: 16V | Battery Operating Range: 10 -16V |
| Alternator Input Voltage: Traditional Alternator: 13.5-16VDC | Alternator Input Voltage: Smart Alternator (Euro 6): 12.5-16VDC |
| Power Limiting Protection: Up to 800W/12V | Operating Temperature Range: -20 ℃ - 60℃ / -4 ℉ - 140℉ |
| Grounding Type: Common Negative Lug |
Storage Temperature Range: -35 ℃ - 65℃/ -31℉ - 149℉
|
|
Communication: Modebus ; RV-C
|
Humidity: 0%-95%, No Condensation |
| Dimensions (L x W x D): 13.91 x 8.37 x 4.02 in / 353.53 X 212.75 X 102.21mm | Temperature Compensation: '-3mV / ℃ / 2V (Non-Lithium) |
| Temperature Compensation: '0mV / ℃ / 2V; no compensation (Lithium) | Weight: 7 lbs/ 3.12kg |
| Terminal Size:Anderson PP75 | Terminal Range: 8AWG - 6AWG |
Warranty
| Warranty: 3-year material and workmanship warranty |
Certifications
| CB: Yes | FCC: Yes |
| CE: Yes | UKCA: Yes |
| MIC: Yes |
It seems that this battery charger doesn't have a screen to display data, then how should I check the data and its working status?
The REGO DC-DC Battery Charger with the built-in Bluetooth module allows you to monitor the charging status through Renogy DC Home App by cellphone. You will be able to get the data on the voltage of the starter battery and house battery, the charging current of the battery charger, the reverse charging current, etc.
Can I customize the charging current or BOOST voltage?
What are the requirements for the selected generator in two-way charging?
