The Most Complete Kit
Stop Guessing What You Need
Other Solar kits leave you researching which inverter pairs with which battery. Renogy RV Solutions come complete, every compatible component chosen and packed for you.
Renogy 24/7 AI Agent | 6AM to 5PM PT Live Chat | Submit a Case Anytime Contact Us
❓Need help before buying? Call Us: 1 (909) 287 7111
RV Solution | Go Far 3.8kWh & Go Further 7.6kWh - Go Further | 7.6kWh is backordered and will ship as soon as it is back in stock.
The Go Far Solution (3.8kWh) | The Go Further Solution (7.6kWh)

Where will you build your power system?
Help us establish the baseline.
Toggle appliances and adjust daily power depends on your situations.

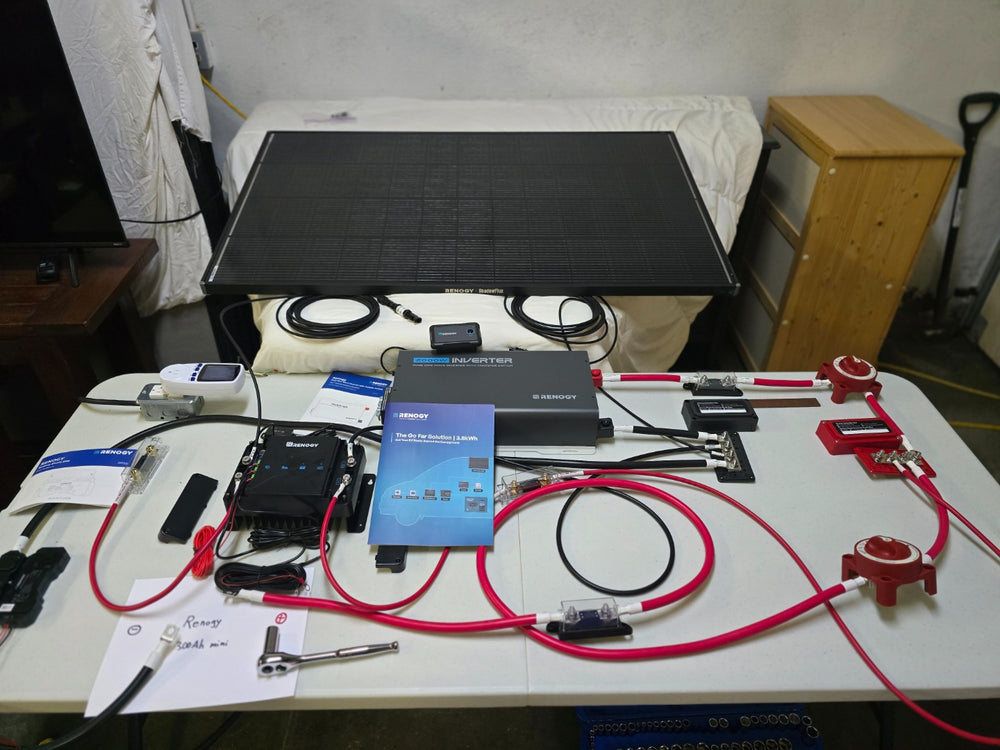

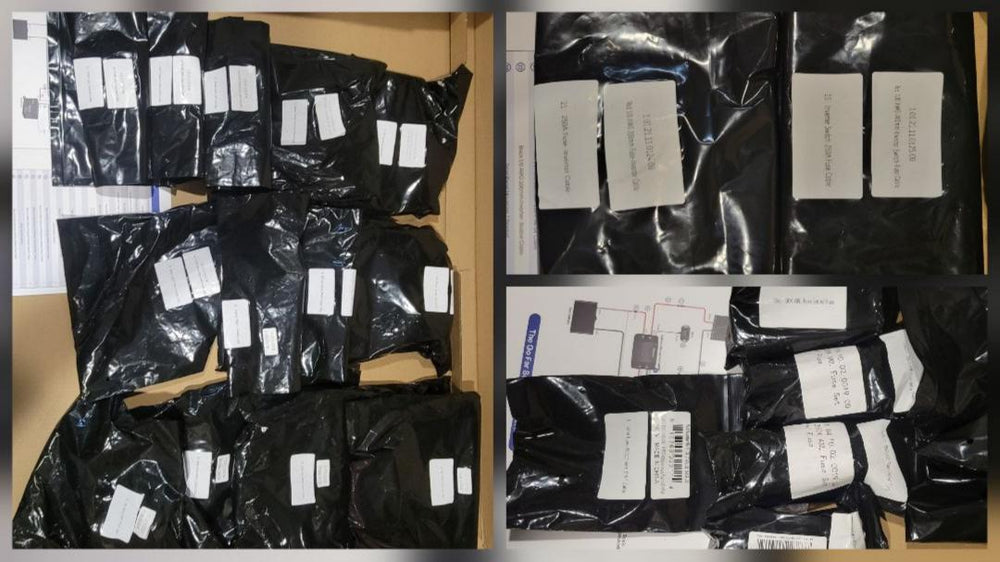

"As a DIY 12V builder who has previously built out systems for a fiberglass trailer and a mobile computer lab van, I know how frustrating it is to calculate, source, and match individual heavy cables, fuse blocks, switches, and busbars. This kit completely solves that pain point. Having an entirely engineered, pre-sourced 25-piece accessory ecosystem saves massive layout time. Every accessory bag is cleanly labeled, and the heavy 1/0 AWG and 6 AWG cable lugs are stamped with their exact landing points...

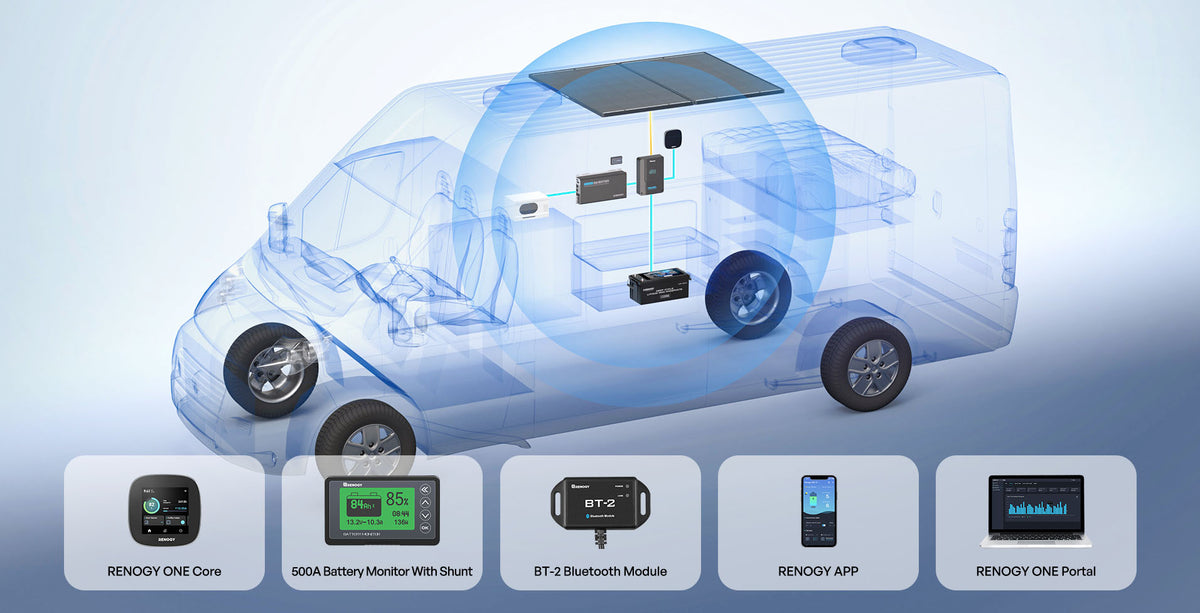

"As I started unpacking the components, I was immediately impressed by the size of the 300A bus bars and 350A disconnects. Those components are built to handle some serious current and should have no problem supporting the demands of the system. The kit also includes a Bluetooth shunt 300 for system monitoring, along with a BT-2 module for the 50A DC-DC on-board battery charger with MPPT charger to make setup and configuration easier...
Start with what you need today and expand as your travels grow. The system is designed to scale without replacing core components.
From installation guidance to troubleshooting, your entire setup is supported by one Renogy team that understands how each works together.
Try your Renogy RV solutions with confidence. Eligible returns can be made within 30 days of delivery based on Renogy’s return policy.
RV 7.6kWh Integrated Accessory Kit x1

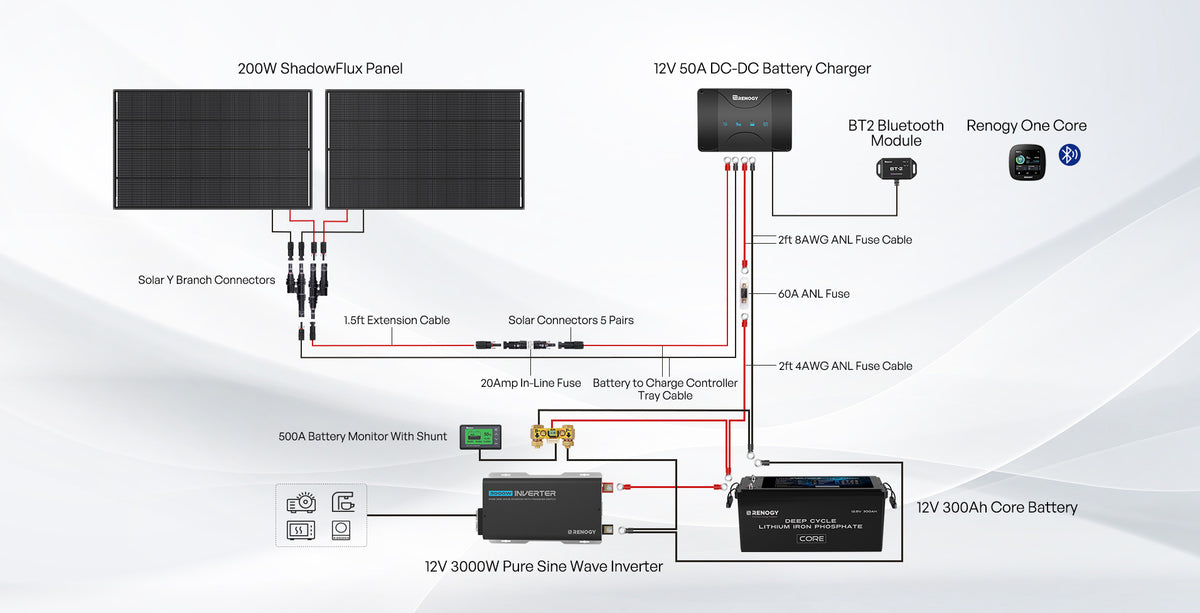

It contains all basic accessories shown in the wiring diagram.
RV 3.8kWh Integrated Accessory Kit x1
It contains all basic accessories shown in the wiring diagram.
The main components, including the solar panels and batteries, are covered under Renogy's standard product warranty. The accessory pack, including installation hardware and wiring components, is covered by a 1-year warranty.
Starter Battery Wiring
Because cable run lengths vary by vehicle, the kit does not include the wiring between the starter battery and the system. This includes:
• Positive cable: Starter battery positive terminal to the 80A fuse
• Negative cable: Starter battery negative terminal to the negative busbar
Select the appropriate wire gauge based on the one-way cable run length:
• Up to 16.4 ft (5 m): 6 AWG recommended
• 16.4-23 ft (5-7 m): 4 AWG recommended
• 23-32.8 ft (7-10 m): 2 AWG recommended
Equipment Grounding Cable
For safety, we strongly recommend using a 10 AWG grounding wire to connect the inverter's chassis ground terminal (M4 ring terminal required) directly to the vehicle chassis.
Yes. The inverter included in this solution features an intelligent AC Pass-Through (Bypass) function. When shore power is available, the system can automatically switch, or be manually switched, to bypass mode. This allows campground power to run high-draw AC appliances such as rooftop air conditioners and microwaves directly, helping preserve battery power for when you are truly off-grid.

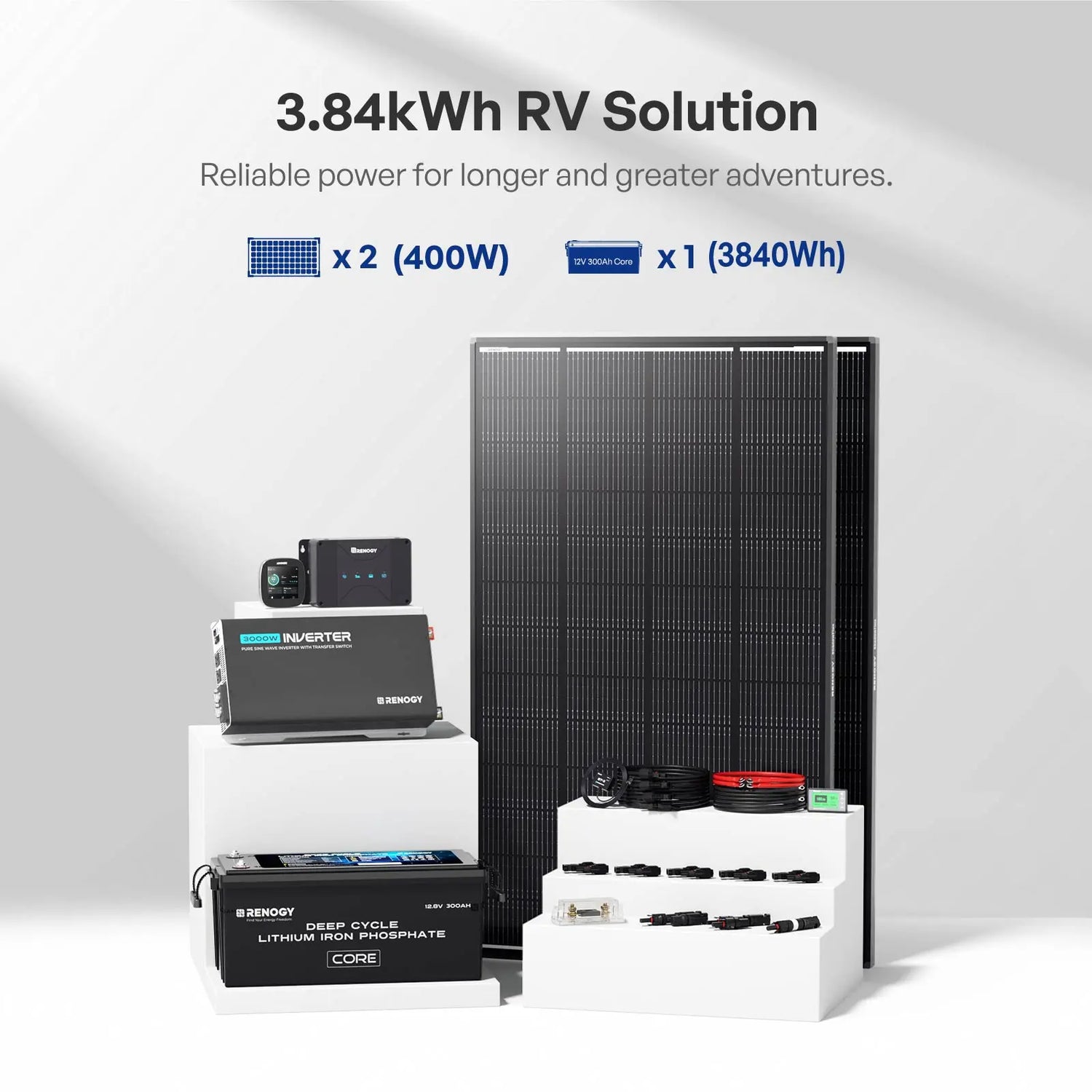

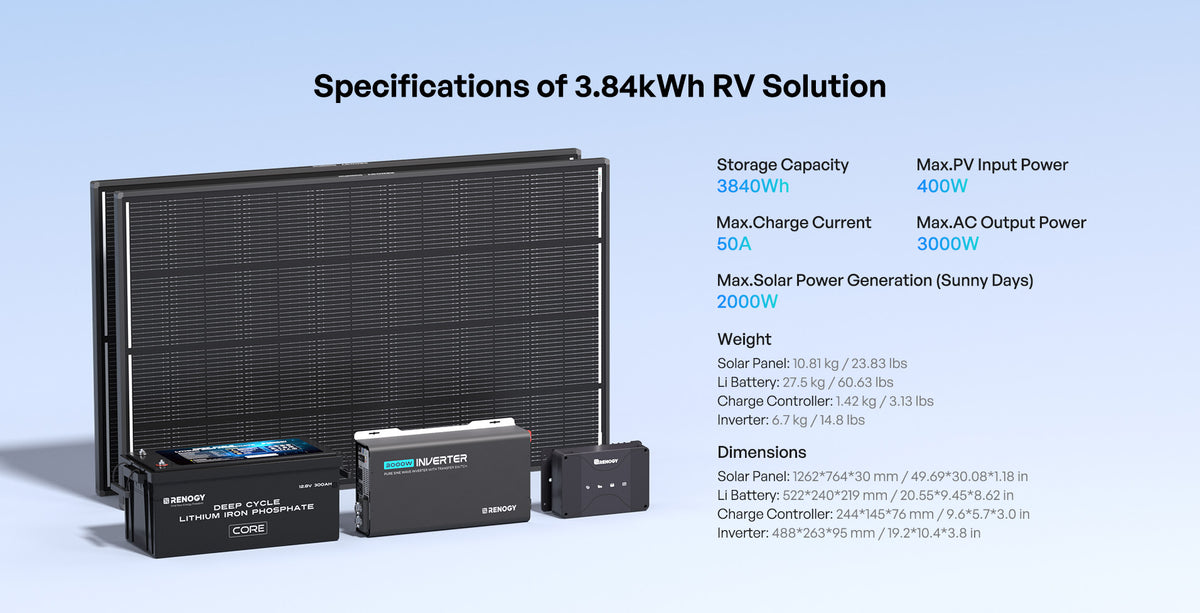

The Go Far (3.84kWh) Solution is optimized for weekend trips, holiday camping, and other short-term adventures.
Assuming an average of three hours of driving per day, here's what you can typically expect:
All-Weather Dual Charging: By combining alternator charging and solar input, the system can replenish approximately 2kWh of energy per day, helping maintain reliable power even during cloudy or rainy conditions.
Need More Capacity? If your daily energy consumption regularly exceeds this amount, consider upgrading to the Go Further (7.68kWh) Solution for additional battery storage. If shore power is available, you can also add a high-output AC-DC charger to quickly recharge your battery bank overnight.
It can only connect to the battery charger and cannot monitor the battery. The BT-2 Bluetooth module connects to the charger’s RS485 port and can only monitor charger status. It cannot directly read the battery’s state of charge (SOC) because the battery is a separate device.
The internal resistance, capacity, and BMS parameters of lithium batteries must be strictly matched. Mixing different brands or models can cause:
Follow the “connect battery first, then solar” and “negative before positive” principles:
Yes, it must be connected. Grounding the inverter chassis prevents electric shock and complies with electrical codes. Connect the inverter’s grounding terminal to the vehicle’s metal frame (scrape off any paint to ensure conductivity). When parked, connecting the chassis to the earth via a ground rod further
eliminates static and leakage risks.
Please confirm:
Yes. This kit supports future expansion:
For specific expansion methods and precautions, please refer to the product detail page or visit the Renogy
support center on the official website.
