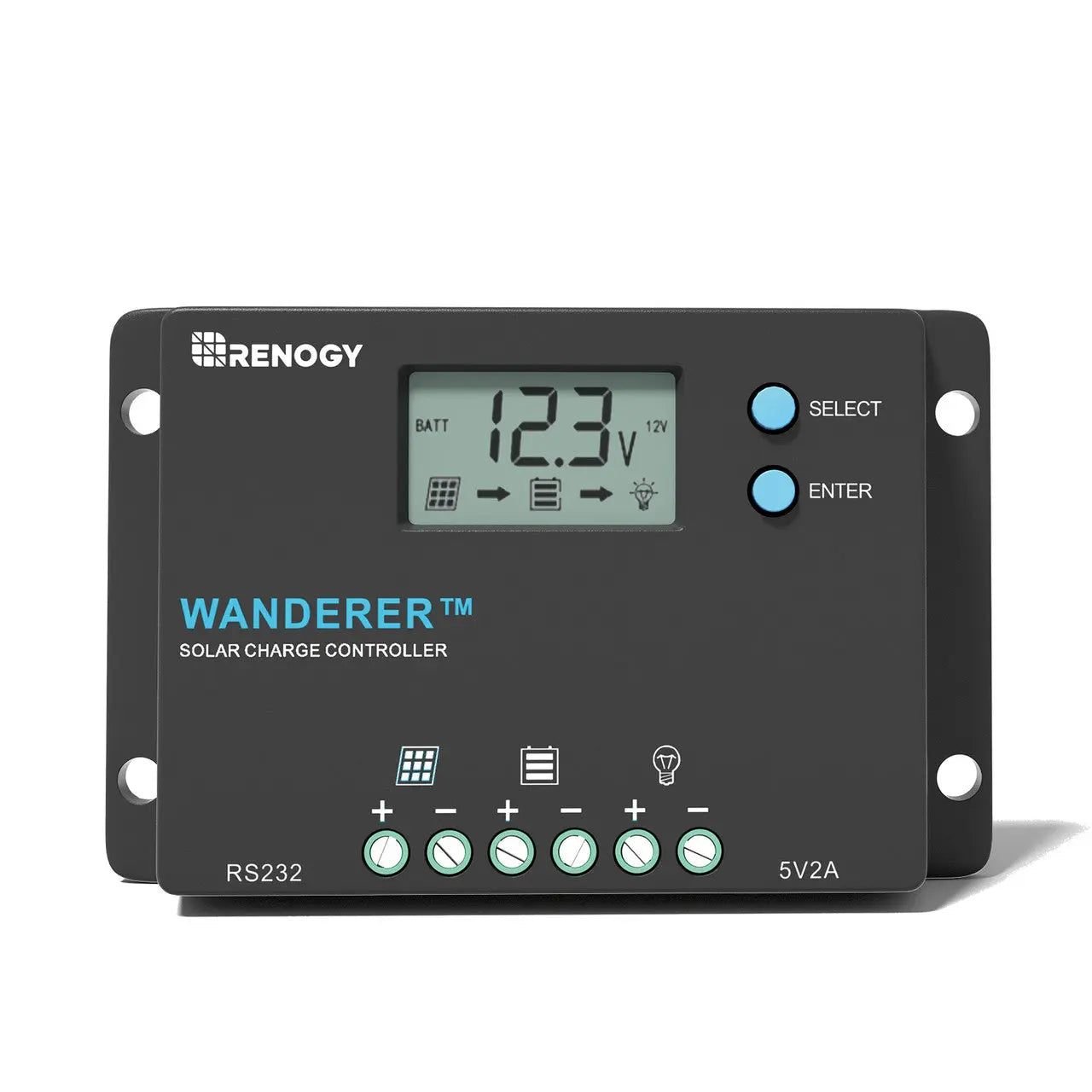

Wanderer 10A PWM Charge Controller
SKU:
RNG-CTRL-WND10-US
$34.99
Unit price
/
Unavailable
+
+
Rays
after purchase.
Log In
About Renogy Membership
Key Features
- - Automatically detects 12V/24V system voltage.
- - Full system protection to safeguard your energy system.
- - Maximum flexibility with multiple load control modes.

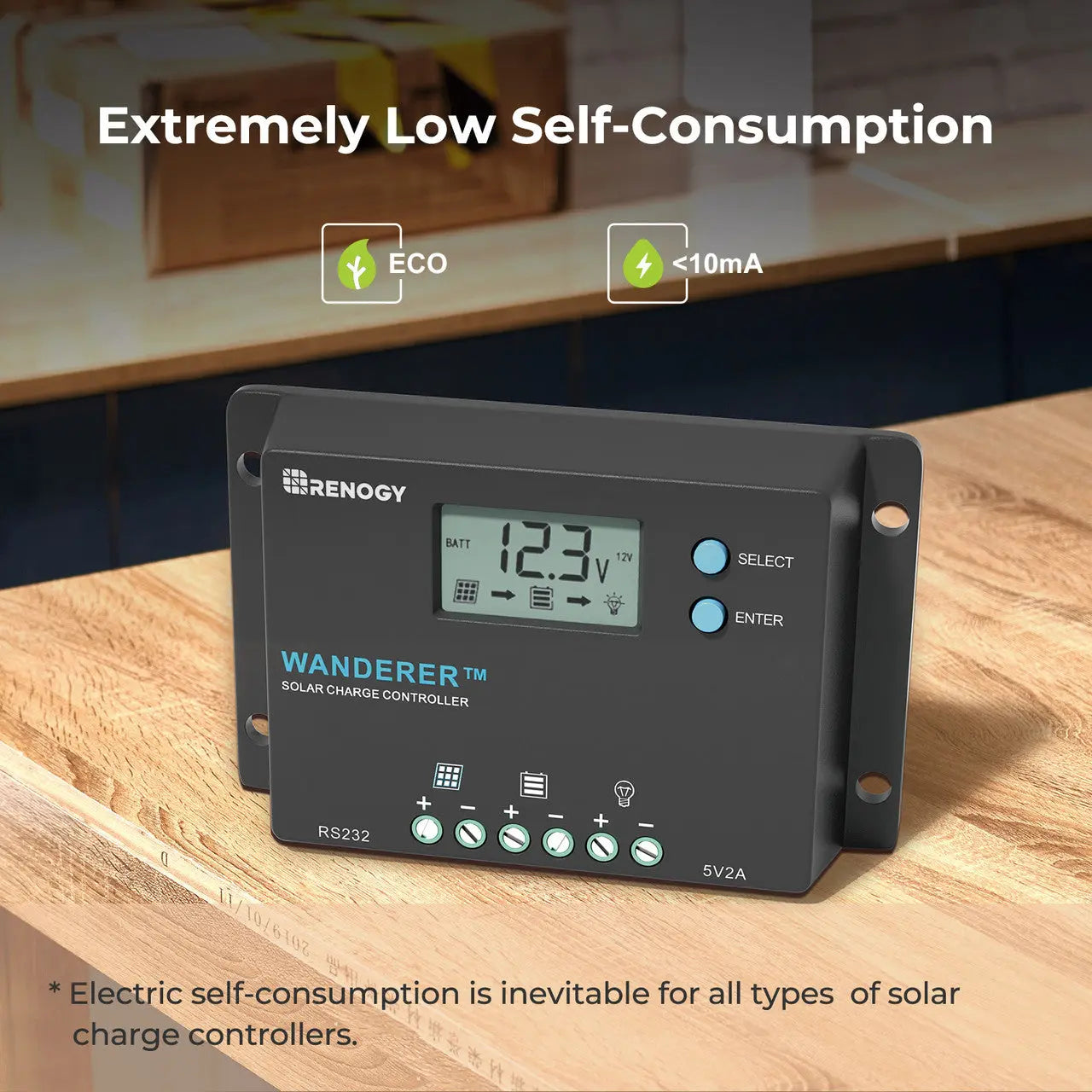

- - Extremely low self-consumption.

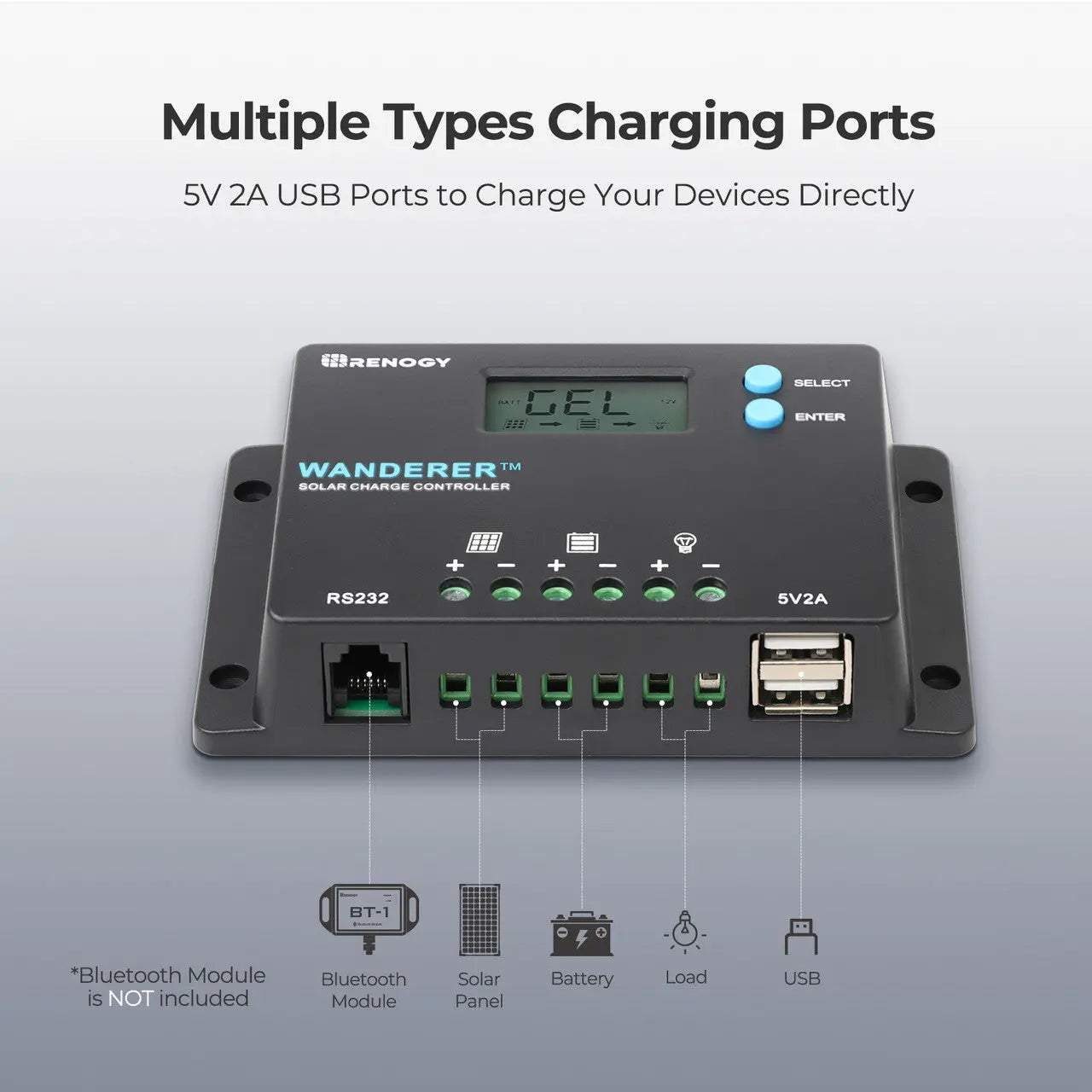

- - Real-time monitoring with integrated RS232 port.
Wanderer 10A PWM Charge Controller - Controller Only is backordered and will ship as soon as it is back in stock.
5% OFF Coupon for New Subscriber
30-Day Return and Refund Service
Lifetime Customer Support
Show More Benefits
Show Less
Payment Methods
Delivery Methods
Wanderer 10A PWM Charge Controller
$34.99
Unit price
/
Unavailable
Controller Only
- Automatically detects 12V/24V system voltage.
- Full system protection to safeguard your energy system.
- Maximum flexibility with multiple load control modes.
- Extremely low self-consumption.
- Real-time monitoring with integrated RS232 port.

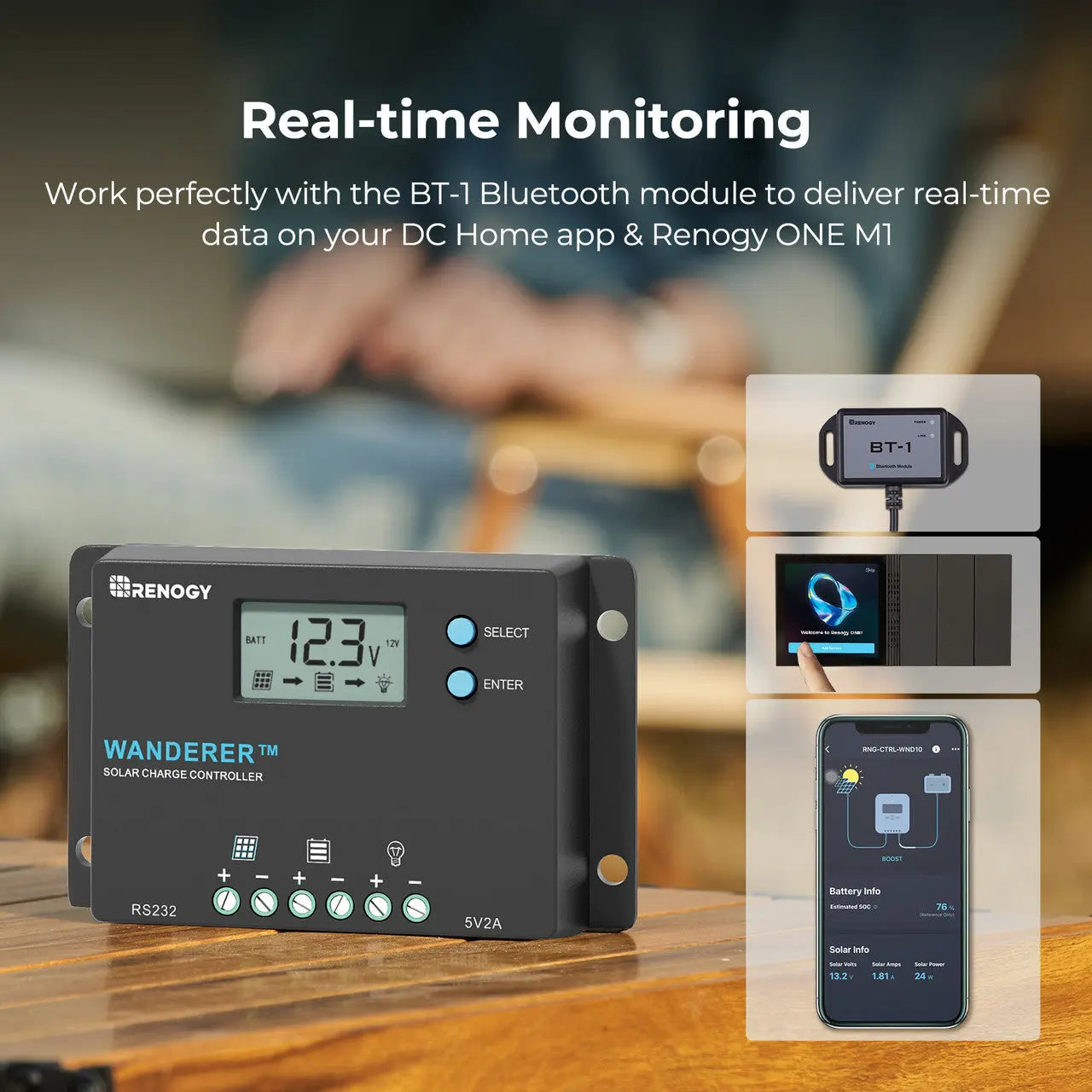

Monitoring Your Energy System Anytime and Anywhere
Seamlessly integrate with the BT-1 to provide instant data on your DC Home app & Renogy ONE M1.
Impeccable Functional Versatility
Offering five load modes, catering to various power needs. With a lightweight design of 0.27 lbs, it operates efficiently in temperatures ranging from -31°F to 113°F.
Customize Your System Parameters

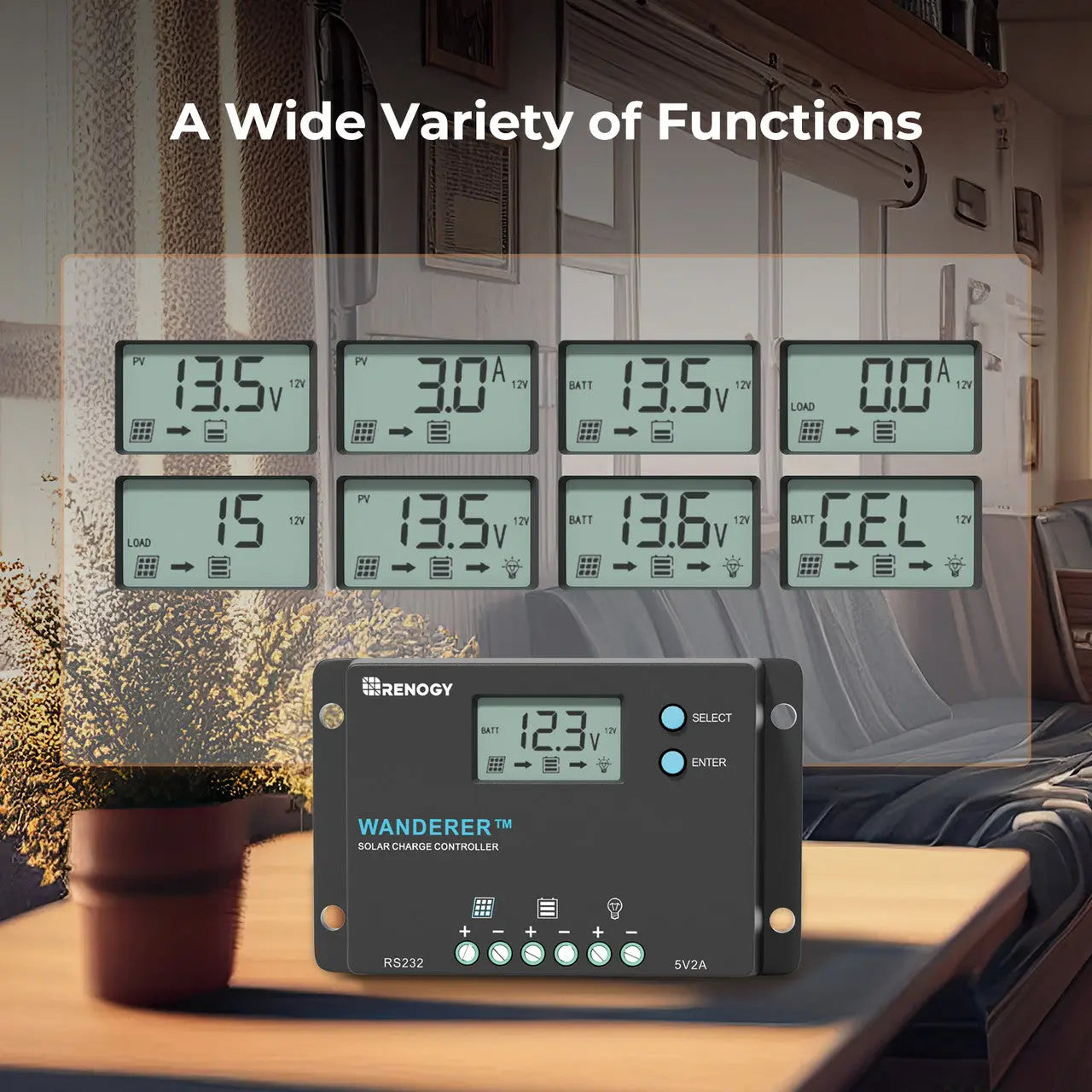

Blacklit LCD screen for displaying system operation, diverse load control and error codes.
Strict Quality Control

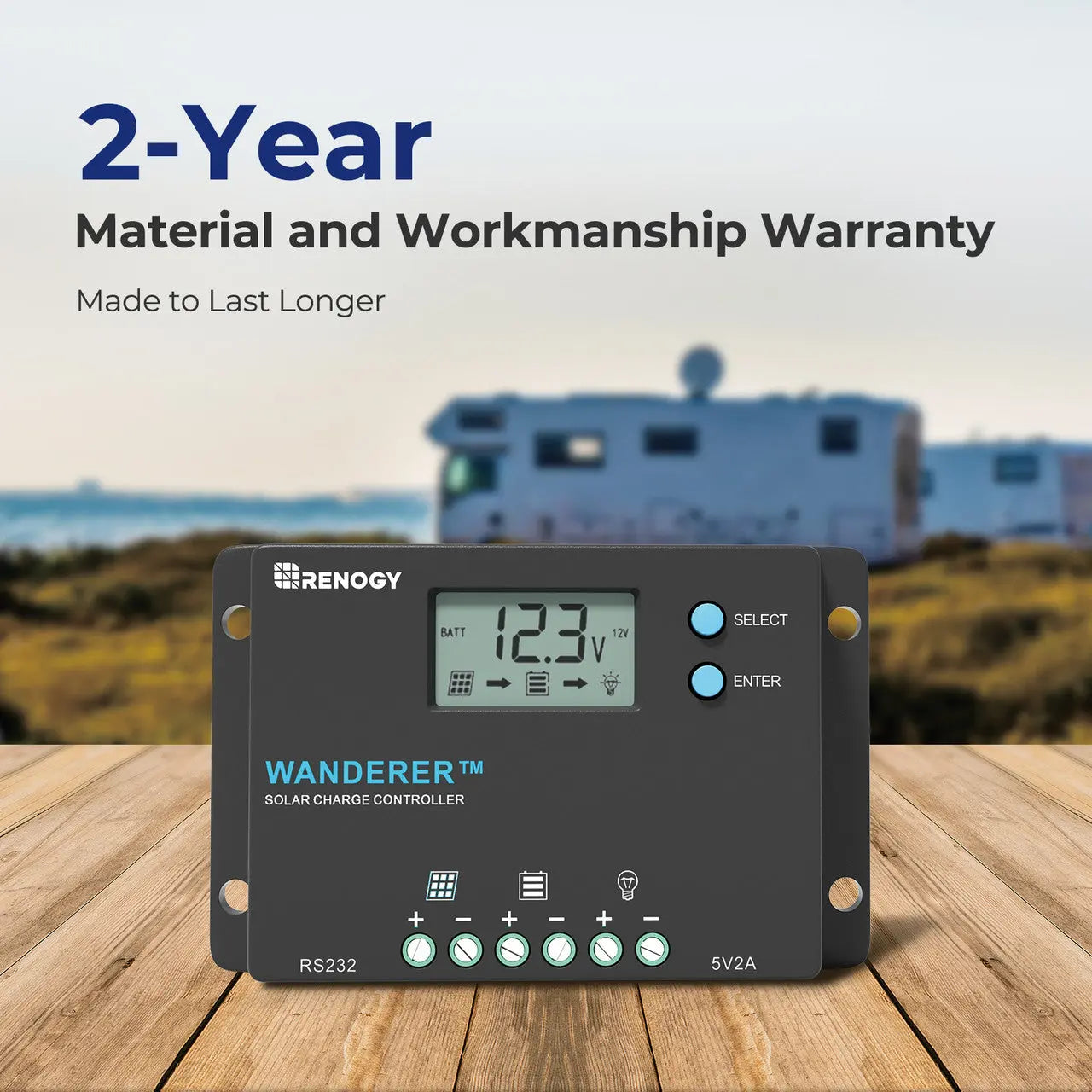

Exceptional quality control ensures reliability. Renogy Wanderer 10A Charge Controller ensures a 2-year material and workmanship performance.
All-round Protection for Your Batteries
Providing all-round protections against overcharging, over-discharging, short-circuit, overload, reverse polarity, reverse current, and temperature compensation.
Prolong Lifespan
Wanderer 10A Charge Controller gives you stable power output, prolonging the lifespan of sensitive electronic devices.
Empower Your Off-Grid Life
Perfect for a variety of scenarios including RVs, boats, cabins, farming, and gardening scenarios. Explore more solar power possibilities.
Trailer
RV
Cabin
Boat
Fence
Garden
Learn more
|
WANDERER 10A PWM CHARGE CONTROLLER |
|
|---|---|

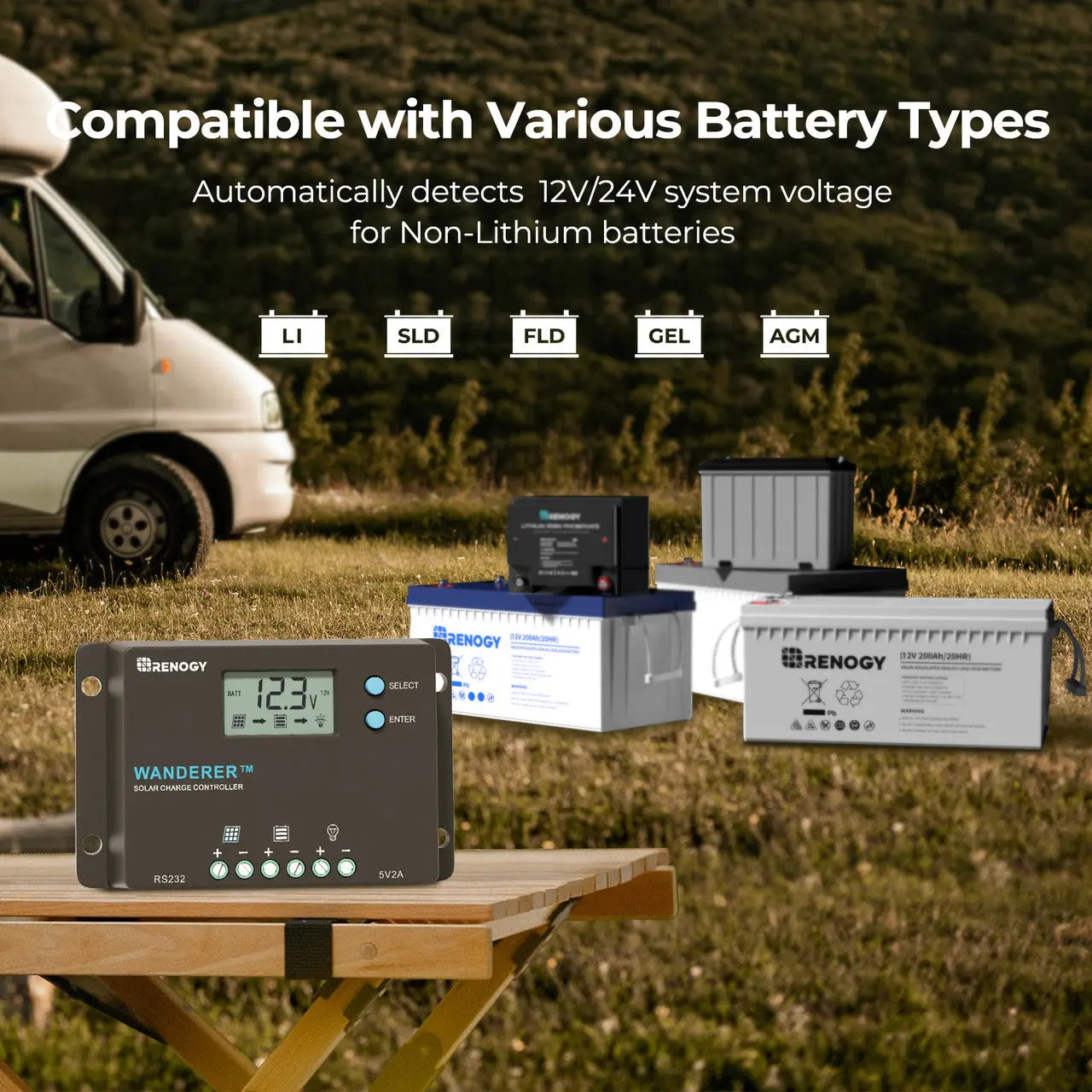

| Nominal Voltage: 12V/24V Auto Recognition for non-lithium batteries | Rated Charge Current: 10A |
| Max Gauge Size: Up to 12AWG | Max. PV Input Voltage: 50 VDC |
| Self-Consumption: <10mA | Working Temperature: -31°F - 113°F / -25°C - 45°C |
| Dimensions: 4.7 x 3.0 x 1.1 in / 119x75x27.5mm | Weight: 0.27 lbs / 122.47g |
| Storage Temperature: -31°F - 176°F / -35°C - 80°C | Temperature Compensation: -3mV/°C/2V |
| Max PV Input: 130W / 12V; 260W / 24V | Certification: CE / ROHS |
| WARRANTY INFORMATION | |
| Accessories: 2-year material and workmanship warranty | Charge Controllers: Wanderer |
Package Includes
NOTE:
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or submit a ticket for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center!
|
Wanderer 10A PWM Charge Controller
1 x
|
 |
 |
 |
