By Kayla Liu May 6th 2024

Monitoring your battery and power system is essential for maximizing the performance of your solar power systems. This blog will discuss battery/system monitor fundamentals, how solar monitors work, benefits of using a battery or system monitor, and solar monitor types specific to your demands.

What is a Battery/Power Monitor?

A battery monitor measures voltage, current flow, capacity, and temperature of a battery in real time. It helps track battery health, charge level, and operating mode.

Unlike the Battery Management System (BMS) that keeps individual batteries within their precise operational window, a battery monitor displays both historical and real-time information to improve overall battery system performance.

A solar power monitor analyzes the performance of solar panels, batteries, charge controllers, inverters, and battery chargers. It provides real-time data on energy production, consumption, and storage.

A power monitor shows real-time electricity generation from solar panels and tracks battery status and power flow. This information helps optimize system efficiency. Some monitors offer advanced features like historical data analysis, trend tracking, and customizable alerts to identify patterns and improve energy usage efficiency.

Why I Need Battery/Power Monitors?

A battery or power monitor is of utmost significance to your power system by providing a wealth of benefits:

  • Identify inefficiencies.

A battery or power monitor provides valuable insights into your power system's performance by tracking power production, consumption, operating status, and efficiency over specific time periods. This information enables you to evaluate the system's overall efficiency and identify any potential issues that could impact its performance.

  • Improve system reliability.

With overvoltage or low voltage alerts, a battery or power monitor helps prevent system downtime. In addition, the monitors often track the health status and operating mode of connected devices to ensure reliable system operation.

  • Maximize cost-efficiency and savings.

A battery monitor helps prolong the battery lifespan by optimizing the charge and discharge cycles. In addition, the alerts provided by the monitoring systems help decrease the maintenance costs. For grid-tie power systems, a power monitor helps you when to feed power to the grid to save utility costs. All of these contribute to higher cost-efficiency in solar power systems.

How Battery/Power Monitors Work?

A battery or power monitor is attached to a battery or other component in your solar power system. They work in different ways specific to their types.

  • Shunt-based monitor
  • BMS-based Monitor
  • Device-connected Monitor
  • IoT Power Monitor

Shunt-enabled Monitor

A shunt-enabled monitor uses a shunt, an electrical device, to measure energy flow and voltage in real time. The shunt is connected in series to the negative terminal of the battery.

Renogy boasts two types of shunt-based monitor:

  • 500A Battery Monitor With Shunt
  • Battery Shunt 300

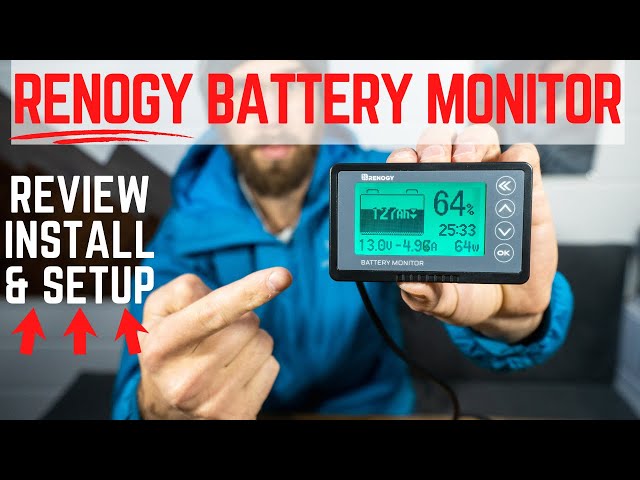

500A Battery Monitor With Shunt

The 500A Battery Monitor With Shunt provides highly accurate voltage and current measurements compared to traditional monitors. It is compatible with various battery types like lead acid, lithium iron phosphate, lithium-ion, and nickel-metal hybrid.

The monitor operates within a wide voltage range of 10V to 120V and can handle currents up to 500A. It is easy to install and offers clear readings. See the system setup for 500A battery monitor with shunt below:

Check out how Renogy 500A battery monitor works and how it helps you easily monitor your power system through the review video from one of our dedicated fans, Cayleigh & David, a Canadian travel couple that specializes in "Value Travel":

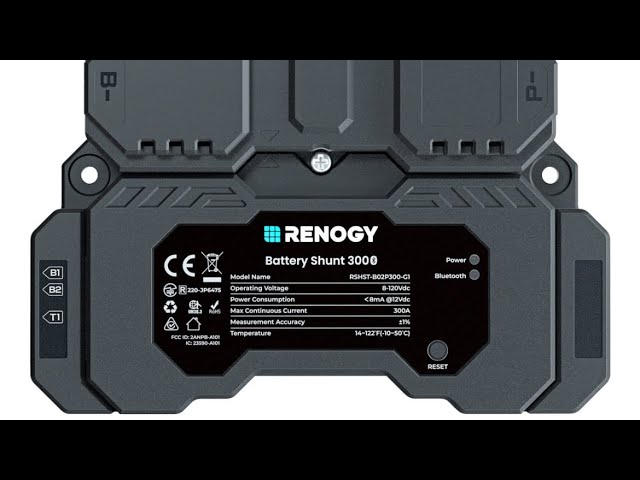

Renogy Battery Shunt 300

Renogy Battery Shunt 300 does more than the 500A Battery Monitor With Shunt.



It is an intelligent battery monitor that measures the battery voltage and current based on which it calculates the state of charge (SOC) and remaining running time of the battery. In addition, the shunt records historical charging and discharging data such as full deep discharge cycle, discharge capacity, charge cycle, and battery temperature. With the built-in Bluetooth module, Battery Shunt 300 communicates with the DC Home app and Renogy ONE. This allows you to monitor real-time charging and discharging data and customize related parameters. These settings encompass nominal capacity, deep discharge thresholds, temperature alarms, and SOC alarms. Check out a typical system setup for Battery Shunt 300 below:

Key features of Renogy Battery Shunt 300:

  • Universal Battery Compatibility: Works seamlessly with various battery types, including Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-ion, and Nickel-metal hybrid.
  • Comprehensive Battery Insights: Provides vital battery information such as State of Charge (SOC), voltage, current, energy, remaining time, temperature, and starter battery voltage.
  • Alarm and Historical Data: Records historical data and offers alerts for abnormal conditions through the DC Home app.
  • Convenient Remote Monitoring: Enables remote monitoring and control via Renogy ONE and the DC Home App using Bluetooth connectivity.
  • Effortless Installation and Configuration: Simplifies installation and settings adjustments through the DC Home app for a user-friendly experience.

Competitive Analysis

You may wonder the differences between Renogy 500A Battery Monitor With Shunt and Renogy Battery Shunt 300 or the differences between Renogy Battery Shunt 300 and Victron Energy SmartShunt 500A. The table below provides you a clear answer.

Model500A Battery Monitor With ShuntBattery Shunt 300Victron Energy SmartShunt 500A***
Appearance  rbm500-03-81336.jpg  smart-shunt.jpg  smartshunt-ip65-new.png
Price $89.99* $131* $145*
Input Voltage Range (Supply Voltage) 10V to 120V DC 8V to 120V DC 6.5V to 70V DC
Operating temperature range 14°F to 40°F (-10°C to 60°C) 14°F to 122°F (-10°C to 50°C) -40°F to 120°F (-40°C to 50°C)
Communication notsupported.jpg BLE & Bluetooth Mesh Bluetooth
Continuous current/Peak current 350A/500A 300A/500A Not provided
Compatible with a monitoring app notsupported.jpg supported.jpg supported.jpg
Data Display & Setting LCD screen and button switching Renogy ONE and DC Home app VictronConnect app
Remote Monitoring notsupported.jpg supported.jpg(via Renogy ONE) supported.jpg (via a GX Device and VE.Direct cable/VE.Direct)
Starter Battery Detection notsupported.jpg supported.jpg supported.jpg
Battery Temperature Detection notsupported.jpg supported.jpg(via an included temperature sensor) supported.jpg(via an optional temperature sensor)
Smart Automation** notsupported.jpg supported.jpg supported.jpg

*The prices are valid until May 6, 2024.

**Smart Automation is available when the Battery Shunt 300 works in association with Renogy ONE Core.

***Information about Victron Energy SmartShunt 500A is downloaded at Victron website and is subject to copyright of Victron.

Compared with Victron Energy SmartShunt 500A, Renogy Battery Shunt 300 enjoys the advantages below:

  • Lower Price: Renogy Battery Shunt is more budget-friendly, priced at $131 compared to Victron's $145. It provides an included temperature sensor, ensuring that you can monitor and manage the battery's temperature without incurring extra costs. In scenarios where you need remote monitoring for Victron SmartShunt 500A, an extra GX device and a VE.Direct cable (pricing at more than $200) are required, increasing your system costs.
  • Wider Input Voltage Range: Renogy Battery Shunt 300 has a broader input voltage range, supporting 10V to 120V DC, which offers more flexibility in battery compatibility.
  • Extended Operating Temperature Range: Renogy Battery Shunt 300 can operate in a wider temperature range, from 14°F to 122°F (-10°C to 50°C), making it suitable for more extreme environmental conditions.
  • Smart Automation: Renogy Battery Shunt 300 can be used to create intelligent scenes when working in association with Renogy ONE and smart accessories such as Smart Plug, Smart Relay, Motion Sensor, and Door & Window Sensor. This allows for seamless automation, enhancing convenience and control in your energy management system.

You can get a clearer picture of how Renogy Battery Shunt 300 performs through unboxing and review videos from J. A. Dudley and Keith, two of our dedicated fans who have tested the product before and after the official release:





BMS-based Monitor

A BMS-connected monitor eliminates the need for a shunt and directly communicates with the Battery Management System (BMS) for more precise State of Charge (SOC) readings. It provides information such as voltage, current, capacity, remaining time, warning codes, and the number of paralleled batteries. These details assist users in identifying abnormal conditions, extending battery lifespan, and avoiding potential issues.

Example: Monitoring Screen for Smart Lithium Battery Series. You can connect the monitoring screen to the battery using the included RJ45 cable for real-time monitoring. No shunt is needed. The screen displays error codes for quick recognition of potential abnormal conditions and improper operation.


Device-connected Monitor

Apart from the monitors listed above, other power monitors may work based on the device to which they are connected.

For instance, Renogy provides Monitoring Screen for Rover Elite Series, a high precision meter designed for Rover Elite charge controllers. The monitoring screen, connected to the charge controller via an RJ45 cable, displays the charging state, solar panel voltage, charging current, battery/system voltage, accumulated ampere-hours, ambient temperature, and error code.


Another power monitor is connected to a DC-DC battery charger. Renogy Monitoring Screen for DC-DC MPPT Battery Charger Series, a high precision meter designed for DC-DC MPPT Series on-board battery chargers, detects system voltage, SOC, system error, operating status, temperature of relevant devices and more in a solar power system.


In addition, Renogy provides Monitoring Screen for PGH Inverter Series, a high precision meter designed for the 2000W 12V Pure Sine Wave Inverter with Power Saving Mode. The remote monitoring screen has a backlit display and can be flush-mounted on RVs or camper walls for a clean and professional appearance. It allows easy navigation through system information and error codes. The screen shows the battery's DC input voltage, real-time current and power from the inverter to AC appliances, AC load voltage, and output frequency.


IoT Power Monitor

An IoT power monitor utilizes Internet of Things (IoT) technology to connect multiple devices in a power system through wireless or wired networks. It not only displays power information from the devices but also analyzes dynamic information across connected devices. This enables you to make informed decisions to improve the efficiency and intelligence of your power system.

Many IoT monitors function as smart energy management and monitoring platforms, allowing you to monitor and optimize energy usage in residential, RV, and marine applications.

An IoT-enabled power monitoring system consists of three layers:

  1. Hardware including device sensors and meters
  2. Transmission of collected data to local gateways or the cloud
  3. Mobile or web applications for data visualization.
The Renogy ONE family is an example of such a monitoring system.

Renogy ONE M1 and Renogy ONE Core are all-in-one IoT gateways that can be connected via wired networks (RS-485) or wirelessly such as Bluetooth and Zigbee to solar batteries, charge controllers, inverters, and more to capture energy parameters. The energy data is transmitted locally to Renogy ONE M1 and Renogy ONE Core through the RS-485 communication cable or Bluetooth and to the cloud when the Internet is available. You can view the data on their in-built displays locally or remotely when the gateways are connected to the DC Home app on your mobile. For subscription plan users, you can check your power system performance on Renogy ONE Portal on your PC or tablet.


Both the Renogy ONE M1 and Renogy ONE Core feature:

  • All-in-one smart energy monitoring

Instead of purchasing multiple monitors and shunts, the ONE gateway serves as the central hub, offering a single touch-screen display for comprehensive smart energy monitoring.

The gateway provides real-time data and intuitive displays of all your connected devices and appliances. It acts as the brains of your off-grid power system, allowing you to monitor and control your energy usage with ease.

  • 24/7 energy monitoring anywhere

The gateways allow you to live off-grid without compromising comfort. When the gateways are connected to the DC Home app, you can monitor energy data at your fingertips. For subscription plan users, you can check your power system performance on Renogy ONE Portal on your PC or tablet.

  • Efficient energy data analysis

The gateways track historical and predict future energy generation and consumption (for subscribers), based on which you can make wiser decisions in going solar.

  • Smart scene automation

Renogy ONE M1 provides three relay switches to turn on or off connected devices. Renogy ONE M1 and Renogy ONE Core work in association with Smart Plug, Smart Relay, Motion Sensor, and Door & Window Sensor to detect intruders, abnormalities, and create smart automation scenes. For example, you can create an Evening mode that automatically activates the lights or a Sleep mode that powers down lights and appliances for you.


  • Built-in RV leveling sensor for stability and comfort.

Renogy ONE Core features an RV leveling system to help effortlessly adjust your RV’s position to achieve optimal stability and comfort.

For details about Renogy ONE M1, see the product review video below:



To get a clear picture of Renogy ONE Core, see the product review video for Jason Kreiling below. Jason is a retired Army Veteran who has found the perfect balance of work and play, allowing he and his wife to explore the beauty of North America and the United States in their trusty 2001 Airstream Travel Trailer.



Which Types of Solar Monitors Are Right for Me?

The choice varies depending on your application scenarios and demands. To get a most suitable battery or power monitor, you need to consider the following factors:

  • Voltage range
  • Current range
  • Connectivity method
  • Monitoring capabilities
  • Interoperability matrix
  • Installation and setup complexity
  • Price

See the table below for details:

ProductVoltage Range (Supply Voltage)Current Range (Supply Current)Connectivity MethodMonitoring CapabilitiesInteroperability MatrixInstallation & Setup
Renogy Battery Shunt 300 8V- 120V 300A
  • Wired
  • BLE
  • Bluetooth Mesh
  • Voltage
  • Current
  • Battery capacity
  • Lead Acid (AGM, GEL)
  • Lithium Iron Phosphate
  • Lithium-ion
  • Nickel-metal hybrid
Surface mounting
500A Battery Monitor With Shunt 10V - 120V Up to 500A Wired
  • Voltage
  • Current
  • Battery capacity
  • Lead Acid (AGM, GEL)
  • Lithium Iron Phosphate
  • Lithium-ion
  • Nickel-metal hybrid
Flush-mounted
Monitoring Screen for Smart Lithium Battery Series 12V 30mA Wired
  • Battery voltage/ current/capacity
  • SOC
  • Self-heating status
  • Number of paralleled batteries
  • Remaining time
Renogy smart lithium batteries Flush-mounted
Monitoring Screen for Rover Elite Series 5V 30mA Wired
  • Battery voltage/current
  • Charging current
  • Accumulated Ah
  • Ambient temperature
  • Error code
Flush-mounted
Monitoring Screen for DC-DC MPPT Battery Charger Series 5V 30mA Wired
  • Battery type
  • Charge current/voltage
  • Temperature
Flush-mounted
Monitoring Screen for PGH Inverter Series 5V 30mA Wired
  • DC input voltage
  • AC load voltage
  • Output current to AC appliances
  • Output power to AC appliances
  • Output frequency
  • Error code
2000W 12V Pure Sine Wave Inverter with Power Saving Mode Flush-mounted
Renogy ONE M1
  • Power Port: 8V DC-16V DC
  • Type-C Port: 5V DC
N/A
  • WiFi (IEEE 802.11b/g/n 2.4 GHz)
  • Bluetooth 2.1/4.2
  • Bluetooth LE
  • Zigbee (IEEE 802.15.4)
Performance factors specific to connected devices Nearly all Renogy products with supported connectivity capabilities Flush-mounted
Renogy ONE Core 8-60 VDC (5 VDC for USB Type-C) N/A
  • Wi-Fi (IEEE 802.11b/g/n 2.4 GHz)
  • Bluetooth LE and Bluetooth Mesh
  • Zigbee 3.0 (IEEE 802.15.4)
  • RS-485
Performance factors specific to connected devices Nearly all Renogy products with supported connectivity capabilities
  • Flush-mounted
  • Place on a table
DC Home app N/A N/A
  • Bluetooth
  • Zigbee
Performance factors specific to connected devices Nearly all Renogy products with supported connectivity capabilities
  • Android
  • iOS
Renogy ONE Portal N/A N/A N/A Performance factors specific to connected devices Nearly all Renogy products with supported connectivity capabilities N/A

Conclusion

In conclusion, a battery or power monitor is essential for maximizing the performance and efficiency of your solar power system. It provides real-time data on battery health, charge level, and system performance. There are different types of monitors available, including shunt-enabled, BMS-based, device-connected, and IoT-enabled monitors like the Renogy ONE M1 and Renogy ONE Core. These monitors offer features such as accurate measurements, historical data analysis, alerts, and remote access. By using a solar monitor, you can identify inefficiencies, improve system reliability, and optimize energy usage, leading to higher cost-efficiency and savings in your solar power system.
