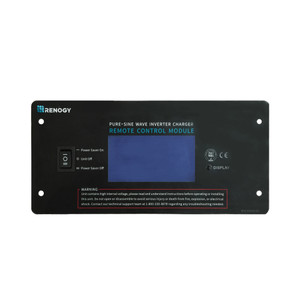

Monitoring Screen for PGH Inverter Series


The RMS-PGH is a high precision meter designed for the PGH1 2000W Power Saving Inverter. This remote monitoring screen features a backlit display and can be flush-mounted for an aesthetically clean and professional look on RVs or camper walls. Easily navigate through your system information and identify any error codes by utilizing the 2-key input. You can also use the main push button to power your inverter on/off at your convenience.

Only Compatible Models:  R-INVT-PGH1-20111S

If you have any questions regarding this product, please call us at 1 (909) 287-7111 or email

Key Features

  • Dual Function This unit combines an LCD Screen for monitoring and wired remote control, making it one convenient product.
  • Plug and Play Connect the monitoring screen to the charge controller using an RJ11 and RJ45 communication cable for real-time monitoring.
  • Accurate Readings The display showcases relevant Input and Output inverter information for precise tracking and monitoring.
  • Comprehensive Protection Straight-forward warning codes make it easy to identify potential abnormal conditions and improper operation.

Package Includes

Monitoring Screen for PGH Inverter Series

Monitoring Screen for PGH Inverter Series

1 x

Electrical SpecificationsMechanical Specifications
Supply Voltage: 5VDC Communication Port: RJ45 (RS485 Protocol) & RJ12
Supply Current: 30mA Display: Backlit LCD
Power Consumption: <1W User Interface: 2 Front Menu Buttons, 1 On/Off Push Button
Operating Temperature Range: -4°F~113°F / -20°C~45°C Mounting System: Wall Mount
Voltage Accuracy: ±0.1V Dimension: 2.76 x 4.33 x 1.25 inch / 70 x 110 x 31.8 mm
Current Accuracy: ±0.1A Weight: 0.14 lbs / 62 g
  Wire Length: 2 x 16.4ft / 5m
  Mounting Screw: M2.9x13mm


Warranty Information

Accessories 1-year material warranty
