How It Works

  • In the daytime, batteries store the excess energy generated by solar panels.

  • During evening peak hours, power household appliances with the energy pre-stored in batteries.

  • At night, charge batteries using a generator or inexpensive off-peak grid power.

Customize Home Solar System

  • Home Details
  • Electric Bill Details
  • Energy Goals
  • Result
Electron Detail
Step 1 of 4
Enter you home details Your detail informs our recommendation
< Back Next >
Electron Detail
Step 2 of 4
Enter you electric bill details Your detail informs our recommendation
Note: You may use Energy Consumption Calculator to estimate your energy consumption and peak load.
< Back Next >
Electron Detail
Step 3 of 4
Enter you energy goals Your goal informs our recommendation
80% solar | 20% other
< Back Next >
Electron Detail
Step 4 of 4
Check your off-grid home solar system
< Back Customize Another Solar System >

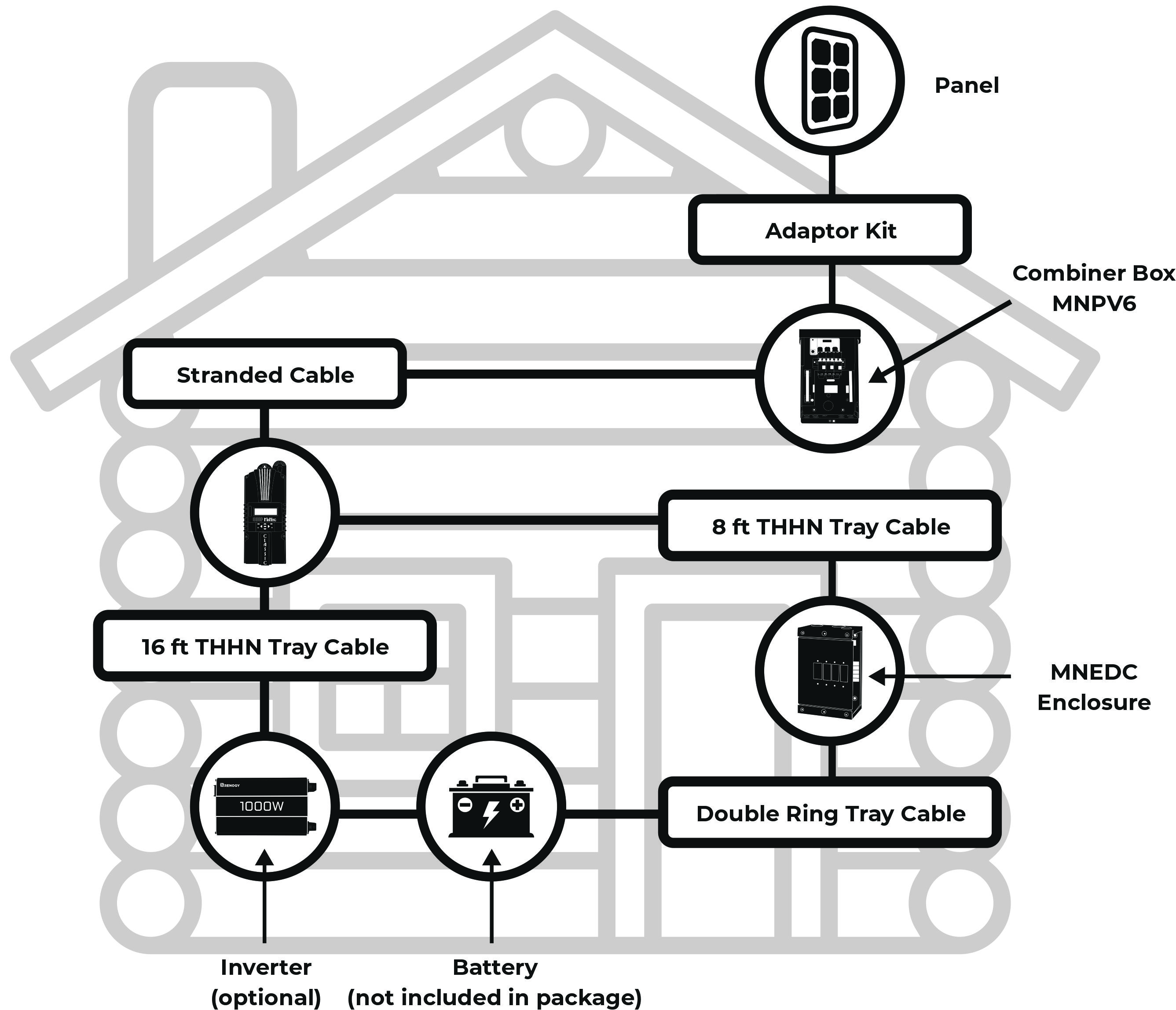

Wiring Diagram

Roof Mounting System

The roof mounting system fixes solar panels on roofs and provides necessary structural support.

Buy Roof Mounting System

Solar Panel

The solar panel utilizes sunlight as a source of energy and generates DC electricity.

Buy Solar Panel

Combiner Box

The combiner box combines the DC electricity from multiple strings of solar panels and houses the DC circuit breakers for each string of solar panels to enable individual circuit disconnection in the event of maintenance or an overcurrent condition and a surge protection device to protect against electrical spikes.

AC Distribution Panel

The AC distribution panel divides the AC electricity from the solar inverter charger, the grid and/or the generator and houses the AC circuit breakers for each branch circuit to enable individual circuit disconnection in the event of maintenance or an overcurrent condition.

DC Home App

The DC Home app enables the configuration, monitoring, and diagnosis of the solar inverter charger and the smart lithium iron phosphate battery through the Bluetooth connection.

Download DC Home on App Store Download DC Home on Google Play

DC Circuit Breaker Box

The DC circuit breaker box houses the DC circuit breakers for the solar inverter charger and the smart lithium iron phosphate batteries to enable circuit disconnection in the event of maintenance or an overcurrent condition, a ground fault circuit interrupter to break the circuit in the event of a ground fault, and a surge protection device to protect against electrical spikes.

Solar Inverter Charger

The solar inverter charger manages the DC electricity delivered to the smart lithium iron phosphate batteries from the solar panels, converts the AC electricity from the grid or a generator into DC electricity to charge the smart lithium iron phosphate batteries, and converts the DC electricity from the smart lithium iron phosphate batteries into AC electricity to power home appliances.

Buy Solar Inverter Charger

Bluetooth Module

The Bluetooth module pairs with the solar inverter charger and the smart lithium iron phosphate batteries for remote monitoring and parameter changes on the DC Home app.

Buy Bluetooth Module

Communication Hub

The communication hub combines the communication connections from the solar inverter charger and the smart lithium iron phosphate batteries.

Buy Communication Hub

Smart Lithium Iron Phosphate Battery

The smart lithium iron phosphate battery stores the electricity from the solar panels, the grid, and/or a generator for later user.

Buy Smart Lithium Iron Phosphate Battery
  • AC Cable
  • DC Cable
  • Communication Cable
  • Bluetooth Connection
  • Generator (or Grid)

Note:
The component dimensions shown in the above diagram have been adjusted for clarity and do not represent the actual ratio in the solar system. Additional electrical protection devices may be required to comply with the local and state codes for solar systems. The solar inverter charger module of the DC Home app is currently under development and will be available soon.

Recommend Kits

Tiny House Kit
1200 WATT 12 VOLT Monocrystalline Solar Kit
Sold out! Check back soon!
$2,527.20 - $4,560.00
Sold Out
The tiny house kit is for homeowners that require minimal power for low-draw appliances. The kit can double as backup power during an emergency.
The tiny house kit is for homeowners that require minimal power for low-draw appliances. The kit can double as backup power during an emergency.

Applications:

Tiny Homes, Mobil Homes, Small Remote Homes
READ MORE
Cottage Kit
Renogy 2500 WATT 48 VOLT Monocrystalline Solar Kit
Sold out! Check back soon!
$3,600.00 - $7,200.00
Sold Out
The cottage kit is for homeowners that require occasional but more frequent power for mid-draw appliances. The kit can act as a power source in most cases and provide backup power when there is no sun.
The cottage kit is for homeowners that require occasional but more frequent power for mid-draw appliances. The kit can act as a power source in most cases and provide backup power when there is no sun.

Applications:

Medium Remote Homes, Medium Cabins
READ MORE
Villa Kit
4800 WATT 48 VOLT Monocrystalline Solar Kit
Sold out! Check back soon!
$5,199.99 - $11,999.20
Sold Out
The villa kit is for homeowners that require all-day power for multiple appliances. The kit can serve as a primary power source for daily use and provide grid independence.
The villa kit is for homeowners that require all-day power for multiple appliances. The kit can serve as a primary power source for daily use and provide grid independence.

Applications:

Large Remote Homes, Large Cabins, Condominiums, Townhomes, Single Family Homes
READ MORE

Note: More kits equipped with the solar inverter charger and smart lithium iron phosphate batteries are coming soon.

Add-on components

Lifepo Batteries
MONITORING SCREEN FOR SMART LITHIUM BATTERY SERIES

The monitoring screen for smart lithium battery series is a high precision meter to monitor the real-time operation status of smart lithium iron phosphate batteries.

Accessories
BT-2 BLUETOOTH MODULE

The BT-2 Bluetooth module is a Bluetooth transceiver to pair the solar inverter charger and the smart lithium iron phosphate batteries with the DC Home app for remote monitoring and parameter changes.

Inverters
COMMUNICATION HUB

The communication hub is a multiprotocol RJ45 combiner to combine the communication connections from the solar inverter charger and the smart lithium iron phosphate batteries.

Note: The solar inverter charger module of the DC Home app is currently under development and will be available soon.
