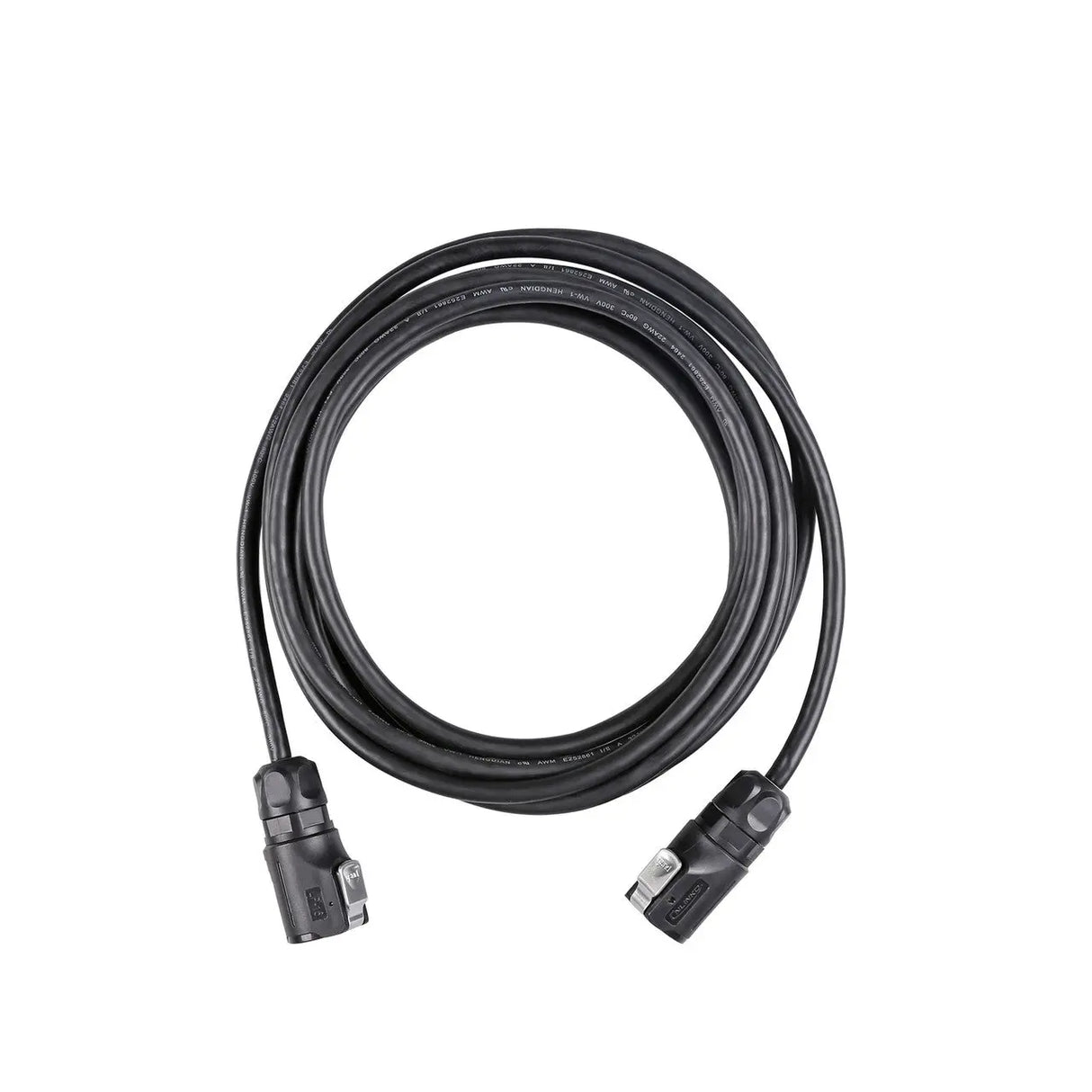

LP16 Plug (7-Pin) 10Ft/23Ft Communication Cable
SKU:
RCA10LL-6767-US
$18.99
Unit price
/
Unavailable
+
+
Rays
after purchase.
Log In
About Renogy Membership
Key Features
- 【Inter-device Communication for Optimal Performance】 This communication cable is used to realize the RV-C communication connection between Renogy REGO series products. The inter-device communication allows the REGO battery to dynamically adjust the charging profile for optimal and safe charging.
- 【Plug&Play And Easy Operation】 Fast plugging design, easy and precise assembly, and just tap to release.

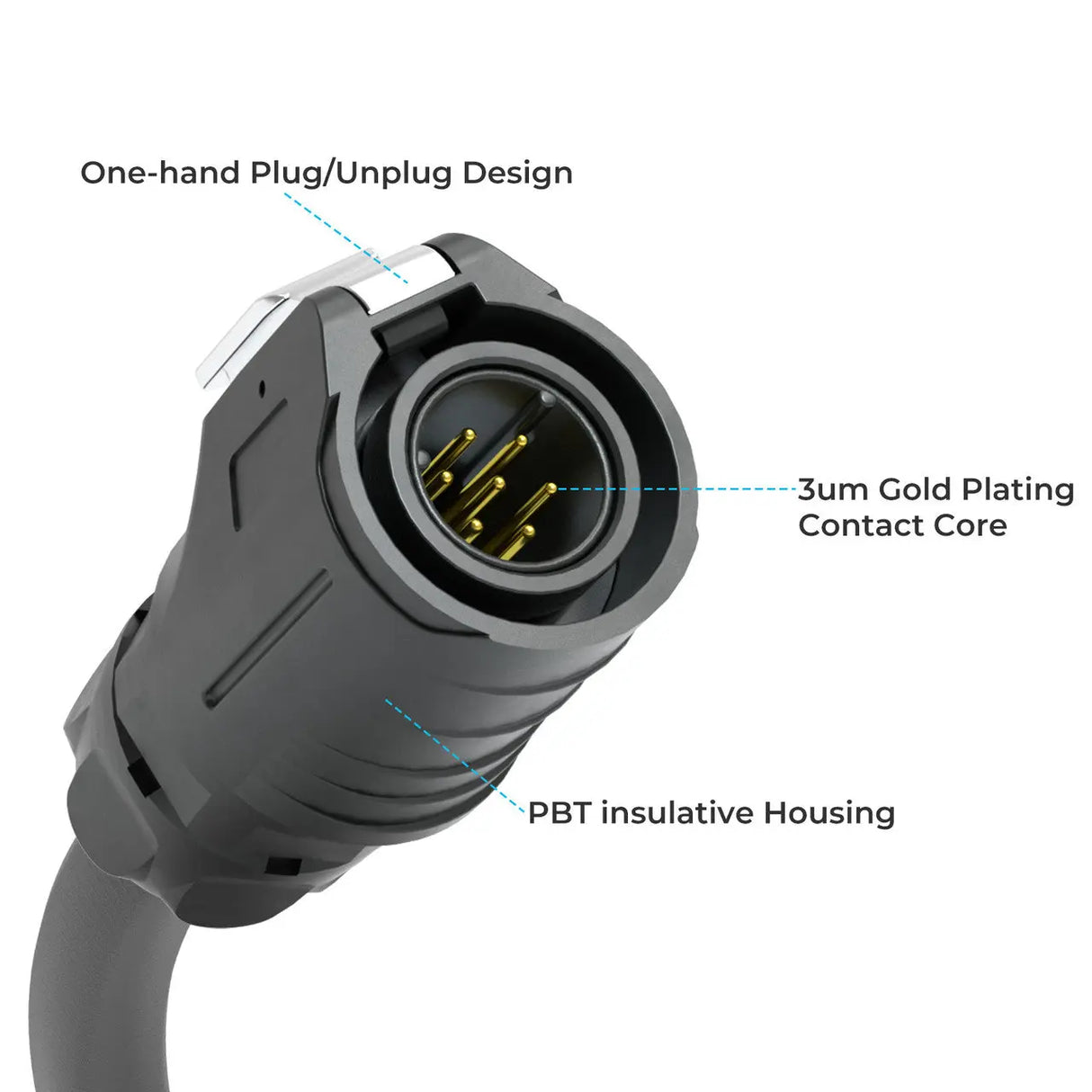

- 【Excellent Electrical Performance】 22AWG high-purity oxygen-free tinned stranded conductors, twisted in pairs, contact core using 3µm gold plating, guaranteeing the stable and efficient electrical performance of the product at all times.
- 【Durable Design Ensure Safety】 The cable can achieve IP65 waterproof level protection in a connected state with wide applicable temperatures from-25-80, producing the best power output in any weather condition. Adopt high-strength structural materials, pressure-resistant structure design can withstand greater vibration and shock good insulation, low creep, and anti-aging.
- 【Tested Quality】 All materials used are RoHS compliant and the cable is UL compliant and suitable for photovoltaic solar applications.
LP16 Plug (7-Pin) 10Ft/23Ft Communication Cable - 10Ft is backordered and will ship as soon as it is back in stock.
Payment Methods
LP16 Plug (7-Pin) 10Ft/23Ft Communication Cable
$18.99
Unit price
/
Unavailable
10Ft
DESCRIPTION
【Inter-device Communication for Optimal Performance】 This communication cable is used to realize the RV-C communication connection between Renogy REGO series products. The inter-device communication allows the REGO battery to dynamically adjust the charging profile for optimal and safe charging.
【Plug&Play And Easy Operation】 Fast plugging design, easy and precise assembly, and just tap to release.
【Excellent Electrical Performance】 22AWG high-purity oxygen-free tinned stranded conductors, twisted in pairs, contact core using 3µm gold plating, guaranteeing the stable and efficient electrical performance of the product at all times.
【Durable Design Ensure Safety】 The cable can achieve IP65 waterproof level protection in a connected state with wide applicable temperatures from-25-80, producing the best power output in any weather condition. Adopt high-strength structural materials, pressure-resistant structure design can withstand greater vibration and shock good insulation, low creep, and anti-aging.
【Tested Quality】 All materials used are RoHS compliant and the cable is UL compliant and suitable for photovoltaic solar applications.

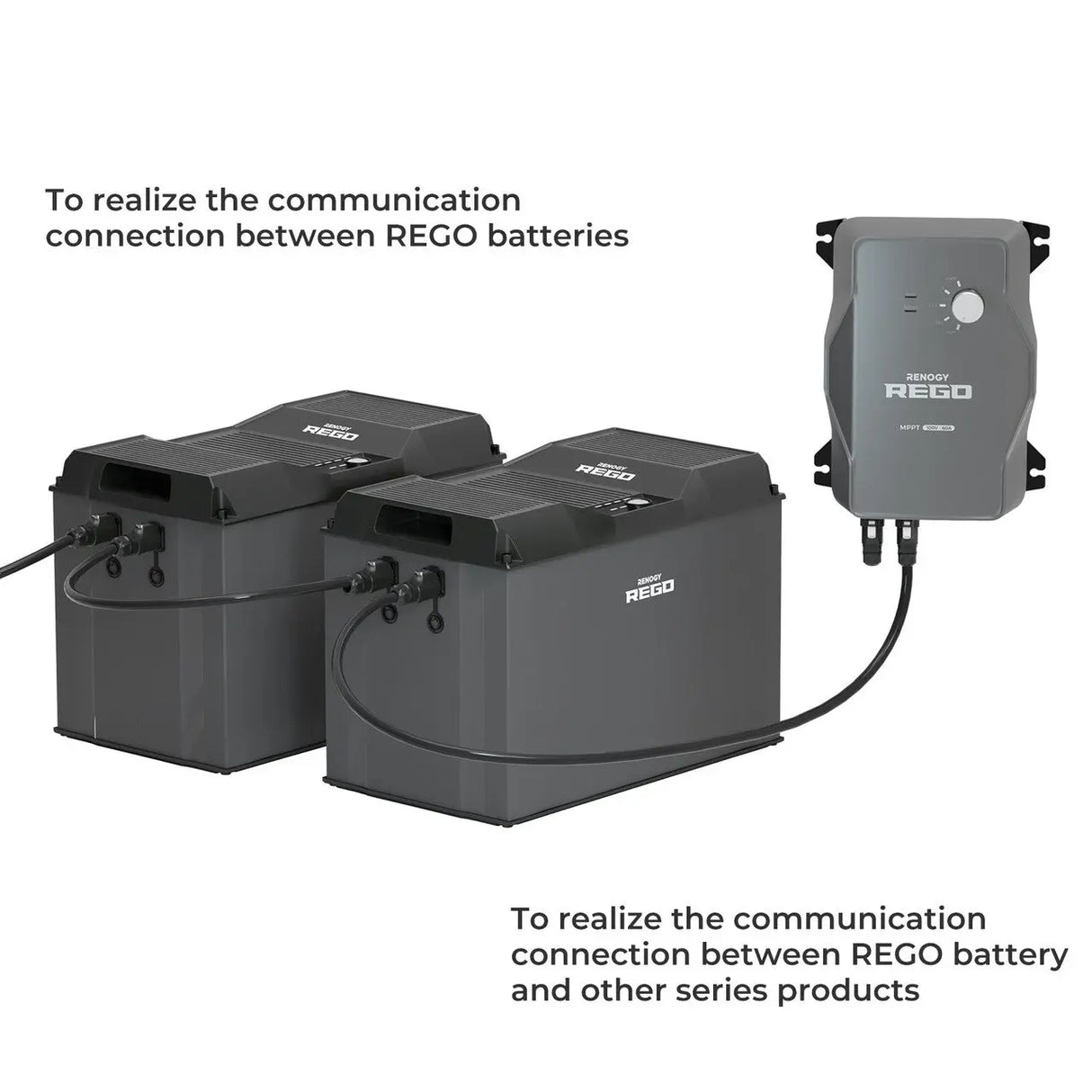

This communication cable is used to realize the RV-C communication connection between Renogy REGO series products. The inter-device communication allows the REGO battery to dynamically adjust the charging profile for optimal and safe charging. Each end of the communication cable has a professional 7 Pin LP16 connector that connects to any CAN communication port of your REGO series products. 10ft and 23ft are optional, you can choose the appropriate length of a communication cable according to the distance between the devices.
NOTE
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or contact us with livechat for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center!
RV
MARINE
CAMPING
OUTDOOR
CABIN
TRUCK
Package Includes
|
LP16 Plug (7-Pin) 10Ft/23Ft Communication Cable
1 x |
ELECTRICAL DATA

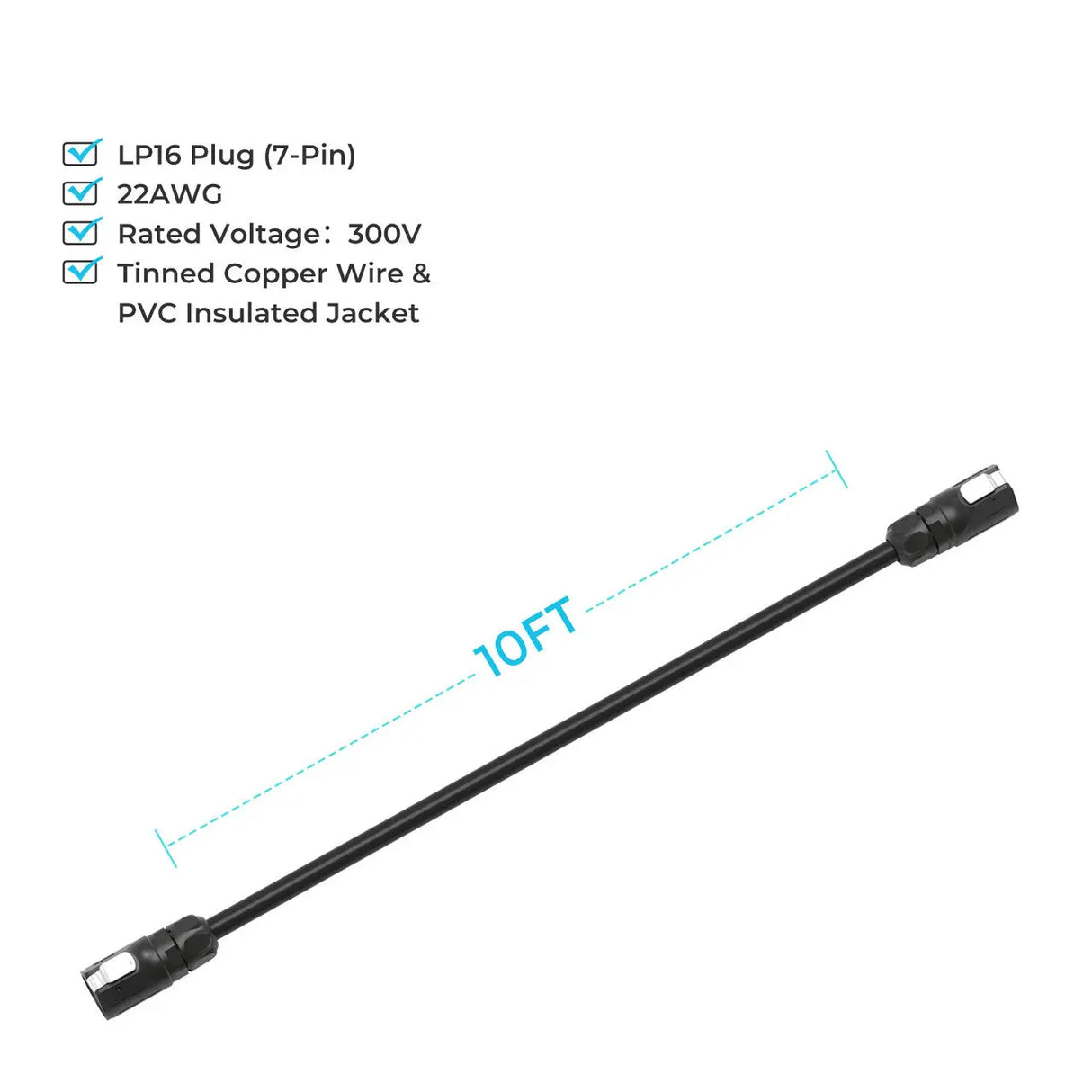

| Length:: 10ft/23ft | Wire Gauge:: 22AWG*3P+1C |
| Rated Voltage:: 300V | Baud Rate:: ＞250kbps |
| Cable Material:: Tinned Copper Wire & PVC Insulated Jacket | Terminal Type/Size:: LP16 Plug (7-Pin) |
| Temperature Rating:: ‘-25℃~80℃/-4℉~176℉ |
GENERAL DATA
| Certification:: UL、ROHS | Warranty:: 1 year |
1.If a user buys multiple REGO products, how many do they need to buy in order to realize wired communication? And so on, what about buying three, or a whole set?
In order to realize wired communication, a communication line needs to be connected between every two REGO products
2.If the user buys the controller and battery in the REGO system, should the battery or the charger be connected first?
The connection has no priority, you can connect any device first
3.What is the difference between wired communication and wireless Bluetooth?
If you only need short-range monitoring of a single device, you can directly connect to the DC Home App via Bluetooth; if you need to communicate and program a remote vehicle system, you need to connect each product to the Renogy ONE by wire, and the Renogy ONE is connected via Wifi or cellular network DC Home App.
