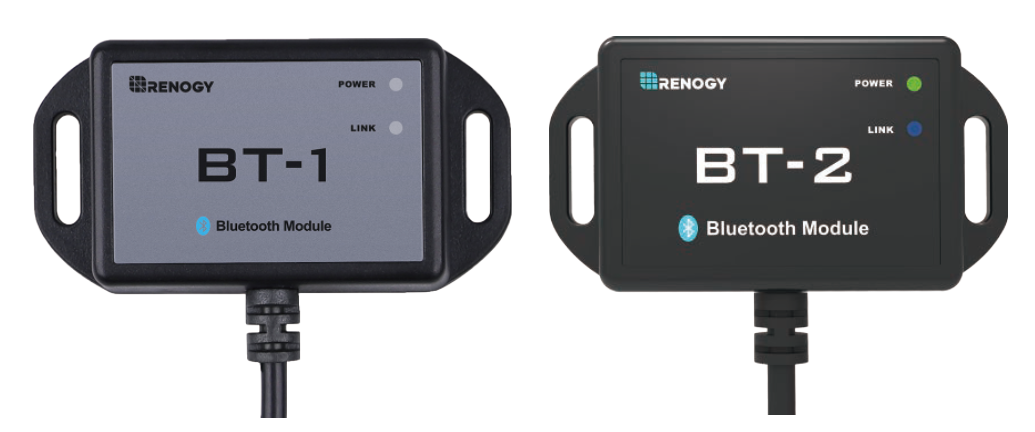

In solar monitoring systems, Bluetooth remote control capabilities are becoming increasingly important. However, not all Renogy devices come with a built‑in Bluetooth module, yet many support RS‑232 or RS‑485 protocols and require an external Bluetooth adapter for wireless connectivity. This article explains in detail how to choose the correct Renogy BT‑1 or BT‑2 Bluetooth module based on your device’s interface and communication protocol — so you avoid the frustration of buying the wrong part.
Why Do You Need an External Bluetooth Module?
Some Renogy devices, for reasons of stability, cost, or waterproof design, do not include an internal Bluetooth module. Nevertheless, they have a serial communication port on the hardware level that supports RS‑232 or RS‑485 protocols. By connecting an external Renogy BT‑1/BT‑2 Bluetooth module, the device converts serial data into Bluetooth signals, enabling communication with the Renogy APP on your smartphone. This allows you to:
- View real‑time operating data: voltage, current, temperature, state of charge, etc.
- Customize charging parameters, battery type, and protection thresholds.
- Perform remote diagnostics and receive alarm notifications.
Core Matching Rule: Protocol Determines the Module
Before you start, keep this golden rule in mind:
| Protocol | Matching Bluetooth Module | Typical Interface / Shape |
|---|---|---|
| RS‑232 | Renogy BT‑1 | RJ12 (6‑pin telephone‑style connector) |
| RS‑485 | Renogy BT‑2 | RJ45 (8‑pin Ethernet connector) |
Why Can’t They Be Mixed?
RS‑232 is a single‑ended signal with voltage levels of ±5V to ±15V, short transmission distance (≈15 m), and is designed for point‑to‑point communication. RS‑485 uses differential signaling, offers strong noise immunity, supports distances up to 1200 m, and allows multi‑device networking. The electrical characteristics of the two protocols are completely different. The signal conversion chips inside the BT‑1 and BT‑2 are not interchangeable. Plugging the wrong module into a port may either cause no communication or, in worst cases, damage the module or the device interface.
How to Determine Before Purchase
The most reliable source of information before buying a Bluetooth module is the product specification page.
- Go to the product page of the Renogy device you plan to buy (or already own) — either on the official website or an e‑commerce platform.
- Carefully look for the “Communication Protocol” field in the “Technical Specifications” or “Datasheet” section.
- If it says “RS‑232” → purchase BT‑1
If it says “RS‑485” → purchase BT‑2
How to Verify After Purchase
If you already have the device in hand, or the product page is unclear, use these two methods to confirm:
Method 1: Check the user manual
The “Optional Accessories” or “Communication” section of the manual usually lists the required Bluetooth module model.
Method 2: Inspect the device port (most straightforward)
After disconnecting power, locate the communication port labeled “RS232” or “RS485”. Compare with the table below:
| Port characteristics | Silkscreen label | Port shape / description | Corresponding module |
|---|---|---|---|
| 6 metal contacts, narrow & flat | RS232 | RJ12 (slightly wider than a standard phone jack) | BT‑1 |
| 8 metal contacts, wider with a clip | RS485 | RJ45 (standard Ethernet port) | BT‑2 |
Common Questions & Troubleshooting Guide
Q1: I bought a BT‑2, but my device has an RJ12 port – it won’t fit. What should I do?
A: It cannot be used directly. RJ12 is narrower and has a different number of contacts; they are physically incompatible. Replace it with a BT‑1.
Q2: Can the BT‑1 and BT‑2 be interchanged? Can I force a connection using an adapter cable?
A: Absolutely not. Apart from the different physical interfaces, their communication protocols, signal levels, and baud rate configurations are all different. Forcing an adapter will result in no communication or may burn the interface chip.
Q3: I have connected the Bluetooth module correctly, but the Renogy APP cannot find my device.
A: Please verify:
1. The Bluetooth module is inserted into the correct RS‑232 or RS‑485 port.
2. The device is powered on.
3. Your phone’s Bluetooth is enabled.
4. Your phone is within 10 meters of the Bluetooth module.
5. No interfering objects (metal, radio transmitters, etc.) are near the module.
Summary: Three‑Step Decision Method
- Find the protocol: Look for “RS‑232” or “RS‑485” on the product page, in the manual, or on the device port itself.
- Match the module: RS‑232 → BT‑1 | RS‑485 → BT‑2.
- Double‑check the port: RJ12 (6 pins) goes with BT‑1; RJ45 (8 pins) goes with BT‑2.
Choosing the correct Bluetooth module not only adds wireless smart monitoring to your Renogy device instantly, but also saves you from the hassle of returns due to mismatched interfaces. This guide will help you get it right the first time and enjoy the convenience of remote solar system management.
Extra Information: Multiple Devices & Centralized Monitoring
If you own several Renogy devices that support the RS‑485 protocol, you don’t need to purchase a separate Bluetooth module for each one. Simply pair 1 Renogy Communication Hub with 1 BT‑2 Bluetooth module to achieve centralized wireless monitoring.
What does the Renogy Communication Hub do?
It connects multiple Renogy devices that have RJ45 ports and use RS‑485 communication protocol to a single BT‑2 module. Then, through the Renogy APP on your phone, you can monitor the operating data of all connected devices simultaneously — no need to switch connections or walk up to each device.
Additional advantage:
This Communication Hub not only supports the RS‑485 protocol but is also compatible with CAN bus communication, further expanding the range of connectable devices. This allows even more Renogy product models to join the same monitoring network.
