Ever wondered what BMS stands for? In engineering and electronics, BMS stands for Battery Management System. It is essential for the safety, performance, and longevity of battery-powered systems. A BMS monitors key parameters like voltage, current, and temperature to prevent overcharging, overheating, and other hazards. This guide explains how a BMS works and why it’s so important.
What is a Battery Management System (BMS)?
BMS is used in EVs, solar setups, and other battery-powered devices to monitor cell voltage, temperature, and balance charges. By tracking the State of Charge (SoC) and State of Health (SoH), it ensures the battery operates within safe limits. This prevents overcharging, deep discharging, and thermal issues, protecting both the battery and the user.
Battery Management System Components
A battery management system (BMS) consists of several key components that ensure safety, performance, and longevity of battery packs:
- Sensors: Current, temperature, and voltage sensors continuously monitor battery parameters.
- Microcontroller: Executes control algorithms, acts as the brain of the BMS, also called a digital signal processor.
- Communication Interface: Exchanges data with other devices or systems for monitoring and control.
- Protection Circuitry: Prevents overcharging, overdischarging, overcurrent, and other unsafe conditions.
- Balancing Circuit: Ensures all cells maintain similar charge levels for longevity and efficiency.
How a Battery Management System Works
A BMS monitors and manages battery health to ensure safe operation. Its main functions include:
- Monitoring: Tracks voltage, current, and temperature to keep batteries within safe limits.
- State Estimation: Determines State of Charge (SoC) and State of Health (SoH) to measure capacity and battery condition.
- Cell Balancing: Equalizes charge across cells to optimize performance and extend battery life.
- Power Management: Controls power flow using constant-current and constant-voltage algorithms to prevent overvoltage/overcurrent.
- Thermal Management: Activates cooling or heating to maintain safe battery temperatures.
- Protection: Safeguards against overvoltage, overcurrent, overcharging, undercharging, and overheating.
- Communication: Reports battery status and receives instructions from connected systems.
Types of Battery Management Systems
Three common BMS designs exist, each suited to different battery setups and applications:
1. Centralized BMS
One central unit manages all battery packs.
Advantages: cost-effective and compact.
Limitations: requires many ports, connectors, and wiring for all cells.
2. Distributed BMS
Electronic components are placed directly on individual battery modules.
Advantages: reduces bulky wiring.
Limitations: more expensive and complex to maintain.
3. Modular BMS
System divided into multiple modules, each managing a portion of the battery pack. Advantages:
Advantages: easier maintenance and scalable for large battery systems.

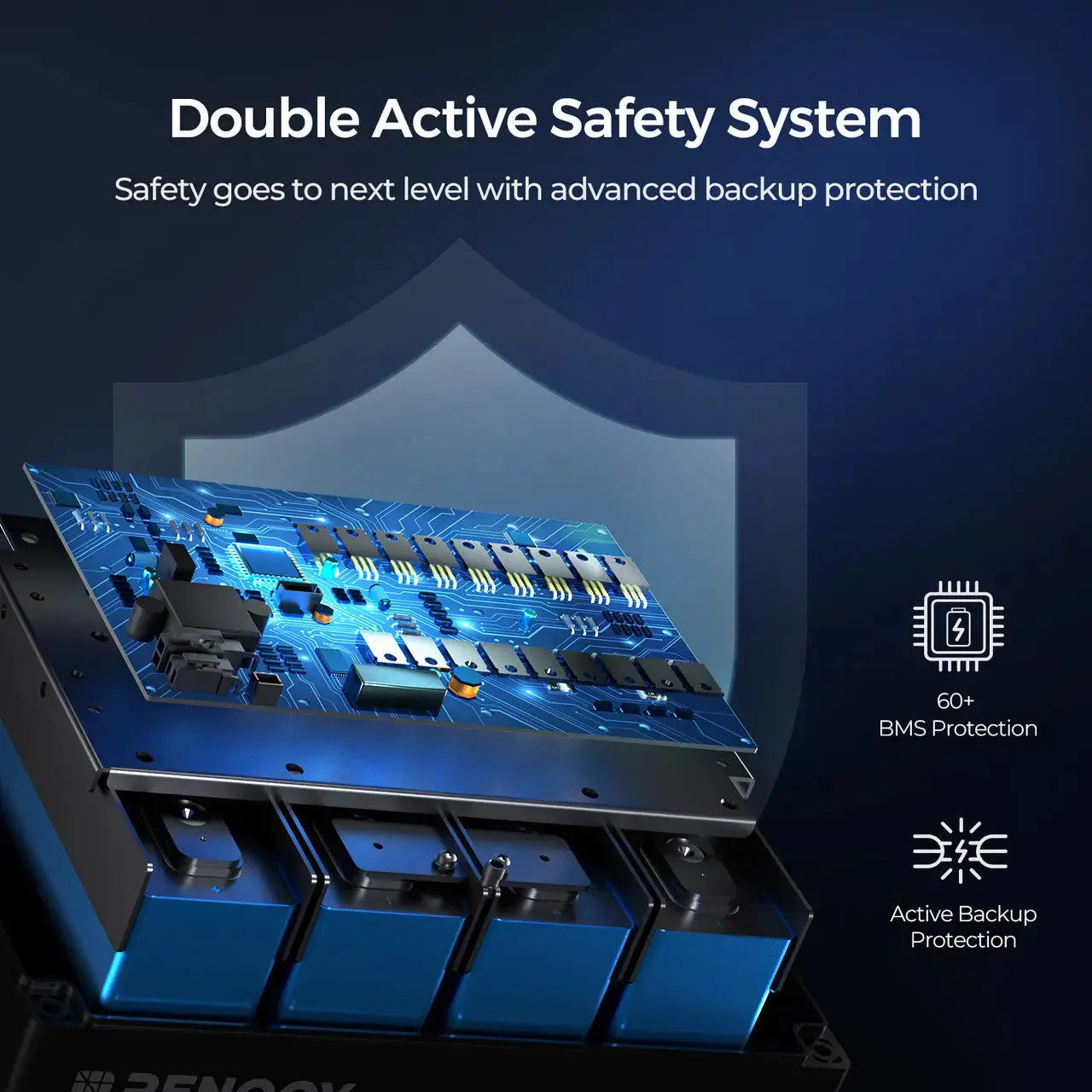

Renogy built-in battery management system
Are you looking for a battery that comes with a built-in battery management system for enhanced safety and protection of the user as well as the battery itself? Try Renogy 12V 100Ah Pro Lithium Iron Phosphate Battery. The major reason why thousands of people prefer this battery is that it offers more than 60 alters and protection functions. As a result, it offers more accurate monitoring in all environments.
Double active protection system: 60+ BMS Protection + Active Product Protection.
Flame-retardant casing prevents vertical burning within 10 seconds.
IP67 waterproof and resistant to rain, dust, and vibration.
Secure your batteries with mounting holes & battery fix brackets.
Waterproof, dust-proof (IP67), and corrosion-resistant (ISO).
In addition, the Renogy battery not only identifies thermal and electrical hazards but also reduces the chance of them happening. It will never compromise your battery packs, as it cuts off the circuit 40 times faster than traditional passive protection.
Moreover, the double active safety system makes the Renogy battery stand out in the market. This system is introduced to safeguard individuals, properties, and devices in an all-around way. Furthermore, it actively avoids incidents by combining hardware and software security.
The importance of battery management systems
Each function of a BMS tells the importance of this system for battery and user protection. The most prominent protection a battery management system offers is functional safety during the charging and discharging process when it maintains the certain levels of current, voltage, and temperature.
If current, temperature, or voltage level increases above or decreases below the set limits, the expensive battery packs can be at severe risk. However, a BMS continuously monitors and controls these situations. For example, if a lithium-ion battery stays in a low-voltage condition, copper dendrites may appear on the anode terminal. It may cause increased safety concerns and increased battery discharge rates.
Apart from protection, maintaining the performance of battery packs is another potential function of a battery management system. It covers thermal and electrical management. When it comes to thermal management, a BMS ensures that the state of charge of each adjacent cell throughout the battery pack is equivalent. It is very important to prevent cells from overcharging.
When the temperature increases or drops below certain levels, a BMS activates heaters or coolers to adjust the temperature levels and make battery packs work perfectly. This is also considered one of the most important features of a BMS that keeps batteries functioning in all kinds of environmental conditions.
If you often struggle to charge the battery packs in an extreme cold or extreme hot environment, all you need is a battery management system to get out of this trouble. Simply put, a BMS ensures reliability, good health, longer life, and enhanced performance of a battery pack.
The benefits of battery management systems
A few of the advantages a BMS offers are listed below.
1. Increased performance
A battery management system equalizes the state of charge of each cell within the battery pack to ensure that they all have the same charge for maximized performance. Unmatched functions of a BMS give a solid boost to the overall performance of a battery pack.
2. Cost reduction
Though the addition of a BMS into BESS increases the cost of the system, it offers hundreds of safety features and enhanced protection to protect expensive battery packs from any hazardous conditions like explosions. Therefore, the overall cost that may be needed to troubleshoot or find faults in the battery packs without a BMS is reduced when you incorporate a battery management system.
3. Extended lifespan
Thermal and electrical management features of a BMS make sure that all cells within the battery pack operate on the set SOA requirements and keep them away from fast charging/discharging and aggressive usage. In simple words, a BMS keeps the battery system stable that can last for hours, and provides maximized performance.
4. Functional safety
Advanced batteries like lithium batteries also have a little chance of catching fire and other management errors. This is why functional safety is paramount. A battery management system keeps battery packs safe during charging, discharging, and operation.
5. Diagnostics and external communication
A BMS continuously monitors all parameters of battery packs, such as voltage, temperature, current levels, and more. Monitoring these parameters helps a BMS solve various issues. In addition, it displays data like how much charge is left on the battery and other stats. The communication interface helps communicate with other devices.
Conclusion
What does BMS mean? Is this what you're looking for? Well, it is a battery management system that ensures the safe, reliable, and long-lasting performance of battery packs. It also displays information to keep users updated about the batteries' statuses. If you need a battery with a built-in BMS, explore the collection available at Renogy.
