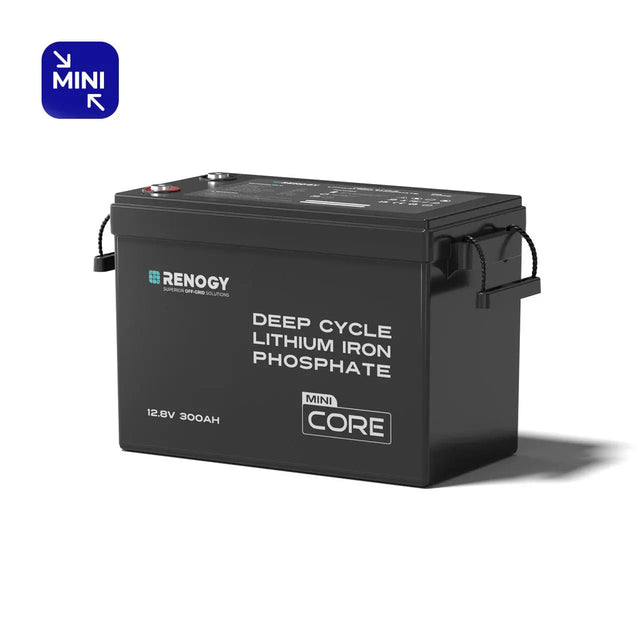

12V 300Ah LiFePO4 Battery w/ Low-Temperature Protection

SKU: RBT12300LFPSH-US
$989.99 $1,099.99
+ 9890   Renogy Rays after purchase.
Log In About Rays

  • Lighter than ever at 55.1 lb. 57% lighter than 12V 200Ah lead-acid.
  • Low-temperature protection (charge <32°F, discharge < -4°F).
  • Compact design! 31% smaller than other 12V 300Ah LFP batteries.
  • 5-year warranty. Certified by FCC, CE, ROHS, UKCA, and more.
  • Grade-A prismatic LiFePO4 cells offer 5000+ cycles at 80% DOD.
  • 3840Wh capacity. Max 4P4S, expandable to 61.44kWh.
Feature
Pack
Quantity：
Payment Methods
Delivery Methods
Delivery time: 1-3 business days.Shipping Policy
Free Shipping with 7-day Delivery.
This battery is eligible for a 7-day unconditional return.
Show More Benefits Show Less
Description
Includes
Specs
Downloads
FAQ
Reviews

High Capacity. Light Weight. Mini Sized.

You won't find a lighter 12V 300Ah Lithium Battery anywhere. Between its ultralightweight and compact design and low-temperature cut-off, this battery is perfect for both travel and home use.

Lighter Than Ever, Easier to Carry.

At only 55.1 lb/25 kg, this battery is easy for one person to carry. That's 9 lb/4 kg lighter than its counterparts. The lightweight, compact design makes handling and installation hassle-free.

Space-Saving Design
Simplified Power

31% Smaller Than Its Counterparts

This battery's compact and sleek design saves space, frees up room for easier connections and maintenance, and fits in various battery boxes, including 8D and 4D sizes.

Simple. Powerful. Hassle-free.

One 12v 300Ah Battery is three times more powerful than the old three-battery set up. Two simple cable connections saves time, money, and stress. Plus, one battery eliminates cell imbalance issues.

Cold Weather Charging Protection

The built-in BMS with low-temperature cut-off means you don't have to hover around your lithium battery, manually shutting it down. Stay relaxed and cozy during winter travels while your battery handles itself, letting you focus on the adventure.

RV
Boat

Power Your RV Adventure

Two batteries provide 7680Wh of power. That's enough to run your fridge, microwave, coffee maker, and A/C unit for 24hrs+

Power Your Marine Adventure

Two batteries provide 7680Wh of power. That's enough to run your navigation, heating, lighting, and onboard essentials for 24hrs+

Up to 61.44kWh to Power any Adventure

Customize your power setup to fit your needs. Connect four batteries in series, four in parallel, or a mix of both to create a tailored power backup.

Package Includes

Core Mini - 12.8V 300Ah Lithium Iron Phosphate Battery

x 1

Long Terminal Bolts (M8 x 1.25 x 16 mm)

x 2

Terminal Bolts (M8 x 1.25 x 12 mm)

x 2

User Manual

x 1

Core Mini - 12.8V 300Ah Lithium Iron Phosphate Battery

Specifications

Battery Type
Lithium Iron Phosphate
Voltage
12V
Rated Capacity
300Ah (0.5C, 25℃)
Voltage Range
10V to 14.8V
Maximum Charge Current
150A
Maximum Discharge Current
200A
Peak Discharge Current
380A@10s
Cycle Life (0.5C, 25℃)
5000 Cycles (80% DOD)
Charge Temperature Range
32°F to 140°F (0°C to 60°C)
Discharge Temperature Range
-4°F to 149°F (-20°C to 65°C)
Storage Temperature Range
-4°F to 140°F (-20°C to 60°C)
Operation Relative Humidity
10% to 95%
Connection Method
Series & Parallel (4S4P)
Terminal Bolt Size
M8 x 1.25 x 12 mm & M8 x 1.25 x 16 mm
Recommended Terminal Torque
70.8 inch·lbs / 8 N·m
Protection Rating
IP65
Dimensions
15.12 x 7.64 x 9.96 in / 384 x 194 x 253 mm
Weight
55.1 lbs / 25.0 kg

Accessories

Long Terminal Bolts (2)
2 x M8 x 1.25 x 16 mm

Warranty

Material and Workmanship Warranty
5-year prorated material and workmanship warranty

Certifications

MSDS, UN38.3, FCC, CE, PSE, RCM, RoHS, UKCA
Yes
Shop By Scenario
RV, Vans & Camper
Shop By Scenario
Home

Downloads

Warrantly

Download

Manual Book

Download

Frequently Asked Questions

1. I have 4 Renogy 100W 12V solar panels. Will these work with this LiFePO4 battery or is that too much wattage?

Yes, but please make sure that your solar charge controller is capable of handling the power your solar panels can output. Do not connect solar panels directly to batteries without a solar charge controller. Feel free to contact us if you have questions about how to size the solar charge controller for your system.

2. Can this battery be used in series to build a 48-volt system？

Yes. Renogy 12V Core Mini Series Batteries can be connected in series to ramp up voltage for a 24V, 36V, or 48V off-grid power system. You can also consider wiring batteries in series first and then wire sets of batteries (same models required) in parallel for maximum power up to 61.44kWh.

3. How many Renogy 12V 300Ah Core Mini Series Batteries can I connect at most?

The Core Mini Series batteries support versatile connections, including series, parallel, and series-parallel connection. You can connect up to 4 batteries in series, 4 in parallel, or 16 in the series-parallel connection. Batteries of the same model and similar capacity are required.

4. How long will the Renogy Core Mini Series Lithium Iron Phosphate Battery last?

Renogy 12V 300Ah Core Mini Batteries are capable of delivering 5000 cycles with a recommended 80% depth of discharge (DOD). Meanwhile, these batteries combine a true 200A battery management system (BMS), IP65 protection, and rugged structural design to brace for challenges wherever you go.

5. Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?

No. This battery is not compatible with the Bluetooth module. You can use a 500A Battery Monitor With Shunt (sold separately) to keep track of battery status.

6. How to recharge my LiFePO4 batteries?

Whether you prefer charging batteries via solar, a DC-DC battery charger, or an AC-DC charger, we highly recommend a solar charge controller/charger that is compatible with lithium iron phosphate batteries.

Our happy customer

Product comparison

Core - 12V 300Ah LiFePO4 Battery w/ Low-Temperature Protection Renogy
12V 300Ah LiFePO4 Battery w/ Low-Temperature Protection
View Details
Core - Renogy 12V 300Ah Deep Cycle Lithium Iron Phosphate Battery w/Self-Heating Renogy
12V 300Ah Deep Cycle Lithium Iron Phosphate Battery w/Self-Heating | Core Series
View Details
Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery Renogy
Mini Size 12.8V 100Ah Lithium Iron Phosphate Battery
View Details
Capacity
Capacity 3840Wh3840Wh1280Wh
Cycle Life (0.5C, 25°C)
Cycle Life (0.5C, 25°C) 5000 Cycles (80% DOD)5000 Cycles (80% DOD)5000 Cycles (80% DOD)
Dimensions
Dimensions 15.12 x 7.64 x 9.96 in (384 x 194 x 253 mm)20.55 x 9.45 x 8.62 in (522 x 240 x 219 mm)9.02 x 5.43 x 8.39 in (229 x 138 x 213 mm)
Weight
Weight 55.1 lb (25.0 kg)69.0 lb (31.3 kg)21.8 lb (9.9 kg)
Maximum Continuous Charge Current
Maximum Continuous Charge Current 150A200A100A
Maximum Continuous Discharge Current
Maximum Continuous Discharge Current 200A200A100A
Peak Discharge Current
Peak Discharge Current 380A@10s390A@5s300A@5s
BMS
BMS 200A200A100A
Connection
Connection Series (4S) Parallel (4P) Series & Parallel (4S4P)Series (4S) Parallel (4P) Series & Parallel (4S4P)Series (4S) Parallel (8P) Series & Parallel (4S4P)
Expansion
Expansion 48V (51.2V) 61.44kWh48V (51.2V) 61.44kWh48V (51.2V) 61.44kWh
Self-heating
Self-heating No200W Self-Heating FunctionNo
Protection Rating
Protection Rating IP65IP65IP65
Warranty
Warranty 5 Years5 Years5 Years
