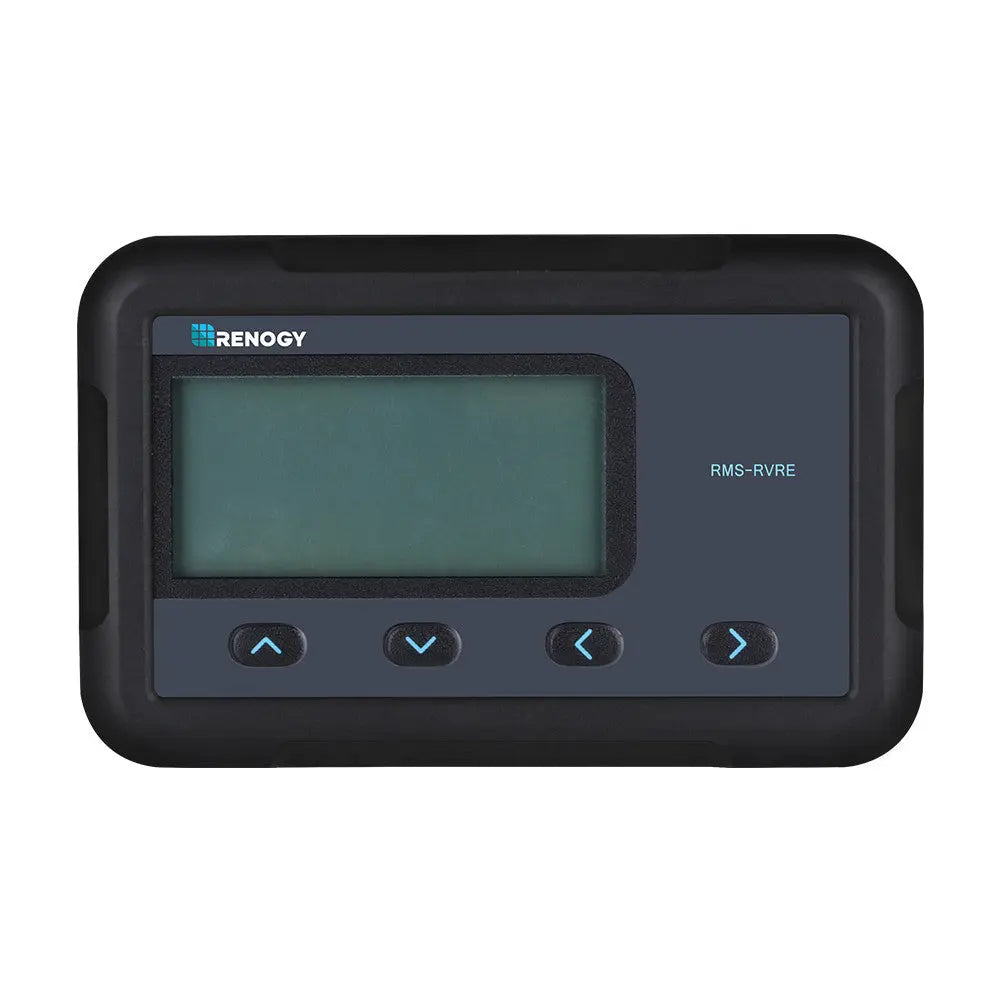

Monitoring Screen for Rover Elite Series
$33.99
$39.99
Unit price
/
Unavailable
Description
The RMS-RVRE is a high precision meter designed for Rover Elite charge controllers. Featuring a backlit display and flush-mountable, it is engineered for an aesthetically clean and professional look on RVs or camper walls. Utilize the 4-key input to easily navigate through your system information or modify quick parameters as well as identify any error codes. The RMS-RVRE is the perfect monitor companion to optimize any solar system!
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or contact us.
Key Features
Plug and Play

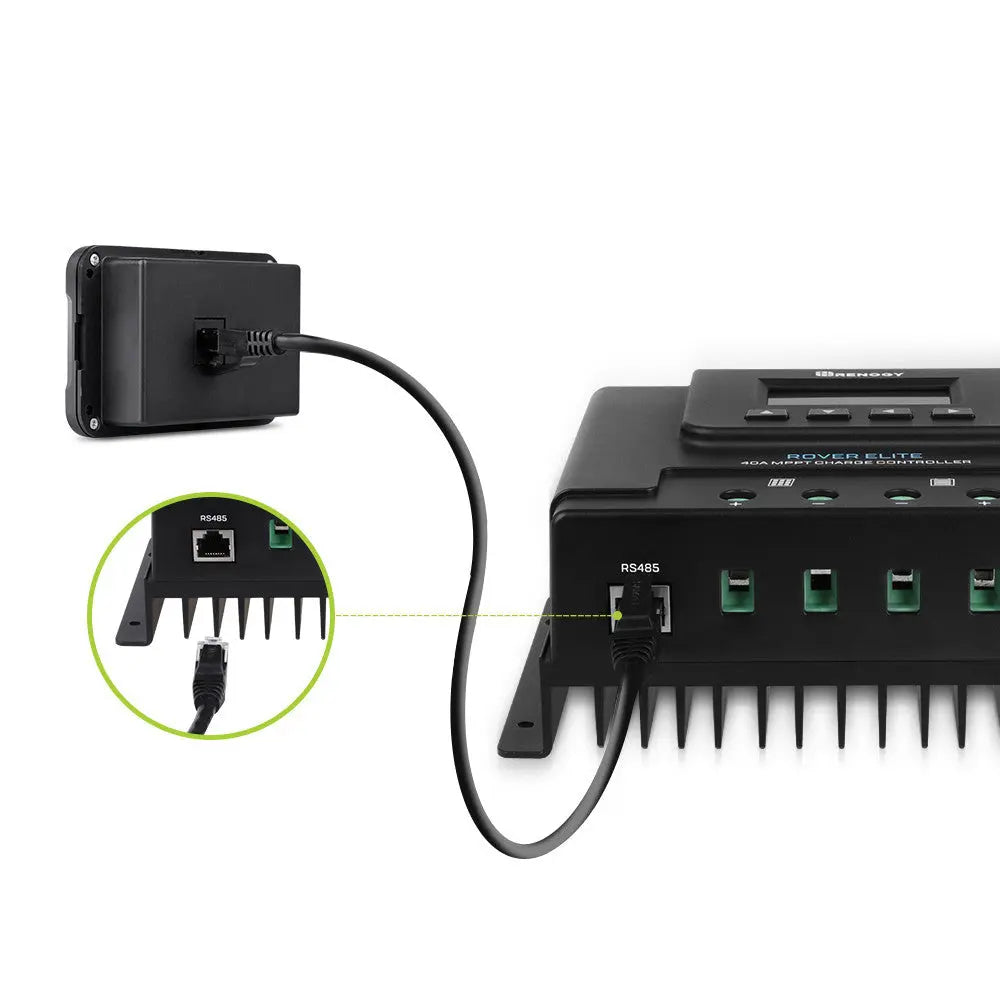

- Simply connect the monitoring screen to the charge controller using an RJ45/Ethernet communication cable for real-time monitoring.
- Installation recessed into a wall that hides wires for a clean and professional look.
- Displays warning codes for the quick recognition of potential abnormal conditions and improper operation.

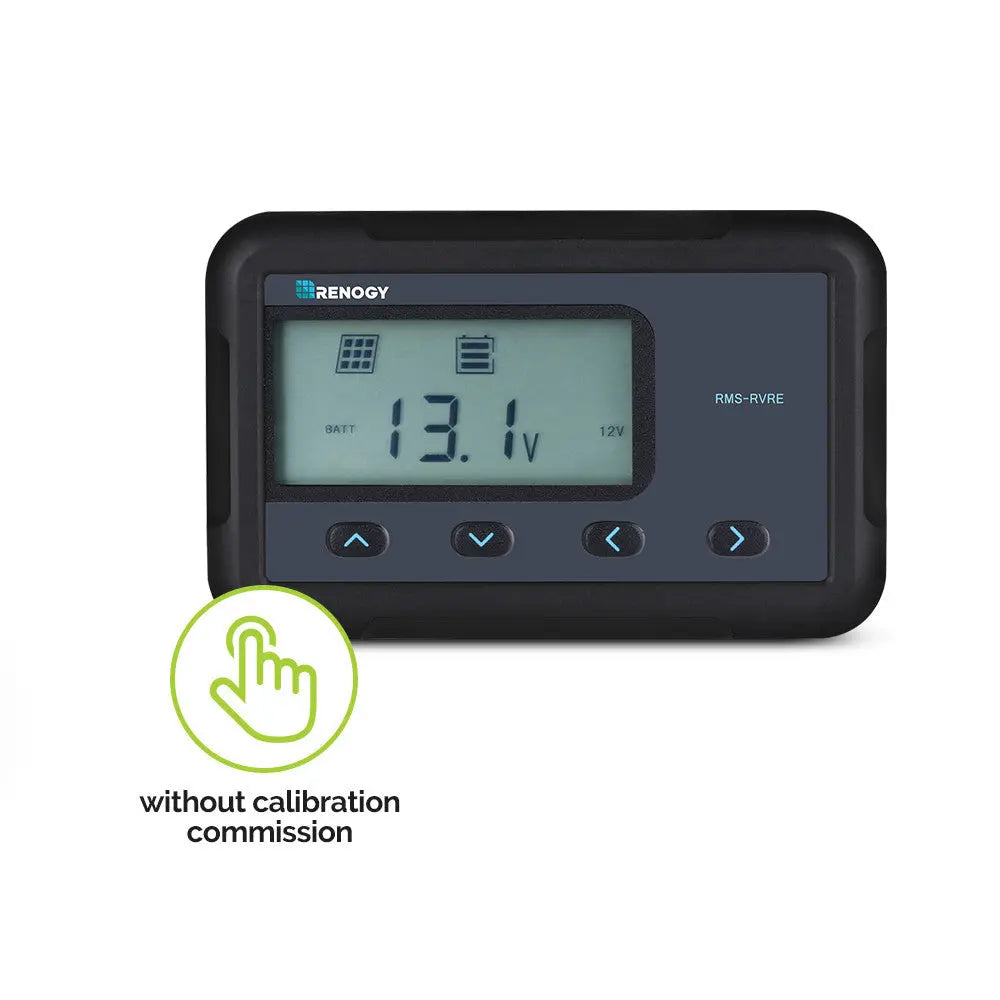

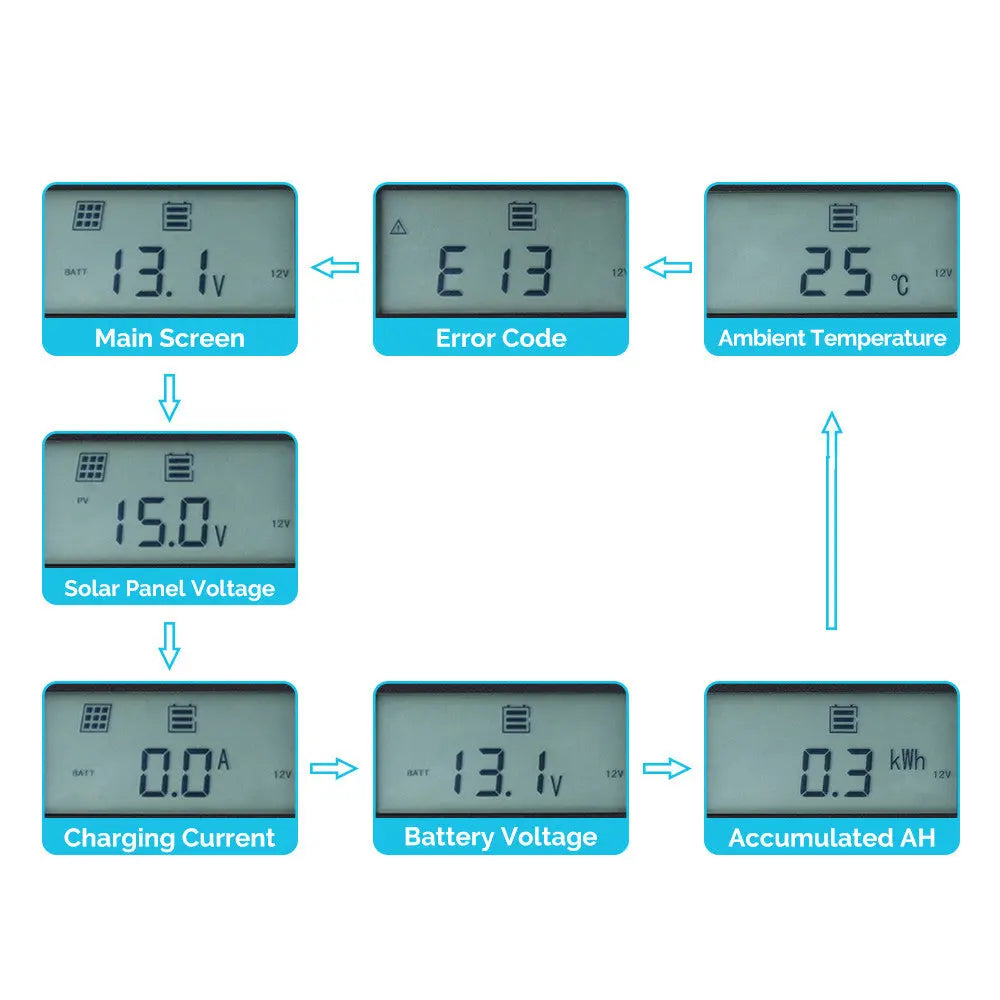

- Shows detailed system information at the push of a button without the need of system configuration and calibration.
Package Includes
|
Monitoring Screen for Rover Elite Series
1 x |
| Electrical Specifications | Mechanical Specifications |
|---|---|
| Supply Voltage: 5VDC | Communication Port: RJ45 (RS485 Protocol) |
| Supply Current: 30mA | Display: Backlit LCD |
| Power Consumption: <1W | User Interface: 4 Front Panel Menu Buttons |
| Operating Temperature Range: -4°F~113°F / -20°C~45°C | Mounting System: Wall Mount |

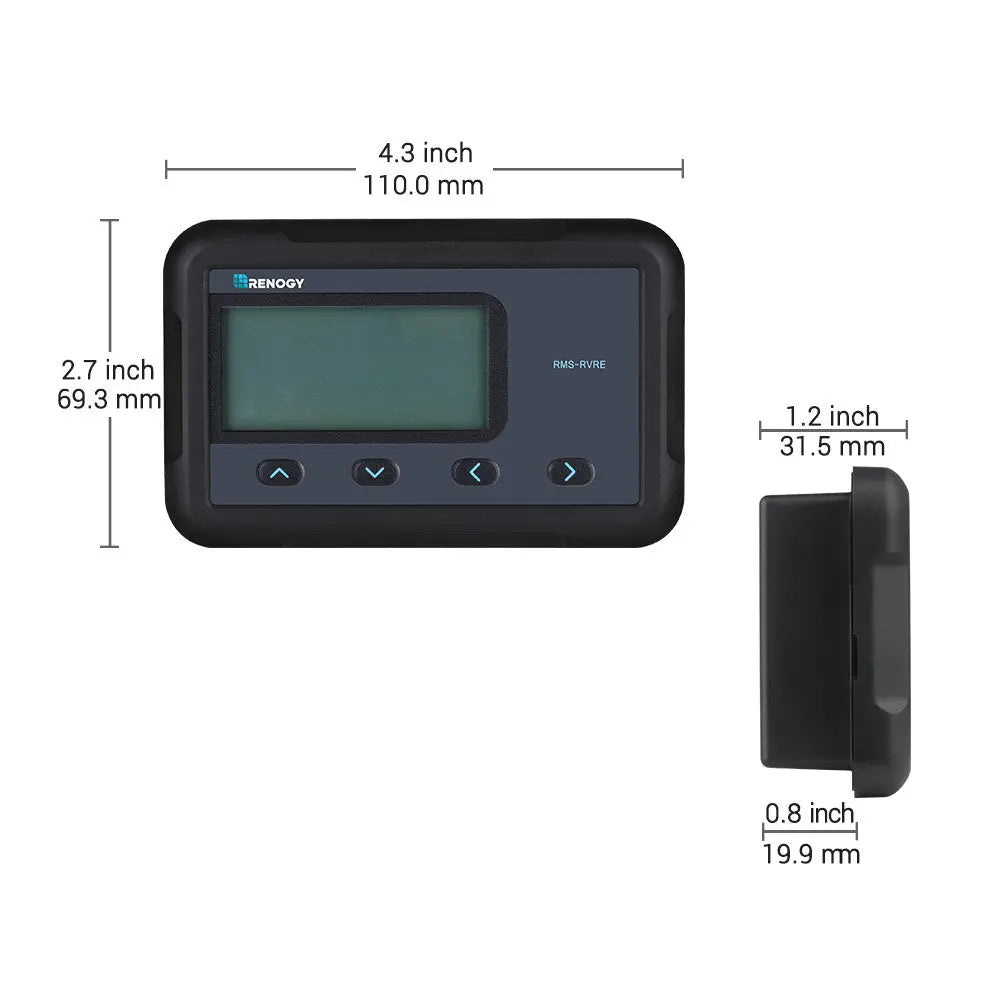

| Voltage Accuracy: ±0.1V | Dimension: 2.76 x 4.33 x 1.25 inch / 70 x 110 x 31.8 mm |
| Current Accuracy: ±0.1A | Weight: 0.14 lbs / 62 g |
| Mounting Screw: M2.9x13mm | Wire Length: 16.4ft / 5m |
| Certification: ROHS FCC EMC |
Warranty Information
| Accessories | 1-year material and workmanship warranty |
 |
 |
 |
