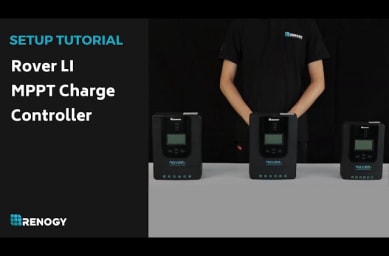

Learn how to connect a Rover Li MPPT Solar Charge Controller to a battery and solar panel. This video covers the Rover Li 20A, 30A, and 40A models, including battery connection, battery type selection, display settings, remote temperature sensor installation, and solar panel connection.
The Rover Li series supports 12V and 24V systems. Before connecting your solar panels, confirm the exact controller model and stay within its maximum PV input rating.
Rover Li 20A, 30A, and 40A: Check Your Model First
The video applies to three Rover Li MPPT charge controller sizes. Their maximum combined PV input power is different, so do not use the 40A model’s limits when setting up a 20A or 30A controller.
| Rover Li model | Rated charge current | Maximum PV input at 12V | Maximum PV input at 24V |
|---|---|---|---|
| Rover Li 20A | 20A | 260W | 520W |
| Rover Li 30A | 30A | 400W | 800W |
| Rover Li 40A | 40A | 520W | 1,040W |
These limits apply to the combined solar input. Also check the open-circuit voltage and wiring requirements for your exact model before connecting the array.
Rover Li Setup Steps at a Glance
The video walks through the full setup process. The basic connection order is:
- Connect the Rover Li charge controller to the battery first.
- Confirm the system voltage and select the correct battery type.
- Review the controller’s displayed parameters and charging settings.
- Connect the remote temperature sensor when it is included in your system.
- Connect the solar panels last, using the correct adapter, polarity, and wiring configuration.
Connecting the battery before the solar panels allows the controller to detect the battery system and start with the correct reference voltage. Always turn off or cover the solar array before making wiring changes.
Battery Type and Charging Settings
After the battery is connected, use the controller buttons to select the appropriate battery type. If you are using a lithium battery or a user-defined profile, confirm the charging parameters with the battery manufacturer before changing the settings.
A battery type setting that does not match the battery can result in incorrect charging behavior or an alarm. When replacing a battery, review the battery type and charging parameters again instead of assuming the previous settings are still correct.
Bluetooth Monitoring and App Setup
Some Rover Li configurations include Bluetooth monitoring or support an additional Bluetooth module. The correct module depends on the controller’s communication interface and generation. If you are unsure whether your system needs BT-1 or BT-2, check the interface and compatibility information before pairing.
For current Bluetooth-enabled configurations, use the compatible Renogy app listed for your controller and module. Once connected, you may be able to monitor charging data and adjust supported parameters without standing next to the controller.
If Your Rover Li Is Not Charging
This video focuses on initial setup. If your Rover Li is already installed but is not charging, showing an alarm, displaying low charging current, or failing to recognize the battery or solar panels, follow the Rover Li troubleshooting guide for model-specific checks.
Before troubleshooting, check the following:
- Make sure the battery and solar panel connections are tight and correctly polarized.
- Confirm that the battery voltage is within the controller’s supported range.
- Check the fuse and wiring between the battery and charge controller.
- Confirm that the solar array does not exceed the PV voltage or power limit for your Rover Li model.
- Verify that the battery type and charging parameters are set correctly.
The troubleshooting guide covers common Rover Li issues including battery low-voltage alarms, no charging, low charging current, battery or PV over-voltage, incomplete display, over-temperature alarms, load problems, and E01 errors.
Frequently Asked Questions About Rover Li Setup
Should I connect the battery or solar panels first to a Rover Li charge controller?
Connect the battery to the Rover Li charge controller first. After the controller recognizes the battery and the settings are confirmed, connect the solar panels.
Can the Rover Li charge a lithium battery?
Yes. The Rover Li series supports lithium battery charging, but you must select the correct battery type and confirm that the charging parameters match the battery manufacturer’s requirements.
How many watts can a Rover Li 40A charge controller handle?
The Rover Li 40A charge controller supports up to 520W of combined solar input on a 12V system and up to 1,040W on a 24V system. Check the exact controller model before sizing your solar array.
Why is my Rover Li charge controller not charging?
Check the battery connection, PV connection, fuse, polarity, battery voltage, and charging settings first. If the basic checks do not resolve the problem, use the Rover Li troubleshooting steps for the relevant alarm or charging issue.
