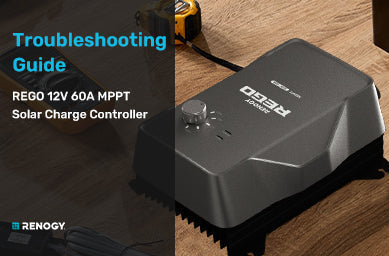

This guide covers common issues with the REGO 12V 60A MPPT Solar Charge Controller, including battery voltage alarms, charging problems, low charging current, PV over-voltage, and LED warning states.
Before troubleshooting, turn off the solar input and any external chargers. Confirm the battery and solar wiring are connected with the correct polarity, and follow the REGO user manual when disconnecting system components. You can also check the REGO 12V 60A MPPT charge controller product specifications before testing the system.
REGO System Limits to Check First
The REGO 12V 60A is designed for 12V battery systems. Before troubleshooting a PV or battery alarm, confirm that the system remains within these basic limits:
| Specification | REGO 12V 60A |
|---|---|
| Nominal system voltage | 12V |
| Maximum PV input power | 800W |
| Maximum PV open-circuit voltage | 100V |
| Battery types | AGM/sealed, gel, flooded, LFP, and USER |
When checking a solar array, consider the combined panel voltage, series or parallel wiring, and the increase in open-circuit voltage that can occur in cold weather.
Check the System Before Testing Individual Faults
- Check the battery voltage directly with a properly rated multimeter.
- Confirm that the battery type and charging parameters are correct.
- Open the DC Home app and check whether the REGO controller recognizes the battery and PV input.
- Inspect the Anderson connectors, adapter cables, fuse, and battery terminals for looseness, damage, or reversed polarity.
- Check the PV array for shade, damaged connectors, and voltage outside the controller’s limits.
Do not place a multimeter across a battery or solar terminal while the meter is set to measure current.
Battery Low-Voltage Alarm
A low-voltage alarm can be caused by a deeply discharged battery, a loose connection, a blown fuse, or an incorrect battery setting.
- Turn off the PV input and any external chargers before testing.
- Measure the actual battery voltage and compare it with the value shown in the DC Home app.
- Check the fuse, Anderson connectors, adapter cables, and battery terminals.
- Confirm that the selected battery type and charging parameters match the battery manufacturer’s recommendations.
- If the battery voltage is normal but the controller still reports a low-voltage fault, measure the voltage at the controller connection and contact support if the readings do not match.
REGO Is Not Charging
Start by checking whether the controller recognizes both the battery and the solar array in the DC Home app.
- Check the battery and PV voltage shown in the app.
- If the PV input is not recognized, inspect the solar wiring, Anderson-to-MC4 adapter, fuse or circuit breaker, and polarity.
- Check whether the solar array is shaded or whether the panel voltage is too low for the battery voltage.
- If the battery is not recognized, inspect the battery wiring and measure the battery voltage directly.
- Confirm that the battery has not been disconnected by its BMS because of over-discharge or another protection event.
Low Charging Current
Low charging current is not always a fault. The battery may already be nearly full, the controller may be in the float stage, or the solar array may be receiving limited sunlight.
- Check the battery voltage and charging stage in the DC Home app.
- Review the current PV voltage and charging current.
- Check the solar panel wiring method and confirm that the array remains within the REGO input limits.
- Look for shade, poor panel orientation, high panel temperature, or damaged connectors.
- Verify the battery type and charging parameters.
If the battery is already in the float stage and the system readings appear normal, a lower charging current may be expected.
Battery Over-Voltage Alarm
- Turn off external chargers and measure the battery voltage with a multimeter.
- Compare the measured battery voltage with the value shown in the DC Home app.
- Check whether the battery type and voltage settings are correct.
- If USER mode is selected, compare the boost, float, and other charging parameters with the battery manufacturer’s specifications.
- For lithium batteries, confirm that the charging voltage is compatible with the battery’s BMS and maximum charging voltage.
Do not lower lithium charging values by guesswork. Use the battery manufacturer’s recommended settings before restarting the charging process.
PV Over-Voltage Alarm
A PV over-voltage alarm usually means that the solar array voltage is too high for the REGO controller.
- Check the number of panels, their electrical specifications, and the connection method.
- Measure the open-circuit voltage of individual panels if the array appears to be within range.
- Recalculate the combined voltage when panels are connected in series.
- Account for higher open-circuit voltage in cold weather.
- Do not reconnect the solar array until its voltage is within the REGO specifications.
LED Indicator Troubleshooting
The REGO LED indicators provide a quick way to identify whether the controller is detecting the solar input and battery.
| LED Status | What It May Mean | What to Check |
|---|---|---|
|
Off
|
No solar panel is detected or the PV voltage is too low. | Check PV wiring, polarity, fuse or circuit breaker, shading, panel temperature, and whether PV voltage is at least 2V higher than battery voltage. |
|
Off
|
No battery is detected or battery polarity is reversed. | Check the battery wiring, polarity, fuse, connectors, and actual battery voltage. |
|
Fast red flashing
|
Battery over-voltage. | Measure the battery voltage, disconnect external chargers, and allow the battery to remain idle before testing again. |
|
Two red flashes, then off
|
Undervoltage shutdown warning. | Measure the battery voltage, disconnect unnecessary loads, and recharge the battery with the solar array if the system is safe to operate. |
|
Solid red
|
The charge controller may be operating abnormally. | Stop changing settings and contact Renogy Support with the controller status and measured voltage readings. |
When to Contact Renogy Support
Contact Renogy Support if the REGO controller continues to show an alarm after the battery voltage, PV array, wiring, settings, and LED status have been checked. Include the controller model, battery type, system voltage, solar panel specifications, displayed LED status, and the steps already completed.
For general connection checks that apply to Renogy charge controllers, refer to the general charge controller troubleshooting guide.
REGO 12V 60A Troubleshooting FAQ
Why is my REGO 12V 60A charge controller not charging?
Check whether the controller recognizes the battery and solar array in the DC Home app. Then inspect the battery fuse, PV wiring, polarity, battery voltage, and charging parameters.
What should I check when the REGO solar LED is off?
Check the PV wiring, polarity, fuse or circuit breaker, panel shading, and PV voltage. The solar input must provide sufficient voltage above the battery voltage for charging to begin.
Is low charging current always a problem?
No. Low current can be normal when the battery is nearly full, the controller is in the float stage, or sunlight is limited. Check the charging stage and PV readings before changing the system.
What should I do if the REGO shows a PV over-voltage alarm?
Turn off the solar input and check the number of panels, series wiring, open-circuit voltage, and cold-weather voltage. Do not reconnect the array until it is within the REGO specifications.
