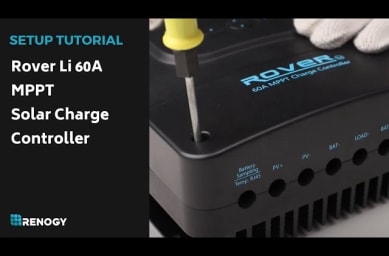

This video shows how to connect and configure the Renogy Rover 60A MPPT Solar Charge Controller. It covers battery and solar panel connections, battery settings, the remote temperature sensor, Bluetooth monitoring, and how to check system information on the LCD screen.
Before You Start
Have your battery specifications, solar panel specifications, user manual, properly sized battery cables, and the required fuse or disconnect ready before wiring the controller.
- Confirm that the battery bank voltage matches your system design. The Rover 60A supports 12V, 24V, 36V, and 48V nominal systems.
- Check the solar array’s open-circuit voltage and total power before connecting it to the controller.
- Install the controller in a dry, ventilated location with enough space around the heat sink.
- Turn off or cover the solar panels before working on PV wiring.
- Check polarity carefully. A reversed positive and negative connection can damage system components.
Rover 60A Setup Steps
1. Mount the Controller and Connect the Battery
Secure the Rover 60A using the included mounting brackets. Connect the battery before connecting the solar panels, following the wiring order shown in the video and user manual. Use the correct cable size and an appropriately rated fuse or disconnect between the battery and charge controller.
Once the battery is connected, the LCD screen should turn on and display the basic system information. If the screen remains blank, check the battery voltage, fuse, cable connections, and terminal polarity before connecting the solar array.
2. Select the Battery Type and Review the Settings
Use the controller buttons to move through the available parameters and select the correct battery type. If you are using a lithium battery or USER mode, use the charging voltage and other settings recommended by the battery manufacturer rather than relying on default values.
The Rover 60A can be used with different battery system voltages, but automatic voltage recognition is specified for non-lithium batteries. Lithium battery users should confirm the system voltage and charging parameters manually before starting a charging cycle.
3. Install the Temperature Sensor
Connect the included remote temperature sensor and place the sensor where it can accurately monitor the battery temperature. Temperature compensation helps the controller adjust charging behavior as battery temperature changes.
4. Connect the Solar Panels Last
After confirming the battery connection and settings, connect the solar array through the appropriate adapter or PV wiring. Check the polarity before making the connection, then use the LCD screen to confirm that the controller recognizes the PV voltage.
When the panels are wired in series, the array voltage increases. When they are wired in parallel, the array current increases. Either configuration must remain within the Rover 60A’s voltage and power limits.
Rover 60A Solar Input Limits
Use the following limits as a starting point when checking whether your solar array matches the controller. Always verify the panel specifications, open-circuit voltage, wiring method, and installation conditions before connecting the array.
| Battery System Voltage | Maximum PV Input Power |
|---|---|
| 12V | 800W |
| 24V | 1,600W |
| 36V | 2,400W |
| 48V | 3,200W |
The maximum PV input voltage is 140VDC. When panels are connected in series, check the combined open-circuit voltage, including the possible increase in voltage during cold weather. Do not use the controller’s maximum power rating as a substitute for checking the array voltage.
The controller’s LOAD terminals are rated separately from the battery connection. Do not connect a high-current inverter directly to the LOAD terminals. Follow the system wiring diagram and connect larger loads as directed by the product manual.
Bluetooth Monitoring
The Rover 60A is compatible with Renogy BT-1 and BT-2 Bluetooth modules. When a compatible module is installed, you can monitor system information and adjust supported parameters through the Renogy app. Confirm the accessory, communication port, and app instructions for your specific controller configuration before pairing.
If the Rover 60A Is Not Charging
Start with the simplest checks:
- No display: Check the battery voltage, fuse, battery wiring, and terminal polarity.
- No PV reading: Check the panel connectors, PV polarity, sunlight conditions, and array voltage.
- Low charging current: Confirm that the battery is not already in the float stage, then check the battery type, charging parameters, and PV wiring.
- Voltage alarm: Compare the voltage shown on the controller with the battery and PV voltage measured at the terminals.
- Load does not work: Check whether the load exceeds the controller’s LOAD output rating or whether the battery is over-discharged.
For alarm codes and model-specific checks, follow the Rover 60A troubleshooting guide before changing charging parameters or rewiring the system.
Rover 60A Setup FAQ
What should I connect first to the Rover 60A charge controller?
Connect the battery first, then connect the solar panels after the battery voltage and polarity have been confirmed.
Can the Rover 60A charge controller work with a 48V battery system?
Yes. The Rover 60A supports 12V, 24V, 36V, and 48V nominal battery systems. Lithium battery users should verify the voltage and charging settings manually.
How many solar panels can I connect to the Rover 60A?
That depends on the battery system voltage, panel specifications, and wiring configuration. The total array must remain within the applicable PV power and 140VDC maximum input voltage limits.
Does this video cover all Rover 60A error codes?
No. This video focuses on setup and basic configuration. Use the Rover 60A troubleshooting guide for alarms, charging problems, PV over-voltage, display issues, and load output problems.
