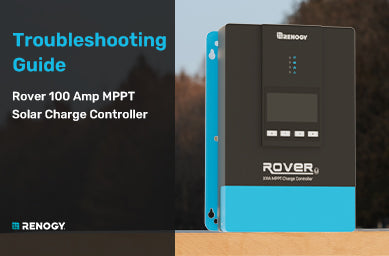

Troubleshoot Rover 100 Amp MPPT Solar Charge Controller

This guide covers common issues with the Rover 100A MPPT Solar Charge Controller, including battery voltage alarms, charging problems, PV over-voltage, display issues, and temperature warnings.

Before troubleshooting, turn off the solar input and follow safe DC wiring practices. Confirm the battery, controller, and solar array are connected with the correct polarity. If you are unsure which Rover charge controller best matches your system, compare the current Rover Li 20A, 30A, and 40A charge controllers, the compact Rover 2 20A–50A range, and the Rover 60A charge controller before changing your system design.

Start With These Basic Checks

1. Confirm that the battery voltage setting matches the actual battery system.
2. Check the battery and PV terminals for loose connections, reversed polarity, corrosion, or heat damage.
3. Inspect the fuse or disconnect between the battery and charge controller.
4. Compare the voltage shown on the controller with the voltage measured at the BAT and PV terminals.
5. Check the solar array’s open-circuit voltage and total power against the Rover 100A specifications.
6. Review the battery type and charging parameters, especially when using lithium batteries or USER mode.

Use a properly rated multimeter and follow the meter manufacturer’s instructions. Never place a multimeter across a battery or PV terminal while it is set to measure current.

Battery Low-Voltage Alarm

A low-voltage alarm may be caused by a deeply discharged battery, an incorrect voltage setting, a blown fuse, or resistance in the battery wiring.

1. Check that the selected battery voltage matches the system.
2. Look for a flashing battery icon or fault indicator on the controller display.
3. Measure the battery voltage directly and compare it with the controller reading.
4. Check the battery fuse and inspect all cable connections for looseness, melting, or corrosion.
5. Measure the voltage at the controller’s BAT terminals. A significant difference between the battery and controller readings may indicate a cable, fuse, or connection problem.

Rover 100A Is Not Charging

Start by checking whether the controller recognizes both the battery and the solar array.

1. Check the battery and PV voltage shown on the main display.
2. If the PV voltage is missing, inspect the PV connectors, wiring, polarity, and array voltage.
3. If the battery is not recognized, check the battery wiring and measure the voltage at the BAT terminals.
4. Confirm that the battery has not been disconnected by its BMS because of over-discharge or another protection event.
5. Verify that the selected battery type and charging parameters match the battery manufacturer’s recommendations.

Low Charging Current

Low charging current does not always indicate a controller fault. The battery may already be nearly full, the controller may be in the float stage, or the solar array may be receiving limited sunlight.

1. Check the battery voltage and charging stage on the controller or connected monitoring device.
2. Review the PV voltage and current for abnormal readings.
3. Inspect the array’s series or parallel wiring and confirm that each panel and connector is working correctly.
4. Check the battery type and charging parameters.
5. Consider shade, clouds, panel orientation, and high module temperature when evaluating solar output.

Battery Over-Voltage Alarm

1. Confirm that the selected battery voltage and battery type are correct.
2. If USER mode is selected, compare the charging parameters with the battery manufacturer’s specifications.
3. Measure the actual battery voltage and compare it with the controller reading and alarm value.
4. Measure the voltage at the controller’s BAT terminals to check for a wiring or connection issue.
5. For lithium batteries, verify that the charging voltage is compatible with the battery’s BMS and maximum charging voltage.

Do not lower lithium charging values by guesswork. Use the battery manufacturer’s recommended settings and confirm them before restarting the charging process.

PV Over-Voltage Alarm

A PV over-voltage alarm usually means that the solar array voltage is too high for the controller. This can happen when too many panels are connected in series or when cold weather increases the panels’ open-circuit voltage.

1. Check the PV voltage shown on the controller.
2. Review the number of panels, their electrical specifications, and the connection method.
3. Measure the open-circuit voltage of individual panels if the array appears to be within range.
4. Recalculate the combined open-circuit voltage for the lowest expected outdoor temperature.
5. Do not reconnect the array until its voltage is within the Rover 100A specifications.

Incomplete or Abnormal Display

1. Check whether the PV input exceeds the controller’s voltage or power limits.
2. Turn off the PV input and disconnect the wiring using the correct shutdown procedure.
3. Reconnect the system in the correct order, starting with the battery connection.
4. Check the battery voltage and fuse if the display does not power on normally.
5. If the display remains incomplete after the wiring and input limits have been confirmed, contact Renogy Support.

Over-Temperature Alarm

E06: Controller Internal Temperature Too High

• Check that the controller has enough space around the heat sink for ventilation.
• Keep the controller away from hot surfaces and other high-temperature equipment, including inverters.
• Check whether the installation environment is within the product specifications.
• Allow the controller to cool before restarting the charging process.

E07: Controller External Temperature Too High

• Check the battery temperature and the location of the remote temperature sensor.
• Keep the temperature probe away from heat sources that could create a false reading.
• Confirm that the battery is not operating in an excessively hot environment.
• Allow the battery and sensor to cool before checking the system again.

Battery Type or Voltage Will Not Save

If a new battery type or voltage setting does not remain saved, disconnect the battery connection, wait briefly, and reconnect it following the recommended wiring sequence. Then select the correct battery type and voltage again.

When using lithium batteries or USER mode, review the charging parameters after the setting has been saved. Incorrect values can cause voltage alarms or prevent normal charging.

When to Contact Renogy Support

Contact Renogy Support if the controller continues to show an alarm after the battery, PV array, settings, and wiring have been verified. Include the controller model, battery type and voltage, solar panel specifications, displayed alarm code, and the checks already completed.

Contact Renogy Support

Rover 100A Troubleshooting FAQ

Why is my Rover 100A charge controller not charging?

Check whether the controller recognizes the battery and PV array, then inspect the battery fuse, wiring, polarity, battery voltage, PV voltage, and charging parameters.

Is low charging current always a problem?

No. Low current can be normal when the battery is nearly full, the controller is in the float stage, or sunlight is limited. Check the charging stage and PV readings before changing the system.

What should I do if the Rover 100A shows a PV over-voltage alarm?

Disconnect the solar input safely and check the number of panels, series wiring, open-circuit voltage, and cold-weather voltage. Do not reconnect the array until it is within the controller’s specifications.
