Solar panels produce electricity in DC form, while most RV appliances, cabin appliances, and household devices use AC power. An inverter connects the two, and a battery can store extra solar energy for later use.

AC coupling and DC coupling describe where the battery connects to the solar system. The right choice depends on whether you are building a new system, adding a battery to an existing system, or trying to keep a small RV or off-grid setup simple.

What Is AC Coupling?

In an AC-coupled system, the solar panels connect to a solar inverter, which converts DC electricity into AC power. The battery connects to the AC side through a separate bidirectional inverter or inverter charger.

When solar production is higher than the current load, the extra AC power can be sent to the battery inverter and converted back to DC for storage. When you need the stored energy, the battery inverter converts it back to AC power for your appliances.

This setup can involve more conversion steps than a DC-coupled system. However, it can be practical when you already have a working solar system and want to add battery storage without replacing the original solar inverter.

AC coupling can also work in an off-grid system, but it requires compatible equipment that can create and manage a stable AC power network. It is not automatically the best choice for a small RV or portable system.

What Is DC Coupling?

In a DC-coupled system, the solar panels connect to the battery on the DC side. A solar charge controller, usually an MPPT charge controller, regulates the electricity from the panels before it reaches the battery.

The inverter then converts the battery's DC electricity into AC power for appliances. Because the solar energy does not need to be converted into AC before charging the battery, a DC-coupled system can reduce conversion steps on the solar-to-battery path.

DC coupling is common in new RV, van, cabin, and small off-grid systems because the layout is straightforward: solar panels, charge controller, battery, and inverter. However, the charge controller still needs to regulate voltage and current, so DC coupling is not completely loss-free.

Before choosing a DC-coupled system, check the solar array size, panel voltage, battery voltage, and charge controller limits. These MPPT charge controller basics and this guide to solar charge controller sizing can help.

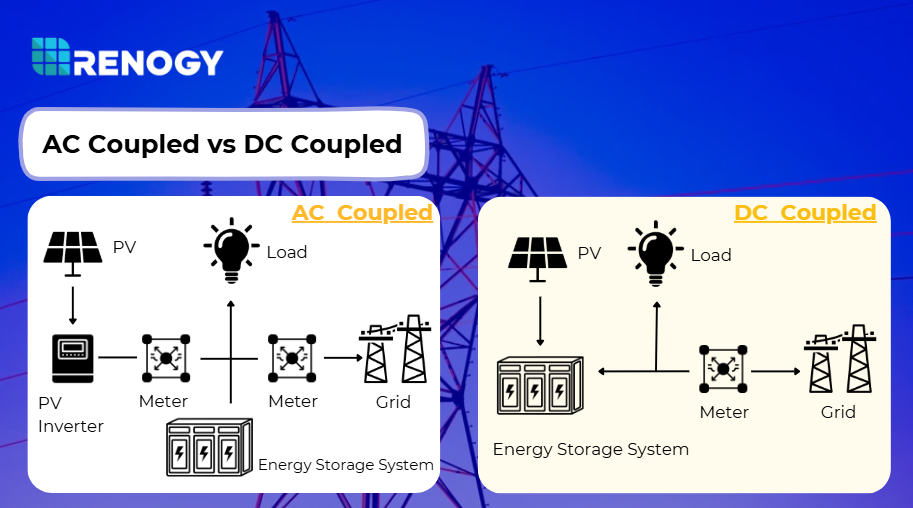

AC vs. DC Coupling: Key Differences

The main difference is where the battery connects and how many conversion steps are needed before solar energy reaches the battery or your appliances.

Benefits and Tradeoffs of AC-Coupled Systems

• Easier retrofits: AC coupling may allow you to add battery storage without replacing an existing solar inverter.
• Flexible component placement: The solar inverter and battery inverter can sometimes be installed in different locations, depending on system requirements.
• More conversion steps: Converting between DC and AC more than once can reduce the energy available after charging and discharging.
• More equipment to coordinate: The solar inverter, battery inverter, battery, and backup controls must work together.

Benefits and Tradeoffs of DC-Coupled Systems

• Fewer conversion steps: Solar energy can flow directly to the battery through an MPPT charge controller or hybrid inverter.
• Good fit for new systems: A DC-coupled layout is often easier to plan when all components are being selected at the same time.
• Useful for off-grid systems: DC coupling can make efficient use of limited solar energy in an RV, cabin, or remote setup.
• More compatibility requirements: The solar array, charge controller, battery, inverter, and protection devices must be sized as one system.
• Expansion may be more complicated: Adding panels or batteries later may require checking voltage, current, communication, and charging limits.

Which Coupling System Is Right for You?

There is no universal winner in the AC coupling vs. DC coupling comparison. Start with your current system and the type of loads you want to power.

AC coupling may be a better fit when:

• You already have a solar system with a compatible solar inverter.
• You want to add battery storage without replacing the existing solar equipment.
• You need a flexible system that can combine solar, battery, grid power, or another AC source.
• Your system is large enough to justify separate solar and battery inverters.

DC coupling may be a better fit when:

• You are building a new RV, van, cabin, or small off-grid system.
• You want a simple path from solar panels to the battery.
• You mainly use DC loads such as lights, fans, USB devices, or a DC refrigerator.
• You want to make better use of limited solar production and available battery capacity.

Keep in mind that having shore power or an AC-to-DC battery charger does not automatically mean your solar system is AC-coupled. In an RV, shore power can simply charge the battery through a separate charger while solar power remains connected through a DC charge controller.

AC vs. DC Coupling in Common RV and Off-Grid Setups

New RV or van system: A DC-coupled layout is usually the most straightforward option. Solar panels connect to an MPPT charge controller, the controller charges the battery, and an inverter powers AC appliances when needed. See this RV solar kit buying guide before choosing system components.

Existing RV solar system: First identify how the current solar panels charge the battery. If they already connect to a charge controller, expanding the DC side may be simpler than adding AC-coupled equipment. If the system already uses a compatible AC solar inverter, AC coupling may be possible.

Small off-grid cabin: DC coupling is often a practical starting point when the system is being designed from scratch. If the cabin has larger AC loads, such as a water pump, refrigerator, power tools, or a microwave, pay close attention to inverter continuous and surge power. This guide explains how to match battery capacity to an inverter.

Adding a battery to an existing solar system: AC coupling can reduce rewiring in some systems, but compatibility is critical. Read more about adding batteries to an existing solar system before making a decision.

Where Renogy Components Fit

For many RV and small off-grid systems, the basic DC-coupled path includes solar panels, a solar charge controller, a battery, and an inverter. The right size depends on your panel wattage, battery voltage, daily energy use, and the appliances you want to run.

For systems that need shore power, generator input, or more advanced AC load management, an inverter charger may be worth considering. This does not automatically make the solar side AC-coupled; the final system layout depends on how the solar panels, battery, and inverter charger are connected.

You can explore Renogy RV solutions for integrated RV applications, or review individual solar charge controllers, inverter chargers, and LiFePO4 batteries for a more customized system.

What to Check Before Choosing AC or DC Coupling

• Existing equipment: Check the model and specifications of your solar inverter, battery, and charge controller.
• Solar input: Confirm the panel voltage, current, and total wattage are within the charge controller or inverter limits.
• Battery requirements: Check battery voltage, chemistry, capacity, BMS communication, and allowable charge current.
• AC loads: Add up the running and startup power of appliances such as refrigerators, pumps, air conditioners, and power tools.
• Backup needs: Confirm whether the inverter can provide backup power and whether it can operate safely during a grid outage.
• Installation requirements: Use the correct fuses, disconnects, cables, grounding, and overcurrent protection. Permanent AC or grid-connected work should be reviewed by a qualified professional.

If you are installing an RV system yourself, this RV solar kit installation guide covers the main components and installation sequence.

FAQ: AC Coupling vs. DC Coupling

Is DC coupling more efficient than AC coupling?

DC coupling can be more efficient on the solar-to-battery path because it may use fewer AC conversion steps. Actual performance still depends on the charge controller, inverter, battery, wiring, temperature, and loads.

Is AC coupling better for adding a battery to an existing solar system?

AC coupling is often easier for a retrofit because the existing solar inverter may remain in place. The solar inverter, battery inverter, battery, and backup controls must still be compatible.

Can I use AC coupling in an RV?

Yes, but AC coupling is not always necessary for an RV. A smaller RV system often uses solar panels, a DC charge controller, a battery, and an inverter. AC coupling becomes more relevant when the system already includes compatible AC solar equipment or has more complex power requirements.

Does shore power mean my RV solar system is AC-coupled?

No. Shore power can charge an RV battery through an AC-to-DC charger while the solar panels remain connected to the battery through a DC charge controller.

Do I need a charge controller in a DC-coupled system?

Usually, yes. A solar charge controller regulates the voltage and current from the solar panels before charging the battery. Some hybrid inverters include a built-in MPPT charge controller, so a separate unit may not be needed.

Can AC or DC coupling provide power during an outage?

Either setup can provide backup power if the inverter, battery, transfer equipment, and control system are designed for backup operation. AC or DC coupling alone does not guarantee that a system will keep running during an outage.

Conclusion

AC coupling and DC coupling solve similar problems, but they fit different system designs.

If you are adding storage to an existing solar system, AC coupling may offer an easier path. If you are building a new RV, van, cabin, or small off-grid system, DC coupling is often simpler and easier to size.

The best choice is the one that matches your equipment, daily energy use, battery capacity, inverter power, and future expansion plans.
