Rover Lite 12V/ 24V/ 36V/ 48V 60A MPPT Solar Charge Controller
Robust 150V solar input guarded by low-temp protection.

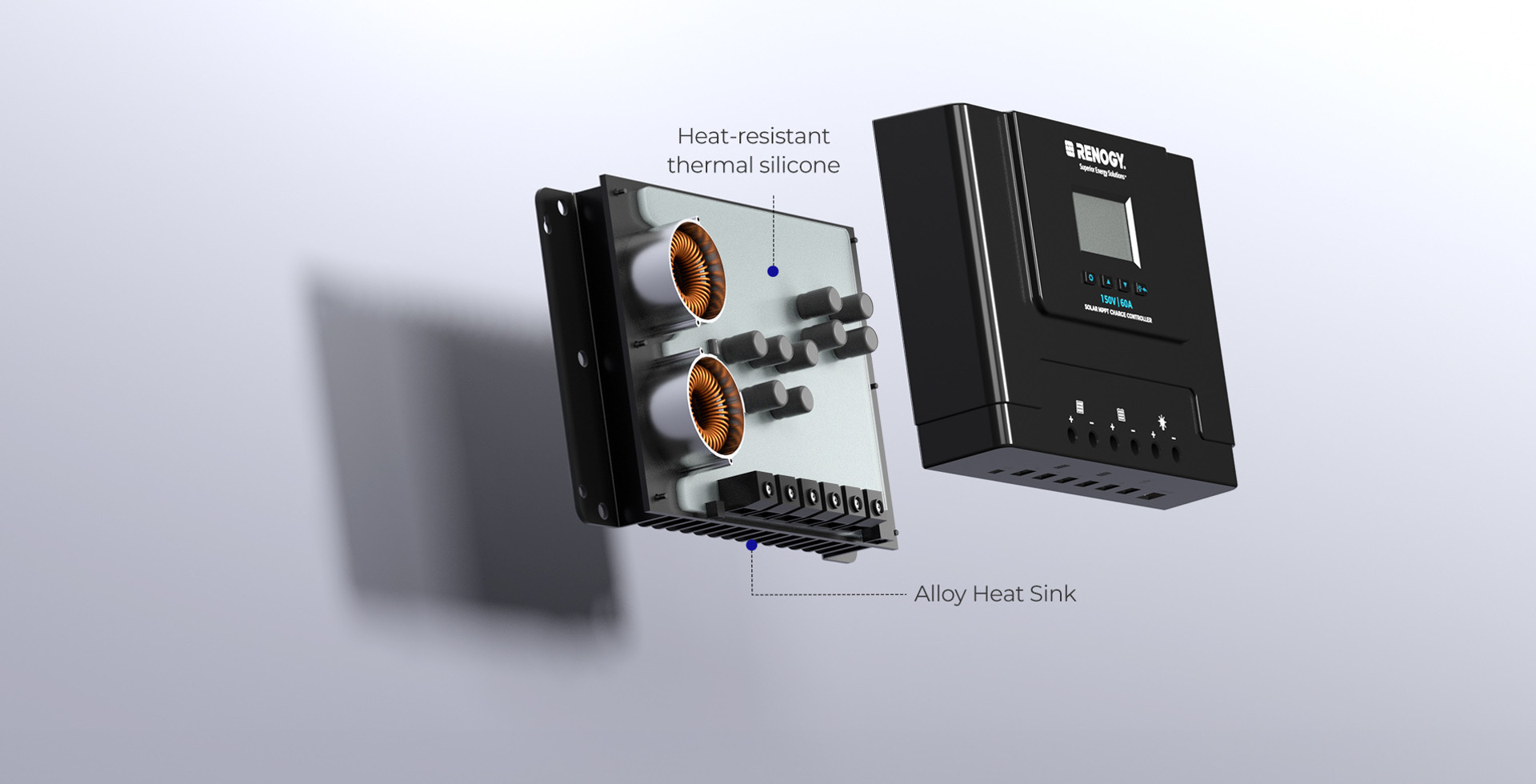

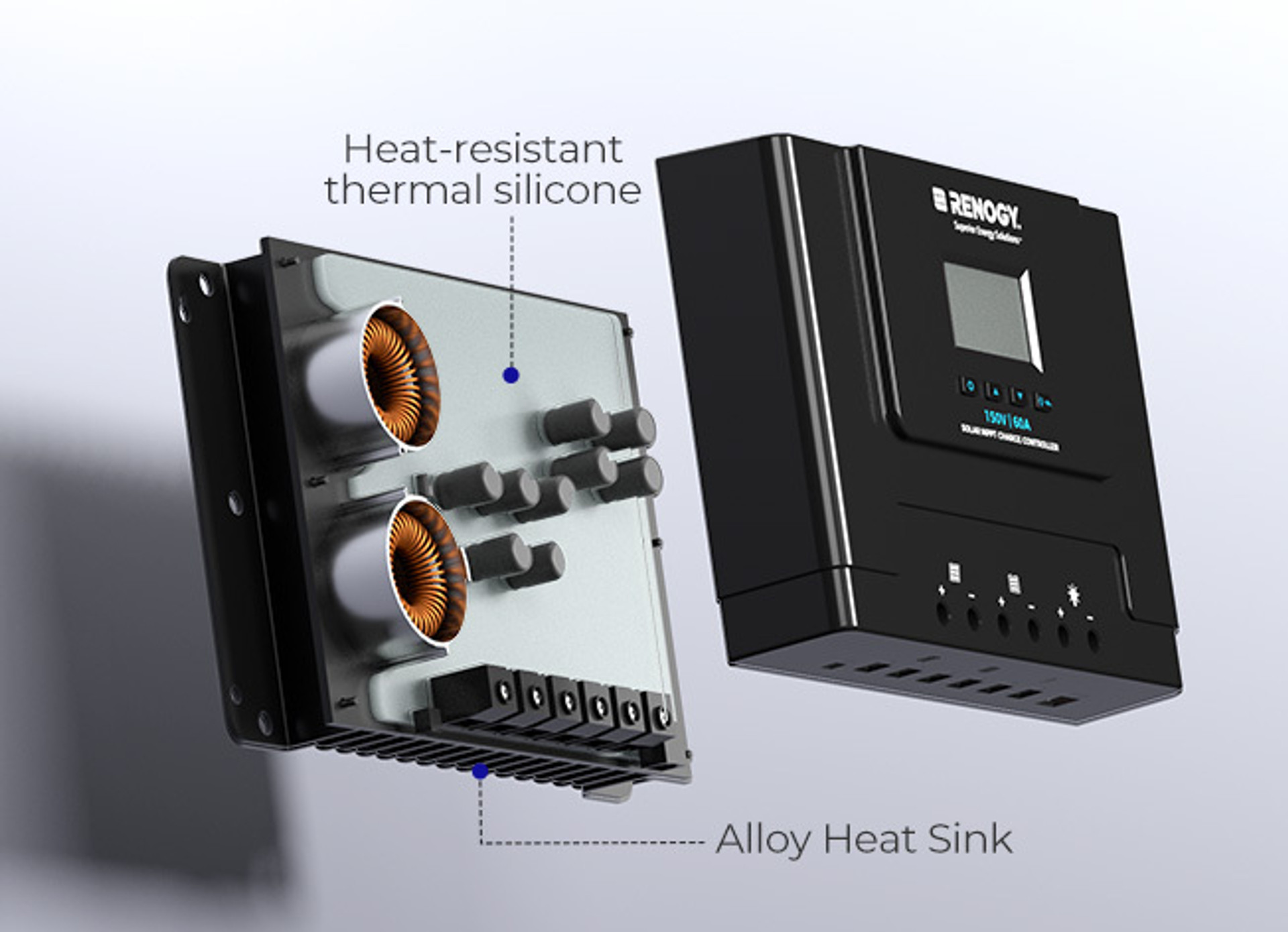

Superior Heat Dissipation
With the internal potting, this MPPT solar charge controller enhances heat transfer to the external metal heat sinks, preventing overheating and ensuring efficient charging. This advanced design in our MPPT charge controller kit guarantees reliable performance, making it an ideal solar controller for optimal energy management.

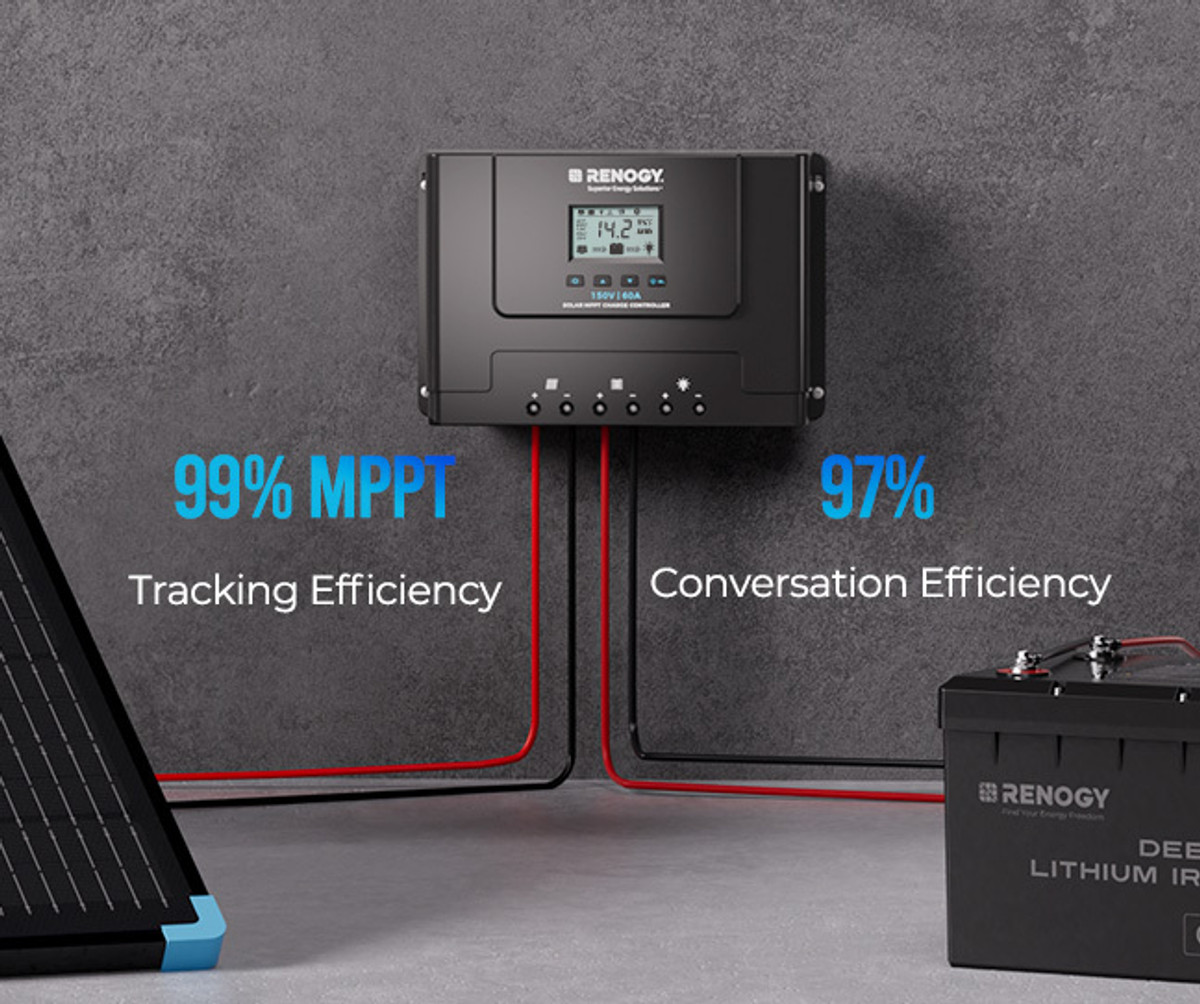

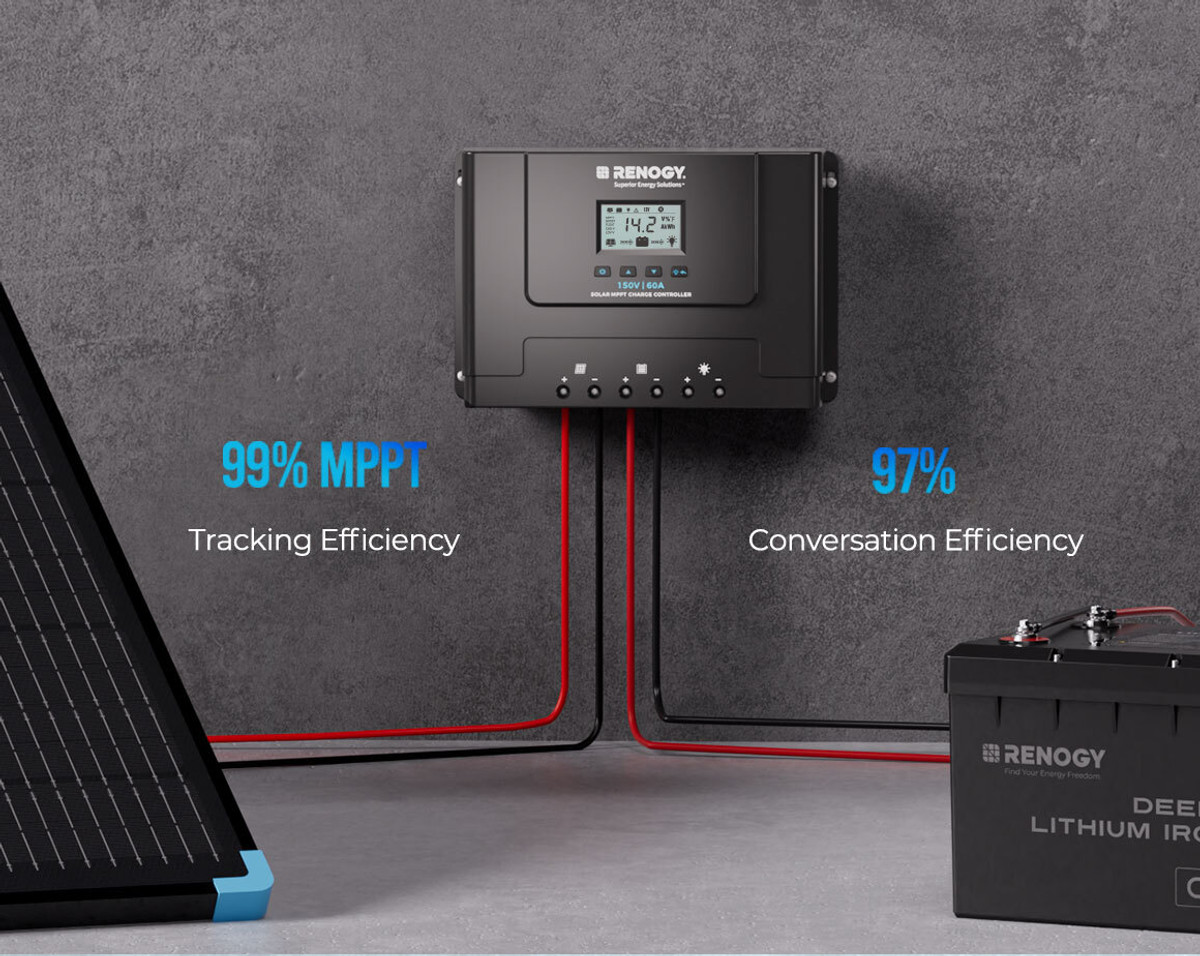

Maximize Efficiency with Exceptional Value
This 60A charge controller delivers 99% MPPT tracking efficiency and 97% conversion efficiency, maximizing your solar power output. With high-performance features at an affordable price, it offers exceptional value for budget-conscious users.

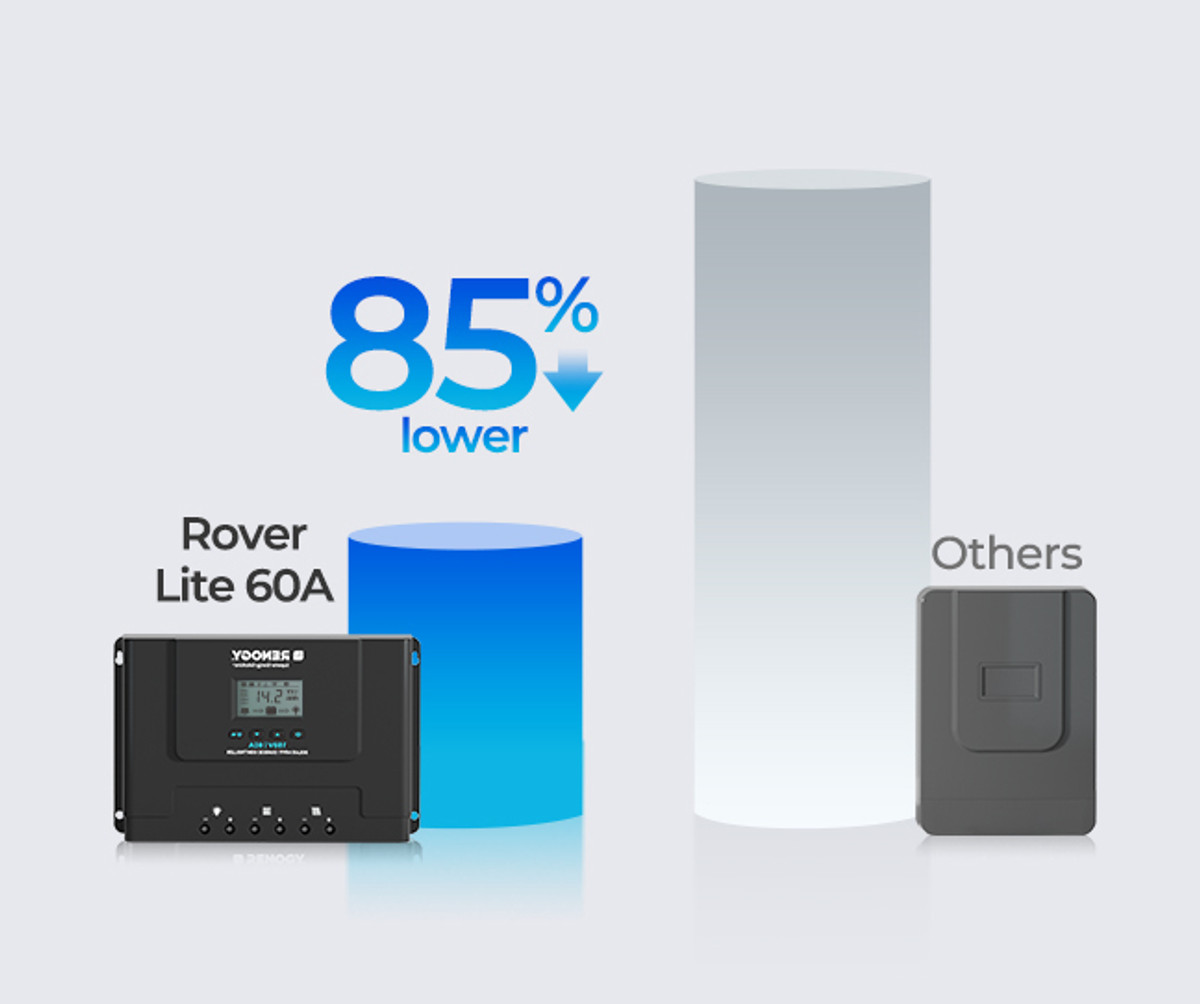

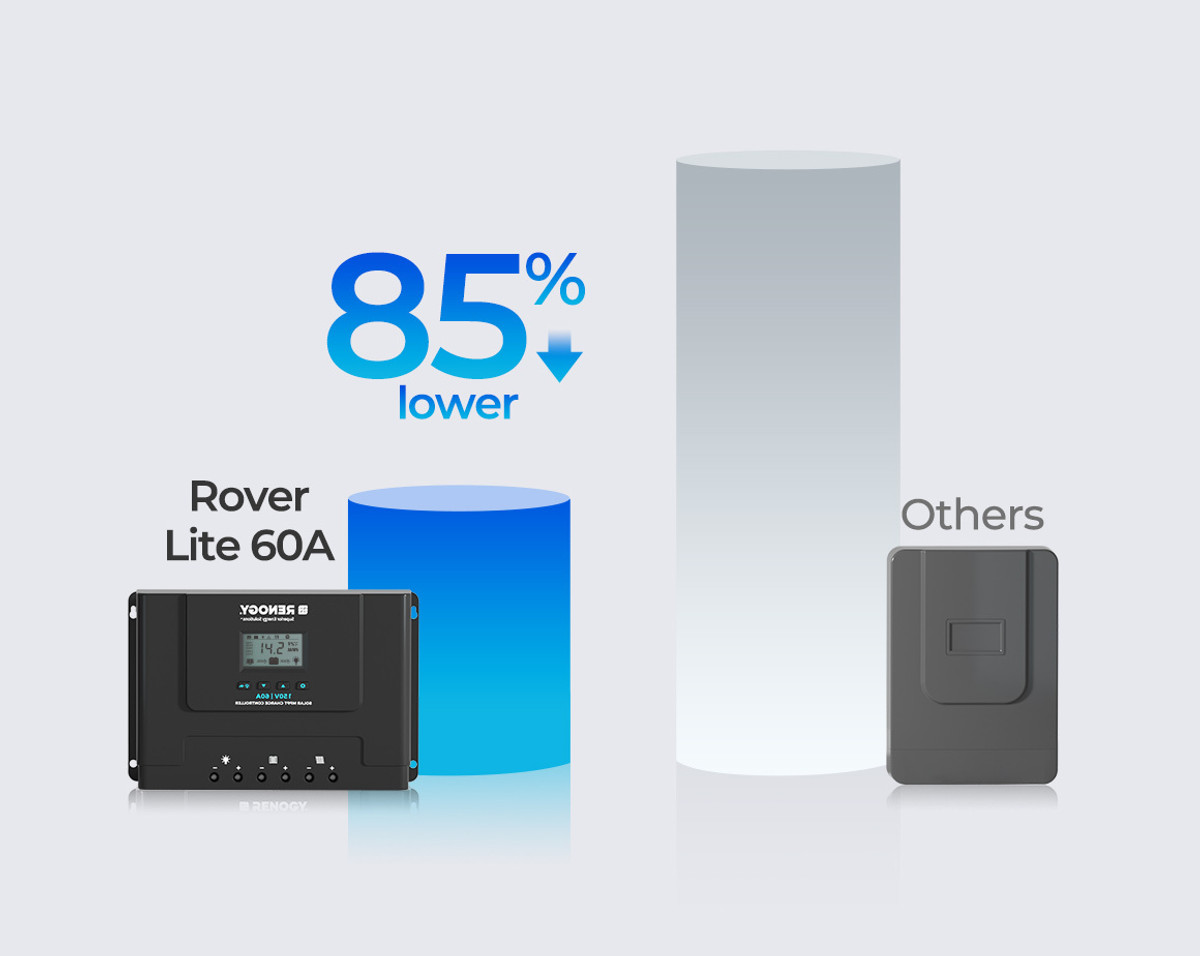

85% Lower Self-Consumption
With an ultra-low self-consumption of just 0.18W in 12V systems — significantly lower than the 0.7W of other charge controllers — this MPPT solar charge controller ensures that more of your solar power goes directly to charging your batteries, maximizing solar usage.

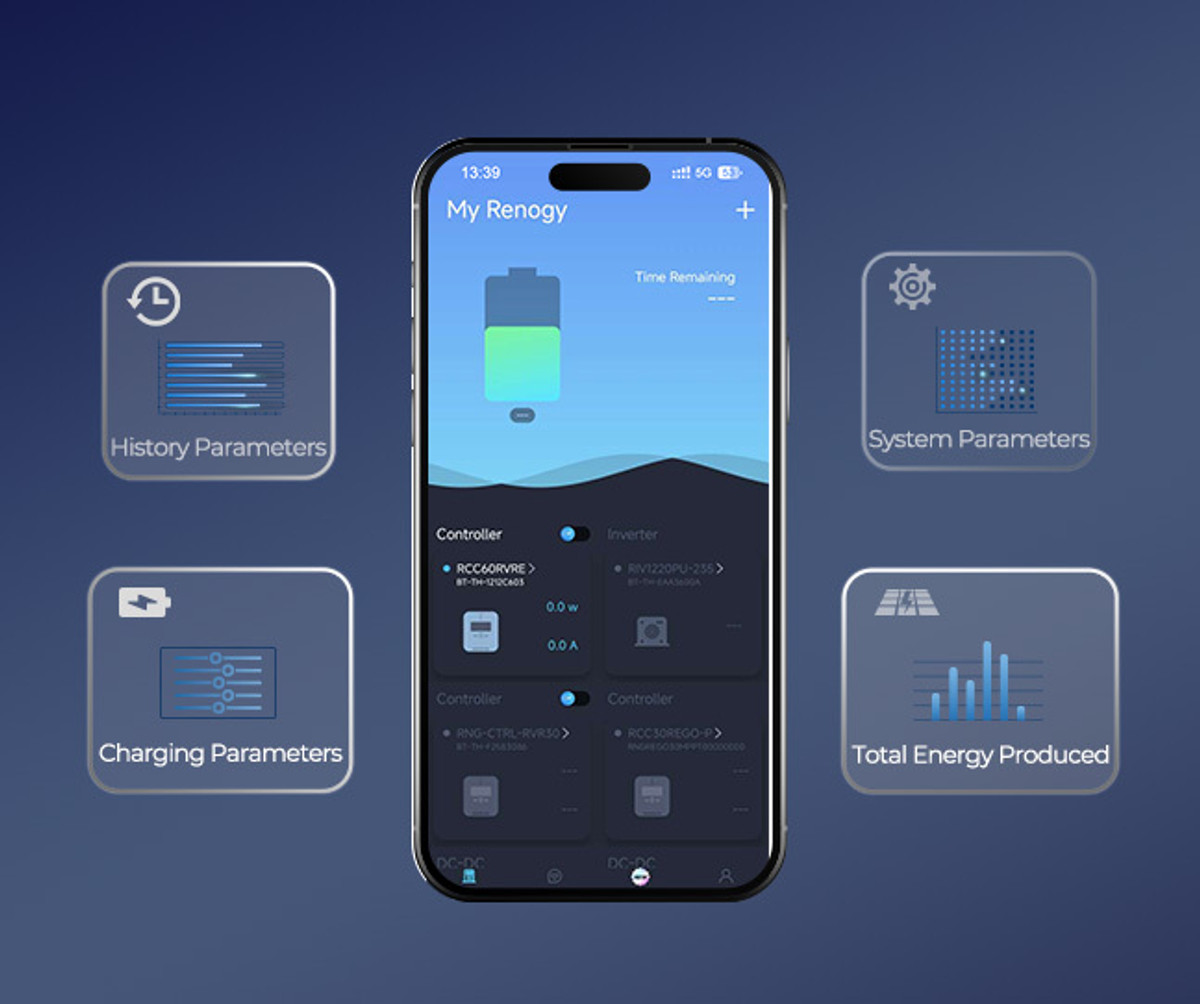

Store Up to 2 Years of Data
Connect this Rover Lite 60A MPPT charge controller to the BT-2 Bluetooth module to monitor and store up to two years of data, giving you easy access to historical records and system adiustments!

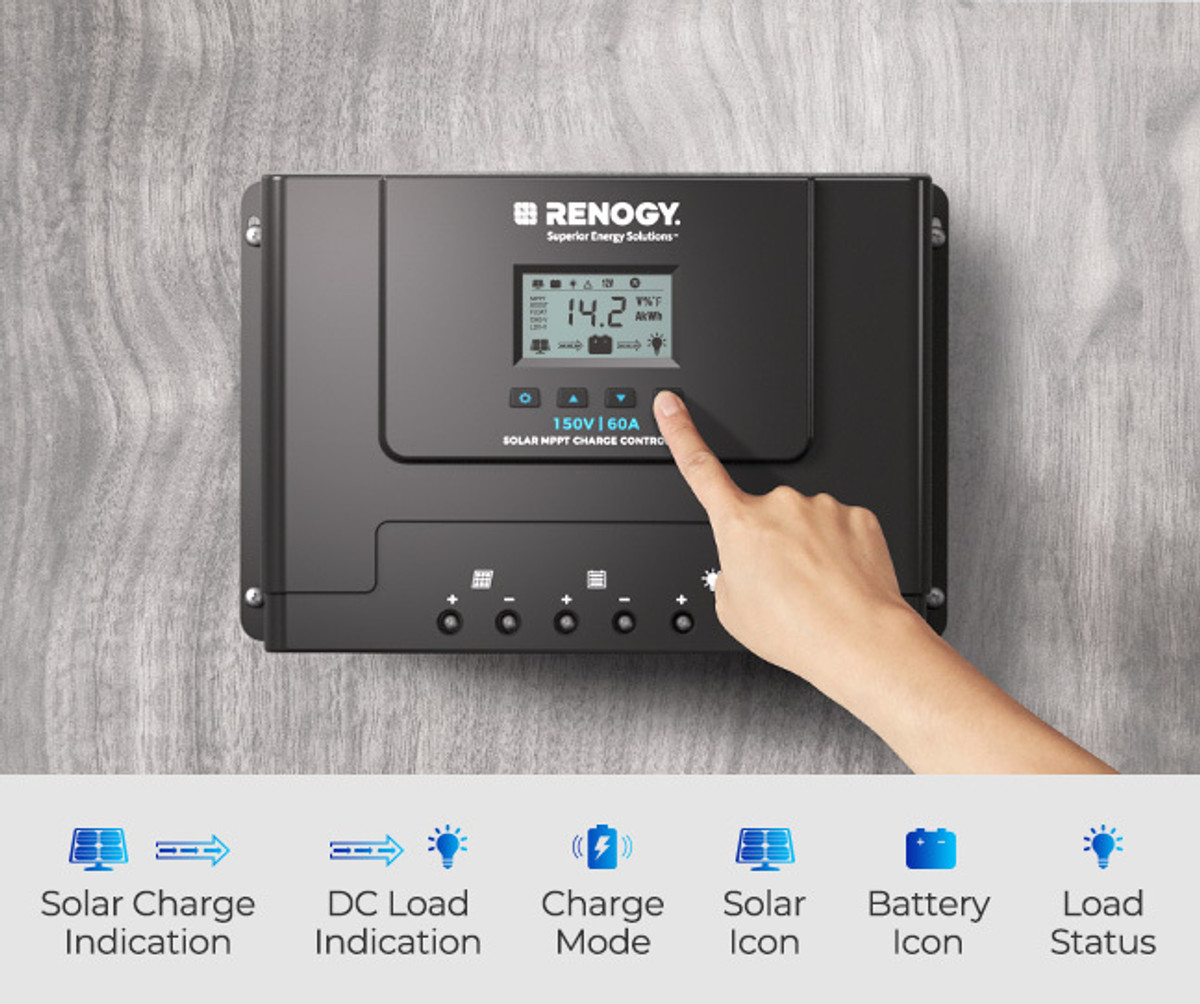

Simple Controls and Clear Info
Featuring intuitive built-in buttons and a clear LCD screen, this solar controller lets you quickly access and monitor real-time charging information at a glance.
Stable Performance in Changing Temperatures
This MPPT solar charge controller maintains full-load operation up to 113℉ and features low-temperature protection below 32℉, helping to prevent damage to your lithium battery during cold weather charging. As a dependable solar controller, it is a reliable companion on every journey, ensuring optimal performance regardless of temperature fluctuations.

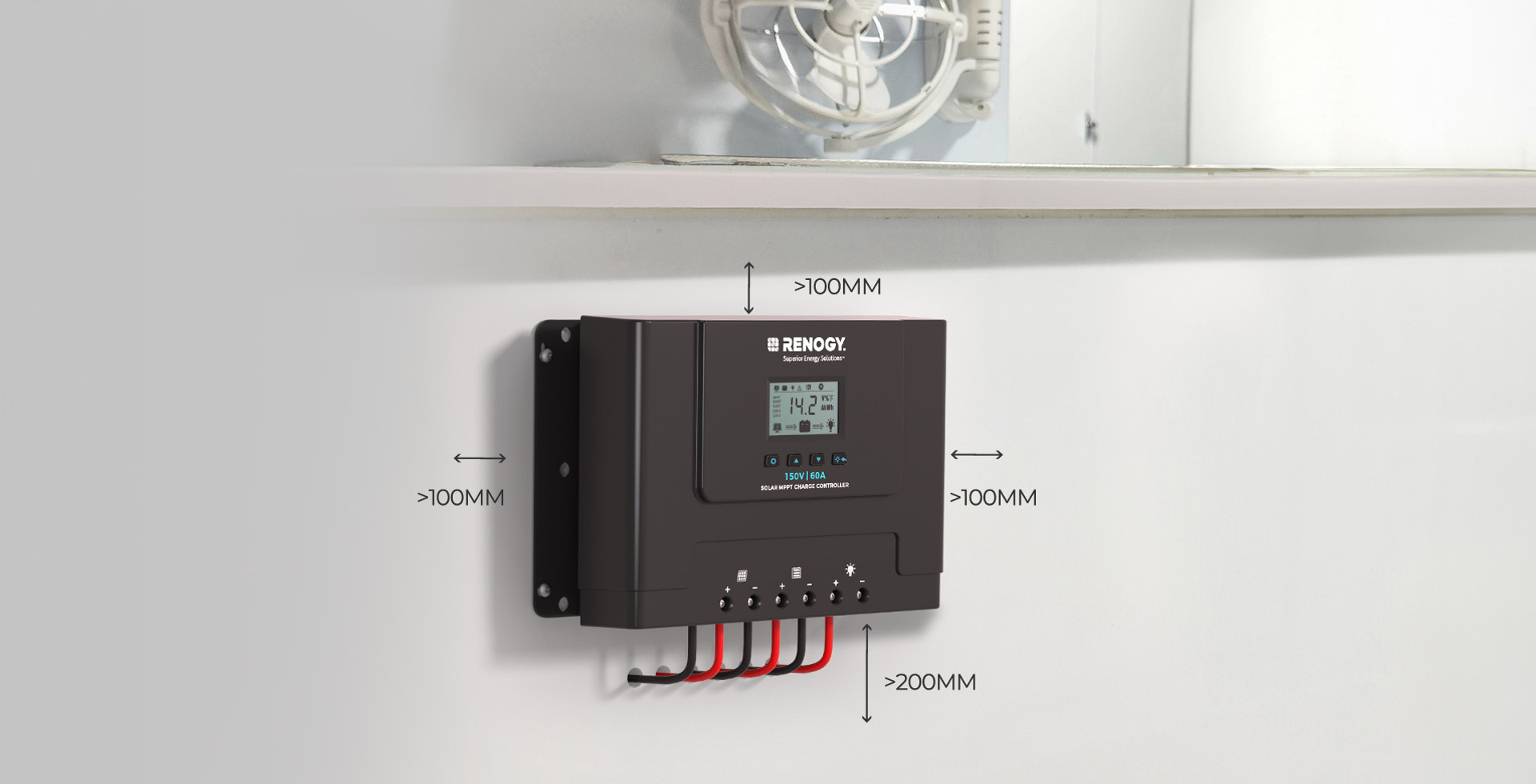

Dimensional Reference Guide
Before installing your MPPT solar charge controller, please find a cool, dry, and weather-safe location. Ensure there is enough ventilation space for proper heat dissipation to maintain the efficiency of your charge controller.

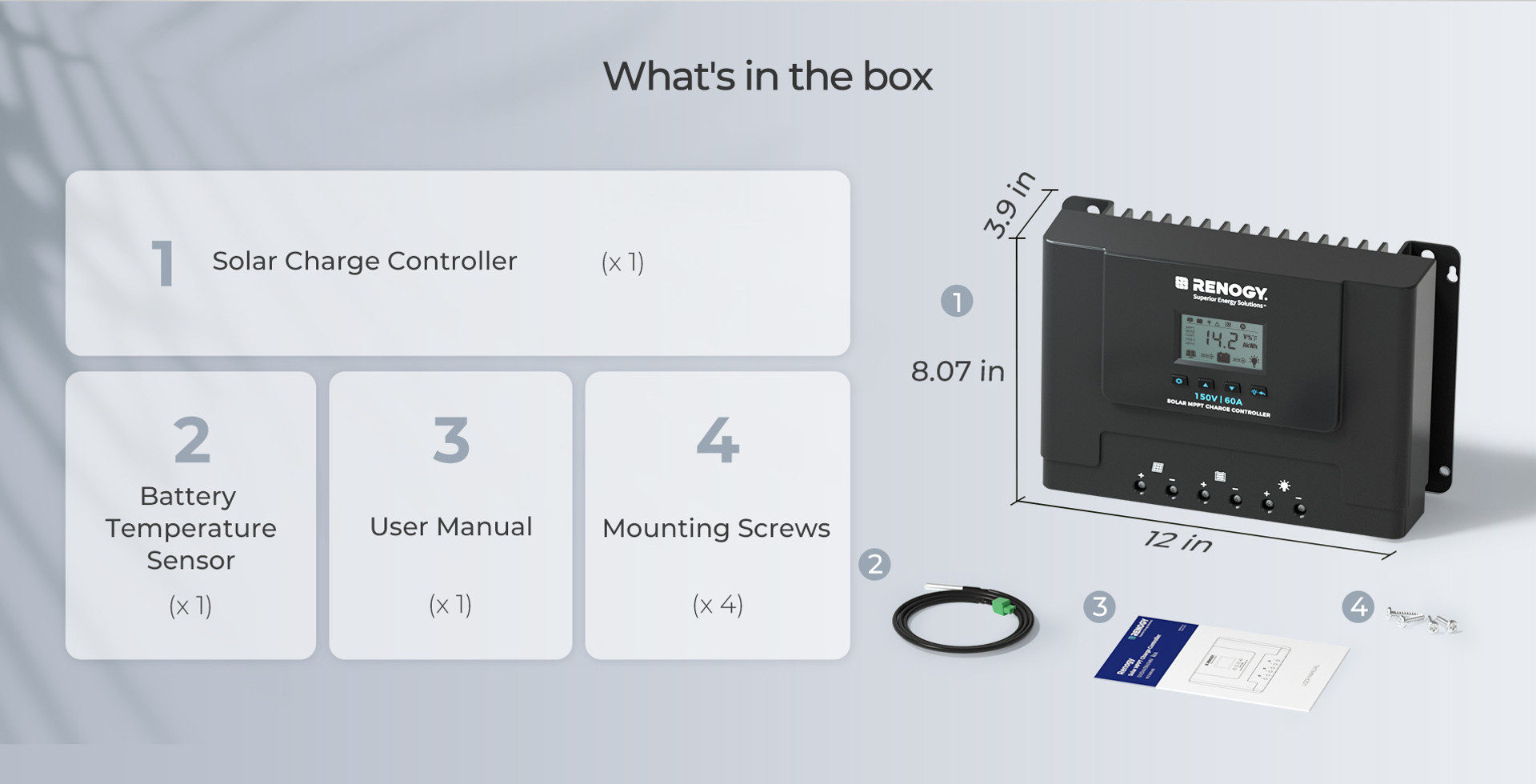

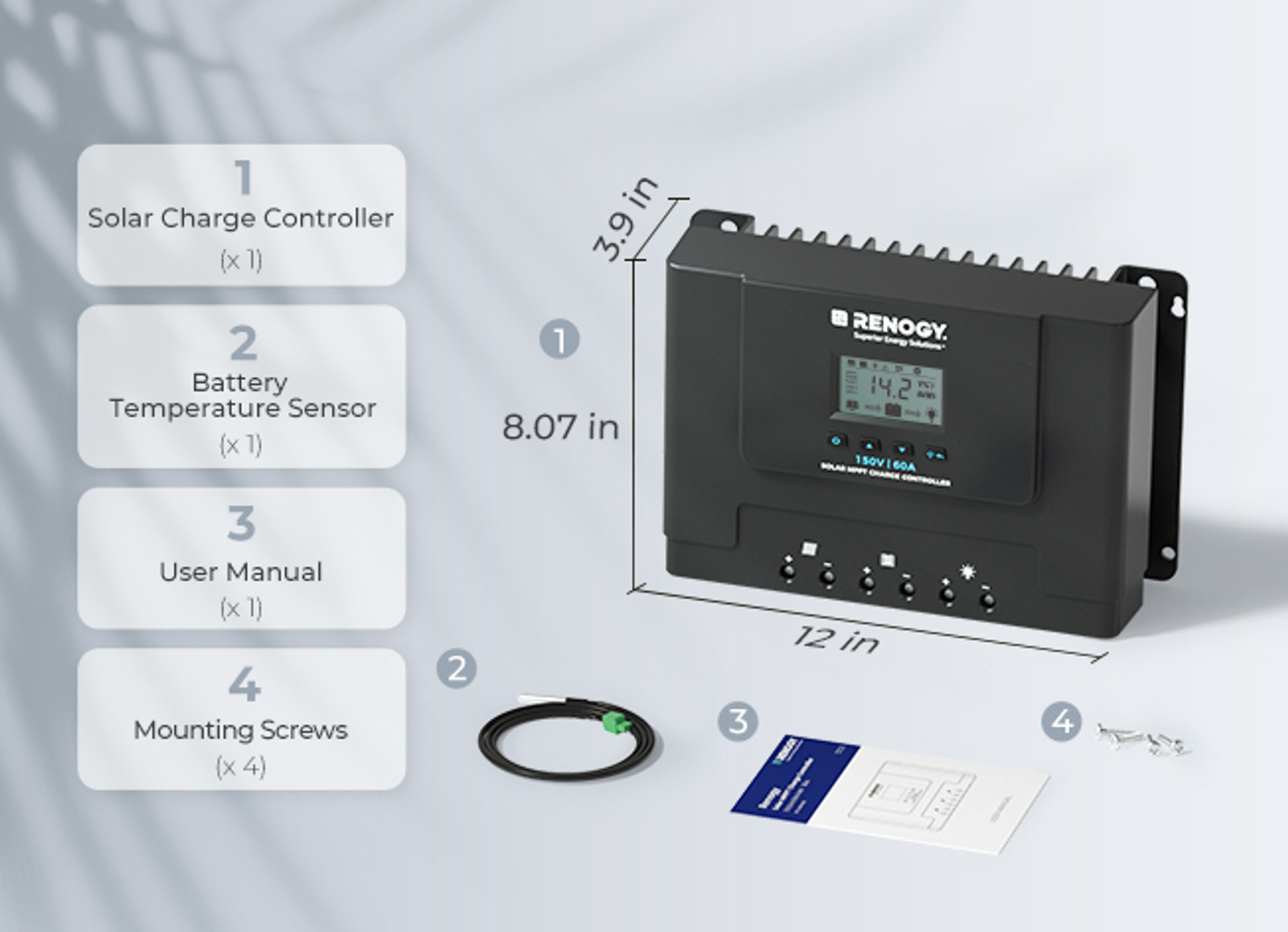

Package Includes
This package contains a MPPT solar charge controller, a temperature sensor, and a user manual.
Package Includes
Solar Charge Controller
x 1
Manual Book
x 1
Battery Temperature Sensor
x 1
Mounting Screws
x 4
Frequently Asked Questions
How should I wire my panels with Rover Lite MPPT solar charge controller?
The Renogy Rover Lite 60A MPPT solar charge controller supports series, parallel, or a series-parallel combination for solar panel connections. With its 150V maximum solar input, you can connect up to six 100W Renogy solar panels in series or eleven 100W Renogy solar panels in parallel.
What are the advantages of Renogy charge controller?
Renogy Rover Lite MPPT solar charge controllers use Power Catcher MPPT algorithm to maximize energy conversion by locking to the most optimal maximum power point. Designed for various off-grid applications, this solar charge controller is compatible with Lithium, AGM, and Gel batteries, making it ideal for home, RV, marine, and workshop power systems.
What is a Solar Charge Controller and what is MPPT?
The Charge Controller takes the power made by the solar panels and transform the ‘solar panel power’ into a form of power that the batteries can use. MPPT stands for Maximum Power Point Tracking, and it relates to the solar cell itself. Each solar cell has a point at which the current (I) and voltage (V) output from the cell result in the maximum power output of the cell. MPPT ensures that you get the most power possible from your solar panels at any point in time. It is particularly effective during low light level conditions.
What would the connections for "Load(optional)" be used for? Also what would it rated for(amps/watts). The way I read the wiring diagram the batteries should get connected to inverter, would these get connected to inverter under certain conditions?
The Load terminal on the Rover Lite solar charge controller allows you to connect 12V DC appliances, as long as they do not exceed 20A. For AC power usage, an inverter is required. The Renogy charge controller must always be connected to a battery bank, and the inverter should be connected directly to the battery rather than the load terminals. The load terminals are typically used for low-power DC devices rather than high-power inverters.
If I connect a 300W 24V solar panel to the Renogy Rover Lite MPPT solar charge controller, will it convert the 24V?
Yes, the Rover Lite 60A MPPT solar charge controller is designed to handle up to 900W with a 12V battery bank. This Renogy charge controller will regulate the excess voltage from your 300W 24V solar panel, converting it into usable amperage to charge your battery efficiently. As for your inverter, as long as you do not exceed the max rated voltage of your Inverter (12 volts) , it will be fine.
