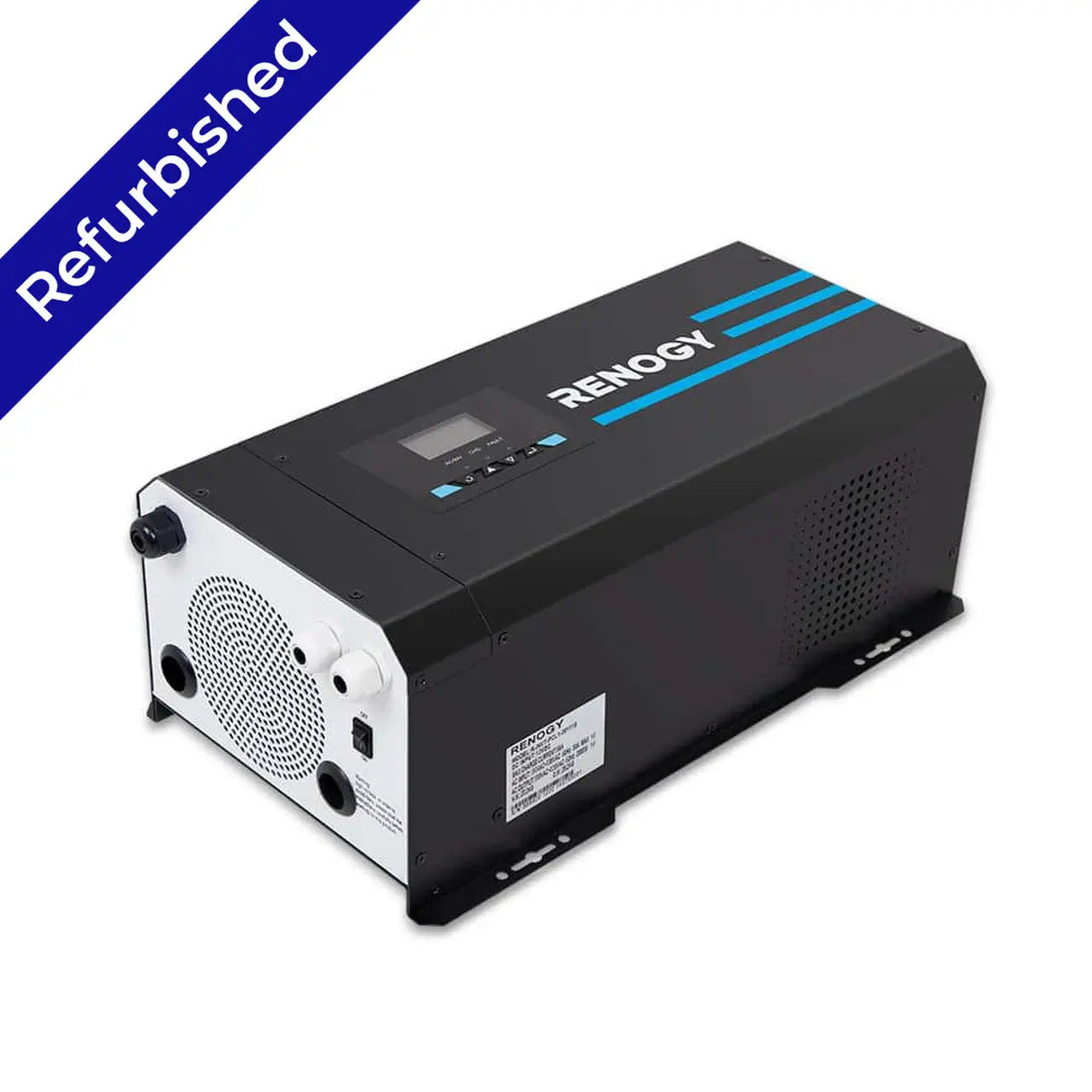

Refurbished 3000W 12V Pure Sine Wave Inverter Charger w/ LCD Display
- -Works with 12V Gel, AGM, SLA, FLD, CAL, LI, and custom batteries.
- -3000W continuous, 9000W surge power with 90%+ efficiency.
- -Optimized Charging 4-Stage charging ensures 100% battery charge.
- -Under/overvoltage, overload, overheating, short circuit protection.
Refurbished 3000W 12V Pure Sine Wave Inverter Charger w/ LCD Display is backordered and will ship as soon as it is back in stock.
![](http://www.renogy.com/cdn/shop/files/R-INVT-PCL1-30111S-RE-US__80530.1724858979.1280.1280.jpg?v=1764221868&width=100")
Click to check the newest User Manual.

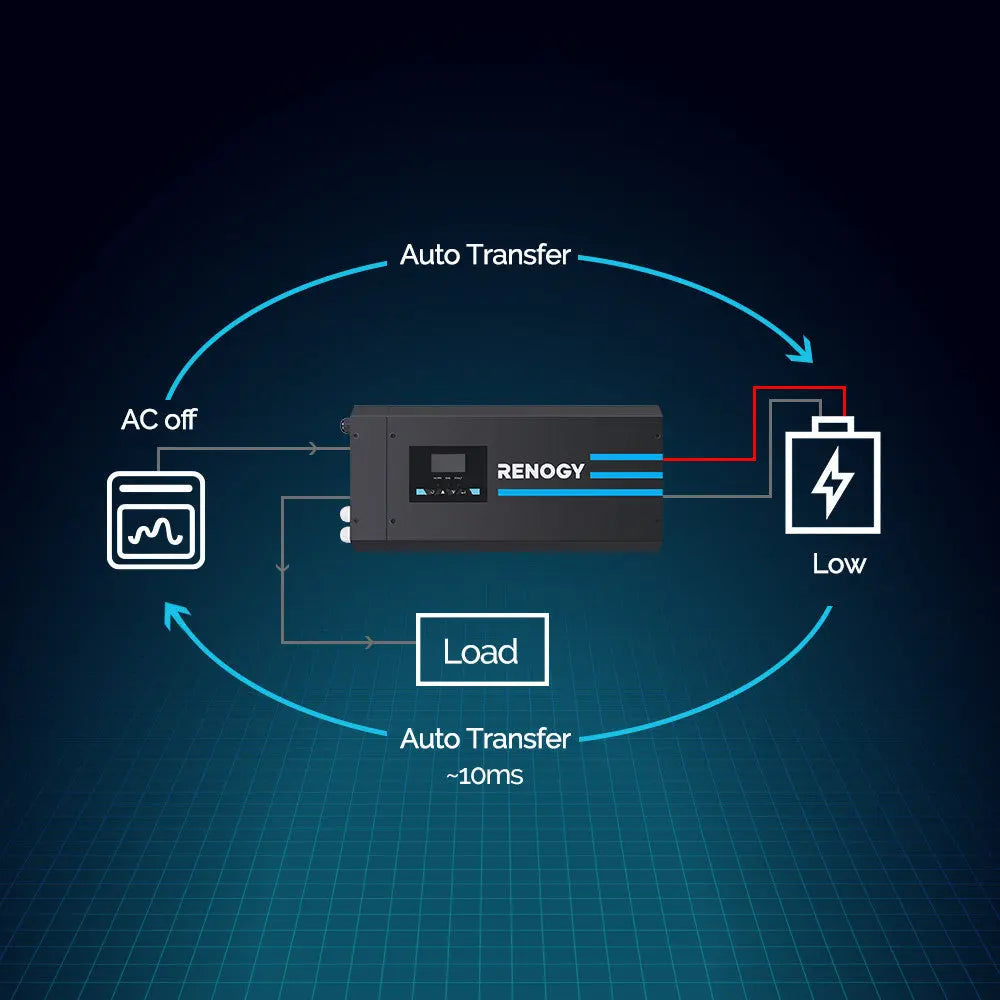

The Renogy 3000W Pure Sine Wave Inverter Charger w/ LCD Display is ideal for RV or standalone. The Renogy 3000W Pure Sine Wave Inverter Charger not only acts as a DC to AC inverter that allows you to power your household appliances but also charges and maintains a battery bank when connected to shore power and is now compatible with Lithium batteries. With a low transfer time, power remains uninterrupted when switching from the battery to shore power. The advanced Renogy Pure Sine Wave technology will protect and extend the life of your electronics and appliances. The Renogy 3000W Pure Sine Wave Inverter Charger is a perfect backup power source!
NOTE: All items that have been returned by a customer. There may be scratches on the surface or other cosmetic damage to the items, but this will not affect the performance of the products. All items listed have been thoroughly tested before being repackaged. Pictures may vary from the actual charge controllers received. Warranty 6-month. For non-quality issues, we do not accept returns and exchanges.
Please Note:

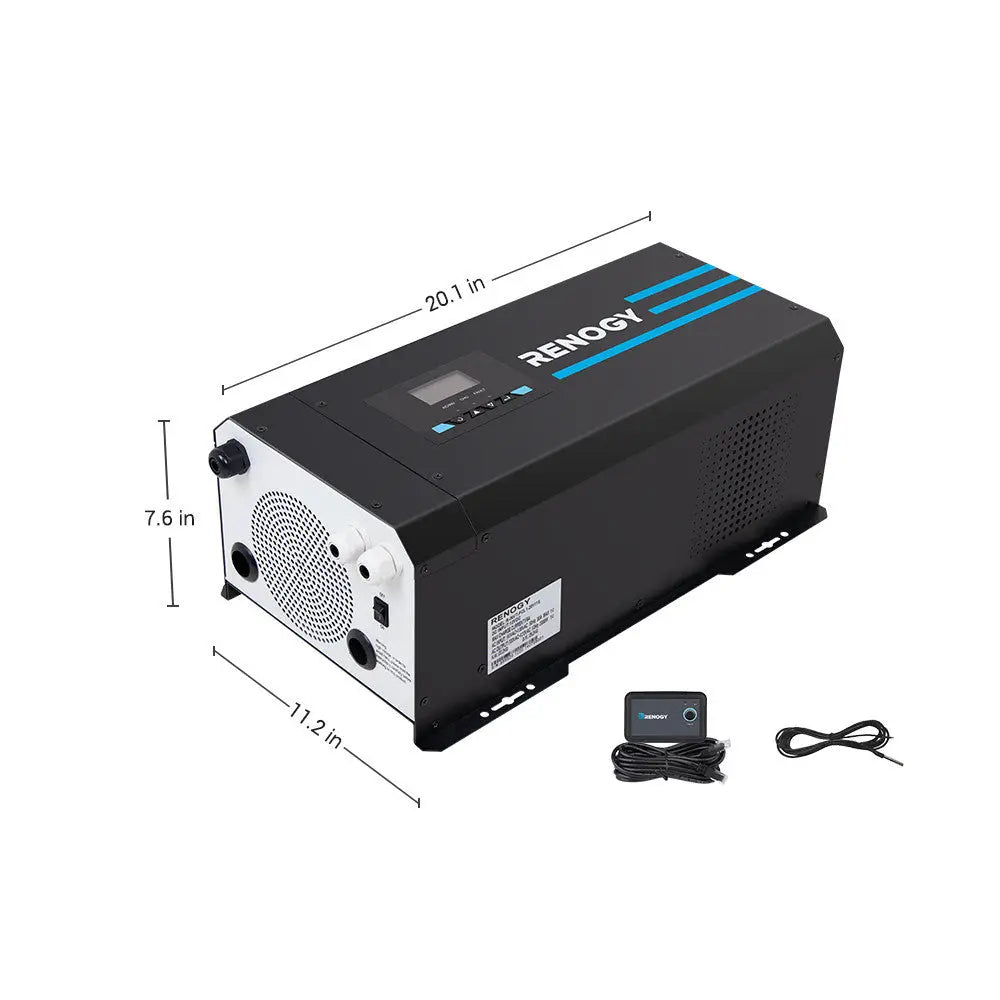

The listed dimensions we provide are solely the device body dimensions. Please do reserve space for cable grommets and installing cables.
Powerful versatility, it is ready for 12V Gel, AGM, Sealed Lead Acid (SLA), Flooded (FLD), Calcium (CAL), Lithium-iron Phosphate (LI), and programmable for custom batteries through the USER type.

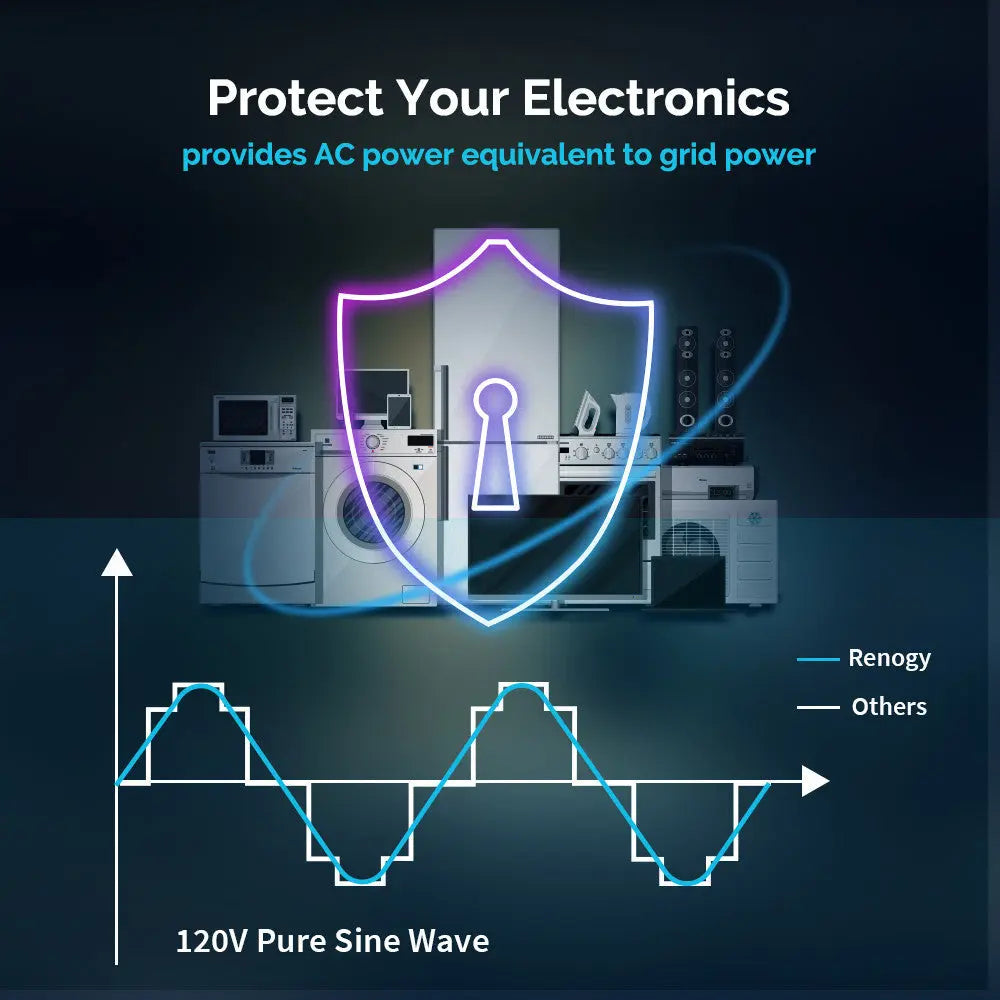

Advanced Pure Sine Wave technology provides high-quality AC power equivalent to grid power to protect your household appliances and electronic equipment, which is especially suitable for sensitive electrical appliances.

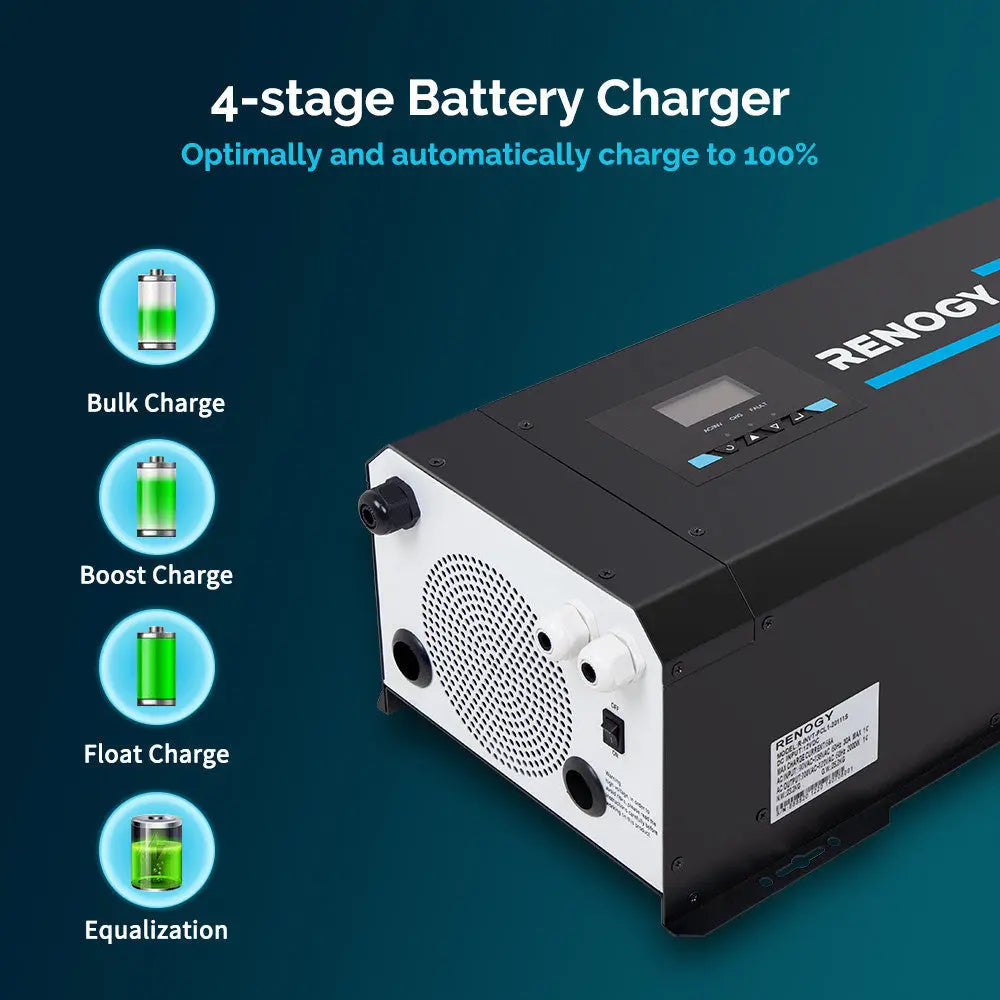

The Renogy 3000W pure sine wave inverter charger is equipped with a 4-Stage(Bulk stage, Boost stage, Float stage, and Equalization) battery charger with a configurable charging current between 5A and 75A to make sure it optimally and automatically charge to 100%. It only takes 1.5 hours to fully charge a 100Ah battery.

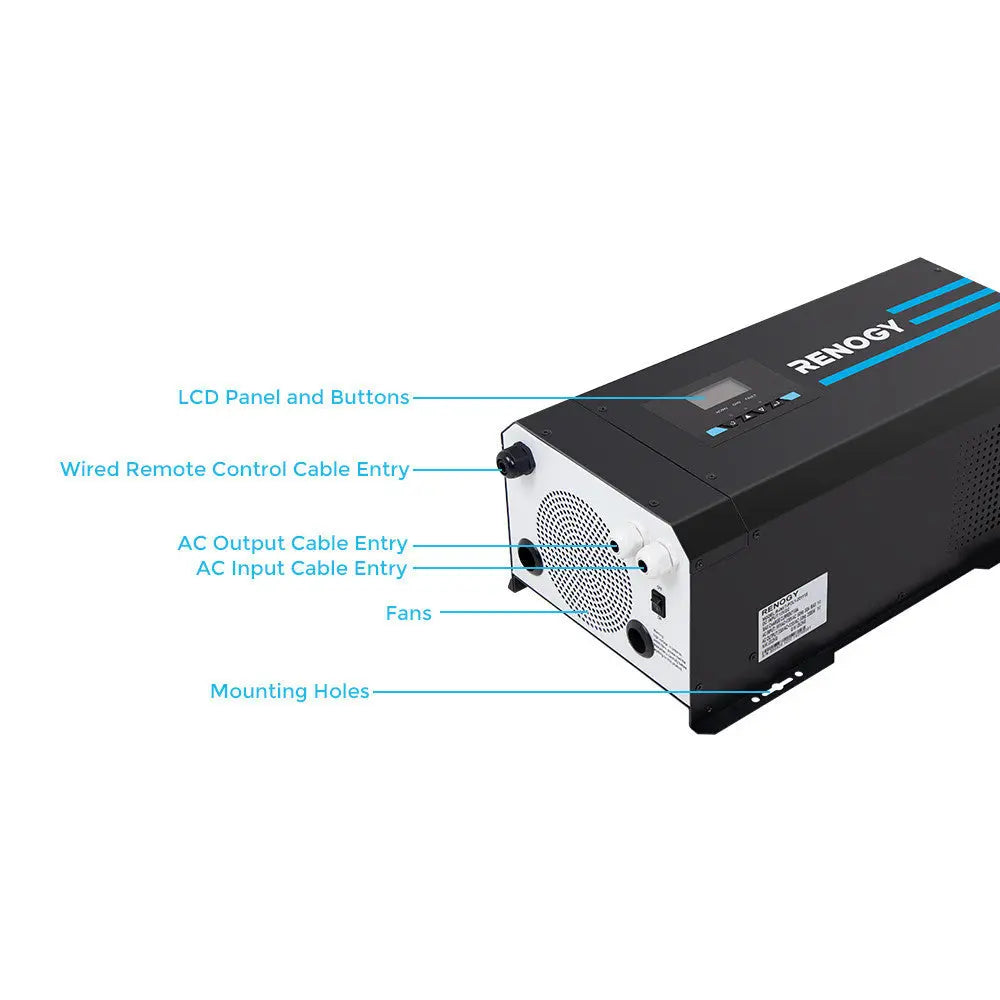

The LCD display can visually see the status of the inverter and perform programmable operations. The PCL inverter charger series is fully programmable with more than 20 features that can be customized such as input/output voltage range and battery charging current.
This inverter comes with a 16.4ft remote control and a 9.9ft battery temperature sensor.
The Temperature Sensor can compensate the battery voltage affected by temperature so that the charger recognizes the voltage more accurately and assures stable and constant charging to the battery.
To Access the main panel, unscrew the terminals on the outside of the side panel. Steps as follows:
1. Flip inverter power to the 'OFF' position
2. Unscrew the screw terminals along the edge of the side plate
3. Gently remove DC Side plate to expose DC Terminals
4. Connect the positive and negative DC Cables to their respective terminals and run them through the side panel
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or contact us with livechat for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center!
Minimum 12V Lithium Battery Bank Sizing
The following are the minimum battery quantities to operate Renogy power inverters. This is ONLY for 12V applications.
| Battery Bank Qty/ Inverter Size | 50Ah | 100Ah | 170Ah |
|---|---|---|---|
| 700W | 1 | 1 | 1 |
| 1000W | 2 | 1 | 1 |
| 2000W | 4 | 2 | 1 |
| 3000W | 6 | 3 | 2 |
Package Includes
- Please note that this package does not include cable. You can buy the inverter cable separately. Our recommended specifications for this inverter are: 3ft, 4/0AWG
|

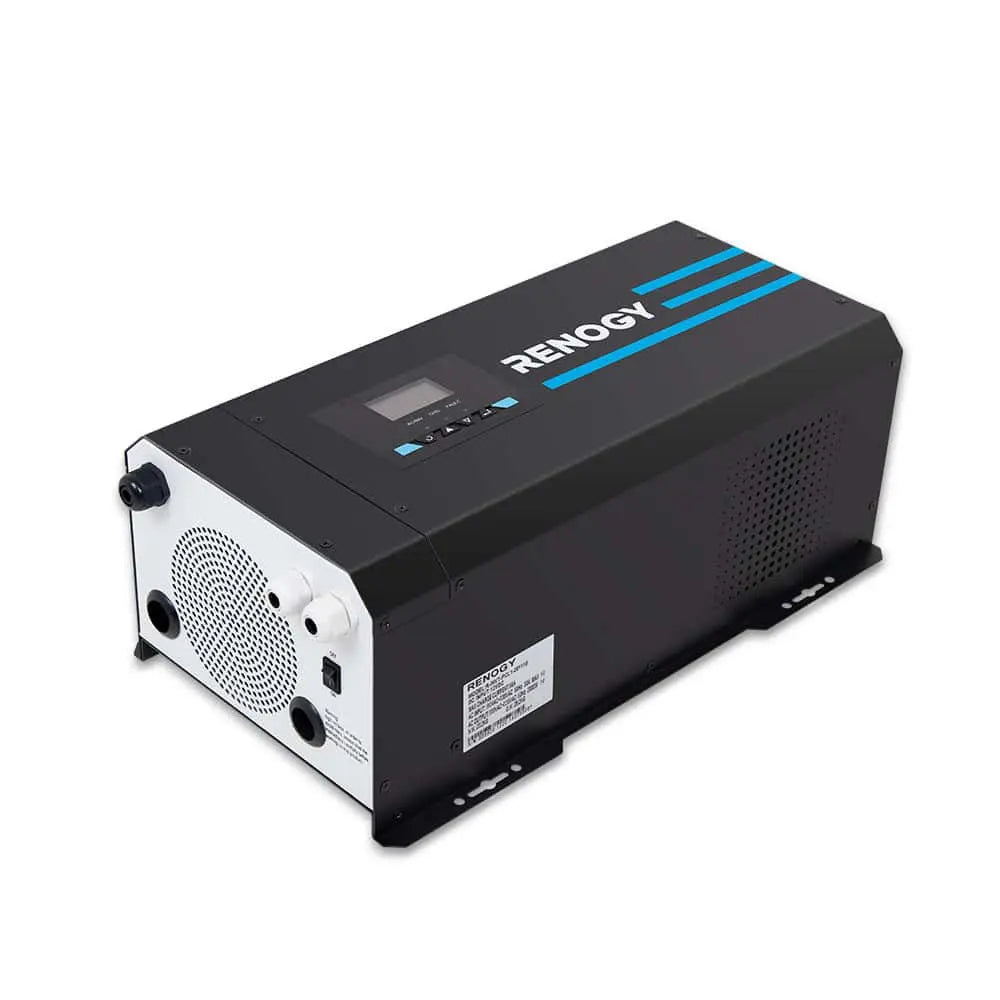

3000 Watt 12V Pure Sine Wave Inverter Charger w/ LCD Display
1 x
|
Battery Temperature Sensor
1 x
|
Inverter Wired Remote Control
1 x
|
