RV Tilt Mount Brackets
SKU:
RNG-MTS-TMB-US
$32.99
Unit price
/
Unavailable
+
+
Rays
after purchase.
Log In
About Renogy Membership
Key Features
- - 0°-90° adjustment for optimal sun exposure
- - 50in bracket for horizontal and vertical solar panel setup
- - Compatible with Renogy solar panels up to 550W
- - Great addition for use on various flat surfaces

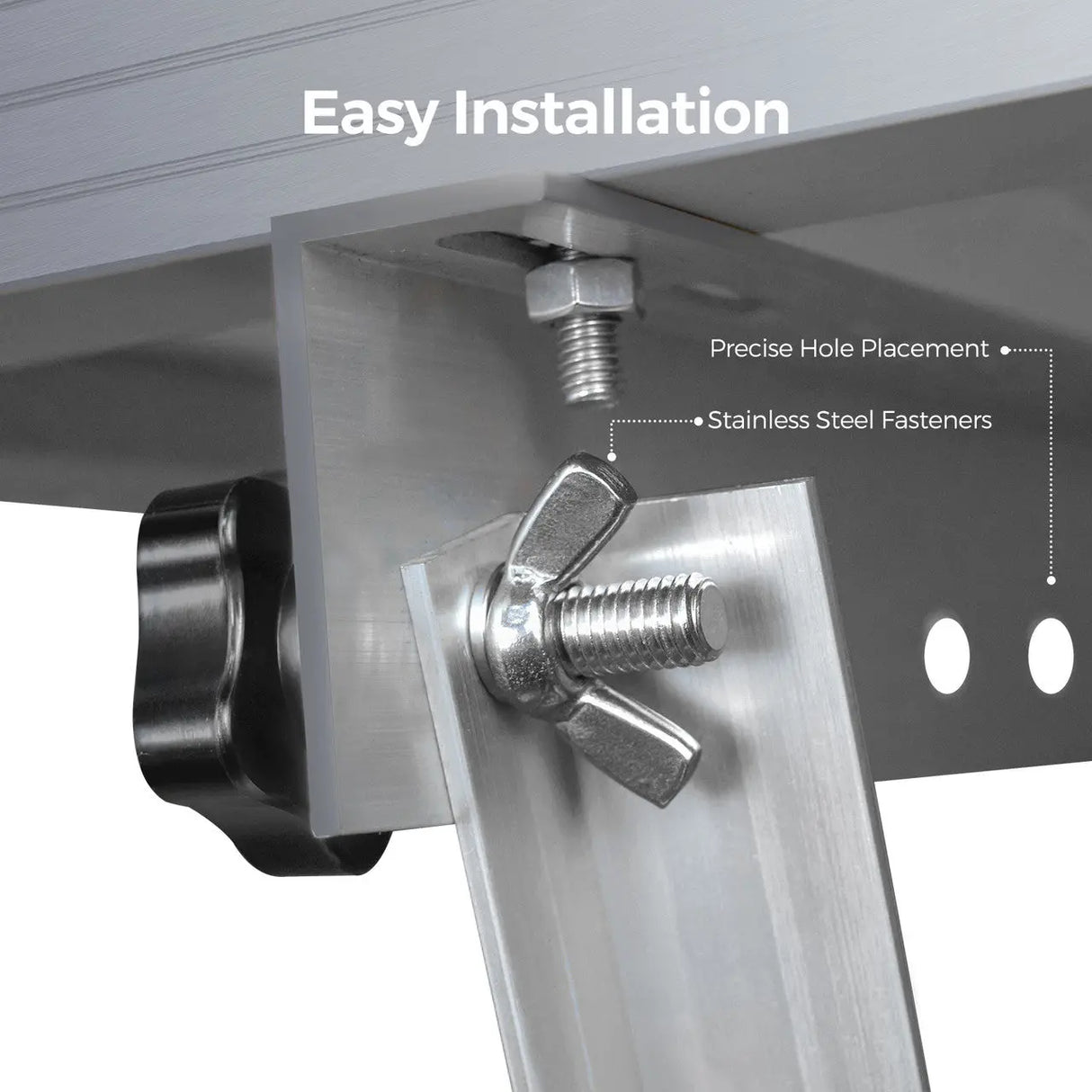

- - Quick and easy installation
RV Tilt Mount Brackets - 28 Inch is backordered and will ship as soon as it is back in stock.
Payment Methods
Request Bulk Purchase Prices
RV Tilt Mount Brackets
$32.99
Unit price
/
Unavailable
28 Inch

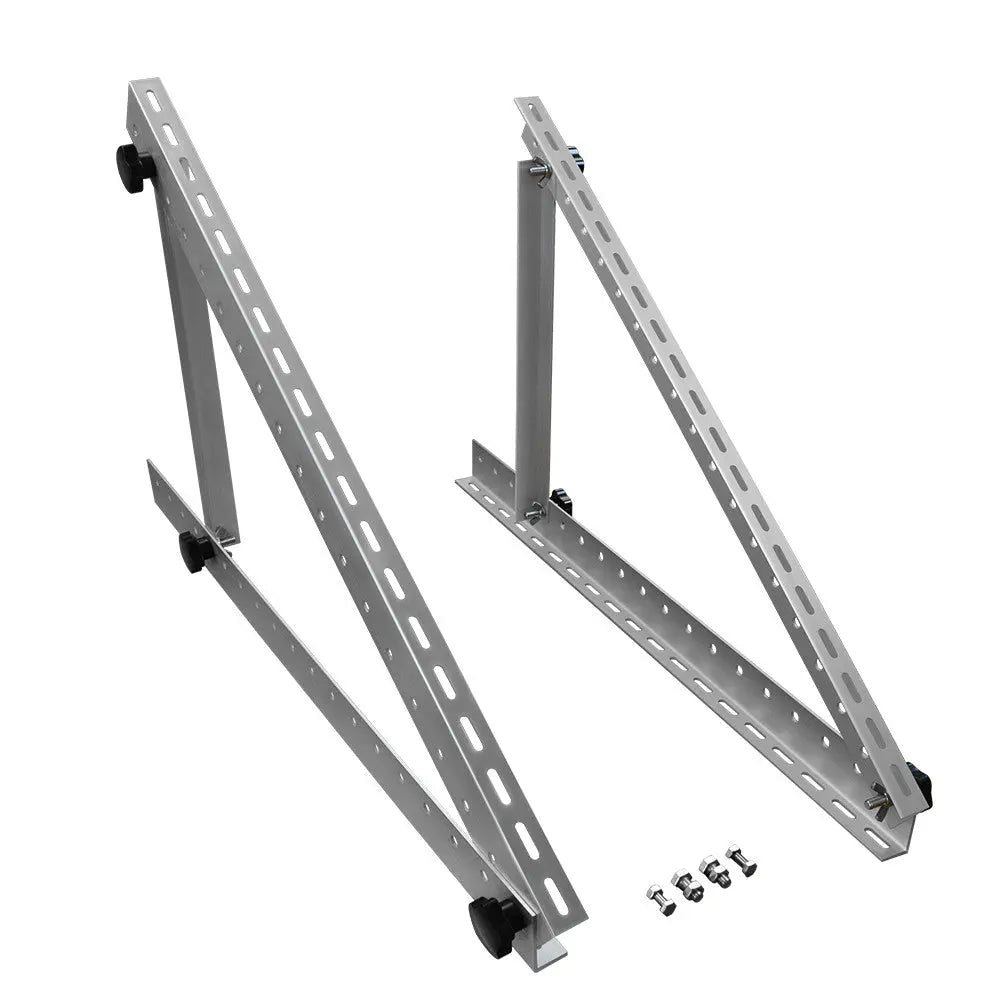

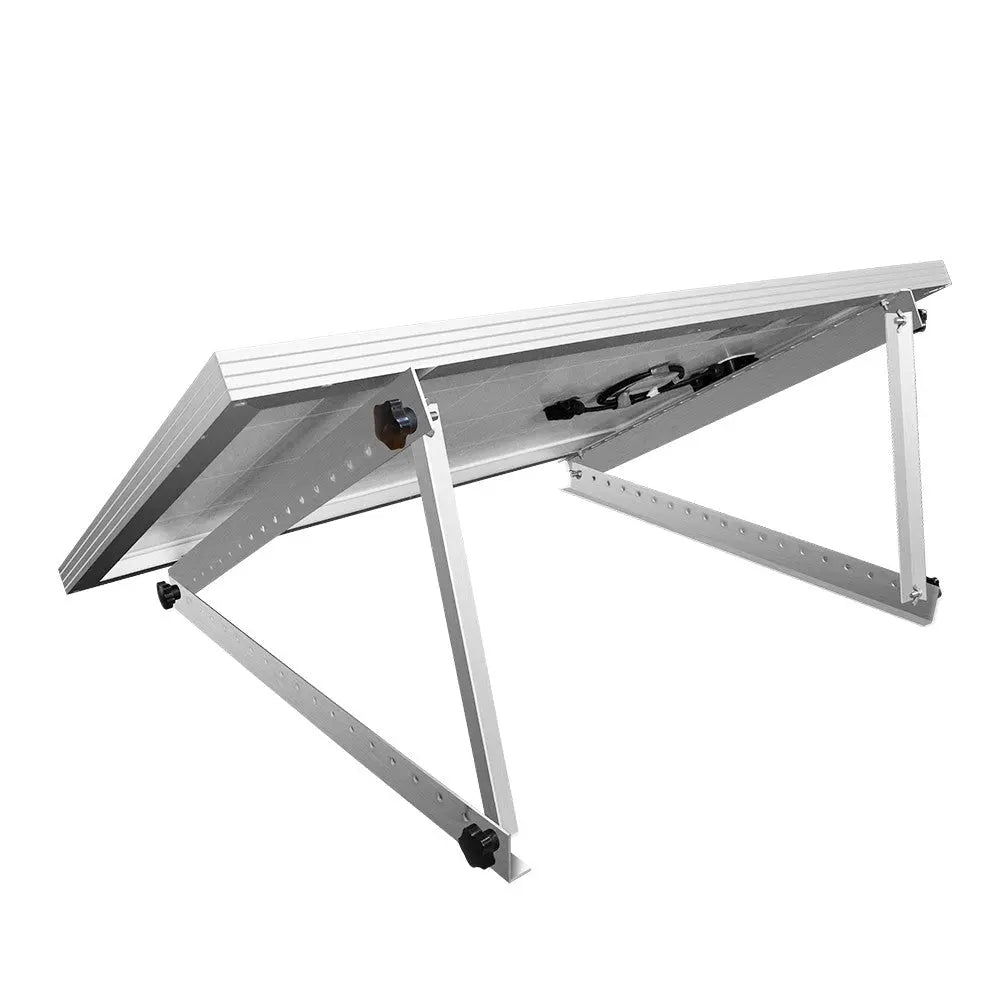

Renogy RV Tilt Mount Brackets
Unlock Your Solar Potential: Versatile, Strong, and Effortless Installation!

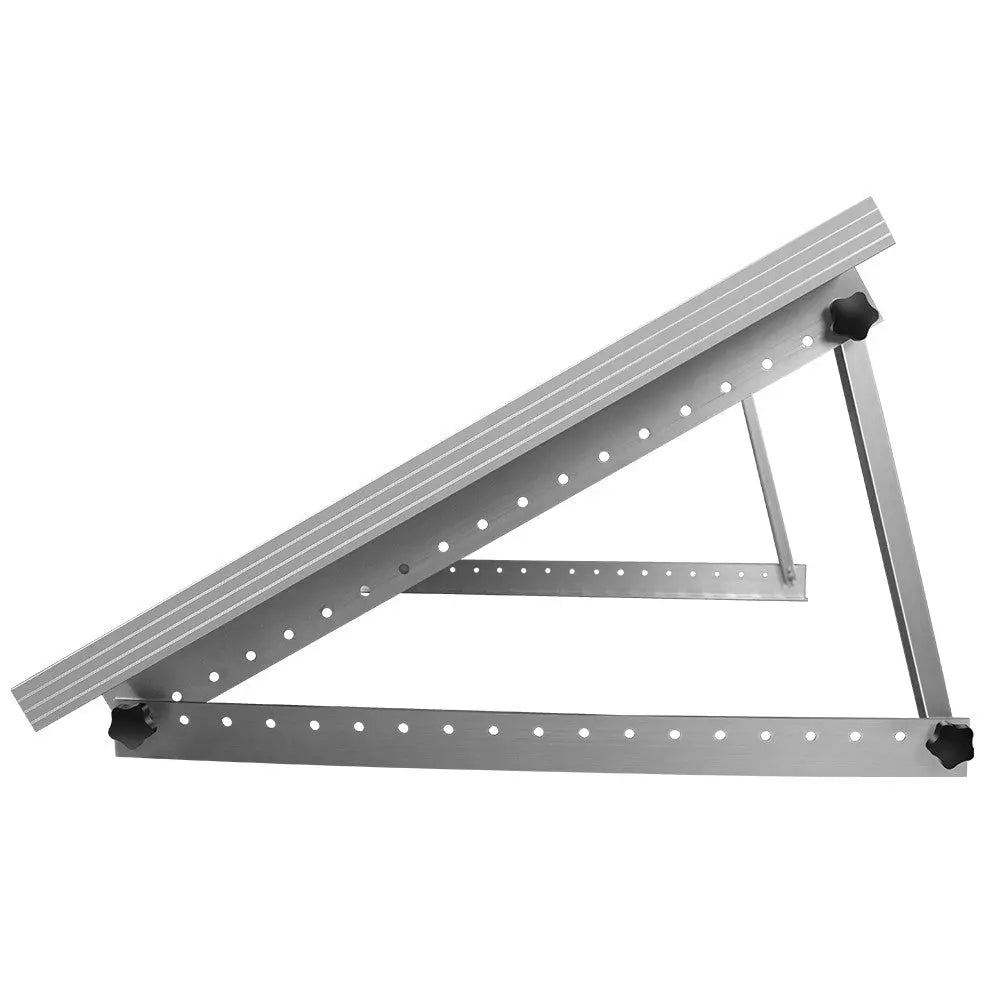

0°~90° Flexible Adjustment
Easily set the mounting angle from 0 to 90° in approximately 5° increments. Adapt the bracket to any latitude with quick and flexible adjustments.

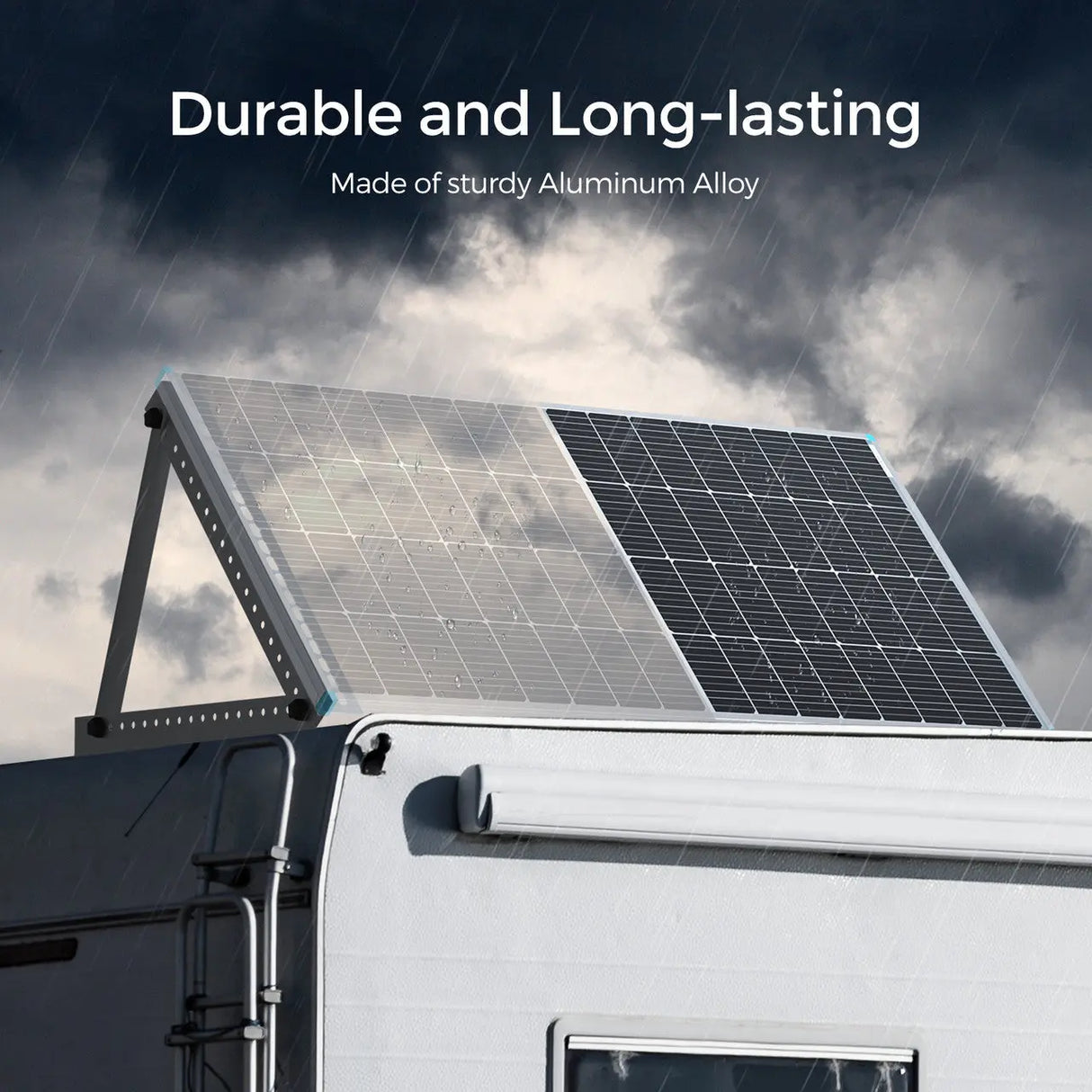

Durable and Long-lasting
Constructed with a corrosion-resistant aluminum alloy, this bracket exhibits outstanding load-bearing strength, guaranteeing optimal performance over extended periods in various outdoor conditions.
Wide Application
Ideal for installation on the roof of an RV or any flat surface, such as boats, motorhomes, sheds, and more.

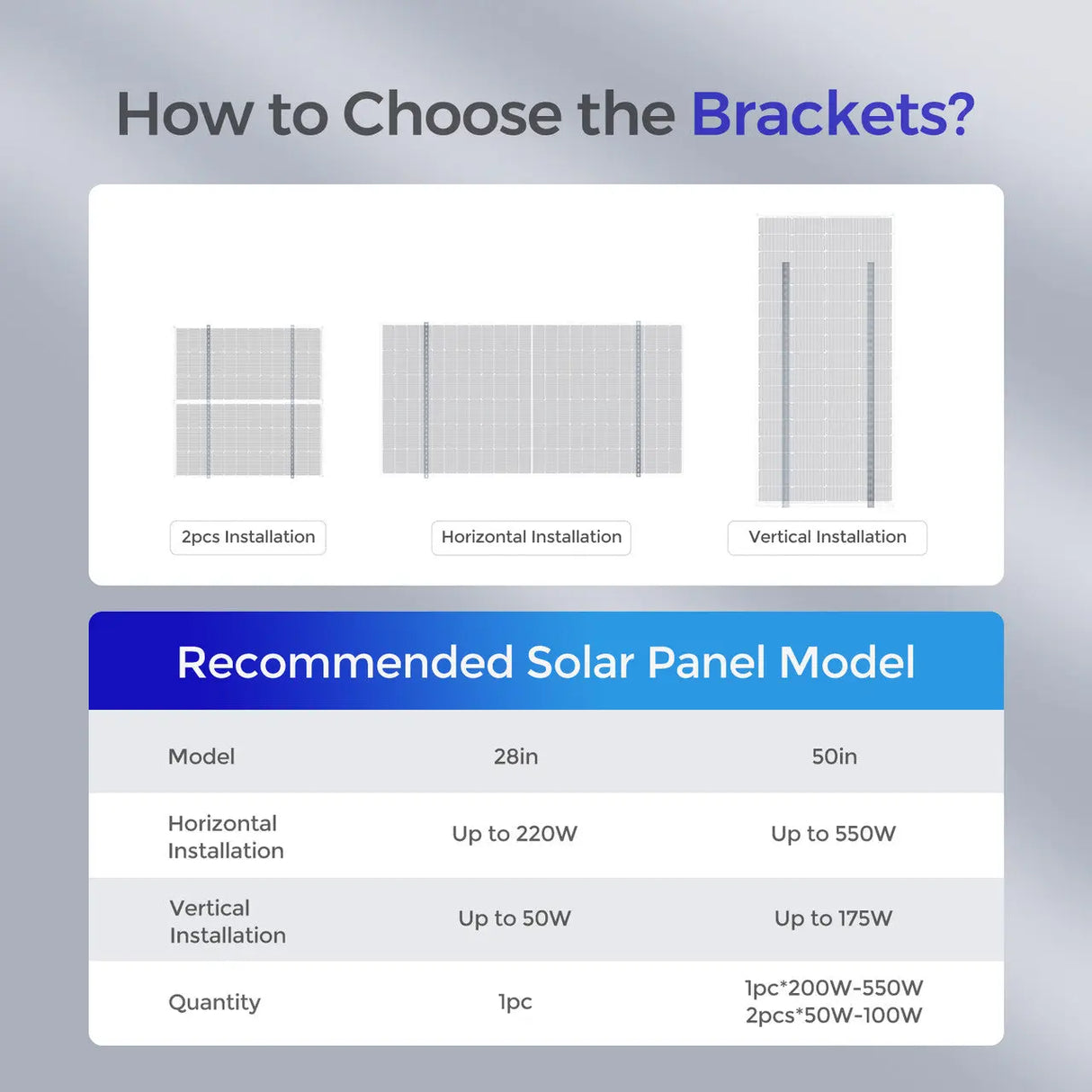

Recommended Bundles for 28-inch Bracket
The 28-inch TMB bracket is adaptable to Renogy solar panels up to 220W. For more details on compatible solar panels, refer to the User Manual.
Recommended Bundles for 50in Bracket
The 50-inch TMB bracket is adaptable to Renogy solar panels up to 550W. For more details on compatible solar panels, refer to the User Manual.
Package Includes
- 4 x Fixed L-Brackets
- 2 x Tilt L-Brackets
- 6 x M8 Plastic Knob Screws
- 6 x M8 Wing Nuts
- 4 x M6 x 16mm Hex Cap Bolts
- 4 x M6 Split Lock Washers
- 8 x M6 Flat Washers
- 4 x M6 Hexagonal Nuts
- 6 x M8 Washers
- 6 x M8 Spring Washers
- 10 x 1¼ in Self-Drilling Cap Screws
- 6 x Plastic Retaining Rings
Learn more

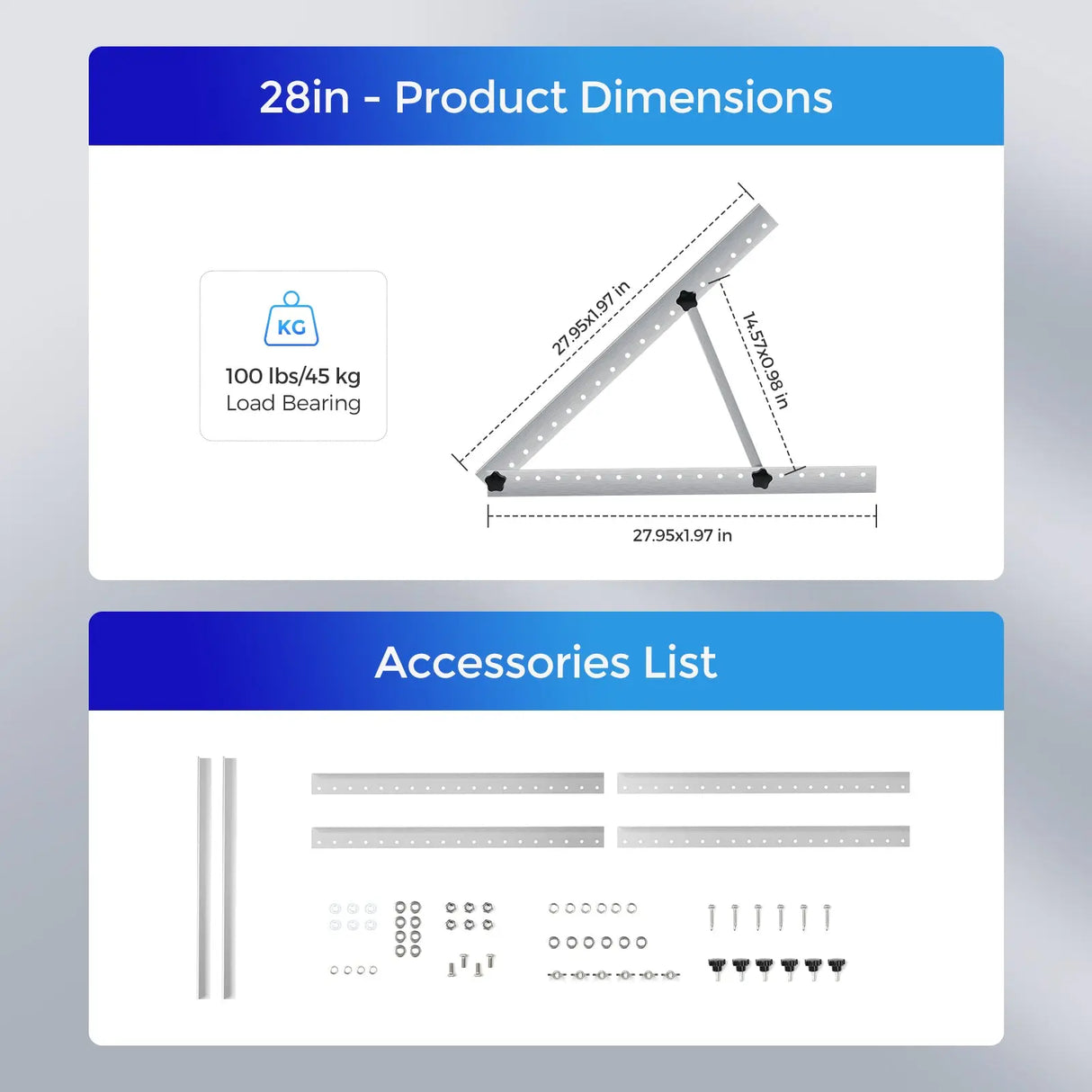

28 Inch RV Tilt Mount Brackets
Tilt Bracket Dimension-28 inch: 14.57x1.18x0.79 inch
Fixed Bracket Dimension-28 inch: 27.95x1.97x0.98 inch
Weight-28 inch: 3.5 lbs
Material and workmanship warranty-28 inch: 1 Year
50 Inch RV Tilt Mount Brackets
Tilt Bracket Dimension-50 inch: 22.64x1.18x0.79 inch
Fixed Bracket Dimension-50 inch: 50x1.97x0.98 inch
Weight-50 inch: 7.2 lbs
Warranty: 1-year material and workmanship warranty
1. Are the brackets made of stainless steel?
the brackets are aluminum and the fasteners are stainless steel.
2. Did others recieve wing nuts and washers? My package had the plastic head bolts but no nuts...
All mounting parts were included in mine.
3.do you need to ground the aluminum brackets to the vehicle chassis?
I didn't bother. The solar panel frame is plastic, so it isn't grounded to aluminum frame. Instructions on panel didn't suggest to do so.
4. Do these brackets fold up if you undo one end? Don't want to mount. I want to pack and use freestanding for my panel.
You can unscrew the short ends that connect the two long pieces that make a V on each side and you could fold it up. This is also how you adjust the angle of the sun to the panels. You know, like summer sun is a different angle than winter sun.
5.Can they be tilted while driving?
As long as you don't mind sending the panels onto the traffic behind you.... I suppose if you drilled thru the roof and mounted them with 3/8" bolts and oversized fender washers it could be possible to keep them mounted to the roof. As for keeping the panels attached to the brackets; again, that's a mounting hardware issue.
