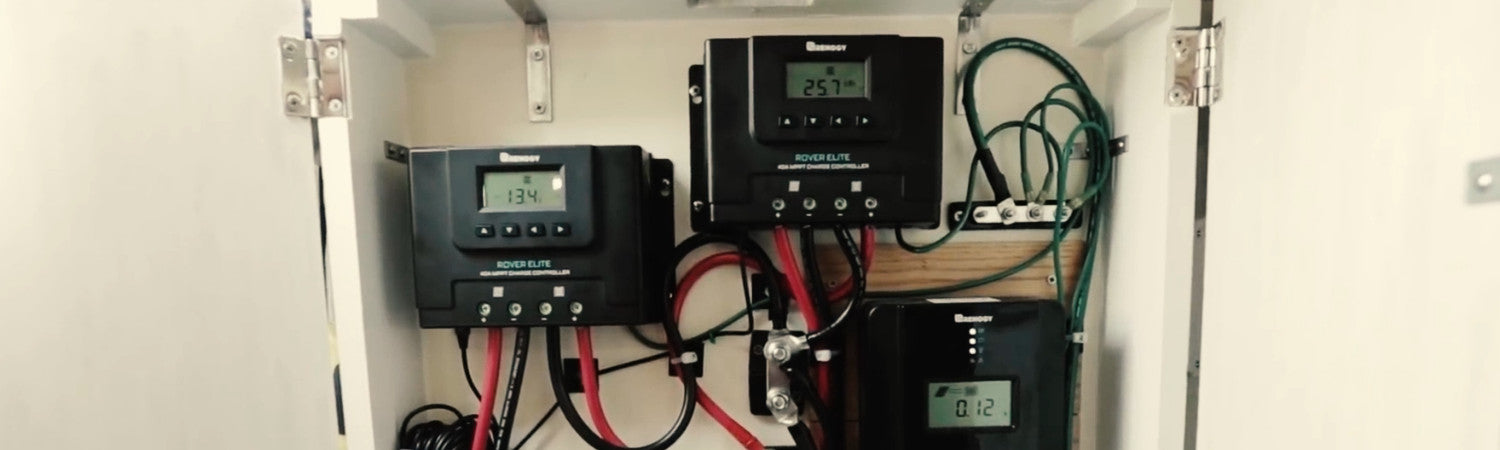

Do You Need a Solar Charge Controller for an RV?

We’ve spent enough time living and working from the road to know that an RV solar charge controller is easy to overlook—until the batteries are not charging the way you expected.

If you’re installing solar panels on an RV, the short answer is yes: most RV solar systems need a charge controller between the solar panels and the battery bank. The controller regulates the energy going into the batteries and helps keep the system operating within safe limits.

We’ve installed and used different charge controllers in several RV systems. The right choice usually comes down to four things: the total panel wattage, how the panels are wired, the battery chemistry, and the battery-bank voltage.

• How much solar power are you installing?
• Will the panels be wired in series, parallel, or a combination of both?
• Are you using lead-acid batteries, lithium batteries, or another chemistry?
• Is your battery bank 12V, 24V, or another voltage?

Do You Need a Solar Charge Controller for an RV?

For a typical RV solar system that charges a battery bank, you do need a solar charge controller. Connecting solar panels directly to a battery can allow the battery to keep charging after it reaches its safe voltage, which can shorten battery life or create a safety issue.

A controller also helps match the voltage and current from the solar array to the battery. This is especially important when the panel voltage is higher than the battery voltage, or when several panels are connected together.

The exception is a very small maintenance panel when the panel manufacturer specifically states that it can be connected directly to the battery. That is not a general rule for RV solar panels, so it should not be applied to a typical rooftop array or portable solar system.

If you are building a complete system, it is usually easier to start by estimating your daily energy use, battery capacity, and solar array size. Our RV solar kit guide walks through those decisions in a more practical order.

What Does an RV Solar Charge Controller Do?

A solar charge controller sits between the solar panels and the battery bank. Its main job is to regulate charging voltage and current so the batteries receive energy in a controlled way.

Most RV solar charge controllers also provide some form of battery protection and system monitoring. Depending on the model, you may be able to view battery voltage, charging current, solar input, battery type, and charging status from an LCD screen or a mobile app.

There are two main types of solar charge controllers: PWM and MPPT.

Controller type	Usually makes sense when	What to keep in mind
PWM	You have a smaller, simpler RV system with a panel and battery voltage that closely match.	It is generally straightforward and economical, but it cannot make the same use of higher panel voltage that an MPPT controller can.
MPPT	You have a larger array, longer cable runs, higher-voltage panel wiring, or want to capture more available solar energy.	It usually costs more and requires closer attention to maximum PV voltage, input power, and battery settings.

When we upgraded one of our RV systems, we moved from a PWM controller to an MPPT controller as the solar array became larger and the system had more demanding charging needs. That change made more sense for the system we were building, but it does not mean MPPT is automatically the best choice for every RV.

For a closer look at the practical differences, see our guide to MPPT and PWM solar charge controllers.

Can You Connect a Solar Panel Directly to an RV Battery?

In most cases, no. A typical RV solar panel should not be connected directly to a battery without a charge controller.

Solar panels do not stop producing energy simply because a battery is full. Without a controller, the battery may continue receiving more voltage or current than it should. The result can be reduced battery life, overheating, or damage to the battery and other components.

A very small trickle or maintenance panel may be an exception, but only when the panel manufacturer explicitly permits direct connection. A 100W or 200W RV solar panel, a folding solar suitcase, or a rooftop solar array should be connected through a properly sized charge controller.

What Size Solar Charge Controller Do You Need for an RV?

The charge controller must be compatible with both sides of the system: the solar array and the battery bank.

What to check	Why it matters
Solar array wattage	The controller must handle the total power produced by all connected panels.
Solar array voltage	The panel voltage must stay below the controller’s maximum PV input voltage, including the higher open-circuit voltage that can occur in cold weather.
Charging current	The controller’s rated output current must be large enough for the battery bank and solar array.
Battery voltage	The controller must support the battery-bank voltage, such as 12V or 24V.
Battery chemistry	The controller must have an appropriate charging profile for the battery, such as lithium or lead-acid.

How Do You Size an RV Solar Charge Controller?

Start with the solar array, then verify the controller’s voltage, power, and battery limits. The current rating alone is not enough to confirm compatibility.

1. Add the total solar panel wattage

Add the rated wattage of every panel. For example, three 200W panels create a 600W solar array.

The controller must be able to handle that array at the battery voltage you are using. A controller that can handle 600W with a 24V battery bank may not be rated for the same 600W array with a 12V battery bank.

2. Estimate the required charging current

For a simple estimate, divide the array wattage by the battery-bank voltage, then include a design margin.

For example:

600W ÷ 12V = 50A

This is a rough electrical estimate, not a complete controller-sizing calculation. The controller’s actual output depends on charging conditions, battery voltage, efficiency, and the model’s published limits.

Another useful method is to add the expected charging current from the panels and apply a 25% design margin. If a 600W array is expected to provide approximately 27A under the selected configuration:

27A × 1.25 = 33.75A

In that example, the controller should have a rated output of at least 34A. You would then choose the next available controller rating that also supports the array’s maximum PV voltage and total input power.

For a more detailed calculation, use the solar charge controller sizing guide.

3. Check series and parallel wiring

When panels are wired in series, their voltage increases while the current remains close to that of one panel. When panels are wired in parallel, the current increases while the voltage remains close to that of one panel.

That difference affects the controller you need. Series wiring can be useful for reducing current over a longer cable run, but it can also push the array voltage above the controller’s maximum PV input. Always calculate the array’s maximum open-circuit voltage and allow for cold-weather conditions.

For example, an array made from eight 100W panels could be wired in different configurations. A series-parallel layout may reduce current compared with wiring all eight panels in parallel, but the resulting voltage must remain within the controller’s operating range.

The wiring diagrams in this article are examples rather than a substitute for the specifications of your particular panels and controller.

4. Match the battery voltage and chemistry

A controller must support the battery-bank voltage and the battery chemistry you plan to use. A 12V lead-acid bank and a 12V lithium battery may require different charging settings even though they share the same nominal voltage.

Do not assume that every Renogy charge controller supports every battery type. Check the current product page and manual for the specific controller, battery profile, temperature-sensor requirements, and supported system voltage.

How Do You Wire an RV Solar Charge Controller?

The exact wiring depends on the controller, battery bank, solar array, fuses, and installation location. Before making connections, cover the panels or disconnect the array so the solar conductors are not live while you work.

A common installation sequence looks like this:

1. Mount the controller in a dry, ventilated location close enough to the battery bank to keep the battery cables reasonably short.
2. Select cable sizes based on charging current, cable length, and acceptable voltage drop. Longer runs and higher currents generally require larger conductors.
3. Install the required overcurrent protection close to the battery and on the PV side when required by the system design and equipment instructions.
4. Connect the battery to the controller first when the controller manual specifies that sequence.
5. Connect the solar array only after the battery connection is secure and the controller is ready.
6. Check polarity, tighten the terminals, and confirm the charging profile before leaving the system operating.

How do you estimate fuse size?

There is no single fuse size that fits every RV solar system, but you can make a useful first estimate before checking the final specifications.

For the PV side, start with the solar array’s short-circuit current, or Isc. A common first-pass calculation is:

PV fuse estimate = Isc × 1.25

Then round up to the next suitable standard fuse size. For example, if the array Isc is 9.2A:

9.2A × 1.25 = 11.5A

A 15A fuse may be a reasonable starting point in that example, but only if it is within the panel manufacturer’s maximum series-fuse rating and is compatible with the wire, connectors, controller, and installation requirements.

For the battery-to-controller cable, many RV installations start with a fuse at or just above the controller’s maximum charging current. For example, a 30A controller may commonly use a 30A or 40A class fuse. That is only a starting range—not a universal rule. The final fuse must protect the cable and remain within the controller and battery manufacturer’s instructions.

Do not blindly add 10A to the panel current or use a fuse larger than the cable can safely carry. The correct selection depends on the cable ampacity, panel short-circuit current, controller manual, battery specifications, number of parallel strings, and the overall system design.

Using ferrules or properly crimped terminals can make the connection more secure, especially in an RV where vibration is part of everyday life. Follow the controller manual for terminal torque, grounding, and connection order.

For a complete installation walkthrough, see our guide to installing an RV solar kit.

What Should You Look for When Buying an RV Solar Charge Controller?

Once you know the approximate size of your system, compare the controller’s specifications with your actual installation.

What to compare	Why it matters for an RV
MPPT or PWM	PWM can work well for smaller, closely matched systems. MPPT is often more useful when the array is larger or operates at a higher voltage.
Maximum PV voltage	The array’s cold-weather open-circuit voltage must remain below the controller limit.
Maximum PV input power	The controller must be rated for the total panel wattage at your battery-bank voltage.
Rated charging current	The output rating should be large enough for the expected charging current, including a reasonable design margin.
Battery compatibility	The controller should support your battery chemistry and provide the correct charging profile.
Monitoring	An LCD screen or built-in Bluetooth can make it easier to check solar input, battery voltage, and charging status while traveling.
Physical installation	Check the controller’s dimensions, terminal access, ventilation needs, and available space in the RV electrical compartment.
Manual and troubleshooting support	A clear manual and troubleshooting documentation can save time when the system behaves differently in changing weather or battery conditions.

A current RV option: Renogy Rover 2

For an RV owner replacing an older controller or building a new system, the Renogy Rover 2 is a current MPPT option worth comparing.

Its compact design can be useful when space is limited in an RV electrical compartment, while built-in Bluetooth makes it possible to monitor the system without adding a separate Bluetooth module. The LCD screen also provides a direct way to check basic system information at the controller.

We would still size the system first and choose the current option based on the actual solar array, battery voltage, and controller limits. A compact controller is convenient, but it cannot compensate for an array that exceeds its maximum PV voltage or power rating.

Before your installation, please confirm the current US product-page specifications for the selected Rover 2 option, including supported battery types, maximum PV input, system voltage, wiring requirements, and connection order.

Our Experience Using RV Solar Charge Controllers

As full-time RVers, we’ve used both PWM and MPPT charge controllers in different systems. The most important lesson has been that the controller should be selected as part of the complete system rather than as an isolated product.

Panel wattage, wiring layout, battery chemistry, cable length, available mounting space, and the way you use the RV all affect the decision. A controller that is a good fit for a small weekend setup may not be the right choice for a larger off-grid system with higher-voltage panels.

When the controller is properly matched and installed, monitoring the system becomes much easier. We can see whether the panels are producing power, whether the batteries are accepting a charge, and whether a wiring or configuration issue needs attention.

If your controller is already installed but the batteries are not charging as expected, our solar charge controller troubleshooting guide covers common warning signs and checks.
