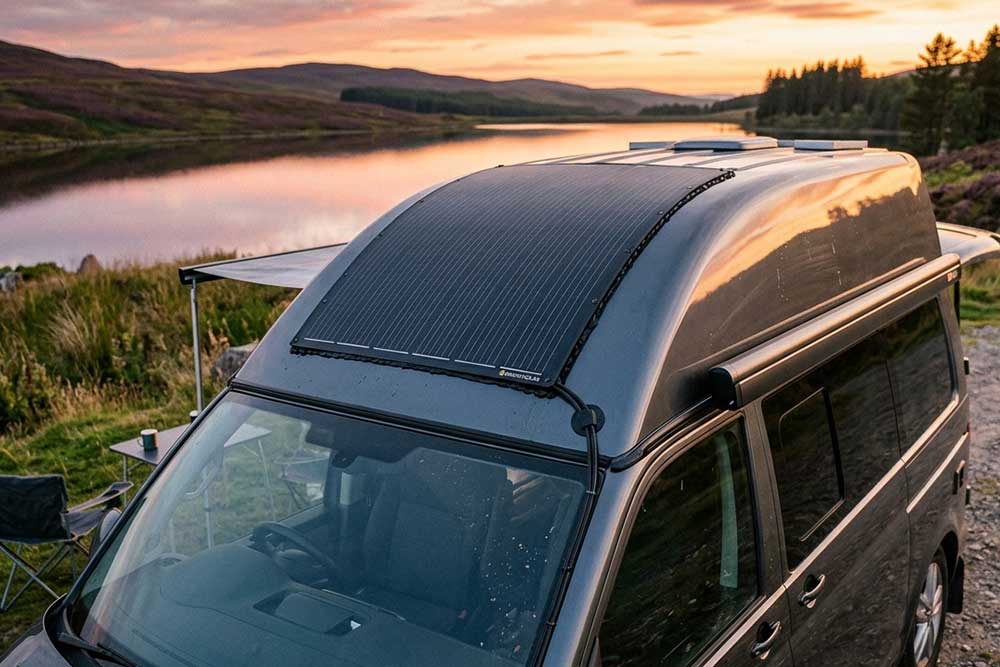

Installing solar panels on your RV roof allows you to generate electricity while traveling, staying off-grid, or camping. Flexible solar panels are more suitable for RVs, as they are thin, lightweight, and can fit curved surfaces easily.
However, proper installation is just as critical as panel selection. Using the wrong adhesive, skipping surface preparation, or neglecting cable protection can lead to roof damage, poor adhesion, premature panel failure, or reduced output.
With careful layout planning and strict adherence to manufacturer guidelines, the process becomes straightforward. This step-by-step guide walks you through every stage of a safe and durable RV solar installation.
What Do You Need for Installation?
The exact list of materials depends on the panel type and mounting approach. The common materials used in typical installations are:
- Flexible solar panels
- Solar charge controller
- Cables
- MC4 connectors
- RV-compatible sealant or adhesive
- Roof cable-entry gland
- Isopropyl alcohol
- Measuring tape and marker
- Multimeter
- Personal safety equipment
How to Install Flexible Solar Panels on an RV Roof?
Follow the complete step-by-step guide below.
Step 1: Inspect Your RV Roof
Before installing the system, inspect your RV roof for soft spots, cracks, deteriorated roof material, existing roof penetrations, raised seams, and damage around antennas, vents, and skylights.
If the surface is unstable or damaged, don’t install the panel. A mounting system only supports the panels if the roof underneath is strong enough.
Another important factor to consider is the roof material. RV roofs usually use fiberglass, aluminum, TPO, and EPDM, and not every tape or adhesive suits every material.
Step 2: Plan the Panel Layout
After opening the box, place the panel on your RV roof and find the best position. Determine the available roof area and exclude the areas occupied by the roof vents, roof seams, air-conditioning units, areas that receive regular shade, satellite equipment, and existing solar equipment.
Excluding shady areas is particularly important because even a small obstruction may reduce output power, depending on how you wire the flexible panels.
Place the panels in a way that they receive maximum sunlight throughout the day. Preparing a proper cable route is also crucial. Forcing the wires randomly across the surface may cause damage.
Step 3: Clean the Roof
Cleaning is one of the most important parts of flexible panel installation. Remove the dust and debris. Then, remove grease, loose sealant, old adhesive, or other contaminants. Let the RV roof dry completely.
Before applying VHB tape or adhesive, make sure the surface is dry and clean. According to 3M’s VHB guidance, roof preparation may involve abrasion, primer, or solvent cleaning, depending on the substance.
A roof that apparently seems clean may not always be ready for adhesive, as residue, oxidation, and wax interfere with bonding. Before you apply the solvent, make sure that it is safe for your roof membrane. Aggressive cleaners may damage some RV roofing materials.
As soon as you clean the roof, be sure to mark the flexible panel’s final position.
Step 4: Choose the Right Mounting Method
The best mounting method depends on the panel, climate, roof material, and whether you want to keep the panel removable (if needed). Below are four different mounting methods.
- VHB Tape Mounting: If you need no-drill installation, a high-bond mounting tape will be worth it if it is compatible with your RV roof surface. Make sure the tape receives proper pressure during installation.
- Direct Adhesive Mounting: This approach places the flexible panel directly on the RV roof and creates a very low-profile installation. If the panel and RV manufacturer approve the adhesive, direct adhesive mounting can be an effective choice.
- Raised (Air-Gap) Mounting: In this method, a small space is created beneath the panel to allow air circulation. This mounting method is more practical than simply placing the panel on the roof.
- Mechanical Fastening: Some flexible panels can be installed using rivets and screws. However, drilling creates roof penetrations that must be carefully sealed.
Step 5: Mount the Flexible Solar Panels
Position the flexible panel according to the mark (you chose in the previous step). Then, confirm the solar panel is perfectly aligned, it does not receive unnecessary shade, the mounting surface is fully supported, cables can follow the planned route, panel maintenance will be easy, and the panel won’t experience unwanted mechanical stress.
If you are using tape or adhesive, simply follow the product instructions. After the mounting is complete, roll or press the bonded areas according to the manufacturer’s guidelines. Adhesive needs time to improve bonding, so don’t drive your RV immediately.
Step 6: Route the Solar Cables
Once the flexible panel is secured properly, route solar cables toward the charge controller. Make sure the wiring is away from moving components, sharp edges, and hot equipment. Moreover, wiring should be as short as possible, protected from abrasion, and supported securely.
Secure the wires using appropriate cable clips. Avoid putting extra stress on the cable connections or the panel’s junction box. Cables should be slightly larger than the exact measurement to allow the intended panel movement or thermal expansion.
Step 7: Waterproof the Cable Entry
If the solar cables pass through the RV roof, use a purpose-designed waterproof cable entry fitting or gland that is compatible with the RV roof material. The roof should remain sealed despite normal RV movement, temperature changes, vibration, and rain.
Step 8: Connect the Flexible Solar Panel to the Charge Controller
Do not connect the flexible panel directly to your RV battery. Use a solar charge controller to connect the panel to the battery. A charge controller should be sized accurately for the battery system and the panel array.
Don’t forget to check the manufacturer’s wiring diagram before making electrical connections. Considering specifications for your controller, connectors, panel, and battery is equally important.
Keep an eye on the panel voltage, panel current, cable size, controller capacity, series vs. parallel connections, polarity, and overcurrent and fuse protection requirements. Always follow the controller manufacturer’s recommended connection sequence to ensure correct wiring.
Step 9: Test the Solar System
Right after installation is complete, check if the panels are attached securely, cables are secured, connectors are fully seated, the cable entry is sealed properly, polarity is correct, the charge controller recognizes the solar panel input, and the battery is charging properly.
Common Mistakes to Avoid
- Using wrong adhesives
- Installing the panel over a damaged roof
- Applying adhesive to a dirty surface
- Leaving cables loose
- Ignoring heat buildup
- Creating excessive roof penetrations
- Placing the panel under some shade
- Driving before the adhesive settles
Why Use Flexible Solar Panels on an RV Roof?
The main reason flexible solar panels are becoming more popular is that they offer a practical alternative to conventional rigid panels when roof shape, roof weight, or available space is a concern. Low-profile construction enables flexible panels to sit closer to the roof, which makes them useful for many curved surfaces where traditional panels would be difficult to install.
Another added benefit of flexible panels is that they can be installed without drilling in some surfaces. Tape-based and adhesive mounting methods can eliminate roof penetrations and reduce the leak-point count.
An important trade-off associated with flexible panels is that they run hot when placed directly against an insulating roof. Heat buildup can reduce solar-cell performance and shorten the flexible panel’s useful life. Some installations create a small air gap between the panel and the roof to reduce heat buildup.
Summing Up
Learning how to install flexible solar panels on an RV roof is not just about placing the panel on the roof. Roof compatibility, surface preparation, cable routing, placement, mounting, heat management, electrical connections, and waterproofing are important parts of the installation.
FAQs
What is the best adhesive for flexible solar panels on an RV?
The best adhesive is the one that is fully compatible with the roof material and flexible panel.
Can I install flexible solar on a rubber RV roof?
Yes, you can install flexible panels on some rubber roofs. Ensure you choose the mounting system and adhesive approved specifically for your membrane.
How long does it take to install flexible solar panels on an RV roof?
The installation time depends on the number of panels, roof preparation, adhesive curing requirements, wiring complexity, and mounting method. However, a simple installation takes several hours to complete.
