Solar Panel Mounting Curved Z Bracket -- Set of 4

Write a Review
 reward Renogy Rays
Start group buy • $168.99 $235.99
Load More
Solar Panel Mounting Curved Z Bracket -- Set of 4
Solar Panel Mounting Curved Z Bracket -- Set of 4
Add to cart
Adding to cart… The item has been added
Shop alone
Start group buy
Start group buy • $168.99 $235.99

Return & refund policy
Need help? Call us now: +1 (909)2877111
Write a Review
Free Shipping
Reliable Warranty
Secure Payment

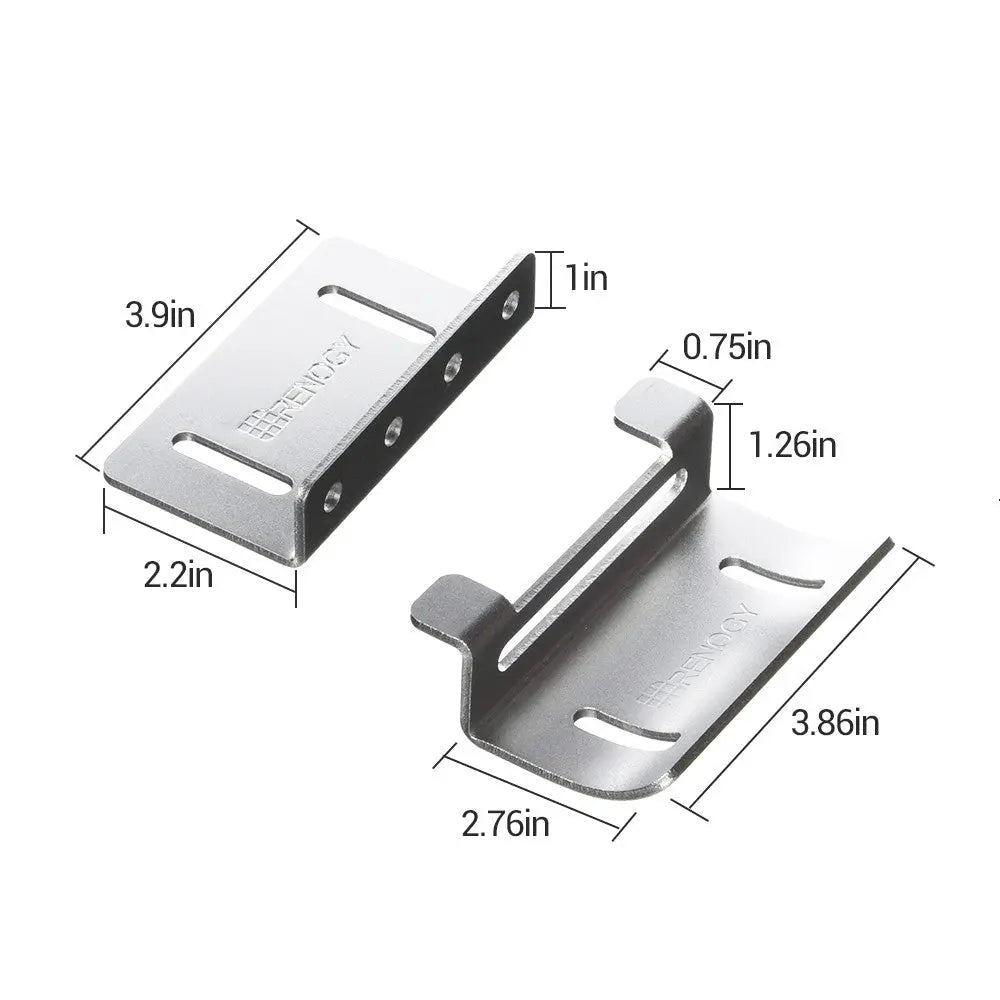

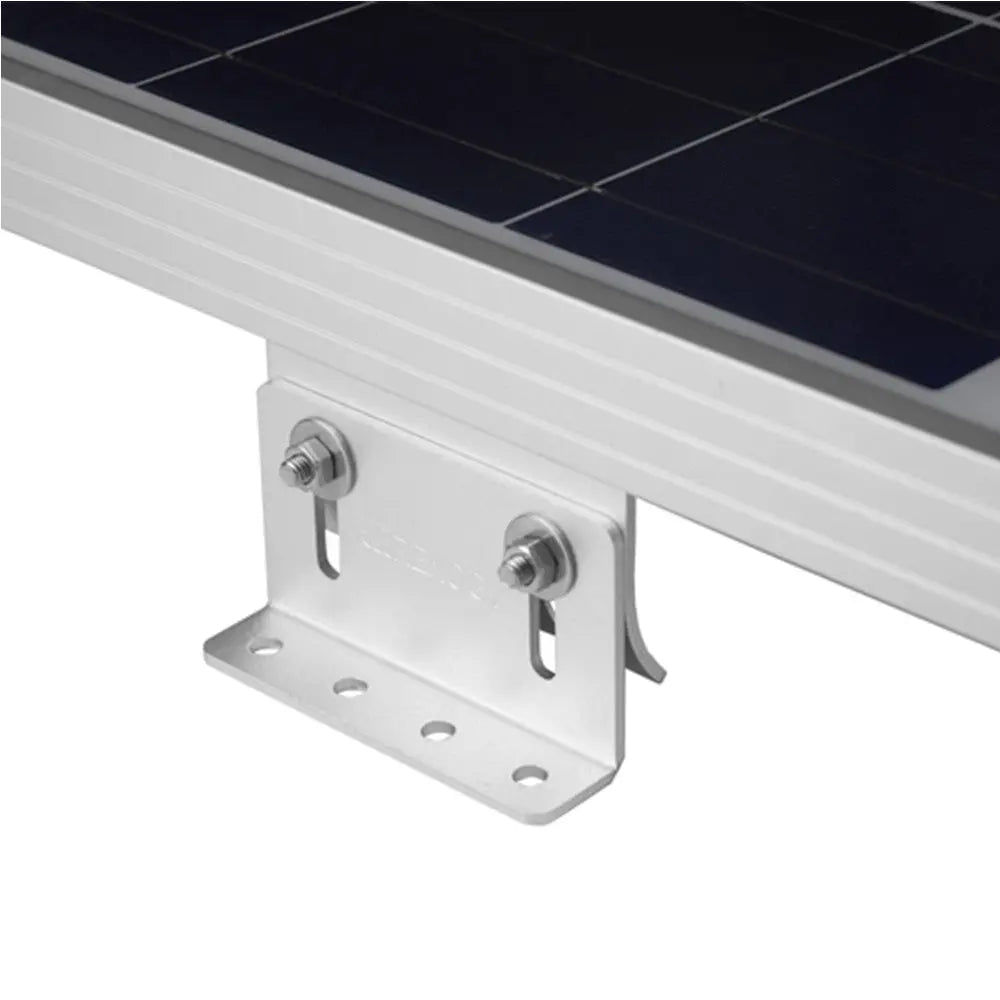

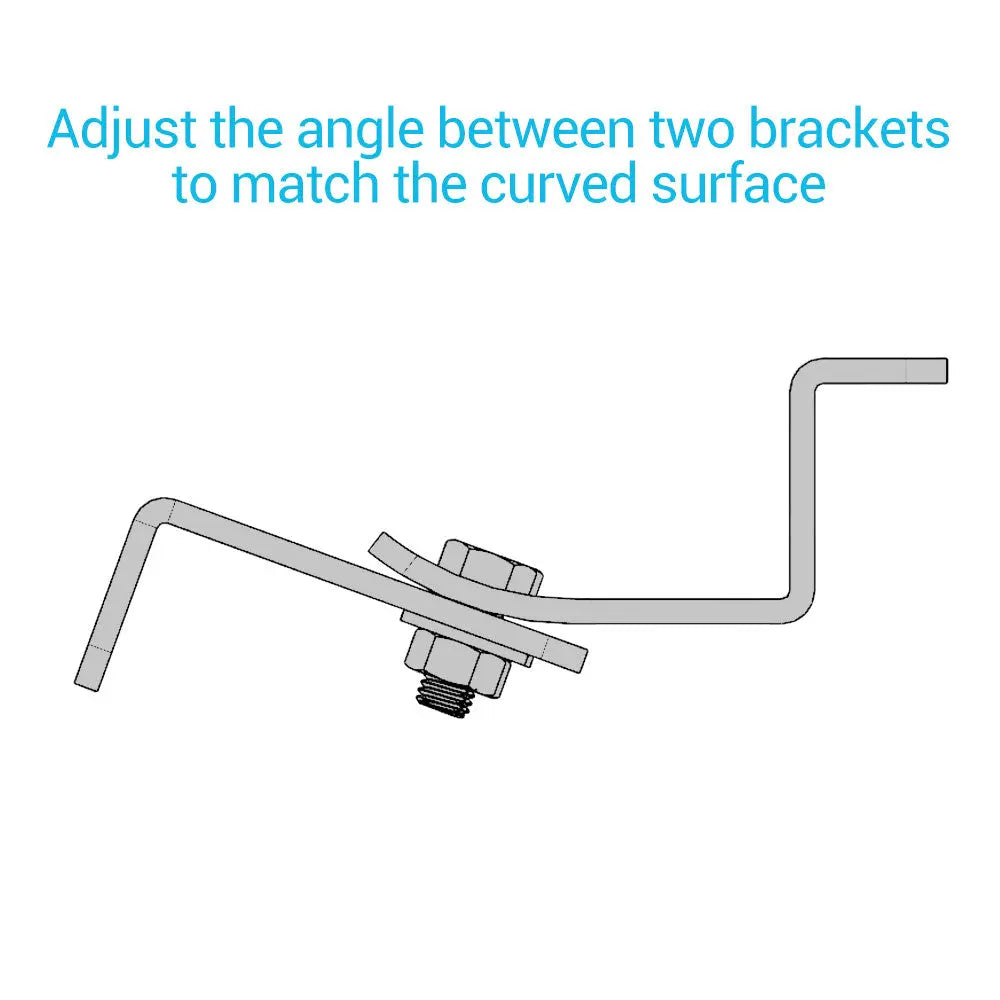

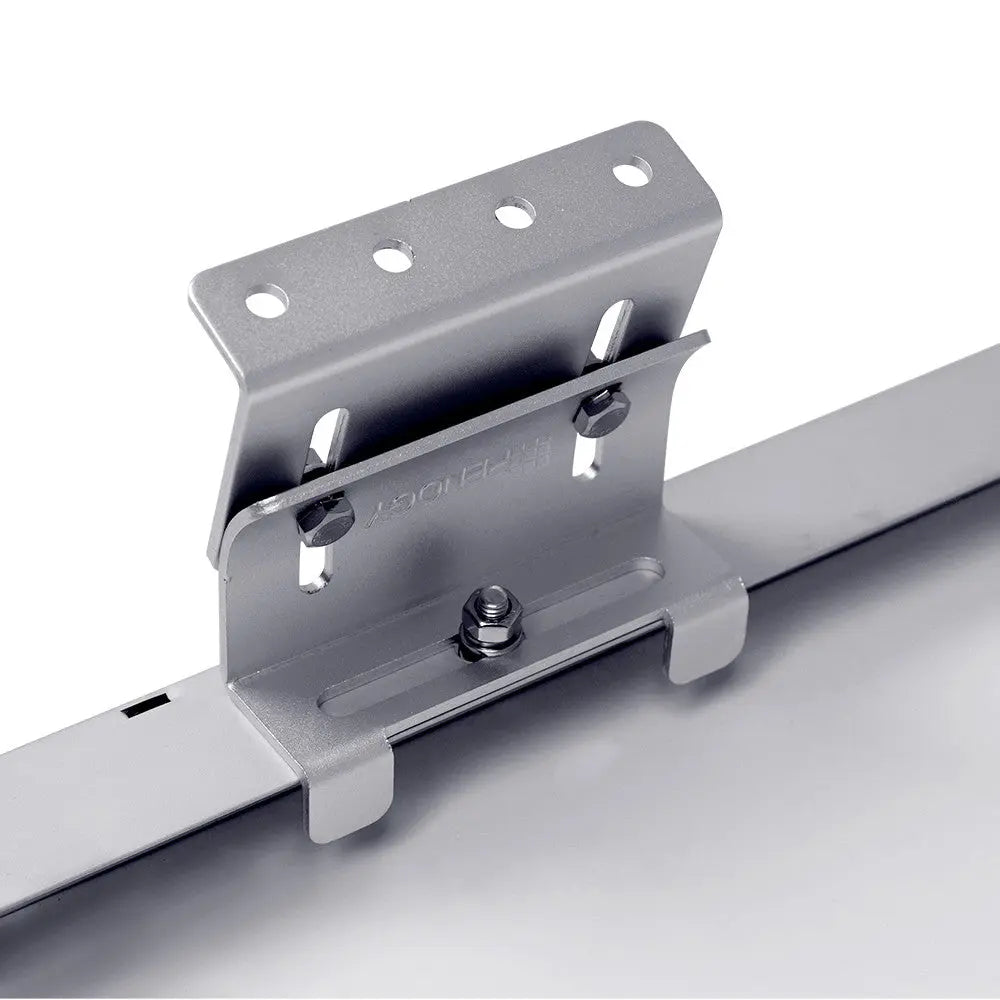

The uniquely designed Renogy adjustable curved brackets have the capability to support solar panels on curved surfaces, such as those found on Airstreams and other types of RVs. Made of heavy duty aluminum-alloy, the MTS-ACB is the perfect installation solution for those hard-to-mount surfaces ensuring a safe solar panel install.



  • We recommend this Z bracket for rigid solar panels. Single solar panel ≤100 watt: 1 set; 150-200 watt: 2 sets. This product is not recommended for single solar panel over 200 watt.
  • If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or contact us for troubleshooting assistance.
  • More questions about your off-grid power system? Learn more from Renogy Learning Center

Key Features

  • Lightweight
  • Aluminum corrosion-free construction.
  • Ease of installation
  • Ideal for mounting small solar panels.
  • Mounts panels to RVs, trailers, boats or yachts.
  • Perfect for irregular surfaces

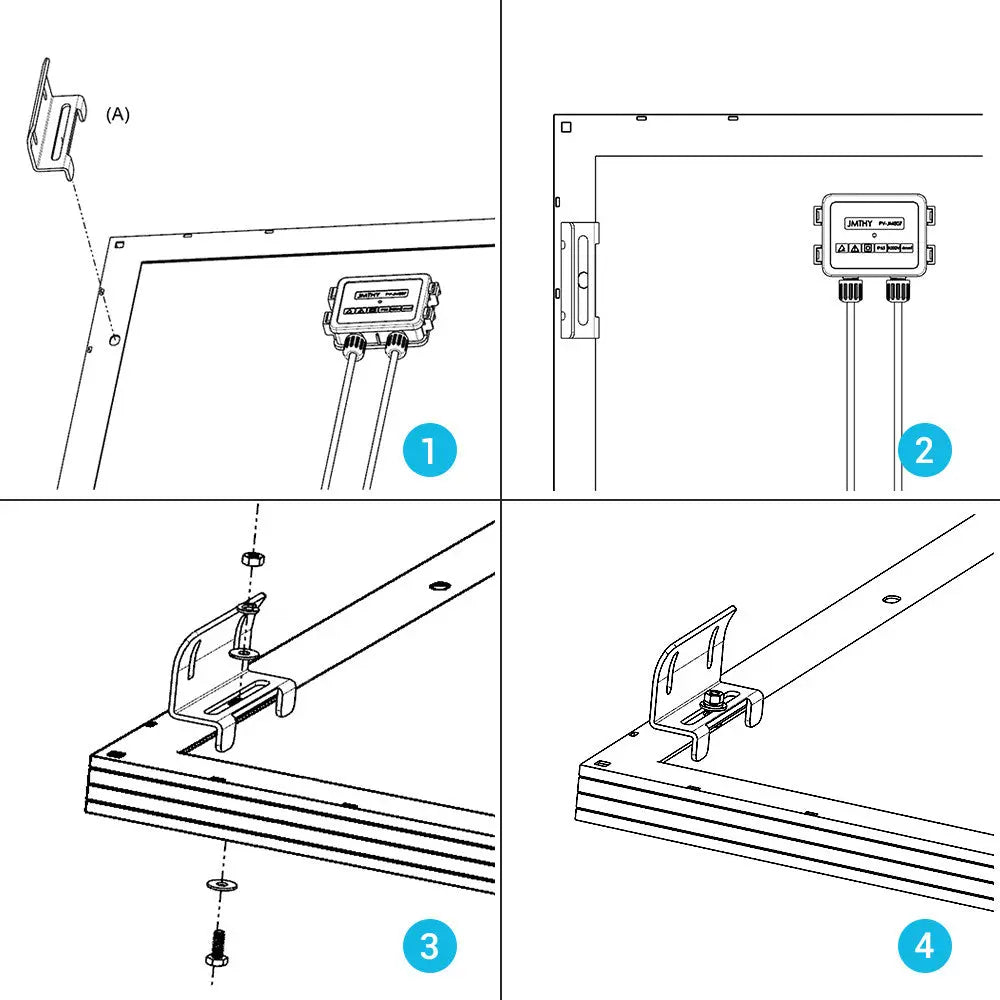

  • Pre-assembled with bolts and washers

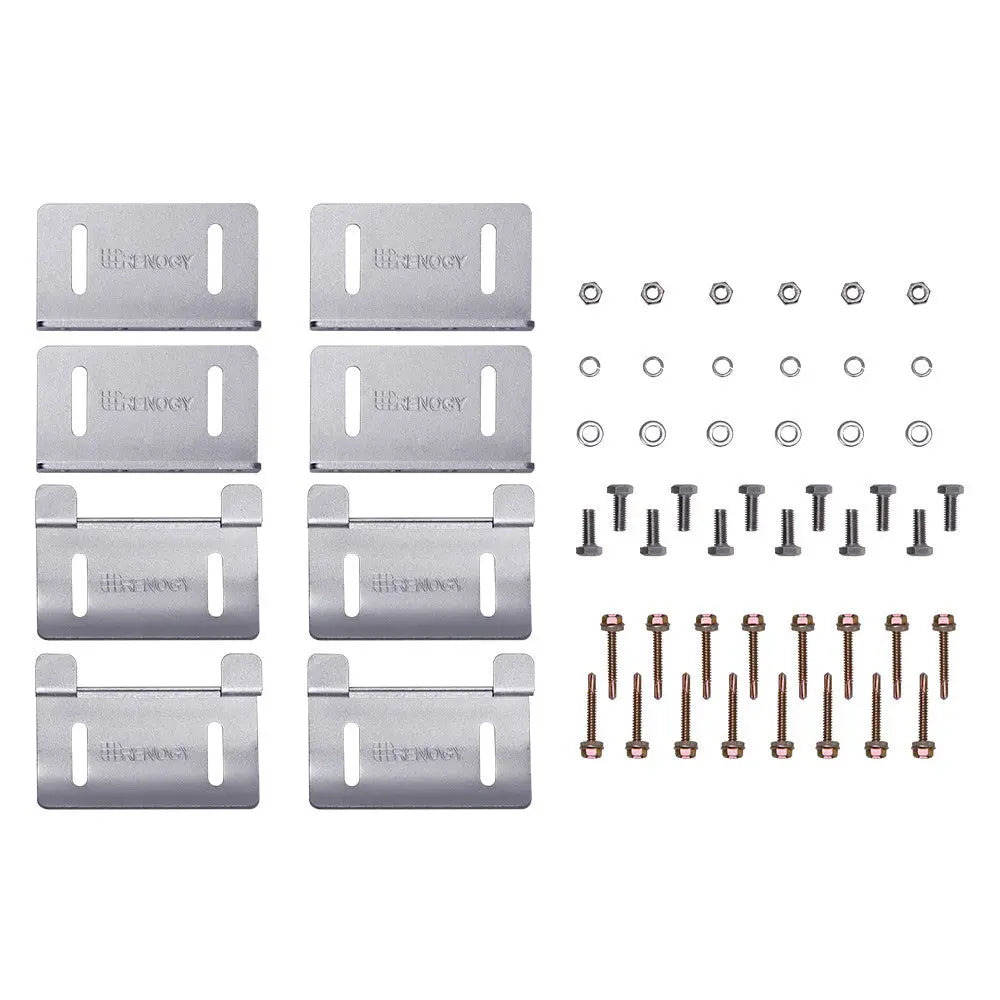

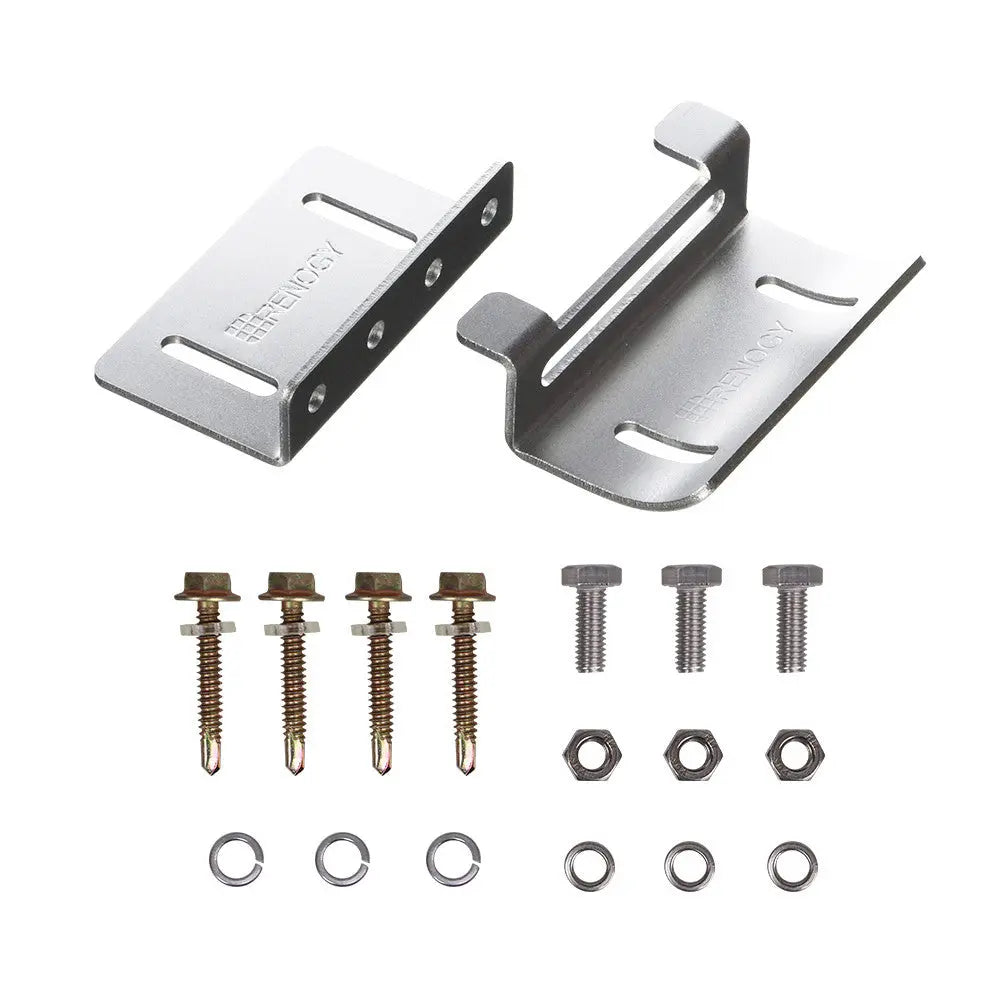

Package Includes

Renogy Solar Panel Mounting Z Bracket -- Set of 4

Renogy Solar Panel Mounting Z Bracket -- Set of 4

1 x


Renogy Solar Panel Mounting Curved Z Brackets (Set of 4)
Four pairs of Curved Solar Panel Brackets Twelve M6-16 Hex Cap Bolt
Four M6 Split Lock Washer Sixteen M6 Flat Washer
Twelve M6 Hexagonal Nut Sixteen #10 x 1¼ Self-Drilling Cap Screw and Plastic Retaining Ring

Warranty Information

Accessories 1-year material warranty

5 Reviews Hide Reviews Show Reviews

  • 5
    Solar panel brackets

    Posted by Sandman227 on Jan 3rd 2021

    Ideal for sloped roofs such as an airstream - good design allows various angles for adjustment - fits pretty much any aluminum border of solar panel

  • 4
    Good over all

    Posted by Barnowl on Nov 24th 2020

    They worked out pretty good. Thinking maybe a second bolt where the bracket bolts to the panel for a little more security would be a good addition ? I ended up replacing the supplied nuts with nyloc nuts. Thinking that would be a good addition also.

  • 5
    After weighing my many optio

    Posted by Craig pacner on Mar 22nd 2020

    After weighing my many options I decided to go with the Renogy Curved brackets for three reasons. First I have two panels that are mounted on 120 degree surface and it will allow the bracket to mount flat on the roof surface. Second it allows you to be able to remove the solar panel if need be in the future for roof maintenance if required. Thirdly you can reach under the panel approximately two inches depending on your mounting needs and be able to access the MC4 connectors if you need to.

  • 5
    Anyone having an unlevel sur

    Posted by Eric Vastine on Nov 6th 2019

    Anyone having an unlevel surface to mount panels need these. Thats all I can say. These mounts make it easy!

  • 5
    I bent all four to make a be

    Posted by Randy Poulson on Apr 24th 2019

    I bent all four to make a better fit, but it's a perfect fit.
