40A DC-DC Battery Charger with MPPT
SKU:
RBC40D1S-US
$199.99
Unit price
/
Unavailable
- Two charging options to ensure ultimate efficiency.
- Supports LiFePO4, Gel, Flooded, and Sealed Lead Acid..
- Comprehensive protections to safeguard the system.
- Features lights and buttons for easy use and error alerts.
- Complies with FCC, RoHS, CE, SAA; includes 2-year warranty.
40A DC-DC Battery Charger with MPPT is backordered and will ship as soon as it is back in stock.
6% OFF Coupon for New Subscriber
30-Day Return and Refund Service
Lifetime Customer Support
Show More Benefits
Show Less
Payment Methods
40A DC-DC Battery Charger with MPPT
$199.99
Unit price
/
Unavailable
Description
Includes
Specs
Downloads
FAQ
Reviews
Renogy 12V 40A DC to DC Battery Charger with MPPT

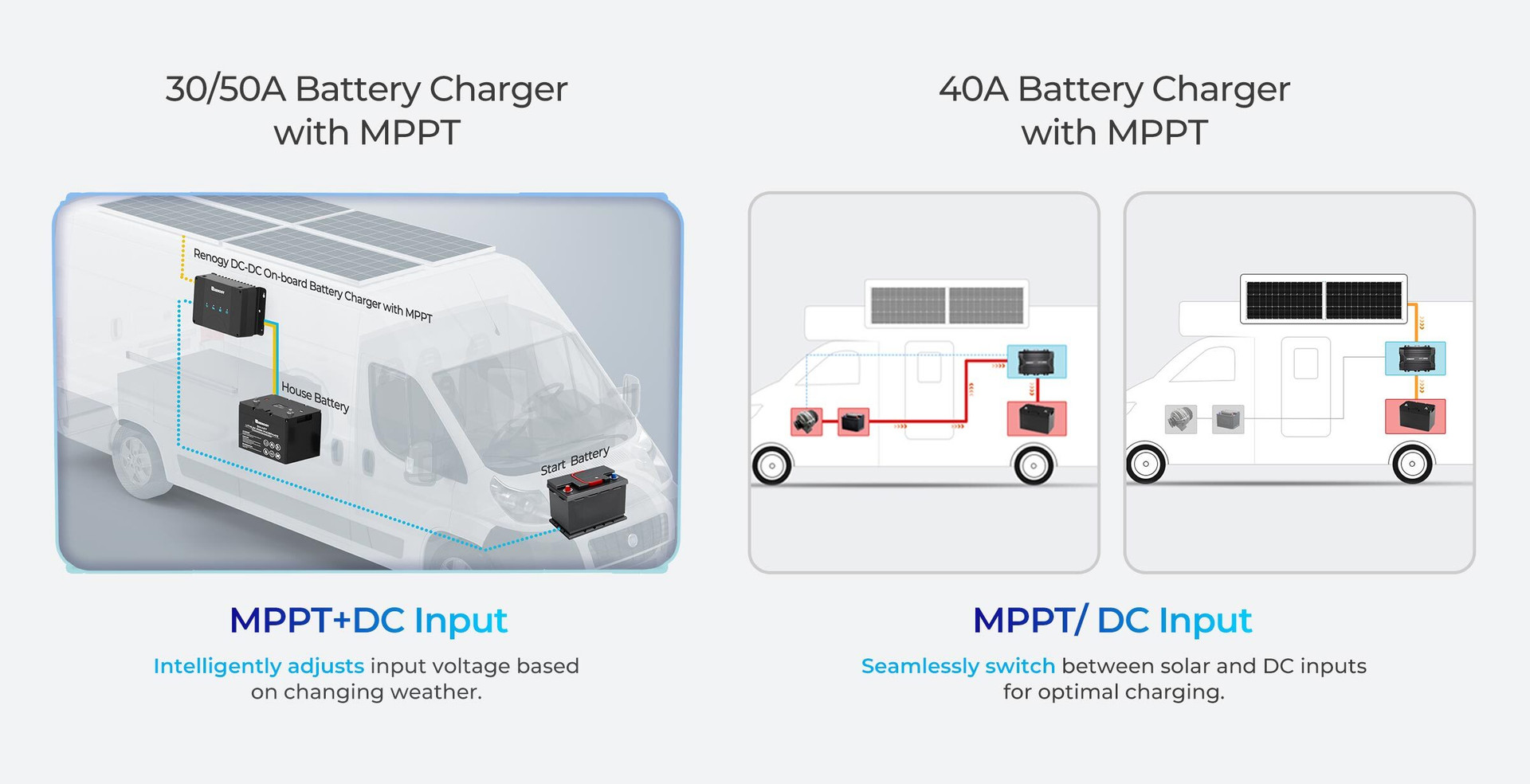

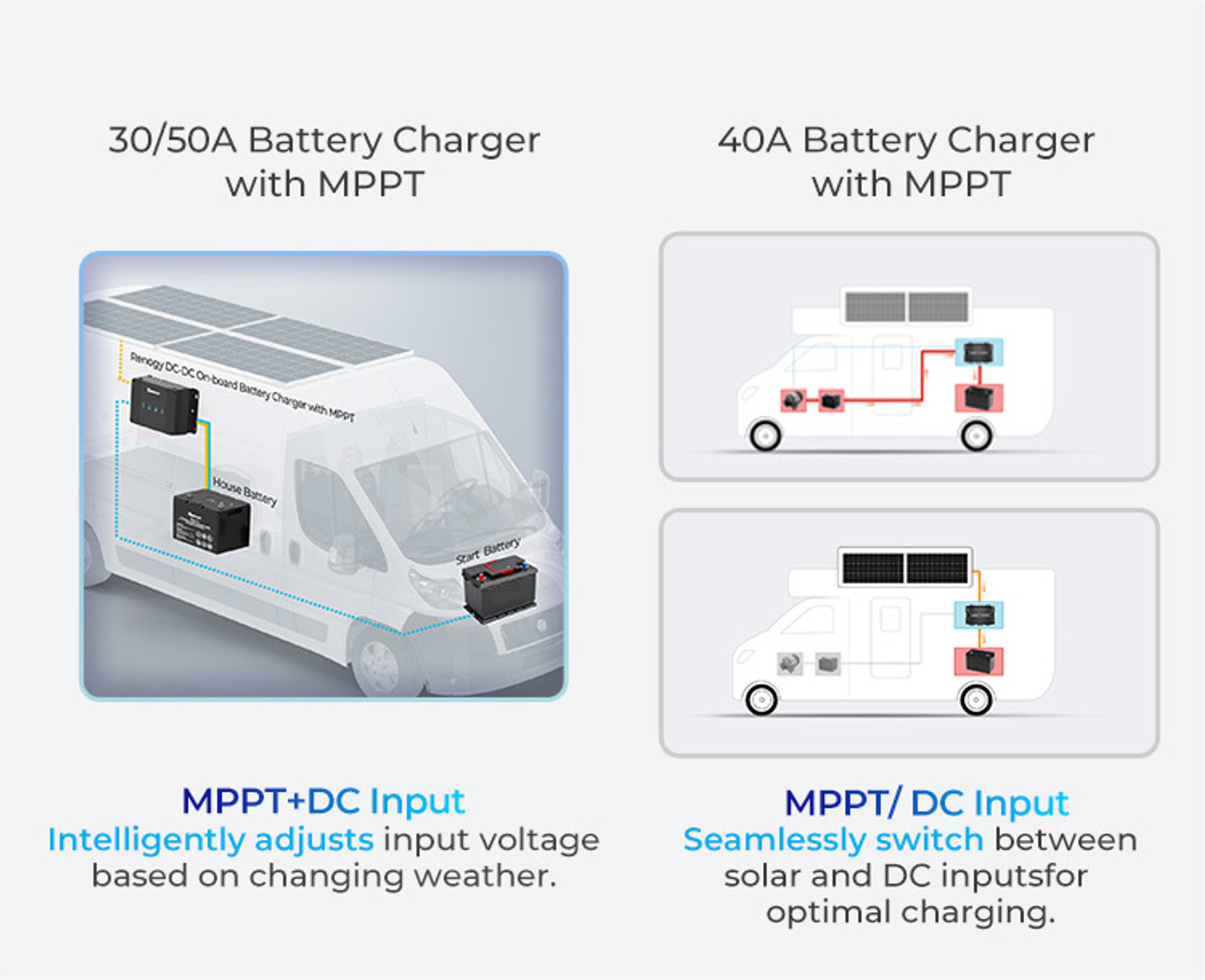

Seamlessly Mode Switch
Understand the Charging Logic Behind Each Model

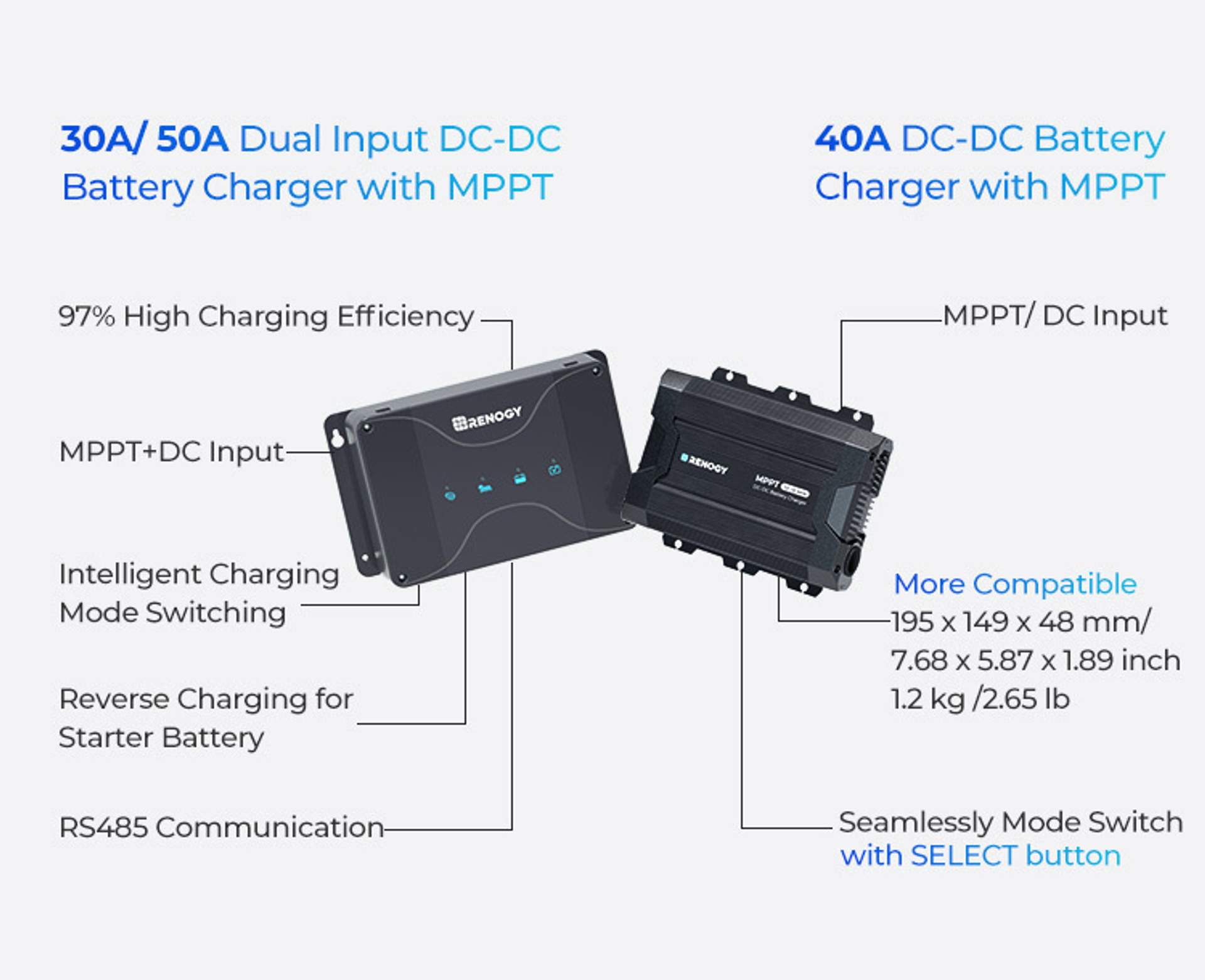

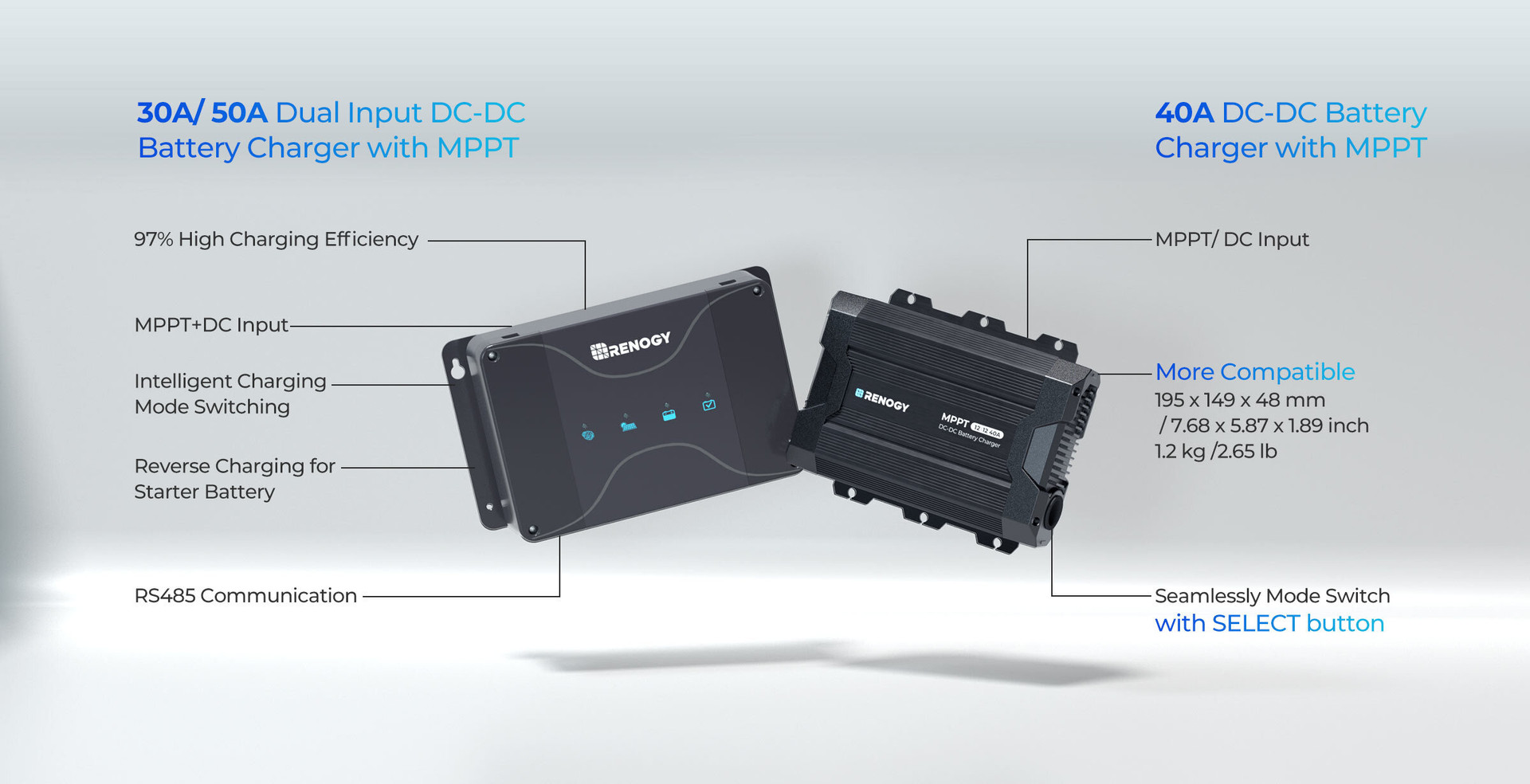

Get to Know the Key Points
Stay Charged on the Move
Stay Charged on the Drive
Stay Charged on the Water
Multiple Safety Certifications
Wiring Diagram
Get the Proper Specs for Your System
Recommended Accessories
Package Includes

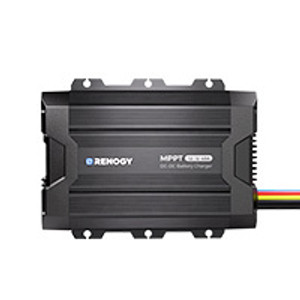

Battery Charger
x 1

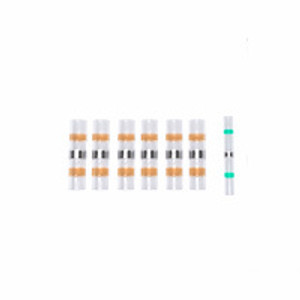

Heat-shrink tubings
x 7

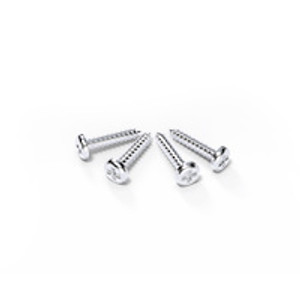

Mounting Screws
x 4
Renogy 40A DC-DC Battery Charger with MPPT
General Data
Model
RBC40D1S
Grounding
Common Negative
Operating Temperature
-4℉ -113℉ /-20 ℃ - 45℃
Storage Temperature
-4℉ -140℉ /-20 ℃ - 60℃
Humidity
0%~95% RH
Cooling
Heat Sink
Enclosure Rating
IP31
Dimensions (LxWxH)
195 x 149 x 48 mm / 7.68 x 5.87 x 1.89 inch
Weight
1.2 kg /2.65 lb
Regulatory and Safety Specifications
FCC Path 15, Class B,CE,RoHS，SAA
Charging Data
System Voltage
12V-12V
Maximum Output Current Rating
40A
Solar Input Voltage
10 -30V DC
Output Voltage
10 -16V DC
Alternator Input
Traditional Alternator: 13.2-16.0VDC; Smart Alternator (Euro 6): 12-16.0VDC
Output Power
584W
Battery Types
AGM, Gel, Flooded, Lithium-iron Phosphate
Input Fuse Rating
60A
Output Fuse Rating
50A
Charging Efficiency
≥93%
Idle Power Consumption
＜10 mA
Warranty Information
Accessories
2-year material and workmanship warranty
Resources Download
Frequently Asked Questions
What type of alternator is this DC to DC on board battery charger compatible with?
What type of alternator is this DC to DC on board battery charger compatible with?
What types of battery does the charger support?
What types of battery does the charger support?
How do l set the battery since there is no display screen?
How do l set the battery since there is no display screen?
If both solar power and the engine are available, can we prioritize using solar power to charge the battery?
If both solar power and the engine are available, can we prioritize using solar power to charge the battery?
Can solar charging and DC charging be switched automatically?
Can solar charging and DC charging be switched automatically?
