Open Box Renogy 200 Watts 12 Volts Monocrystalline Solar Bundle Kits
Open Box Renogy 200 Watts 12 Volts Monocrystalline Solar Bundle Kits is backordered and will ship as soon as it is back in stock.

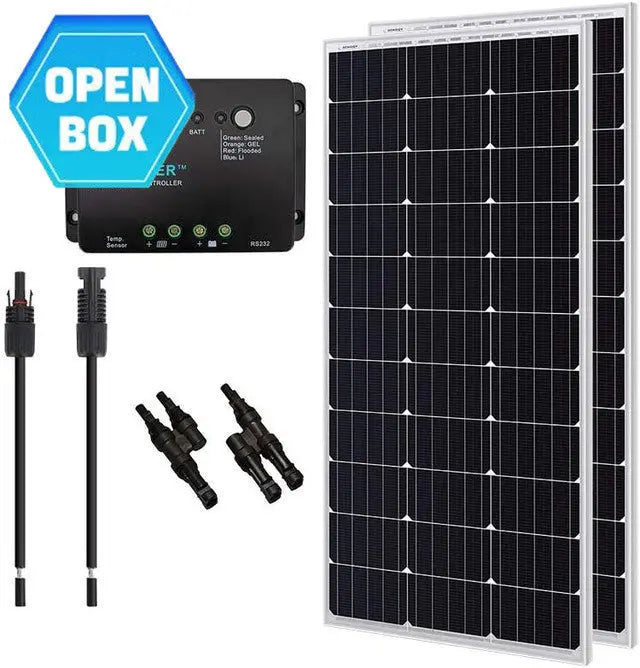

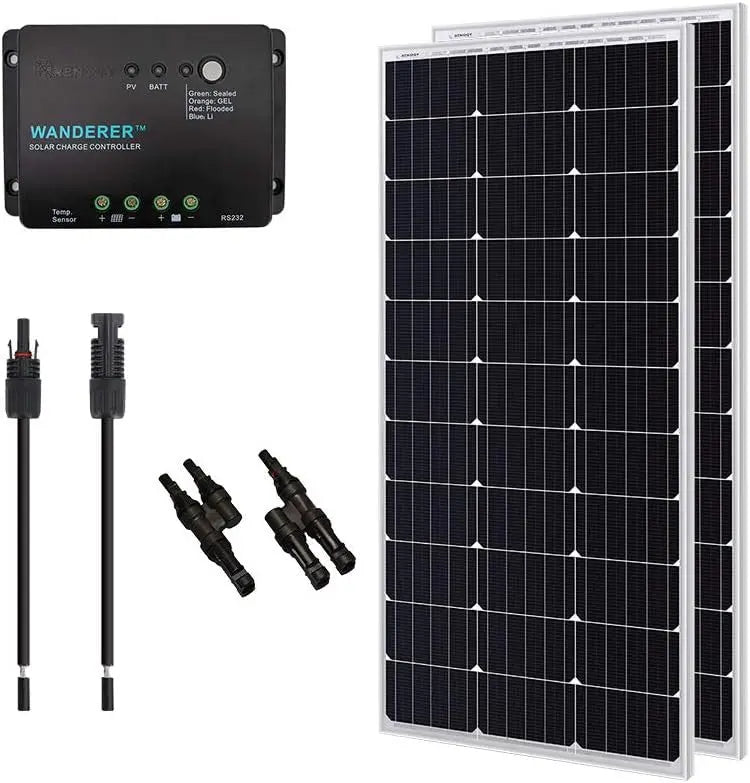

Renogy 200 Watts 12 Volts Monocrystalline Solar Bundle Kit
- 2 x 100W Monocrystalline Solar Panel
- 1 x 30A PWM Charge Controller
- 1 x Pair of Branch Connectors
- 1 x Pair of 9 In 12 AWG Adaptor Kit
Renogy 200 Watt 12 Volts Monocrystalline Solar Bundle Kit
Our Renogy 200W Monocrystalline Bundle comes with components that you will need to expand on a system you may already have, or just need some items to complete your system.

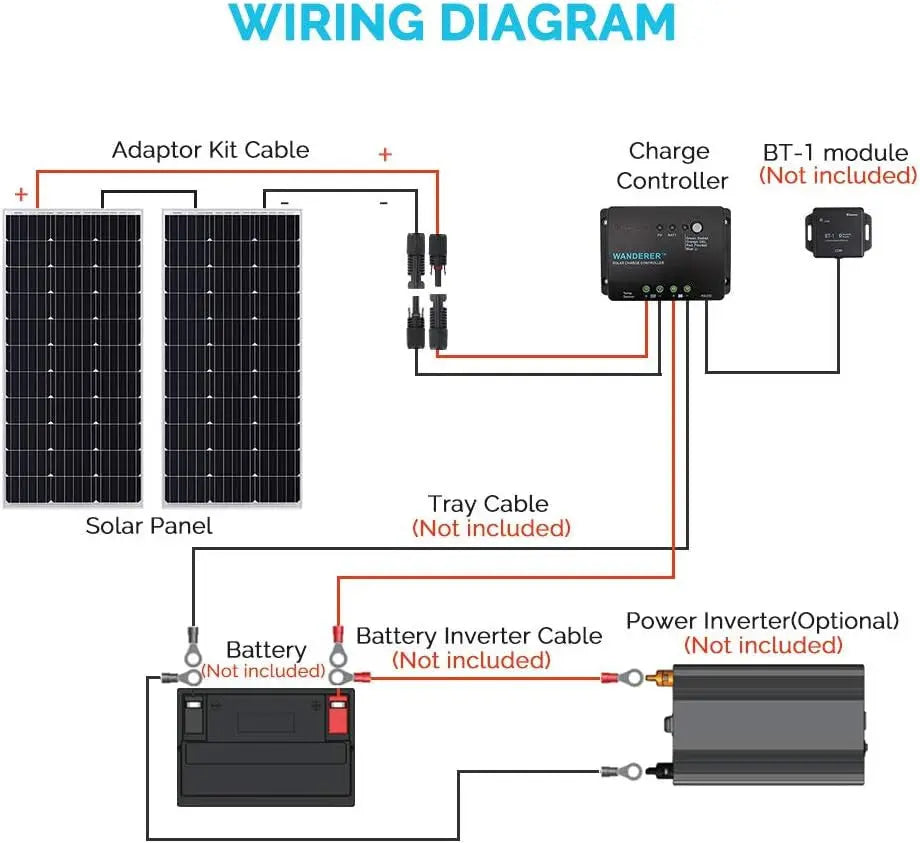

Keep in mind that this kit allows for the charge controller to be close to the solar panel so depending on your situation, you may still need an extension cable or longer wiring.
|
|
|
|
|
|---|---|---|---|

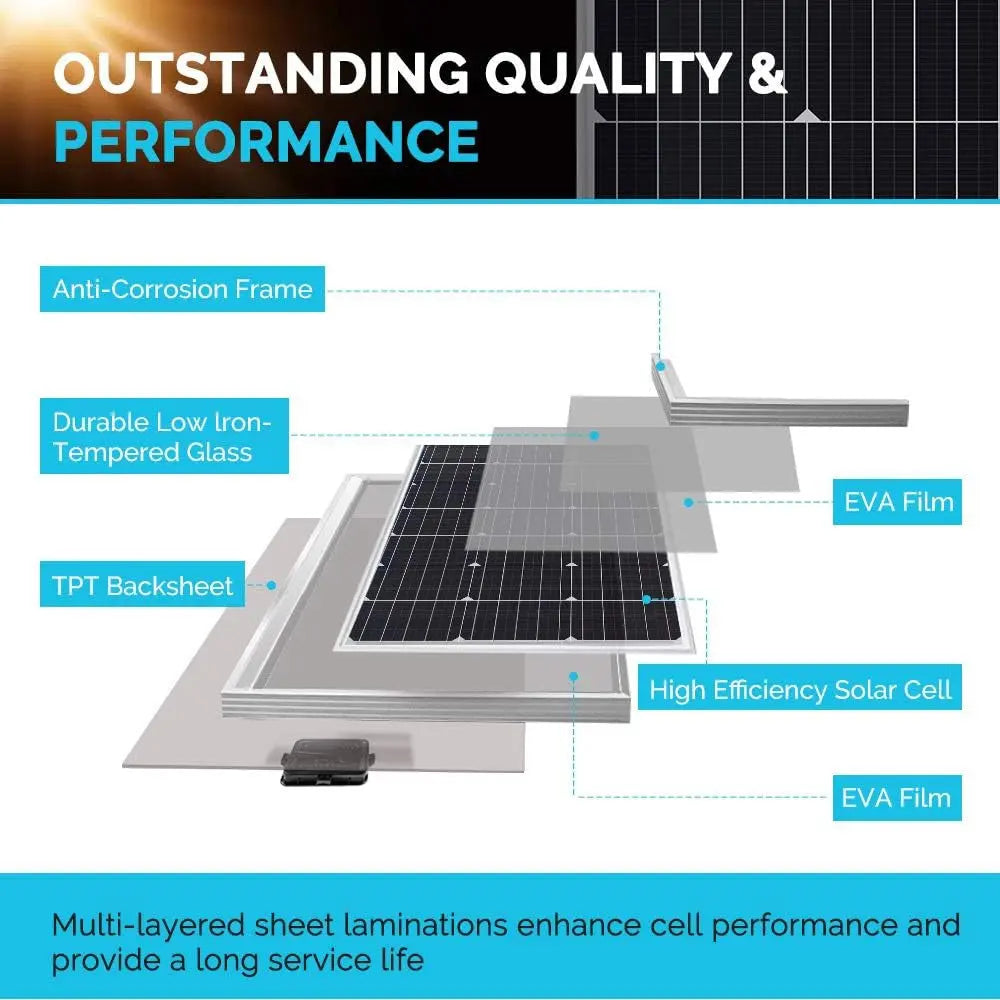

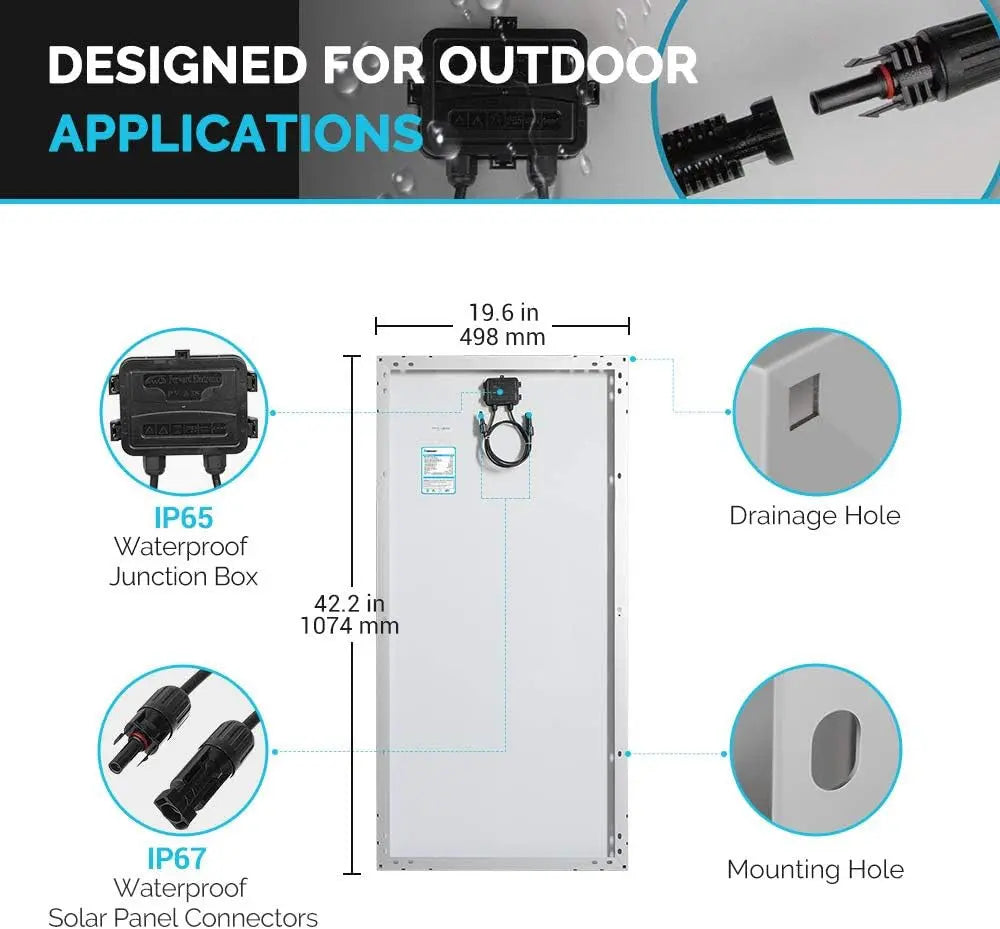

2 x 100W Monocrystalline Solar PanelMaximum Power at STC: 100W Open-Circuit Voltage (Voc): 24.3V Short-Circuit Current (Isc): 5.21A Optimum Operating Voltage (Vmp): 20.4V Optimum Operating Current (Imp): 4.91A Maximum System Voltage: 600V DC Weight: 14.1 lbs/6.4 kg Dimensions: 41.8 x 20.9 x1.4 in |

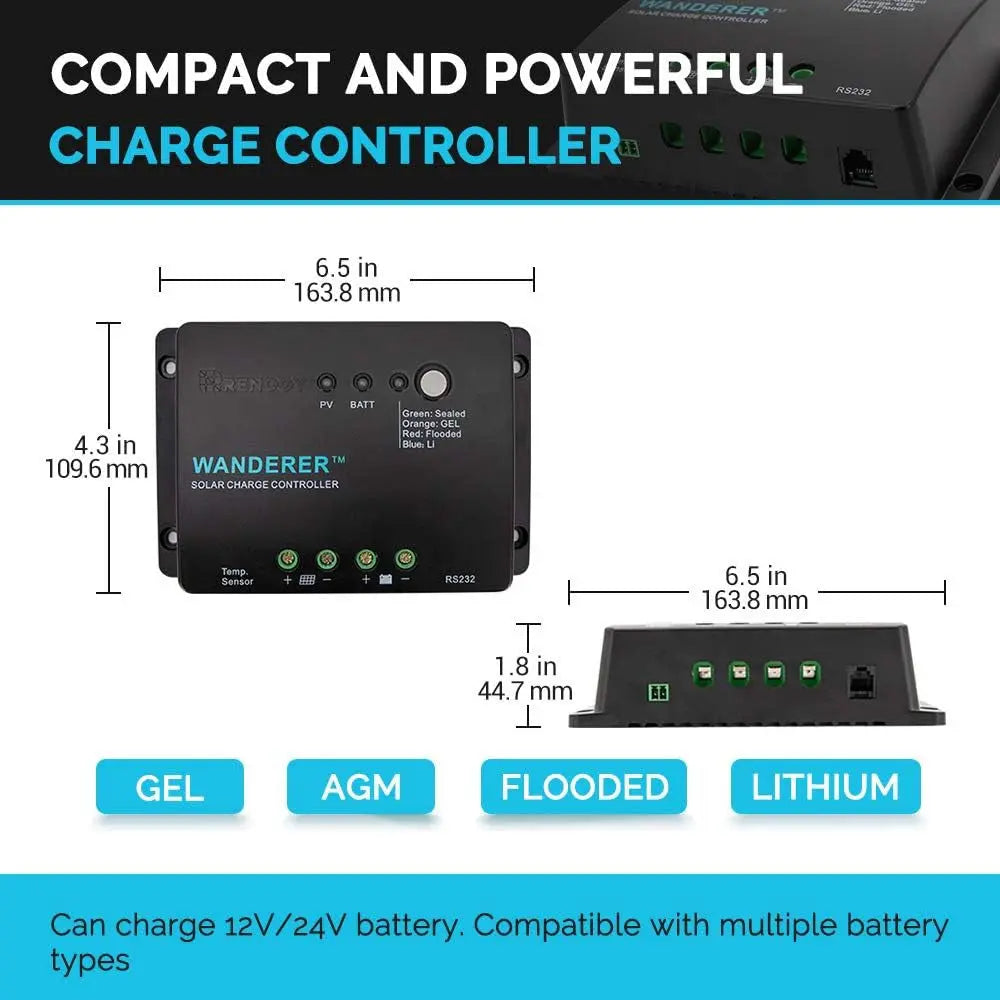

1 x 30A PWM Charge ControllerNominal Voltage: 12 VDC Rated Charging Current: 30A Max. PV Input Power: 400W Max. PV Input Voltage: 25 VDC Working Temperature: -20°F - 113°F Dimensions: 6.45 x 4.31 x 1.76 inches |

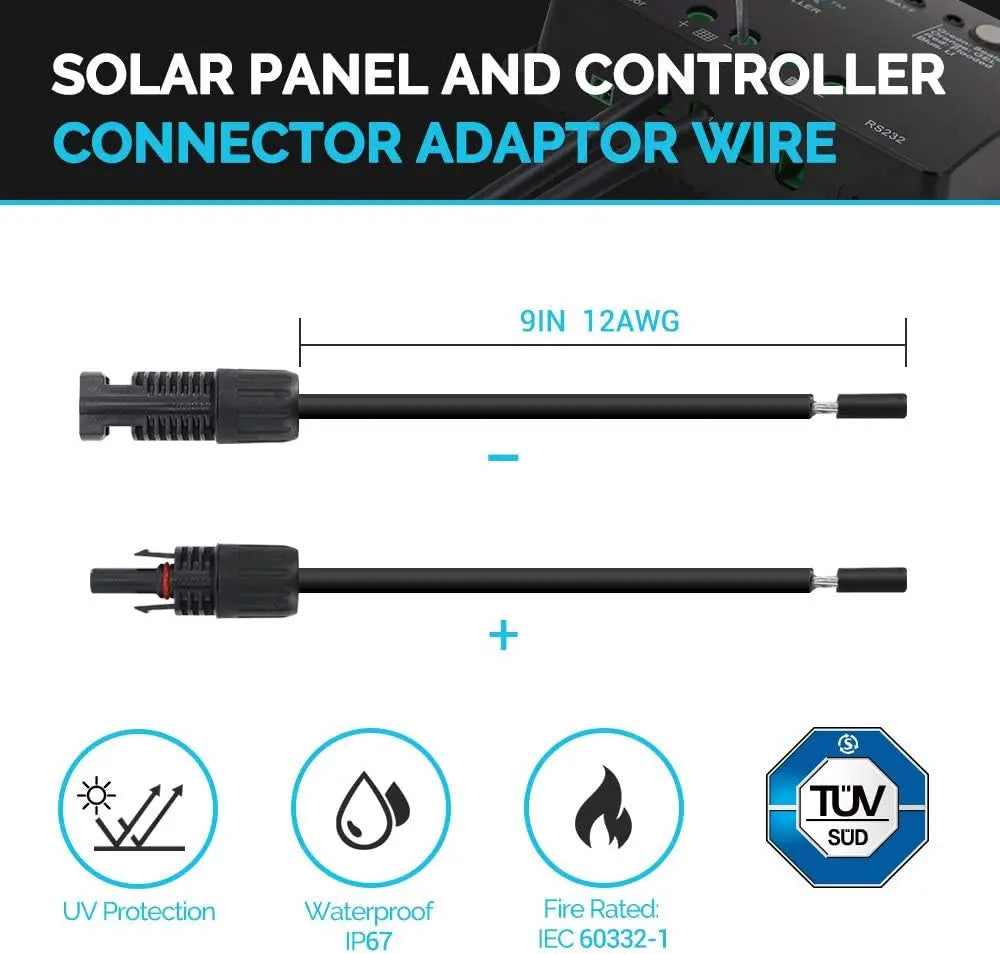

1 Pair x Solar Panel to Charge Controller Adaptor KitLength: 9 in AWG: 12 Rating Voltage: 600/1000V Temperature: -40°F to +185°F IP 65 Protection Conductor: Tinned copper wire |
1 Pair x Solar Y Branch Connectors MMF+FFM PairWithstanding Voltage: 1000V DC(TUV), 600V(UL) Contact Resistance: 1m Temperature: -40°F to +194°F Protection Degree: IP67, mated Wiring Size Range: 10, 12, 14 AWG Insulation Material: PC/PA Contact Material: Copper, silver plated |
