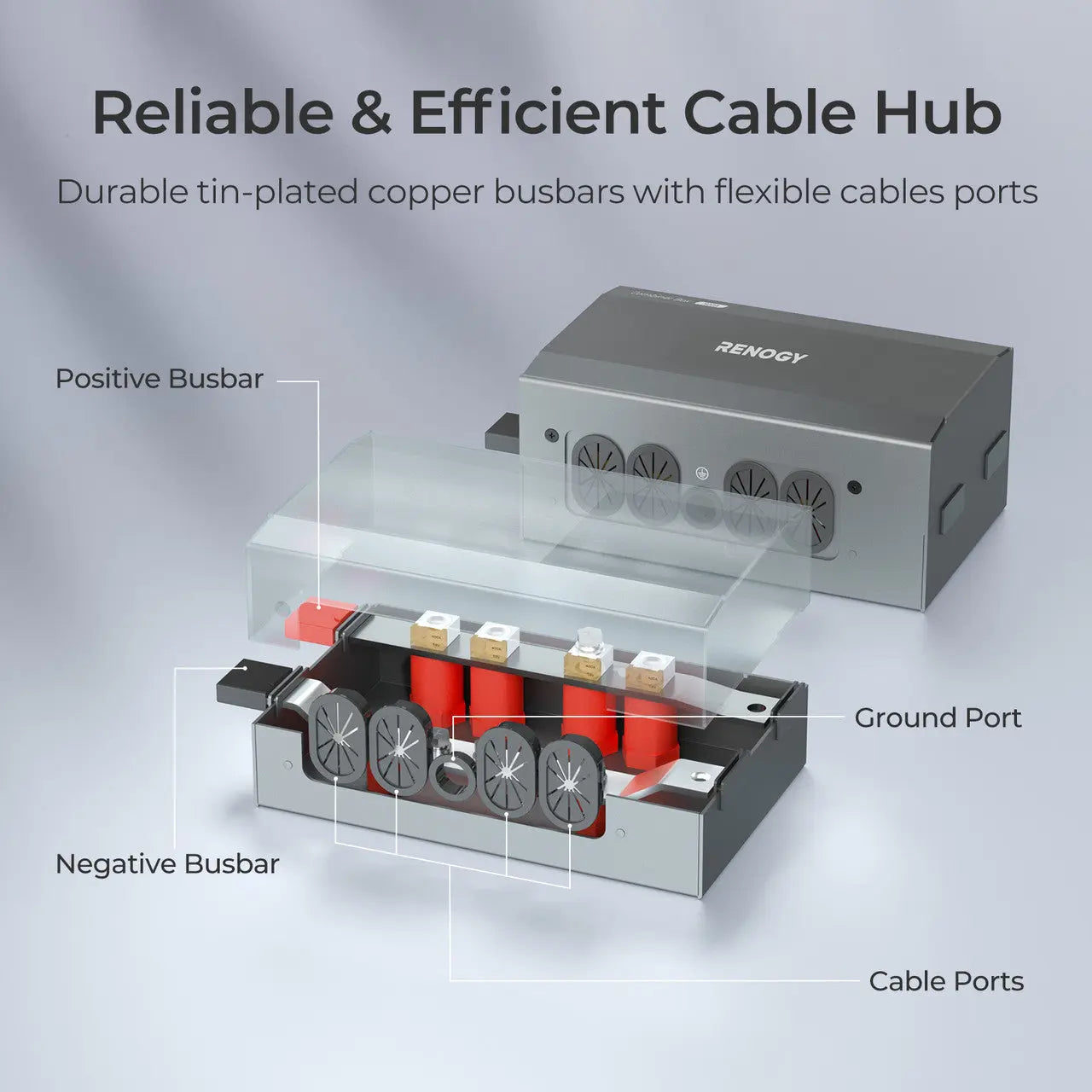

-Tin-plated copper busbars for long-term performance.
-Redefining simplicity in installation and maintenance.
-Lightweight design with ample internal space.

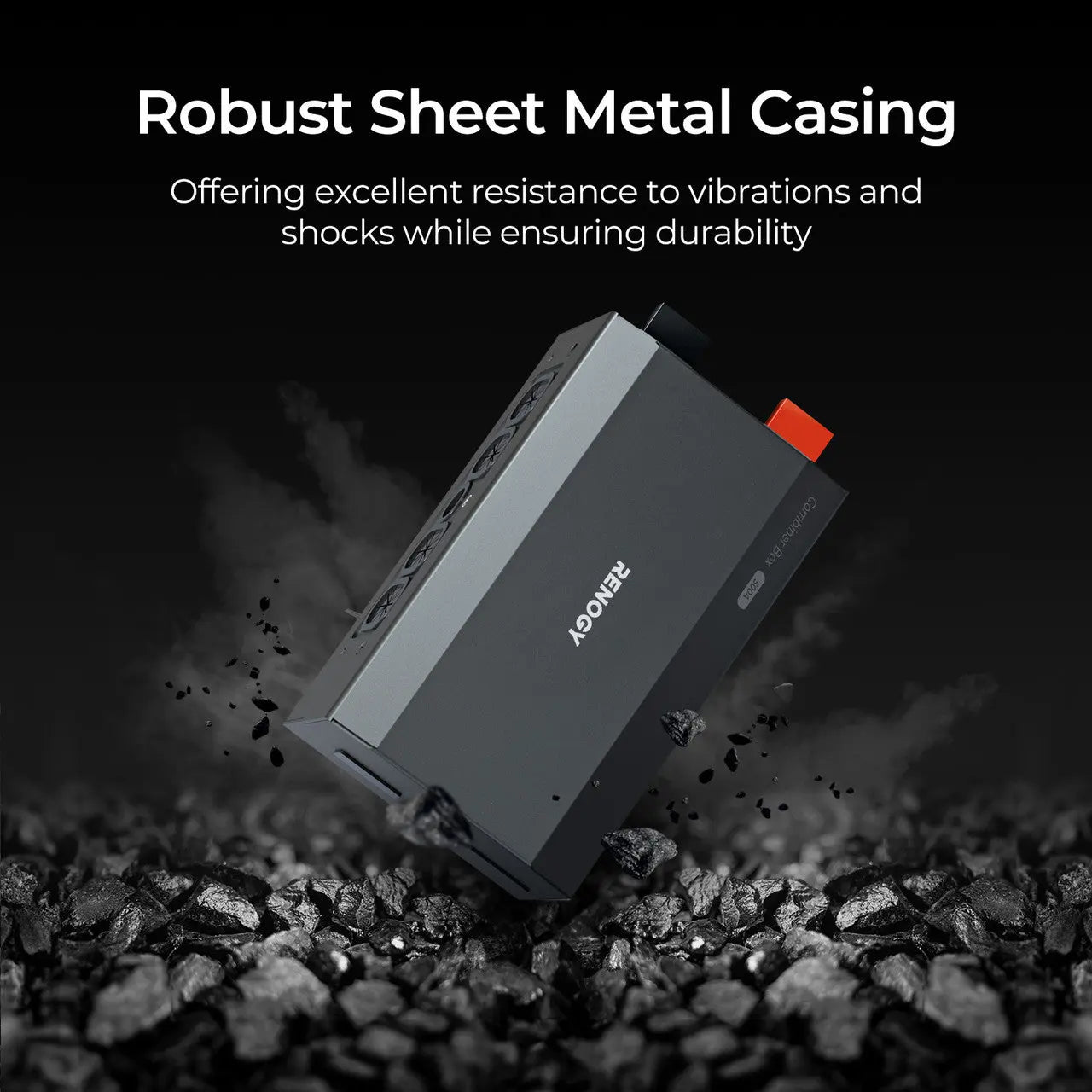

-Durable enclosure for secure connections.

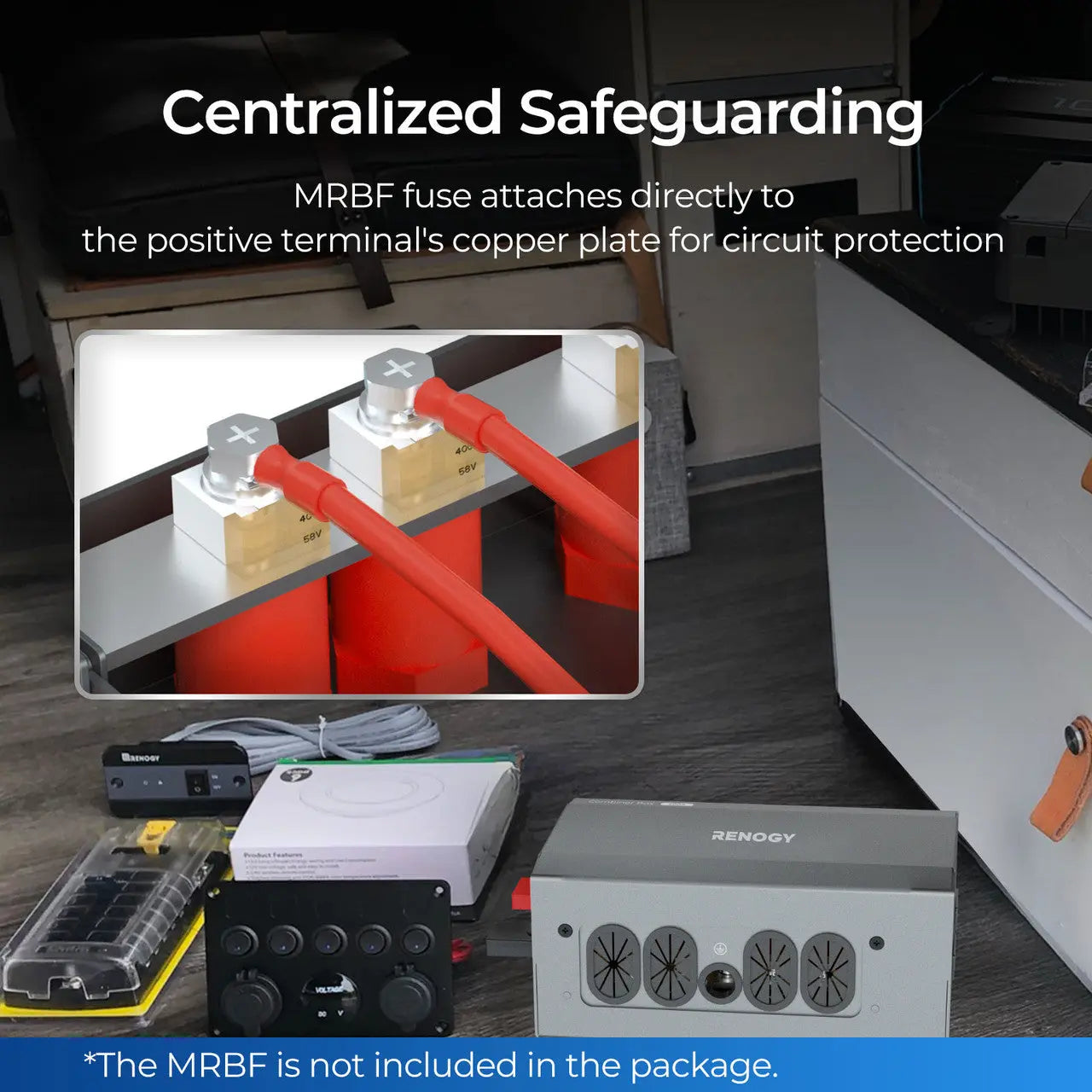

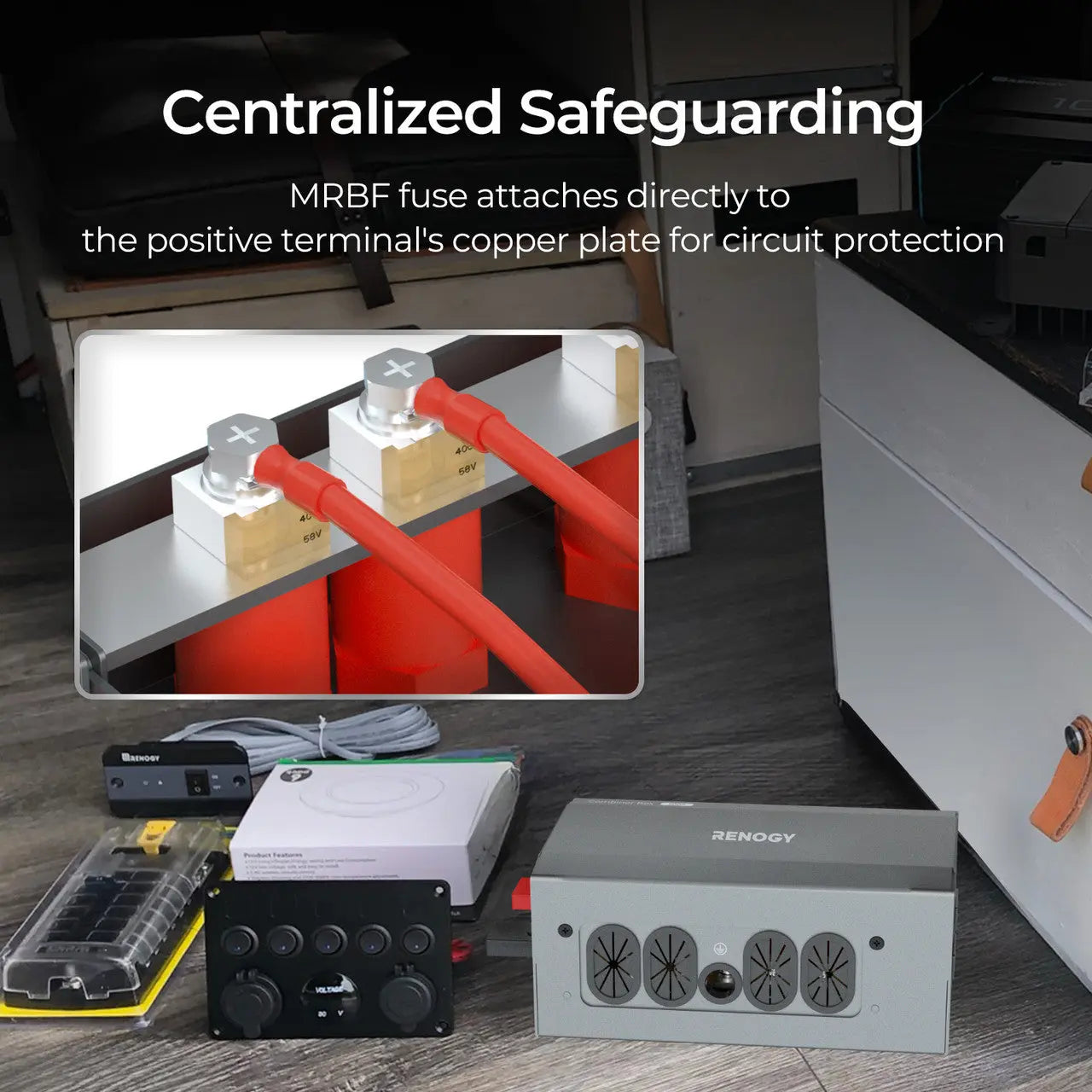

-Hassle-free installation of highly secure fuses.

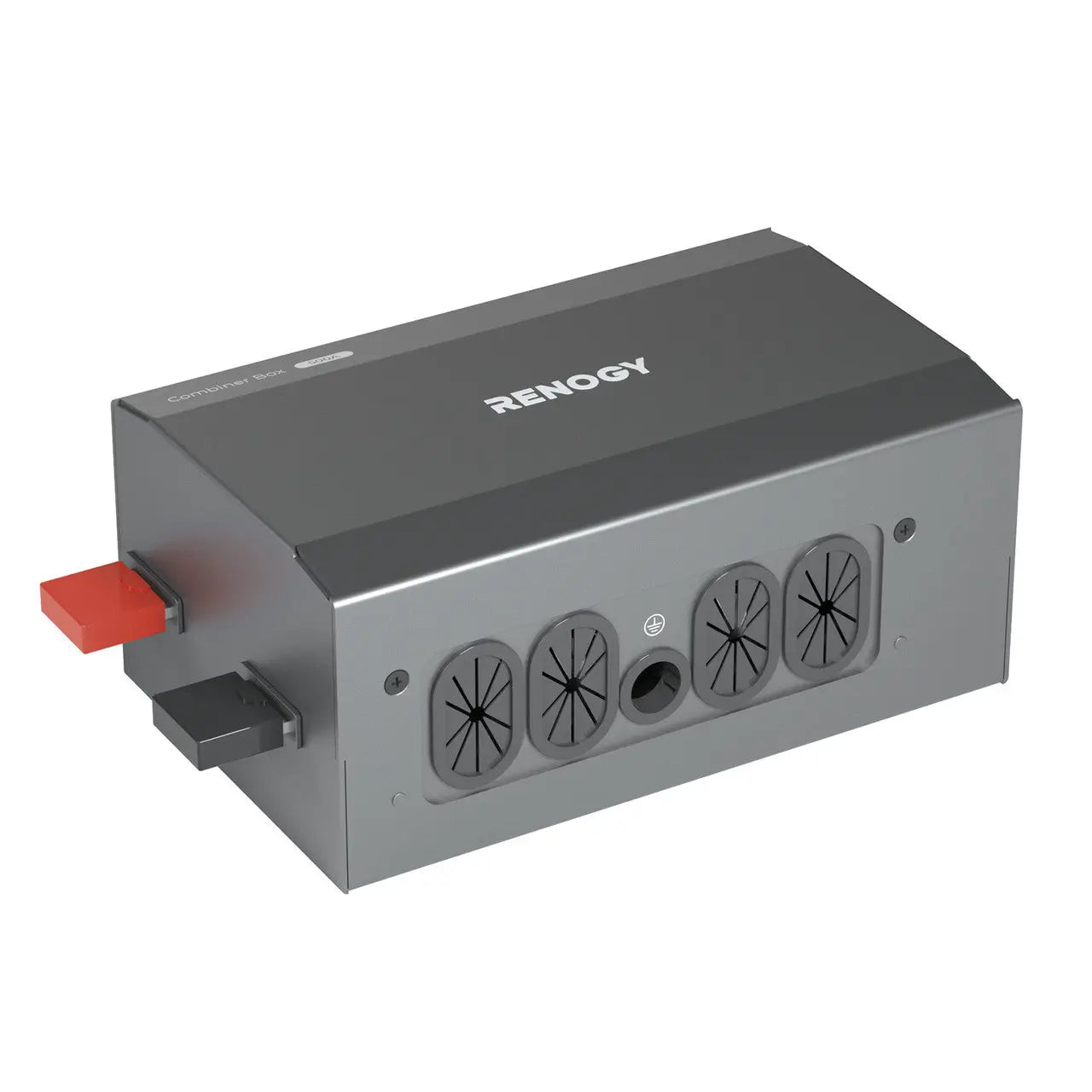

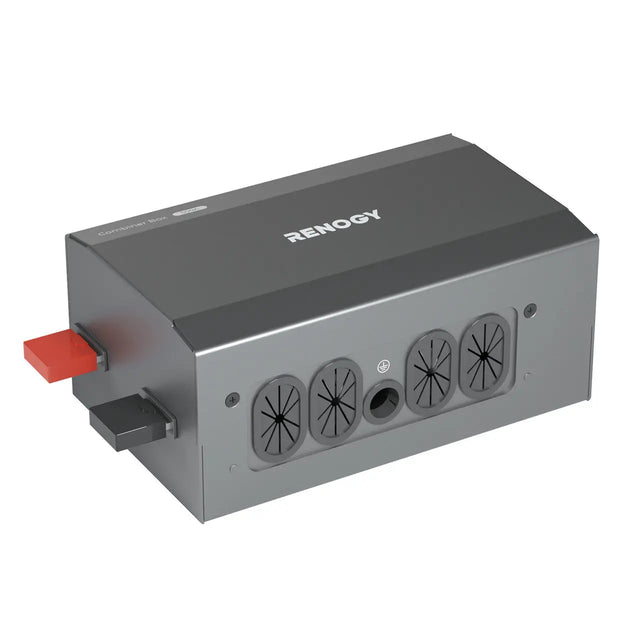

500A Combiner Box
The most reliable, space-efficient cable hub for electrical connection and distribution.
Streamline Vehicle Installations
Renogy Combiner Box consolidates all electrical connections into one central location, offering users a more intuitive experience.
Enhanced Electrical Security
The Renogy Combiner Box prevents ring terminal slackening, which can otherwise lead to short circuits and reduced electrical performance during vehicle vibrations.
Highly Compatible with 4/0 AWG Wires
The Renogy Combiner Box seamlessly accommodates thick cables without any risk of damage, making it an ideal choice for high-power electrical systems.
Optimize Maintenance Efforts with Precision
Simplify and expedite the identification and resolution of electrical issues, making troubleshooting a breeze during routine maintenance.
The Perfect Blend of Function and Style
Elevate your RV's wiring organization for a spacious, neat, and stress-free interior.
Learn more
Connect with Renogy customers.
Go to Power Plus Community
Still have questions?
Ask our specialist
Package Includes
- Renogy 500A Combiner Box x 1
| 500A Combiner Box | |
|---|---|
|
Specifications |
|
|
Model: REC500CB-98-G1 |
Voltage range: 9 - 60Vdc |
|
Rated Current: 500A |
Connector: M8 Busbar |
| Enclosure material: Sheet metal |

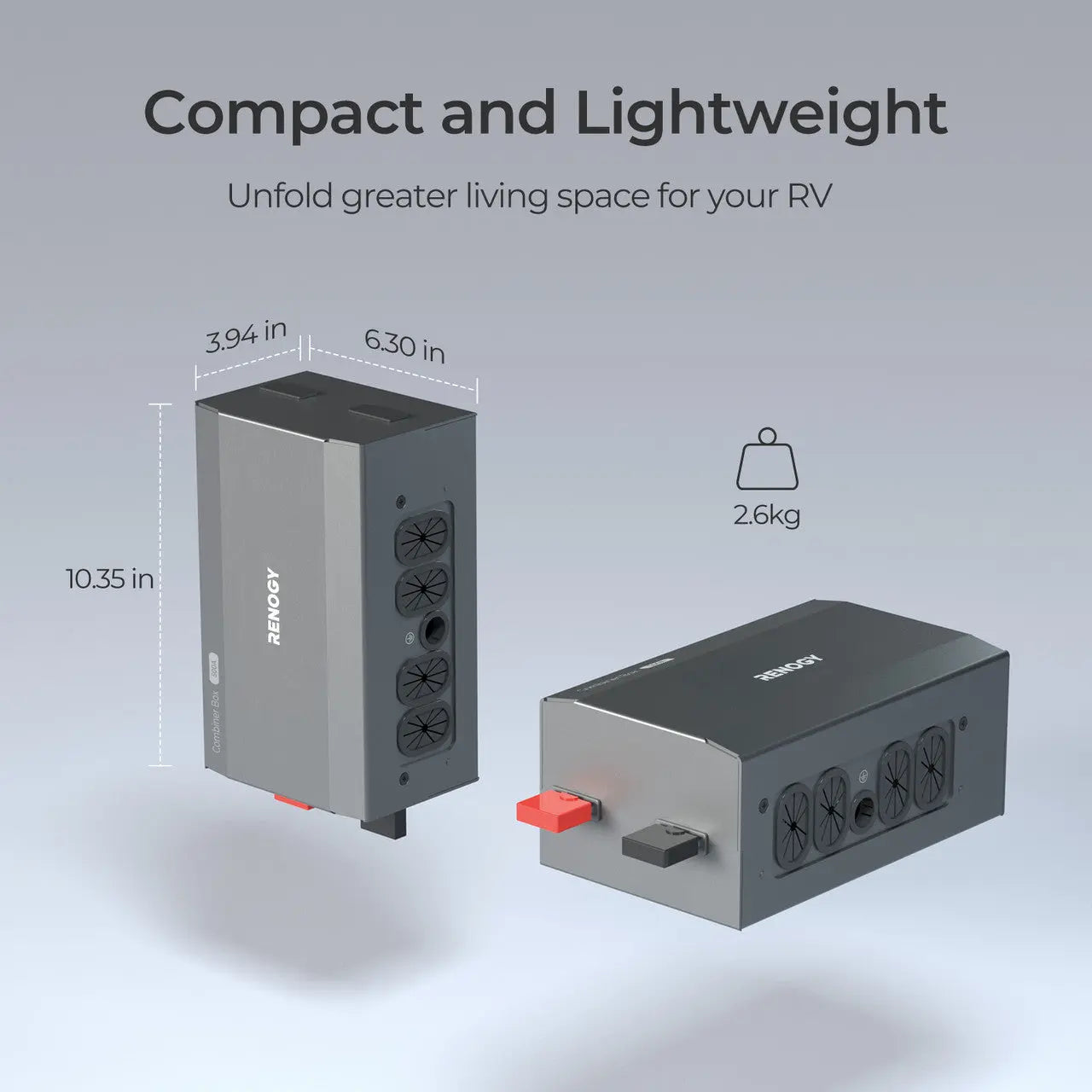

Enclosure dimensions: 10.35 x 6.30 x 3.94 in/263 x 160 x 100 mm |
|
Unit weight: 2.6kg |
Busbar material: Tinned copper |
|
Busbar dimensions: 4 x 30mm |
Recommended terminal torque: 70.8 in·lbs / 8 N·m |
| Operating temperature range: -4°F to 140°F / -20°C to 60°Cd | Storage temperature range: -40°F to 176°F / -40°C to 80°C |
| Humidity: 0-99% RH (non-condensing) | Protection class: IP22 |
| Warranty |
| Material and workmanship warranty: 1 Year |
| Certifications |
| Certifications: RoHS compliant | Certifications: Manufactured in a Certified ISO 9001 Facility |
 |
 |
