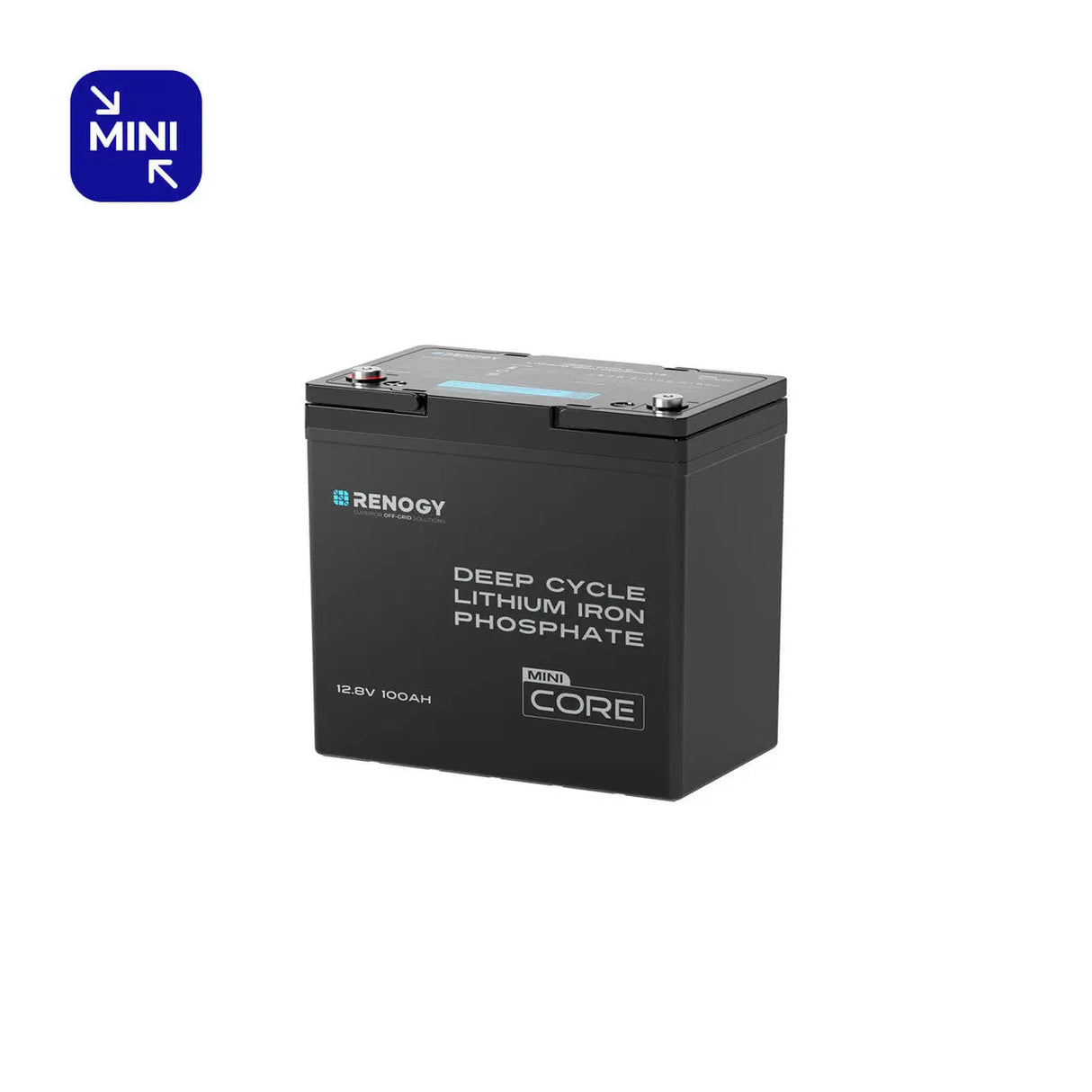

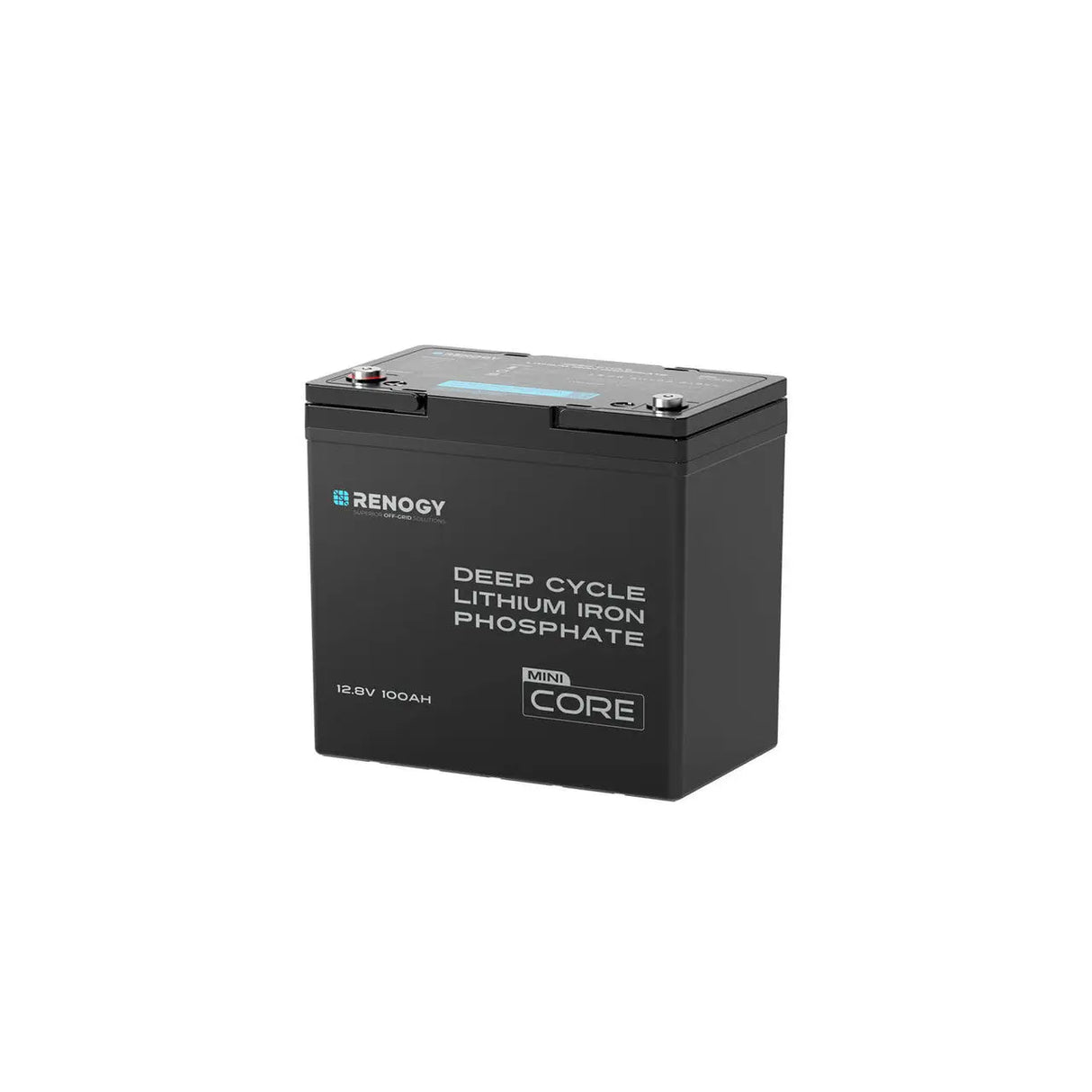

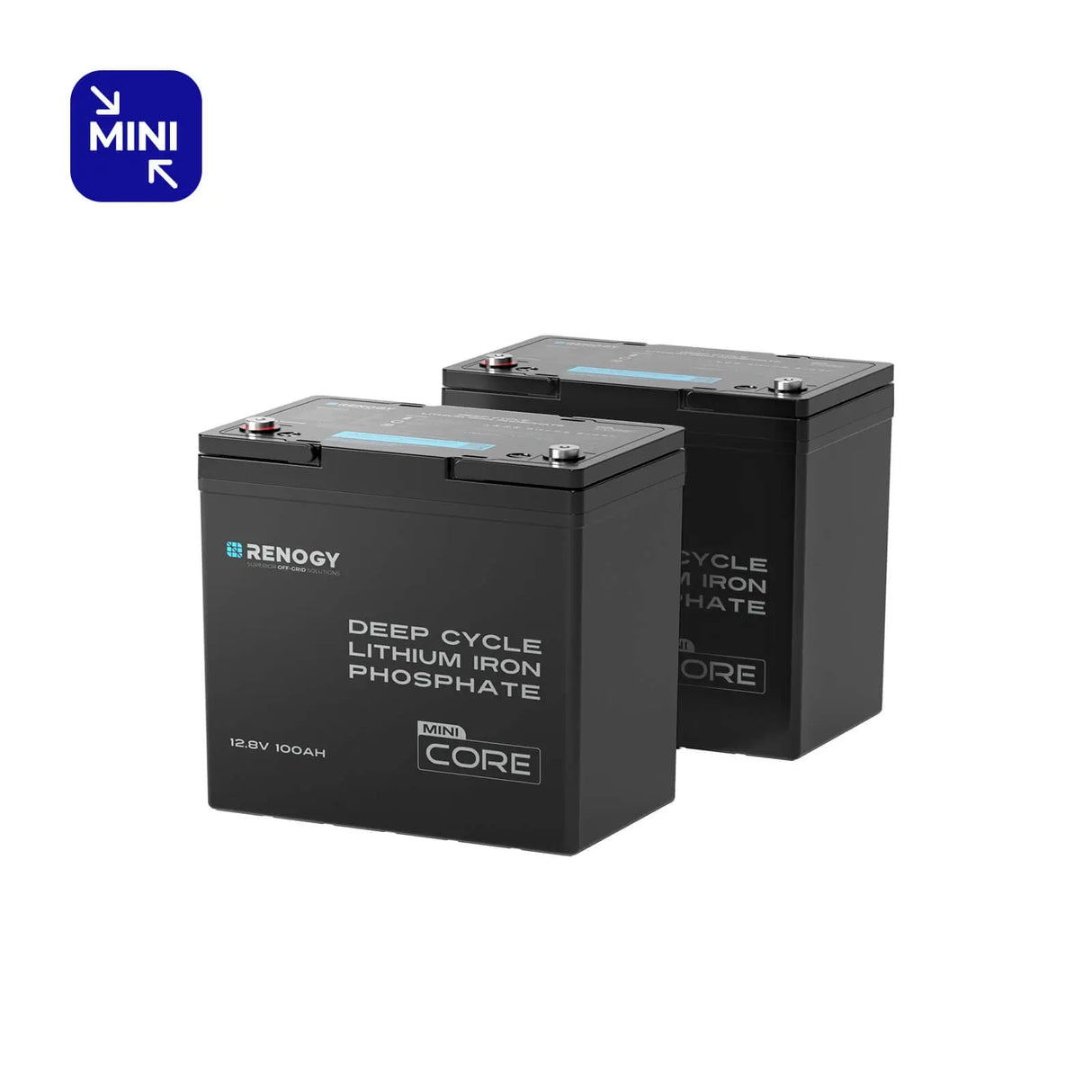

Mini Size 12.8V 100Ah Lithium Iron Phosphate Battery
SKU:
RBT12100LFP-M-US
$307.99
Unit price
/
Unavailable
Hot
Hot
Hot
Hot
22% off
- The smallest 12.8V 100Ah LFP Battery (Group 22NF) in Renogy's lineup

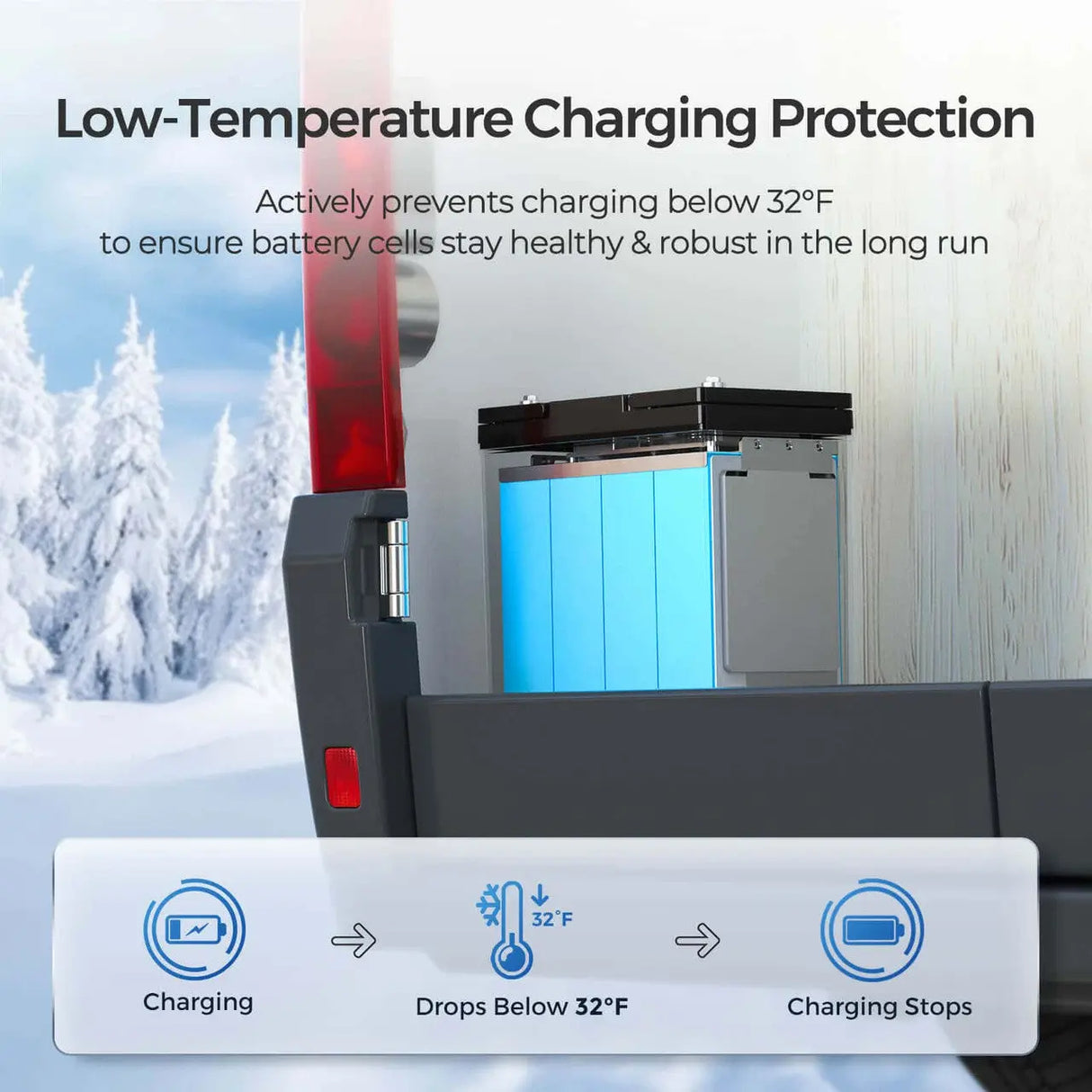

- Built-in low-temperature charging cut-off ensures safe winter operation

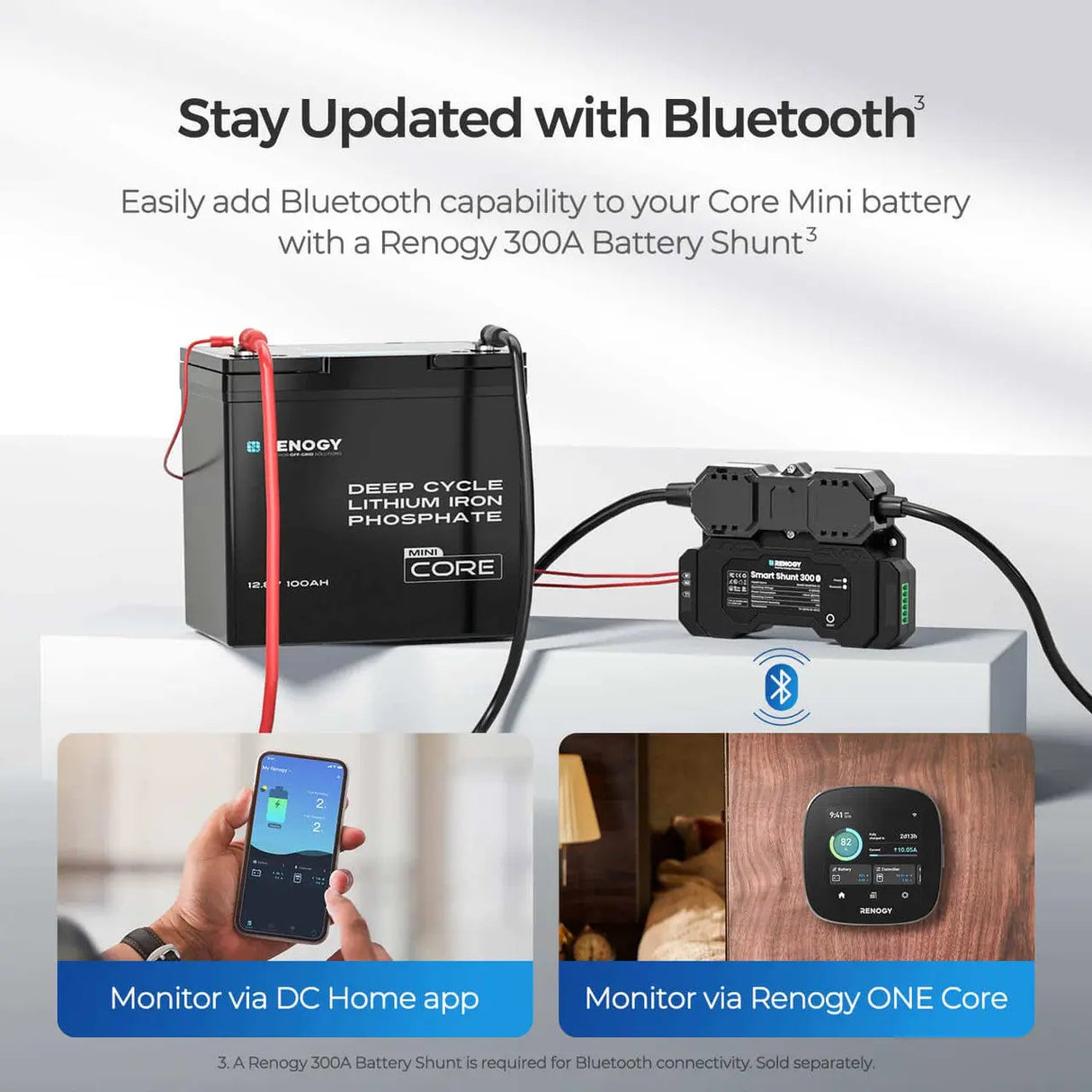

- Compatible with Renogy 300A Battery Shunt for remote monitoring

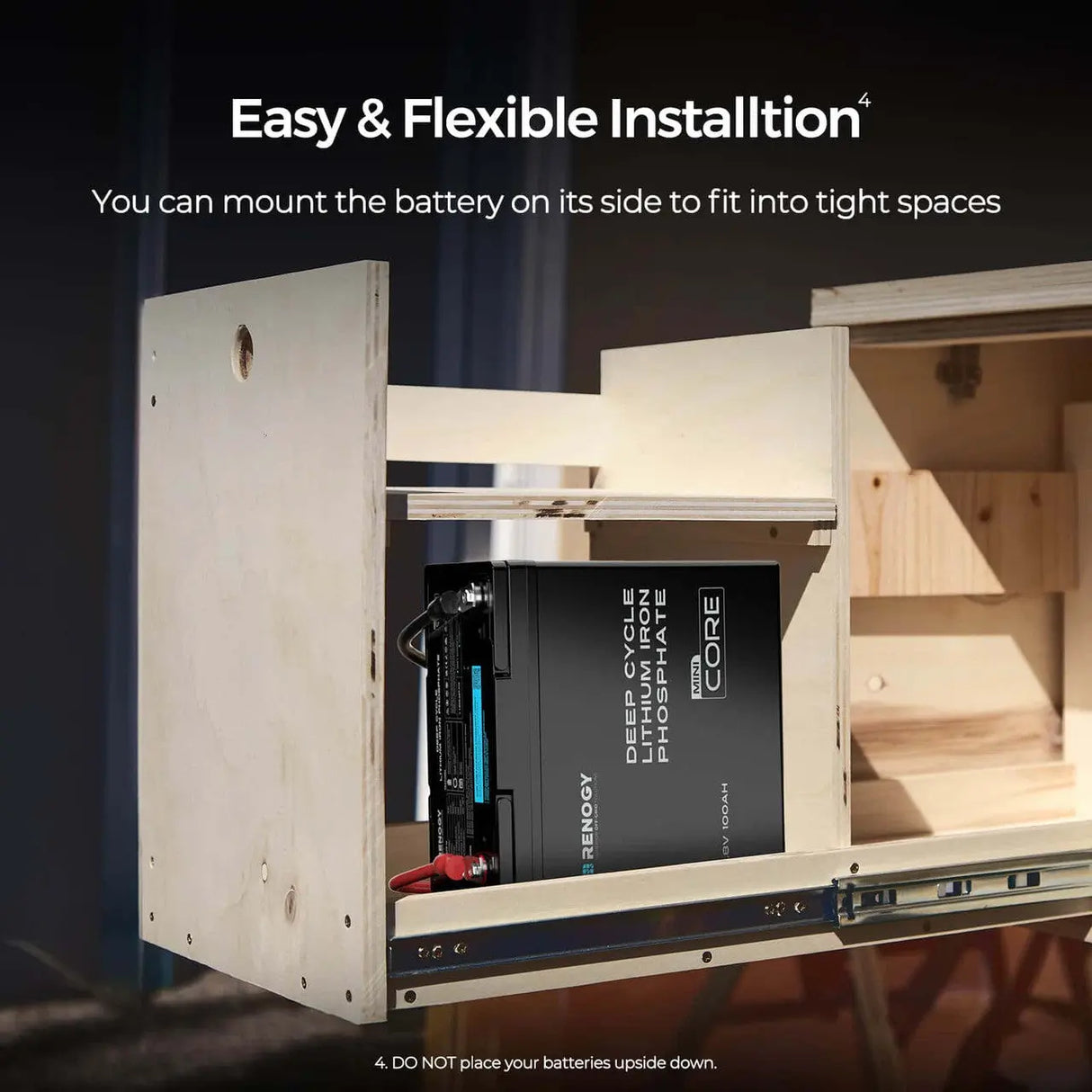

- Multi-orientation mounting for max space efficiency in tight spaces
- IP65-rated construction and vibration-resistant design for all-weather durability
Mini Size 12.8V 100Ah Lithium Iron Phosphate Battery - 1 Pack is backordered and will ship as soon as it is back in stock.
Payment Methods
Request Bulk Purchase Prices
Free Shipping with 7-day Delivery
This battery is eligible for a 7-day unconditional return.
Show More Benefits
Show Less
Mini Size 12.8V 100Ah Lithium Iron Phosphate Battery
$307.99
Unit price
/
Unavailable
Description
Includes
Specs
Downloads
FAQ
Reviews
Experience Our Most Compact 100Ah Battery

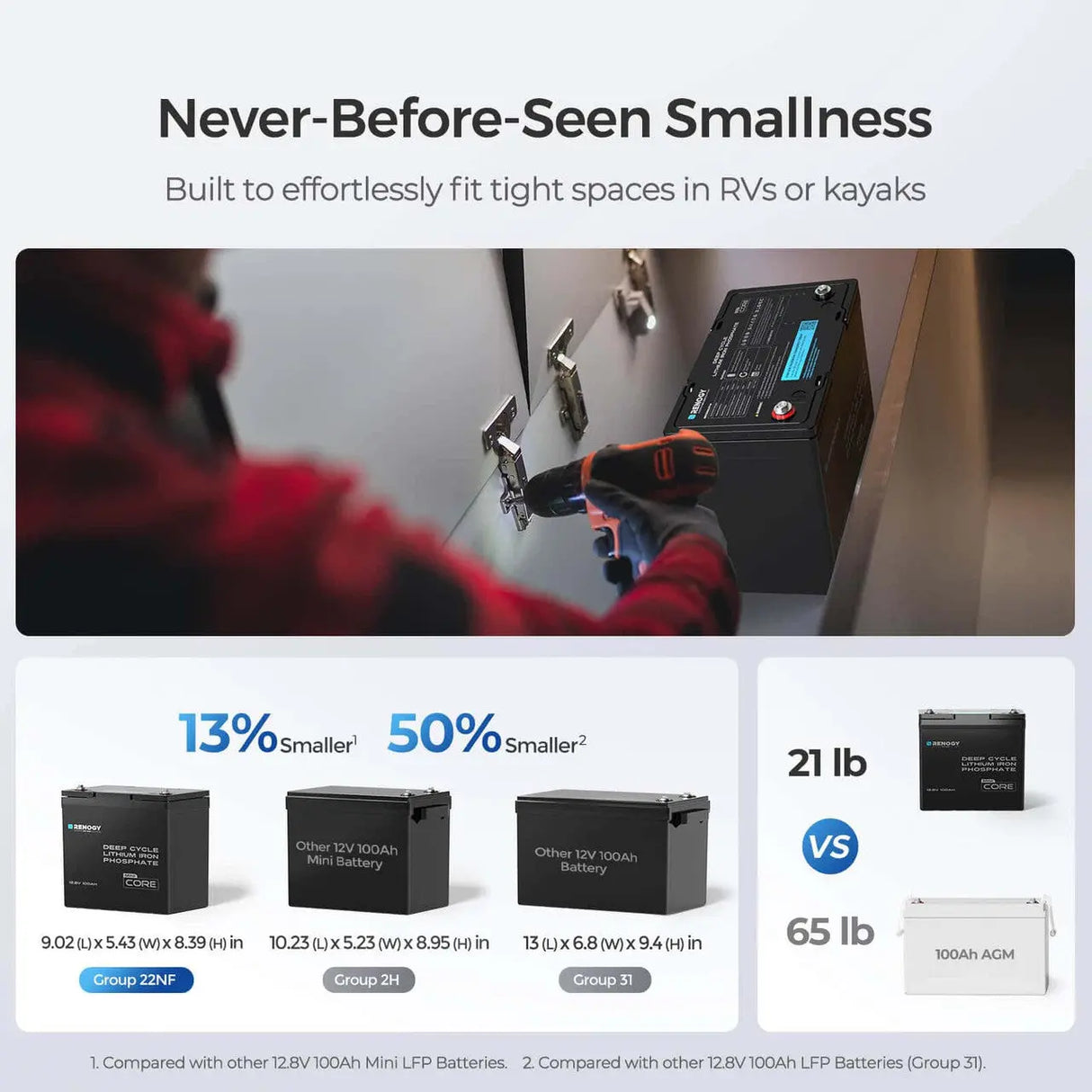

Lead-Acid vs Core Mini
Same power output in a lighter, more compact design
The Compact Advantage
Next-gen design with premium safety and full power
10X More Battery Life
300A Peak Surge Power
Vibration-Resistant Design
Safety Certified Design
Compact Power for Endless Adventure
Built for Better Fishing
Space Requirements
Allow 2-4" above battery, 8" clearance for busbar side
Package Includes
Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery
x 1
Long Terminal Bolts (M8 x 1.25 x 15 mm)
x 2
User Manual
x 1
Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery
Specifications
Battery Type
Lithium Iron Phosphate
Voltage
12V
Rated Capacity
100Ah (0.5C, 25℃)
Voltage Range
10V to 14.8V
Maximum Charge Current
100A
Maximum Discharge Current
100A
Peak Discharge Current
300A@5s
Cycle Life (0.5C, 25℃)
5000 Cycles (80% DOD, 80% EOL)
Charge Temperature Range
32°F to 122°F (0°C to 50°C)
Discharge Temperature Range
-4°F to 140°F (-20°C to 60°C)
Storage Temperature Range
-13°F to 149°F (-25°C to 65°C)
Operation Relative Humidity
10% to 95%
Connection Method
Series & Parallel (4S4P)
Terminal Bolt Size
M8 x 1.25 x 12 mm
Recommended Terminal Torque
88.5 inch·lbs to 106.2 inch·lbs / 10 N·m to 12 N·m
Protection Rating
IP65
Dimensions
9.02 x 5.43 x 8.39 in (229 x 138 x 213 mm)
Weight
21.8 lbs / 9.9 kg
Accessories
Long Terminal Bolts (2)
2 x M8 x 1.25 x 15 mm
Warranty
Material and Workmanship Warranty
5-year prorated material and workmanship warranty
Certifications
MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA
Yes
Shop By Scenario
Trolling Motor
Shop By Scenario
RV, Vans & Camper
Resources Download
Frequently Asked Questions
1. Can this battery be used in series to build a 24-volt system？
1. Can this battery be used in series to build a 24-volt system？
2. Does this Core Mini LFP battery have low-temperature cut-off?
2. Does this Core Mini LFP battery have low-temperature cut-off?
3. How many Renogy 12.8V 100Ah Core Mini Series Batteries can I connect at most?
3. How many Renogy 12.8V 100Ah Core Mini Series Batteries can I connect at most?
4. Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?
4. Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?
5. How to recharge my LiFePO4 batteries?
5. How to recharge my LiFePO4 batteries?
