Amphenol Adapter Cable( Amphenol - 3/8 in Lugs)

SKU: RPC0510AR-US
$59.99
Key Features
  • Amphenol Connector with Secure Locking Mechanism
  • IP67-rated guarantees reliability in harsh conditions
  • Impact and vibration resistance is enhanced by robust shell
  • Guaranteed accuracy with color-coded wires with BAT+ and BAT-
  • Easy customization and quick wire adjustments
Options
Quantity：
Payment Methods
Delivery Methods
Delivery time: 1-3 business days.Shipping Policy
Secure Payment with 0% APR Intallments
Lifetime Customer Support
30-Day Return and Refund Service
Show More Benefits Show Less
Description
Includes
Specs
Downloads
FAQ
Reviews

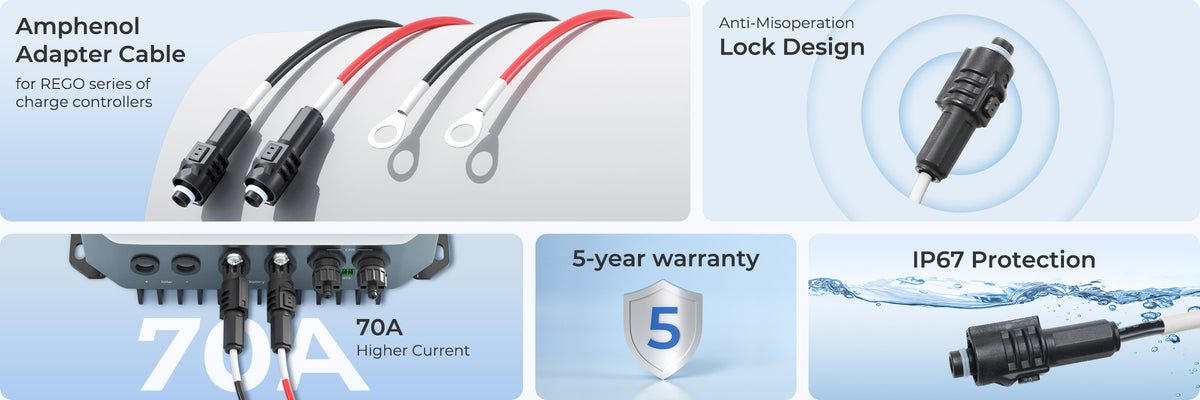

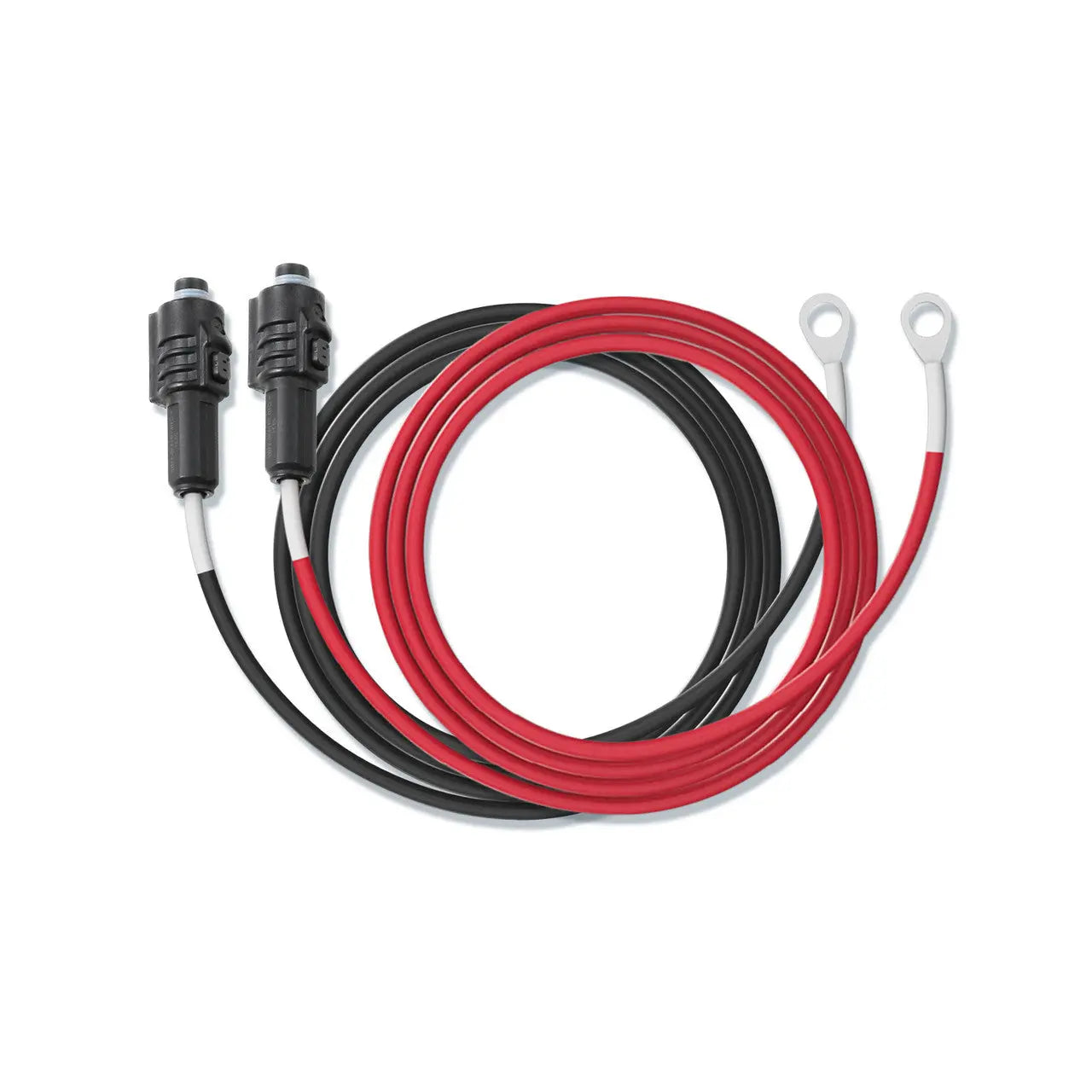

Amphenol Adapter Cable( Amphenol - 3/8 in Lugs)

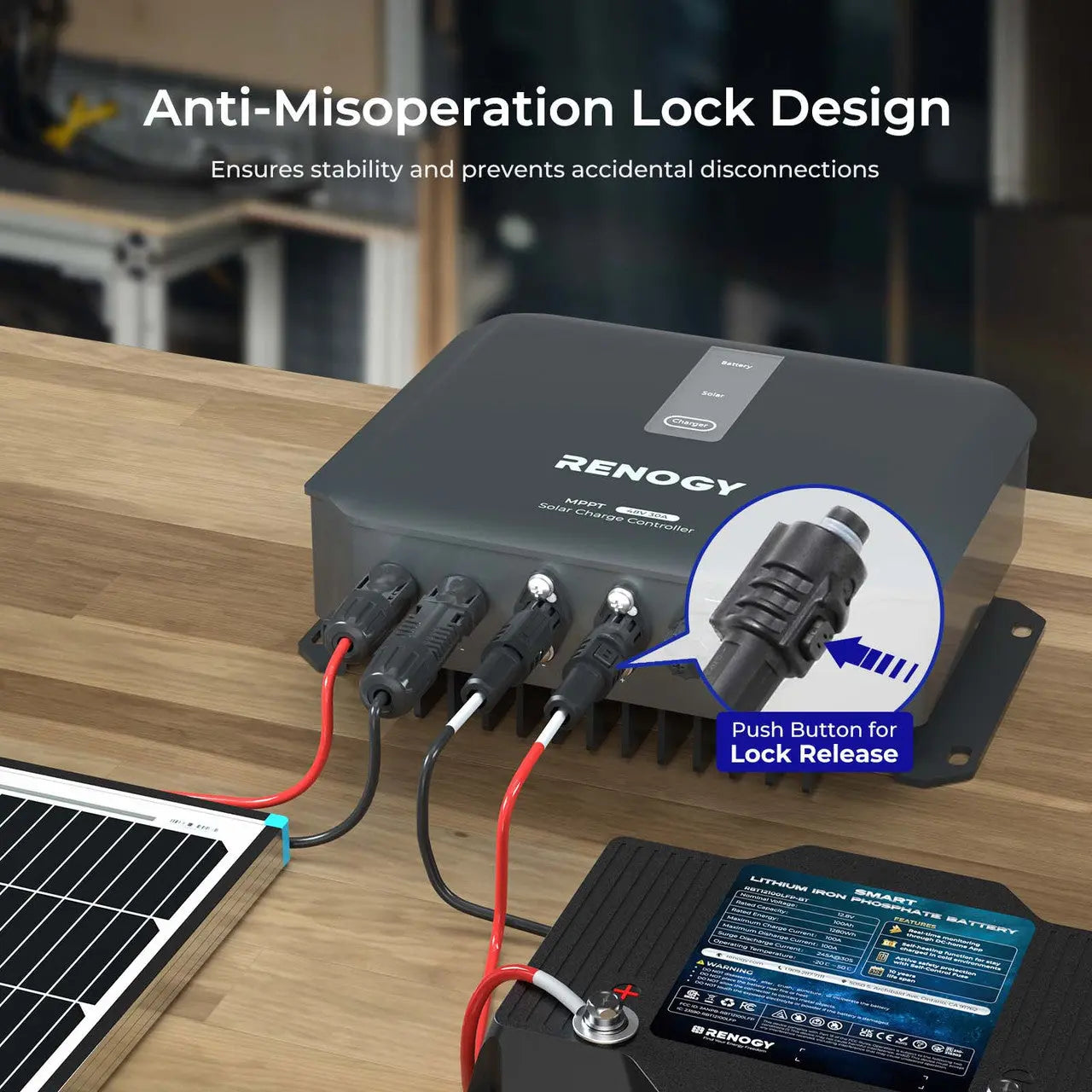

Secure Connections That Withstand Vibrations

Innovative lock design ensures stability and prevents loosening or deformation, even in rough environments.

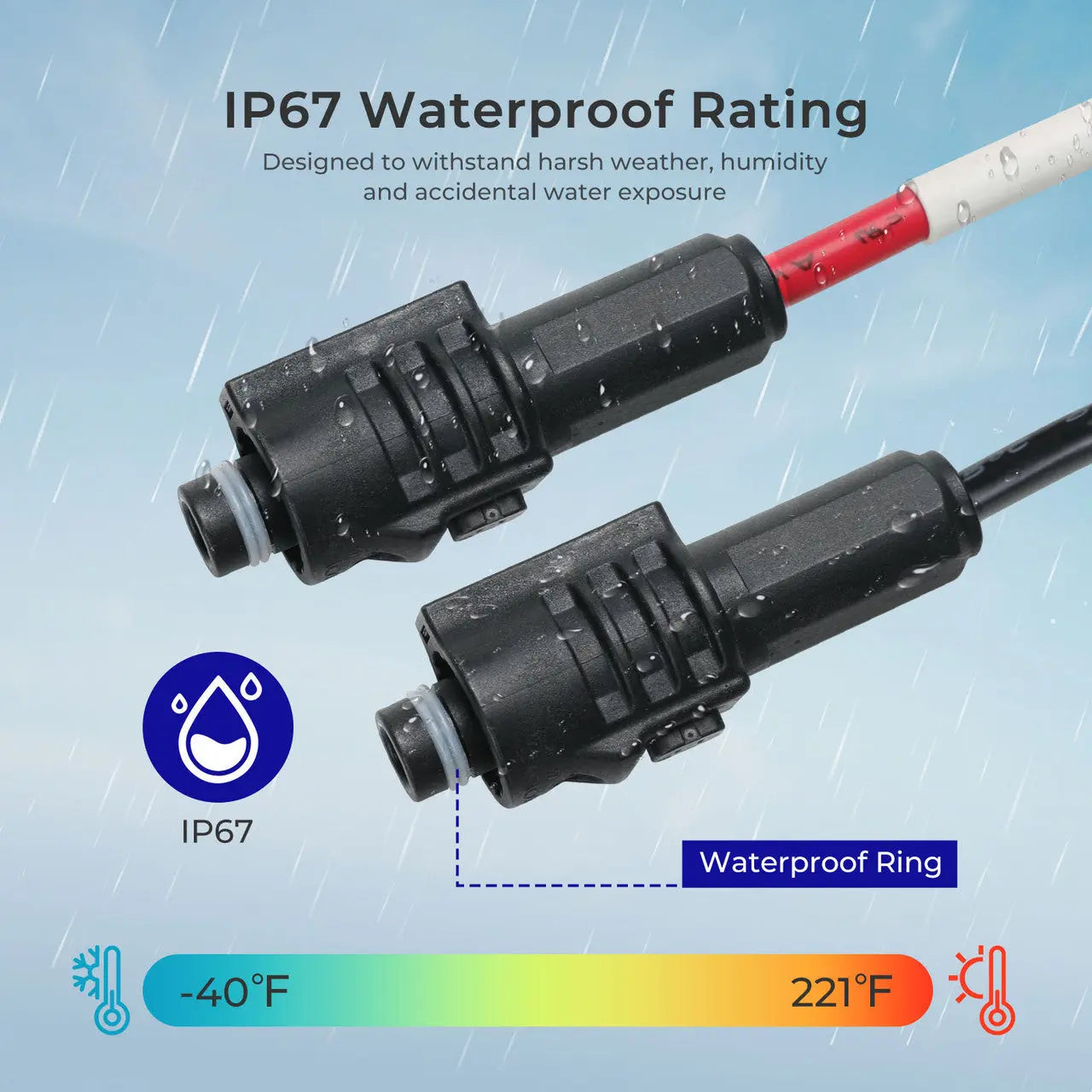

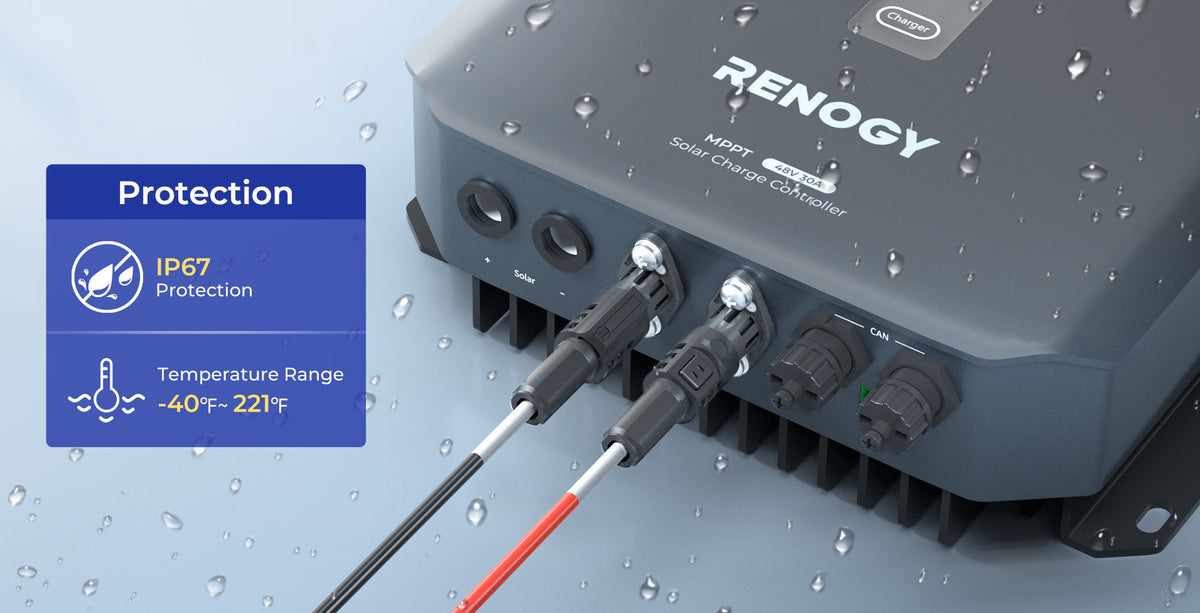

Weatherproof Wires for Extreme Conditions

Engineered to endure water spills and humidity and a wide temperature range with IP67 protection , ensuring reliable performance in any environment.

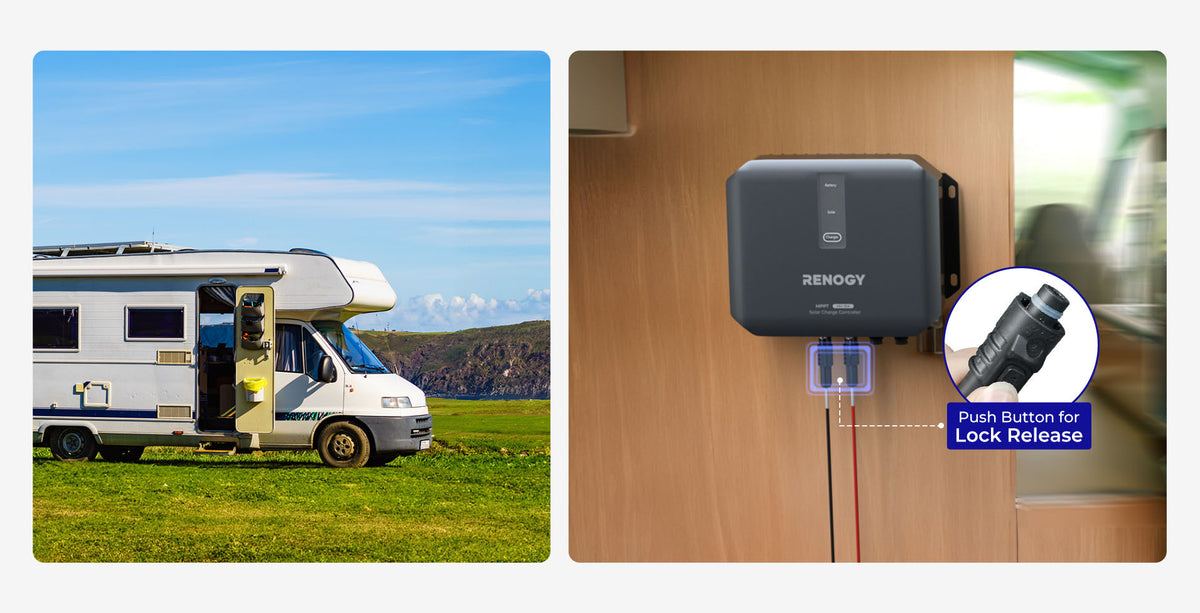

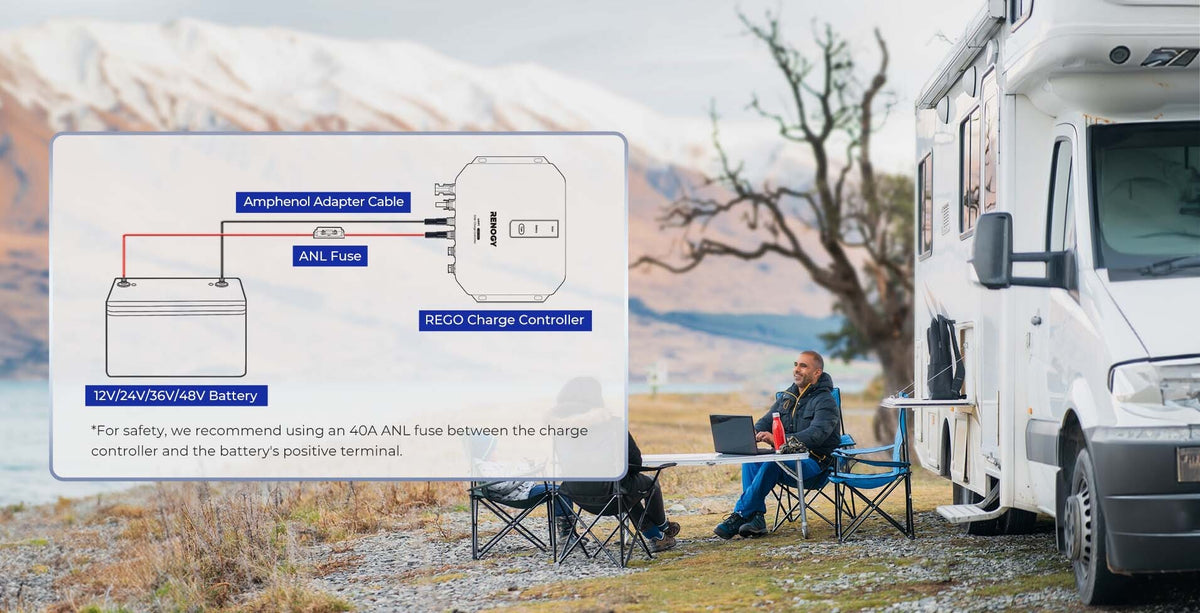

Seamless Connection for Off-Grid Adventures

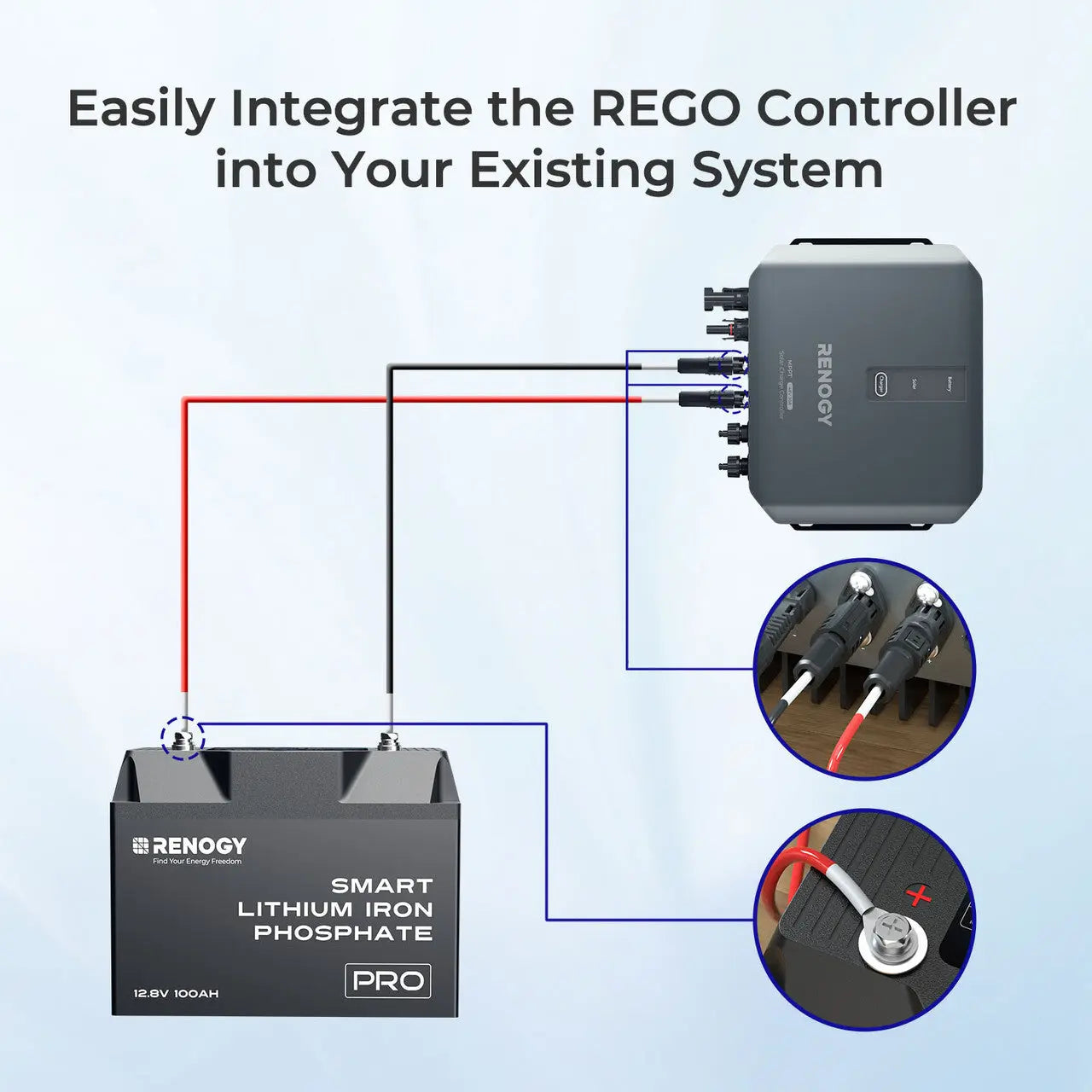

The Amphenol adapter cable and ANL fuse ensure safe and efficient power management for your RV or outdoor setup through their simple design.

Package Includes

RPC0510AR or RPC1010AR

x 1

Amphenol Adapter Cable( Amphenol - 3/8 in Lugs) (A pair)

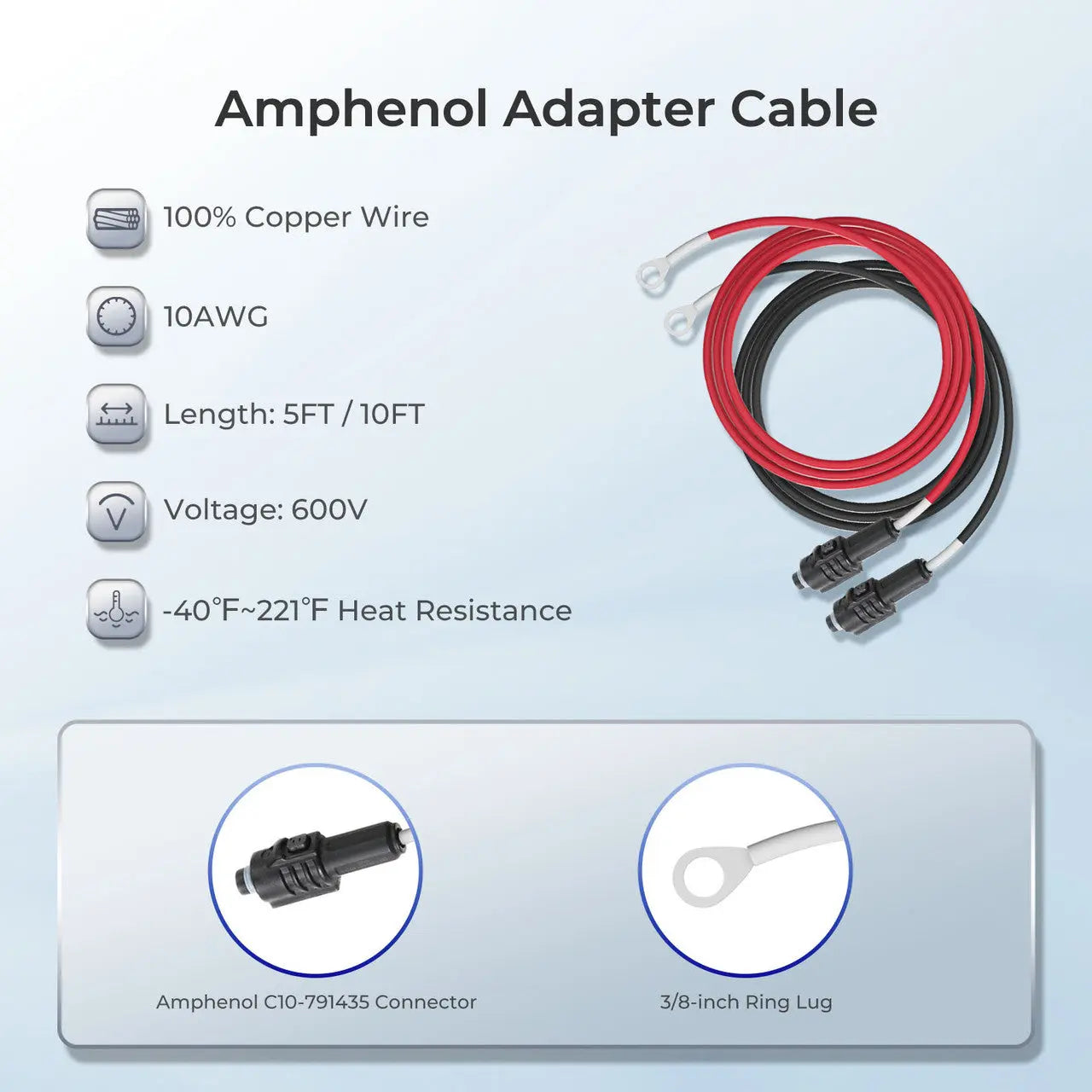

Model
RPC0510AR
RPC1010AR
Length
5FT
10FT
Gauge (Wire Size)
10AWG
Rating Voltage
600V
Max. Current
70A
Terminal Size
Amphenol - 3/8” metal lugs
Conductor
Tinned copper wire
Temperature
-40℃-105℃/(-40℉-221℉)
Protection
IP 67

Warranty

Material and workmanship warranty
3 Years

Certifications

UL,RoHS,ISO 9001
Yes

Resources Download

Warranty

Download

Frequently Asked Questions

What is the difference in buying 4, 6, 8,10, or 12 awg wire from the charge controller to the battery bank?will a 4 awg charge faster?

The gauge of the wire is like a bottleneck for the current flowing through the wire. 4AWG will not charge faster but will allowmore current to run through and over longer distances.Likewise, if your wire gauge is too small heat can build up and melt thewires as resistance will build up.

When the terminal is damaged, is it possible to purchase a replacement terminal with the same specifications?

Yes, when the terminal is damaged, you only need to buy a terminal of the same size to replace it. Ring lug terminal is the size of M8, while Amphenol terminal is the specification of 70A client (C10-791435）
