Key Takeaways
1. Protect Panels & Controller: Fuses or breakers prevent overcurrent, short circuits, and fire hazards.
2. Series vs Parallel: Series: fuse = panel amperage × 1.25. Parallel: sum all amperages × 1.25.
3. Install Close to Battery: Placing fuses near batteries or controllers protects wiring and equipment from damage.
Fusing solar panel might sound complex, but with the right guidance, it's a task you can master. In this comprehensive guide, we'll walk you through the step-by-step process of fusing your solar panel. From understanding the importance of fuses to selecting the right components and executing the installation, we've got you covered.
What Is the Purpose of Solar Panel Fuse?
Ever wonder why your solar setup needs fuses? Solar panel fuses are essential safety components that protect your solar system from electrical overloads and short circuits. These devices act as the system’s first line of defense, safeguarding expensive equipment and preventing potential hazards. When an electrical anomaly occurs, such as a surge caused by a lightning strike or an internal fault, the fuse will quickly melt, interrupting the flow of electricity. This action effectively stops excess current, protecting your solar investment and ensuring your family’s safety. While small in size, solar panel fuses play a crucial role in maintaining the integrity and security of your solar panel installation.
Precautions Before Fusing Solar System
When undertaking the task of fusing a solar panel system, adherence to strict safety protocols is paramount. These precautions not only ensure personal safety but also protect the integrity of the solar installation.
- Disconnect power: It is imperative to disconnect the solar panel system from the electrical grid before commencing any work. This step eliminates the risk of live current flow, creating a safe working environment. Proper lockout/tagout procedures should be followed to prevent accidental reconnection.
- Use proper tools:The use of appropriate tools is crucial for both safety and efficiency. Essential equipment includes insulated wire cutters, precise crimping tools, and a multimeter for electrical testing. These tools facilitate accurate and secure fuse installation while minimizing the risk of electrical accidents.
- Personal protective equipment (PPE):The importance of personal protective equipment (PPE) cannot be overstated. Safety glasses shield the eyes from potential debris or sparks, while insulated gloves provide protection against electrical hazards. Additionally, non-conductive footwear is advisable to reduce the risk of electric shock.

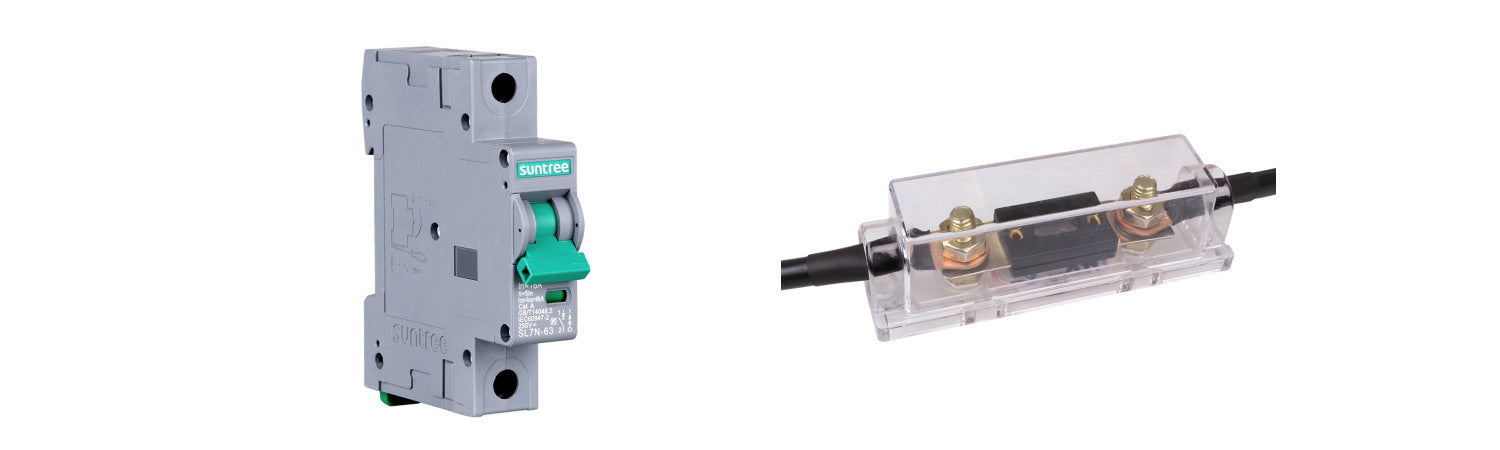

How to Fuse Your Solar System
Properly fusing a solar panel system ensures safety and efficiency. Follow these steps:
- Locate the Fuse or Junction Box: Usually near the inverter. Learn more about fuse options.
- Determine the Correct Fuse: Choose the appropriate type and amperage based on your solar panel specifications.
- Remove Existing Fuse: Take note of its orientation before removing.
- Inspect Wiring: Check for wear or corrosion and fix any issues before inserting the new fuse.
- Insert New Fuse: Ensure it matches the system requirements and is securely placed.
- Reconnect the System: Safely reconnect your solar panel system to the grid following all safety protocols.
Following these steps maintains the performance and safety of your solar installation.
Charge Controller to Battery Fuse/Breaker
Choose a fuse or breaker based on the charge controller's maximum current. A common rule is 1.25× the controller's max output to handle occasional surges. For example, a 30A controller should use a 40A fuse or breaker.
Install the fuse or breaker as close to the battery as possible to protect wiring from shorts. Proper sizing and placement help prevent fires, protect equipment, and extend the life of both the battery and charge controller.
Charge Controller to Solar Panels Fuse/Breaker
The primary role of this fuse or breaker is to protect the wiring and the charge controller from potential overcurrent events that can occur if the panels produce more electricity than the system can handle, or in the event of a short circuit. By breaking the circuit during a fault, it helps prevent overheating, wire damage, or even electrical fires.
Q: How do I size this fuse?
A: Use 1.25–1.56× the solar array's short-circuit current (Isc). For example, a 10A Isc → fuse rated 12.5–15.6A. Adjust based on panel number and connection type:
- Series Connection: Voltage adds up, amperage stays the same. Fuse = total amperage × 1.25. Example: 4 panels × 5A × 1.25 = 6.25A → round to 10A.
- Parallel Connection: Amperage adds up, voltage stays the same. Fuse = sum of amperages × 1.25. Example: 4 panels × 5A × 1.25 = 25A → round to 30A.
Battery to Inverter Fuse/Breaker
The battery-inverter connection handles significant current, especially when the inverter is powering large loads, making it critical to safeguard against short circuits or power surges. A fuse or breaker ensures that in the event of an overcurrent situation, the flow of electricity is cut off, preventing overheating, equipment damage, or even fire hazards.
Q: How do I size and place it?
A: Fuse = 1.25–1.5× inverter's max current draw. Example: 100A inverter → 125–150A fuse. Install it as close to the battery as possible to protect wiring from short circuits or surges.
When to Fuse a Solar Panel Array
Fusing a solar panel array is crucial for system safety, but not every setup requires a fuse. The decision to fuse a solar panel array depends largely on the size and configuration of your solar panels and the electrical characteristics of your system.
A PV fuse is typically required when multiple strings of solar panels are connected in parallel. If one string experiences a fault, the other strings can send excessive current through the faulty string, which can damage the panels or wiring. In this case, each string should have a fuse to prevent this backfeed of current. The National Electrical Code (NEC) generally recommends fusing any string where the short-circuit current from other parallel strings exceeds the panel's rated current by 1.25 times.
However, a fuse may not be necessary in small, single-string systems. If your system has just one solar string, or if the combined current from all strings is lower than the rated current of the panels and wiring, fuses may not be required. In such cases, the risk of current backfeed is minimal, making the addition of a fuse unnecessary.
Ultimately, adding a fuse to a solar panel array depends on the specific configuration of your system. For larger, parallel systems, fuses are essential for protecting the array from overcurrent situations. In contrast, for smaller or single-string setups, a fuse might not be needed, as long as the wiring and components are properly rated.
Conclusion
Fusing a solar panel requires a meticulous and cautious approach. Key steps include preparing the panel, selecting the appropriate fuse, soldering the fuse in place, and testing the repaired panel. Remember to prioritize safety throughout the process, wearing protective gear and avoiding contact with live electrical components. If you have any doubts or concerns, it is highly recommended to consult a qualified professional for expert assistance. By following these guidelines, you can ensure a successful and safe repair of your solar panel.
FAQs About Solar System Fuse
What size fuse for a 400-watt solar panel?
| Solar Panel Wattage | Typical Operating Current (at 12V) | Recommended Fuse Size |
| 100W | 8.3A | 10A |
| 200W | 16.7A | 25A |
| 300W | 25A | 30A |
| 400W | 33.3A | 40A |
How to calculate fuse for solar panel?
To calculate the fuse size for a solar panel, use this formula: Fuse Size=Solar Panel Current×1.25\text{Fuse Size} = \text{Solar Panel Current} \times 1.25Fuse Size=Solar Panel Current×1.25 Find the solar panel current by dividing the panel's wattage by its voltage. For example, a 200W panel at 12V generates 16.7A. Multiply 16.7A by 1.25, resulting in a recommended fuse size of around 25A.
How do you replace a solar panel fuse?
To replace a solar panel fuse, first, turn off the solar system to avoid any electrical hazards. Locate the fuse holder, usually near the charge controller or inverter. Remove the blown fuse and replace it with a new one of the same amperage rating. Ensure the new fuse is securely in place, then power the system back on to restore normal function.
