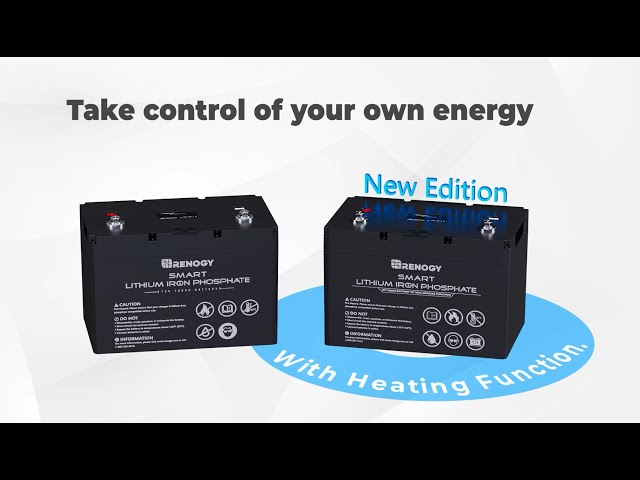

Renogy 12V 100Ah Smart Lithium Iron Phosphate Battery The Renogy Smart Lithium Iron Phosphate Battery enables auto-balance among parallel connections and provides more flexibility for battery connection. The integrated smart battery management system (BMS) not only protects the 12V 100Ah LiFePO4 battery from various abnormalities but also monitors and manages the charging/discharging process. The state-of-the-art battery cells ensure a long cycle life and exceptional discharge performance. If you’re searching for a deep cycle battery for caravan, cabin, or marine use, this lightweight, auto-balanced, ultra-safe, long-cycle-life lithium-ion battery is the perfect solution for you!
Renogy LiFePO4 battery has a minimum 4000 cycles time which delivers up to 8 times longer than a lead-acid battery. Moreover, with the incredible energy density of the battery, Renogy LiFePO4 battery is thin and light with immense power.
There’s no reason to settle for other batteries if you can think 'Big Picture'.
Powered by an upgraded intelligent BMS circuit, the battery will guarantee balance between each battery cell group，and features the most precise temperature measurement discrepancy of its kind. This battery will more accurately display and protect the battery from over-voltage, under-voltage, over-current, short circuit, high temperature, and low temperature.
Regardless of the production, use, or scrap, it does not contain or produce any toxic and harmful heavy metal elements and substances such as lead, mercury, and cadmium. Renogy 100ah LiFePO4 battery is made from 100% safe, nontoxic, and renewable energy.
Our LiFePO4 battery is only a third of the weight of Lead Acid while providing a massive boost to performance and capacity so you won't miss a single second of runtime. Renogy‘s LiFePO4 battery is your best choice for RVs, Marine and Off-Grid Applications when towing or mobility is in consideration.
The battery can be switched between active mode and shelf mode with the Activation Switch. Prior to long periods of storage, disconnect the battery from the system, connect the activation switch to the RS485 UP Communication Port of the battery, and long press the Power Button for 3 seconds to switch the battery to shelf mode.
Plug in a Renogy BT-2 Bluetooth Module and pair it with Renogy ONE M1 to keep track of real-time information of your batteries and stay updated via the DC Home app when you are away. You can also check on the charging status at a glance through a Renogy monitoring screen.
- The normal operation of the self-heating function requires a stable charge current greater than 3A.
- Please secure all cable connections to the proper specification in order to ensure good contact between the cable lugs and the terminals. Over-tightening cable connections can cause terminal breakage and loose cable connections can cause terminal meltdown or fire.
- DO NOT string the battery in series. ONLY connect batteries of the same manufacturer and model in parallel.
- Please avoid too high a voltage difference between paralleled batteries, despite the auto-balancing function, to avoid triggering the over-current protection.
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or contact us for troubleshooting assistance.
12V 100Ah Smart Lithium Iron Phosphate Battery
Activation switch and bolts
|Renogy 12V 100Ah Smart Lithium Iron Phosphate Battery|
|Operation Specifications||Mechanical Specifications|
|Rated Capacity||100 Ah||Dimensions||
11.4 x 6.8 x 7.4 inch /289 x 172 x 188 mm
|Nominal Voltage||12.8 V||Weight||26 lbs. / 11.8 kg|
|Voltage Range||10~14.8 V||Charge Temperature||32~131°F/ 0~55°C|
|Cycle Life(0.2C,25℃)||80%DOD 4000 Cycles||Discharge Temperature||-4~140°F/ -20~60°C|
|Maximum Continuous Charging Current||50 A||Protection Rate||IP54|
|Maximum Continuous Discharging Current||100 A||Communication Port||RJ45 (RS485 Protocol)|
|Dischaging Voltage Range||10V~14.4V||Insulation Resistance||500V DC, ≥ 10 MΩ|
|Standard Operation Temperature||25℃±5℃||Certifications|
|Storage Temperature||-13~149℉ / -25~65℃||UN38.3||YES|
|Accessories||UL 1642(Lithium Cell)||YES|
|Activation switch||*1||5-year prorated warranty|
1. What are Renogy battery’s greatest advantages？
2. What is the specific soft package cell mentioned just now?
3. What does the external battery switch do?
4. How long will your battery last?
5. How many batteries can I connect to at most?
6. How to keep a Lithium-iron Phosphate battery healthy at low temperatures?
7. What do I need know to connect multiple batteries in parallel？
When you design to connect multiple batteries in parallel, please keep the length of ALL cables consistent (from the positive end to the negative end). Battery cables (sold separately) should be appropriately sized to handle the expected load. Keep the connection tight by using the appropriate number of washers to allow for as much as possible thread engagement between the terminal, cable lugs, and busbars, without bottoming out the terminal bolt. And it is best to use flexible busbars or dedicated cables to connect batteries together.
Note: DO NOT connect batteries in series. DO NOT connect batteries with different chemistries.
|Please click the links below to download the latest firmware for 12V 100Ah Smart Lithium Iron Phosphate Battery:|
