With a maintenance-free and leak-proof design, high discharge rate performance, and wide operation temperature range, the battery can be run in various systems, including RVs, off-grid cabins, marine, home backup power supplies, emergency power systems, medical devices, and more.
Included with your purchase is a Heavy-duty Battery Box to limit battery movement, prevent accidental spills, and protect from external elements. This heavy-duty box uses high impact-resistant material for reliable protection while tackling rugged environments.
Should you need to connect several batteries in series/parallel to build a battery bank, Renogy offers Battery Interconnect Cables (not included) in different lengths for your convenience.
Built for rugged environments, the battery box is made of polypropylene with high impact resistance.
The vent holes on the top of the battery box allow for adequate ventilation.
Coming with a tie down strap and brackets, the battery box can be easily installed in a car, boat, camper, motorhome, trailer, or caravan.

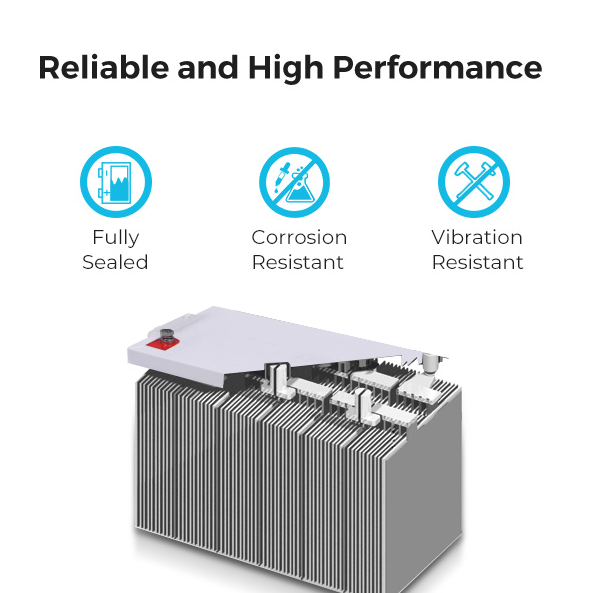

Manufactured with thick absorbent glass mat (AGM) separators and advanced valve regulated technology, the battery is maintenance-free, leak-proof, and gas-free.
Proprietary quinary alloy plates and specially treated plate grids enable outstanding discharge performance.
When not in use, the monthly self-discharge rate of this Renogy Deep Cycle AGM sealed battery is as low as 3% at 77℉ (25℃), which is 5 times lower than their flooded counterparts.
The maximum 1100A discharge (5 seconds) is suitable for appliances that require a high startup current, like a fridge.
With a consistent and stable discharge, the battery can power up most common home appliances, such as a microwave, CPAP, coffee maker, laptop, and more.
The improved electrolyte formula ensures stable battery capacity and outstanding discharge performance from 5℉ (-15℃) to 122℉ (50℃).
The battery is designed with solar energy storage applications in mind and provides optimum performance even at freezing temperatures.

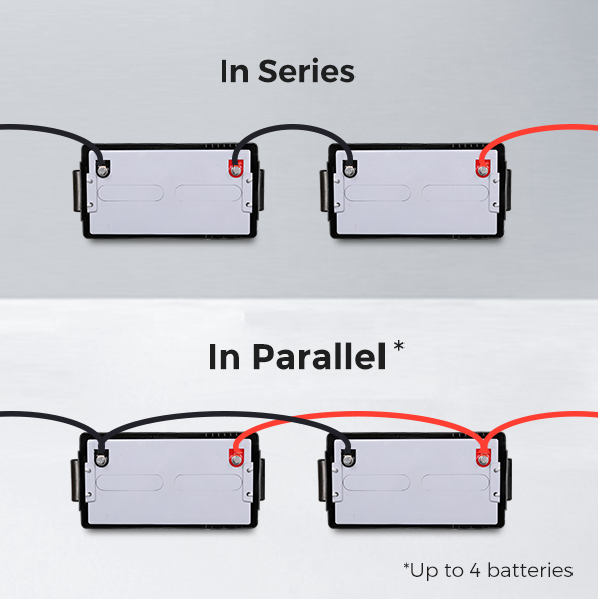

You can connect up to 4 batteries in parallel to expand the power capacity to meet your needs. You can also connect multiple batteries in series.
You can connect up to 4 batteries in parallel to expand the power capacity to meet your needs. You can also connect multiple batteries in series.
It's recommended to connect batteries with the same type (AGM), same capacity (Ah), and same voltage (V) from the same brand.
We recommend using a battery balancer to extend the battery service life when multiple batteries are connected in series and/or in parallel.
- To avoid cycle life shortening, it is recommended not to discharge the battery below 50%.
- It is highly recommended to use a battery balancer to extend the battery service life when multiple batteries are connected in series and/or in parallel.
- We highly recommend installing the battery upright. It is allowed to install the battery on its side only if there are special reasons for doing so. DO NOT install the battery upside down.
- It is recommended to connect batteries with the same type (AGM), same voltage (V), and same capacity (Ah) from the same brand.
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or submit a ticket for troubleshooting assistance.
More questions about your off-grid power system? Learn more from Renogy Learning Center!
Package Includes
|
12V 100Ah Deep Cycle AGM Battery w/ Battery Box
|
- 1 x 12V 100Ah Deep Cycle AGM Battery
- 2 x Terminal Bolts
- 2 x Terminal Covers
- 1 x Battery Box
- 1 x Tie Down Strap
- 2 x Mounting Brackets
- 4 x Screws
| Renogy 12V 100Ah Deep Cycle AGM Battery with Battery Box | |||
|---|---|---|---|
| Operation Specifications | Mechanical Specifications | ||
| Rated Capacity | 100Ah (10 Hour Rate to 10.5V) | Dimensions | 13.1 x 6.9 x 8.6 in / 332 x 175 x 219 mm |
| Rated Voltage | 12 V | Weight | 63.9 lbs / 29 kg |
| Number of Cells | 6 | Terminal Bolt Size | M8 x 1.25 x 20 mm |
| Self-discharge Rate | 3% / month | Discharge Temperature | 77°F±5.4°F（25°C±3°C） |
| Float Charge Voltage | 13.5V~13.8V; Temperature Compensation: -18mV/℃ | Normal Operating Temperature | 77°F±5.4°F（25°C±3°C） |
| Cycle Use Voltage | 14.4V~14.8V; Temperature Compensation: -24mV/℃ | Operating Temperature Range | Discharge: 5°F~122°F / -15°C~50°C; Charge: 5°F~104°F / -15°C~40°C |
| Equalization Voltage | 14.4V~14.8V | Storage Temperature Range | 5°F~104°F / -15°C~40°C |
| Storage Temperature Range | 5°F~104°F/-15℃~40℃ | Container Material | ABS |
| Max Discharging Current | 1100A (5 seconds) | Recommended Terminal Torque | 109.8 inch·lb / 12.4 N·m |
| Max Charging Current | 30A | Battery Box | |
| Internal Resistance | Approx. 5.0mΩ | Internal Dimension | 13.8 x 7.1 x 10.4 in / 350 x 180 x 265 mm |
| Connection Method | In Series, and In Parallel (up to 4) | External Dimension | 16.7 x 9.7 x 10.6 in / 425 x 247 x 270 mm |
| Warranty | Weight | 2.4 lbs / 1.1 kg | |
|
2-year material and workmanship warranty (the battery box is warranted separately for 1 year) |
Material | PP | |
This battery box fits most Group 24-31 batteries. If you want to get extra boxes to protect your battery, secure it in place, and limit movement while tackling rugged environments, you can check out our Accessories catalog.
 |
 |
