New

4.8kWh Solar Kit | 3PCS 200W Shadowflux Panel


$2,999.99
+ 29990   Renogy Rays after purchase.
Log In About Rays

  • Cost-effective bundle providing better value than setup with single parts.
  • Provides 1-2 days of essential power for home backup or a long weekend off-grid trip.
  • The robust inverter-charger is sized to allow for future panel expansion

❓Need help before buying? Call Us: 1 (909) 287 7111

Quantity:
Payment Methods
Delivery Methods
Delivery time: 1-3 business days.Shipping Policy
Kits List
Description
Includes
Specs
Download
FAQ
Review

Shadowflux Solar Kit Series

Each Kit includes only the most essential, high-performance components—the undisputed best-sellers that form the reliable heart of any great energy system.

It's a curated collection of top-tier gear.

ShadowFlux Solar Panel
Key Feature
Solar Shade, Solved Now

The World's 1ˢᵗ Anti-Shading Rigid Panel

Snow on Your Panels? You Still Get Power

Keep generating max power even when shaded—saving more on every bill.

LiFePO4 Battery
Key Feature
EV-Grade BMS Protection

200Ah Pro | Bluetooth & Self-Heating

Primary Safety: 60+ EV-Grade BMS Protection

Automotive-grade BMS provides 60+ protections and alerts for precise, safe monitoring in all environments.

DC-DC Battery Charger
Key Feature
Smart Dual Charging

50A DC-DC Battery Charger with MPPT

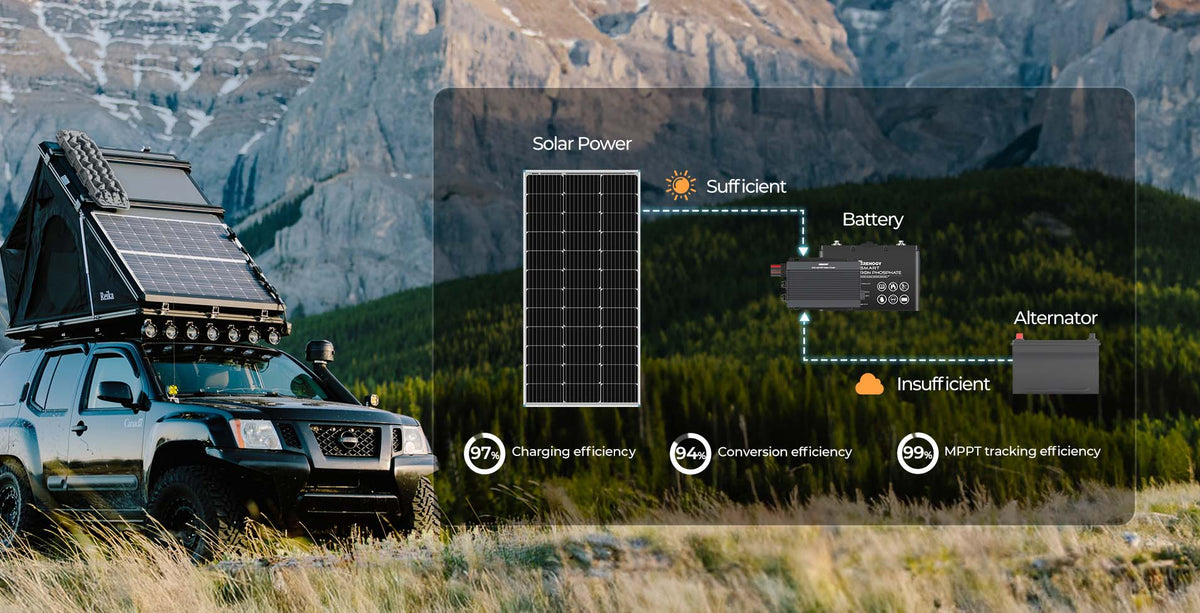

Intelligent Dual Charging Mode

Intelligently combines vehicle and solar power, auto-adjusting modes for optimal energy use.

2000W Inverter Charger
Key Feature
Efficient Charge

2000W 12V Pure Sine Wave Inverter Charger

Efficient and Express Charge

Unlock the formidable potential of rapid charging, achieving automatic and optimal charging to 100% battery capacity.

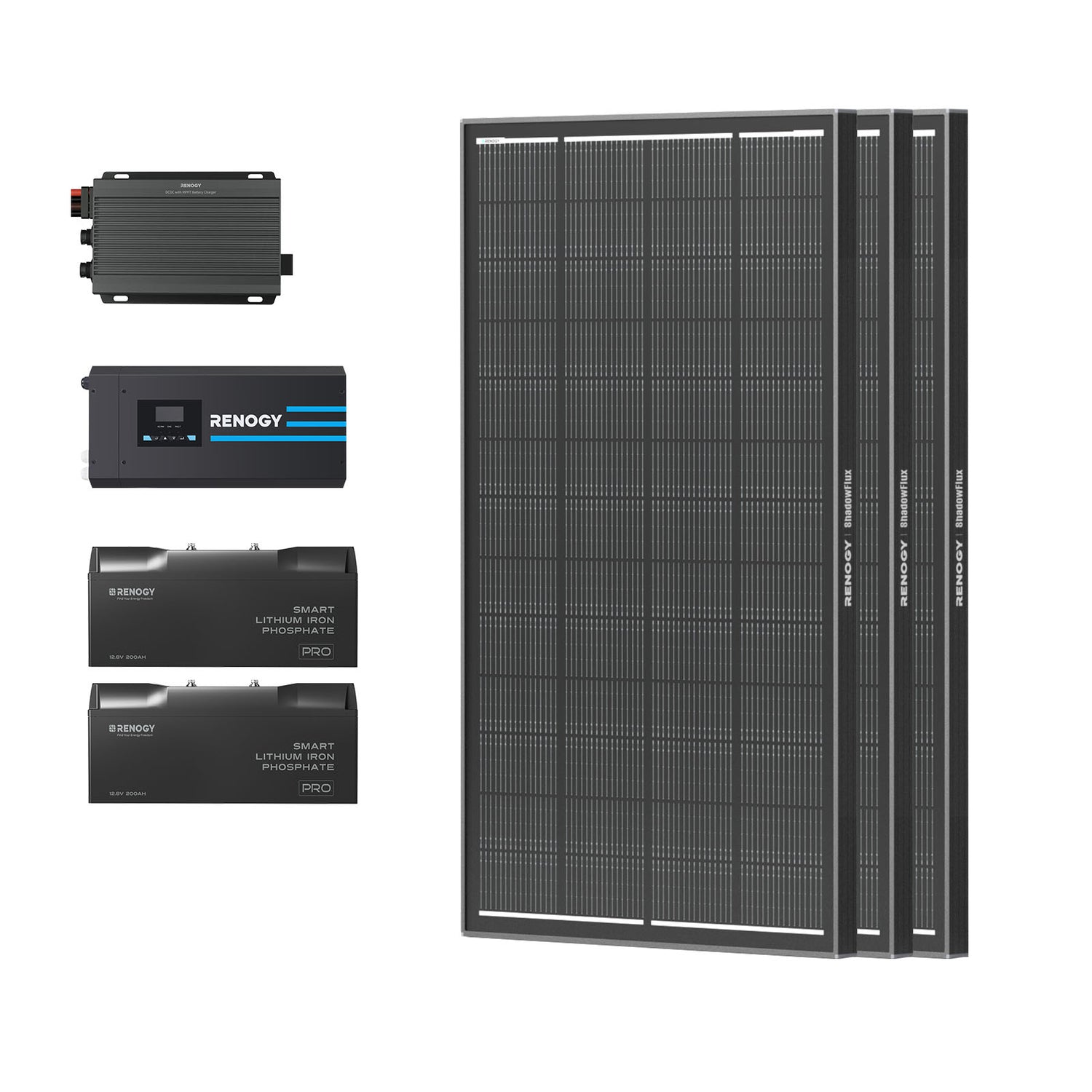

Package Includes

  • 3 x 200W Shadowflux Solar Panel

  • 2 x 200Ah Smart LiFePO4 Battery w/ Bluetooth & Self-Heating

  • 1 x 50A DC-DC Battery Charger with MPPT

  • 1 x 2000W 12V Pure Sine Wave Inverter Charger

200W ShadowFlux™

Max Power at STC
200W
Open Circuit Voltage
36.5V
Short Circuit Current
6.86A
Optimum Operating Voltage
31.3V
Optimum Operating Current
6.38A
Maximum System Voltage:
1000VDC
Maximum Series Fuse Rating:
15A
Module Efficiency:
20.7%
Operating Temperature:
-40°F~185°F / -40℃~85℃
Dimensions:
49.69*30.08*1.18inch
Weight:
10.81kg/23.83lb

Pro - Renogy 12V 200Ah Smart LiFePO4 Battery w/ Bluetooth & Self-Heating

Battery Type
Lithium Iron Phosphate
Nominal Voltage
12.8V
Rated Capacity
200Ah (0.5C, 25℃)
Voltage Range
10V to 14.8V
Maximum Charge Current
200A
Maximum Discharge Current
200A
Peak Discharge Current
270A@30s
Cycle Life (0.5C, 25℃)
5000 Cycles (80% DOD, 80% EOL)
Charge Temperature Range
-4°F to 131°F (-20°C to 55°C)
Discharge Temperature Range
-4°F to 140°F (-20°C to 60°C)
Storage Temperature Range
-13°F to 149°F (-25°C to 65°C)
Operation Relative Humidity
10% to 95%
Connection Method
Parallel (Up to 8)
Communication Protocol
Bluetooth
Terminal Bolt
M8 x 1.25 x 12 mm
Long Terminal Bolt
M8 x 1.25 x 16 mm
Recommended Terminal Torque
70.8 inch·lbs / 8 N·m
Housing Material
PC/ABS
Protection Rating
IP67
Flame Retardancy
UL94 V-0
Dimensions
18.4 x 8.4 x 8.2 in (467 x 212 x 208 mm)
Weight
50.7 lb (23 kg)
Material and Workmanship Warranty
7-year prorated material and workmanship warranty
Certifications
UL, MSDS, UN38.3, FCC, CE, PSE, and UKCA
Terminal Bolts (2)
2 x M8 x 1.25 x 12 mm
Long Terminal Bolts (2)
2 x M8 x 1.25 x 16 mm

50A DC-DC Battery Charger with MPPT

System Voltage
12V/24V
Solar Input Voltage
50 VDC
Output Voltage
9-32 VDC
Alternator Input
9-32 VDC
Output Power
720W
Maximum Output Current Rating
12V@50A ; 24V@25A
Terminal Range
8AWG-4AWG
Maximum Operating Altitude
3500m
Dimensions
7.01 x 4.78 x 1.47 in/178.2 x 121.5 x 37.5mm
Weight
4.10 lb / 1.86 kg

2000W 12V Pure Sine Wave Inverter Charger w/ LCD Display

Continuous Power
2000W
AC Output Voltage Range
100~120VAC configurable, 5V interval
DC Input Voltage Range
10~16 VDC
Output Frequency (Nominal)
50/60 Hz
Battery Types
GEL, AGM, SLA, FLD, CAL, LI, USER
Noise
<50dB
Operating Temperature
0 ~ 40°C / 32 ~ 104°F
Storage Temperature
-30 ~ 70°C / -22 ~ 158°F
Dimensions
20.1 x 11.2 x 7.6 in / 510 x 285 x 193 mm
Weight
51.1 lbs / 23.2 Kg

Frequently Asked Questions

What's included in the kit?

Each kit includes the major components only: solar panels, batteries, an inverter and a charge controller. It does not include accessories like cables, fuses, or mounting brackets unless explicitly listed.

Please check the "Kit Includes" section on the product page for a complete list.

Why should I choose this Kit over buying parts separately?

  • Save Time & Effort: We've done the research for you, selecting only the most reliable and popular best-sellers.
  • Guaranteed Compatibility: All components are expertly matched to work together seamlessly.
  • Better Value: Purchasing as a kit often offers a better overall value compared to buying each item individually.

What can I power with the 2000W Inverter?

2000W Inverter: Ideal for common appliances like coffee makers, microwaves (check wattage), kettles, TVs, laptops, and CPAP machines. It can handle the startup surge of most small air conditioners (check locked rotor amps).

Can I expand the system in the future?

Yes! Our Core System Kits are designed with scalability in mind. You can easily add more solar panels, extra batteries, or other accessories down the line to meet your growing energy needs. Always check the maximum PV input voltage and current of your specific charger before expanding.

What if I need a complete, ready-to-use solution?

If you're looking for an all-in-one solution that includes every nut, bolt, and cable, we recommend checking out our solution series. These kits are designed for ultimate convenience and include all necessary accessories.
