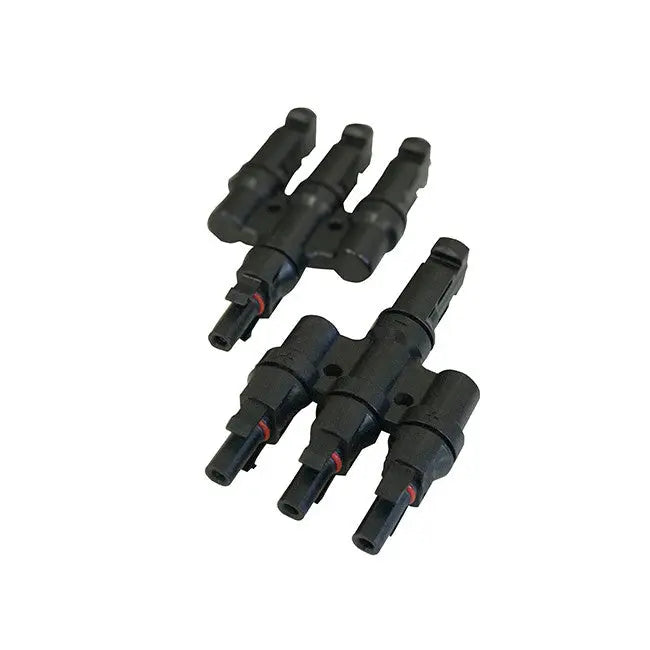

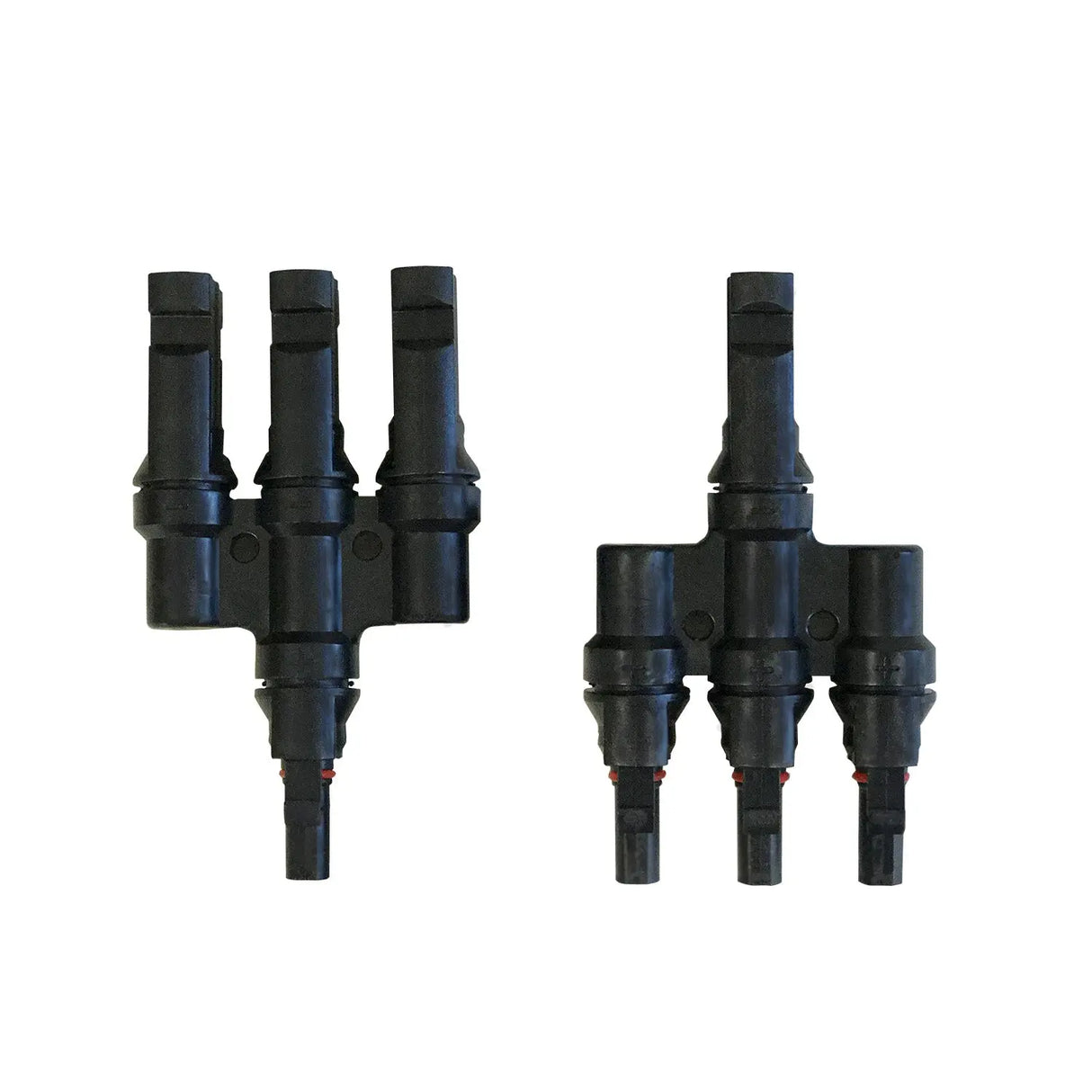

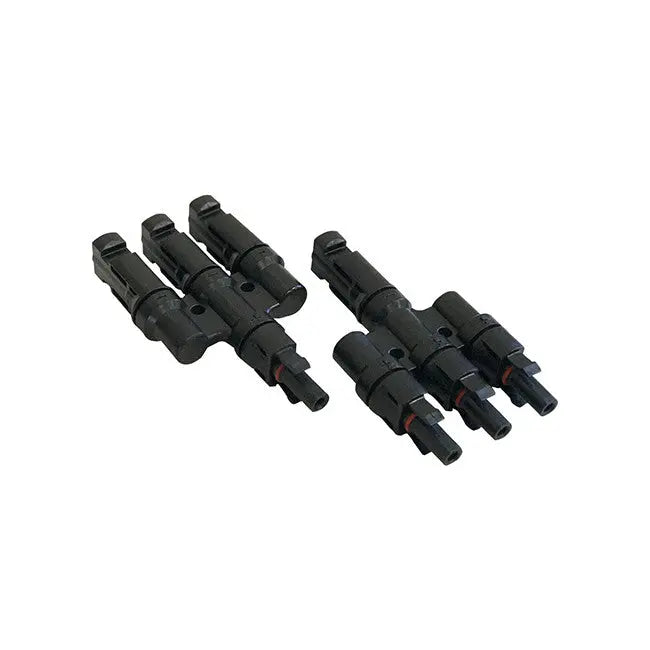

3 to 1 Solar Branch Connectors MMMF+FFFM Pair
$15.99
Unit price
/
Unavailable
Description
The Limited Branch Connector is a perfect solution for connecting three panels in parallel. These connectors have high aging resistance and UV endurance, making them weather-proof and able to withstand harsh environments. A rivet and lock are used to connect the cable and no extra tools are required for assembly or disassembly of plugs.
NOTE
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or contact us for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center
Key Features
- Rated Current: 50A
- Insertion Force: < 50N
- Maximum working voltage: DC1000V
Package Includes
|
3 to 1 Solar Branch Connectors MMMF+FFFM Pair
1 x |
| Renogy 3 to 1 Solar Branch Connectors (Pair) | |
|---|---|
| Maximum working voltage: DC1000V | Rated Current : 50A |
| Flame class: UL94-V0 | Pollution degree: 2 |
| Contact resistance: ≤5mmΩ | Shell Protection degree: IP67 |
| Ambient temperature range: -40°C to +85°C | Safety Level: classⅡ |
| Insertion force: ≤50N | Withdrawal force: ≥50N |
Warranty Information
| Panels |
25-year transferable power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty |
| Accessories | 1-year material warranty |
Certification
 |
 |
