What Is Overcurrent Protection? Everything You Need to Know
A safe flow of electricity is required to run all devices properly. Electricity can only offer a seamless stream of power and avoid generating excess heat if it flows under normal conditions. However, when the current draw exceeds the normal load, a short circuit may happen. This condition may lead to various electrical hazards.
To deal with an overcurrent condition effectively, protection devices, such as breakers and fuses, play a crucial role. They determine a safe level of current that a specific appliance or device can handle and limit the current flow accordingly. Over current protection devices are key components of electrical safety equipment.
Read this article to know more about overcurrent protection, how it occurs, and how you can keep your devices away from this unwanted situation.
What Is Overcurrent Protection?
A combination of electrical components designed to limit the flow of excess current is called an overcurrent protection device. Protection devices introduce a negligible amount of resistance and act as conductors. These devices are mostly connected in series with the circuit that needs protection.
Some overcurrent protection devices blow while others trip during the event of overcurrent. One thing you should keep in mind is that these devices only stop the flow of excess current and do not resolve the problem.
Suppose an over current protection circuit or device is rated for 10 amperes. It will trip automatically when you connect an air conditioner, an iron, and a microwave that need a combined current of 15-20 amperes. When all the appliances run at the same time, they draw 15-20 amps, resulting in an overcurrent of 5-10 amperes. Limiting this excessive amount of current is known as overcurrent protection.
When Does the Overcurrent Problem Appear?
Different situations may result in overcurrent conditions, as listed and explained below.
- Short Circuit: When a low-resistance path is formed in a circuit that allows excessive current to flow through it. This condition is called overcurrent.
- Overload: It happens when multiple devices run simultaneously and draw more current than a circuit can handle safely. It is similar to powering various high-wattage devices from a single power outlet.
- Ground Fault: This problem appears when an unintended path is formed between the ground and the power source. It happens when moisture enters wiring or electrical circuits.
The overcurrent problem is common in both residential and industrial setups and it mostly happens due to short circuiting.
A List of the Overcurrent Protection Devices
A variety of over current protection devices are available in today's market, from fuses to breakers and modern relays to ground fault interrupters. Let's explore a bit more about these devices.
1. Fuses
When the current increases the preset threshold, a fuse melts its element to stop the flow of current. Though it interrupts the electrical circuit, it prevents wiring from costly damage and repair. Fuses offer reliable protection. Plus, they are budget-friendly and simple to use. At the same time, you need to replace them after each operation.

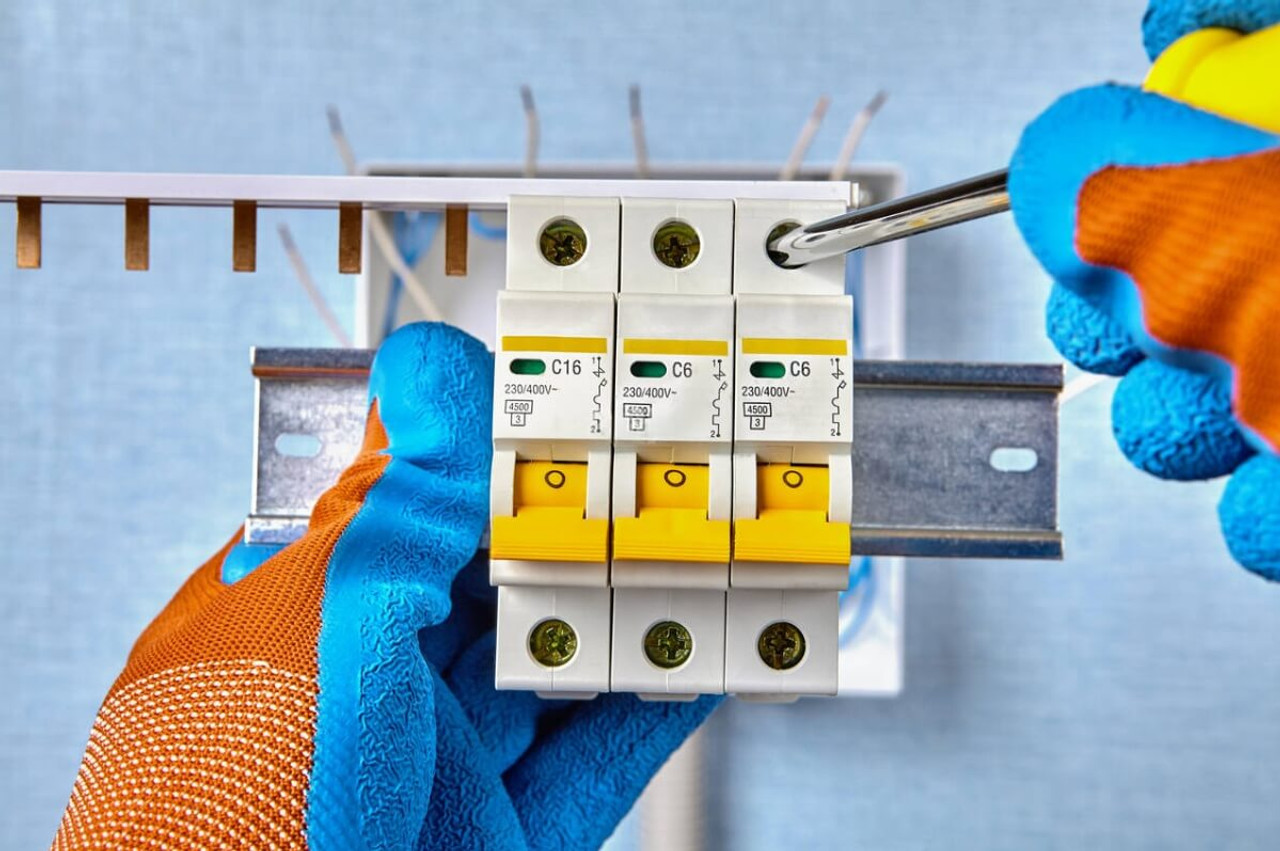

2. Circuit Breakers
These protection devices interrupt the flow of electricity during the events of short circuits or when an overload problem occurs. Unlike fuses, you can easily reset circuit breakers once they trip. This resetting property makes them convenient in both commercial and residential applications. Circuit breakers - automatic protection switches - are frequently used in industrial machinery, commercial buildings, and electrical panels in homes.
3. Relays
They are unique protection devices designed to open or close the electrical circuit depending on different electrical conditions. Relays have the ability to monitor various parameters, which is why they are commonly used in industrial applications. The best part? They are fully programmable. You can easily program them according to your safety requirements. They can be used with power distribution systems, motor control centers, and automation for effective protection.
4. Ground Fault Interrupters (GFIs)
They instantly interrupt the electrical circuit in case of a short circuit or overload. They can easily sense current leaking through the ground and interrupt once the current exceeds a specific value. The risk of ground fault is higher in wet areas (such as bathrooms and kitchens), which is why ground fault interrupters are usually used in such spots.
A Few Examples of Overcurrent Protection Circuits
Nothing can help you better understand what an over current protection circuit is than some of the real-life examples, as given below.
- A residential breaker box installed on your home's electrical panel.
- A wall plug from which you charge your mobile device or laptop.
- Fuses inside chargers, gaming consoles, and televisions.
- Battery management systems in power banks and electric vehicles.
- Automotive fuses in a car fuse box.
- Motor protection circuits in plants and factories.
- Between the combiner and the solar panels or the combiner and a solar inverter.
Standards of Overcurrent Protection
You must comply with overcurrent protection standards and follow the best practices while installing protection devices to avoid any sort of inconvenience in the future. Following the correct standards and practices not only helps you ensure safety but also gives you peace of mind during audits and inspections. Let's look at both the regulatory standards and the right practices for over current protection.
1. Regulatory Standards
The National Electrical Code (NEC) recognizes ground fault interrupters, fuses, and circuit breakers as potential over current protection devices. Article 10 of NEC specifies that the protection devices must be able to stop the flow of excess current through the circuit, ensuring greater safety.
For example, NEC 210.8(A) states that when the current exceeds six mA, a GFI must stop it from flowing through the connected electrical circuit. The quicker the response of the protection device is, the less the risk of the hazard will be.
Similarly, the Underwriters Laboratories (UL) has set different standards for safety purposes, such as UL 489, UL 1077, and UL 2367. Molded-case circuit breakers come under UL 489, whereas supplementary protectors are listed under UL 1077. In contrast, the low-voltage protection devices designed to protect renogy-bifacial-590-watt-n-type-monocrystalline-solar-panel and power supplies are listed under UL 2367.
2. Best Practices in Industries
According to both UL and NEC, overcurrent protection devices must have correct short-circuit ratings. Plus, they must be sized considering the ratings of the electrical panel, conductor, or other related electrical equipment. Additionally, they should be easily accessible from the market. UL frequently checks which products are certified and follow correct standards.
To ensure greater safety, you must conduct routine testing. Doing this will help you determine whether or not the protection devices are functioning properly. Moreover, don't forget to record any modifications or new installations for compliance checks or future reference. Simply put, safety should be your number-one priority when developing and implementing overcurrent protection strategies.
How to Calculate Overcurrent Protection?
All you need to do is determine the highest load current expected in an electrical circuit. Once it is determined correctly, you will be able to select the protection device that can handle the maximum load current. The overall calculation process includes calculating your load requirements, ratings, and the desired adjustments for ambient situations.
1. Circuit Load Requirements
First, you need to calculate the load requirements of an electric circuit. In case you don't know how to calculate the load requirements, the formula below will help you get over the line.
P = V x I
Whereas, P is the circuit's power, V is the voltage, and I denotes the amount of current flowing through a specific circuit.
2. Ratings
According to NEC, the ratings are different for non-continuous, continuous, and motor loads, as described below.
- Noncontinuous Loads: If a device runs for less than three hours a day, it will be considered a non-continuous load. You can consider the actual load current while sizing an over current protection device for non-continuous loads. In simple words, just calculate 100% of the volt-amp rating.
- Continuous Loads: The devices that operate for three hours or more per day are listed among continuous loads. NEC states that you should size an overcurrent protection device at 125% of the continuous load. It means you need to multiply your continuous load by 125%.
- Motor Loads: Full-load current ratings must be considered while designing a protection device for motor loads. They may often need additional capacity to handle starting currents. Multiply full-load current by 1.25 if the service factor is equal to or less than 1.15. If the service is above 1.15, multiply full-load current by 1.15.
3. Adjustment for Ambient Conditions
The performance of overcurrent protection can be affected by the ambient temperature. If the ambient temperature is too high, it may heat up the conductors by increasing their resistance. If a device is not installed in standard temperature conditions (86 degrees Fahrenheit or 30 degrees Celsius), don't forget to check the manufacturer's instructions or NEC guidelines for the desired adjustments.
What to Consider While Designing an Overcurrent Protection Device?
Three methods are important to consider while designing and implementing an overcurrent protection device. Let's look at them one by one.
- Time-Current Features: These characteristics refer to the time a protection device takes to respond to stop the flow of excess current (considering its magnitude). Different protection devices may have different features that reveal their response times.
- Selective Coordination: An electric system must have selective coordination. But what is it? Well, selective coordination refers to the situation when the nearest overcurrent protection device trips to protect the circuit from the free flow of excess current, leaving other devices fully operational. Selective coordination offers a range of benefits, including improved personal safety, enhanced reliability, and reduced downtime.
- Zone-Selective Interlocking: It is a complex method designed for bigger systems. It uses different protection devices to isolate faulted sections of the system, while keeping others functional.
Protect Your Power: Join Renogy Electrician Referral Program
Overcurrent protection is a cornerstone of safe and efficient solar installations, ensuring systems operate reliably under varying electrical loads. Renogy, a leader in solar energy solutions, recognizes this need and offers an exclusive Renogy Electrician Referral Program designed to empower licensed electricians. Through this program, electricians can partner with Renogy to recommend their high-quality solar products to clients, ensuring installations meet the highest safety and efficiency standards. In return, electricians receive special discounts, training resources, and incentives for successful referrals.
Customers, in turn, benefit by connecting with vetted electricians and enjoying special discounts on Renogy products - making it easier than ever to build a safe, efficient solar system with expert support. Renogy's commitment to quality is why they are trusted by electricians nationwide - their products are engineered with advanced safety features, including robust overcurrent protection, to deliver reliable performance in every application. Discover how you can benefit from Renogy Electrician Referral Program and solar products trusted by professionals by visiting Renogy's official website.
Final Thoughts
Overcurrent protection is a critical part of any well-designed electrical system, helping to prevent equipment damage, reduce fire risks, and ensure long-term performance. Choosing the right devices and implementing them correctly can make a significant difference in system reliability and safety. Whether you're working on a residential setup, an RV, or an off-grid installation, it's worth investing in quality components that meet modern standards.
FAQs about Overcurrent Protection
Why is overcurrent protection important in electrical circuits or systems?
The over current protection helps you protect your systems from various issues, such as fire hazards, electrical shocks, and equipment damage when the current flowing through the circuit exceeds the threshold limit.
How does overcurrent protection devices work?
These devices first check if the current exceeds a safe limit and then interrupt the circuit and stop the flow of excessive current.
How does overcurrent damage electrical systems?
Overcurrent may overheat components and wires, resulting in fire hazards, equipment failure, insulation damage, and several other issues. If no protective devices are installed, your system may fail badly. This is the reason both residential and industrial setups ensure to install over current protection devices.
