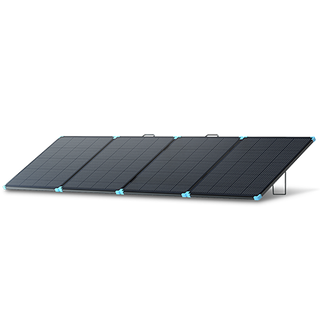

400W Lightweight Portable Solar Suitcase
This high-wattage solar suitcase is lightweight, portable, and supported by robust kickstands for durability.
Proactively Prepare for Outages
To ensure that your batteries are ready, a charge controller is required for proper setup.

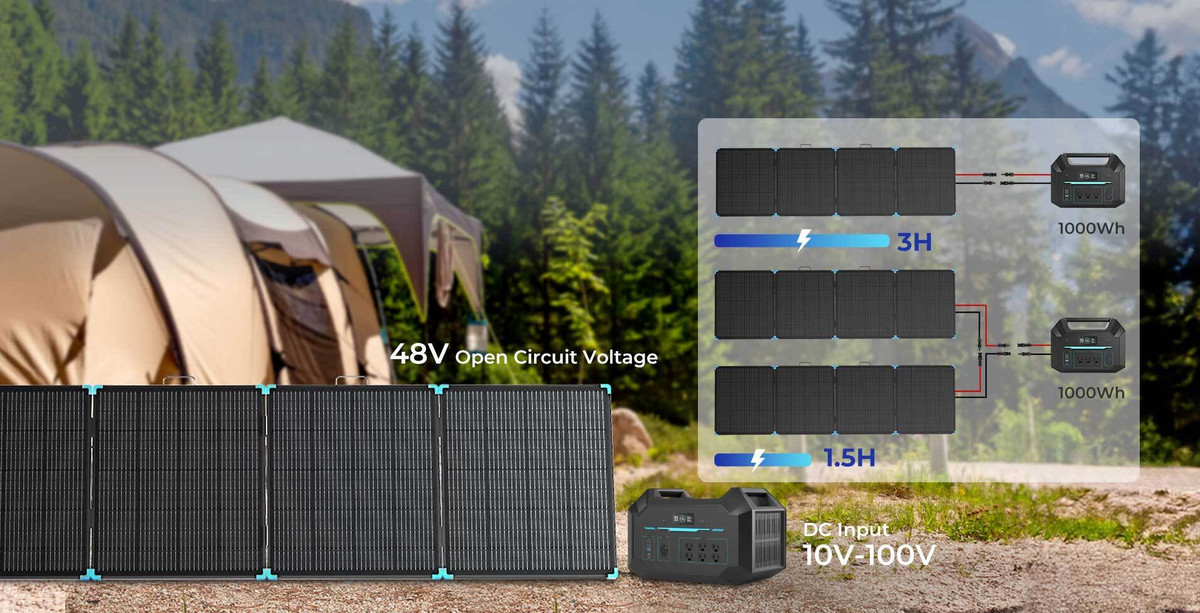

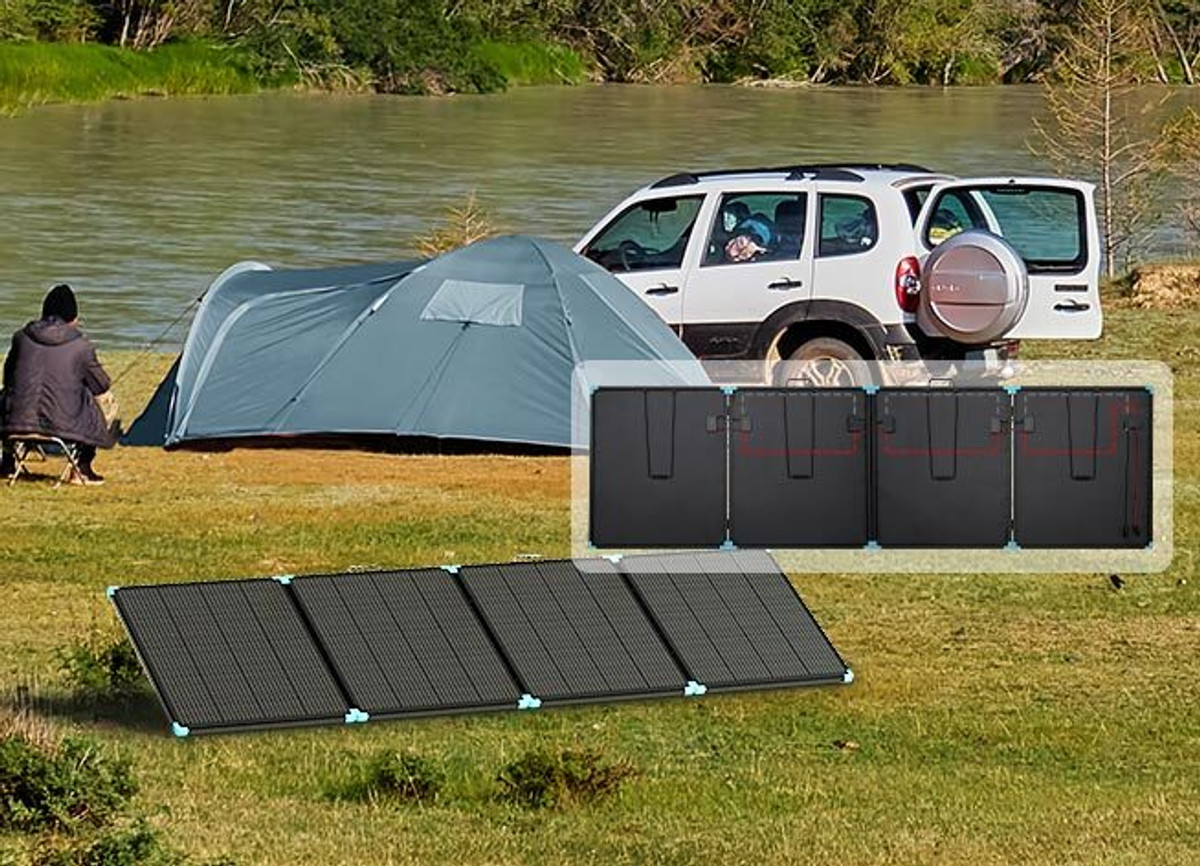

Portable Power Anywhere
Please ensure that the DC input voltage for the portable power station exceeds 48V.

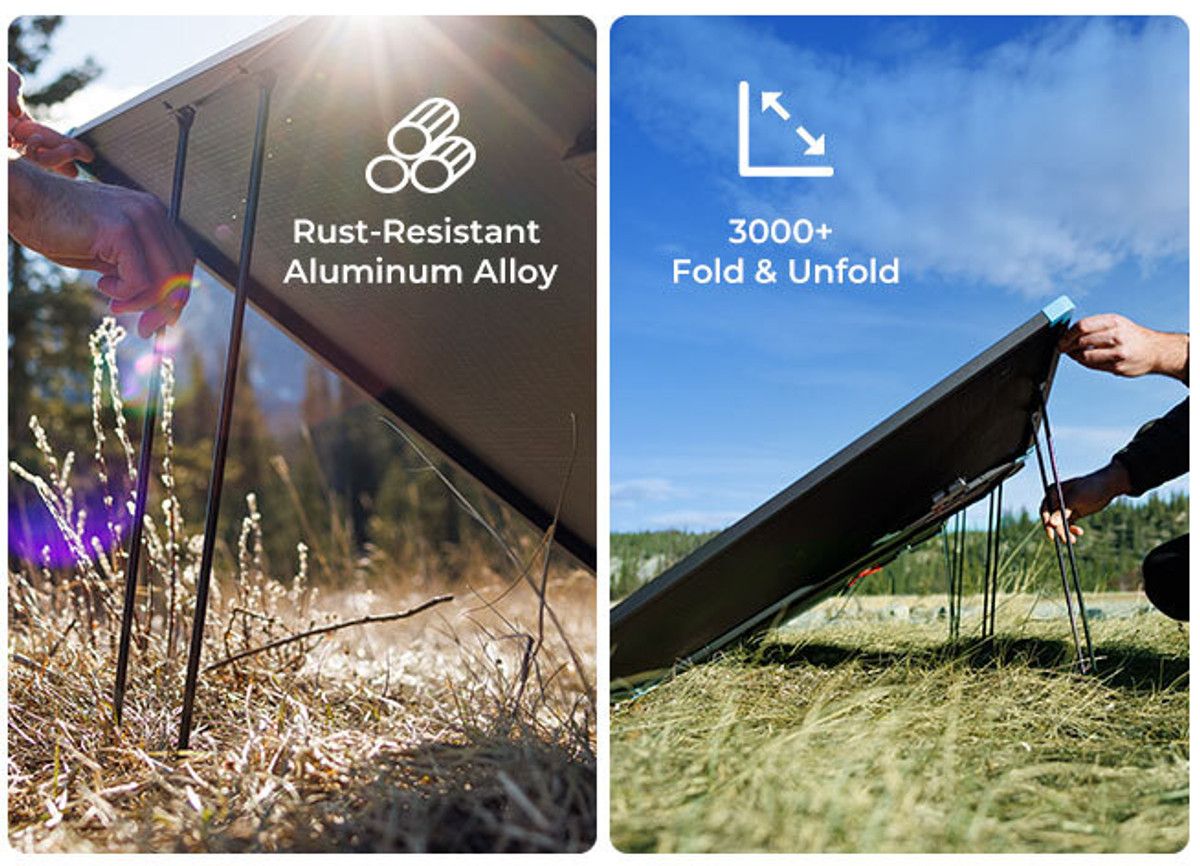

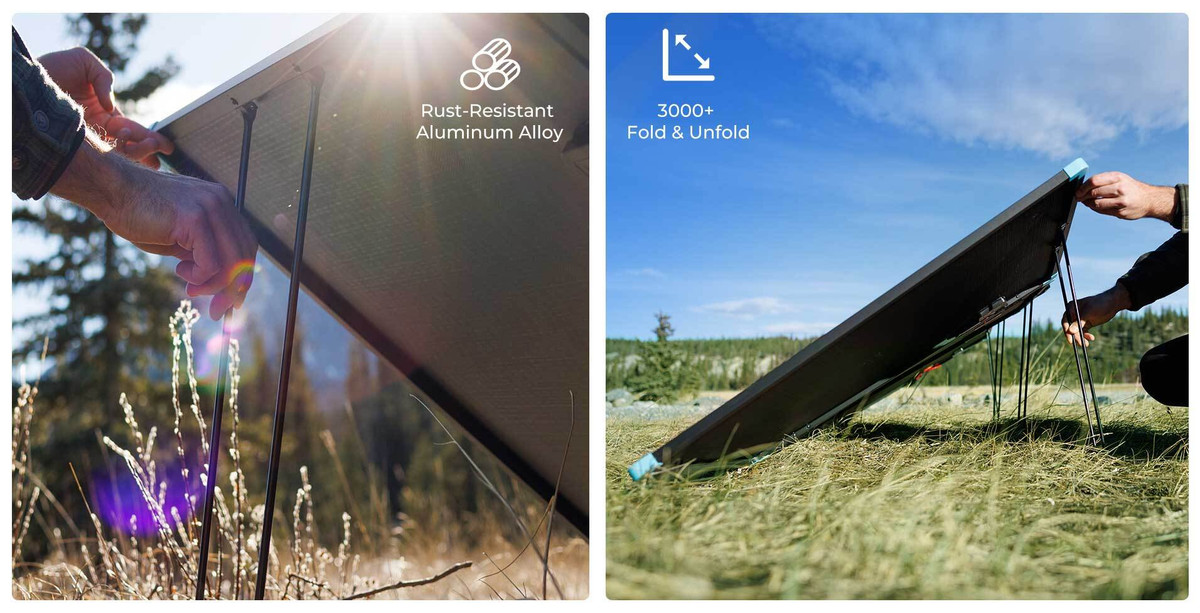

Robust Structure for Consistent Panel Output
Sturdy, rust-resistant kickstands allow maximum power generation.
RV
Home

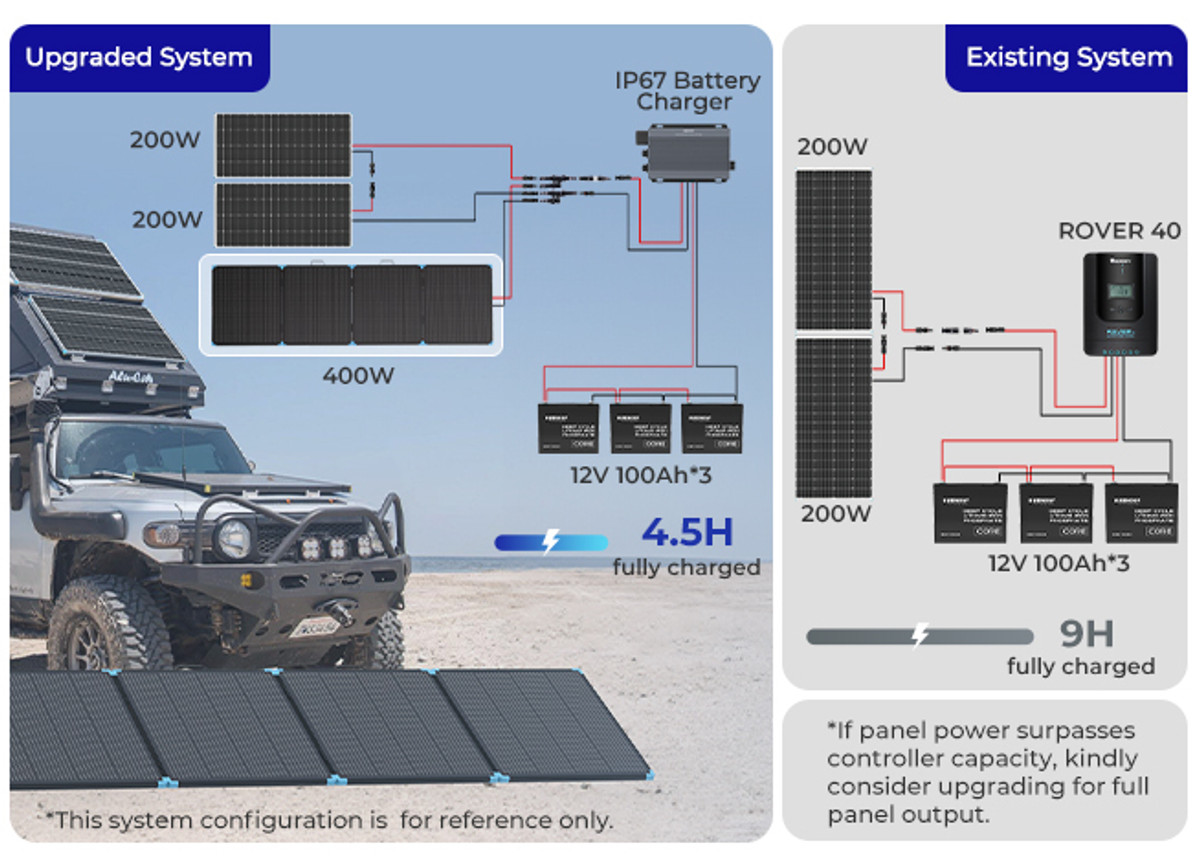

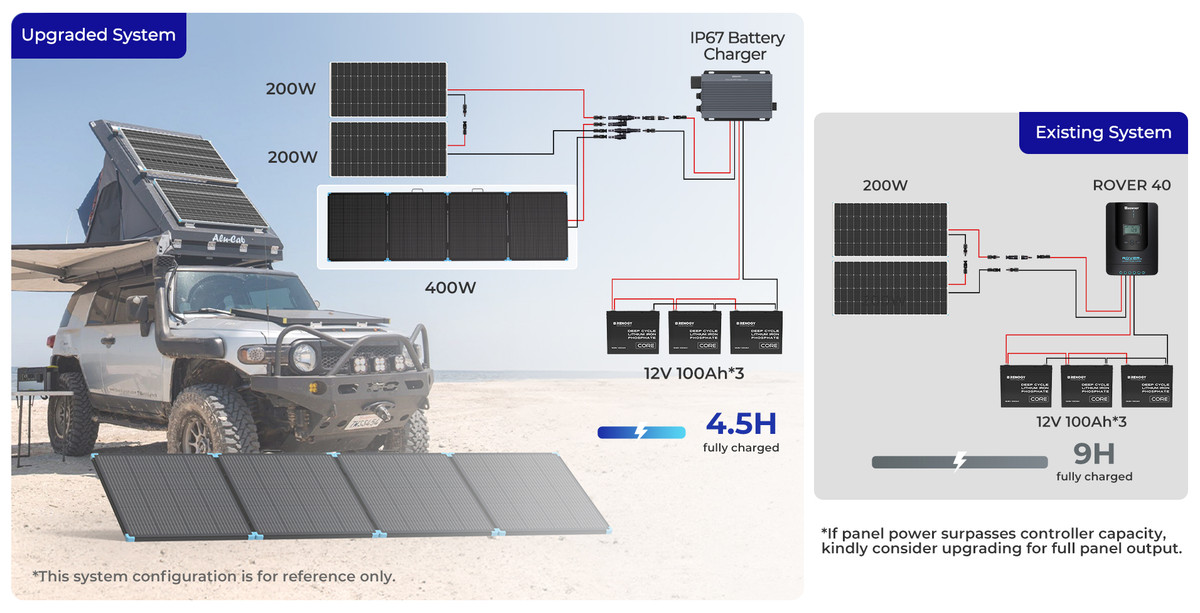

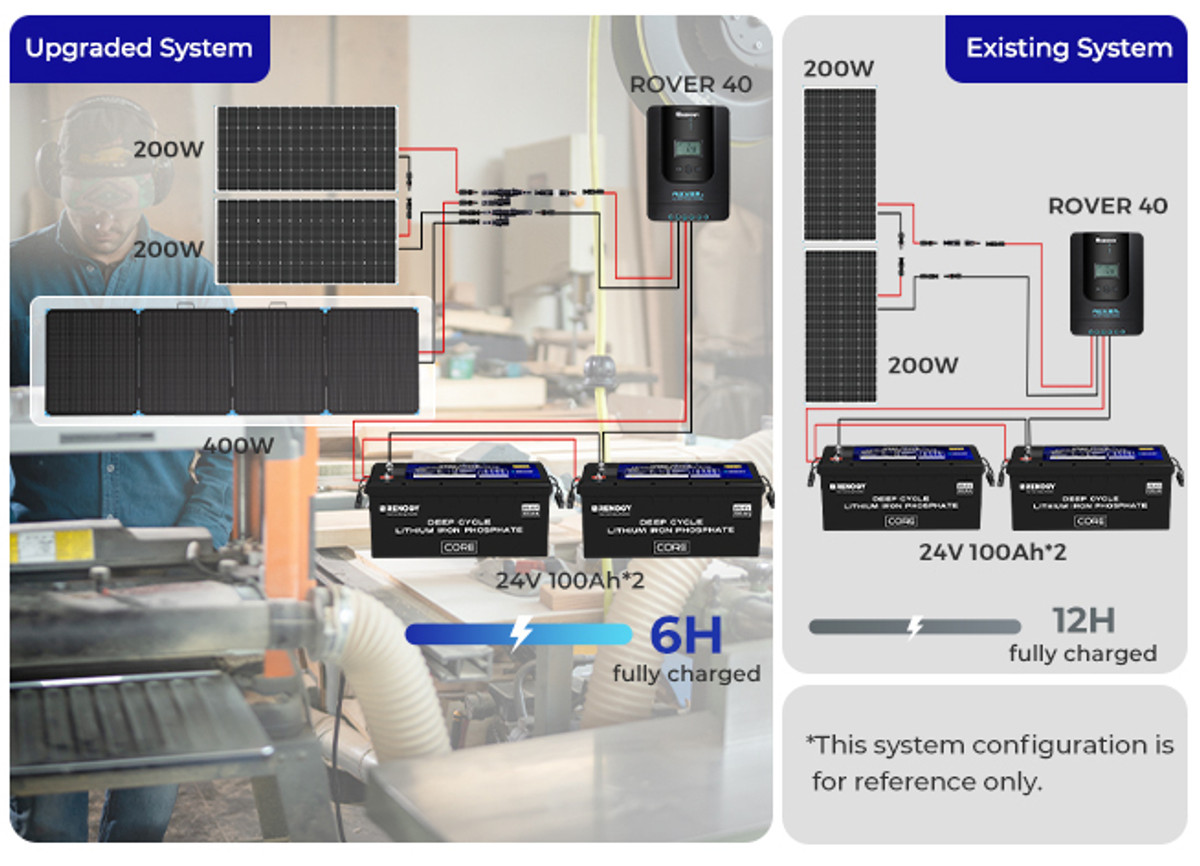

The Dynamic Power Boost for Existing Solar Systems
Please ensure that the PV input voltage remains lower than the controller solar input voltage.
The Dynamic Power Boost for Existing Solar Systems
Please ensure that the PV input voltage remains lower than the controller solar input voltage.

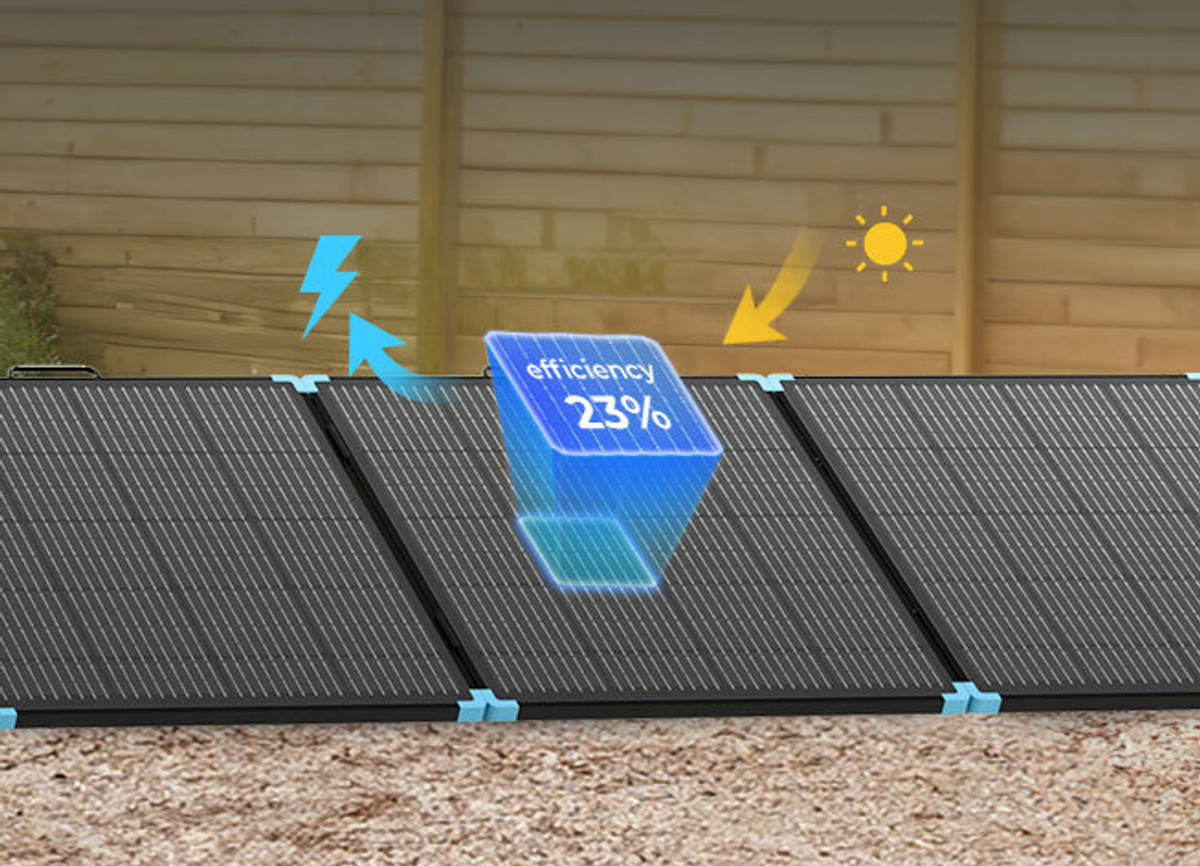

Designed to be Impeccably Efficient
This portable solar suitcase offers 23% cell efficiency by maximizing module potential and harnessing compact solar cell layouts for enhanced module efficiency. Enjoy uniterrupted power for hours, even when travelling in your van or RV.
Unyielding Strength for Extended Outdoor Reliability
Built to last with premium materials for years of reliable performance.
Unyielding Strength for Extended Outdoor Use
Enjoy years of performance with its premium materials that are highly durable. The robust kickstands coupled with the solar panel's top-of-the-line components makes sure that it can withstand harsh weather conditions and other consequences of standing outdoors or travelling around the world, including rust, scratches, and stains.

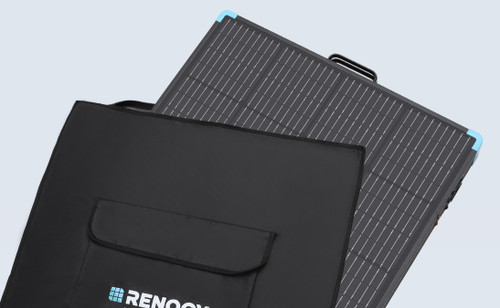

Protective Case
Whether you are headed to a beach city or a mountain top, do not worry about power outage. Slip this solar suitcase into your vehicle and forget about it, as the protective case offers impact protection during transportation for optimal portability

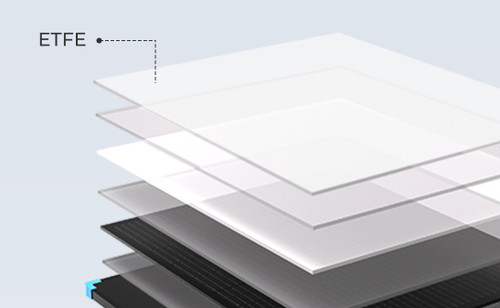

Fiberglass Reinforcement
Delivers exceptional durability even in the face of light hailstorms.

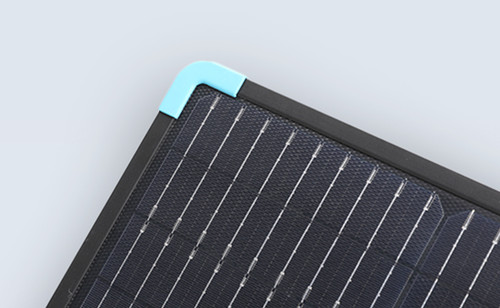

Corner Protection
To ensure optimal portability and longevity when faced with wear and tear, this solar suitcase comes equipped with corner protection. This means whether you subject it to bumpy rides or leave it outdoors during a light hailstorm, it will survive.
Uninterrupted Power Even Under Partial Shading
Cannot get constant sunlight on every part of the panel at all times? Not an issue. Parallel wiring ensures individual shadows won't diminish the overall efficiency of the interconnected panels.
Portability VS Durability
Does Portability Sacrifice Durability in Portable Solar Panels?
Learn more
Uninterrupted Brilliance in Partial Shading
Parallel wiring ensures individual shadows won't diminish the overall efficiency of the interconnected panels.
Why Choose Renogy
Redefining excellence in solar solutions.
Package Includes
1 Piece 400W Portable Suitcase：
400W Portable Solar Panel
x 1
user manual
x 1
Ewarranty card
x 1
2 Piece 400W Portable Suitcase：
400W Portable Solar Panel
x 2
user manual
x 1
Ewarranty card
x 1
With a 40A MPPT Charge Controller：
400W Portable Solar Panel
x 1

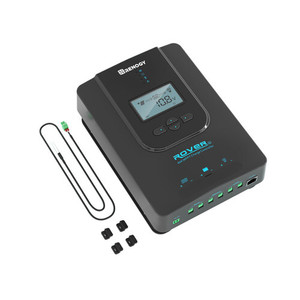

Rover Li 40 Amp MPPT Solar Charge Controller
x 1
user manual
x 1
Ewarranty card
x 1
Renogy 400W Lightweight Portable Solar Suitcase
Max Power at STC
400W
Open Circuit Voltage
47.2V
Short Circuit Current
11A
Optimum Operating Voltage
40V
Optimum Operating Current
10A
Maximum System Voltage
600VDC
Maximum Series Fuse Rating
15A
Operating Temperature
-40°F~185°F / -40℃~85℃
Dimensions
2838*855*20 mm (111.8x33.7 x0.8 in)

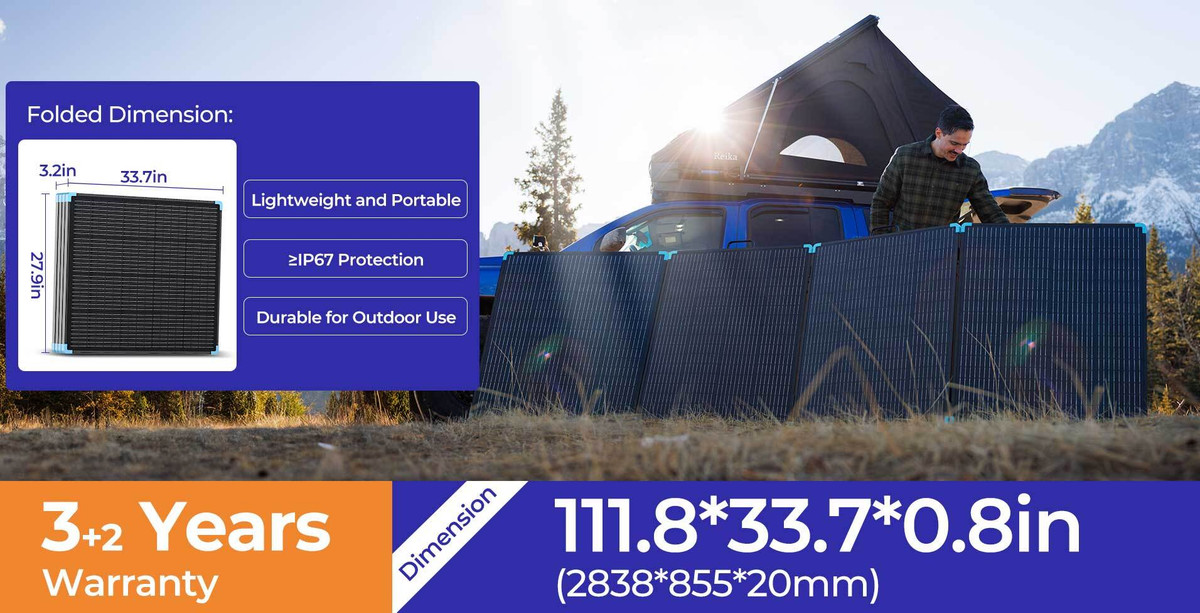

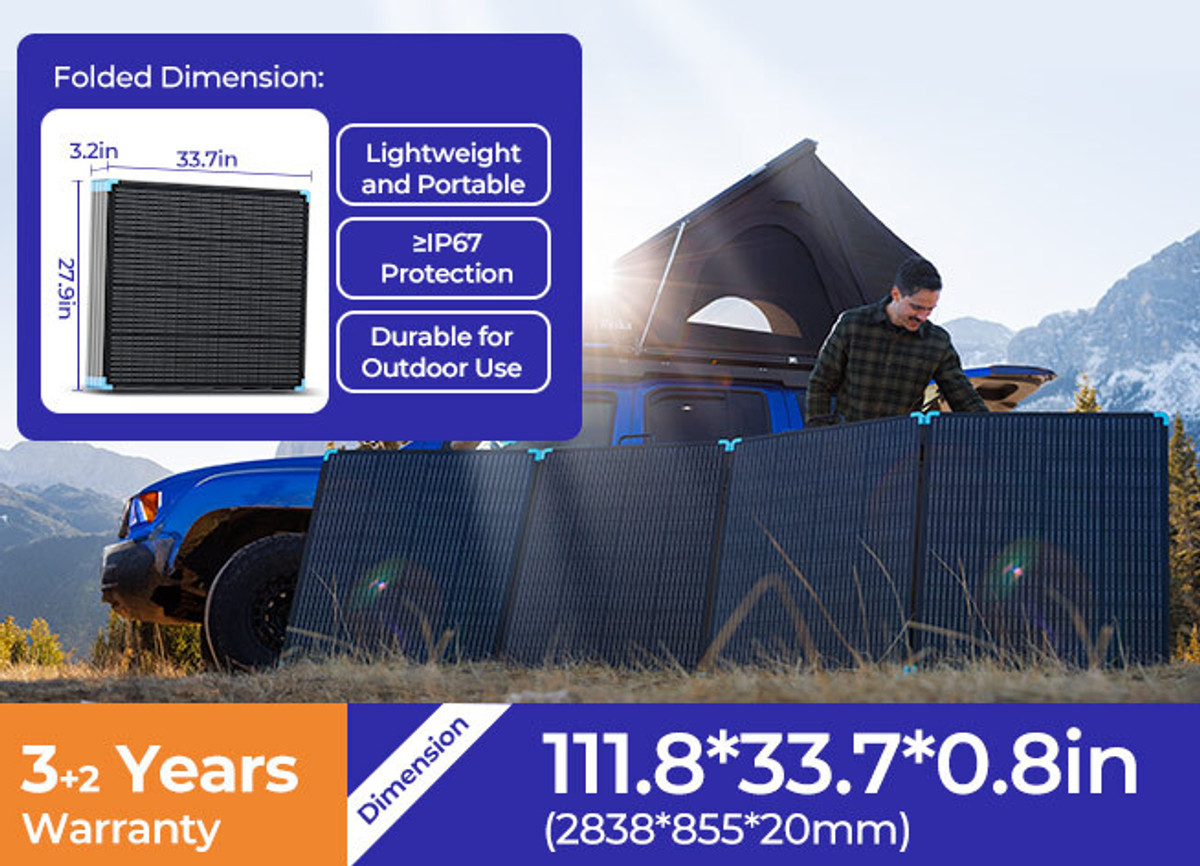

Folded Dimensions
708*855*80mm(27.9*33.7*3.2in)
Weight
13.7kg (30.2 lbs)
Material and workmanship warranty
3-year standard warranty + 2-year extended warranty (available for purchase)
Renogy 40A MPPT Charge Controller
Nominal System Voltage:
12/24V Auto-Detect
Solar Input Voltage Range (Voc):
15VDC~100VDC
Power Consumption:
＜100mA/12V; ＜58mA/24V
Rated Charge Current:
40A
Max. PV Input Power:
12V/520W, 24V/1040W
Battery Input Voltage Range:
10VDC~32VDC
Ground Type:
Negative
Protection Level:
IP32
Storage Temperature Range:
-35°C to 75°C / -31°F to 167°F
Operating Temperature Range:
-35°C to 45°C / -31°F to 113°F
Dimensions:
238 x 172 x 77 mm; 9.38 x 6.78 x 3.05 in
Weight:
2.0kg / 4.41 lb
Max. Terminals Size:
8 AWG 10mm2
Material and workmanship warranty:
3 Year
Frequently Asked Questions

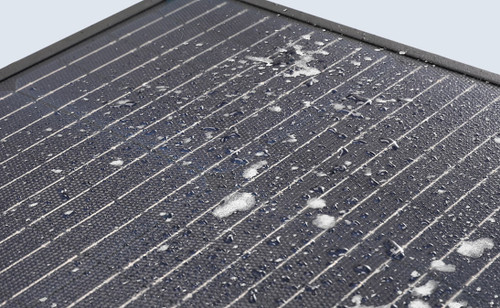

Is this solar suitcase waterproof?

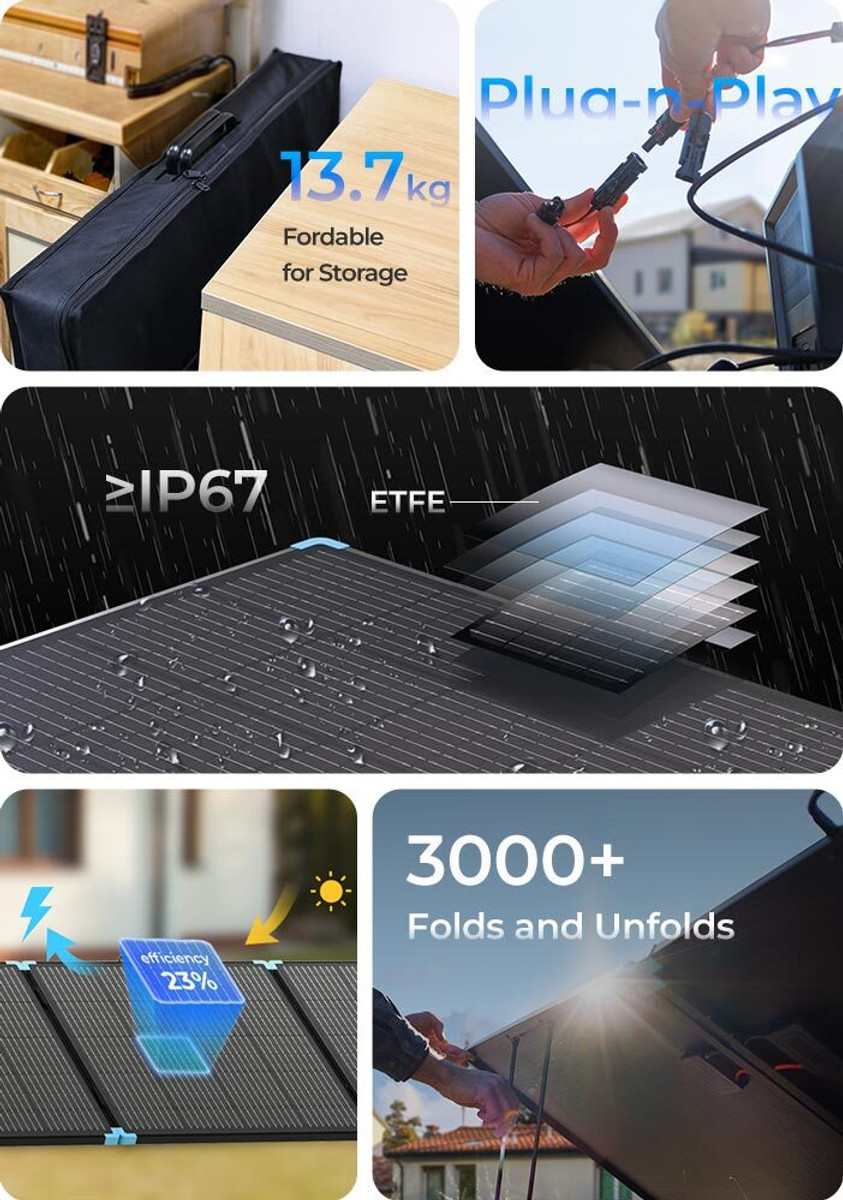

The Renogy 400W Lightweight Portable Solar Suitcase is designed with IP67-rated protection, ensuring robust resistance to dust and temporary water immersion (up to 1 meter for 30 minutes). This makes it highly durable in harsh weather conditions, including rain, snow, and humidity, while its ETFE coating and fiberglass reinforcement enhance weather resistance and structural integrity.
What type of battery can I charge with this 400w portable solar panel?
The Renogy 400W Solar Panel is compatible with various battery types, including 12V lithium-ion battery, sealed lead-acid (SLA), flooded lead-acid (FLA), and gel batteries. To ensure optimal performance and safe charging, it is recommended to pair the panel with an appropriate MPPT (Maximum Power Point Tracking) charge controller, such as the Renogy Rover 40A or 60A MPPT charge controller. This will maximize energy conversion efficiency and provide proper voltage regulation for different battery types.
How much power can this 400W portable solar panel produce?
Under optimal sunlight conditions (peak sun hours), the Renogy 400W portable solar panel can generate up to 2000Wh (watt-hours) of energy per day. Actual solar panel energy output varies based on factors like sun intensity, panel angle, weather conditions, and seasonal changes. Expect around 1600-1800Wh daily output in real-world conditions.
What can you run off a 400-watt portable solar panel?
A 400W portable solar panel can power various devices simultaneously, including laptops (45-100W), LED lights (10-20W), smartphones (5-15W), mini-fridges (50-80W), and small appliances. It's perfect for camping, RV trips, and emergency backup power. When paired with appropriate batteries, it provides reliable power for essential electronics and moderate energy needs.
Will a 400W solar panel run a fridge?
Yes, a 400W solar panel can run a standard RV refrigerator or mini-fridge when properly connected to a battery system. However, for continuous operation, especially during cloudy days or nighttime, you'll need adequate battery storage. The panel provides enough power for most 12V refrigerators consuming 50-80W per hour.
How long does it take a 400W solar panel to charge a 12V battery?
Charging time for a 12V battery using the 400W solar suitcase depends on battery capacity and sunlight conditions. For a typical 100Ah battery at 50% discharge, expect 8-10 hours of charging in optimal sunlight. The integrated MPPT controller ensures efficient charging, reducing overall charging time compared to standard controllers.
How many batteries do I need for a 400 watt portable solar panel?
For optimal performance with a 400W portable solar panel, we recommend using one or two 12V batteries with 100-200Ah capacity each. This configuration provides sufficient storage for daily energy needs while maintaining efficient charging. Consider lithium batteries for better performance and longer lifespan.
Can I connect this foldable solar suitcase directly to my RV?
Yes, the 400W foldable solar panel can be connected to your RV's battery system with a suitable charge controller. For optimal performance and safe, efficient charging, we recommend using an MPPT charge controller. Be sure to follow the proper connection guidelines to maintain warranty coverage and ensure reliable operation.
What is the lifespan of this portable solar panel?
The Renogy 400W portable solar panel is built to last, with an expected lifespan of 10 years when properly maintained. The monocrystalline panels feature high-efficiency cells and durable construction, maintaining 80% or more of their original output after 10 years. Regular cleaning and proper storage will help maximize longevity.
