DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT with Renogy ONE Core

Name: DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT with Renogy ONE Core
Brand: Renogy
SKU: RBC30D1S-BT-CORE-US
Price: 279.99 USD
Availability: InStock

SKU: RBC30D1S-BT-CORE-US

$279.99 ~~$399.99~~

+ 2790 Renogy Rays after purchase.

• Renogy's MPPT controller maximizes solar power (up to 99% efficiency), even for dead batteries.
• 3-phase charging guards against issues like over-voltage, temperature, and polarity. Includes temp compensation.
• Works with traditional and smart alternators, reviving service batteries from starters.

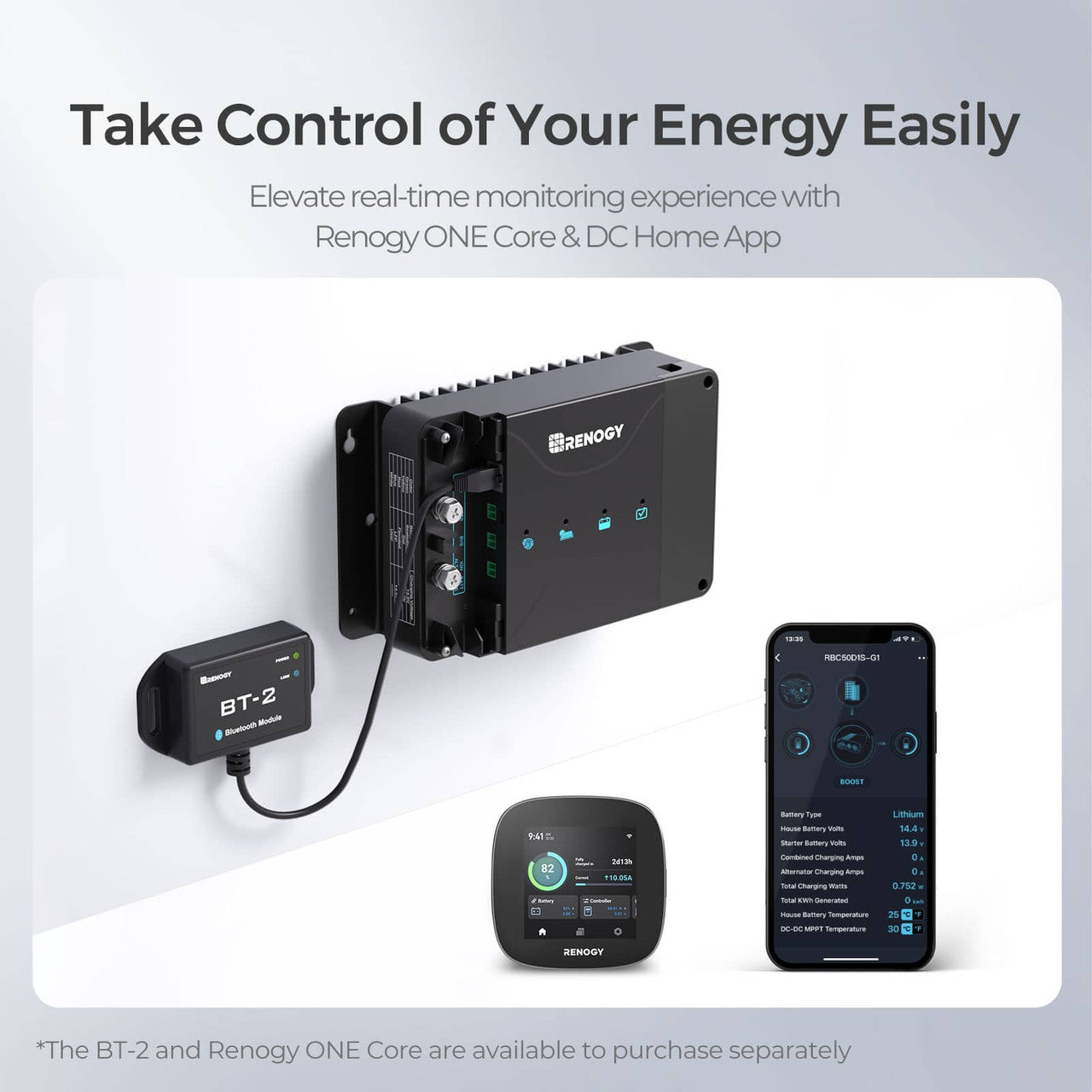

• Use the RJ45 port for real-time control via Bluetooth and the Renogy app.
• Versatile connections for DIY solar panel setups.

6% OFF Coupon for New Subscriber

30-Day Return and Refund Service

Lifetime Customer Support

Show More Benefits Show Less

Payment Methods

Delivery Methods

Delivery time: 1-3 business days.Shipping Policy

Description

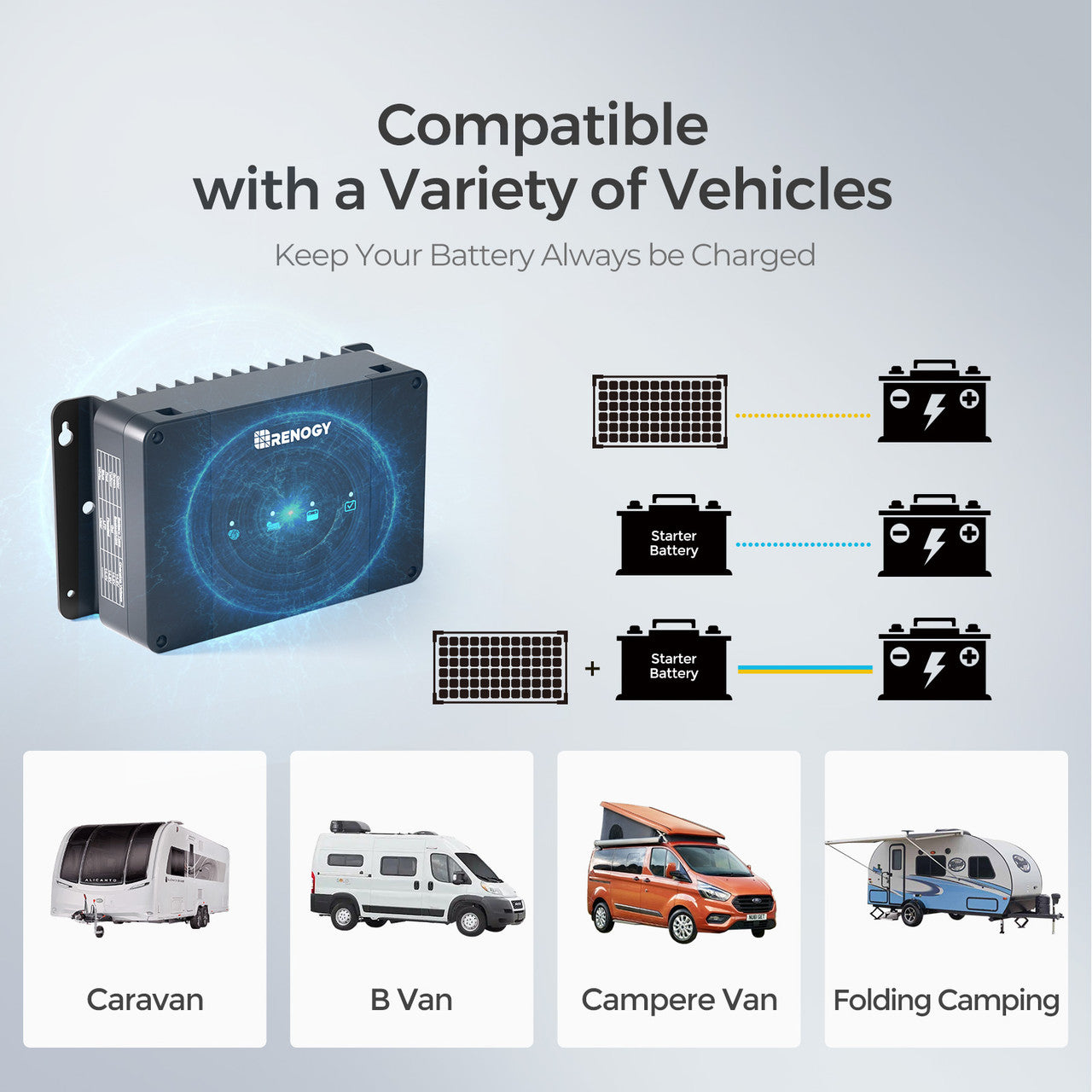

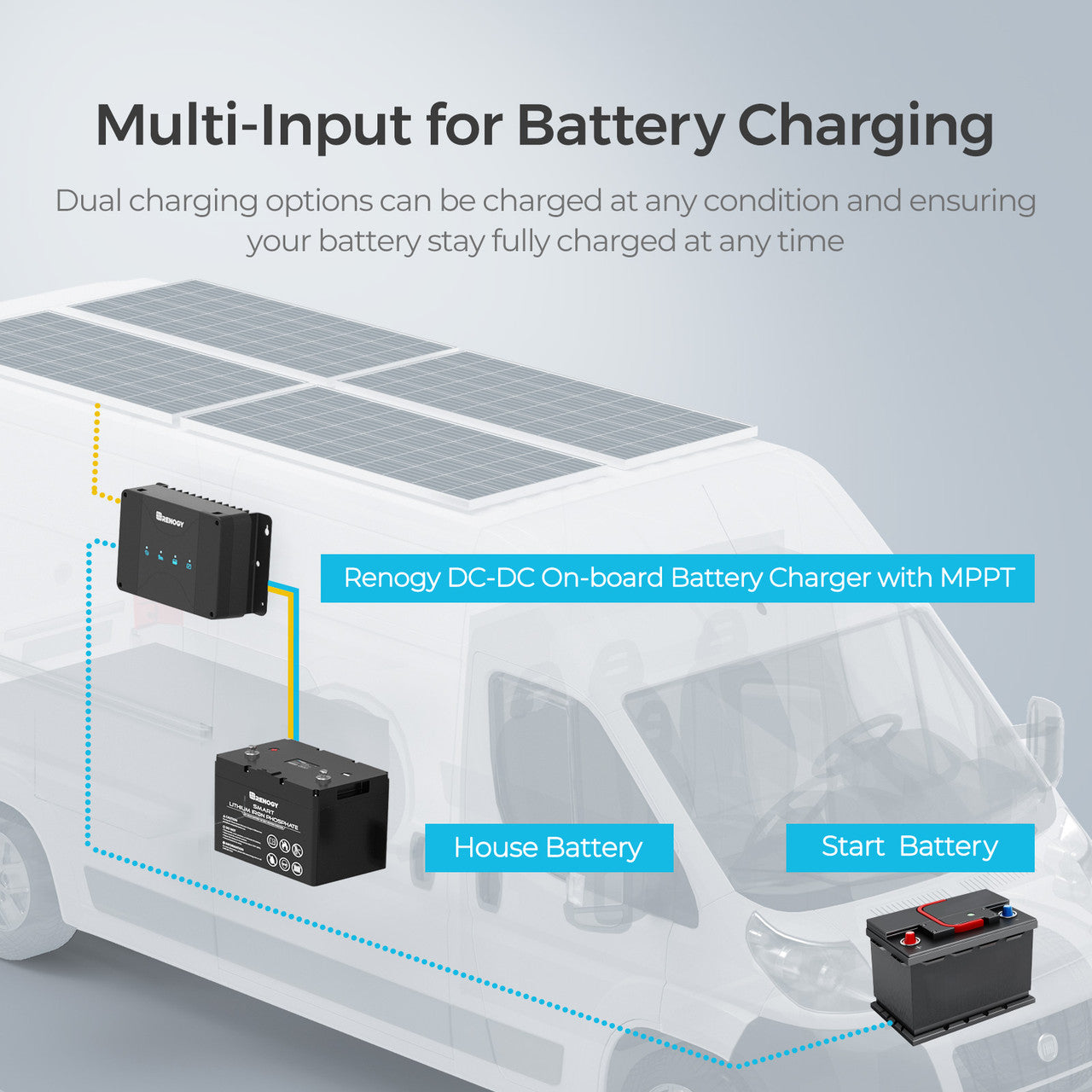

Renogy's DC to DC MPPT on-board Battery Charger is designed to give you options! This multi-stage, multi-input battery charger can charge a service battery from a starting battery linked to an alternator or by utilizing solar panels connected directly to the unit. While your vehicle's alternator prioritizes your starting battery, this unit will allow your solar system to charge your service battery first! It's the smart way to keep yourself fully charged and off-grid longer! And with multi-stage charging and multi-chemistry functionality, Renogy's DC to DC MPPT Charger has you covered whether you're using Flooded, Gel, AGM, or Lithium batteries. With RJ45 communication port featured, you can unlock monitoring features exclusively using the BT-2 Bluetooth Module and Renogy DC Home App, control and monitor the device remotely through your phone in real time.

NOTE

If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or submit a ticket for troubleshooting assistance.
More questions about your off-grid power system? Learn more from Renogy Learning Center!

MARINE

CAMPING

OUTDOOR

CABIN

TRUCK

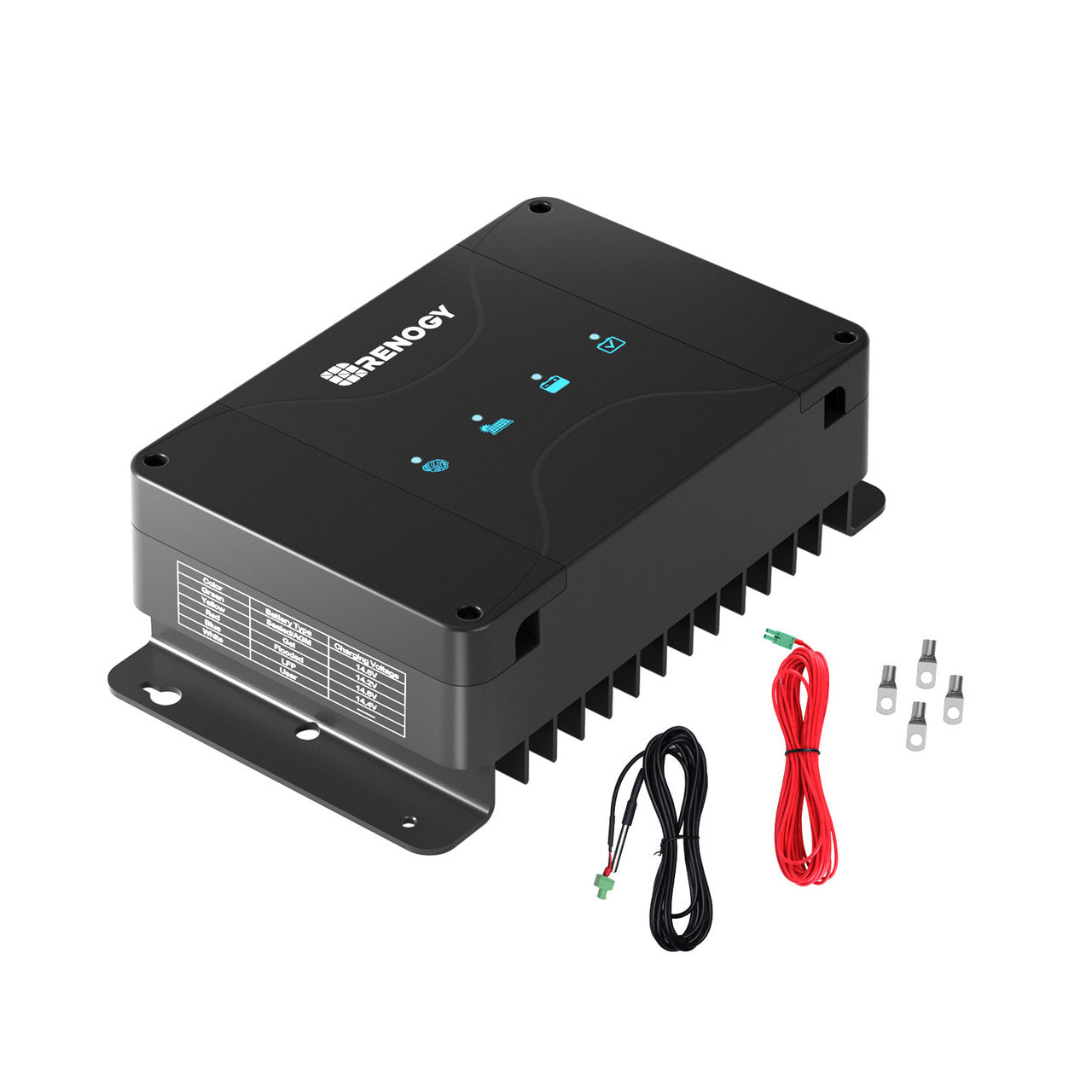

Package Include

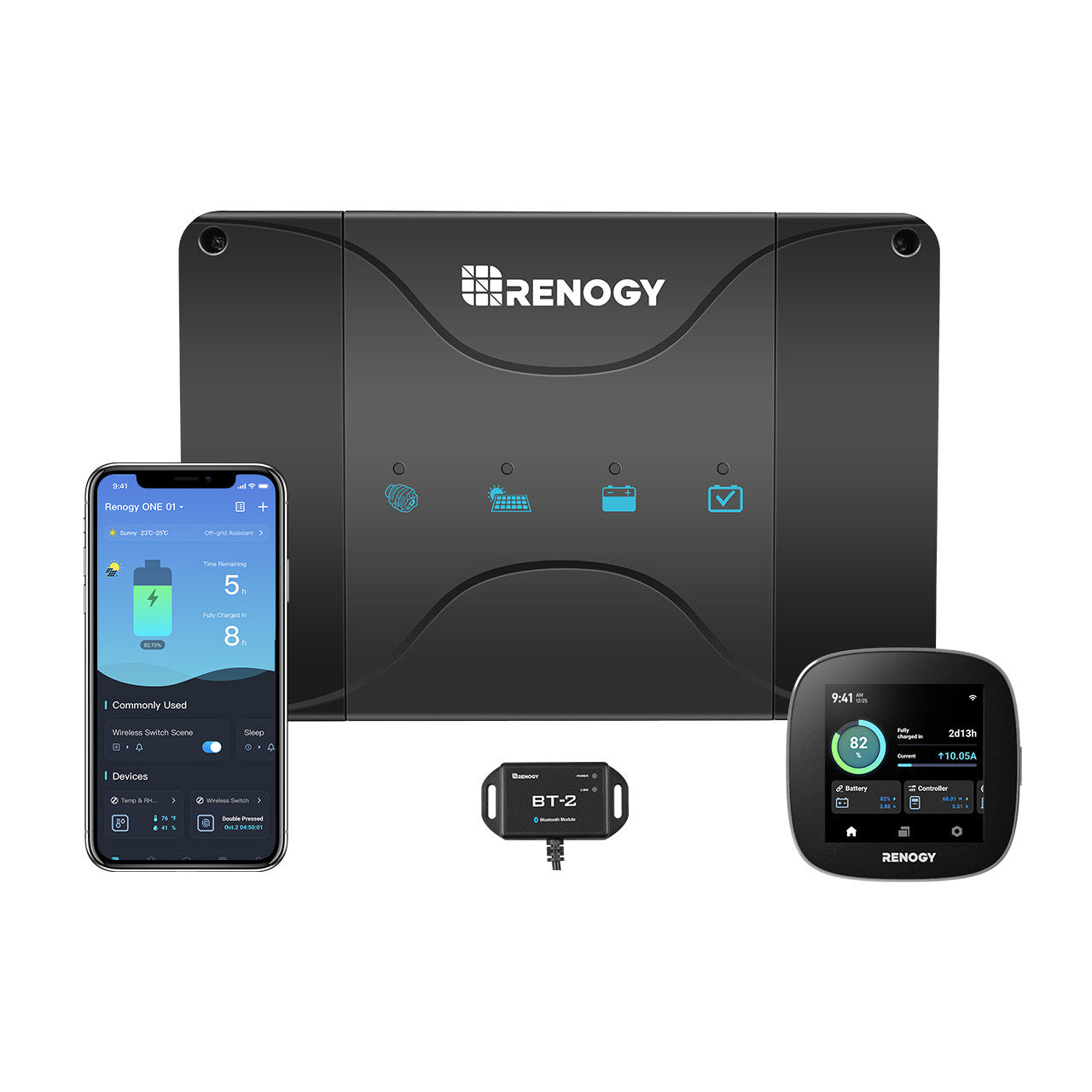

Battery Charger 1 x	Bluetooth Module 1 x

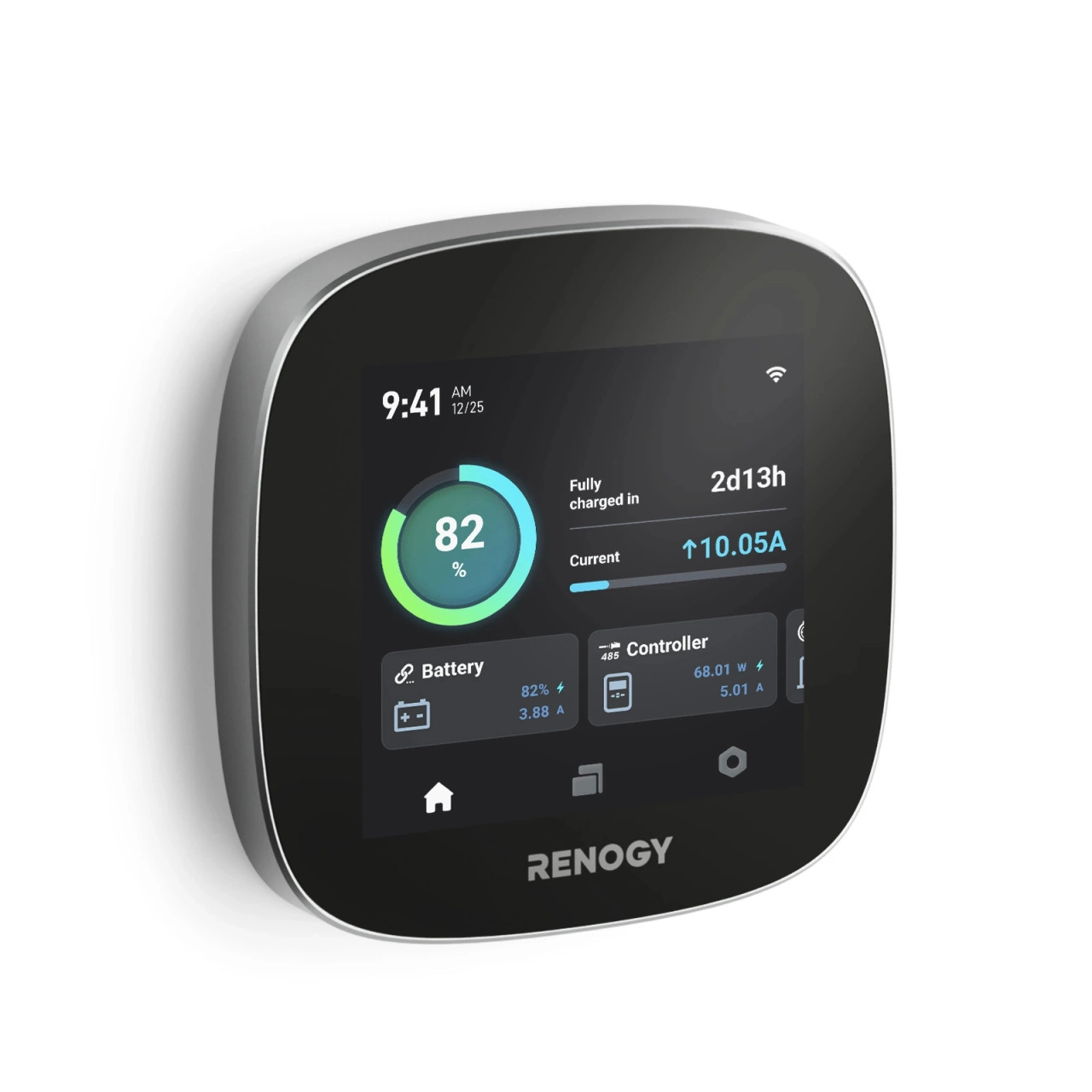

Renogy One Core 1 x	Battery Temperature Sensor 1 x
IGN Signal Wire 1 x	Battery Voltage Sensor 1 x

DCC50S 12V 30A DC-DC ON-BOARD BATTERY CHARGER WITH MPPT

Electrical Parameters

System Voltage: 12VDC	Battery voltage Range: 9-16VDC
Maximum Charging Current: 30A	Battery Types: SLD/AGM, GEL, FLD, LISER
Service Battery Charging Mode: MPPT	Charging Efficiency: Up to 97%

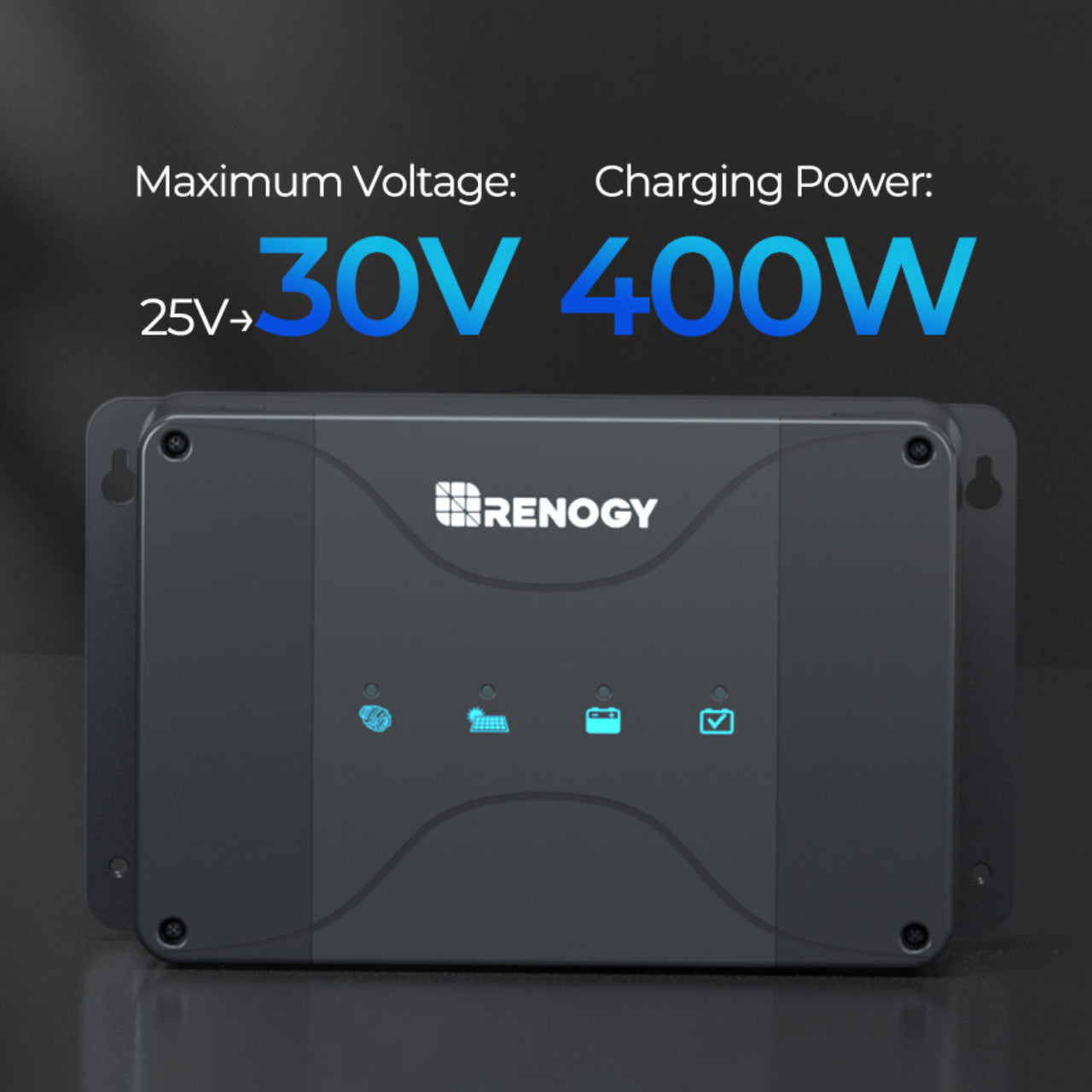

Max. Solar Input Voltage: 30V	Max. Solar Input Power: 400W
Alternator Input Voltage: Traditional Alternator: 13.2-16VDC Smart Alternator (Euro 6): 12-16VDC	Max. Alternator Input Power: 400W
Self-consumption: 60mA

Mechanical Specifications

Ground Type: Negative	Terminal Size: M8 * 1.25 - 10mm

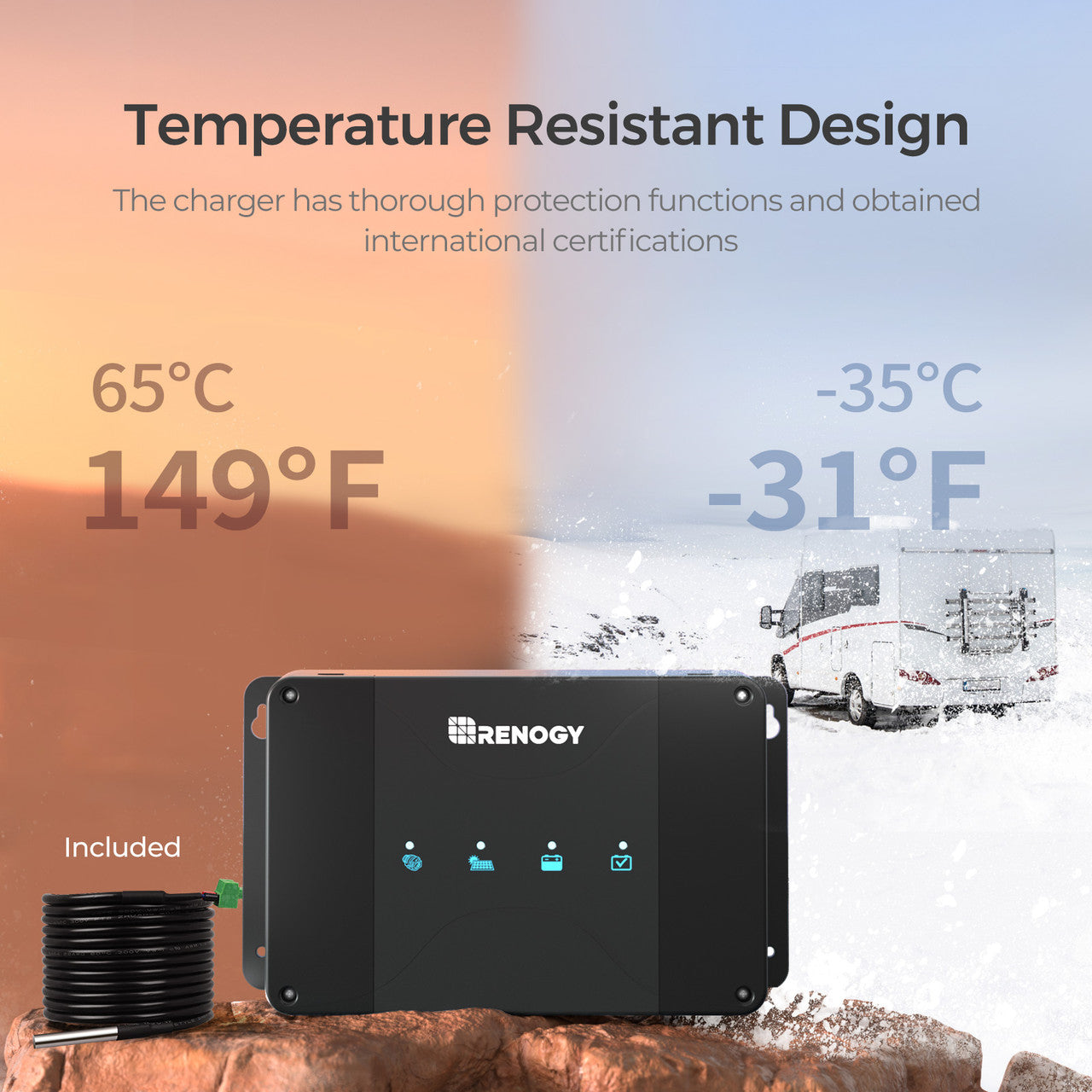

Temperature Compensation: -3mV/C/2V	Operating Temperature Range: -31°F - 149°F
Storage Temperature Range: -40°F - 176°F	Operating / Storage Humidity: 0%-95%, No Condensation
Dimensions: 9.6 * 5.7 * 3.0in	Weight: 3.13Ibs
Communication Protocol: RS485

WARRANTY INFORMATION

Material and workmanship warranty: 3 Year	Charge Controllers: DCCS Dual Input
Battery Chargers: DCCS Dual Input

Certifications

CE：: YES	ROHS：: YES
FCC Part 15 class B: YES

1. What type of alternator is this on-board battery charger compatible with?

This battery charger is compatible with both traditional and smart alternators. However, since standard/traditional alternator has a fixed voltage when charging, while smart alternator has a controlled charging output based on operating conditions, it is required to connect the charger to the smart alternator through the Vehicle Ignition Port by the IGN Signal Wire comes with the package.

2. What will happen if the service battery is fully charged?

This Renogy's DC to DC MPPT on-board Battery Charger has a built-in Voltage Sensitive Relay (VSR), thanks to which the charger will Trickle Charge the service battery and maintain its fully charged status, and will also Trickle Charge the starting battery via solar panels. The VSR also ensures reliable isolation between the starting battery and service battery, avoiding charging interference.

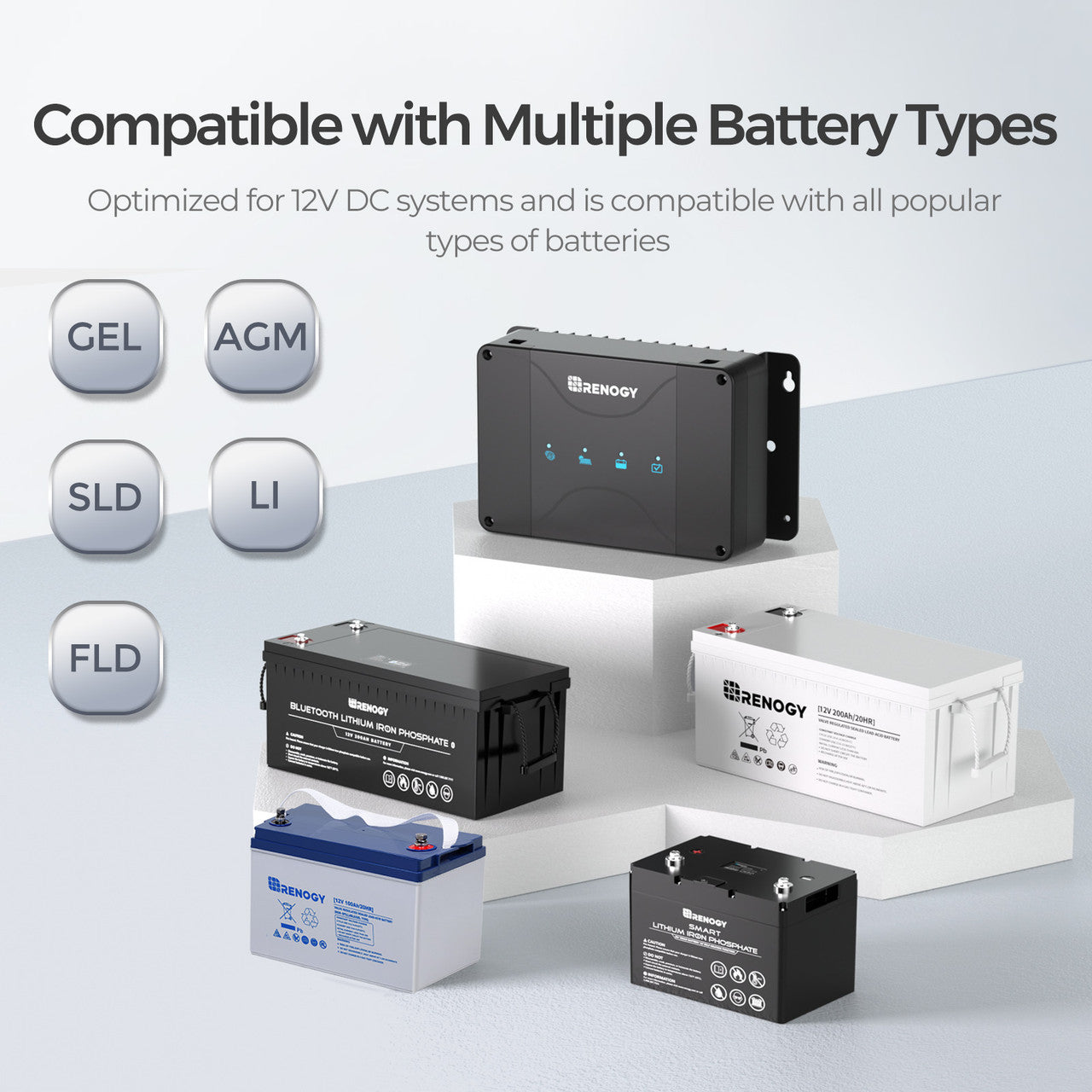

3. What types of battery does the charger support?

This controller supports Gel, AGM, Flooded, and Lithium battery, but please make sure to set the correct battery type once it is installed. For battery settings please refer to the Manual Book on page 12&15.

4. How do I set the battery since there is no display screen?

To change the battery type you will need to press the push button that is located on the PV+ and ALT+ side of the DCDC, then continue to press the button and the LED will display different colors with each representing a single type of battery. Please refer to the manual on page 15 for Battery Type LED.

NOTES

1. Do not reverse the polarity since the reverse polarity of the battery connections can cause injury and damage to the device.

2. When connecting the charger and the battery, make sure the battery poles are clean when connecting the terminals, select a sufficient cross-section for the connection cable, tighten the nuts and bolts with proper torque as loose connections may cause overheating.

3. Be careful not to over-torque the terminals on the DCDC as over-torquing may cause irreparable damage (Do not exceed 16 N-m / 3.3 ft-lb).

4. Use the following cable colors:

Red: positive connection

Black: negative connection

5. If the battery charger is connected to the starting battery and solar panels at the same time, the maximum input current will be 25A for each; if the battery charger only connects one of the two DC inputs, the maximum input current will be 50A.

More questions about your off-grid power system? Learn more from Renogy Learning Center!





Please click the links below to download the manuals:
RBC3050D1S Fuse Installation Instructions
