When it comes to solar panel series vs parallel connections, installers face a choice similar to Volta's: maximize voltage or current? This decision can significantly impact your solar array's performance and efficiency. In this article, we'll explore the pros and cons of each configuration, helping you understand which setup might be best for your solar project.

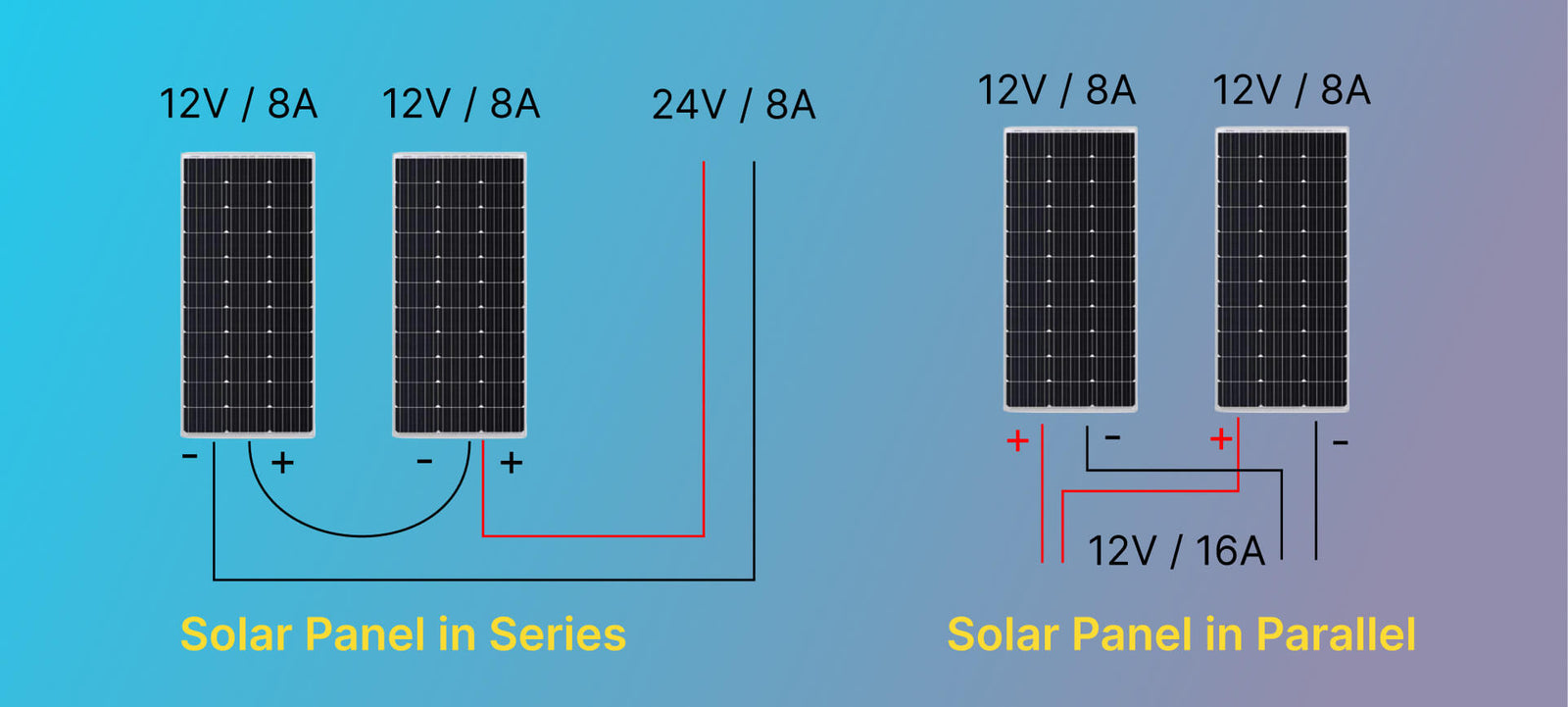

What’s the Difference Between Wiring Solar Panels in Series or Parallel
The main difference between series and parallel wiring of solar panels is their effect on voltage and current.
- Series Wiring – Increases total voltage while current stays the same; ideal for long cable runs and voltage-based inverter requirements.
- Parallel Wiring – Keeps voltage constant but increases current; better for handling partial shading and higher current demands.
- Key Impact – Wiring choice directly affects system efficiency, power output, and inverter compatibility.
- How to Choose – Decide based on inverter specs, roof layout, cable length, and shading conditions.
Wiring Solar Panels in Series
Solar panels wired in series are connected in a single string, with each panel’s positive terminal linked to the next panel’s negative terminal. This setup increases the system’s total voltage while keeping the current the same. Series wiring is commonly used in residential and commercial systems when higher voltage is needed or when longer cable runs are required to reduce power loss.
How do Solar Panels in Series Work?
When solar panels are connected in series, their electrical characteristics combine in a specific way:
- Voltage: Panel voltages add up in series. For example, three 30V panels produce 90V total, helping meet inverter requirements and reduce voltage loss over long cable runs.
- Current (Amps): Current stays the same as a single panel. The entire string is limited by the weakest panel, so shading or damage to one panel reduces output for all.
Wiring Solar Panels in Parallel
Parallel wiring connects all solar panel positive terminals together and all negative terminals together. Unlike series wiring, this configuration keeps the system voltage the same as a single panel while increasing the total current (amperage). Parallel connections are commonly used in residential and commercial systems where higher current is needed or where partial shading is a concern, since shading on one panel has less impact on the overall system output.
How do Solar Panels in Parallel Work?
Understanding the difference between series and parallel connections is crucial when examining how parallel-wired solar panels function:
- Voltage: In a parallel connection, voltage remains the same as a single panel. For example, three 30V panels wired in parallel still output 30V. This stable voltage is the defining difference from series wiring.
- Current (Amps): Currents add up in parallel wiring. If each panel produces 10A, three panels together deliver 30A (10A + 10A + 10A). This higher amperage is useful for systems that require more current or use current-limited inverters.
Solar Panel in Series vs Parallel: Which is Better
When deciding between wiring your solar panels in series or parallel, it's crucial to consider several factors to determine which configuration is best for your specific needs. Both methods have their advantages and disadvantages, impacting system performance in different ways.
Solar Panels in Series: Pros and Cons
Pros
- Higher System Voltage: Wiring panels in series increases total voltage, which helps reduce power loss over long cable runs.
- Works Well with MPPT Controllers: Series connections provide the higher voltage input that MPPT charge controllers are designed to utilize, improving overall system efficiency in stable sunlight conditions.
- Simpler Wiring: Fewer cables are required compared to parallel setups, resulting in a cleaner installation and potentially lower wiring costs.
Cons
- Shade Sensitivity: If one panel in the string is shaded or underperforming, the output of the entire series string drops.
- Less Flexibility: Series systems must stay within the voltage limits of the inverter or charge controller, which can limit expansion options.
Parallel Wiring: Pros and Cons
Advantages:
- Better Shade Tolerance: Shading on one panel has little effect on the others, making parallel wiring ideal for partially shaded or uneven lighting conditions.
- Stable System Voltage: Voltage remains the same as a single panel, simplifying compatibility with inverters and battery banks.
- Higher System Reliability: If one panel fails, the remaining panels continue producing power.
Disadvantages:
- Higher Current Load: Increased amperage requires thicker cables and higher-rated components, raising system cost.
- Greater Voltage Loss Over Distance: Long cable runs can lead to efficiency losses, especially in larger systems.
Wiring Solar Panels Series vs Parallel: Which is Right for You
To determine whether to wire your solar panels in series or parallel, consider the following factors:
1. System Voltage Requirements
For systems that need to operate at higher voltages, such as those using Maximum Power Point Tracking (MPPT) charge controllers, series wiring is typically more suitable. Higher voltage systems can be more efficient and easier to manage over long distances.
2. Shading Conditions
If your installation site is prone to shading, parallel wiring is often the better choice. Parallel systems ensure that shading on one panel does not drastically reduce the entire system's output, providing more reliable performance under variable conditions.
3. Component Compatibility
Ensure that your inverter, battery bank, and other components are compatible with the voltage and current levels of your chosen wiring method. Many grid-tied inverters require higher voltages, favoring series connections, while some off-grid systems might benefit from the redundancy and shade tolerance of parallel connections.
FAQs about Series vs Parallel Solar Panels
1. Should I wire solar panels in series or parallel with MPPT charge controller?
Answer: Use series wiring for sunny, unshaded areas to maximize MPPT efficiency, and parallel wiring for shaded or variable-light conditions to maintain output.
Why Series: Series connections increase system voltage while keeping current low. MPPT controllers work most efficiently at higher voltages, and wiring requires thinner cables, saving cost. The main drawback is that shading on one panel reduces the output of the entire string.
Why Parallel: Parallel connections keep voltage constant but add current. This makes the system more tolerant to shading, as one panel’s reduced output doesn’t impact others. The trade-off is thicker cables and higher current ratings, which can increase cost.
Tip: For large arrays, a combination of series and parallel wiring can balance voltage and current to stay within your MPPT controller’s limits and maximize overall efficiency.
2. Can I Mix Series and Parallel Solar Panels?
Yes, you can mix series and parallel solar panels, a method known as a "series-parallel" configuration. This setup combines the benefits of both wiring methods, increasing both voltage and current. Ensure all panels have similar electrical characteristics to avoid mismatches and optimize performance. Consulting with a solar energy professional can help design the best series-parallel configuration for your system.
3. Should 12V Solar Panels Be Wired in Series or Parallel?
12V solar panels can be wired in either series or parallel, depending on your system requirements. For higher voltage systems, wire them in series to increase the overall voltage. For increased current and better performance under shaded conditions, wire them in parallel. Assess your energy needs, inverter specifications, and shading conditions to determine the best configuration.
4. Can You Add More Solar Panels to an Existing System?
Yes, you can add more solar panels to an existing system. Ensure compatibility with your existing inverter and battery bank. If your current setup is in series, you may need to adjust the voltage and current to match the new panels. Consult with a solar energy professional to ensure seamless integration and to optimize your system's performance.
5. Do Solar Panels Charge Faster in Series or Parallel?
Solar panels do not necessarily charge faster in series or parallel; it depends on the system configuration and conditions. Series wiring increases voltage, which can be more efficient for long distances, while parallel wiring increases current, which can be better for shaded conditions. The charging speed is influenced by the overall system design and component compatibility.
Solar systems are on sale right now. Get more power, better efficiency, and lower costs!
Conclusion
In the debate of solar panel series vs parallel, the best choice depends on your specific needs and system conditions. Series wiring increases voltage, making it ideal for minimizing power loss over long distances and optimizing MPPT charge controller efficiency. Parallel wiring, on the other hand, enhances current, improves shade tolerance, and maintains voltage stability. By understanding the differences between these configurations, you can optimize your solar energy system's performance. For reliable and high-quality solar panels, consider Renogy.
