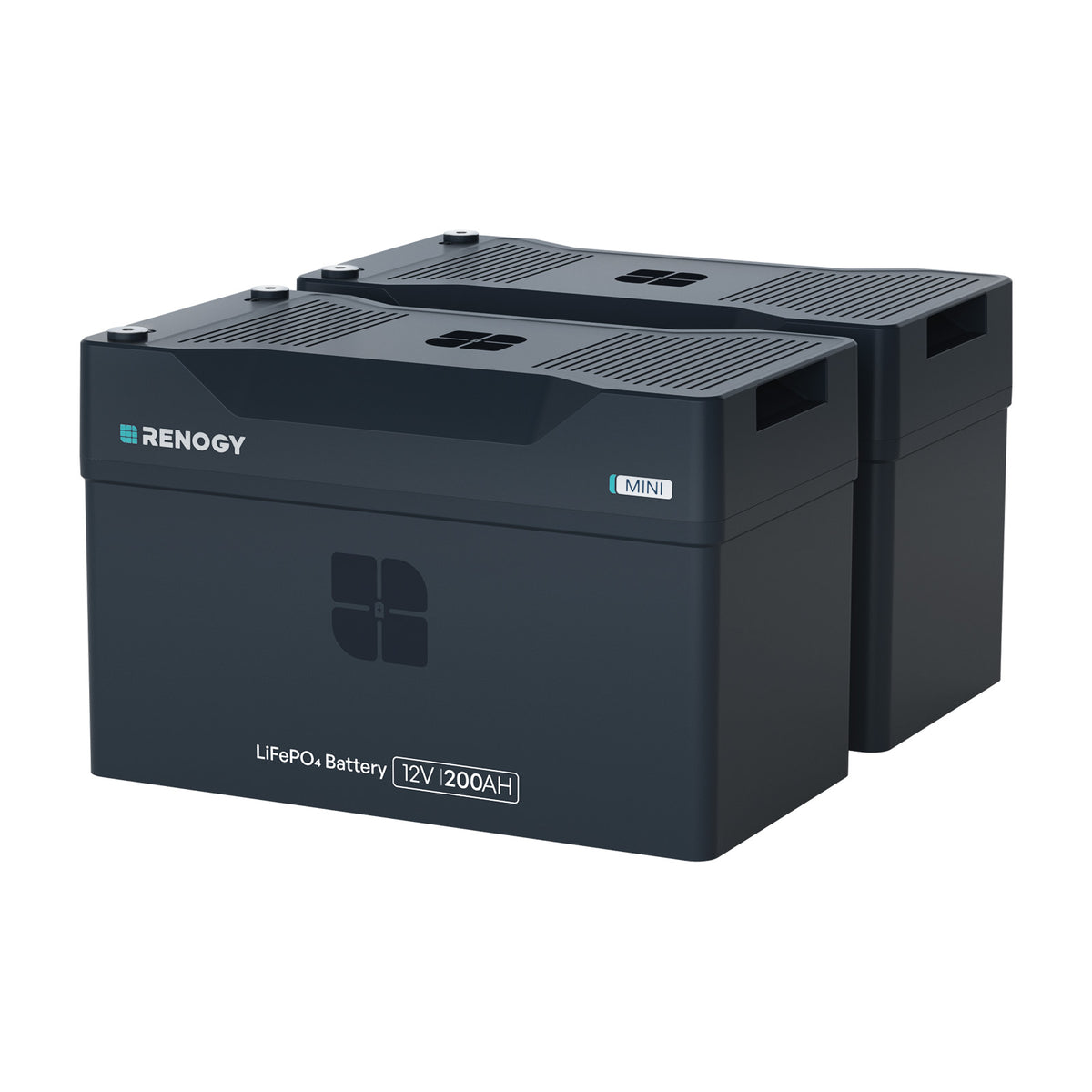

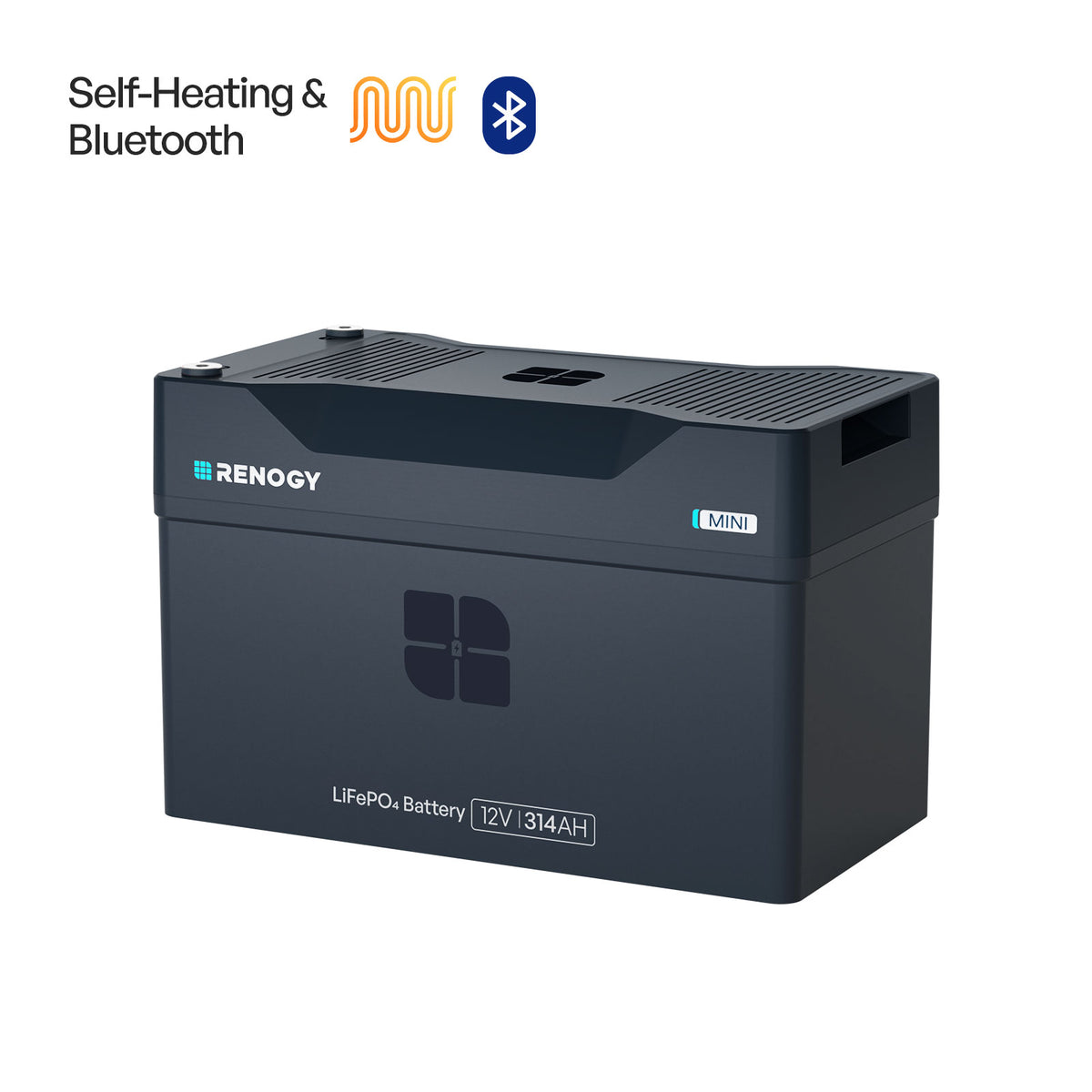

Reserve Mini Smart 12V 200Ah / 314Ah LiFePO4 Battery with Self Heating & Bluetooth
SKU:
$899.99
Precio unitario
/
Agotado
+
+
Rays
después de la compra.
Log In
About Renogy Membership
Características principales
- - Get more capacity in less space with compact 200Ah and 314Ah capacity options

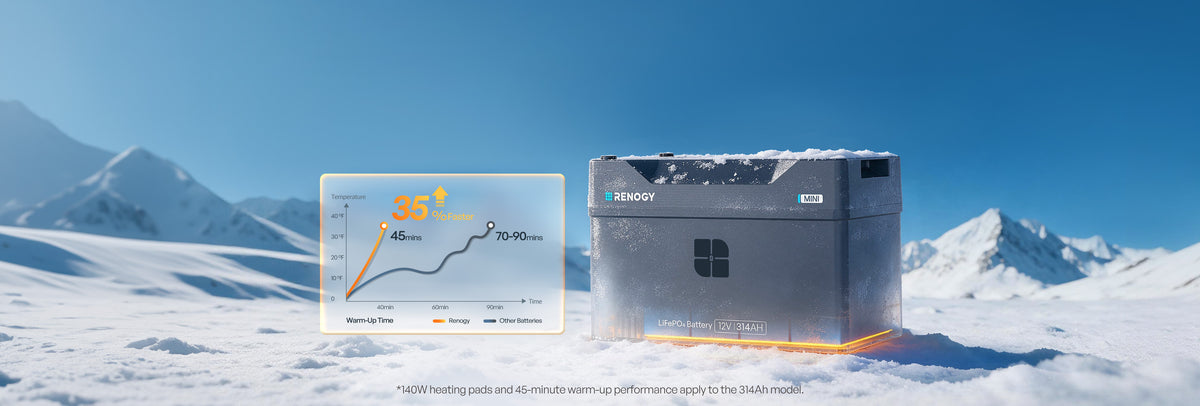

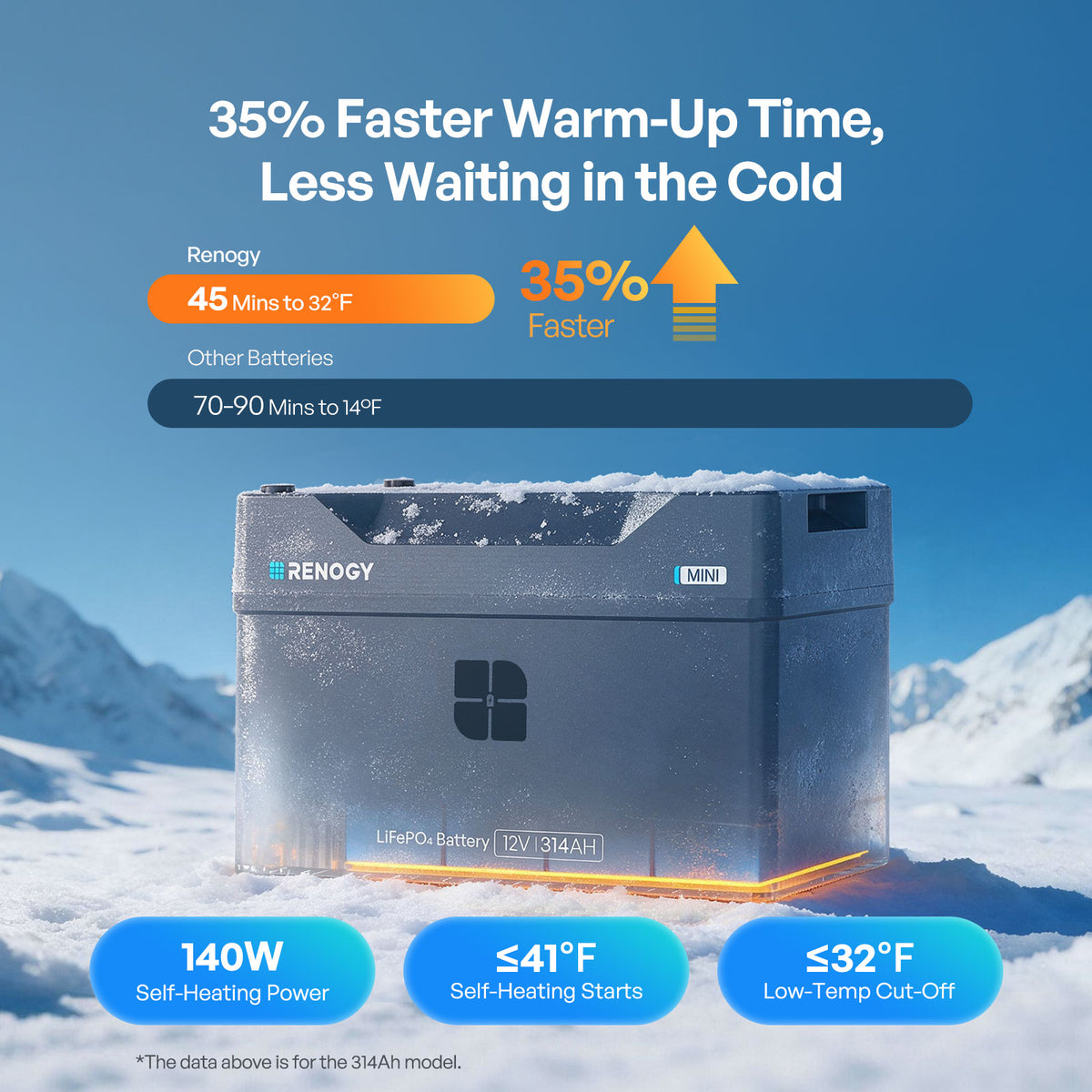

- - Get up to 35% faster self heating on the 314Ah model to resume charging sooner
- - Built in Bluetooth enables app monitoring from up to 49 ft away
- - Get smarter battery protection with 60+ multi level BMS protections
- - Stay protected inside and out with IP65 exterior protection, a V0 casing, and flame retardant materials around the cells
Reserve Mini Smart 12V 200Ah / 314Ah LiFePO4 Battery with Self Heating & Bluetooth - 314Ah (Pre-order | Ships Nov 7th) / 1 Pack está agotado y se enviará tan pronto como vuelva a estar disponible.
Payment Methods
Reserve Mini Smart 12V 200Ah / 314Ah LiFePO4 Battery with Self Heat...
$899.99
Precio unitario
/
Agotado
314Ah (Pre-order | Ships Nov 7th) | 1 Pack
Description
Includes
Specs
Downloads
FAQ
Highlight Features

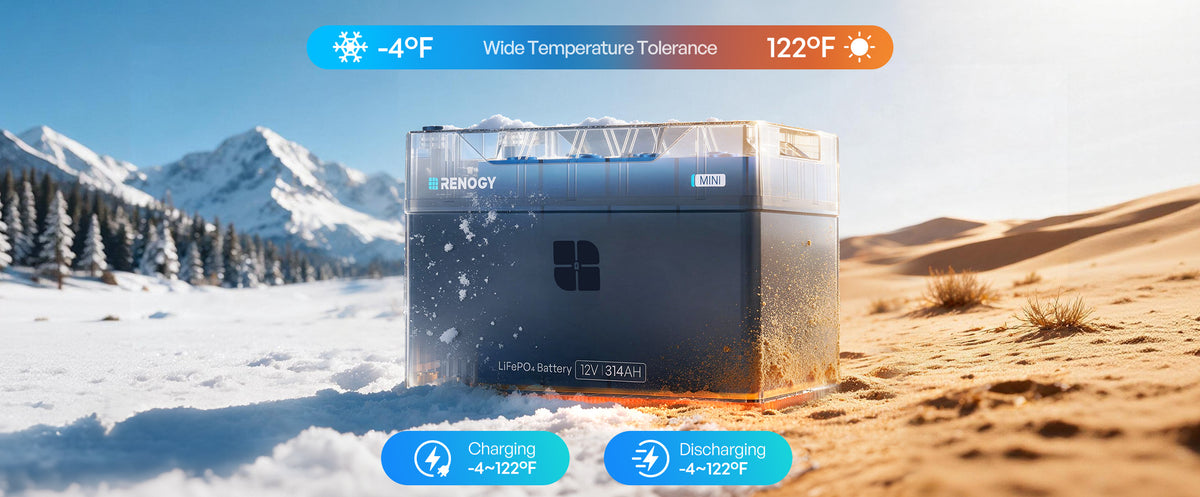

Built for Harsh Conditions
Wide temperature tolerance and low-temp protection help safeguard the battery
in extreme environments.
in extreme environments.
Peace of Mind, Even When Not in Use
With a wide storage temperature range from -4°F to 140°F, you can worry less about your battery while your RV sits between trips.

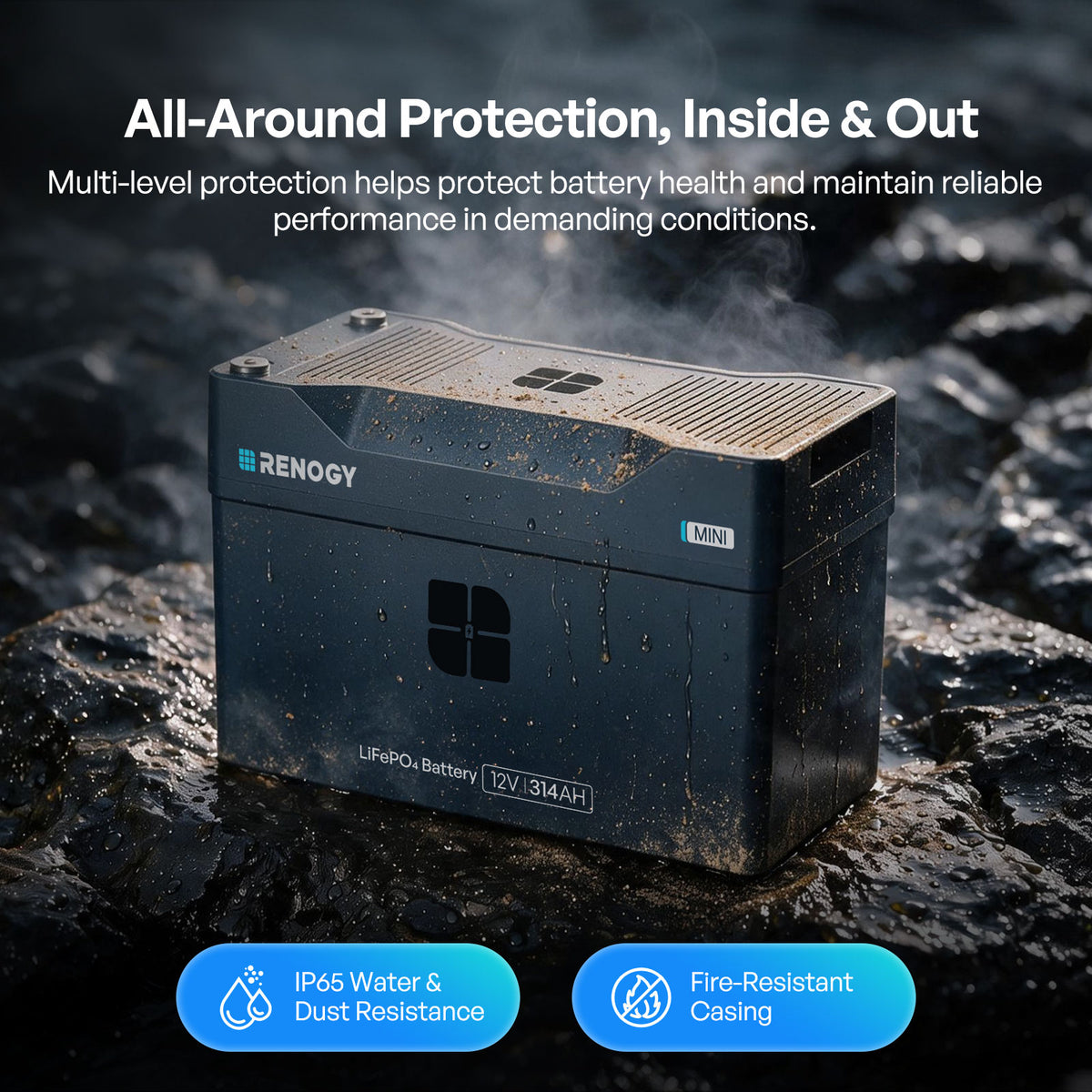

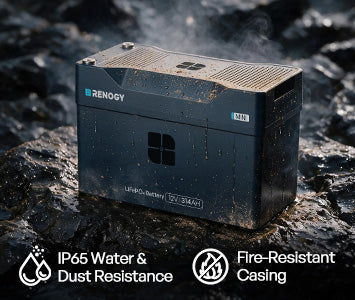

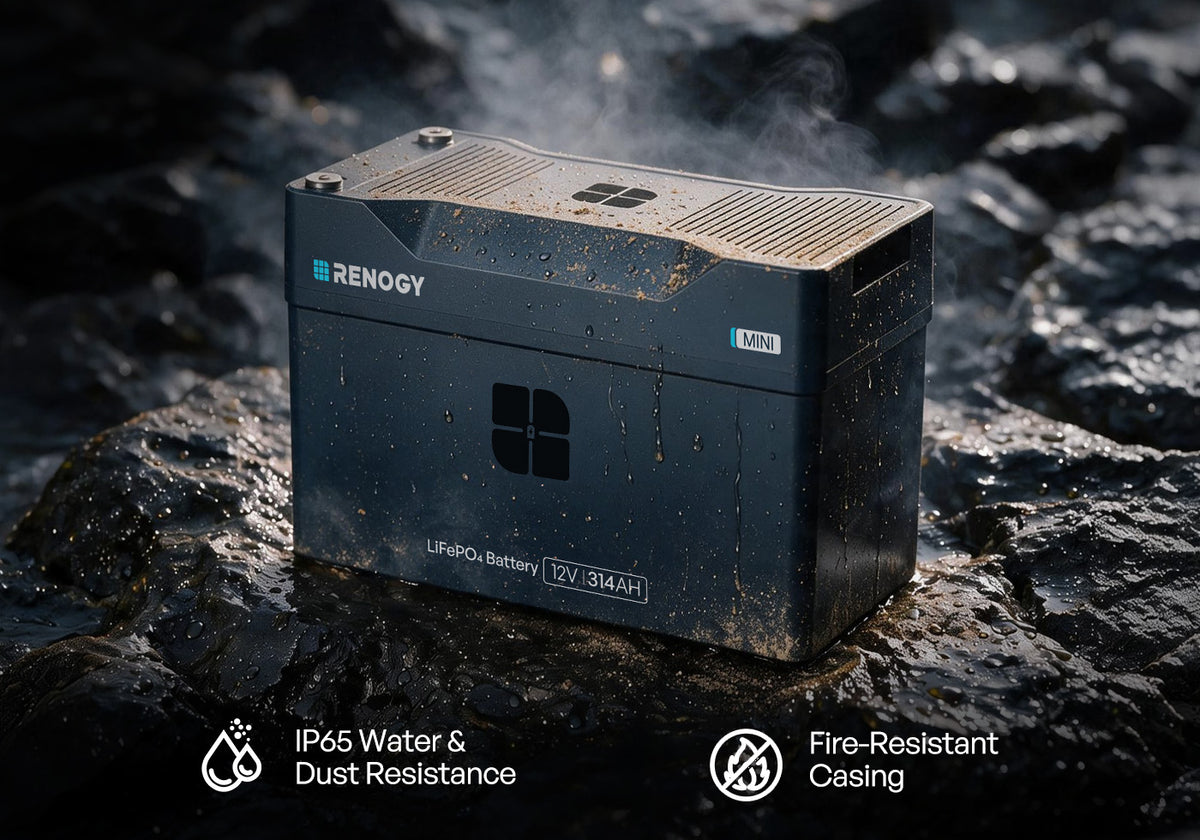

All-Around Protection
for Peace of Mind

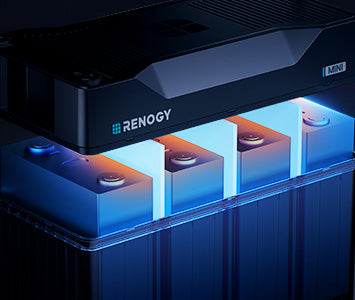

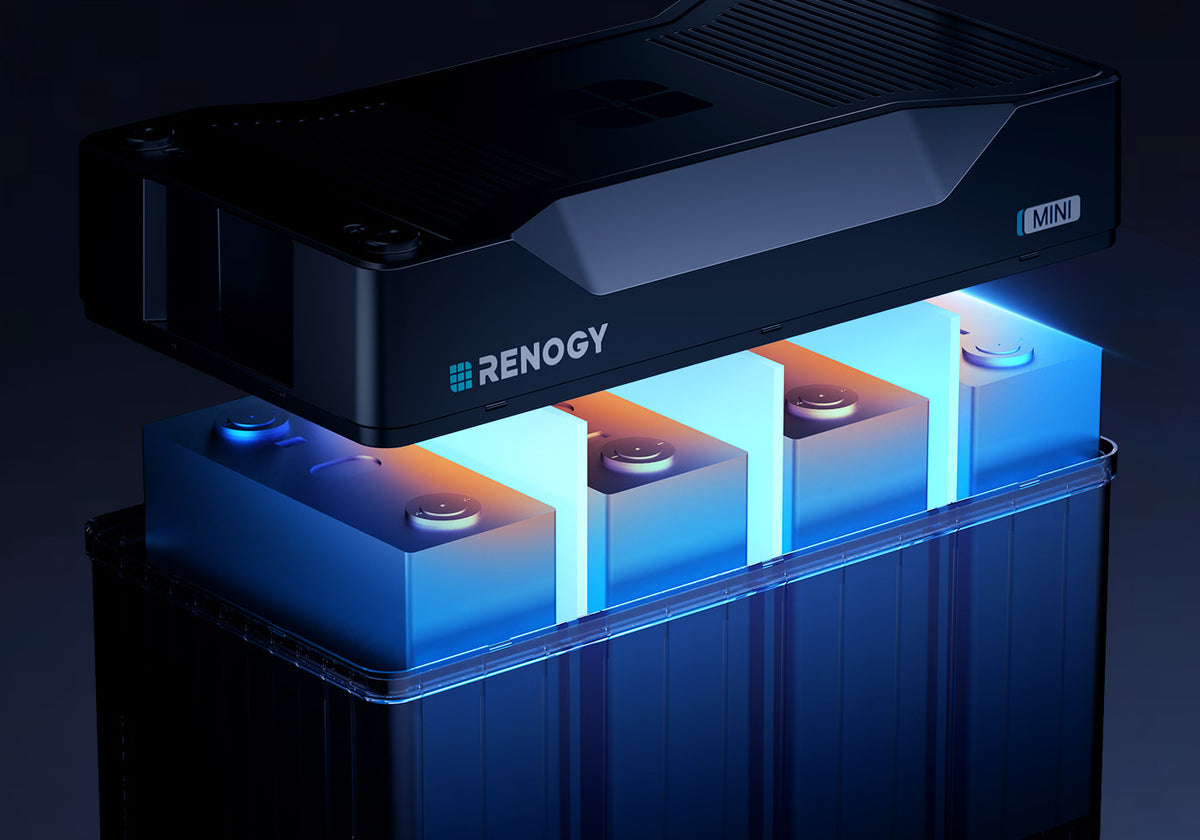

Protection You Can Rely on, Starting at the Cell Level

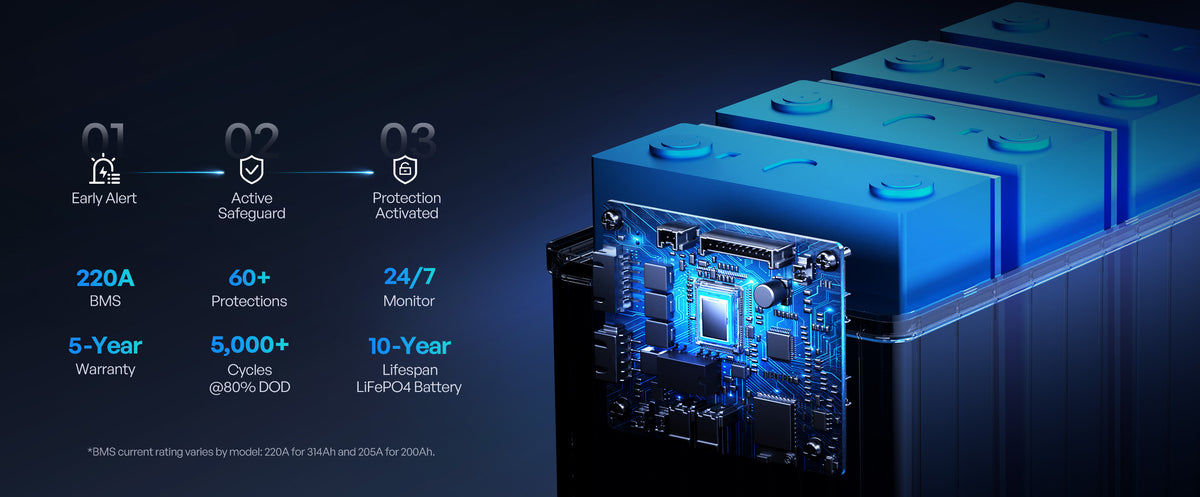

Multi Level BMS Protections for Years of Reliable Power
A smarter BMS with 60+ protections responds progressively to different levels of risk and pinpoints specific battery issues,
helping reduce unnecessary shutdowns under heavy system loads from multiple high demand appliances.
helping reduce unnecessary shutdowns under heavy system loads from multiple high demand appliances.

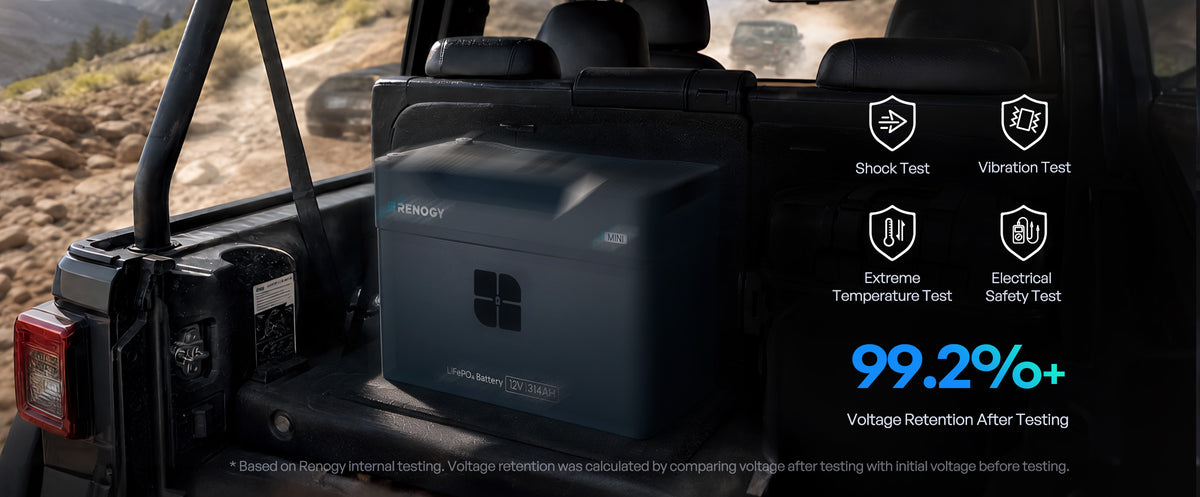

Tested Through the Extremes. Built for the Journey.
After rigorous vibration, shock, and other durability tests, Reserve Mini Smart showed less than 0.15% voltage change. Whether you're tackling rough off-road trails or choppy waters, it delivers dependable power so you can travel with confidence.

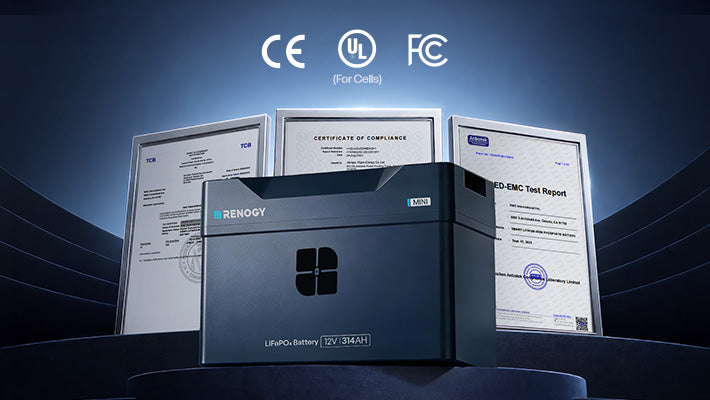

Tested & Trusted Power
Backed by rigorous testing & certifications including UL, FCC, and CE, Reserve Mini Smart LiFePO4 Battery delivers unmatched reliability and is ready for a wide range of uses.

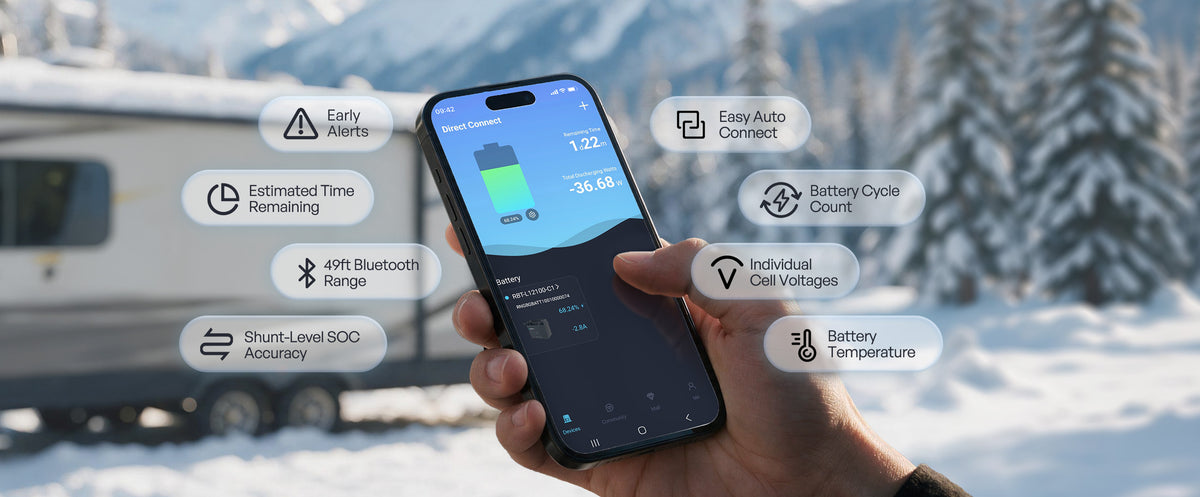

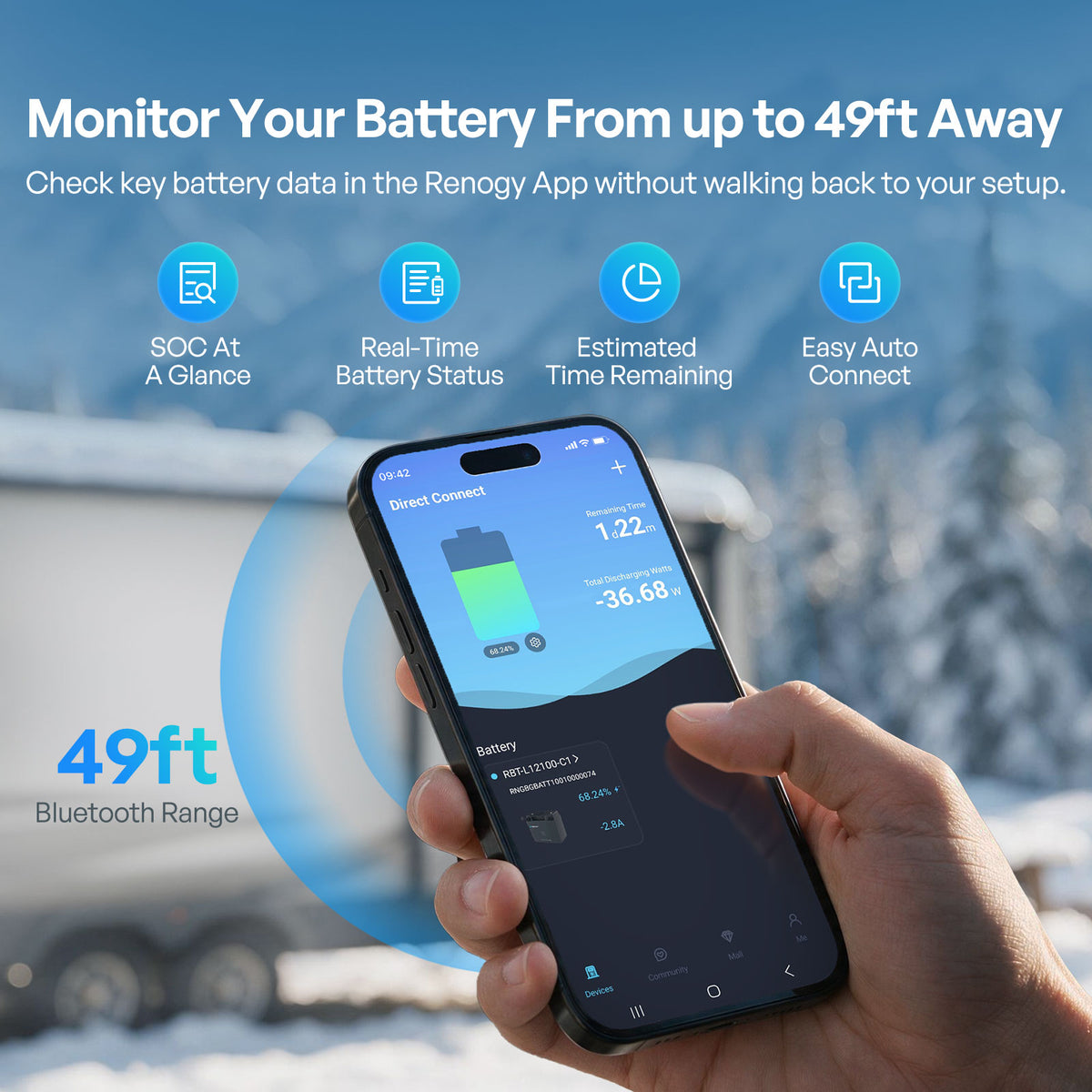

Real-Time Battery Insights at a Glance
With built-in Bluetooth, you can check remaining power, voltage, current, temperature, and individual cell voltages in real time through the Renogy App. Receive instant protection alerts, identify issues earlier, and stay clearly informed about your battery.
Stay Connected from 50% Farther Away
Monitor your battery from up to 15 m away, giving you more freedom to stay connected around your RV, with less need to move closer to the battery.

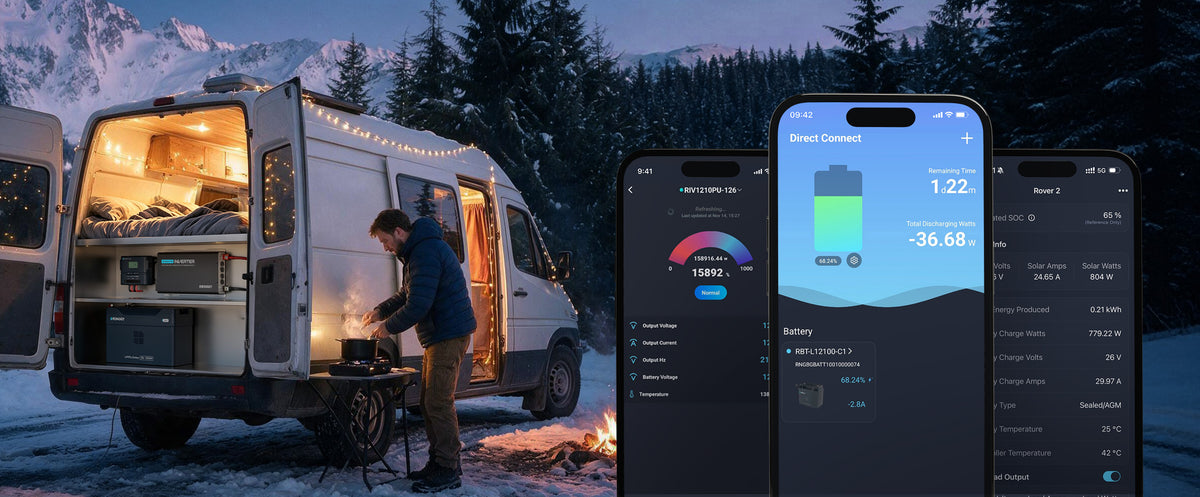

One App. Your Whole Energy System.
Bring Reserve into the Renogy App and monitor compatible Renogy devices through one connected platform. View system status, track performance, and manage your off-grid power system with more clarity and confidence.

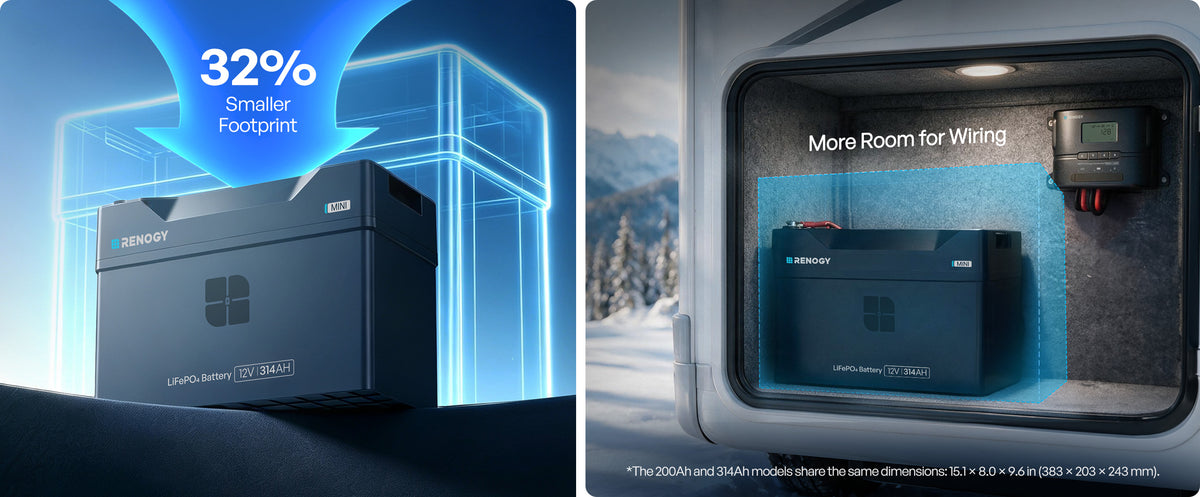

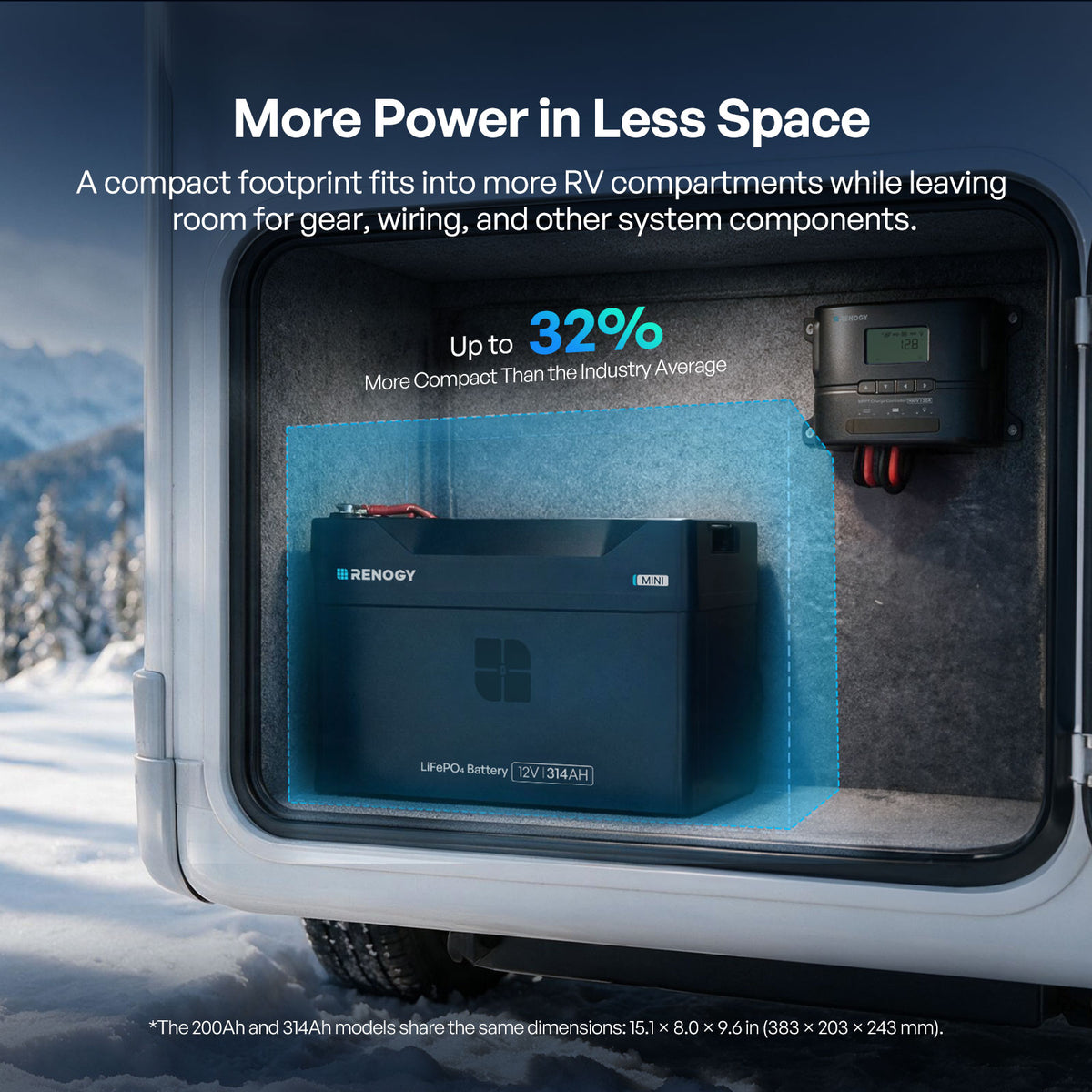

More Power in Less Space
45% smaller than comparable 100Ah batteries, Reserve Mini Smart 12V 100Ah Battery is designed to fit Group 24 battery spaces, making installation easier in space-limited RV setups.

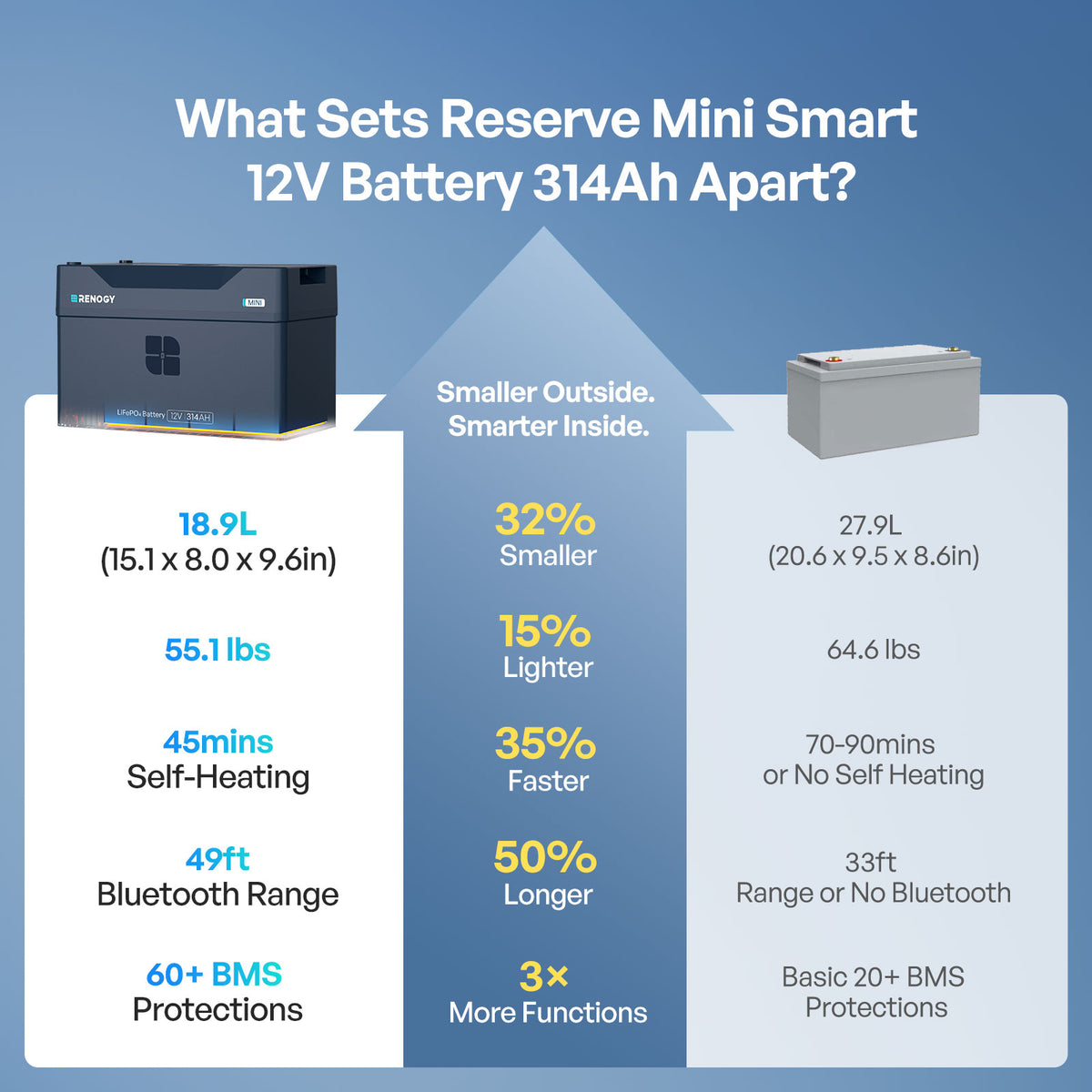

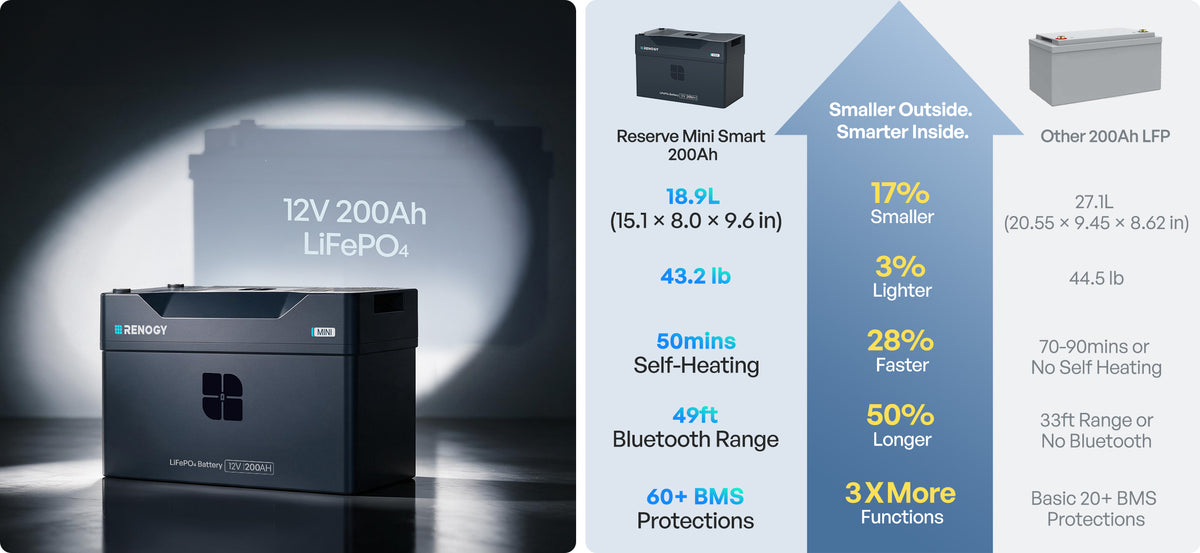

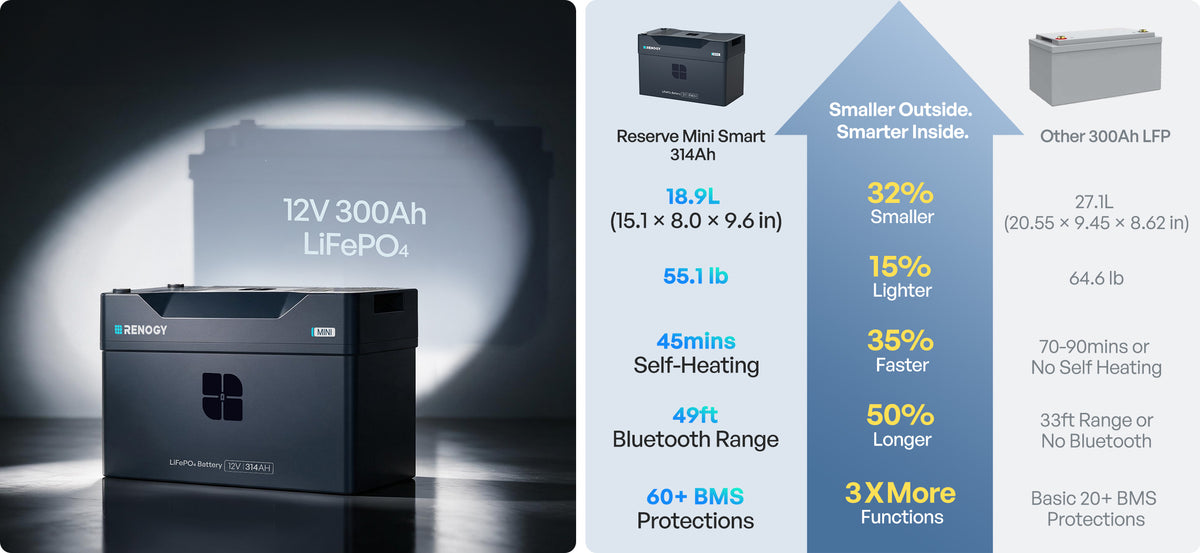

See What Sets Reserve Mini Smart Apart
More Power in Less Space
One 314Ah Battery. Up to 1.6 Days of Everyday RV Power
Keep daily comforts running for about 1.6 days, so you can stay off grid longer with
fewer charging worries.
fewer charging worries.

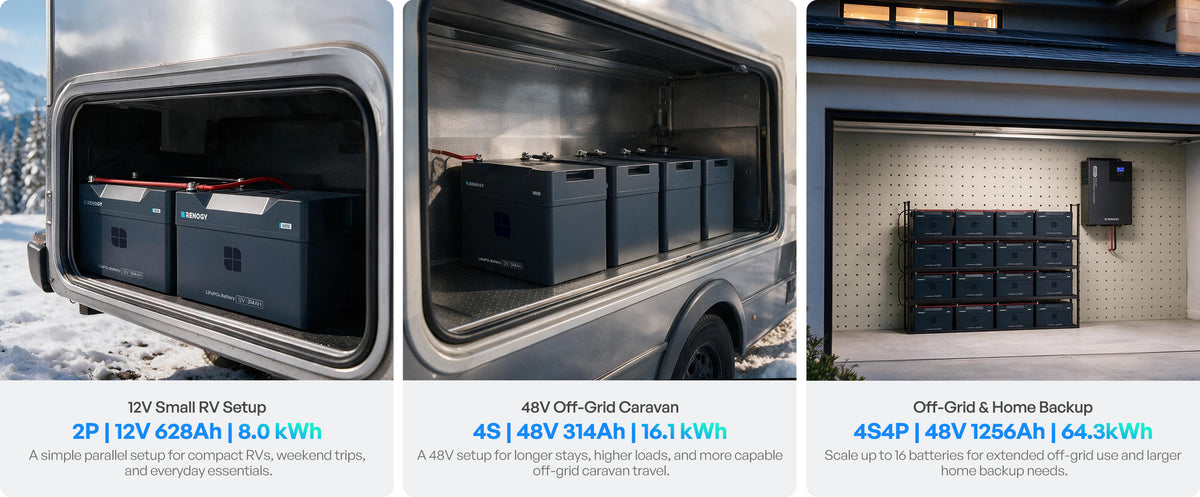

Scale Up to 64.3kWh for Home Backup and Off-Grid Living
Keep daily comforts running for about 1.6 days, so you can stay off grid longer with
fewer charging worries.
fewer charging worries.
Built for Wherever You Need Power
From weekend camping and home backup to off-grid cabins and marine systems, Reserve Smart Mini
delivers dependable power across a wide range of applications.
delivers dependable power across a wide range of applications.
Flexible Charging for More Off-Grid Setup
Flexible Charging for More Off-Grid Setup
From campsite to off-grid adventures, five charging options including AC grid, solar, alternator, generator,
and power station charging give you more flexibility to keep your system powered.
and power station charging give you more flexibility to keep your system powered.
From campsite to off-grid adventures, five charging options including AC grid, solar, alternator, generator,
and power station charging give you more flexibility to keep your system powered.
and power station charging give you more flexibility to keep your system powered.

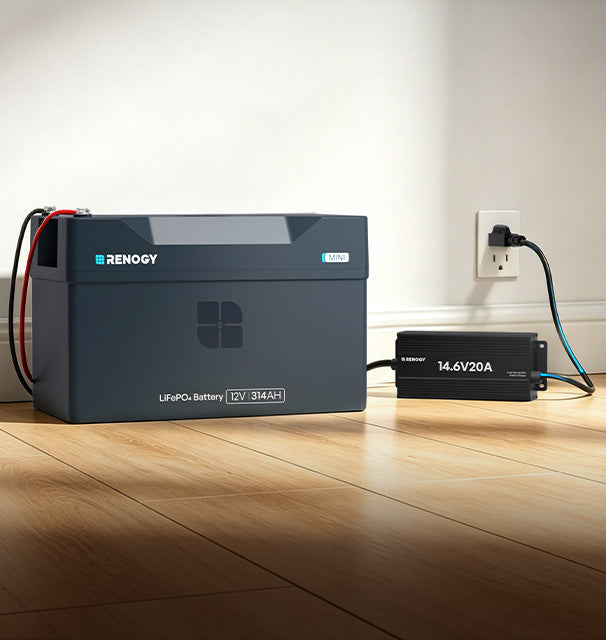

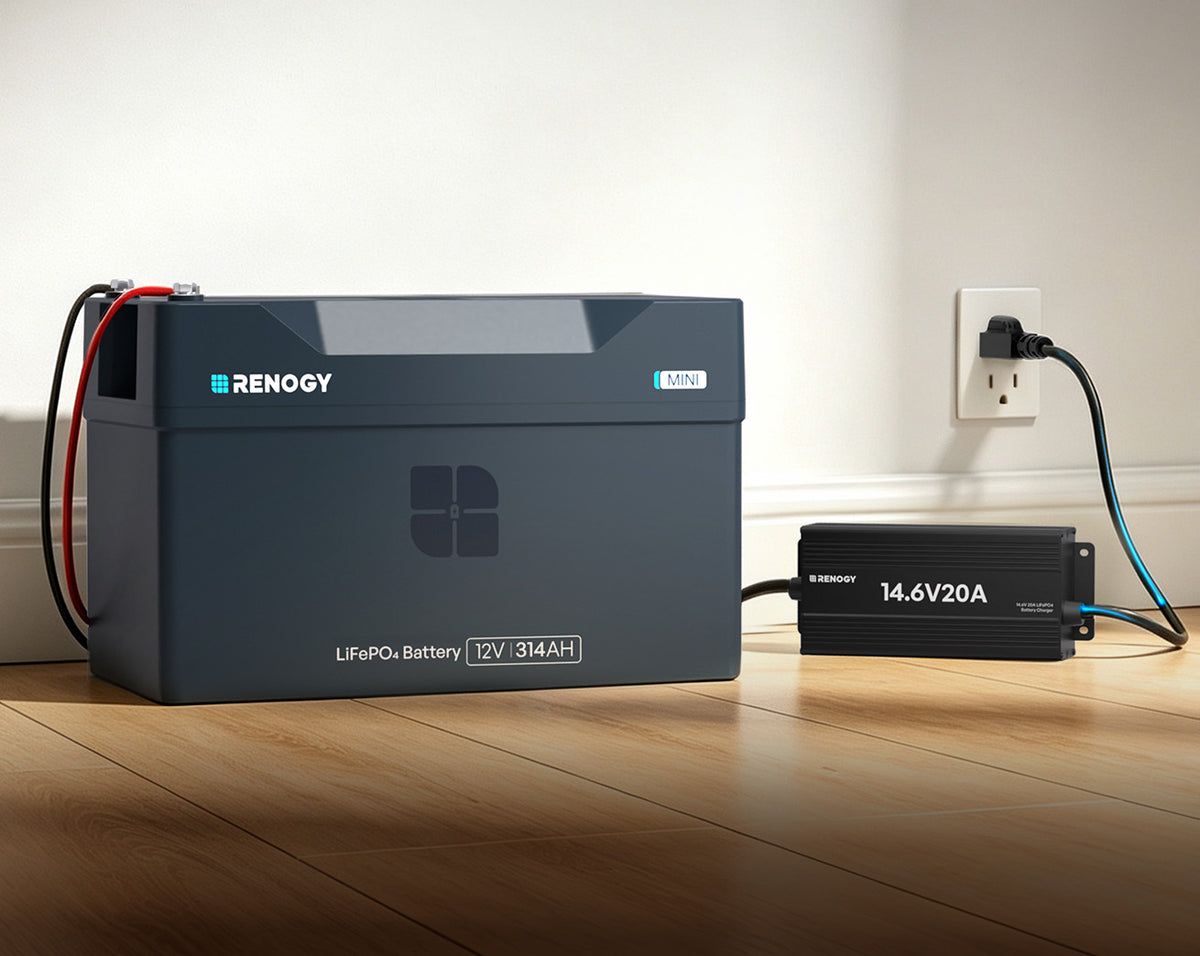

AC Charger

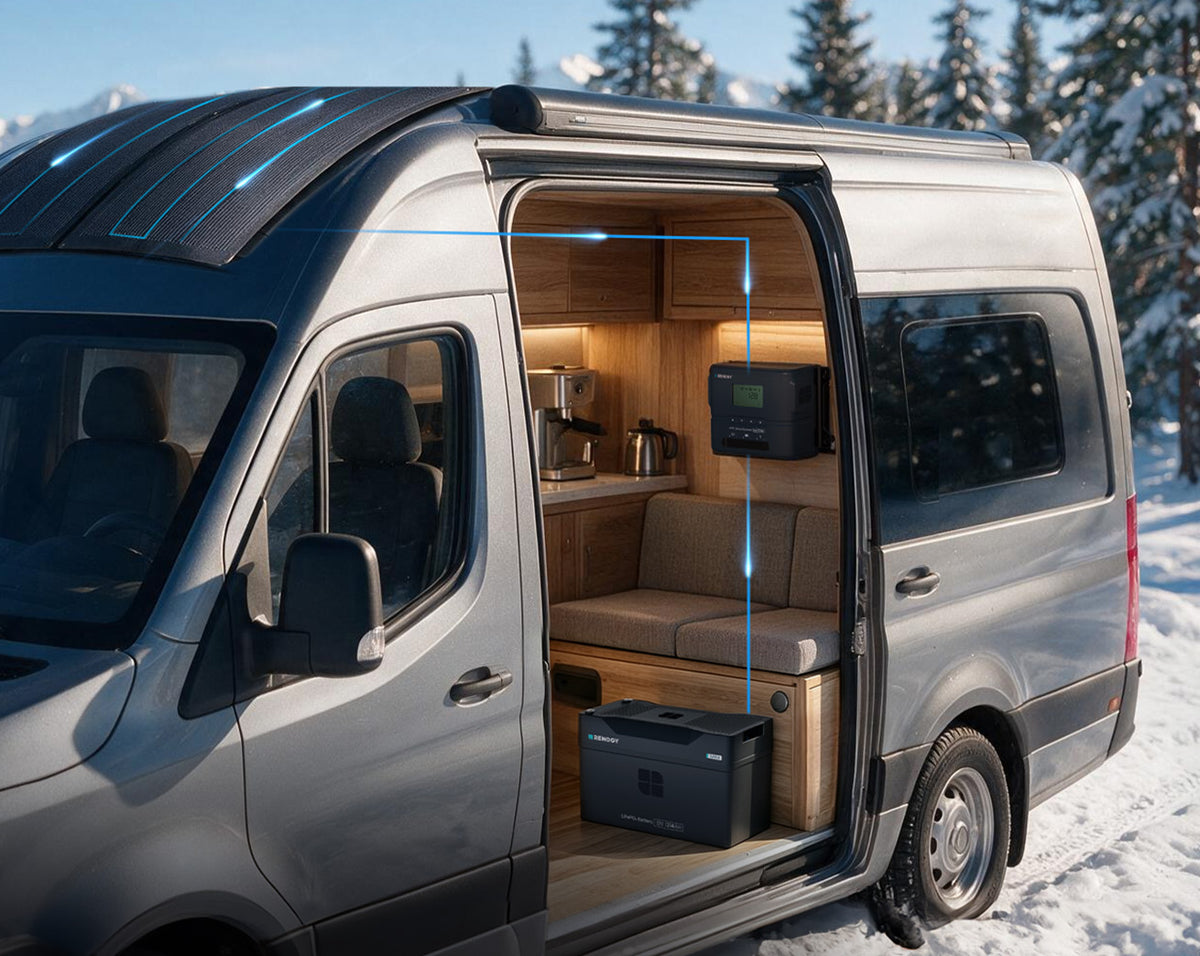

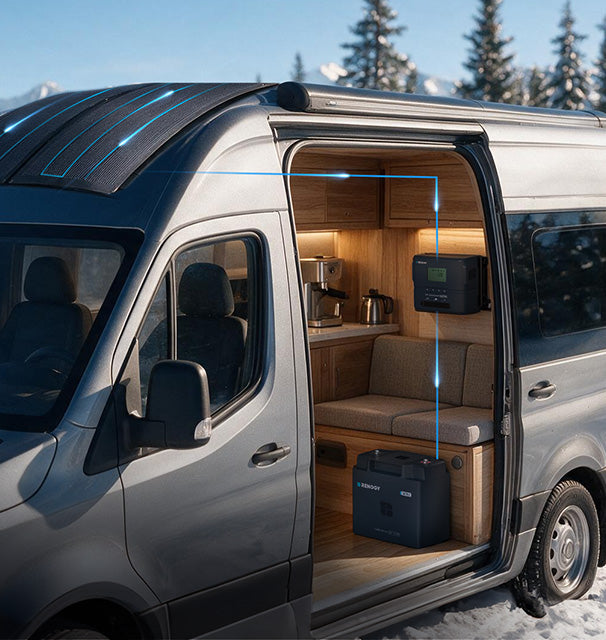

Solar + MPPT

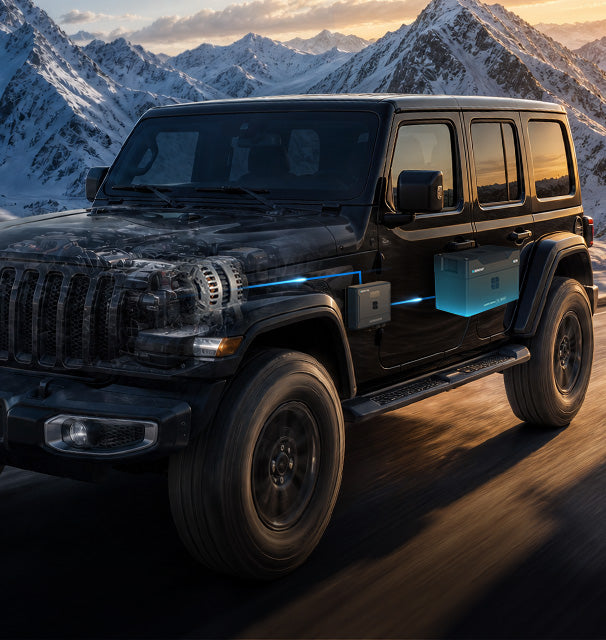

Alternator + DC-DC Charger

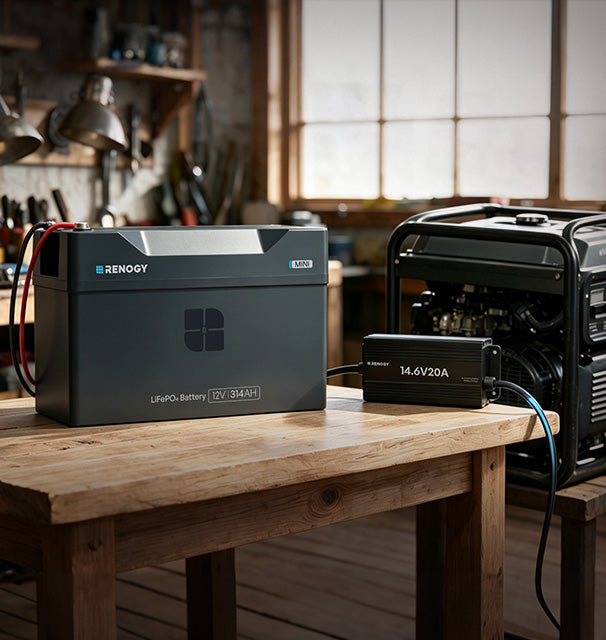

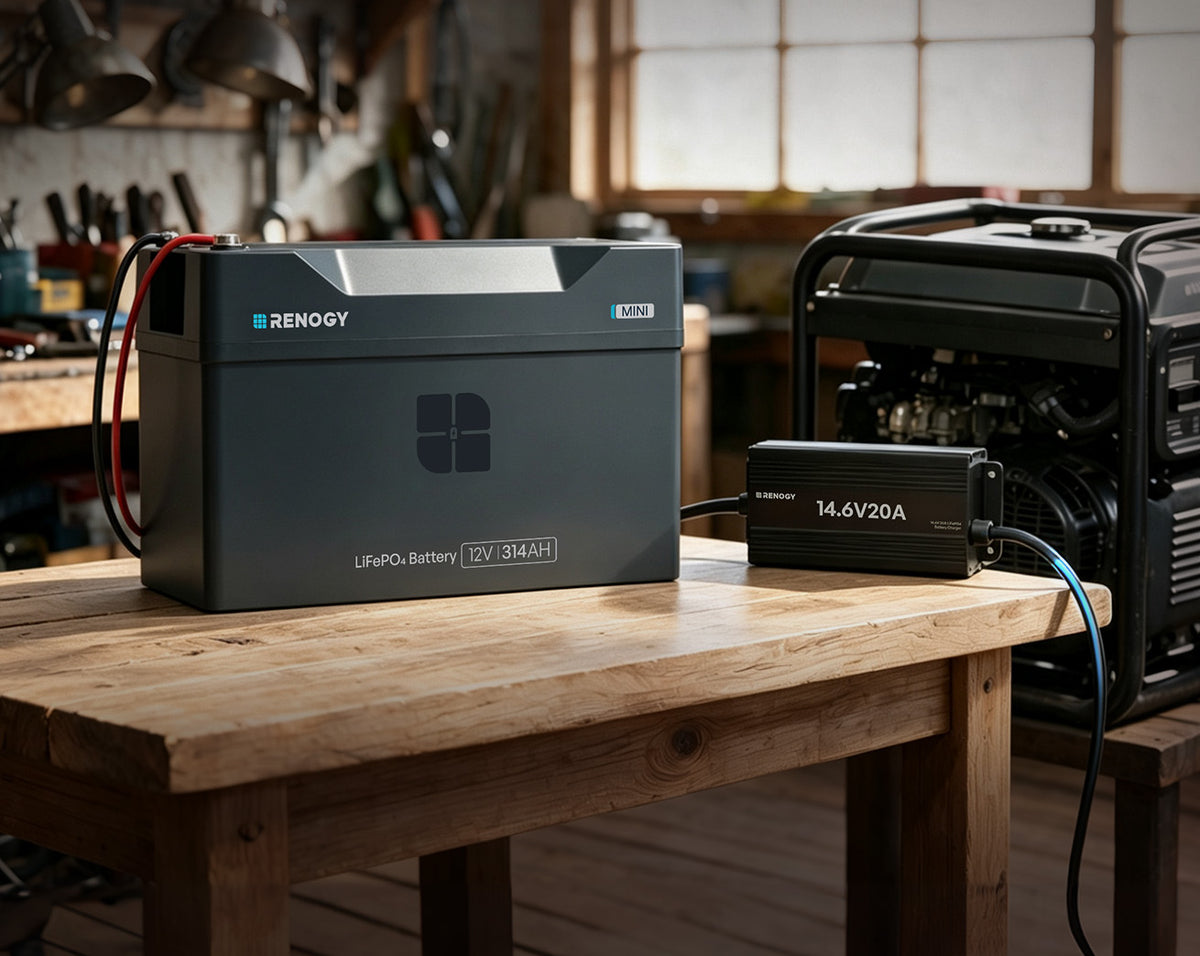

Generator + AC Charger

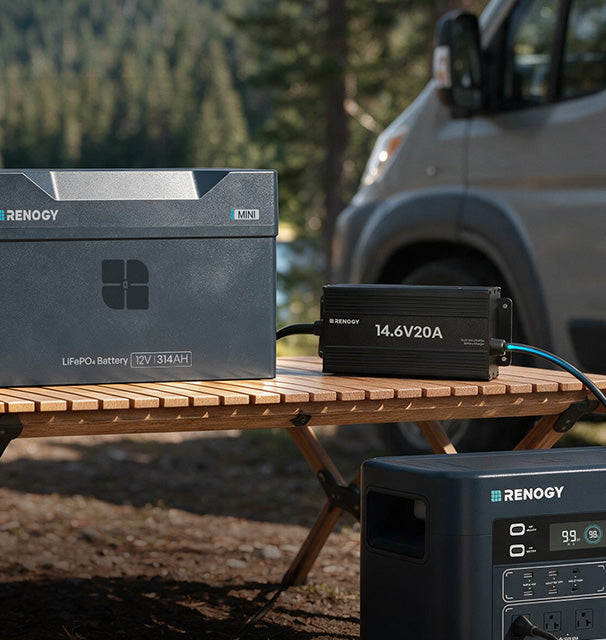

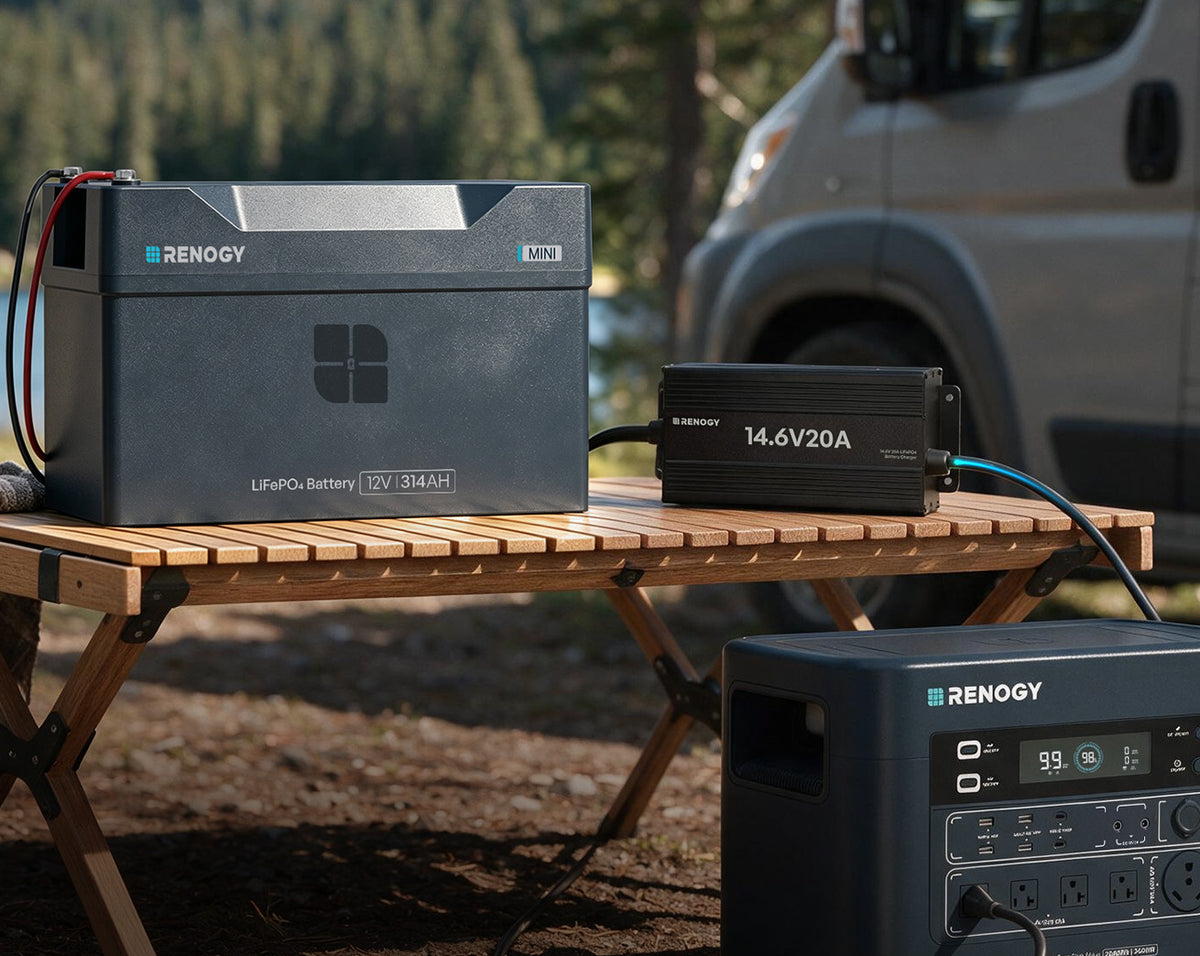

Portable Power Station + AC Charger
Global Partners

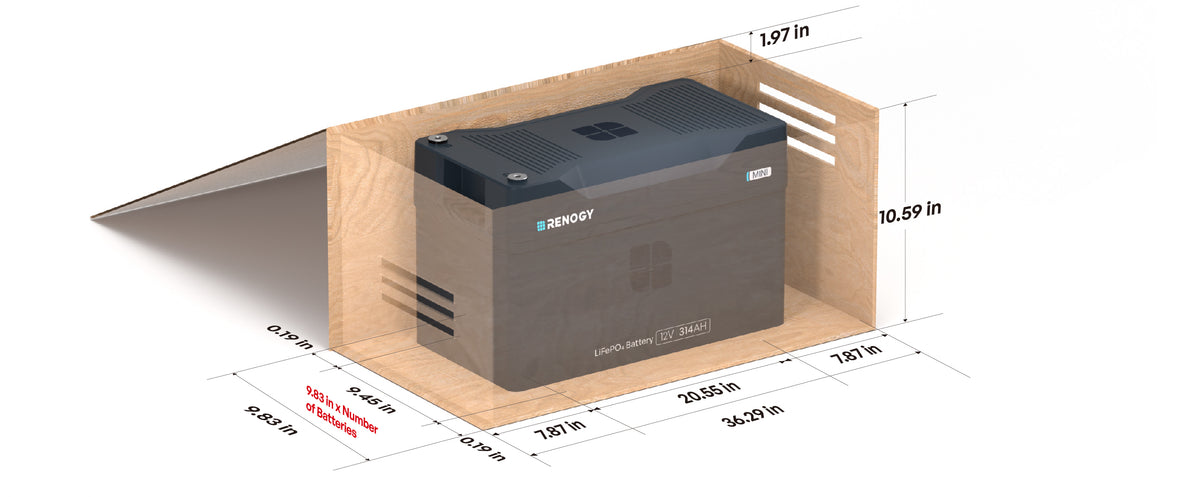

Dimensional Reference Guide
Before installing the battery, ensure a clearance of 1.97-3.94in (5-10cm) above the battery, and leave at least 7.87in (20cm) on the side with the busbars for optimal installation.
12V 200Ah/314Ah Package Includes

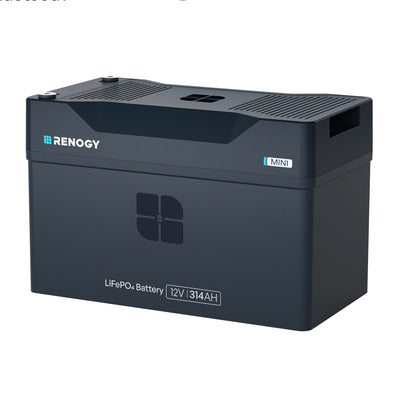

Reserve Mini Smart 12V 314Ah LiFePO4 Battery
x 1
Insulation Sleeves
x 2
Long Terminal Bolts
x 2
Terminal Bolts
x 2
Frequently Asked Questions
Will this battery fit in my existing RV battery compartment?
Will this battery fit in my existing RV battery compartment?
Reserve Mini Smart 314Ah Battery delivers 314Ah of capacity in a compact 15.1 x 8.0 x 9.6in footprint, helping you add more battery power in tight RV spaces. Before purchase, measure your battery compartment and leave enough clearance for wiring, terminals, and securing the battery.
What is the difference between the Reserve Mini Smart 200Ah and 314Ah Batteries?
What is the difference between the Reserve Mini Smart 200Ah and 314Ah Batteries?
Both batteries share the same compact size: 15.1 x 8.0 x 9.6in. The 200Ah model weighs 43.2 lbs, while the 314Ah model weighs 55.1 lbs and provides more capacity in the same footprint.The models also use different self-heating systems. The 200Ah battery uses 80W heating pads, while the 314Ah battery uses 140W heating pads for faster cold-weather warm-up. Choose the 314Ah if you want maximum capacity in the same space, or choose the 200Ah if you want a lighter battery with the same compact fit.
What happens if I charge the battery in cold weather?
What happens if I charge the battery in cold weather?
When the battery temperature drops below 41°F (5°C), self-heating can start automatically once stable charging is detected. This helps warm the battery so charging can resume safely in cold conditions.Self-heating starts when the charge current reaches at least 15A and the charger voltage is at least 0.8V above the battery voltage. Heating stops automatically when the battery temperature rises above 50°F (10°C).
How long will the Reserve Mini Smart 314Ah Battery last?
How long will the Reserve Mini Smart 314Ah Battery last?
The battery is rated for over 5,000 cycles at 80% DOD and is backed by a 5 year warranty, supporting years of regular RV and off grid use.
How can I tell how much battery I have left?
How can I tell how much battery I have left?
Built-in Bluetooth lets you check SOC, voltage, current, power, remaining time, and battery alerts directly in the Renogy App.
How can I charge this battery?
How can I charge this battery?
You can charge it with solar through an MPPT controller, a vehicle alternator through a DC to DC charger, shore or grid power through an AC charger, a generator through an AC charger, or a compatible portable power station through an AC charger.
Can I connect more batteries later if I need more capacity?
Can I connect more batteries later if I need more capacity?

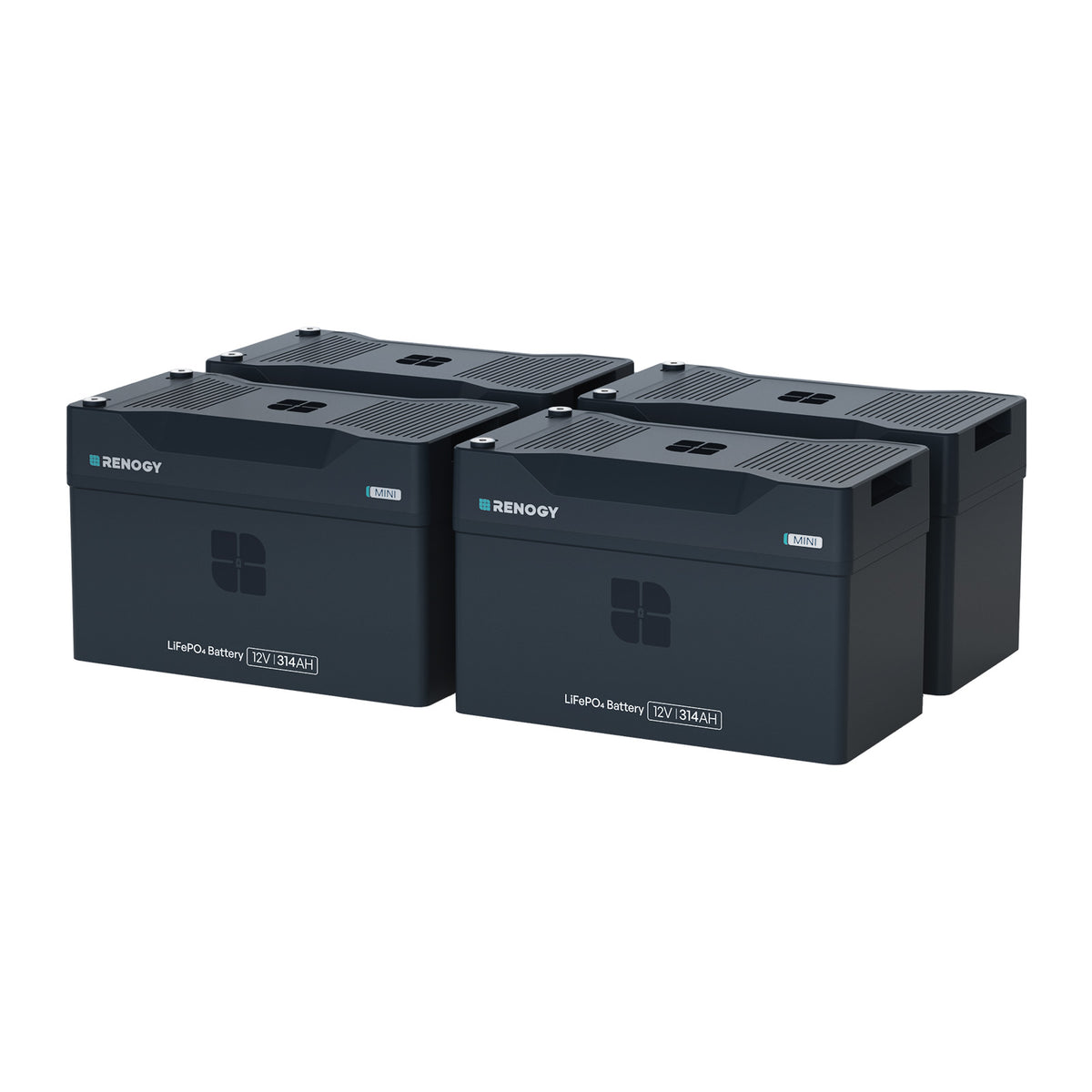

Yes. You can expand the system up to 4S4P, with as many as 16 matching Reserve Mini Smart 314Ah / 200Ah batteries.
Can the 314Ah battery handle high power appliances?
Can the 314Ah battery handle high power appliances?
Yes. The 314Ah model supports up to 220A continuous discharge, with peak discharge capability of 1,000A for 1 second to help handle brief startup demands. Actual appliance support also depends on your inverter and overall system setup.
Renogy Reserve Mini Smart 12V 200Ah
Renogy Reserve Mini Smart 12V 200Ah
Cell Type
Lithium Iron Phosphate
Warranty
5-year
Cycle Life
>5000 cycles @ 80% DOD
Nominal Voltage
12.8V
Rated Capacity
200Ah
Energy
2,560Wh
Max. Expansion (Parallel & Series)
Series &Parallel (4S & 4P)
Certifications
MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA
Communication
Bluetooth
Self-Heating Power
80W
Self-Heating Speed
50min from -10℃ to 0℃ 100min from -20℃ to 0℃
BMS
205A
Max. Continuous Output Power
2,560W
Max. Discharge Current Peak
1,000A@1s
Charge Method
CC-CV (Constant Current-Constant Voltage)
Charge Voltage
14.4V
Charge Temperature Range
-4 to 122°F (-20 to 50°C)
Discharge Temperature Range
-4 to 122°F (-20 to 50°C)
Storage Temperature Range
-4 to 140°F (-20 to 60°C)
Low-Temperature Protection
＜32℉ (0℃)
Automatic Discharge Cut-Off
Yes (via BMS)
Automatic Charge Cut-Off
Yes (via BMS)
Automatic Charge Recovery
Yes (when temperature rises above 32°F/0°C)
Weight (Approx.)
43.2 lbs (19.6kg)
Dimension
15.1 x 8.0 x 9.6 in (383 x 203 x 243mm)
Housing Material
ABS+PC (V0 flame-retardant rating)
Protection Class
IP65
Renogy Reserve Mini Smart 12V 314Ah
Cell Type
Lithium Iron Phosphate
Warranty
5-year
Cycle Life
>5000 cycles @ 80% DOD
Nominal Voltage
12.8V
Rated Capacity
100Ah 200Ah 314Ah
Energy
4,019Wh
Max. Expansion (Parallel & Series)
Series &Parallel (4S & 4P)
Certifications
MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA
Communication
Bluetooth
Self-Heating Power
140W
Self-Heating Speed
45min from -10℃ to 0℃ 95min from -20℃ to 0℃
BMS
220A
Max. Continuous Output Power
2,560W
Max. Continuous Charge Current
215A
Max. Continuous Discharge Current
220A
Max. Discharge Current Peak
1,000A@1s
Charge Method
CC-CV (Constant Current-Constant Voltage)
Charge Voltage
14.4V
Charge Temperature Range
-4 to 122°F (-20 to 50°C)
Discharge Temperature Range
-4 to 122°F (-20 to 50°C)
Storage Temperature Range
-4 to 140°F (-20 to 60°C)
Low-Temperature Protection
＜32℉ (0℃)
Automatic Discharge Cut-Off
Yes (via BMS)
Automatic Charge Cut-Off
Yes (via BMS)
Automatic Charge Recovery
Yes (when temperature rises above 32°F/0°C)
Terminals Bolt Size
M8
Weight (Approx.)
55.1 lbs (25.0kg)
Dimension
15.1 x 8.0 x 9.6 in (383 x 203 x 243mm)
Housing Material
ABS+PC (V0 flame-retardant rating)
Protection Class
IP65
