DESCRIPTION
【Uncompromising Quality】 The exceptional lifespan of 3500 cycles (80% DOD), is about 10 times longer than lead-acid batteries. 100% usable capacity, 2 times of lead-acid counterpart. Wide discharging temperature ranges from -4°F to140°F (-20°C~60°C). Fearless of extreme climates, back up your wild adventures.
【Easy Upgrades】 A space-saving choice for your 24V power system. Upgrades from lead-acid to lithium seamlessly with a greater energy density, 100% usable capacity, and a faster-charging speed.
【Smart Energy Saving Mode】 Automatically switch to energy-saving mode in 30s. The self-discharge rate is as low as 3% per month. Offers better performance on storage and endurance. No need to charge the battery constantly during storage.
【Powerful Output】 Up to 8 batteries can be easily connected in parallel, providing expandable power capacity. Auto-balancing function, improve the average charging efficiency of your batteries over extended use.
【Certified Performance】 Reliable output and ultra safety. Performance certified with MSDS, UN38.3, FCC, PSE, CE, and UKCA. IP65 waterproof, protected against water and dust with the fully sealed housing.
No more heavy lifting! A one-step power solution for your 24V system! The Renogy 24V 50Ah Lithium Iron Phosphate Battery is designed for the drop-in replacement of AGM and GEL batteries. It features exceptional 3500 cycles (80% DOD) and more than 10 years lifespan, a built-in BMS system for better protection, IP65 waterproof housing, and fast charging speed. A safe and reliable power supply for RV, camper, marine, trolling motor, golf carts, floor scrubber, electric pallet jack, and other off-grid systems.

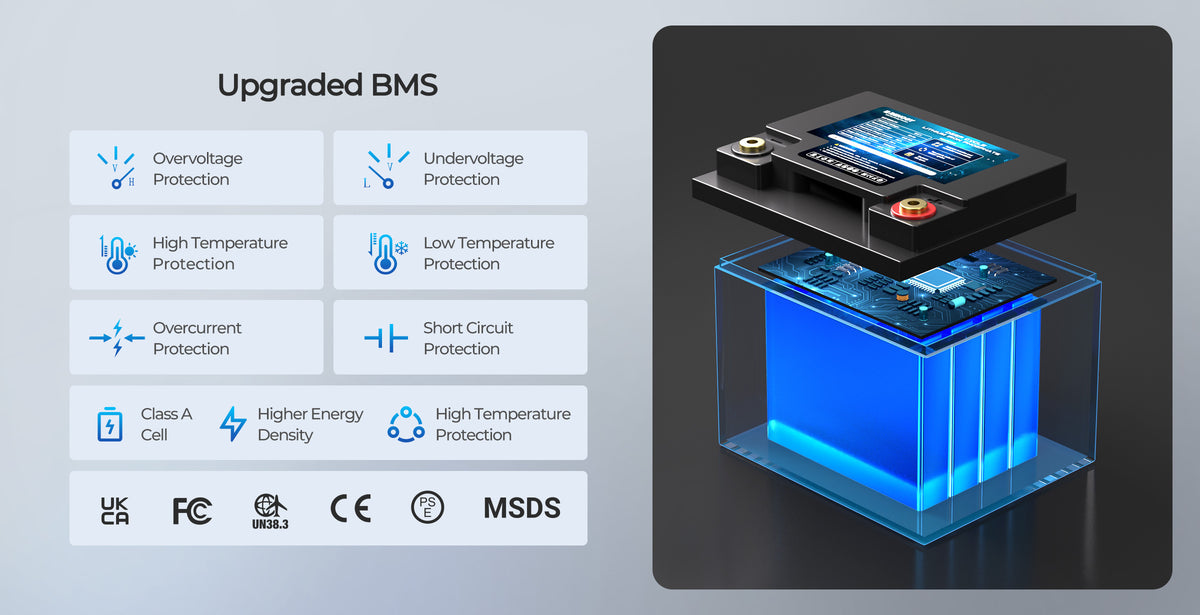

Advanced BMS for Ultra-Safety
The intelligent built-in BMS circuit ensures safe charging and discharging process by protecting the battery from over-charge, over-discharge, over-current, high temperature, and short circuit.
Light and Compact Design
Upgrade lead-acid battery to light and compact LiFePO4 solution.
Replace 12V batteries in series, save space, and lower wiring costs.
Smart Energy Saving Mode
When the battery is not charging or discharged, it will automatically switch to energy-saving mode after 30s.
With only 3% of the self-discharge rate per month, the battery ensures longer shelf life.
IP65 Waterproof
IP65 waterproof, suitable for most outdoor scenarios. The seamless ABS housing gives full protection against dust and other particulates.
Wide Working Temperature Range
Back up your power system in extreme climates. Provide stable power supply from hot summer to cold winter.
Charge Temperature Range: 32°F~113°F (0°C~55°C)
Discharge Temperature Range: -4°F~140°F (-20°C~60°C)
Auto-balancing Function
Auto-balancing function ensures optimal charging efficiency. Up to 8 batteries can be connected in parallel, providing an expandable capacity.
NOTE
- DO NOT string the battery in series. ONLY connect batteries of the same manufacturer and model in parallel.
- DO NOT connect more than 8 batteries in parallel.
- Please secure all cable connections to proper specification in order to ensure good connections between the cable lugs and the battery terminals.
- Please avoid too high a voltage difference between paralleled batteries, despite the auto-balancing function, to avoid triggering the over-current protection.
- The battery is shipped in shelf mode. Before using the battery for the first time, please activate the battery with a charge/discharge current greater than 1A and measure the terminal voltage to validate.
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or contact us with livechat for troubleshooting assistance.
More questions about your off-grid power system? Learn more from Renogy Learning Center!
RV
MARINE
CAMPING
OUTDOOR
CABIN
TRUCK
Package Includes
|
24V 50Ah Lithium Iron Phosphate Battery
1 x
|
Long Terminal Bolts (2 x M8 x 1.25 x 20 mm)
2 x
|
| Renogy 24V 50Ah Deep Cycle Lithium Iron Phosphate Battery | |||
|---|---|---|---|
| Electrical Specifications | Temperature Parameters | ||
| Rated Capacity(0.2C) | 50 Ah | Operation Temperature Range |
Charge: 32~131℉ / 0～55℃ Discharge: -4~140℉ / -20～60℃ Recommended: 73.4 ± 9℉ / 23 ± 5℃ |
| Nominal Voltage | 25.6 V | Storage Temperature Range | -13~149℉/ -25~65℃ |
| Energy | 1280Wh | Mechanical Specifications | |
| Cycle Life(0.2C, 20±5℃) | 3500 Cycles at 80% DOD | Dimension (L x W x H) | |
| Minimal Rated Capacity (0.2C) | 50Ah | Weight | 28.0 lbs. /12.7kg |
| Energy Density | 105.38Wh/L | Terminal Bolt Size | M8 x 1.25 x 20 mm |
| Specific Energy | 100.78Wh/kg | Housing Material | ABS |
| Internal Resistance | ≤20mΩ | Certifications | |
| Charging Parameters | MSDS, UN38.3, FCC , PSE, CE, UKCA | YES | |
| Charge Voltage | 29.0 ± 0.2V | Warranty | |
| Maximum Charge Current | 50A | 3-year material warranty | |
| Charge Cut-off Voltage | 29.2V | Discharging Parameters | |
| Maximum Continuous Discharge Current | 50A | ||
| Discharge Cut-off Voltage | 20V | ||
1. How to activate the battery?
The 24v batteries are shipped in shelf mode. Before using the battery for the first time, please activate the battery with a charge/discharge current greater than 1A and measure the terminal voltage to validate. Prior to long periods of storage, please disconnect the 24v lithium battery from the system. The battery will enter shelf mode automatically after 30s. In shelf mode, the 24v lithium battery has a low self-discharge rate and can hold the charge for a longer period of time.
2. Can this battery be used in series to build a 48 volt system？
No, you can't. These Renogy 24V lithium batteries do NOT support connecting in series. They are made ONLY for connecting in parallel using identical 24v batteries, same type (lithium), same capacity (Ah), same voltage (V), same brand (Renogy).
3. How long will the battery last?
Our battery is capable of 3500 cycles of perfect charge and discharge, after which the efficiency of the battery will drop to 80% of the factory performance, but it is still very good for your use. If you live a completely off-grid life, calculated at the rate of a full charge and discharge per day, you will be able to use it for more than 10 years. As a high-end 24v deep cycle battery, the Renogy 24v battery features all-around IP65 Waterproof, making it suitable for most outdoor scenarios, such as a 24v trolling motor battery or a 24v marine battery. The seamless ABS housing protects the battery against dust and other particulates.
4. Can I pair a bluetooth Module for this battery to monitor the battery status on phone?
No. This 24v lithium ion battery is not compatible with Bluetooth module. You can use 500A Battery Monitor With Shunt to monitor battery status (which is sold separately).
5.Can you recommend a solar charge controller for this 24V 50Ah battery?
When purchasing a solar charge controller, ensure that the controller is compatible with the lithium battery 24v. The Renogy Rover and Wanderer Series Charge controllers are fully compatible with our lithium 24v battery. You can charge this 24v LiFePO4 battery with Rover Elite MPPT charge controller or 10A AC-to-DC LFP Portable Battery Charger.
