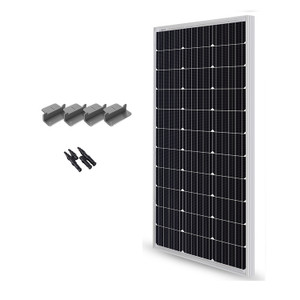

The Renogy 100W Solar Starter Kit is easy for you to install, and it is the most economical choice for solar beginners. This Renogy Solar Kit includes the equipment necessary for building a new system: a solar panel, a charge controller, needed electrical wiring and Z-brackets, making it an ideal choice for both off-grid and mobile solar power applications.
This Starter Kit will produce an average of 500Wh of electricity per day (Based on 5 hours of direct sunlight conditions). The 100W solar panel doesn't take up much roof space, but its energy can offset some small loads. With the Wanderer Li 30A PWM Charge Controller, the kit can meet your further power needs by adding more of the same solar panels to expand up to 400W.
The Starter Kit can build a reliable and environmentally friendly power supply, perfect for RVs, campers, boats, sheds, and cabins. It can also be installed as a power supply for outdoor appliances and emergencies, and as a stand-alone power system.
The bypass diode can ensure the panel has an excellent performance in a low-light environment and the TPT back sheet dissipates excess heat to ensure smooth output performance. The Cell Efficiency can reach 22%.
The Wanderer PWM charge controller features advanced 4-stage charging (bulk, boost, float, and equalization) to ensure your battery is efficiently and safely charged to 100%.
The Wanderer PWM Charge Controller is compatible with four different types of batteries: Sealed, Gel, Flooded, and Lithium batteries. Connecting the BT-1 Bluetooth module to the RS232 communication port, you can monitor the system status in real-time through the DC Home app.
Please note the BT1 Bluetooth Module is not included.
The corrosion-resistant aluminum frame with strong corner braces is designed for long-term outdoor use, giving the panels a long service life.
The IP65 Junction Box protects against environmental particles and low-pressure water jets. These IP67 waterproof solar connectors ensure that the water and dust will not enter the connector during extended outdoor use. Effectively preventing water from seeping in.
This Renogy Solar Kit includes the equipment necessary for building a new system. The necessary cables, Z-brackets, and pre-drilled holes on the back frame of the panel allow fast and secure mounting.
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or submit a ticket for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center!
Wanderer Li 30A PWM Charge Controller
Renogy 20ft 10AWG Solar Adaptor Kit (A pair)
Renogy 8ft 10AWG Tray Cables (A pair)
|Renogy 100W Monocrystalline Solar Panel|
|Max Power at STC: 100W||Operating Temperature: '-40°F to 185°F(-40℃ to +85℃)|
|Open Circuit Voltage (Voc): 24.3V||Short Circuit Current (ISC): 5.21A|
|Optimum Operating Voltage (Vmp): 20.4V||Optimum Operating Current (Imp): 4.91A|
|Weight: 14.1lb (6.4kg)||Dimensions: 41.8*20.9*1.38in/1062x530x35mm|
|Renogy 8ft 10AWG Tray Cables (A pair)||Mounting Z Brackets (Set)|
|Length: 8ft||Eight Long Cap Bolts and Four Short Bolts|
|AWG: 10||Four Spring Washers and Four Washers|
|Rating Voltage: 600/1000V||Four Z Shape Solar Panel Brackets|
|Temperature: -40°F to +185°F||Four Nuts|
|Renogy 20ft 10AWG Solar Adaptor Kit (SET)||Wanderer Li 30A PWM Charge Controller|
|Length: 20ft||Nominal Voltage: 12 V|
|AWG: 10||Rated Charge Current: 30A|
|Rating Voltage: 600/1000V||Max. PV Input Voltage: 25 VDC|
|Temperature: -40°F to +185°F||Max. PV Input Power: 400W (12V)|
25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty; 25 year 80% output warranty
5-year material and workmanship warranty
|Accessories||1-year material and workmanship warranty|
1. What do I need to complete my off-grid solar power system ?
A solar panel has to be connected to a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.
2. What does off-grid and on-grid mean ?
3. Why is my solar panel under producing ?
4. How should I connect solar panels in my electrical circuit (series vs parallel)?
5. How many solar panels do I need ?
|Please click the links below to download the manuals:|
|30A PWM Wanderer Li Charge Controller|
|Mounting Z Brackets|
