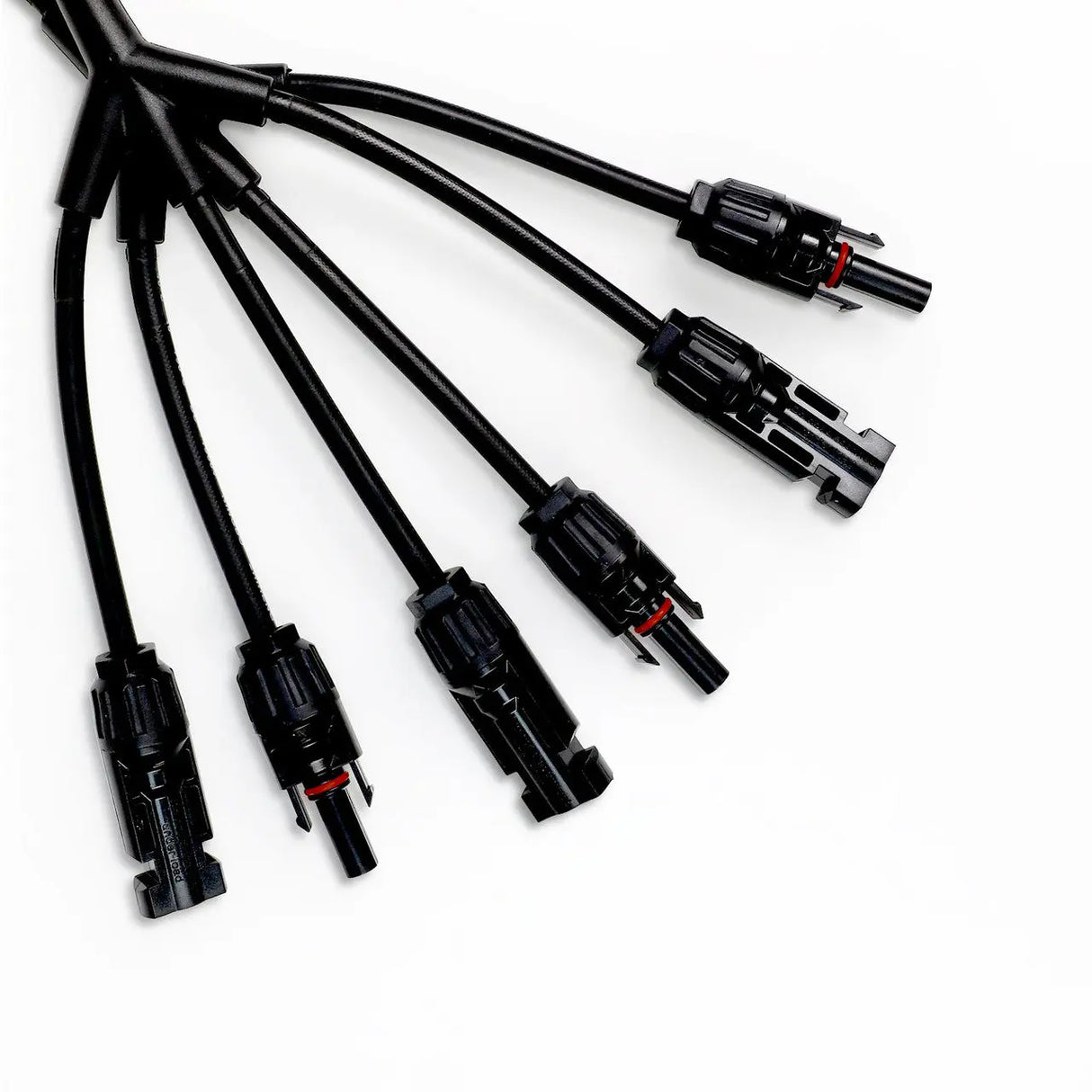

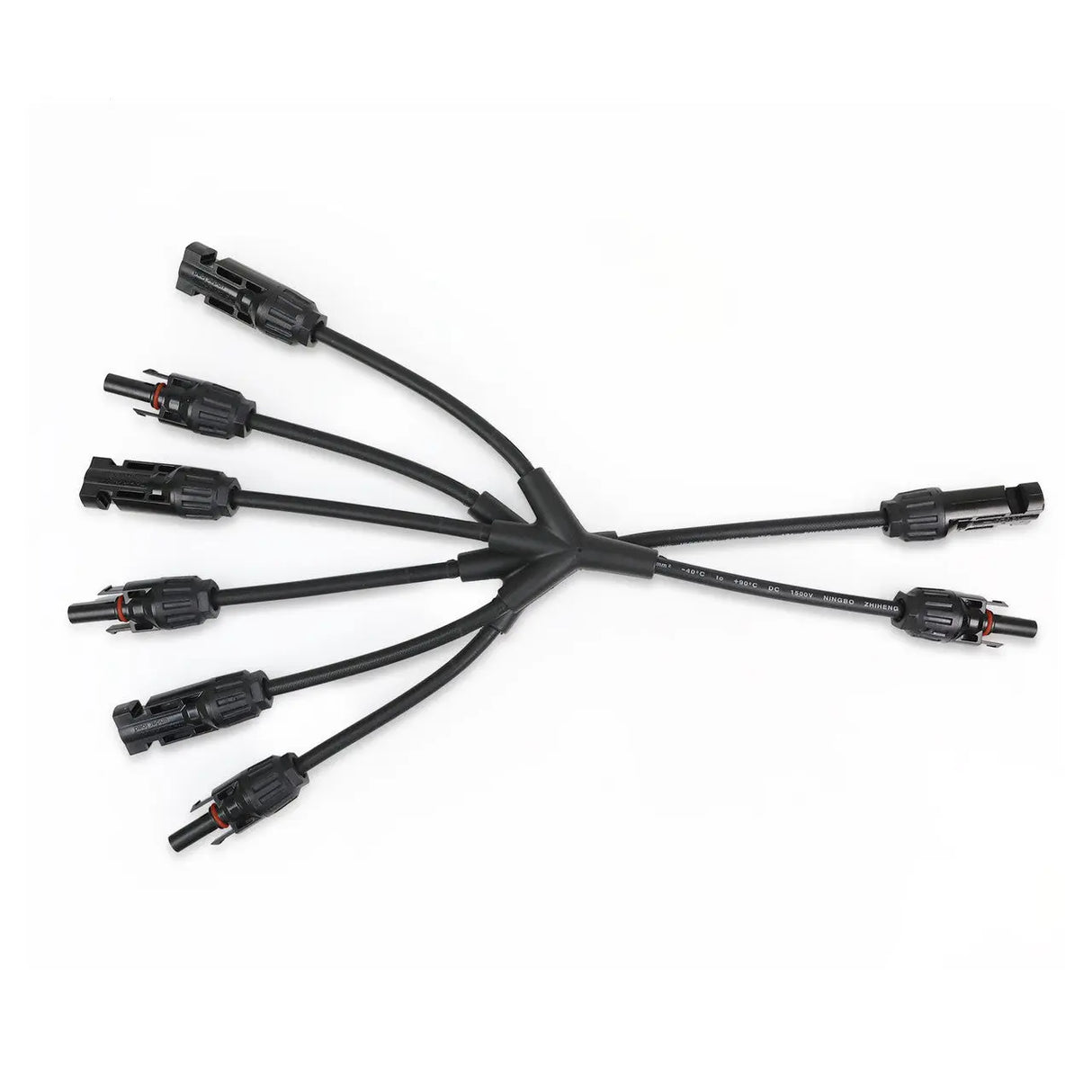

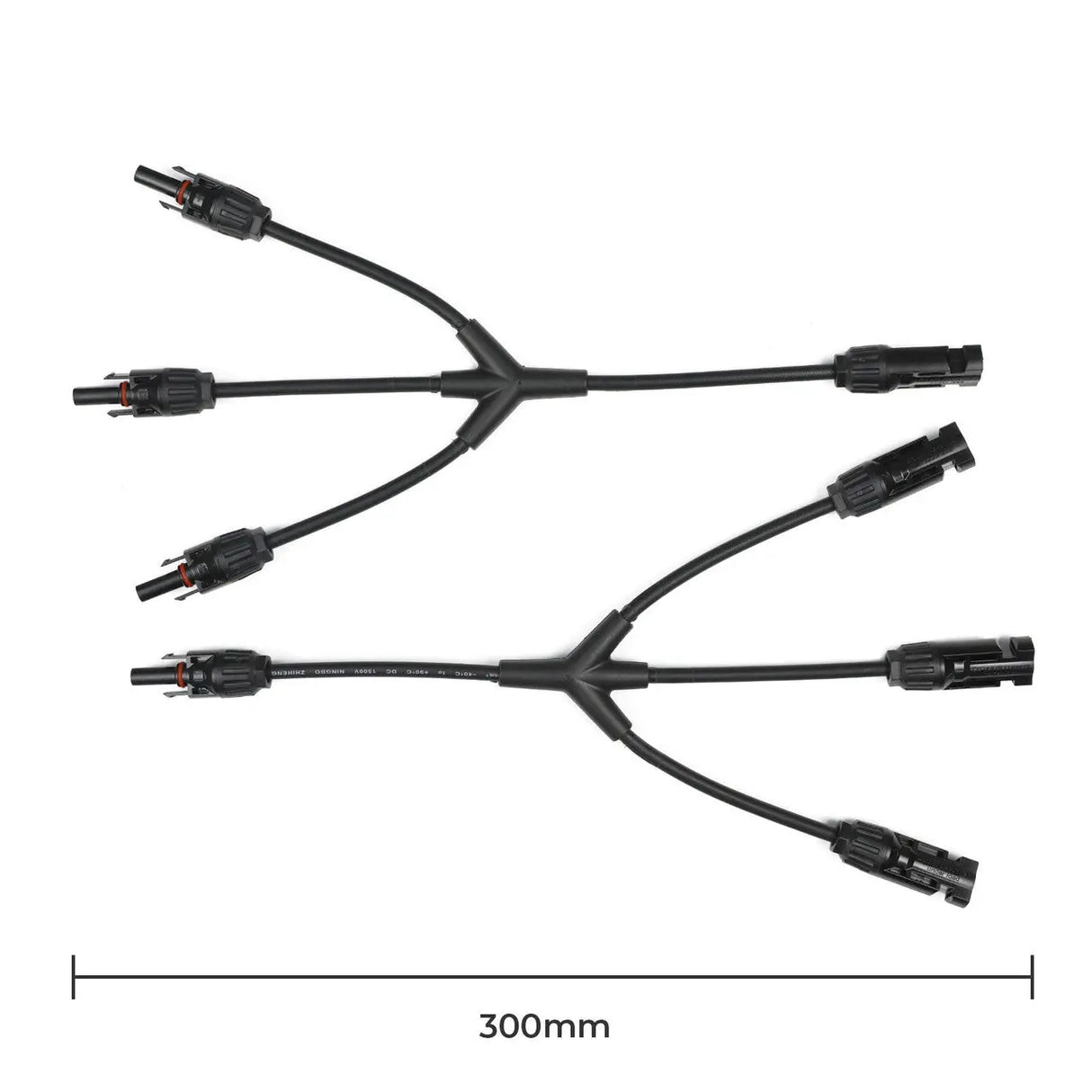

Solar Connectors M Branch Parallel Adapter Cable MMMF+FFFM Pair
SKU:
RPC0110EC-M-US
$30.99
Unit price
/
Unavailable
+
+
Rays
after purchase.
Log In
About Renogy Membership
Key Features
- CE-certified solar M connector rated 30A, 1500V DC for all solar panels.
- Anti-oxidation, anti-UV, anti-high-temperature and waterproof (IP67).
- Compatible with standard solar connectors, fits 14AWG to 10AWG cables.
- Simple assembly with secure built-in lock, reliable connection.
- 1-year warranty, dedicated customer support available.
Solar Connectors M Branch Parallel Adapter Cable MMMF+FFFM Pair is backordered and will ship as soon as it is back in stock.
Payment Methods
CE-certified solar M connector rated 30A, 1500V DC for all solar panels.
Anti-oxidation, anti-UV, anti-high-temperature and waterproof (IP67).
Compatible with standard solar connectors, fits 14AWG to 10AWG cables.
Simple assembly with secure built-in lock, reliable connection.
1-year warranty, dedicated customer support available.
Solar Connectors M Branch Parallel Adapter Cable MMMF+FFFM Pair
Learn more
Package Includes
NOTE:
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or submit a ticket for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center!
|
Solar Connectors M Branch Parallel Adapter Cable MMMF+FFFM Pair
1 x
|
| Solar Connectors M Branch | |
|---|---|
| Rated Voltage: 1500V DC(IEC) | Rated Current: 30A |
| Contact Resistance: 0.5mΩ | Insulation Material: PC |
| Contact Material: Copper,tin plated | Temperature: -40℃-90℃/-40°F-194°F |
| Protection Degree: IP67 mated/IP2X unmated | Safety Degree: Ⅱ |
| Flame Class: UL94-HB/UL94-V0 | Suitable Single Core Cable Section: 2.5mm²,4mm²,6mm² |
1. How to use this solar M connector?
You can use it to connect 3 solar panels in parallel.
2. For wire sizethe male/female connectors, what range of gauges of wire do these accept?
Normally for 14-10 awg solar wire.
4. Why these solar connectors are so tightly and can't remove from solar panels?
The tight design can prevent solar connectors from leaking by water. If you need to remove them from solar panels, you can use Renogy solar spanners.
 |
