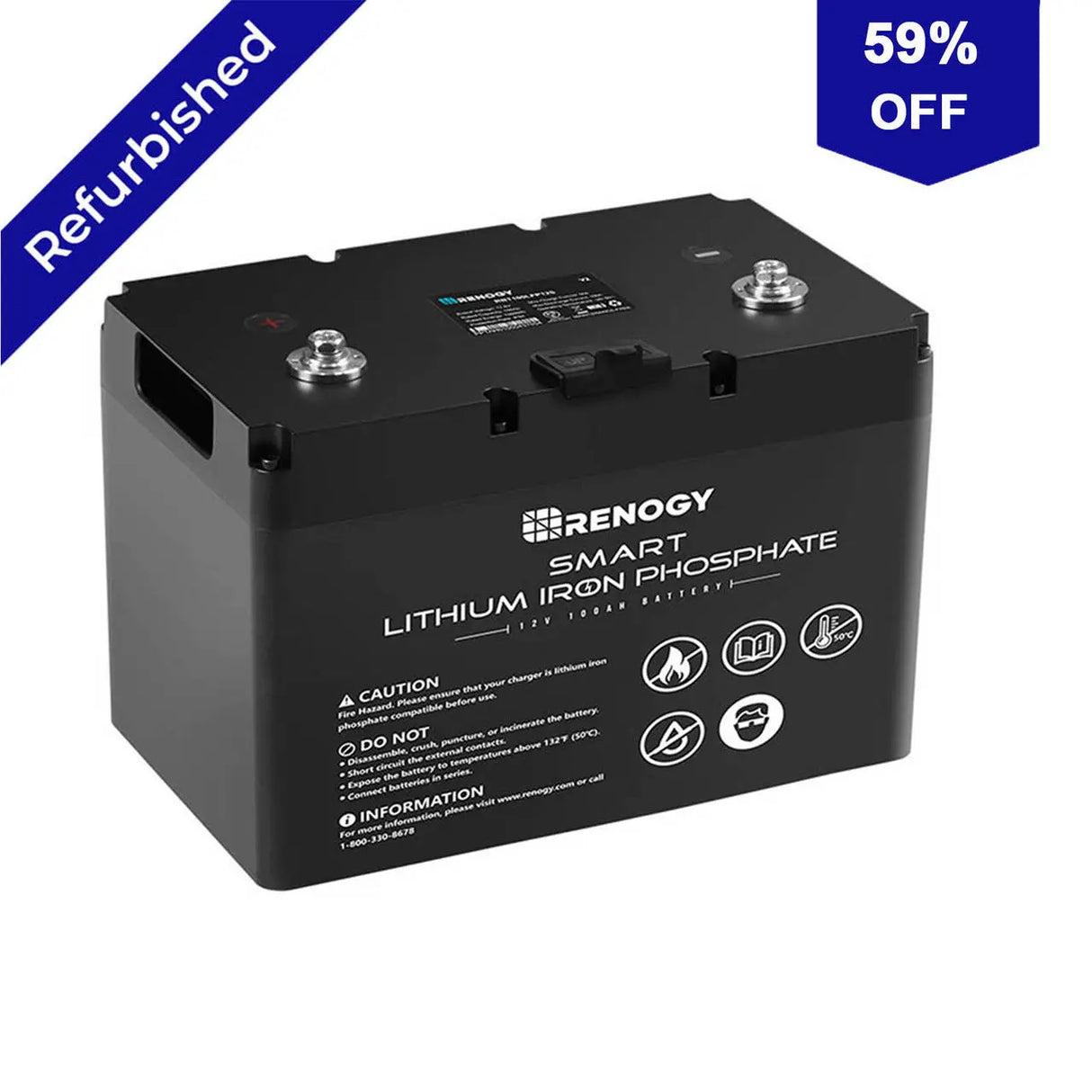

Refurbished 12V 100Ah Smart Lithium Iron Phosphate Battery
- 【Warranty and Return】 No refunds or exchanges for items without quality issues, with a 6-month warranty.
- 【Shippment】 Refurbished items shipped within 3-4 days.
- 【Premium BMS Circuit】 Incredibly advanced BMS provides over 20 protections designed to allow a peak current of 150A to pass through, deliver up to 1C charging and 1.3C discharging during an emergency. 50% more heat dissipation area will maximize the safety of your off-grid use.

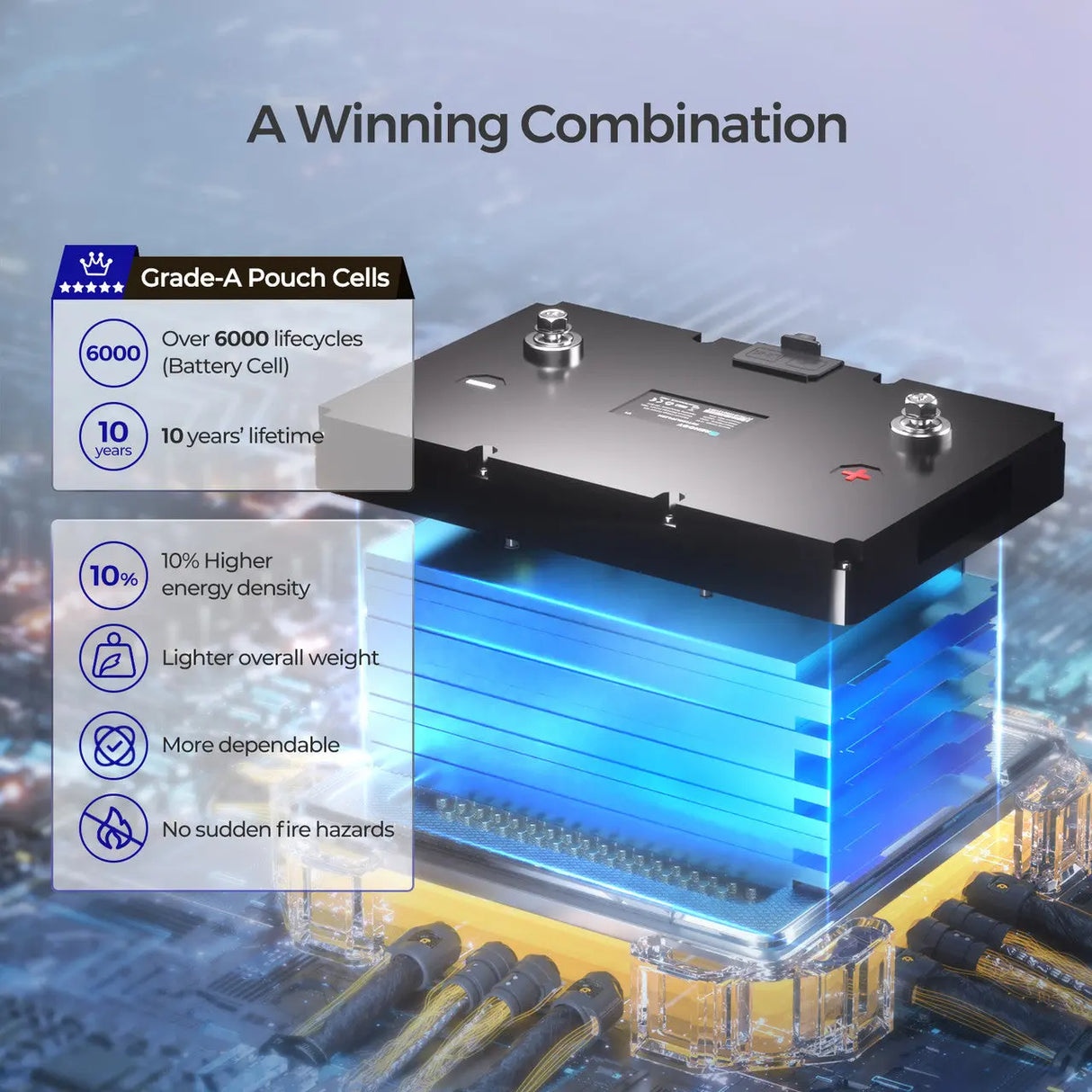

- 【The Ultimate Quality】 The next-level pouch cells surpass severe high temperature and puncture tests to avoid fire or explosion. The battery cell not only passes the UL1642 but also offers over ten years of lifespan with more than 4,000 cycles (80% DOD).

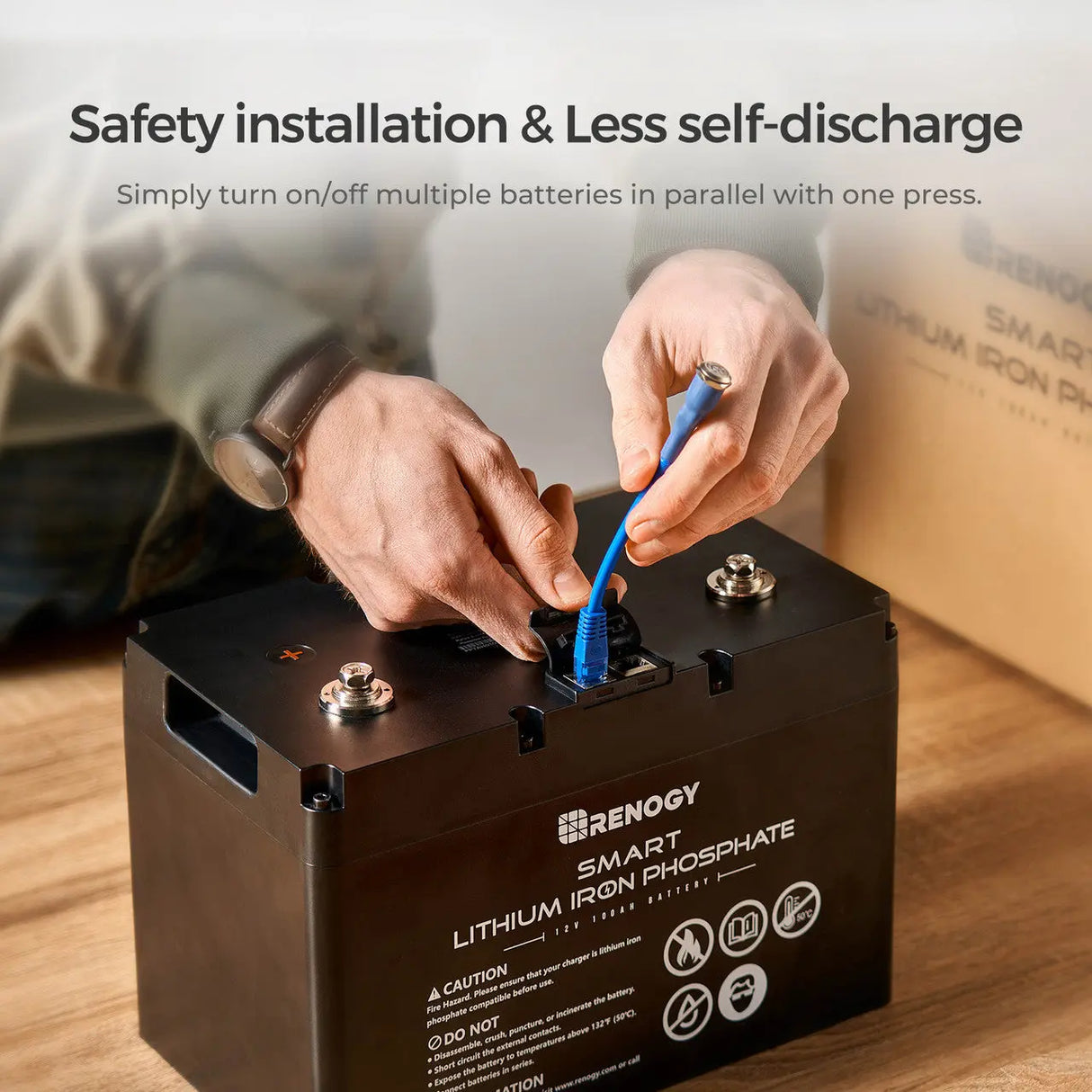

- 【Activation Switch】 With the activation switch cable, now for the first time, you can turn on or off multiple batteries in parallel to ensure the safety of installation and use.
- 【Auto-balancing Function】 Easily connect multiple batteries in parallel（up to 8）with the auto-balancing function, improving the average charging efficiency for your batteries in the long term.

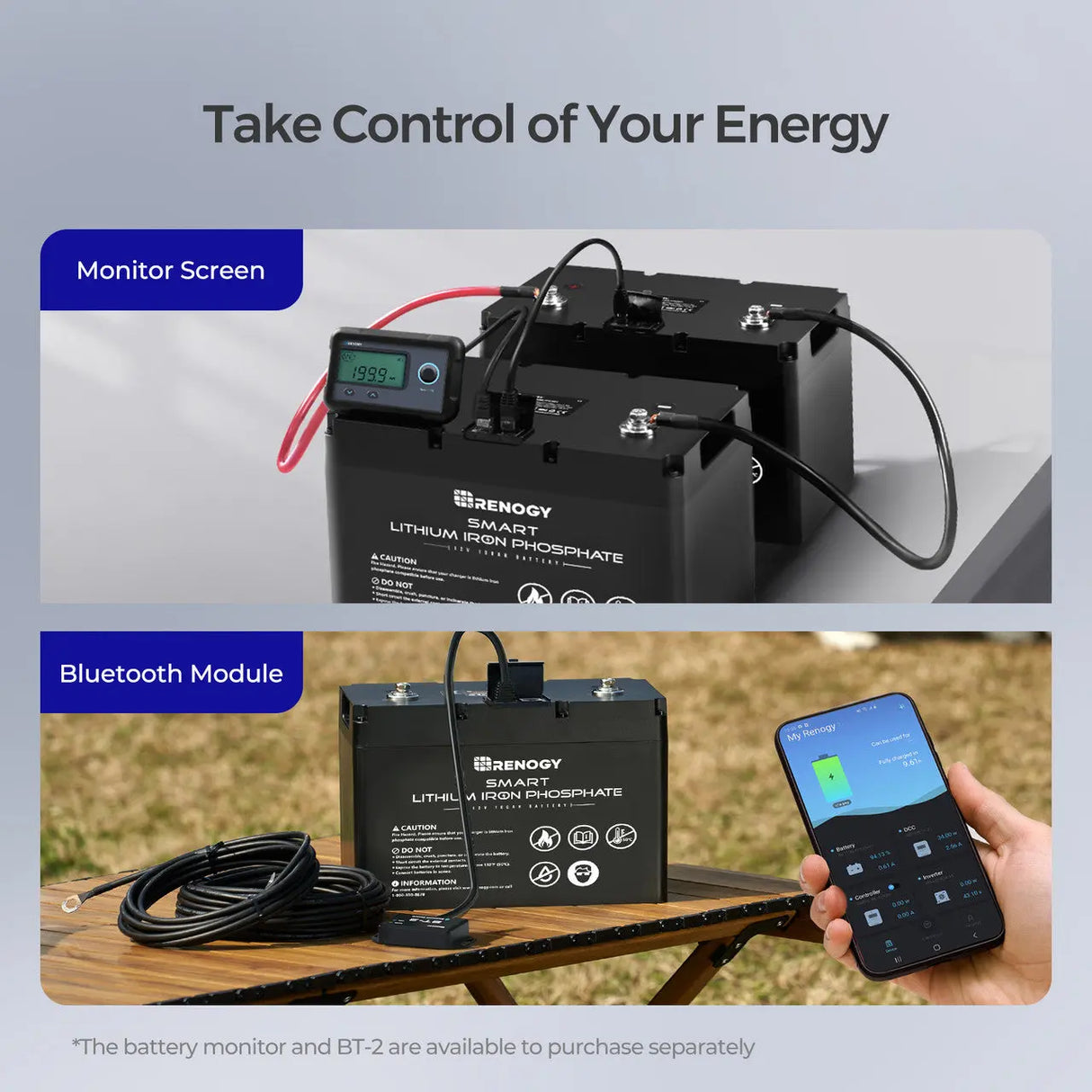

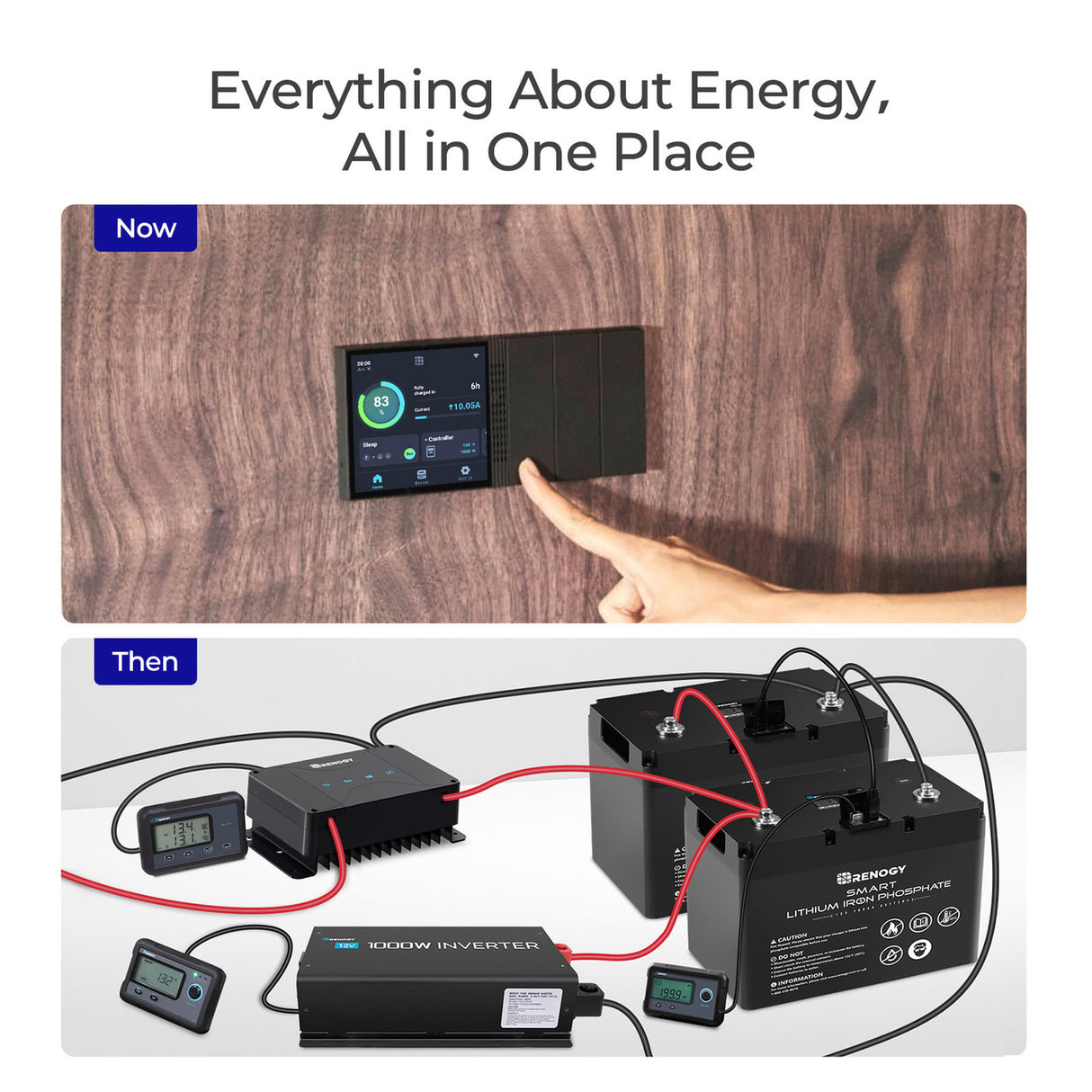

- 【Enhanced Ways to Monitor】 You can connect the battery monitor directly via CAT cable without purchasing an additional coulometer. You can also use the BT-2 Bluetooth & DC HOME app to monitor multiple battery states in real-time.
Refurbished 12V 100Ah Smart Lithium Iron Phosphate Battery is backordered and will ship as soon as it is back in stock.

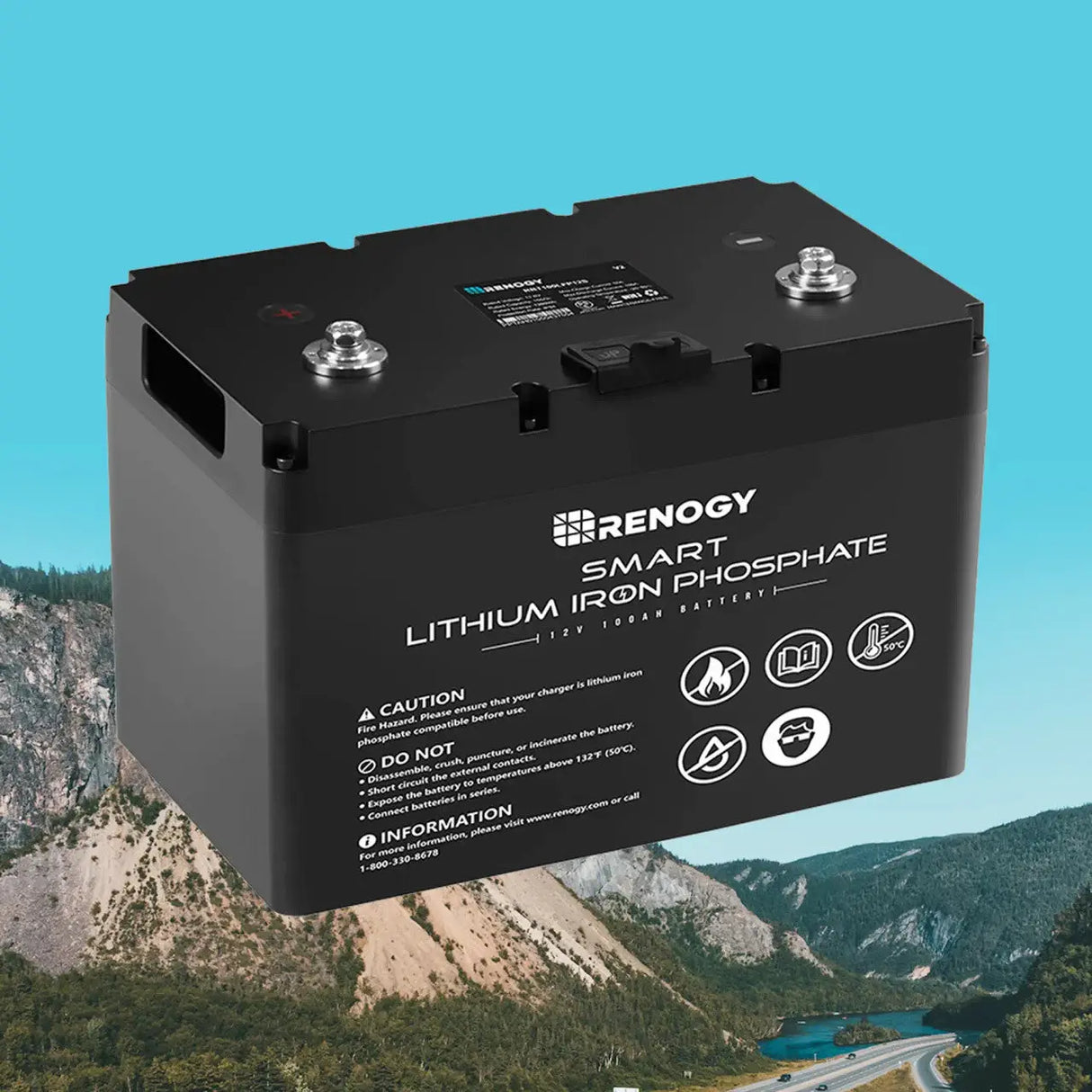

Renogy 12V 100Ah Smart Lithium Iron Phosphate Battery The Renogy Smart Lithium Iron Phosphate Battery enables auto-balance among parallel connections and provides more flexibility for battery connection. The integrated smart battery management system (BMS) not only protects the 12V 100Ah LiFePO4 battery from various abnormalities but also monitors and manages the charging/discharging process. The state-of-the-art battery cells ensure a long cycle life and exceptional discharge performance. If you’re searching for a deep cycle battery for caravan, cabin, or marine use, this lightweight, auto-balanced, ultra-safe, long-cycle-life lithium-ion battery is the perfect solution for you!
- The normal operation of the self-heating function requires a stable charge current greater than 3A.
- Please secure all cable connections to the proper specification in order to ensure good contact between the cable lugs and the terminals. Over-tightening cable connections can cause terminal breakage and loose cable connections can cause terminal meltdown or fire.
- DO NOT string the battery in series. ONLY connect batteries of the same manufacturer and model in parallel.
- Please avoid too high a voltage difference between paralleled batteries, despite the auto-balancing function, to avoid triggering the over-current protection.
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or contact us with livechat for troubleshooting assistance.
More questions about your off-grid power system? Learn more from Renogy Learning Center !
Package Includes
|
12V 100Ah Smart Lithium Iron Phosphate Battery
1 x
|
Activation switch and bolts
1 x
|
| Renogy 12V 100Ah Smart Lithium Iron Phosphate Battery | |||
|---|---|---|---|
| Operation Specifications | Mechanical Specifications | ||
| Rated Capacity | 100 Ah | Dimensions |

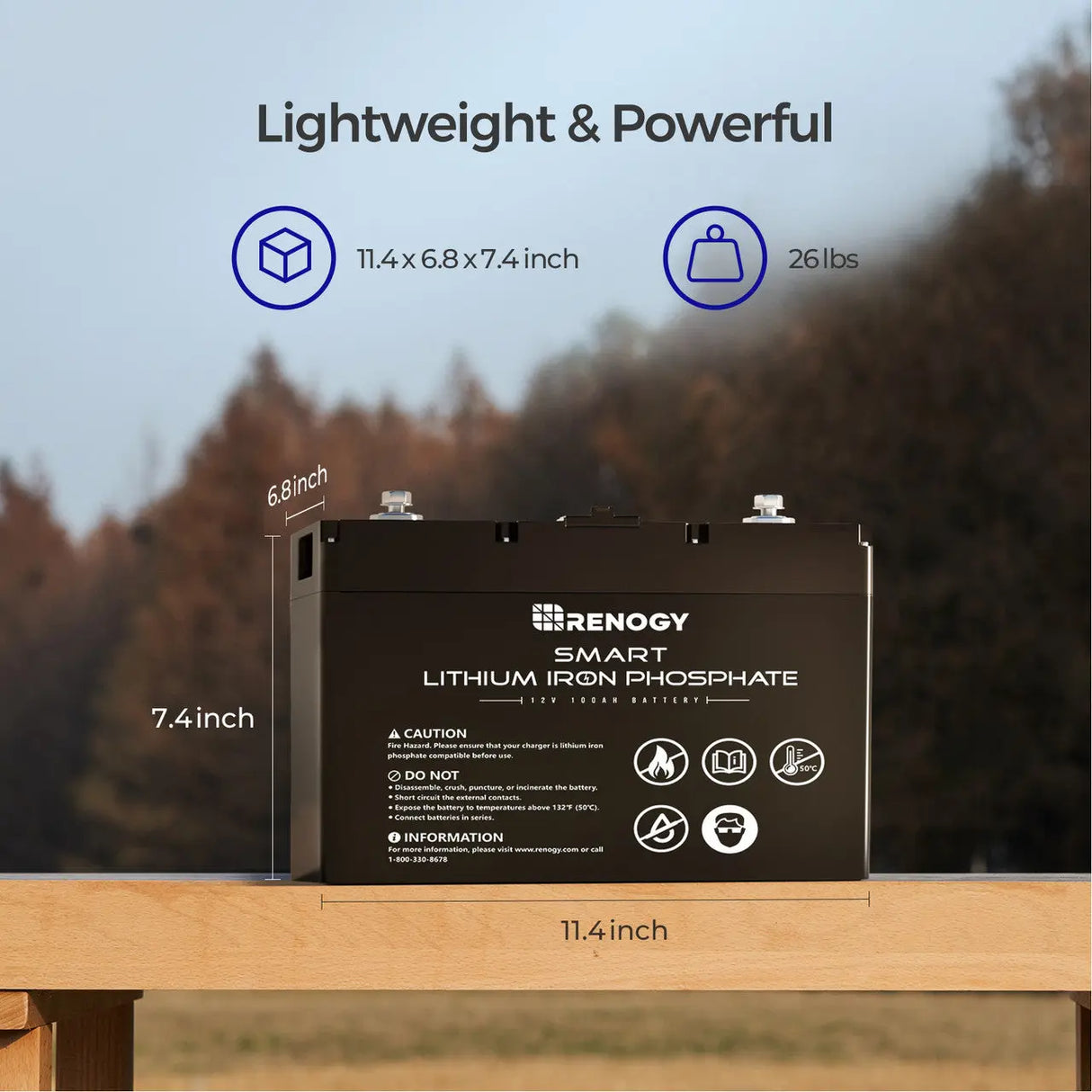

11.4 x 6.8 x 7.4 inch /289 x 172 x 188 mm
|
| Nominal Voltage | 12.8 V | Weight | 26 lbs. / 11.8 kg |
| Voltage Range | 10~14.8 V | Charge Temperature | 32~131°F/ 0~55°C |
| Cycle Life(0.2C,25℃) | 80%DOD 4000 Cycles | Discharge Temperature | -4~140°F/ -20~60°C |

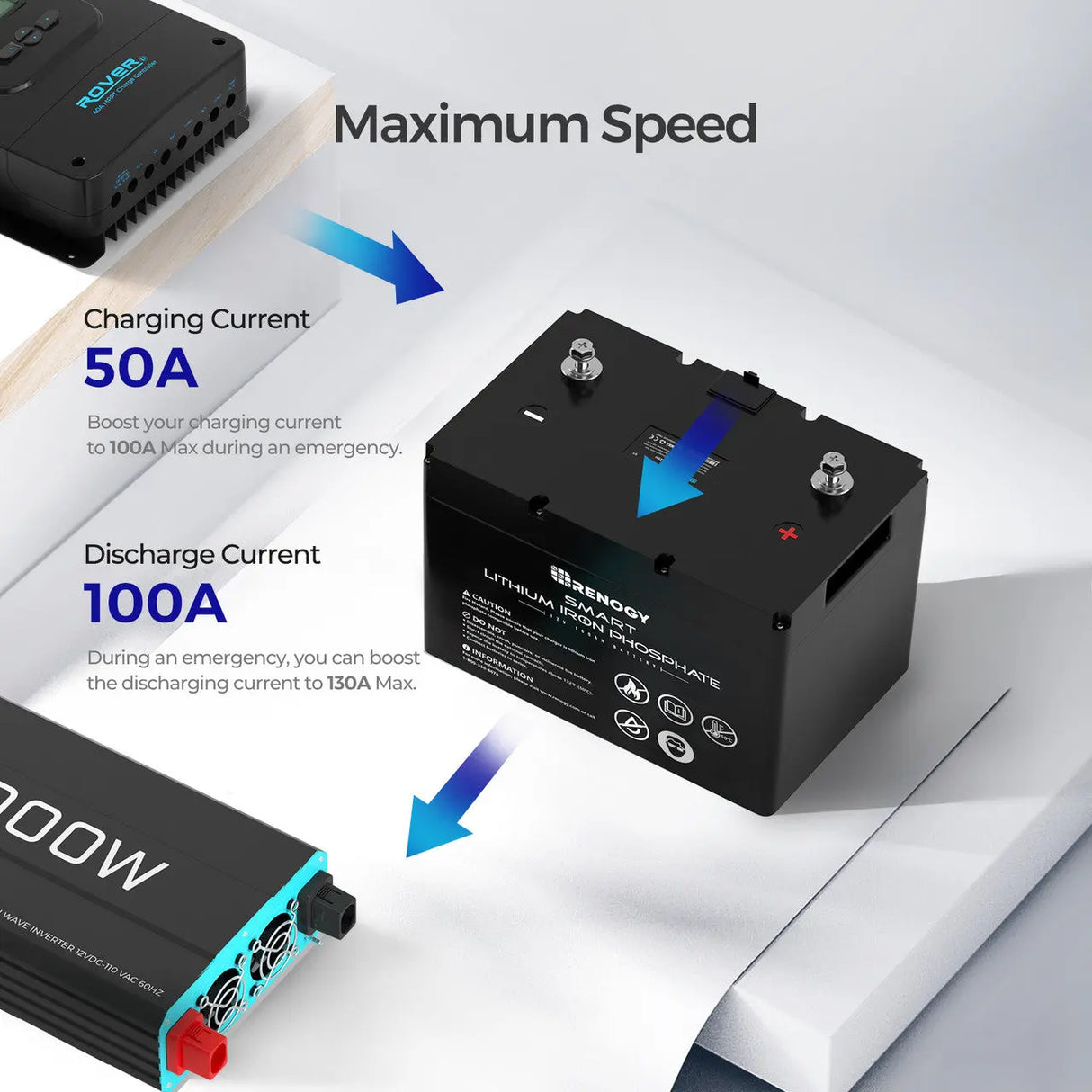

| Maximum Continuous Charging Current | 50 A | Protection Rate | IP54 |
| Maximum Continuous Discharging Current | 100 A | Communication Port | RJ45 (RS485 Protocol) |
| Dischaging Voltage Range | 10V~14.4V | Insulation Resistance | 500V DC, ≥ 10 MΩ |
| Standard Operation Temperature | 25℃±5℃ | Certifications | |
| Storage Temperature | -13~149℉ / -25~65℃ | UN38.3 | YES |
| Connection Method | Parallel | MSDS | YES |
| Accessories | UL 1642(Lithium Cell) | YES | |
| M8 Bolts | *2 | Warranty | |
| Activation switch | *1 | 5-year prorated warranty | |
1. What are Renogy battery’s greatest advantages？
2. What is the specific soft package cell mentioned just now?
3. What does the external battery switch do?
4. How long will your battery last?
5. How many batteries can I connect to at most?
6. How to keep a Lithium-iron Phosphate battery healthy at low temperatures?
7. What do I need know to connect multiple batteries in parallel？
When you design to connect multiple batteries in parallel, please keep the length of ALL cables consistent (from the positive end to the negative end). Battery cables (sold separately) should be appropriately sized to handle the expected load. Keep the connection tight by using the appropriate number of washers to allow for as much as possible thread engagement between the terminal, cable lugs, and busbars, without bottoming out the terminal bolt. And it is best to use flexible busbars or dedicated cables to connect batteries together.
Note: DO NOT connect batteries in series. DO NOT connect batteries with different chemistries.
 |
 |
