100 Watt 12 Volt Solar Bundle Kit 30A Controller

SKU: RNG-KIT-BUNDLE100D-WND30-US
$149.99 $169.99
+ 1490   Renogy Rays after purchase.
Log In About Rays

Quantity：
Payment Methods
Delivery Methods
Delivery time: 1-3 business days.Shipping Policy
Frequently bought together
This Item
100 Watt 12 Volt Solar Bundle Kit 30A Controller
Add
x1
x1
Save together with
Frequently Bought With
View more bundles Fold
Total Bundle Price
Add Bundle to Cart
Total Bundle Price

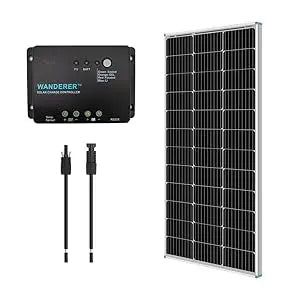

Renogy 100 Watts 12 Volts Compact Design Monocrystalline Solar Bundle Kit

Our Renogy 100W Compact Design Monocrystalline Bundle comes with components that you will need to expand on a system you may already have, or just need some items to complete your system.

Keep in mind that this kit allows for the charge controller to be close to the solar panel. So depending on your situation, you may still need an extension cable or longer wiring.



Renogy Solar Panel Kit Includes

PANEL

solar panel,solar panel kit,100w solar panel,rv kit,solar battery charge,solar charge controller

solar panel,solar panel kit,100w solar panel,rv kit,solar battery charge,solar charge controller

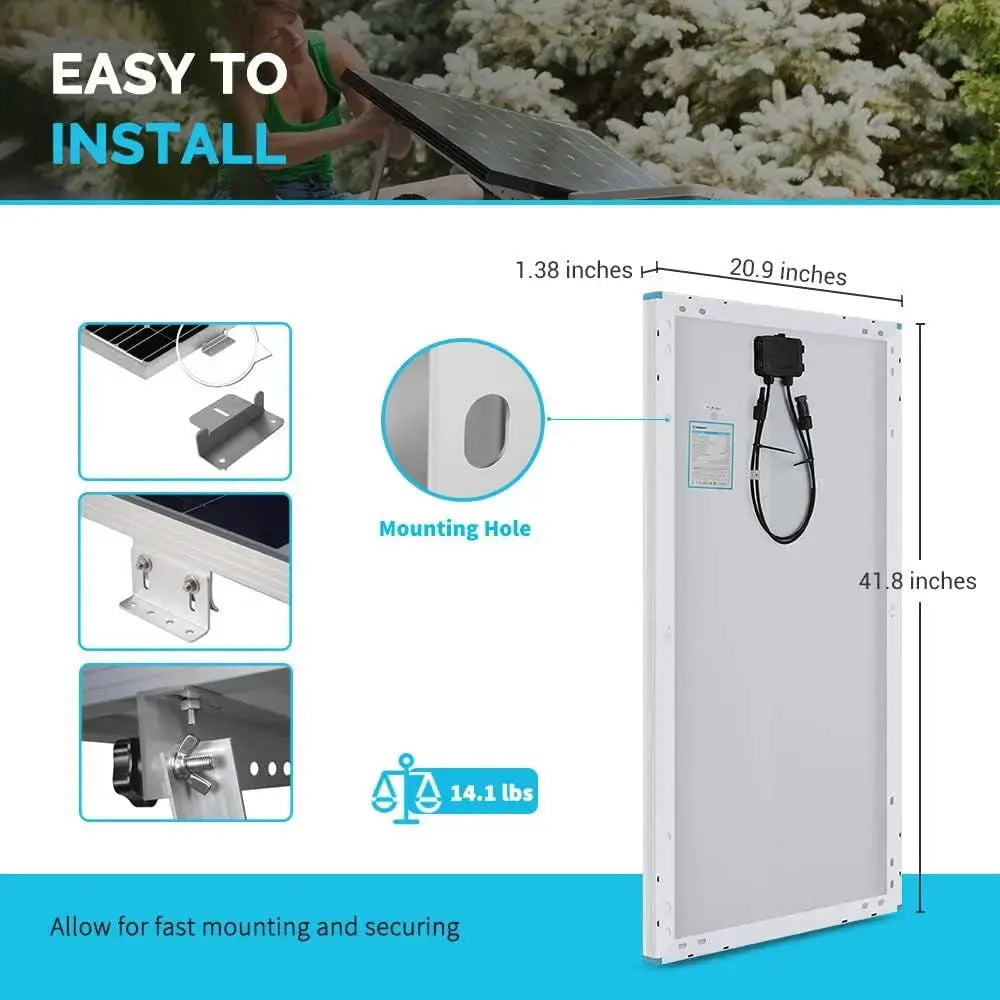

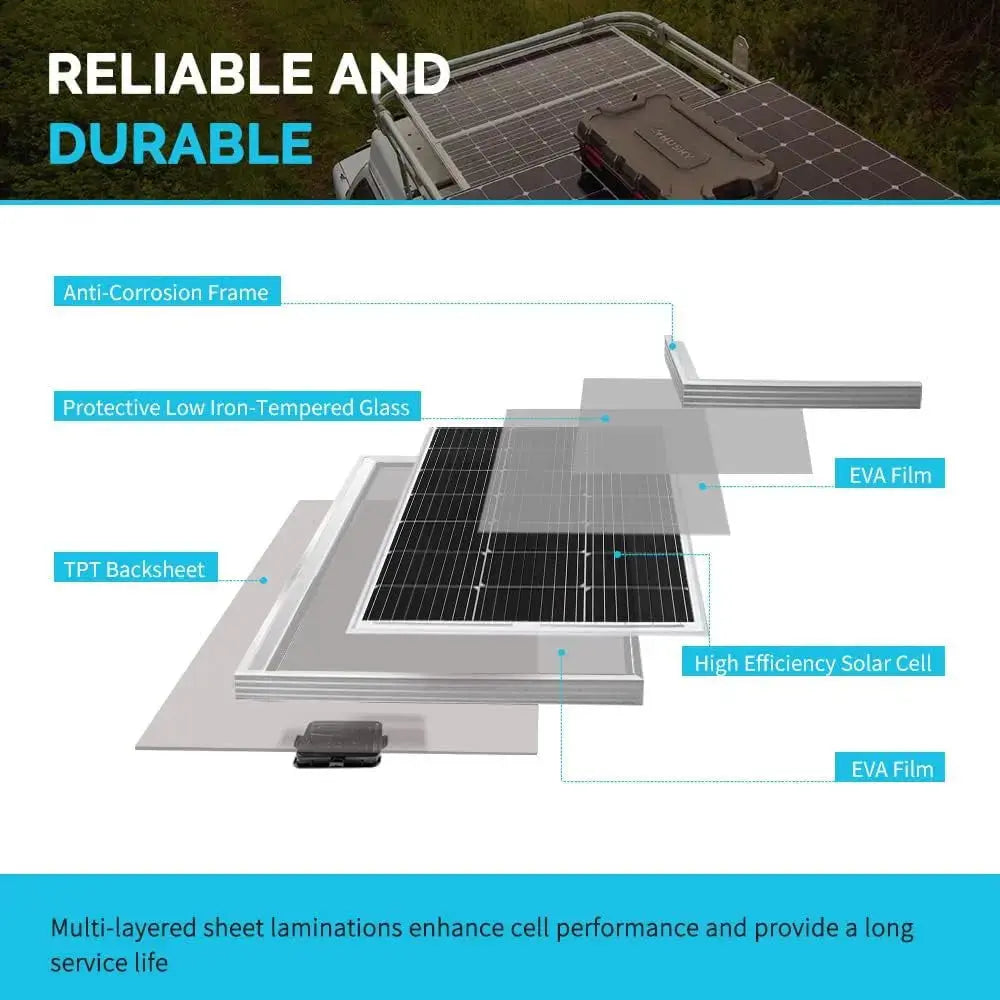

Renogy 100 Watt 12 Volt Compact Design Monocrystalline Solar Panel



  • Maximum Power at STC: 100W
  • Open-Circuit Voltage (Voc): 24.3V
  • Short-Circuit Current (Isc): 5.21A
  • Optimum Operating Voltage (Vmp): 20.4V
  • Optimum Operating Current (Imp): 4.91A
  • Maximum System Voltage: 600V DC

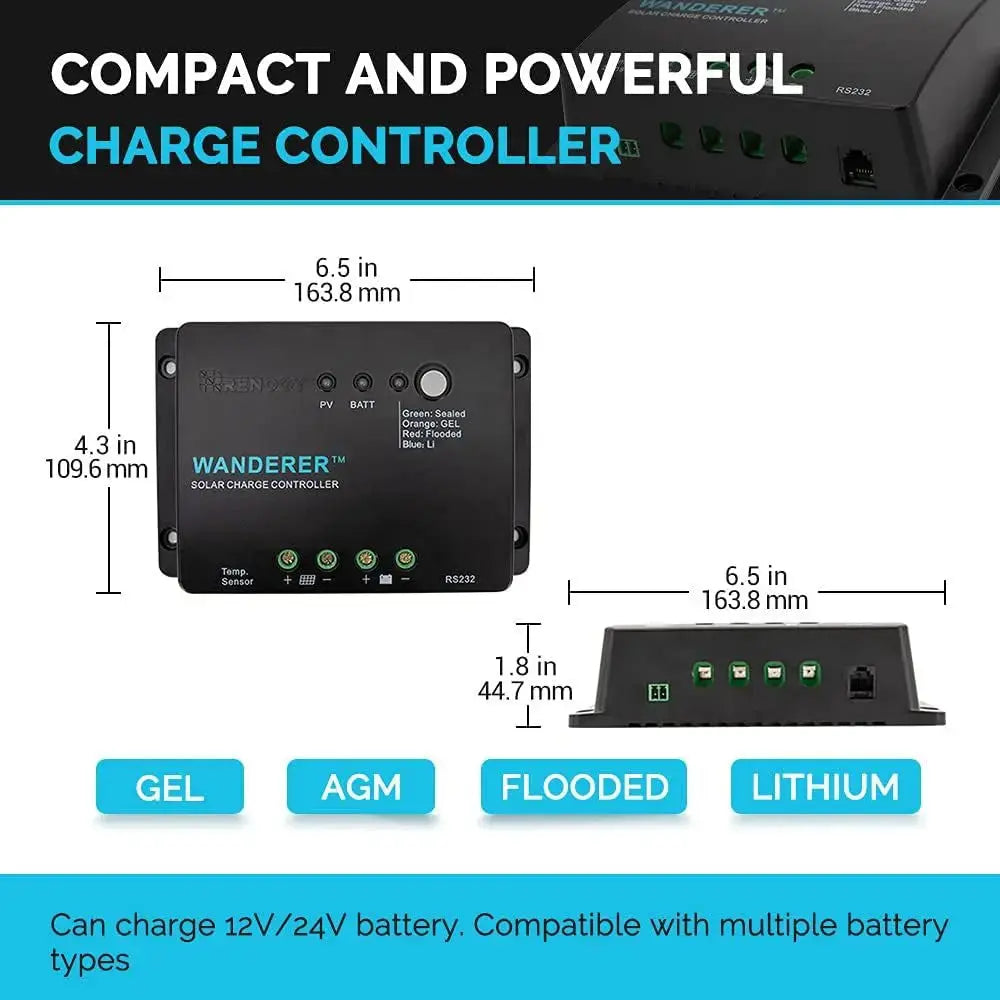

Renogy 30A Wanderer Li PWM Charge Controller



  • Nominal Voltage: 12VDC
  • Rated Charge Current: 30A
  • Self-Consumption: <10mA
  • Equalization Voltage: Sealed:14.6V; Flooded: 14.8V; Gel: N/A
  • Float Voltage: 13.8V
  • Dimensions: 6.45 x 4.31 x 1.76 inches
  • Weight: 0.65 lbs

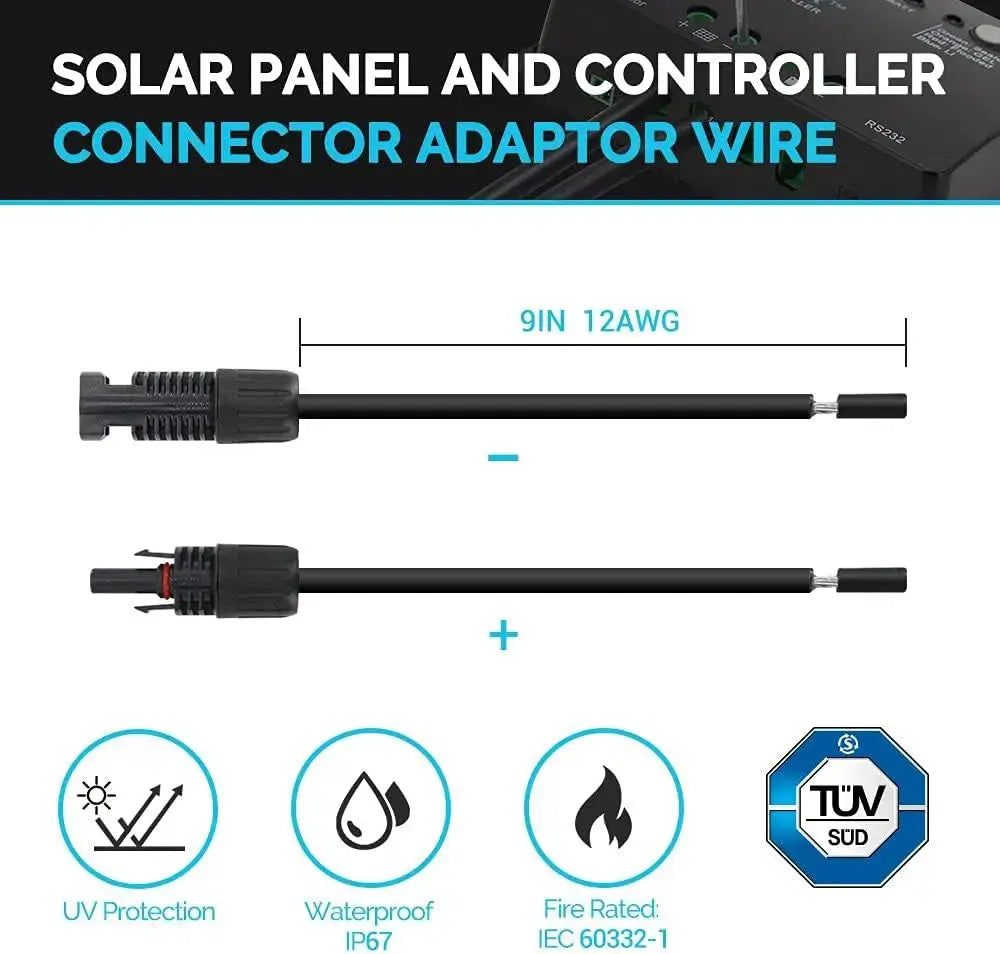

Renogy 9in 12 AWG Adaptor Kit (A pair)



  • Conductor: Tinned copper wire
  • 12 AWG 4 mm² Maximum current 30A
  • Rating Voltage: DC up to 1.8KV, AC up to1KV
  • Insulation & Jacket: XLPO (cross-linked polyolefin)
  • 12 AWG AVG Thickness 0.6 mm
  • Ambient Temperature: -40?? F ~ 194 ?? F
  • Fire Rated: IEC60332-1
  • Service life: up to 25 years
