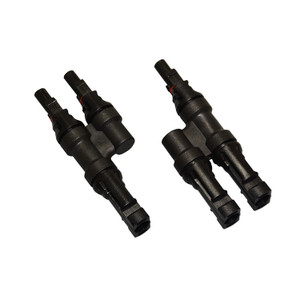

Renogy Solar MC4Y2 Branch Connectors MMMF+FFFM Pair

Renogy Solar MC4Y2 Branch Connectors MMMF+FFFM Pair
starts- reviews
SKU: RNG-CNCT-MC4Y-M
Quantity:

$14.44 $12.99
Free shipping*
Availability:

Description

The Limited Branch Connector is a perfect solution for connecting three panels in parallel. These connectors have high aging resistance and UV endurance, making them weather-proof and able to withstand harsh environments. A rivet and lock is used to connect the cable and no extra tools are required for assembly or disassembly of plugs.

If you have any questions regarding this product, please call us at 1 (800) 330-8678 or email sales@renogy.com.

Key Features

  • Rated Current: 30A
  • Insertion Force: < 50N
  • Maximum working voltage: DC1000V

Package Includes



Renogy Solar MC4Y2 Branch Connectors MMMF+FFFM Pair

Renogy Solar MC4 Branch Connectors MMF+FFM Pair

1 x

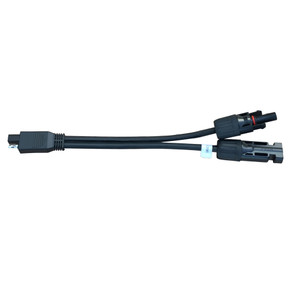

Renogy Solar Panel MC4Y Multi Branch Connectors (Pair)
Maximum working voltage: DC1000V Rated Current : 30A
Flame class: UL94-V0 Pollution degree: 2
Contact resistance: ≤5mmΩ Shell Protection degree: IP65
Ambient temperature range:-40~+85℃ Safety Level: class ‖
Insertion force: ≤50N Withdrawal force: ≥50N


Warranty Information


Panels

25-year transferable power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate

5-year material and workmanship warranty

Accessories 1-year material warranty


Certification
