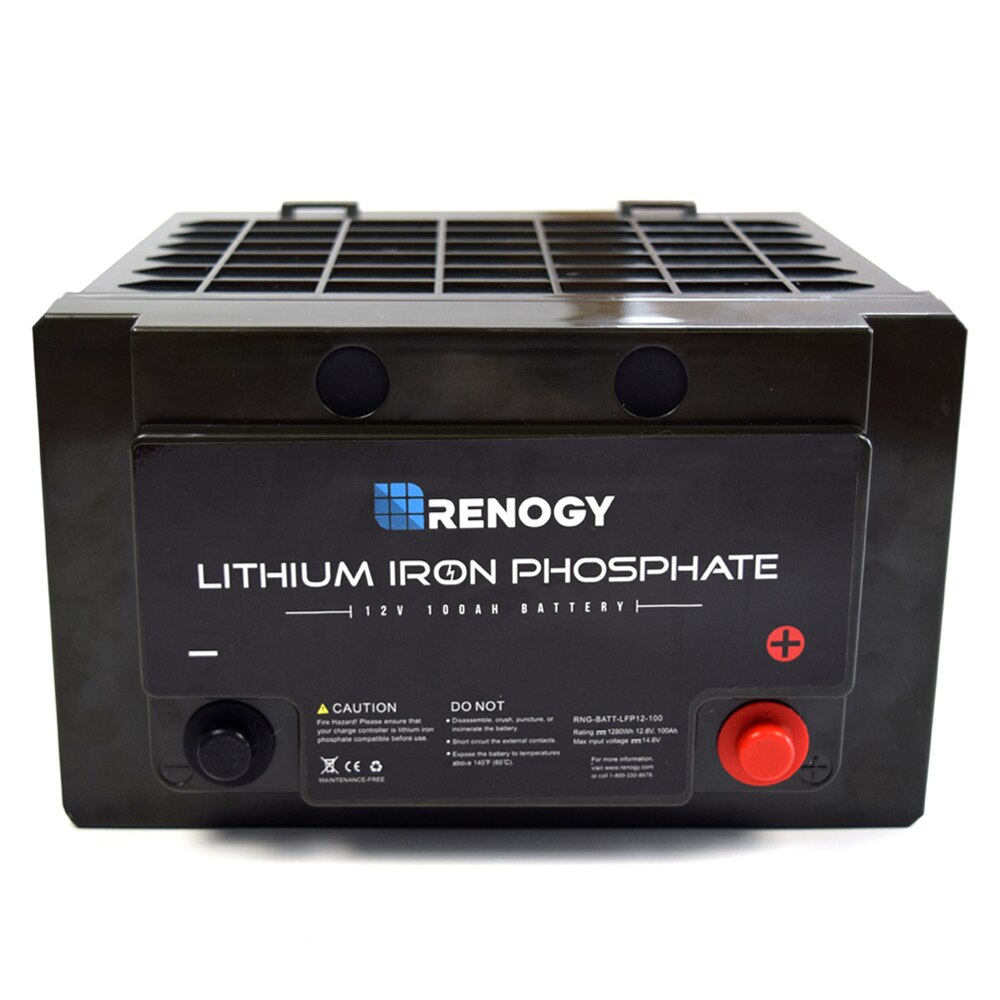

Lithium-Iron Phosphate Battery 12 Volt 100Ah

Lithium-Iron Phosphate Battery 12 Volt 100Ah
stars- reviews Lithium-Iron Phosphate Battery 12 Volt 100Ah item reviews
SKU: RNG-BATT-LFP-12-100
$899.99

Availability:

Renogy's fulfillment center will remain open to ensure that you are equipped with the reliable energy solution. Please note that due to an increase in order volume, there may be a slight delay. Thank you!



Description

Take your deep cycle battery experience to the next level by investing into Renogy's LFP Battery, combining superior lithium-iron phosphate technology to provide a better solution to solar energy storage. Weighing at just a bit over 25 lbs, Renogy's LFP battery surpasses expectation by being lighter, compact, and more powerful than its lead-acid battery counterparts of 100Ah. Designed to replace conventional solar battery storage units such as sealed Sealed, AGM, or Gel batteries, utilize your LFP battery in power-sport applications, off-grid applications, solar energy storage, and more! Take a step into the right direction by pairing your solar system with one of the safest and highest-cycle battery chemistry yet.

The Renogy Adventurer Li and Rover charge controller are fully compatible with this battery. If you have any questions regarding this product, please call us at 1 (909)287-7111 or email support@renogy.com.

Note:

  • Please be aware that if the batteries' Battery Management System (BMS) is activated and the battery voltage shows 0V, you must use a compatible Li charger to reactivate our Li batteries.
  • Make sure to tightly screw the battery terminals in, having loose battery terminals will cause the terminals to build up heat resulting in damage to the battery.
  • DO NOT string this battery in series. It is made ONLY for parallel connections using identical batteries.



Key Features

  • Lightweight
  • BMS protection
  • Low Self-discharge
  • Triplex Sealed Construction
  • Patent Designed Construction


Minimum 12V Lithium Battery Bank Sizing

The following are the minimum battery quantities to operate Renogy power inverters. This is ONLY for 12V applications.

Battery Bank Qty/ Inverter Size50Ah100Ah170Ah
700W 1 1 1
1000W 2 1 1
2000W 4 2 1
3000W 6 3 2


Package Includes

Renogy Lithium-Iron Phosphate Battery 12 Volt 100Ah

1 x




Electric Characteristics
Nominal Voltage:12.8V Energy Density:126.7Wh/L
Rated Capacity (0.2C):100Ah Internal Resistance:≤30mΩ
Minimal Rated Capacity (0.2C):95Ah Cycle Life (0.2C, 20±5°C):80% DOD 2000 cycles
Energy:1280Wh Specific Energy:100.4Wh/kg
Charging ParametersDischarge Parameters
Charge Voltage:14.4 ± 0.2V Maximum Continuous Discharge Current:100A
Maximum Charge Current:50A Discharge Cut-off Voltage:≥10V
Charge Cut-off Voltage:14.6V
Temperature Parameters Operation Temperature Range
Temperature Parameters Storage Temperature Range
Charge: 32~113°F/ 0~45°C Less Than 1 Year: 32~77°F/ 0~25°C
Discharge: -4~140°F/ -20~60°C Less than 3 months: 14~95°F/ -10~35°C
Recommended: 73.4 ± 9°F/ 23 ± 5°C
Mechanical Properties
Length: 260mm / 10.2 inch Weight: 12.75kg/28.1lbs.
Width: 158mm / 6.2 inch Housing Material: ABS+PC
Height: 246mm / 9.7 inch Terminal Model: M8x0.75x14mm
Cell Model: IFR26650-3.4AH Assembly Method: 4S30P


Warranty Information

Accessories 5-year prorated warranty
