Description

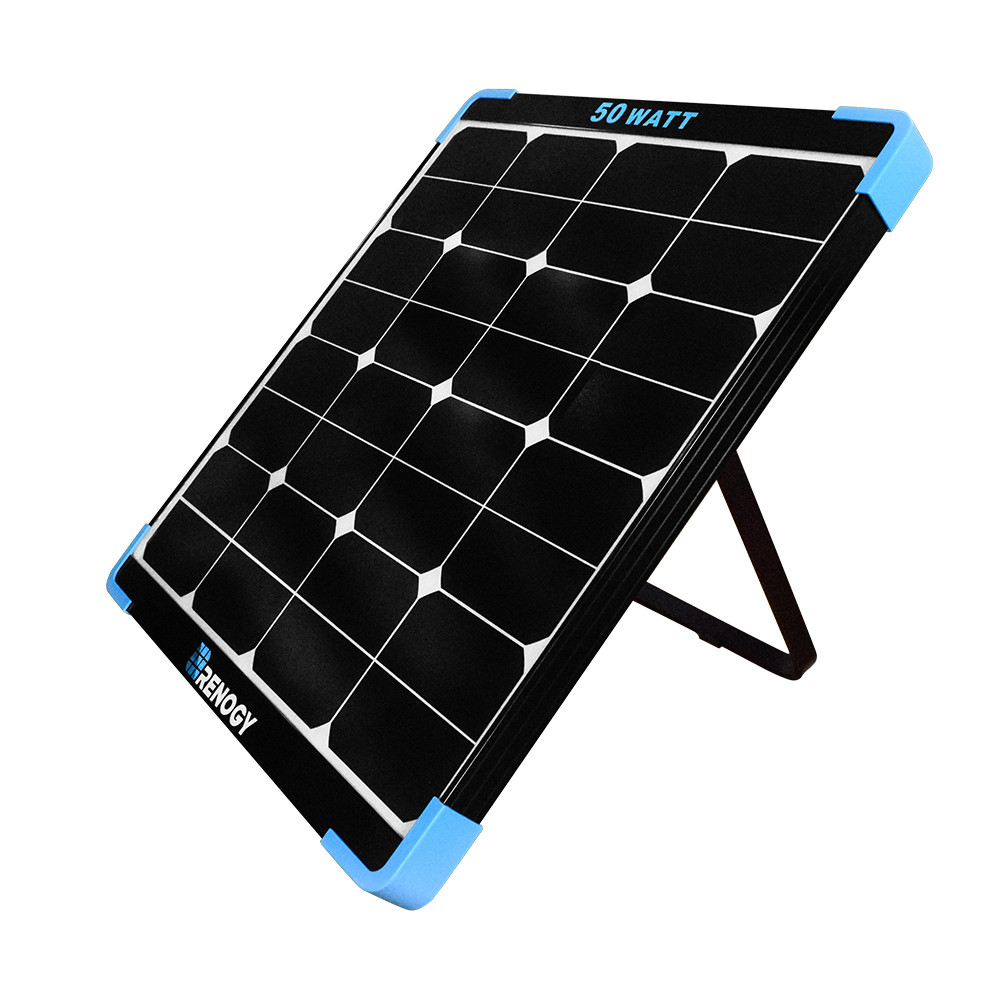

The Renogy 50W Mini Eclipse Monocrystalline Solar Panel is a new take on a company classic. This "mini" Eclipse combines power and functionality to create an effortlessly sleek unit. This solar panel is crafted with the highest efficiency cells that Renogy has to offer, making it both smaller and lighter than its traditional counterpart. Weighing in at a mere 12.3 pounds, the Mini Eclipse is also easier to transport and store. The built-in kickstand allows you to tilt the panel for greater sun coverage and charging efficiency, making the Mini Eclipse the ideal choice for on-the-go applications.
If you have any questions regarding this product, please call us at 1 (909)287-7111 or email sales@renogy.com.
Key Features
- Monocrystalline panels come with high-efficiency cells that help increase module efficiency
- 2 bypass diodes minimize power drop caused by shade
- No grid lines on the front of the solar cells create a cleaner look
- Black frame compliments high-efficiency solar cells
- Advanced encapsulation material with multi-layered sheet laminations to enhance cell performance and provide a long service life
- EL tested solar modules; no hot-spot heating guaranteed
- TPT back sheet ensures smooth performance over a long period of time
- Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa)
- Protective corners and corrosion-resistant aluminum frame for extended outdoor use
- Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
Package Includes
|
Renogy 50W Mini Eclipse Solar Panel
1 x
|
| Built-in Components | |
|---|---|
| Renogy 50 Watt Mini Eclipse Monocrystalline Solar Panel | IP65 Rated waterproof junction box |
| Panel Leads (Pair): 12AWG | IP67 Rated waterproof MC4 connectors |
| Specifications | |
|---|---|
| Maximum Power: 50W | Maximum System Voltage: 600V DC (UL) |
| Optimum Operating Voltage (Vmp): 18.3V | Open-Circuit Voltage (Voc): 22.4V |
| Optimum Operating Current (Imp): 2.73A | Short-Circuit Current (Isc): 2.96A |
| Weight: 12.3 lbs | Dimensions: 23.4x20.8x1.37 inches |
Warranty Information
| Panels |
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 3-year material and workmanship warranty |
| Accessories | 1-year material warranty |
Certification
 |
 |
 |
