Circuit Breaker Installation: How to Install a Circuit Breaker

If your goal is to upgrade your home's electrical system with a circuit breaker installation, this article will take you through the entire process safely. Proper installation of a breaker helps protect your family from accidents, avoids fires and guarantees your home runs well. With our background solar electric solutions, we've created a simple guide that DIY enthusiasts can use. You'll learn about wiring, picking the best breaker, avoiding common errors and sticking to safety measures from the beginning to the end of the project.

It's important to begin by learning what a circuit breaker does and why getting it installed the right way matters to your home.

What Is a Circuit Breaker?

A circuit breaker is a security switch that automatically turns off electricity if a problem such as an overload or a short circuit happens in your home's electrical system. It avoids fire incidents, breaks and deadly electric shocks.

Rather than burning out, circuit breakers can be restored and reused, making them safer and easier to work with in new electrical systems. With circuit breakers in place, your kitchen appliances, lighting or solar systems will all use electricity in a safe and dependable way.

Reasons for a Circuit Breaker Installation

A circuit breaker boosts safety, supports upgrades, and handles increased power needs. Here are common reasons why you need to install one:

• Adding New Appliances: Due to the amount of power they use, modern items such as ovens, washing machines and HVAC systems should be on dedicated breakers. A new breaker prevents your existing circuits from overloading.
• Room Renovations or Home Additions: Adding a kitchen, office, or room usually requires extra circuits. Installing new breakers keeps your home safe and stable.
• Installing Solar Power Systems: Your home's power supply needs special breakers for the safe integration of solar panels. For any building or room, correct installation is important for meeting standards and stability.
• Outdated or Overloaded Electrical Panels: Older panels may not meet your current energy needs, so installing a breaker or upgrading the panel prevents overheating and power outages.
• Upgrading for Safety and Compliance: Some local building or insurance rules may call for changes to your electrical system. A new breaker installation protects your home, makes it insurable and keeps it compliant with rules.

Safety Precautions Before Installing a Circuit Breaker

It's important to put safety ahead of any other step when starting to fix things. Being careful around electrical panels is necessary, so it's very important to protect yourself before repairing or installing breakers.

Minor mistakes can result in electric shock, damage to equipment or a fire. Regardless of whether you're a beginner installing a circuit breaker or just replacing an existing one, always make sure your first concern is safety.

Turn Off the Main Power Supply

This is the golden rule: Always shut off the main power before touching anything inside the breaker panel. Locate the main disconnect switch usually at the top of your panel and flip it off. After doing this, use a voltage tester to double-check that no current is flowing. Never rely on just your eyes, test every wire.

Understand the Risks Involved

Even when the main breaker is off, some parts of the panel may still be live, especially the service lugs. Touching these by accident can be fatal. If you feel uncertain or uncomfortable, this is the point where you should call a licensed electrician. DIY is great, until safety is compromised.

Use Proper Safety Gear

Wearing the right protective gear minimizes your risk. Before beginning your circuit breaker installation, make sure you're equipped with:

• Insulated gloves to prevent shock
• Safety goggles to protect your eyes from sparks or debris
• Rubber-soled shoes and a dry, non-conductive workspace
• A voltage tester or multimeter to check live wires
• A headlamp or flashlight, since you'll be working in low light after the power is off

Tools & Materials Needed for Circuit Breaker Installation

Adding a circuit breaker becomes much easier once you have the correct equipment. If there are items on your assessments that you don't recognize, look them up or ask someone to help you before moving on.

Here's a checklist of what you'll need:

Basic Tools

• Insulated flathead and Phillips screwdrivers
• Wire strippers (for clean, safe wire connections)
• Needle-nose pliers (to maneuver wires inside the panel)
• Voltage tester or multimeter (to confirm power is off)
• Flashlight or work light

Electrical Materials

• The correct circuit breaker (based on your panel and amperage needs)
• Electrical wire (right gauge based on the load)
• Panel screws and/or a panel knockout tool
• Cable clamps and connectors
• Labels or marker for wire identification

Safety Equipment (Repeat Emphasis)

• Insulated gloves
• Safety goggles
• Rubber-soled shoes
• Headlamp or flashlight

Step-by-Step: How to Install a Circuit Breaker

When you have everything needed and are safe, it's time to proceed with the installation. No matter if you're improving an existing panel or installing a breaker for a new appliance, you can complete this process with these simple steps.

Reminder: Whenever you're unsure or faced with a complex panel setup, the best step is to contact a licensed electrician. You should always put your safety above everything.

1. Turn Off the Main Power

Shut off your main breaker switch to cut the electricity that goes to the panel. With most of the panel insulated, the wire on the service lugs may still provide live power, so don't come into contact with them.

Double-check using a voltage tester or multimeter to make sure all terminals and wires you'll be touching are not live.

2. Remove the Panel Cover

Remove the panel cover screws with an insulated screwdriver to get access to both empty breaker slots and the neutral and ground bus bars . Be careful—exposed wiring is hazardous.

3. Identify an Open Slot

Check for an available slot in your circuit breaker panel where the new breaker will be installed. If your panel is full, do not attempt to double up breakers or force a new one in. Instead, consider panel expansion or call a professional.

Your new breaker should match the brand, voltage, and amperage requirements of your existing panel system.

4. Prepare the Electrical Wire

Measure and cut the proper length of electrical wire from your new device or outlet to the breaker panel. Then, using a wire stripper, remove about ½ inch of insulation from the ends of each wire.

You'll typically be working with a black (hot) wire, white (neutral) wire, and bare or green (ground) wire.

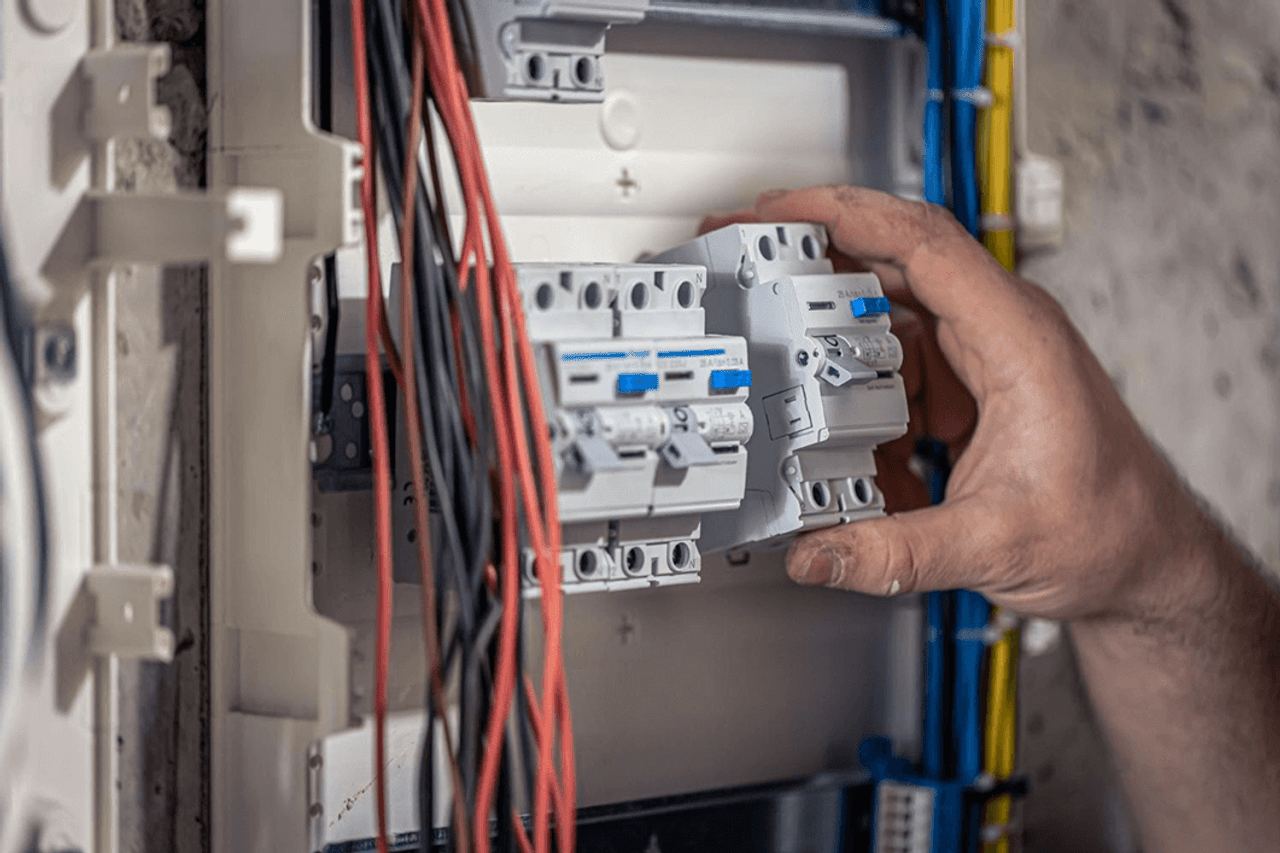

5. Insert and Secure the Breaker

Carefully insert your new circuit breaker into the open slot. Push it firmly into place on the panel's mounting rail until it clicks or locks in.

This step is central to the breaker installation process, if the breaker feels loose or doesn't seat properly, remove and try again.

6. Connect the Wires

• Connect the black (hot)wire to the terminal screw on the new breaker and tighten it securely.
• Attach the white (neutral) wire to the neutral bus bar.
• Connect the bare/green (ground) wire to the grounding bus bar (sometimes shared with neutral, depending on the panel setup).

Use your pliers or screwdriver to ensure all connections are tight but not over-torqued.

7. Inspect Your Work

Before restoring power, do a quick visual inspection:

• Are all wires secure and properly placed?
• Is the breaker fully seated?
• Are there no loose tools or debris inside the panel?
• Do a continuity test to ensure proper connections

If everything looks correct, you're ready for the next step.

8. Replace the Panel Cover

Carefully fit the panel cover back into place and fasten it with screws. Make sure no wires are pinched beneath the cover and everything sits flush.

9. Restore Power and Test

Flip the main breaker back on, then turn on your newly installed breaker. Use a voltage tester or plug in the connected appliance to check if everything works as expected.

If the breaker immediately trips, turn everything off and double-check your wiring connections. Don't try to force it on it's tripping for a reason.

Permits and Code Compliance

Adding a circuit breaker may require local permits or electrical inspections, especially for major additions like EV chargers, hot tubs, or solar installations. Always check your local codes before starting.

Failing to get proper permits could lead to insurance issues, fines, or safety risks down the road. Don't skip this step, compliance is part of a successful installation.

Tips for Installing a Circuit Breaker

Whether you're a seasoned DIYer or attempting your first circuit breaker installation, following proven tips can help you avoid common setbacks and ensure a smooth, safe experience. Here are 7 essential tips to keep in mind:

• Always double-check power is off. Use a voltage tester to confirm there's no live current before touching any wires - never rely solely on flipping the breaker.
• Match the breaker type to your panel brand. Using mismatched breakers can lead to poor connections or even fire hazards, so always check compatibility with your panel manufacturer.
• Use the correct breaker size for your load. An undersized breaker will trip constantly, while an oversized one can fail to protect your wiring from overheating.
• Label all circuits clearly. This not only helps during future maintenance but also ensures others can safely navigate your electrical setup.
• Keep wiring clean and organized. Neatly routed wires reduce the risk of accidental shorts and make troubleshooting much easier down the line.
• Tighten connections securely but not excessively. Over-tightening can damage terminals or strip threads, while loose connections may cause arcing or heat buildup.
• Follow local electrical codes and permit requirements. Compliance ensures safety and legality—plus, it helps avoid costly corrections if inspected later.

Should You DIY or Hire a Professional for Circuit Breaker Installation?

You Can DIY If…

• You're installing a simple circuit breaker into a modern panel with available slots.
• You've turned off the main power and confirmed it's safe using a voltage tester.
• You understand how to safely handle wires, grounding, and amperage ratings.
• You do not require a permit for the work you're doing.
• You've reviewed breaker installation safety protocol, and feel confident.

Call a Licensed Electrician If…

• Your panel is full or outdated and may require a panel upgrade or subpanel installation.
• You're unsure how to identify live components(e.g., service lugs, grounding bars).
• The project involves high-powered appliances, solar systems, or code-specific installations.
• Your local regulations require permits or inspections before any modifications.
• You're just not comfortable working inside a live electrical panel and that's completely okay.

Need solar-specific electrical help? Renogy's licensed professionals can help ensure your breaker installation is safe, code-compliant, and perfectly integrated into your solar or backup power system.

Join the Network: Renogy Electrician Referral Program

Selecting dependable components is a key part of any successful electrical project. That's where Renogy Electrician Referral Program comes in - not as a way to recommend electricians to customers, but as a platform that empowers electricians to recommend Renogy's trusted solar and electrical products to their clients. This initiative supports licensed professionals in growing their business while partnering with a brand known for innovation and reliability. Electricians who join the program gain access to exclusive perks, including competitive rewards and marketing resources that help them stand out in a competitive market.

Building on that trust, Renogy's Trusted by Electricians page highlights real-world stories from professionals who rely on Renogy products for their durability, performance, and seamless integration into both residential and commercial systems. These testimonials aren't just endorsements - they're proof of performance from the field. And through the referral program, you can connect with this network of skilled electricians who bring Renogy's top-tier solutions and technical expertise to your project, ensuring long-term energy efficiency and peace of mind.

Circuit Breaker Installation FAQs

You've got questions, we've got straightforward answers. Here are some of the most common questions people ask when learning how to install a circuit breaker or planning a breaker installation.

Can I install a circuit breaker myself?

Yes, if the installation is simple, you follow safety precautions, and your local codes allow it. However, complex or high-load installations should always be handled by a professional.

How much does it cost to install a circuit breaker?

DIY installation may cost around $30–$100 (for parts and tools). Hiring a professional can range from $150 to $300+, depending on labor, permits, and panel complexity.

What size breaker do I need?

That depends on the device or appliance you're powering. Most household outlets use 15- or 20-amp breakers, but appliances like dryers or EV chargers may require 30, 40, or even 50 amps. Always match the breaker size with the wire gauge and the load.

How do I know if my panel can handle more breakers?

Check your panel for available slots, then calculate your home's total electrical load. If you're nearing capacity or unsure, it's best to consult an electrician or use a load calculator.

Final Thoughts

Now that you understand the steps, it's clear how important safety and preparation are. Whether you're adding a breaker or upgrading a panel, ask yourself - are you confident in handling it, or would it be safer to bring in a professional? ? If you're ready to go the DIY route, review the steps carefully, double-check your tools, and take your time. If not, consider hiring a licensed electrician. And for solar-specific or complex electrical upgrades, Renogy's reliable products are designed to integrate seamlessly with professional installations - ensuring long-term performance and peace of mind.
