What’s the Difference Between Renogy’s Two NEW 40A DC to DC Battery Chargers?

What’s the Difference Between Renogy’s Two NEW 40A DC to DC Battery Chargers?

S
Shari and Hutch
Oct 23rd 2024

Ever experience one of these two off-grid charging situations?

Your solar panels do a great job of keeping your off-grid house battery for your van, RV, or boat powered up while the sun is shining, but when the weather turns cloudy or you want to hide from the sun to keep things cooler during the summertime in the shade, charging back up is a challenge.

Your DC to DC battery charger takes good advantage of the power coming from your vehicle's engine to rapidly charge up the off-grid house battery for your van, RV, or boat, whenever the engine is running. But, when you're stationary, without solar or shore power, you are left without a good power source while boondocking.

Each device has its time to shine, but also has limitations that could leave you longing for greater flexibility. What if there was a device that handled both of these off-grid charging situations? There is……read on!

What's the Difference Between Renogy's Two NEW 40A DC to DC Battery Chargers

Many tow-behind RVs, motorhomes, and motorboats claim that the house batteries trickle charge (usually around 5A) isn't enough to do more than keep them topped off. If you're going from one shore power campsite to another shore power campsite, then this solution is adequate.

However, if you intend to live off-grid – even for a few days – then this trickle will not be enough to recharge a discharged house battery. A DC to DC charger acts as a pump to increase the charging power to effectively recharge your battery, but the difference between these two styles is significant and important to understand:

  • 40A DC to DC Charger is designed to boost the charge from your starting battery or alternator, making it perfect for SUVs or RVs without solar panels. It's also an excellent addition for those with a solar charge controller, ensuring seamless, interference-free charging from both solar power and your vehicle's battery.
  • 40A DC to DC Charger with MPPT can accept a charge from either the engine OR a solar panel array. This eliminates the need for a solar charge controller in your system as this unit does the job of both an MPPT solar charge controller (brain of the system) and DC to DC charger (boost from the engine). The new 12V 40A model allows you to choose one or the other with a simple press of a button.

Let's compare the standard 40A DC to DC Charger with the 40A DC to DC Battery Charger with MPPT:

Specifications

40A DC to DC Battery Charger

40A DC to DC Battery Charger with MPPT

System Voltage

12V

12V

Battery Type

AGM, Gel, Flooded, Lithium Iron Phosphate

AGM, Gel, Flooded, Lithium Iron Phosphate

Charging Source

Engine

Engine, Solar

MPPT

No

Yes

Dimensions

9.3 x 6 x 2.4 inches

7.7 x 5.6 x 1.9 inches

Weight

4.4 lbs.

2.6 lbs.

Alternator Input Voltage

Traditional Alternator (13.2 – 16 VDC)

Smart Alternator (12 – 16 VDC)

Traditional Alternator: 13.2-16.0 VDC

Smart Alternator (Euro 6): 12-16.0 VDC

Output Current

40A

40A

Output Power

584W

616W

Operating Temperature

-4℉ -122℉ /-25 ℃ - 60℃

-4℉ -113℉ /-20 ℃ - 45℃

Communication Method

RS485 Cable

Does not offer communication

Charging Efficiency

94%

≥93%

Simply put, the DC-DC Battery Charger with MPPT combines the best of both off-grid charging methods into one device, expanding your charging options while saving valuable space in your power cabinet. Solar charge controllers with MPPT (Maximum Power Point Tracking) are nearly 40% more efficient than older PWM (Pulse Width Modulation). The newest line of DC-DC Battery Chargers with MPPT come equipped with both of these advanced charging technologies, giving you optimal efficiency and flexibility in one compact solution!

Top Features of Renogy's NEW 40A DC to DC Battery Charger with MPPT:

  • Dual Battery Charging Options – Solar or engine, but only one at a time, with engine source as the default mode.  Select charging input with the press of a button.
  • Enhanced Charging Safety – Standard features include reverse connection protection, overvoltage protection for your house battery, over discharging protection for your starter battery. Additionally, it includes BMS protection for Lithium Iron Phosphate (LiFePO4) batteries, along with over-temperature and charging timeout protection.
  • Compact & Lightweight – At only 7.68” x 5.87” x 1.89” and 2.64 lbs, it saves valuable space/weight in your RV, SUV, van, or boat.
  • Easy Installation & Operation – Labeled, and color-coded wires, makes installation simple and quick. Select the battery type with the press of a button, and real time indicator lights provide convenient updates on charging status.
  • Certified Safety for Multiple Battery Types – Compatible with a multitude of alternator types, the Renogy 12V DC to DC Battery Charger with MPPT ensures optimal charging for AGM, Flooded, Gel, and LiFePO4 batteries. It is certified to meet FCC Part 15 Class B, CE, RoHS, and SAA standards.

How Does the 12V 40A DC to DC Battery Charger with MPPT Work?

This new version of DC to DC Battery Charger with MPPT has a dedicated switch to select the preferred charging source. This way, while driving, the DC to DC charger can take full advantage of the full 40A. The only downside is that you must remember to switch to solar when you stop driving and want to charge via your solar array.

When using the engine input with a standard alternator, charging begins when the starting battery voltage is greater than 13.2V. For a smart alternator, charging begins when the starting battery voltage is greater than 12V. Note: The engine charging mode will only work if the alternator is on, so there is no danger of draining the starting battery.

How Renogy battery charger work when DC charging priority

Using the solar charging mode, charging begins as soon as the input voltage is higher than 13V. Note: Remember to manually switch from the engine default mode in order to charge from solar power!

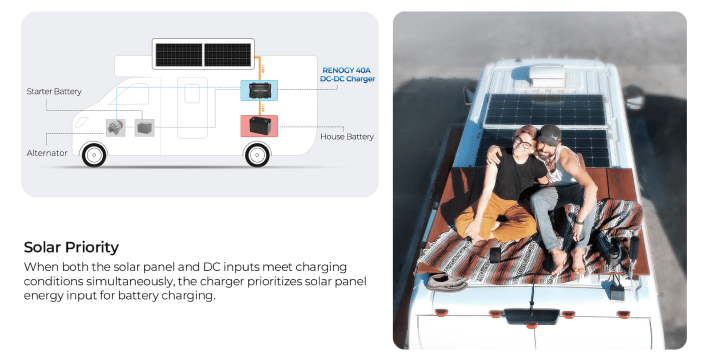

How Renogy battery charger work when solar charging priority

If you're considering installing solar to recharge your house battery on your van, RV, or boat, then it's important to increase your flexibility so that you are prepared for whatever the weather throws your way.Whether you're heading out in your off-grid RV or boat, adding a DC to DC Battery Charger with MPPT to your off-grid charging solutions is a great way to take advantage of the best charging situation now – and remember, it's like two charging devices in one small unit!

With the flip of a switch, you can keep your batteries charged using an engine source OR your solar array, all in one compact and efficient unit. Save some space, money, and headaches with the latest version of Renogy's  12V 40A DC to DC Battery Charger with MPPT.
